本实用新型公开了一种可移动的建筑施工架，包括底板，所述底板上安装有两个相互对称的液压升降机，且液压升降机上远离底板的一端安装有防护栏箱，所述底板的底部安装有底座，且底座为中空结构，所述底座远离底板的一侧开设有开口，且开口处设置有两个移动底盘，所述移动底盘与底座内相互靠近的一侧面上分别通过张力杆连接，且张力杆分别设置在移动底盘的两端，所述张力杆之间通过导位轴连接。该种可移动的建筑施工架，通过在底板的上方设置两个液压升降机，能稳定的对防护栏箱进行升降，使人工在升降的时候，安全性更高，而且在液压升降机的两侧分别设置了活动套与定位杆，能在升降的过程中，防止防护栏箱左右的晃动。
The utility model discloses a movable building construction frame, comprising a base plate, two mutually symmetrical hydraulic lifts are installed on the base plate, and a protective fence box is installed on the end of the hydraulic lift away from the base plate. A base is installed, and the base is a hollow structure. The side of the base away from the bottom plate is provided with an opening, and two mobile chassis are arranged at the opening. , and the tension rods are respectively arranged at both ends of the moving chassis, and the tension rods are connected by a guide shaft. This kind of movable building construction frame can stably lift the guardrail box by setting two hydraulic lifts above the bottom plate, so that the safety is higher when manual lifting is performed, and the two sides of the hydraulic lift are respectively A movable sleeve and a positioning rod are set up, which can prevent the guardrail box from shaking left and right during the lifting and lowering process.
Description
Technical Field
The utility model relates to a building technical field specifically is a mobilizable construction frame.
Background
The construction frame is an indispensable important erecting tool in the construction of constructional engineering, and a commonly used tool is the construction frame in order to obtain enough construction height when a building is constructed. The scaffold is also called a scaffold and is used for supporting personnel and materials during construction or repair of a building, so that the construction personnel can operate at different positions of a high place, and meanwhile, the safety of the construction personnel during operation of the high place can be guaranteed.
Most of the existing building frameworks are constructed by splicing and building, and cannot be moved after being built, when different positions need to be constructed, constructors need to get off the building frameworks from the building frameworks to move away or build the building frameworks again, so that the building frameworks can be moved, and the progress of building construction is influenced. We have therefore improved this and propose a movable construction frame.
SUMMERY OF THE UTILITY MODEL
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a mobilizable construction frame, comprising a base plate, install the hydraulic lift of two mutual symmetries on the bottom plate, and the last one end of keeping away from the bottom plate of hydraulic lift installs the rail guard case, the base is installed to the bottom of bottom plate, and the base is hollow structure, the base is kept away from one side of bottom plate and has been seted up the opening, and the opening part is provided with two and removes the chassis, remove and be connected through the tension pole respectively on the side that is close to each other in chassis and the base, and the tension pole sets up the both ends at removing the chassis respectively, connect through leading the position hub connection between the tension pole, and connect through the tooth cover between two guide shaft, be provided with servo motor on the bottom plate, and be connected through the tooth belt transmission between servo motor's output shaft and the tooth cover.
As a preferred technical scheme of the utility model, the tension bar is "V" type structure, and the tension bar rotates by two branches to be connected, the middle part of tension bar rotates and is connected with the switching piece, and passes through threaded connection between switching piece and the guide shaft.
As a preferred technical scheme of the utility model, two removal wheels are installed to the bottom that removes the chassis, and the perpendicular surface on removal chassis is connected with the guide rod, guide rod and the middle part swing joint who removes the chassis, and the perpendicular middle part at the base of connecting of one end of guide rod.
As a preferred technical scheme of the utility model, the mounting groove has been seted up on the bottom plate, and servo motor sets up directly over the mounting groove, servo motor's bottom is connected with two pole settings perpendicularly, and in the pole setting activity inserted the mounting groove, be connected through tension spring between servo motor's bottom and the mounting groove.
As a preferred technical scheme of the utility model, the supporting leg of two mutual symmetries is installed to the bottom of base, and the supporting leg sets up the both ends at the base opening part respectively.
As a preferred technical scheme of the utility model, the both sides of rail guard case are connected with the mounting panel respectively perpendicularly, and are connected with the locating lever between mounting panel and the bottom plate respectively perpendicularly, the pot head that is close to each other on the locating lever is equipped with the movable sleeve, and the locating lever inserts the both ends of movable sleeve respectively.
The utility model has the advantages that: according to the movable construction frame for the building, the two hydraulic elevators are arranged above the bottom plate, the protective fence box can be stably lifted, so that the safety is higher when workers lift, and the movable sleeves and the positioning rods are respectively arranged on the two sides of the hydraulic elevators, so that the protective fence box can be prevented from shaking left and right in the lifting process;
the bottom at the bottom of bottom plate has set up the base, the supporting leg is installed to the both sides of base, the supporting leg can promote the height of scaffold, prevent that water from contacting the hydraulic lifting rod, and the surface mounting at the bottom plate has servo motor, can control through servo motor and lead the position axle, the tension bar that makes both sides can be under the drive of leading the position axle, carry out the activity of angle, adjust the height on removal chassis, when removing the wheel and having supported the supporting leg, can remove the scaffold, still do not hinder construction worker and construct, thereby construction worker safety protection has been increased, reduce the emergence of construction accident.
Drawings

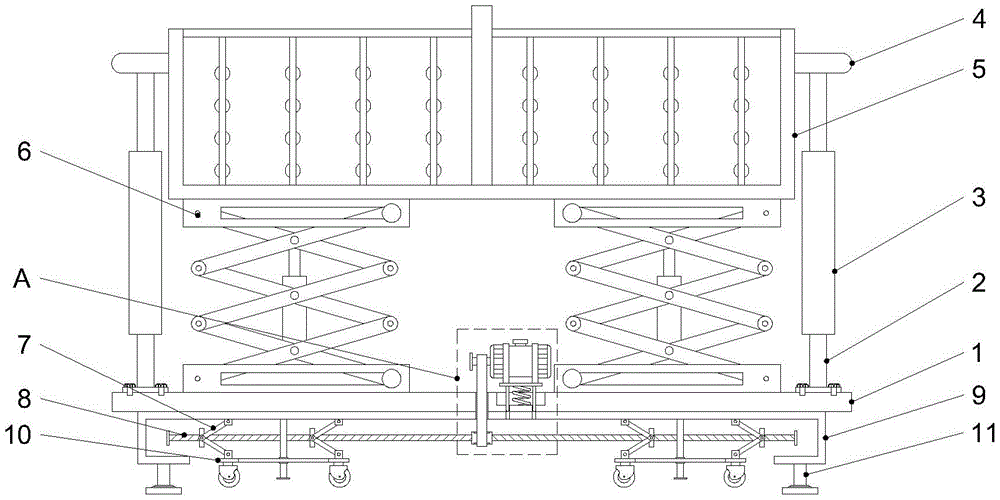

Fig. 1 is a schematic structural view of a movable construction frame of the present invention;
fig. 2 is an enlarged view of a portion a in fig. 1 according to the present invention.
In the figure: 1. a base plate; 2. positioning a rod; 3. a movable sleeve; 4. mounting a plate; 5. a guard rail box; 6. a hydraulic lift; 7. a tension bar; 8. a guide shaft; 9. a base; 10. moving the chassis; 11. supporting legs; 12. a servo motor; 13. a toothed belt; 14. a gear sleeve; 15. a tension spring; 16. and (6) erecting a rod.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example (b): as shown in fig. 1-2, the utility model relates to a mobilizable construction frame, including bottom plate 1, install the hydraulic lift 6 of two mutual symmetries on bottom plate 1, and keep away from the one end of bottom plate 1 on hydraulic lift 6 and install guard rail box 5, base 9 is installed to the bottom of bottom plate 1, and base 9 is hollow structure, base 9 keeps away from one side of bottom plate 1 and has seted up the opening, and the opening part is provided with two removal chassis 10, remove and be connected through tension bar 7 respectively on the side that is close to each other in chassis 10 and the base 9, and tension bar 7 sets up respectively at the both ends on removing chassis 10, connect through guide axle 8 between the tension bar 7, and connect through tooth cover 14 between two guide axle 8, be provided with servo motor 12 on the bottom plate 1, and be connected through the transmission of cingulum 13 between servo motor's 12 output shaft and the tooth cover 14.
Wherein, tension bar 7 is "V" type structure, and tension bar 7 rotates by two branches and connects, and tension bar 7's middle part rotates and is connected with the switching piece, and passes through threaded connection between switching piece and the guide shaft 8.
Wherein, two removal wheels are installed to the bottom of removing chassis 10, and the surface of removing chassis 10 is connected with the guide pole perpendicularly, and guide pole and the middle part swing joint who removes chassis 10, and the middle part at base 9 is connected perpendicularly to the one end of guide pole.
Wherein, seted up the mounting groove on the bottom plate 1, and servo motor 12 sets up directly over the mounting groove, and servo motor 12's bottom is connected with two pole settings 16 perpendicularly, and pole setting 16 activity inserts in the mounting groove, is connected through tension spring 15 between servo motor 12's bottom and the mounting groove.
Wherein, two symmetrical supporting legs 11 are arranged at the bottom of the base 9, and the supporting legs 11 are respectively arranged at two ends of the opening of the base 9.
Wherein, the both sides of rail guard case 5 are connected with mounting panel 4 respectively perpendicularly, and are connected with locating lever 2 respectively perpendicularly between mounting panel 4 and the bottom plate 1, and the pot head that is close to each other on locating lever 2 is equipped with movable sleeve 3, and locating lever 2 inserts the both ends of movable sleeve 3 respectively.
The working principle is as follows: the two hydraulic lifters 6 are arranged above the bottom plate 1, so that the guard rail box 5 can be lifted stably, the safety is higher when workers lift, and the movable sleeve 3 and the positioning rod 2 are arranged on two sides of each hydraulic lifter 6 respectively, so that the guard rail box 5 can be prevented from shaking left and right in the lifting process;
Finally, it should be noted that: in the description of the present invention, it should be noted that the terms "vertical", "upper", "lower", "horizontal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus should not be construed as limiting the present invention.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
