Abstract
本实用新型公开了一种具有警示标志的安全井盖，包括井座和井盖主体，所述井座的内部设置有井盖主体，所述井盖主体内部的中间位置处开设有排水口。该具有警示标志的安全井盖通过设置有荧光层、警示板、放置槽、预留槽、铰接槽、铰接轴和警示标语，下大雨时，很多人会移动井盖主体增大下水道的排水速度，在把井盖主体移开井座的内部时，通过铰接槽和铰接轴把警示板立起来，在警示板的底端和顶端涂覆有警示标语，警示标语可以提醒行人注意安全，在警示标语的外部涂覆有荧光层，荧光层可以使警示板和警示标语在夜里也被行人看到，通过设置荧光层、警示板和警示标语可以减少事故的发生，解决的是没有设置警示标志，容易发生安全事故的问题。
The utility model discloses a safety manhole cover with a warning sign, comprising a well seat and a manhole cover main body. The safety manhole cover with warning signs is provided with a fluorescent layer, a warning board, a placement slot, a reserved slot, a hinged slot, a hinged shaft and a warning slogan. When it rains heavily, many people will move the main body of the manhole cover to increase the drainage speed of the sewer. When the main body of the manhole cover is removed from the inside of the well seat, the warning board is erected through the hinge groove and the hinge shaft. The bottom and top of the warning board are coated with warning signs. The warning signs can remind pedestrians to pay attention to safety. Coated with a fluorescent layer, the fluorescent layer can make the warning board and warning slogan visible to pedestrians at night. By setting the fluorescent layer, warning board and warning slogan, the occurrence of accidents can be reduced. The solution is that there is no warning sign, which is prone to safety. accident problem.
Description
Technical Field
The utility model relates to a well lid technical field specifically is a safety well lid with warning sign.
Background
The well lid is generally used for covering roads and preventing people or objects from falling, the well lid is a part of urban infrastructure, the well lid has potential danger, but for a city, the well lid is an indelible component, a plurality of underground pipelines such as sewers, underground gas pipelines, tap water pipelines, electric power pipelines, communication pipelines, national defense pipelines and the like exist in urban construction, every section of the pipelines needs to be provided with an outlet leading to the ground, the well lid is a closure leading to the top of an access port of the underground infrastructure, and some problems of the existing partial safety well lid are not solved. The existing safety well cover is not provided with a warning sign, so that safety accidents are easy to happen; the bottom end of the well cover is not provided with a protective net, so that the protection performance is poor; the well lid is not limited and fixed, and the stability of the well lid is poor. Therefore, a safety well cover with a warning sign is developed to solve the existing problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a safety well lid with warning mark to propose not setting up warning mark in solving above-mentioned background art, the problem of incident takes place easily.
In order to achieve the above object, the utility model provides a following technical scheme: a safety well lid with a warning sign comprises a well base and a well lid main body, wherein the well lid main body is arranged in the well base, a water outlet is formed in the middle position in the well lid main body, supporting blocks are fixedly connected to two sides and two ends of the bottom end in the well lid main body, mounting blocks are fixedly connected to two ends of two sides of the well base, handles are mounted at two ends of the top of the well lid main body, a placing groove is formed in the top end of one side in the well lid main body, reserved grooves are formed in two sides of the bottom end of the placing groove, a hinge shaft is fixedly connected to the other side in the placing groove, a warning board is arranged in the placing groove, a hinge groove is formed in one side in the warning board, a fluorescent layer is coated outside the warning board, warning signs are coated on the top end and the bottom end of the warning board, and a protective net is arranged at the bottom end of the well lid main body, and two ends of two sides in the well seat are provided with limiting grooves.
Preferably, the hinge shaft is disposed inside the hinge groove, and the warning plate is movably hinged outside the hinge shaft through the hinge groove.
Preferably, the diameter of the inner part of the placing groove is larger than that of the warning plate, and the warning plate is embedded in the inner part of the placing groove.
Preferably, both sides and both ends of protection network fixedly connected with couple respectively, one side fixedly connected with connecting block of installation piece, the mounting groove has been seted up to the inside of connecting block, the couple sets up the inside at the mounting groove.
Preferably, the inside of spacing groove is provided with the connecting rod, the top welding of connecting rod has the commentaries on classics board, the bottom welding of connecting rod has the limiting plate.
Preferably, four groups of limiting grooves are arranged, and the limiting grooves are symmetrically distributed around the vertical center line of the well seat.
Compared with the prior art, the beneficial effects of the utility model are that: the safety well lid with the warning mark not only realizes the arrangement of the warning mark at the top end of the well lid, realizes the arrangement of the protective net at the bottom end of the well lid, but also realizes the limit fixation of the well lid;
(1) by arranging the fluorescent layer, the warning plate, the placing groove, the preformed groove, the hinging shaft and the warning slogan, when raining, a plurality of people can move the well lid main body to increase the drainage speed of a sewer, when the well lid main body is moved away from the inside of the well seat, the warning plate is erected through the hinging groove and the hinging shaft, the warning slogan is coated at the bottom end and the top end of the warning plate, the warning slogan can remind pedestrians of paying attention to safety, workers need to erect the warning plate during underground operation, the fluorescent layer is coated outside the warning slogan, the fluorescent layer can enable the warning plate and the warning slogan to be seen by the pedestrians at night, and accidents can be reduced by arranging the fluorescent layer, the warning plate and the warning slogan;
(2) by arranging the protective net, the hook, the mounting groove and the connecting block, when a pedestrian accidentally falls into the well seat, the protective net at the bottom end in the well seat can protect the pedestrian and prevent the pedestrian from falling into the sewer, the occurrence of accidents can be further reduced by preventing the pedestrian from falling into the sewer pipe, when a worker needs to work in the pit, the hook can be taken out from the mounting groove to disassemble the protective net, and the worker can conveniently work in the pit by disassembling the protective net;
(3) through being provided with the connecting rod, change the board, spacing groove and limiting plate, need carry out the inside of putting into the well lid main part when spacing to the well lid main part, the supporting shoe of the inside bottom of well lid seat can support the well lid main part, it changes the board to rotate after the inside of putting into the well lid main part, it can drive the limiting plate through the connecting rod and rotate to change the board and the limiting plate respectively to the bottom and the top of well lid main part, can fix spacingly to the well lid main part through rotating bottom and the top of changeing board and limiting plate to the well lid main part, fix spacing can prevent that the well lid main part from being washed by rivers under extreme climatic condition to the well lid main part, take away, make well lid main part and well seat produce great displacement, thereby cause accident potential.
Drawings

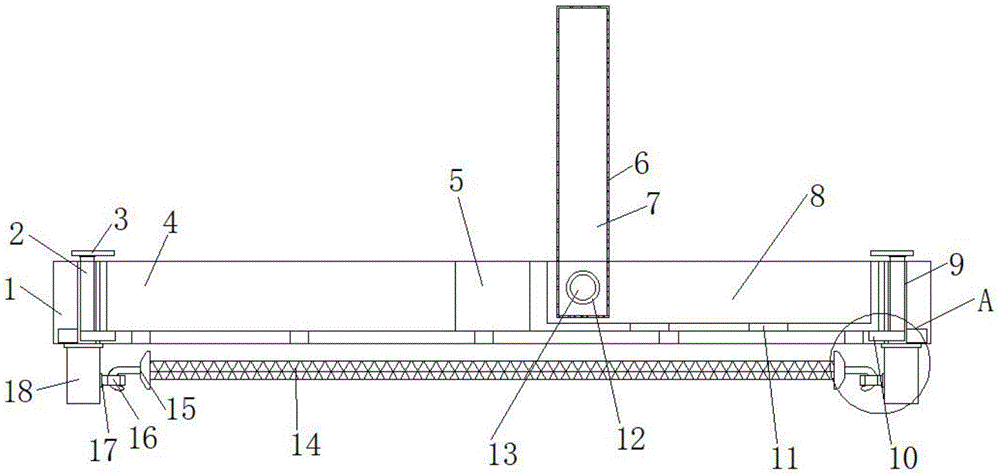

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a schematic top view of the cross-sectional structure of the present invention;
fig. 3 is a schematic view of the overhead structure of the protection net of the present invention;
fig. 4 is an enlarged partial cross-sectional view of the point a in fig. 1 according to the present invention.
In the figure: 1. a well base; 2. a connecting rod; 3. rotating the plate; 4. a well lid main body; 5. a water outlet; 6. a fluorescent layer; 7. a warning board; 8. a placement groove; 9. a limiting groove; 10. a limiting plate; 11. reserving a groove; 12. a hinge slot; 13. hinging a shaft; 14. a protective net; 15. hooking; 16. mounting grooves; 17. connecting blocks; 18. mounting blocks; 19. a handle; 20. a warning slogan; 21. and (7) a supporting block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example 1: referring to fig. 1-4, a safety well lid with a warning sign comprises a well base 1 and a well lid main body 4, wherein the well lid main body 4 is arranged inside the well base 1, a water outlet 5 is arranged in the middle position inside the well lid main body 4, two sides and two ends of the bottom end inside the well lid main body 4 are fixedly connected with supporting blocks 21, two ends of two sides of the well base 1 are fixedly connected with mounting blocks 18, and two ends of the top of the well lid main body 4 are provided with handles 19;
referring to fig. 1-4, the safety well lid with the warning mark further comprises a placing groove 8, the placing groove 8 is formed in the top end of one side inside the well lid main body 4, the preformed grooves 11 are formed in two sides of the bottom end of the placing groove 8, the hinge shaft 13 is fixedly connected to the other side inside the placing groove 8, the warning plate 7 is arranged inside the placing groove 8, the hinge groove 12 is formed in one side inside the warning plate 7, the fluorescent layer 6 is coated outside the warning plate 7, and the warning slogan 20 is coated on the top end and the bottom end of the warning plate 7;
the hinge shaft 13 is arranged inside the hinge groove 12, the warning plate 7 is movably hinged outside the hinge shaft 13 through the hinge groove 12, the diameter of the inside of the placing groove 8 is larger than that of the warning plate 7, and the warning plate 7 is embedded inside the placing groove 8;
specifically, as shown in fig. 1 and 2, when raining, many people can remove the drainage speed of the increase sewer of the well lid main body 4, when the well lid main body 4 is removed from the inside of the well base 1, the warning plate 7 is erected through the hinge grooves 12 and the hinge shafts 13, the warning slogan 20 is coated at the bottom end and the top end of the warning plate 7, the warning slogan 20 can remind pedestrians of paying attention to safety, workers also need to erect the warning plate 7 during underground operation, the fluorescent layer 6 is coated outside the warning slogan 20, the fluorescent layer 6 can enable the warning plate 7 and the warning slogan 20 to be seen by pedestrians at night, and accidents can be reduced by arranging the fluorescent layer 6 and the warning plate 7 and the warning slogan 20.
Example 2: a protective net 14 is arranged at the bottom end of the well lid main body 4, hooks 15 are fixedly connected to two sides and two ends of the protective net 14 respectively, a connecting block 17 is fixedly connected to one side of an installation block 18, an installation groove 16 is formed in the connecting block 17, and the hooks 15 are arranged in the installation groove 16;
specifically, as shown in fig. 1, 2 and 3, the protection net 14 at the bottom end inside the well seat 1 can protect the pedestrian from dropping into the inside of the sewer when the pedestrian accidentally drops into the inside of the well seat 1, the occurrence of accidents can be further reduced by preventing the pedestrian from dropping into the inside of the sewer, the hook 15 can be taken out from the inside of the mounting groove 16 to complete the disassembly of the protection net 14 when the worker needs the downhole operation, and the worker can conveniently perform the downhole operation by disassembling the protection net 14.
Example 3: limiting grooves 9 are formed in two ends of two sides of the interior of the well base 1, connecting rods 2 are arranged in the limiting grooves 9, rotating plates 3 are welded at the top ends of the connecting rods 2, limiting plates 10 are welded at the bottom ends of the connecting rods 2, four groups of limiting grooves 9 are arranged, and the limiting grooves 9 are symmetrically distributed about the vertical center line of the well base 1;
specifically, as fig. 1, fig. 2, fig. 3 and fig. 4 are shown, need carry out the inside of putting into well lid main part 4 well seat 1 when spacing to well lid main part 4, the supporting shoe 21 of the inside bottom of well seat 1 can support well lid main part 4, rotate swivel plate 3 after putting into the inside of well lid main part 1 to well lid main part 4, swivel plate 3 can drive limiting plate 10 through connecting rod 2 and rotate, swivel plate 3 and limiting plate 10 rotate the bottom and the top of well lid main part 4 respectively, can fix spacingly to well lid main part 4 through rotating bottom and the top of well lid main part 4 to swivel plate 3 and limiting plate 10, fix spacing to well lid main part 4 and can prevent well lid main part 4 from being washed up by rivers under the extreme condition of weather, take away, make well lid main part 4 and well seat 1 produce great displacement, thereby cause accident hidden danger.
The working principle is as follows: when the utility model is used, a plurality of people can move the well lid main body 4 to increase the drainage speed of the sewer, when the well lid main body 4 is moved away from the inside of the well base 1, the warning board 7 is erected through the hinge grooves 12 and the hinge shafts 13, the bottom end and the top end of the warning board 7 are coated with the warning slogan 20, the warning slogan 20 can remind pedestrians of paying attention to safety, when the workers work in the pit, the warning board 7 also needs to be erected, the outside of the warning slogan 20 is coated with the fluorescent layer 6, the fluorescent layer 6 can ensure that the warning board 7 and the warning slogan 20 can be seen by the pedestrians at night, when the pedestrians accidentally fall into the well base 1, the protective net 14 at the bottom end inside the well base 1 can protect the pedestrians from falling into the inside of the sewer, the occurrence of accidents can be further reduced by preventing the pedestrians from falling into the inside of the sewer, the well lid main body 4 is placed into the inside of the well base 1 when the well lid main body 4 needs to be limited, supporting shoe 21 of 1 inside bottom of well seat can support well lid main part 4, put into well lid main part 4 and rotate after the inside of well seat 1 and change board 3, it can drive limiting plate 10 through connecting rod 2 and rotate to change board 3 and limiting plate 10 through rotating, it can be fixed spacingly to well lid main part 4, fix well lid main part 4 spacing can prevent that well lid main part 4 from being washed up by rivers under extreme climatic condition, take away, make well lid main part 4 produce great displacement with well seat 1, thereby cause the accident hidden danger.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. The utility model provides a safety well lid with warning sign, includes well seat (1) and well lid main part (4), its characterized in that: the manhole cover comprises a manhole cover seat (1), a manhole cover main body (4) is arranged in the manhole cover seat (1), a water outlet (5) is formed in the middle position of the inner portion of the manhole cover main body (4), supporting blocks (21) are fixedly connected to two sides and two ends of the inner bottom of the manhole cover main body (4), mounting blocks (18) are fixedly connected to two ends of two sides of the manhole cover seat (1), handles (19) are mounted at two ends of the top of the manhole cover main body (4), a placing groove (8) is formed in the top end of one side of the inner portion of the manhole cover main body (4), reserved grooves (11) are formed in two sides of the bottom end of the placing groove (8), a hinge shaft (13) is fixedly connected to the other side of the inner portion of the placing groove (8), a warning plate (7) is arranged in the placing groove (8), a hinge groove (12) is formed in one side of the inner portion of the warning plate (7), and a fluorescent layer (6) is coated on the outer portion of the warning plate (7), the top and the bottom coating of warning board (7) have warning poster (20), the bottom of well lid main part (4) is provided with protection network (14), spacing groove (9) have been seted up at the both ends of the inside both sides of well seat (1).
2. The safety well lid with the warning sign according to claim 1, wherein: the hinge shaft (13) is arranged in the hinge groove (12), and the warning plate (7) is movably hinged outside the hinge shaft (13) through the hinge groove (12).
3. The safety well lid with the warning sign according to claim 1, wherein: the diameter of the inner part of the placing groove (8) is larger than that of the warning board (7), and the warning board (7) is embedded in the placing groove (8).
4. The safety well lid with the warning sign according to claim 1, wherein: both sides and both ends of protection network (14) are fixedly connected with couple (15) respectively, one side fixedly connected with connecting block (17) of installation piece (18), mounting groove (16) have been seted up to the inside of connecting block (17), couple (15) set up the inside at mounting groove (16).
5. The safety well lid with the warning sign according to claim 1, wherein: the inside of spacing groove (9) is provided with connecting rod (2), the top welding of connecting rod (2) has commentaries on classics board (3), the bottom welding of connecting rod (2) has limiting plate (10).
6. The safety well lid with the warning sign according to claim 1, wherein: four groups of limiting grooves (9) are arranged, and the limiting grooves (9) are symmetrically distributed around the vertical center line of the well base (1).
