Abstract
The utility model discloses a reinforced concrete composite beam which uses a steel bar truss and a steel plate as temporary supports, comprising a concrete bridge deck, a plurality of steel longitudinal beams and a plurality of groups of steel cross beams, wherein the steel longitudinal beams and the steel cross beams are arranged below the concrete bridge deck; a plurality of steel longitudinal beams and a plurality of groups of steel cross beams are alternately arranged; the steel longitudinal beams are fixed with the concrete bridge deck through a steel bar frame-thin steel plate structure arranged below the concrete bridge deck; gaps are reserved between the upper flange plates of the steel beams and the reinforcing steel frame-thin steel plate structure; the steel bar frame-thin steel plate structure comprises a plurality of thin steel plates, a plurality of transverse steel bar trusses, a plurality of rear-mounted annular steel bars and a plurality of longitudinal steel bars. During construction, welding and installing a transverse steel bar truss; then hoisting the steel bar frame-thin steel plate structure sections to form steel longitudinal beam-steel bar frame-thin steel plate structure combined sections; and (4) transporting and installing the steel longitudinal beam-reinforcing frame-thin steel plate structure combined segment, and finally pouring bridge deck concrete. The utility model discloses further reduce on-the-spot high altitude construction risk, accelerate site operation speed.
Description
Technical Field
The utility model relates to a bridge construction technical field, in particular to with the steel reinforced concrete composite beam who uses steel bar truss and steel sheet to make interim supporting.
Background
The existing steel-concrete composite beam (particularly) usually adopts a form of firstly installing steel beams at a bridge site and then pouring concrete bridge decks, or a form of firstly positioning the steel beams on pedestals, pouring the concrete bridge decks, and then integrally transporting and hoisting the steel-concrete composite beam in place.
The above prior art has a key process of pouring concrete deck slab. In the construction of the steel-concrete composite beam, a bottom formwork is usually required to be arranged as a precondition for the construction of a concrete bridge deck.
The bottom template has 2 types: temporary forms (wooden or steel forms), permanent forms (steel structural slabs, steel frames-sheet steel).
The permanent formwork has no great difference to the construction of concrete bridge deck. From the view of template manufacture and engineering economy, the manufacture of the steel structure base plate is more convenient, but the steel amount for the structure is larger and is not economical; the steel frame-thin steel plate is slightly troublesome to manufacture, but the steel amount of the structure is small, and the economy is good.
Therefore, how to further reduce the risk of high-altitude operation on the site and increase the speed of construction on the site becomes a technical problem which needs to be solved by the technicians in the field.
SUMMERY OF THE UTILITY MODEL
In view of the above-mentioned defect of prior art, the utility model provides a make the steel-concrete composite beam of temporary support with steel bar truss and steel sheet, the purpose of realization is that further reduce on-the-spot high altitude construction risk, accelerate on-the-spot construction speed.
In order to achieve the above object, the present invention discloses a steel reinforced concrete composite beam using a steel bar truss and a steel plate as a temporary support, wherein the steel reinforced concrete composite beam is provided with a plurality of channels at the cross section of the bridge.
Each steel concrete composite beam comprises a concrete bridge deck, a plurality of steel longitudinal beams and a plurality of groups of steel cross beams, wherein the steel longitudinal beams and the steel cross beams are arranged below the concrete bridge deck;
the plurality of steel longitudinal beams and the plurality of groups of steel cross beams are alternately arranged, namely, one group of steel cross beams are arranged between every two adjacent steel longitudinal beams, and one steel longitudinal beam is arranged between every two groups of adjacent steel cross beams;
each steel longitudinal beam is fixed with the concrete bridge deck through a steel bar frame-thin steel plate structure arranged below the concrete bridge deck;
a gap is reserved between the upper flange of each steel beam and the steel bar frame-thin steel plate structure;
the steel bar frame-thin steel plate structure comprises a plurality of thin steel plates, a plurality of transverse steel bar trusses, a plurality of rear-mounted annular steel bars and a plurality of longitudinal steel bars;
each of the steel sheets comprises a central steel sheet, an outside box lap steel sheet and an outside box lap steel sheet;
each transverse steel bar truss comprises truss annular steel bars, continuous framework steel bars and local framework steel bars;
each central thin steel plate is manufactured into a shape which is attached to the bottom edge of the concrete bridge deck plate in a bending mode and is lapped with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each steel plate outside the box is made into a shape which is attached to the bottom edge of the concrete bridge deck slab in a bending mode, is lapped with the upper flange plate of the steel beam of the corresponding steel longitudinal beam and is transversely connected with the other adjacent steel concrete composite beam;
each box outer lap joint thin steel plate and the transverse connecting position of the other adjacent steel concrete composite beam are locally bent downwards, and a lap joint straight section after bending is reserved;
the lap joint straight section and the outside box lapped thin steel plate of the other adjacent steel concrete composite beam are overlapped and connected;
each steel plate lapped outside the box is manufactured into a shape which is attached to the bottom edge of the concrete bridge deck slab in a bending mode, and is lapped with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each of the center thin steel plate, each of the outside box lap thin steel plates, and each of the outside box overlapped thin steel plates is connected with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each truss annular steel bar is folded into an annular shape in a steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each continuous framework steel bar is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode; the inclined section completely penetrates through the bearing area of the concrete bridge deck and extends along the angle of the surface of the bearing area;
each local framework steel bar is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode;
each rear-mounted annular reinforcing steel bar is folded into an annular shape in a reinforcing steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each truss annular steel bar is connected with the corresponding continuous framework steel bar and the corresponding local framework steel bar in a single-sided or double-sided continuous welding mode at the straight sections of the corresponding continuous framework steel bar and the corresponding local framework steel bar;
each afterloading annular reinforcing steel bar is connected with the corresponding truss annular reinforcing steel bar in a mode of performing intermittent spot welding on the intersection section of the afterloading annular reinforcing steel bar and the truss annular reinforcing steel bar;
each truss ring-shaped steel bar and each continuous framework steel bar are connected with the corresponding central thin steel plate, the corresponding outside box lap joint thin steel plate and the corresponding outside box lap joint thin steel plate in a spot welding mode;
each longitudinal steel bar is connected with the corresponding truss annular steel bar, the corresponding continuous framework steel bar, the corresponding local framework steel bar and the corresponding after-loading annular steel bar in a steel wire binding mode at the intersection point;
the cross section of each steel longitudinal beam is U-shaped, and the steel beam upper flange plate is provided with a welding nail to be connected with the concrete bridge deck plate.
Preferably, a cushion block is arranged between each steel beam upper flange plate and the concrete bridge deck.
Preferably, each of the central thin steel plate, each of the box outer lap-joint thin steel plates, and each of the lap-joint thin steel plates of the box outer lap-joint thin steel plate and the corresponding lap-joint part of the steel beam upper flange plate are bent to reserve head sections; the transverse length of the head-out section is not less than 30 mm.
Preferably, the vertical height difference between the lap straight section and the main body section after the transverse connecting position of each of the outside box lap thin steel plates and the adjacent other steel-concrete composite beam is bent is 1-2 mm;
and the transverse overlapping length of the lapped thin steel plates outside the box of the bent lapped straight section and the other adjacent steel-concrete composite beam is not less than 50 mm.
Preferably, the distance between one end of each of the steel sheets lapped outside the box, which is close to another adjacent steel-concrete composite beam, and the center line of the on-site connecting seam of another adjacent steel-concrete composite beam is 50 mm.
Preferably, the longitudinal direction of each of the central steel sheet, the outer box overlapping steel sheet and the outer box overlapped steel sheet is segmented according to the length of a steel sheet raw material, or segmented according to the corresponding steel longitudinal beam segment;
each subsection is provided with a longitudinal connection;
each longitudinal connection is locally bent towards the outer side of the concrete bridge deck, and a bent segmented straight section is reserved;
the height difference between the bent segmented flat straight section and the segmented main body section is 1-2 mm;
the longitudinal overlapping length of the bent segmented flat section and the segmented main body section is not less than 50 mm.
Each of the center thin steel plate, each of the outside box lap thin steel plates, and each of the outside box lapped thin steel plates has a thickness of 1 mm to 2 mm.
Preferably, the diameter of each truss annular reinforcing steel bar and each afterloading annular reinforcing steel bar is not less than 16 mm;
the straight section length of each continuous framework steel bar is not less than 150 mm, and the angle of the inclined section is preferably 135-160 degrees;
the straight section length of each local framework steel bar is not less than 150 mm; the angle of the inclined section is preferably 135 °.
Preferably, each of the central thin steel plate, each of the box outer lap thin steel plates and each of the box outer lapped thin steel plates are connected with the corresponding steel beam upper flange plate by elastic adhesive in a discontinuous spot welding mode at the outer side of the concrete bridge deck;
each box outer lap joint thin steel plate and the corresponding box outer lapped thin steel plate are connected by elastic viscose glue in a discontinuous spot welding mode on the outer side of the concrete bridge deck;
and each corresponding central thin steel plate, each corresponding box outer lap thin steel plate and each corresponding box outer lap thin steel plate adopt elastic viscose glue in the longitudinal direction and are connected at the outer side of the concrete bridge deck in a discontinuous spot welding mode.
More preferably, the elastic adhesive is a special adhesive for metal, and the thickness is not less than 2 mm.
The utility model has the advantages that:
the utility model discloses satisfying under the prerequisite of structural security, can remove from and set up the support at the scene, further reduce on-the-spot high altitude construction risk, accelerate site operation speed.
The utility model discloses well horizontal steel truss adopts the form of the additional cockscomb structure reinforcing bar combination of reinforcing bar ring, has improved reinforcing bar machining efficiency, has improved steel reinforcement cage rigidity, has improved the off-plate rigidity of bottom plate, does benefit to and guarantees concrete placement construction deviation and meets the requirements.
The utility model discloses total sheet steel adopts 1 millimeter to 2 millimeters thickness, and the material quantity is few, structure economic nature is good.
The utility model discloses well sheet steel adopts the section of stretching out to adopt the horizontal concatenation form of indulging of elasticity viscose and spot welding, and the construction is simplified to the deviation of easily adjusting.
The utility model discloses an use and make on-spot concatenation annular reinforcing bar and transverse steel bar truss adopt the form that spot welding is connected, change in the site operation.
The conception, the specific structure and the technical effects of the present invention will be further described with reference to the accompanying drawings, so as to fully understand the objects, the features and the effects of the present invention.
Drawings

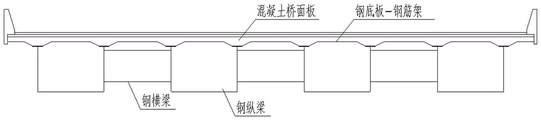

Fig. 1 shows a schematic view of a total cross-sectional structure of a bridge according to an embodiment of the present invention.
Fig. 2 shows a schematic cross-sectional structure diagram of an embodiment of the present invention.
Fig. 3 shows a schematic diagram of a partially enlarged structure at a in fig. 2 according to the present invention.
Fig. 4 is a schematic diagram illustrating a partial enlarged structure at B in fig. 2 according to the present invention.
Fig. 5 shows a schematic structural diagram of a steel longitudinal beam joint according to an embodiment of the present invention.
Fig. 6 shows a schematic structural view of the section 1-1 of fig. 5 of the present invention fixed by elastic adhesive and welding.

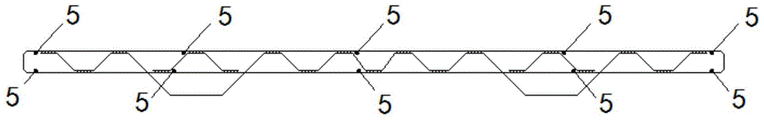

Fig. 7 shows an installation position diagram of 10 longitudinal steel bars when the transverse steel bar truss is positioned in an embodiment of the present invention.
Fig. 8 shows a schematic layout of the steel longitudinal beam-steel bottom plate-steel bar combined segment on the plane of the bridge according to an embodiment of the present invention.
Detailed Description
Examples
As shown in fig. 1 to 8, the steel-concrete composite girder temporarily supporting the steel bar truss and the steel plate is provided with a plurality of channels at the cross section of the bridge.
Each steel concrete composite beam comprises a concrete bridge deck, a plurality of steel longitudinal beams and a plurality of groups of steel cross beams, wherein the steel longitudinal beams and the steel cross beams are arranged below the concrete bridge deck;
the steel longitudinal beams and the steel cross beams are alternately arranged, namely a group of steel cross beams are arranged between every two adjacent steel longitudinal beams, and a steel longitudinal beam is arranged between every two groups of adjacent steel cross beams;
each steel longitudinal beam is fixed with the concrete bridge deck through a steel bar frame-thin steel plate structure arranged below the concrete bridge deck;
a gap is reserved between the upper wing of each steel beam and the steel bar frame-thin steel plate structure;
the steel bar frame-thin steel plate structure comprises a plurality of thin steel plates, a plurality of transverse steel bar trusses, a plurality of rear annular steel bars n4 and a plurality of longitudinal steel bars n 5;
each steel sheet comprises a central steel sheet 1, an outside box lap steel sheet 2 and an outside box lap steel sheet 3;
each transverse steel bar truss comprises truss annular steel bars n1, continuous framework steel bars n2 and local framework steel bars n 3;
each central thin steel plate 1 is manufactured into a shape which is attached to the bottom edge of the concrete bridge deck slab in a bending mode and is lapped with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each steel plate 2 for external lapping is made into a shape fitting with the bottom edge of the concrete bridge deck slab in a bending mode, is lapped with the upper flange plate of the steel beam of the corresponding steel longitudinal beam and is transversely connected with the other adjacent steel concrete composite beam;
the transverse connecting position of each box outer lap joint thin steel plate 2 and the adjacent other steel concrete composite beam is locally bent downwards, and a lap joint straight section after bending is reserved;
the lap joint straight section is overlapped with and connected with the lap joint thin steel plate 3 outside the box of the other adjacent steel concrete composite beam;
each steel plate 3 to be lapped outside the box is made into a shape which is attached to the bottom edge of the concrete bridge deck slab in a bending mode and is lapped with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each central thin steel plate 1, each box outer lap thin steel plate 2 and each box outer lap thin steel plate 3 are connected with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each truss annular steel bar n1 is folded into an annular shape in a steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each continuous framework steel bar n2 is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode; the inclined section completely penetrates through the bearing area of the concrete bridge deck and extends along the angle of the surface of the bearing area;
each local framework steel bar n3 is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode;
each rear-mounted annular steel bar n4 is folded into an annular shape in a steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each truss annular steel bar n1 is connected with the corresponding continuous framework steel bar n2 and the corresponding partial framework steel bar n3 in a mode of performing single-sided or double-sided continuous welding on straight sections of the corresponding continuous framework steel bar n2 and the corresponding partial framework steel bar n 3;
each afterloading annular steel bar n4 is connected with the corresponding truss annular steel bar n1 in a mode of performing intermittent spot welding on the intersection section of the afterloading annular steel bar n4 and the truss annular steel bar n 1;
each truss ring-shaped steel bar n1 and each continuous framework steel bar n2 are connected with the corresponding central thin steel plate 1, the corresponding outside box lapping thin steel plate 2 and the corresponding outside box lapped thin steel plate 3 in a spot welding mode;
each longitudinal steel bar n5 is connected with a corresponding truss annular steel bar n1, a corresponding continuous framework steel bar n2, a corresponding local framework steel bar n3 and a corresponding afterloading annular steel bar n4 through steel wire binding at the intersection points;
the cross section of each steel longitudinal beam is U-shaped, and the steel beam upper flange plate is provided with a welding nail to be connected with the concrete bridge deck plate.
The principle of the utility model is as follows:
the transverse steel truss adopts a steel bar ring additional zigzag structure of truss annular steel bars n1, continuous framework steel bars n2 and local framework steel bars n3, so that the processing efficiency of the steel bars is improved, the rigidity of a steel bar cage is improved, the out-of-plane rigidity of a steel bottom plate is improved, the requirement for meeting the concrete pouring construction deviation is favorably ensured, the risk of field high-altitude operation can be further reduced, and the field construction speed is accelerated.
In some embodiments, a spacer is disposed between each steel beam upper flange plate and the concrete bridge deck.
In some embodiments, the lap joints of each central steel sheet 1, each box outer lap steel sheet 2 and each box outer lapped steel sheet 3 and the corresponding steel beam upper flange plate are bent to reserve head sections; the transverse length of the head-out section is not less than 30 mm.
In some embodiments, the vertical height difference between the lapped straight section and the main section after the transverse connecting position of each of the external lapping thin steel plates 2 and the adjacent other steel concrete composite beam is bent is 1 mm to 2 mm;
the transverse overlapping length of the lapped straight section after bending and the overlapped thin steel plate 3 outside the box of the other adjacent steel reinforced concrete composite beam is not less than 50 mm.
In some embodiments, the distance between one end of each of the steel sheets 3 close to the other adjacent steel-concrete composite beam and the center line of the on-site connecting seam of the other adjacent steel-concrete composite beam is 50 mm.
In some embodiments, the longitudinal direction of each of the central steel sheet 1, the out-of-box lap steel sheet 2 and the out-of-box overlapped steel sheet 3 is segmented according to the length of the steel sheet stock, or segmented according to the corresponding steel stringer segments;
each subsection is provided with a longitudinal connection;
each longitudinal connection is locally bent towards the outer side of the concrete bridge deck, and a bent segmented straight section is reserved;
the height difference between the bent segmented flat section and the segmented main body section is 1 mm to 2 mm;
the longitudinal overlapping length of the bent segmented flat section and the segmented main body section is not less than 50 mm.
Each of the center thin steel plate 1, each of the outside lap thin steel plates 2, and each of the outside lap thin steel plates 3 has a thickness of 1 mm to 2 mm.
In some embodiments, each truss ring reinforcement n1 and each afterloading ring reinforcement n4 has a diameter of no less than 16 millimeters;
the straight section length of each continuous framework steel bar n2 is not less than 150 mm, and the angle of the inclined section is preferably 135-160 degrees;
the straight section length of each partial skeleton steel bar n3 is not less than 150 mm; the angle of the inclined section is preferably 135 °.
In some embodiments, each of the central thin steel plate 1, each of the outside lap thin steel plates 2 and each of the outside lapped thin steel plates 3 is connected with the corresponding upper flange plate of the steel beam by elastic adhesive in a discontinuous spot welding mode on the outer side of the concrete bridge deck;
each box outer lap joint thin steel plate 2 and the corresponding box outer lapped thin steel plate 3 are connected by elastic viscose glue in a discontinuous spot welding mode at the outer side of the concrete bridge deck;
and each corresponding central thin steel plate 1, each corresponding box outer lap thin steel plate 2 and each corresponding box outer lap thin steel plate 3 adopt elastic viscose glue in the longitudinal direction and are connected at the outer side of the concrete bridge deck in a discontinuous spot welding mode.
In some embodiments, the elastic adhesive is a metal-specific adhesive with a thickness of not less than 2 mm.
The utility model discloses still provide the construction method who makes the steel-concrete composite beam of temporary support with steel bar truss and steel sheet, the step is as follows:
installing 10 longitudinal steel bars n5 in the plurality of transverse steel bar trusses, and binding and stabilizing all the longitudinal steel bars n5 with adjacent truss annular steel bars n1 and continuous framework steel bars n2 to form a steel bar frame-thin steel plate structural section;
1 longitudinal steel bar n5 is arranged in the leftmost ring of the corresponding transverse steel bar truss from top to bottom;
1 steel bar truss is arranged in the rightmost ring of the corresponding transverse steel bar truss from top to bottom;
1 transverse steel bar truss and 1 transverse steel bar truss are respectively arranged in the upper ring of the left flange plate of the steel longitudinal beam;
1 transverse steel bar truss and 1 transverse steel bar truss are respectively arranged in the upper ring of the right flange plate of the steel longitudinal beam;
1 steel bar truss is arranged in the central ring of the corresponding transverse steel bar truss from top to bottom;
step 4, hoisting the steel bar frame-thin steel plate structure sections to the positions above the steel longitudinal beam sections, and binding cushion blocks below the corresponding continuous framework steel bars n 2;
pre-assembling to check the manufacturing deviation, and then lifting the steel bar frame-thin steel plate structural section to a position 500mm above the steel longitudinal beam section;
step 6, transporting the steel longitudinal beam-reinforcing frame-thin steel plate structure combined sections to a bridge site, and installing the combined sections of each beam;
during the installation process, the transverse connection and the longitudinal connection of the segments are considered together, and preferably, the transverse connection and the longitudinal connection are performed in the order from one transverse side to the other transverse side and from one longitudinal end to the other longitudinal end: firstly, completing the installation of one side beam from the fulcrum section of the side beam on one side, then sequentially installing other sections from the fulcrum section of the middle beam adjacent to the side beam along the longitudinal direction, and then sequentially installing the sections of the other main beams;
in the installation process, the plane positioning deviation of each combined section is required to be less than 10mm, the vertical positioning deviation is required to be less than 5mm, and the thin steel plate and the elastic adhesive are required to be closely attached;
in the installation process, the steel longitudinal beams and the steel transverse beams are connected on site according to the construction process of the conventional steel-concrete composite beam;
step 7, starting from the installation of the second steel longitudinal beam-steel bar frame-thin steel plate structure combination section, before the alignment, elastic viscose glue is arranged at the splicing part of the longitudinal previous steel longitudinal beam-steel bar frame-thin steel plate structure combination section and the transverse adjacent steel longitudinal beam-steel bar frame-thin steel plate structure combination section; after the alignment is finished, slightly knocking the lap joint of the thin steel plates to enable the thin steel plates to be attached to the elastic adhesive; connecting the adjacent thin steel plates by spot welding;
and 8, installing a rear-installed annular steel bar n4 at the site joint, and connecting the rear-installed annular steel bar n4 with a corresponding truss annular steel bar n1 through spot welding.
And 9, installing the remaining longitudinal steel bars n5, and binding and connecting each longitudinal steel bar n5 with the corresponding truss annular steel bar n1, the corresponding continuous framework steel bar n2 and the corresponding afterloading annular steel bar n 4.
And 10, pouring bridge deck concrete to form the complete steel-concrete composite beam.
The foregoing has described in detail preferred embodiments of the present invention. It should be understood that numerous modifications and variations can be devised by those skilled in the art in light of the present teachings without departing from the inventive concepts. Therefore, the technical solutions that can be obtained by a person skilled in the art through logic analysis, reasoning or limited experiments based on the prior art according to the concepts of the present invention should be within the scope of protection defined by the claims.
Claims (9)
1. The steel-concrete composite beam is temporarily supported by a steel bar truss and a steel plate, and a plurality of steel-concrete composite beams are arranged on the cross section of the bridge; the method is characterized in that:
each steel concrete composite beam comprises a concrete bridge deck, a plurality of steel longitudinal beams and a plurality of groups of steel cross beams, wherein the steel longitudinal beams and the steel cross beams are arranged below the concrete bridge deck;
the plurality of steel longitudinal beams and the plurality of groups of steel cross beams are alternately arranged, namely, one group of steel cross beams are arranged between every two adjacent steel longitudinal beams, and one steel longitudinal beam is arranged between every two groups of adjacent steel cross beams;
each steel longitudinal beam is fixed with the concrete bridge deck through a steel bar frame-thin steel plate structure arranged below the concrete bridge deck;
a gap is reserved between the upper flange plate of each steel cross beam and the steel bar frame-thin steel plate structure;
the steel bar frame-thin steel plate structure comprises a plurality of thin steel plates, a plurality of transverse steel bar trusses, a plurality of after-installed annular steel bars (n4) and a plurality of longitudinal steel bars (n 5);
each of the steel sheets comprises a central steel sheet (1), an outside lap steel sheet (2) and an outside lap steel sheet (3);
each transverse steel bar truss comprises truss annular steel bars (n1), continuous framework steel bars (n2) and local framework steel bars (n 3);
each central thin steel plate (1) is manufactured into a shape which is attached to the bottom edge of the concrete bridge deck plate in a bending mode and is in lap joint with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each steel plate (2) for external lapping is made into a shape which is attached to the bottom edge of the concrete bridge deck by adopting a bending mode, is lapped with the upper flange plate of the steel beam of the corresponding steel longitudinal beam and is transversely connected with the other adjacent steel concrete composite beam;
each box outer lap joint thin steel plate (2) and the transverse connecting position of the other adjacent steel concrete composite beam are locally bent downwards, and a lap joint straight section after bending is reserved;
the lap joint straight section and the other adjacent steel reinforced concrete composite beam are overlapped and connected through a lap joint thin steel plate (3);
each steel sheet (3) lapped outside the box is manufactured into a shape which is attached to the bottom edge of the concrete bridge deck slab in a bending mode, and is lapped with the steel beam upper flange plate of the corresponding steel longitudinal beam;
each of the center thin steel plate (1), each of the box outer lap thin steel plates (2), and each of the box outer overlapped thin steel plates (3) is connected to the steel beam upper flange plate of the corresponding steel side rail;
each truss annular steel bar (n1) is folded into an annular shape in a steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each continuous framework steel bar (n2) is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode; the inclined section completely penetrates through the bearing area of the concrete bridge deck and extends along the angle of the surface of the bearing area;
each local framework steel bar (n3) is folded into a sawtooth shape with a straight section and an inclined section in a steel bar bending mode;
each rear-mounted annular steel bar (n4) is folded into an annular shape in a steel bar bending mode, and a horizontal lap joint section is arranged in the center of the straight section;
each truss ring-shaped steel bar (n1) is connected with the corresponding continuous framework steel bar (n2) and the corresponding partial framework steel bar (n3) in a mode of performing single-sided or double-sided continuous welding on the straight sections of the corresponding continuous framework steel bar (n2) and the corresponding partial framework steel bar (n 3);
each afterloading annular steel bar (n4) and the corresponding truss annular steel bar (n1) are connected in a mode of performing intermittent spot welding on the intersection section of the afterloading annular steel bar (n4) and the truss annular steel bar (n 1);
each truss ring-shaped steel bar (n1) and each continuous framework steel bar (n2) are connected with the corresponding central thin steel plate (1), the corresponding outside lap thin steel plate (2) and the corresponding outside lap thin steel plate (3) in a spot welding mode;
-wire-tying connections between each said longitudinal reinforcement (n5) and a respective said truss loop reinforcement (n1), a respective said continuous skeleton reinforcement (n2), a respective said partial skeleton reinforcement (n3) and a respective said rear-load loop reinforcement (n4) at intersections;
the cross section of each steel longitudinal beam is U-shaped, and the steel longitudinal beams are fixed with the steel bar frame thin steel plate structure through welding nails arranged on flange plates on the steel beams.
2. The steel-concrete composite girder according to claim 1, wherein a spacer is provided between each of the upper flanges of the steel girders and the concrete deck slab.
3. The steel-concrete composite beam with steel bar trusses and steel plates for temporary support according to claim 1, wherein each of said central thin steel plate (1), each of said out-of-box lap thin steel plates (2), and each of said out-of-box lap thin steel plates (3) is folded at the lap joint with the flange plate of the corresponding steel beam to reserve a head section; the transverse length of the head-out section is not less than 30 mm.
4. The steel-concrete composite beam temporarily supporting a steel bar truss and a steel plate as claimed in claim 1, wherein the vertical height difference between the lap straight section and the main body section after the transverse connecting position of each of the out-of-box lap steel sheets (2) and the adjacent other steel-concrete composite beam is bent is 1 mm to 2 mm;
the transverse overlapping length of the lapped straight section after being bent and the overlapped thin steel plate (3) outside the box of the other adjacent steel concrete composite beam is not less than 50 mm.
5. The steel-concrete composite girder with steel bar trusses and steel plates for temporary support according to claim 1, wherein each of the steel sheets (3) to be lapped outside the box has a distance of 50mm from a center line of a spot joint of another adjacent steel-concrete composite girder, which is close to one end of another adjacent steel-concrete composite girder.
6. The steel-concrete composite beam with steel bar trusses and steel plates for temporary support according to claim 1, wherein the longitudinal direction of each of said central steel sheet (1), each of said out-of-box lap steel sheets (2) and each of said out-of-box lap steel sheets (3) is sectioned according to the length of the steel plate stock or sectioned according to the corresponding steel stringer section;
each subsection is provided with a longitudinal connection;
each longitudinal connection is locally bent towards the outer side of the concrete bridge deck, and a bent segmented straight section is reserved;
the height difference between the bent segmented flat straight section and the segmented main body section is 1-2 mm;
the longitudinal overlapping length of the bent segmented flat straight section and the segmented main body section is not less than 50 mm;
each of the center thin steel plate (1), each of the outside lap thin steel plates (2), and each of the outside lap thin steel plates (3) has a thickness of 1 mm to 2 mm.
7. The steel-concrete composite girder with steel bar trusses and steel plates for temporary support according to claim 1, wherein each of the truss ring-shaped reinforcing bars (n1) and each of the afterloading ring-shaped reinforcing bars (n4) has a diameter of not less than 16 mm;
the straight section of each continuous framework steel bar (n2) is not less than 150 mm, and the angle of the inclined section is preferably 135-160 degrees;
the straight section length of each partial skeleton steel bar (n3) is not less than 150 mm; the angle of the inclined section is preferably 135 °.
8. The steel-concrete composite beam with steel bar trusses and steel plates for temporary support according to claim 1, wherein each of said central thin steel plate (1), each of said out-of-box lap thin steel plates (2) and each of said out-of-box lap thin steel plates (3) is connected to the corresponding upper flange plate of said steel beam by means of elastic adhesive and spot welding at the outside of said concrete deck slab;
each box outer lap joint thin steel plate (2) and the corresponding box outer lap joint thin steel plate (3) adopt elastic viscose glue and are connected with the outer side of the concrete bridge deck in a discontinuous spot welding mode;
and each corresponding central thin steel plate (1), each corresponding box outer lap thin steel plate (2) and each corresponding box outer lap thin steel plate (3) adopt elastic viscose glue in the longitudinal direction and are connected at the outer side of the concrete bridge deck in a discontinuous spot welding mode.
9. The steel-concrete composite beam temporarily supporting a steel bar truss and a steel plate as claimed in claim 8, wherein the elastic adhesive is a metal specific adhesive having a thickness of not less than 2 mm.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202120488627.1U CN214882872U (en) | 2021-03-08 | 2021-03-08 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202120488627.1U CN214882872U (en) | 2021-03-08 | 2021-03-08 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN214882872U true CN214882872U (en) | 2021-11-26 |
Family
ID=78856920
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202120488627.1U Withdrawn - After Issue CN214882872U (en) | 2021-03-08 | 2021-03-08 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN214882872U (en) |
Cited By (2)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112878169A (en) * | 2021-03-08 | 2021-06-01 | 上海市城市建设设计研究总院（集团）有限公司 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support and construction method |
| CN115928595A (en) * | 2022-12-27 | 2023-04-07 | 中铁二局集团有限公司 | A self-supporting construction method for steel-concrete composite beams |
-
2021
- 2021-03-08 CN CN202120488627.1U patent/CN214882872U/en not_active Withdrawn - After Issue
Cited By (3)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN112878169A (en) * | 2021-03-08 | 2021-06-01 | 上海市城市建设设计研究总院（集团）有限公司 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support and construction method |
| CN112878169B (en) * | 2021-03-08 | 2024-06-25 | 上海市城市建设设计研究总院（集团）有限公司 | Steel-concrete composite beam using steel bar truss and steel plate as temporary support and construction method |
| CN115928595A (en) * | 2022-12-27 | 2023-04-07 | 中铁二局集团有限公司 | A self-supporting construction method for steel-concrete composite beams |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN104499413B (en) | Modularity punching block concrete combination arch bridge and suspension cable hanging construction method thereof | |
| CN207582764U (en) | A kind of close spelling laminated floor slab connecting joint structure of end fluting | |
| CN106337361B (en) | A kind of separate type FRP- concrete-steel combination beam bridge structure and construction method | |
| CN112922208A (en) | Construction method of steel bar truss floor support plate | |
| CN111305440A (en) | Seamless connection system and construction method between beam-column members and floor decks of fabricated steel structures | |
| CN104088221B (en) | A kind of T-shaped plate girder precast segment unit based on steel truss and combined bridge deck | |
| CN214882872U (en) | Steel-concrete composite beam using steel bar truss and steel plate as temporary support | |
| CN108222347A (en) | A kind of big module welding overlapping beam slab of the assembled with plane girder temporary support | |
| CN105064196A (en) | Prefabricated and assembled fish-belly I-shaped prestressed steel-concrete composite simple supported girder bridge and construction method thereof | |
| CN110952457A (en) | Steel plate combined beam bridge support-free cast-in-place concrete device and construction method | |
| CN210507981U (en) | A kind of in-line honeycomb beam laminated board | |
| CN114770706B (en) | A kind of light T-beam prefabricated equipment and prefabricated installation and construction method | |
| CN111794424A (en) | A kind of integral laminated board honeycomb composite beam and manufacturing method | |
| CN111794423A (en) | A steel-concrete composite beam structure, building and construction method | |
| CN112482200B (en) | Connection structure and construction method of negative moment zone of steel-concrete composite continuous beam | |
| CN103321153A (en) | Construction method for medium and small span trough girder bridge | |
| CN103194982A (en) | Construction method for short cantilever support at bridge side span cast-in-situ segment | |
| CN112878169B (en) | Steel-concrete composite beam using steel bar truss and steel plate as temporary support and construction method | |
| CN106835930A (en) | A kind of bolt connecting type steel concrete combination beam | |
| CN103669193A (en) | Laterally spliced combination T beam with wavy steel webs and construction method thereof | |
| CN112575946A (en) | Prefabricated coincide floor of assembled | |
| CN105019349B (en) | Pi-shaped precast beam and preparation method thereof as well as mounting and construction method of precast beam | |
| CN116140509B (en) | Manufacturing device and manufacturing method for segmental beam reinforcement part | |
| CN108342981A (en) | A kind of ultra-thin prefabricated board seam connection structure and construction method | |
| CN111535147B (en) | A new type of corrugated web steel-concrete continuous beam bridge |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| GR01 | Patent grant | ||
| GR01 | Patent grant | ||
| AV01 | Patent right actively abandoned | ||
| AV01 | Patent right actively abandoned | ||
| AV01 | Patent right actively abandoned |
Granted publication date: 20211126 Effective date of abandoning: 20240625 |
|
| AV01 | Patent right actively abandoned |
Granted publication date: 20211126 Effective date of abandoning: 20240625 |
