本实用新型公开了一种小儿术中淋巴结标本存放盒，包括盒体和第一盒盖，所述盒体和第一盒盖相对应一侧通过铰链活动连接，且盒体和第一盒盖之间设置有相卡合的卡槽和卡扣。本实用新型通过转动伸出辅助壳外部一端的活动轴，带动所述连接齿轮穿过开设在外壳壁上的通槽与连接齿块啮合，并与连接齿块配合带动所述插销伸出或缩回外壳顶端的开口，进入或退出连接套中，固定或打开第二盒盖，通过活销结构方便医护人员对小儿淋巴进行放置，避免标本受损，有利于减轻术中护士的工作压力。
The utility model discloses an intraoperative lymph node specimen storage box for children, which comprises a box body and a first box cover. The box body and the first box cover are movably connected on the corresponding sides through hinges, and the box body and the first box cover are movably connected. A card slot and a buckle are arranged therebetween. The utility model drives the connecting gear to mesh with the connecting tooth block through the through slot opened on the shell wall by rotating the movable shaft extending out of the outer end of the auxiliary casing, and cooperates with the connecting tooth block to drive the bolt to extend or retract. Return to the opening at the top of the shell, enter or exit the connecting sleeve, fix or open the second box cover, and use the movable pin structure to facilitate medical staff to place pediatric lymph nodes, avoid specimen damage, and help reduce the work pressure of intraoperative nurses.
Description
Technical Field
The utility model relates to a sample case specifically is a lymph gland sample case in child's art belongs to medical instrument technical field.
Background
Lymph, also called lymph fluid, is a colorless and transparent fluid in human and animal bodies, contains lymphocytes, and is formed partially by infiltration of tissue fluid into lymphatic vessels. The lymph vessel is a tube with a structure similar to that of a vein, is distributed at each part of the whole body, is circulated in the lymph vessel and finally flows into the vein, part of tissue fluid flows into blood to circulate back and forth through the lymph vessel, and the lymph is present at each part of a human body and plays a vital role in the immune system of the human body.
Therefore, the conventional method is as follows: the operating doctor hands each group of lymph nodes cut off in the operation to an instrument nurse on a table for storage, and after the operation is finished, the instrument nurse puts each group of lymph nodes into each group of lymph node submission specimen bags filled by the doctor before the operation, or hands the operating doctor who is responsible for delivering the specimen into each group of lymph node submission specimen bags filled before the operation, so that the time and the physical strength are wasted, confusion is easy, and troubles are brought to the work of medical staff. Therefore, the lymph node specimen storage box in the pediatric operation is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a lymph gland sample case in child's art to prior art not enough, makes things convenient for placing and categorizing of child's lymph, reduces medical personnel's operating pressure.
The utility model realizes the purpose by the following technical proposal, a lymph node specimen storage box in the pediatric surgery, which comprises a box body and a first box cover, wherein one side of the box body corresponding to the first box cover is movably connected by a hinge, and a clamping groove and a buckle which are mutually clamped are arranged between the box body and the first box cover;
the box body is internally provided with a plurality of storage grids which are magnetically connected through matched adhesive strips and magnetic adhesive strips, one end of an opening of each storage grid is provided with a second box cover, and the second box cover is movably connected with the storage grids through a movable pin structure;
the movable pin structure comprises a shell arranged on the storage grid and a connecting sleeve arranged on the second box cover, wherein a bolt is sleeved in the shell, a plurality of connecting tooth blocks are arranged on one side of the bolt, an auxiliary shell is arranged on one side of the shell, a connecting gear is arranged in the auxiliary shell, the connecting gear is fixed in the auxiliary shell through a movable shaft, and one end of the movable shaft penetrates through the auxiliary shell; and rotating a movable shaft extending out of one end of the auxiliary shell to drive the connecting gear to penetrate through a through groove formed in the shell wall to be meshed with the connecting tooth block, and driving the bolt to extend out of or retract into an opening at the top end of the shell to enter or withdraw from the connecting sleeve to fix or open the second box cover.
Preferably, the box body is made of medical stainless steel materials and is of a rectangular structure.
Preferably, a compression spring is arranged at each of four corners inside the shell.
Preferably, an interlayer is arranged in the second box cover, a matched hanging buckle and a hanging groove are arranged between the interlayer and the second box cover, and a signboard is arranged in the interlayer.
Preferably, a plurality of the storage compartments are rectangular structures with different sizes.
The utility model has the advantages that:
1. the utility model drives the connecting gear to pass through the through groove arranged on the wall of the shell to be meshed with the connecting gear block by rotating the movable shaft which extends out of one end of the outer part of the auxiliary shell, and drives the bolt to extend out of or retract into the opening at the top end of the shell by matching with the connecting gear block, so as to enter or withdraw from the connecting sleeve, fix or open the second box cover, and facilitate the medical personnel to place the infantile lymph through the movable pin structure, thereby avoiding the damage of the sample and being beneficial to reducing the working pressure of nurses in the operation;
2. the utility model discloses a plurality of deposit the check and for the inconsistent rectangle column structure of size, make things convenient for the not lymph of equidimension to place, and can not take place cross contamination because of getting the lymph node, be provided with an intermediate layer in the second lid, be provided with the assorted between intermediate layer and the second lid and hang the knot and hang the groove, and be provided with the signboard in the intermediate layer, conveniently classify all kinds of lymph, avoid obscuring, conveniently take.
Drawings
In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.

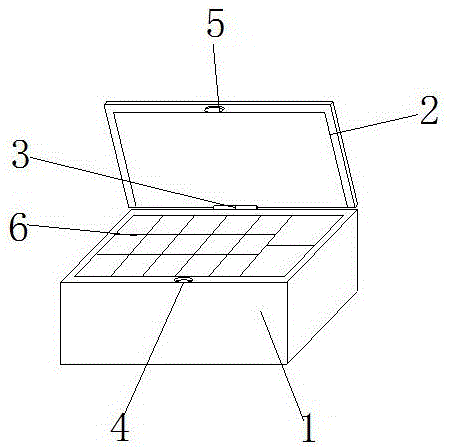

FIG. 1 is a schematic perspective view of the present invention;
FIG. 2 is a schematic top view of the loose pin structure of the present invention;
fig. 3 is a schematic view of the plug structure of the present invention.
In the figure: 1. a box body; 2. a first box cover; 3. a hinge; 4. a card slot; 5. buckling; 6. storing grids; 7. sticking a strip; 8. magnetic sticking strips; 9. a second box cover; 10. a housing; 11. connecting sleeves; 12. a bolt; 13. connecting the tooth blocks; 14. an auxiliary housing; 15. a connecting gear; 16. a movable shaft; 17. a compression spring; 18. an interlayer; 19. hanging and buckling; 20. hanging a groove; 21. a signboard.
Detailed Description
In order to make the objects, features and advantages of the present invention more obvious and understandable, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the embodiments described below are only some embodiments of the present invention, but not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.
The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.
In the description of the present invention, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-3, a lymph node specimen storage box for pediatric surgery comprises a box body 1 and a first box cover 2, wherein one corresponding side of the box body 1 and the first box cover 2 is movably connected through a hinge 3, and a clamping groove 4 and a buckle 5 which are clamped with each other are arranged between the box body 1 and the first box cover 2;
a plurality of storage grids 6 are arranged in the box body 1, the storage grids 6 are magnetically connected with one another through matched adhesive strips 7 and magnetic adhesive strips 87, a second box cover 9 is arranged at one open end of each storage grid 6, and the second box cover 9 is movably connected with the storage grids 6 through a movable pin structure;
the movable pin structure comprises a shell 10 arranged on the storage grid 6 and a connecting sleeve 11 arranged on the second box cover 9, a bolt 12 is sleeved in the shell 10, a plurality of connecting tooth blocks 13 are arranged on one side of the bolt 12, an auxiliary shell 14 is arranged on one side of the shell 10, a connecting gear 15 is arranged in the auxiliary shell 14, the connecting gear 15 is fixed in the auxiliary shell 14 through a movable shaft 16, and one end of the movable shaft 16 penetrates through the auxiliary shell 14; the movable shaft 16 extending out of the auxiliary housing 14 is rotated to drive the connecting gear 15 to pass through the through slot formed in the wall of the housing 10 to engage with the connecting tooth block 13, and the connecting tooth block 13 cooperates with the pin 12 to extend out of or retract into the opening at the top end of the housing 10, enter or withdraw from the connecting sleeve 11, and fix or open the second cover 9.
The box body 1 is made of medical stainless steel, the box body 1 is of a rectangular structure, the medical stainless steel is high-temperature resistant, sterilization and disinfection at high temperature are facilitated, and the whole body is cleaner and more sanitary; four corners inside the shell 10 are respectively provided with a compression spring 17, and the compression springs 17 play a role in buffering to avoid abrasion of the plug pins 12; an interlayer 18 is arranged in the second box cover 9, a hanging buckle 19 and a hanging groove 20 which are matched are arranged between the interlayer 18 and the second box cover 9, a signboard 21 is arranged in the interlayer 18, and the signboard 21 is convenient for classifying various types of lymph so as to avoid confusion; the plurality of storage grids 6 are rectangular structures with different sizes, so that lymph nodes with different sizes can be conveniently placed, and cross contamination caused by taking and placing the lymph nodes can be avoided.
Firstly, medical staff respectively store various lymph in a plurality of storage lattices 6, the plurality of storage lattices 6 are rectangular structures with inconsistent sizes, the lymph with different sizes can be conveniently stored, cross contamination caused by taking and placing lymph nodes can not occur, then a signboard 21 is arranged in an interlayer 18, various lymph can be conveniently classified, confusion can be avoided, taking is convenient, after the lymph is placed, a movable shaft 16 extending out of one end of the outer part of an auxiliary shell 14 is rotated, a connecting gear 15 is driven to penetrate through a through groove arranged on the wall of a shell 10 to be meshed with a connecting tooth block 13 and is matched with the connecting tooth block 13 to drive a bolt 12 to extend out of or retract into an opening at the top end of the shell 10 to enter or withdraw from a connecting sleeve 11, a second box cover 9 is fixed or opened, the medical staff can conveniently store the lymph of the children through the movable pin structure, damage to samples can be avoided, and the working pressure of the nurses in the operation can be favorably reduced, at last, the first box cover 2 is closed, if the box cover is to be taken singly, the box cover can be taken out at will, the plurality of storage grids 6 are connected and fixed into a whole through the matched adhesive strips 7 and the magnetic adhesive strips 7, so that a single medical worker can take out the box cover conveniently, observation and inspection are carried out, and the box body 1 can be sterilized at high temperature after the end.
