Abstract

The utility model discloses a portable multifunctional barbecue oven. The main body of the oven rack is provided with a top cover, the top cover is provided with a baking port, the main body of the oven rack is located under the top cover of the oven and is provided with a heat source corresponding to the baking port. A movable door panel that can be opened is movably installed on the main body of the oven rack, and a barbecue fork groove is distributed on the periphery of the heat source on the side cover edge corresponding to the oven top cover and the movable door panel; when in use, open the movable door panel and hoist the barbecue fork on the oven top cover. The barbecue fork is hoisted and hung on the periphery of the heat source. When baking, the grease of the ingredients will not drip on the heat source and burn, causing the grease to catch fire or produce harmful smoke and gas. The barbecue of ingredients is safer, hygienic and healthy; it can also be used on the stove top. The lid's baking port can be placed on a shallow plate or iron plate for frying ingredients, or a deep plate for making hot pot, cooking Mala Tang or boiling water, etc. It has the advantages of a variety of food cooking methods, and food barbecue is safer and healthier, and can be assembled quickly at the same time. Build and use and fold and disassemble for easy portability or storage.

Description

Portable multifunctional barbecue oven

Technical Field

The utility model belongs to the technical field of the oven, concretely relates to adopt portable oven that heat sources such as carbon fire or gas furnace head toasted.

Background

At present, a portable barbecue oven adopting carbon fire or gas burner for baking usually comprises an oven body, a foot rest and a baking net, wherein the baking net is laid on the oven body and directly places the carbon fire or gas burner in the oven body for burning for baking. Its specific detail structural style of this kind of current portable oven is various, all places roast food on roast net through directly during nevertheless the barbecue, places the direct food barbecue of carbon fire or gas furnace end in the furnace body by roast net below, and food grease can drip when the barbecue and fire or gas furnace end burning at carbon fire or, produces the grease and catches fire and lead to the potential safety hazard and produce harmful smog gas and make and wait to roast food and receive the pollution influence healthy. In addition, this kind of current portable oven, its function is only limited to burn, roast etc. and can not satisfy fried in shallow oil needs such as stir-fry, chafing dish, boil, when using in the open air picnic or at home, and the food of selectable enjoying the mode is abundant inadequately.

SUMMERY OF THE UTILITY MODEL

To prior art not enough, the utility model aims at providing an adopt heat sources such as carbon fire or gas furnace head to toast have multiple food cooking mode, food barbecue safer and healthier and can assemble fast and build use and folding dismouting so that portable or the portable multi-functional oven of accomodating.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a portable multi-functional oven, includes the furnace frame main part, is equipped with the stove top lid in the furnace frame main part, and the stove top lid has and toasts the mouth, lies in stove top lid below and corresponds and toasts the mouth in the furnace frame main part and be equipped with the heat source, and movable mounting has the movable door plant that can open in the furnace frame main part, and the peripheral distribution that lies in the heat source on the lateral part lid reason that the stove top lid corresponds with movable door plant is equipped with the barbecue fork groove. The heat source can adopt charcoal placed in a charcoal fire cage and ignited, namely charcoal fire, or a gas furnace end.

When the portable multifunctional barbecue grill is used, the movable door plate is opened, the heat source is ignited, barbecue food materials such as meat and the like are stringed on the barbecue fork, then the barbecue fork is hung in the barbecue fork groove on the cover edge of the oven top cover, the movable door plate is closed, the food materials can be baked, and the barbecue fork is hung on the periphery of the charcoal fire cage in a hanging mode, the food materials are positioned on the side part of the heat source, grease of the food materials such as meat and the like cannot drop on the heat source to burn to cause grease ignition or generate harmful smoke gas during baking, and the food materials are baked more safely, healthily and healthily; in addition, can also place shallow tray or iron plate on the mouth of toasting of stove top lid and fry in shallow oil the fried food material, perhaps place the deep bid and beat the chafing dish, boil numb and hot or boil water etc. also can place roast net or rotate the gridion and roast whole chicken, whole duck etc. on this toasts the mouth, increase the barbecue stove size even as required and can place roast net or rotate the gridion and roast whole sheep on this toasts the mouth, realize eating the multiple cooking mode of material, use for outdoor picnic or at home and provide abundanter food and enjoy the mode.

As an improved scheme, the stove frame main body comprises a main box body, the main box body is provided with a lower box cavity with an opening at the top end, a movable door plate is movably arranged at a cavity opening of the lower box cavity and can cover the cavity opening of the lower box cavity, an upper stove plate is detachably arranged at the cavity opening of the lower box cavity, a stove top cover is detachably arranged on the upper stove plate, the movable door plate is connected to the upper stove plate or/and the stove top cover when closed, so that the movable door plate, the upper stove plate and the stove top cover are enclosed to form an upper box cavity, the upper box cavity and the lower box cavity form a stove cavity, and a heat source is arranged in the stove cavity; when not in use, the upper oven plate, the oven top cover and the heat source are detachably placed in the lower box cavity of the main box body, and then the movable door plate is covered, so that the whole barbecue oven can form a box body structure to be conveniently carried outdoors or stored at home; when the movable door plate is used, the movable door plate is opened, and then the upper furnace plate, the furnace top cover and the heat source are quickly assembled and built for use.

Preferably, the heat source support is placed in a support, the support is detachably arranged in the furnace cavity, and the support can be detachably placed in a lower box cavity of the main box body when not in use.

As an improvement scheme, a layer frame is detachably arranged on the inner wall of the upper oven plate or/and the inner wall of the main box body and positioned at the periphery of the heat source, food materials such as fresh oysters and corns can be placed on the layer frame to be burnt, roasted or baked, harmful smoke gas generated by oil ignition or oil combustion can not be caused, and the food material quantity of the barbecue oven can be increased.

As the preferred scheme, the bottom of the main box body is provided with a foldable foot rest.

As an improved scheme, a supporting rod is hinged on the bottom wall of the main box body, and the supporting rod can be supported at the bottom of the top cover of the furnace in a turnover mode and can be accommodated in the lower box cavity in the turnover mode; therefore, the furnace roof can be more stably placed on the upper furnace plate through the supporting action of the supporting rods.

As an improvement scheme, an oil collecting box is arranged in the lower box cavity corresponding to the barbecue fork groove, and grease generated by food materials strung by the barbecue fork hung on the barbecue fork groove can directly fall into the oil collecting box for collection, so that subsequent centralized cleaning is facilitated. The movable door plate is provided with a transparent observation window, and the heat source combustion condition and the food material roasting condition strung by the roasting fork can be observed through the transparent observation window when the movable door plate is closed.

As preferred scheme, the main tank body is equipped with the air vent to correspond the air vent and be equipped with the regulating plate on the main tank body, the regulating plate can rotate the local or whole area that the regulation covered the air vent, can adjust the size of air vent and then control the air admission volume through rotating the regulating plate, realize controlling heat source combustion intensity.

The utility model discloses following beneficial effect has:

the utility model discloses portable multi-functional oven, it adopts charcoal fire or gas to toast and have multiple food cooking mode, the safer healthy advantage of food barbecue, can assemble fast simultaneously and build the use and fold the characteristics of dismouting so that carry or accomodate.

Drawings

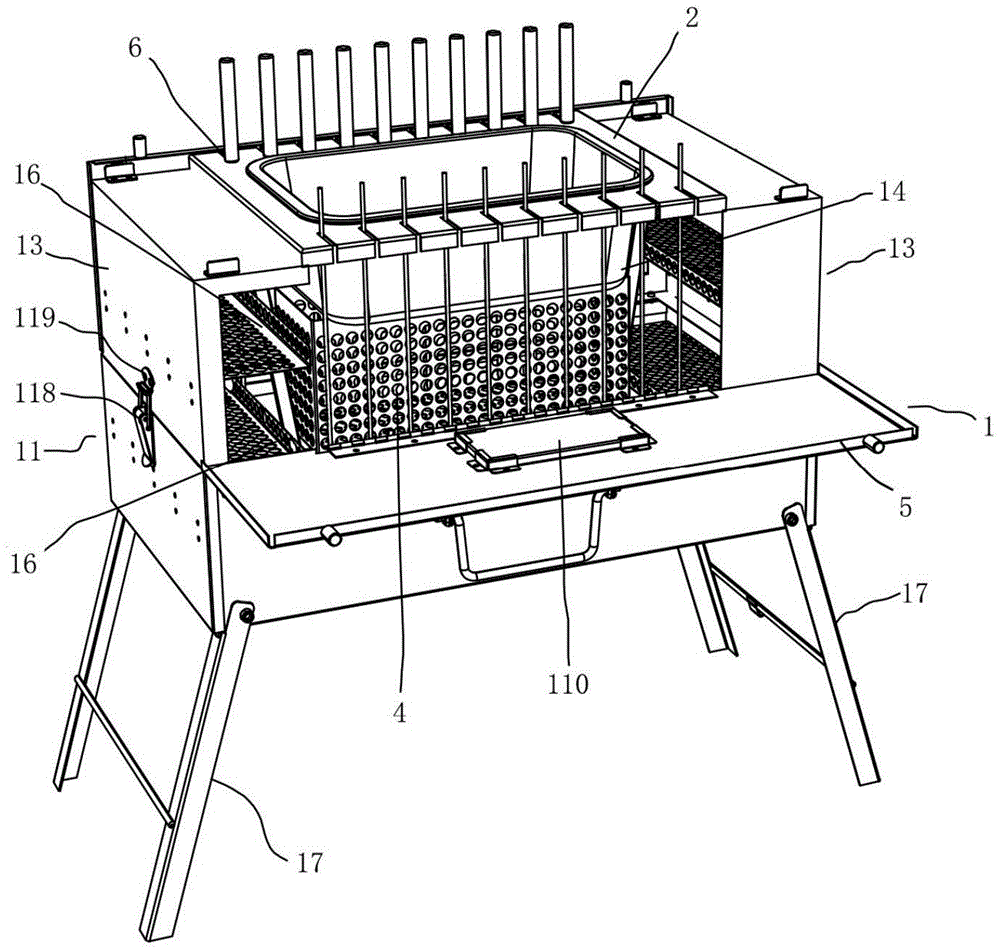

FIG. 1 is a structural diagram of a portable multifunctional barbecue oven according to a first embodiment of the present invention in a use state;

FIG. 2 is an exploded view of the embodiment of FIG. 1;

FIG. 3 is a view showing the construction of the embodiment of FIG. 1 with the shelves mounted on the inner wall of the upper furnace plate;

FIG. 4 is a block diagram of the main housing of the embodiment of FIG. 1;

FIG. 5 is a view showing the structure of the foldable foot stool of the embodiment of FIG. 1;

FIG. 6 is a structural view of a portable multifunctional barbecue grill according to a second embodiment of the present invention;

fig. 7 is a schematic diagram illustrating the position of the vent hole in the embodiment of fig. 6.

In the figure: 1. a hob main body; 2. a furnace roof; 3. baking the opening; 4. a heat source; 5. a movable door panel; 6. a barbecue fork groove; 11. a main box body; 12. a lower box cavity; 13. an upper furnace plate; 14. an upper tank chamber; 15. a support; 16. layering; 17. a foldable foot rest; 18. a support bar; 19. an oil collecting box; 110. a transparent viewing window; 111. a vent hole; 112. an adjusting plate; 113. a barbecue fork base; 114. a shelf mounting bracket; 115. inserting holes of the shelf; 116. a furnace plate mounting pedestal wall; 117. connecting columns; 118. locking; 119. locking the hook; 120. a mounting wall; 121. a furnace plate mounting hole; 122. hanging the connecting wall; 123. fixing the connecting plate; 124. a shelf insertion rod; 125. hanging a ring; 126. positioning holes; 127. and (5) hanging the pins.

Detailed Description

The invention will be further described with reference to the accompanying drawings and specific embodiments so as to more clearly understand the technical idea claimed in the invention.

As shown in fig. 1-5, the first embodiment of the portable multifunctional barbecue oven of the present invention comprises a main box body 11, the main box body 11 has a lower box cavity 12 with an open top end, the front and rear ends of the cavity opening of the lower box cavity 12 are hinged or movably mounted with a movable door panel 5 capable of covering the cavity opening of the lower box cavity 12 through movable connection modes such as sliding rails, the left and right ends of the cavity opening of the lower box cavity 12 are detachably mounted with an upper oven plate 13, the top of the upper oven plate 13 is detachably provided with an oven top cover 2, and the oven top cover 2 has a baking opening 3; when the movable door panel 5 is closed, the movable door panel 5 is connected with the upper furnace panel 13 or/and the furnace top cover 2, so that the movable door panel 5, the upper furnace panel 13 and the furnace top cover 2 enclose to form an upper box cavity 14, the upper box cavity 14 and the lower box cavity 12 form a furnace chamber, and when the movable door panel 5 is closed, the main box body 11 and the upper furnace panel 13 form a furnace frame main body 1. The heat source 4 is arranged in the furnace chamber below the furnace top cover 2 and corresponding to the baking port 3, and the heat source 4 can adopt a charcoal fire cage for placing charcoal and igniting the charcoal fire or a gas furnace end. The charcoal fire cage can be a cage body with meshes made of a metal mesh plate or a metal mesh, and the gas burner can be connected with an external gas tank. The heat source 4 can be supported and placed in the support 15, the support 15 is detachably arranged in the oven cavity, the wall of the main box body 11 is also provided with a vent hole 111, and the lateral cover edge of the oven top cover 2 corresponding to the movable door panel 5 is distributed and provided with a barbecue fork groove 6 on the periphery of the heat source 4.

When the portable multifunctional barbecue oven is not used, the upper oven plate 13, the oven top cover 2, the heat source 4 and the support 15 are detachably placed in the lower box cavity 12 of the main box body 11, and then the movable door plate 5 is covered, so that the whole barbecue oven can form a box body structure to be conveniently carried outdoors or stored at home; when the barbecue grill is used, the movable door panel 5 is opened, the upper oven plate 13, the oven top cover 2, the heat source 4 and the support 15 are quickly assembled and built for use, the heat source 4 is ignited, barbecue food materials such as meat and the like are strung on the barbecue forks, then the barbecue forks are hung on the barbecue fork grooves 6 on the cover edge of the oven top cover 2, the movable door panel 5 is closed, the food materials can be baked, and the barbecue fork is hung on the periphery of the heat source 4 in a hanging mode and is positioned on the side part of the heat source 4, so that the grease of the food materials such as meat and the like cannot drop on the heat source 4 to cause burning of the grease or generate harmful smoke gas during baking, and the food materials are baked more safely, healthily and healthily; in addition, can also place shallow tray or iron plate on the 3 mouth of toasting of stove top lid 2 and fry in shallow oil the fried food material, perhaps place the deep bid and beat the chafing dish, boil numb and hot or boil water etc. also can place roast net or rotate the gridion and roast whole chicken on this toast mouth 3, whole duck etc. even increase the oven size as required and can place roast net or rotate the gridion and roast whole sheep on this toast mouth 3, realize eating the multiple cooking mode of material, provide abundanter food mode of enjoying for outdoor picnic or use at home.

The periphery that lies in heat source 4 on the inner wall of last stove board 13 installs dismantled and assembledly and is provided with layer frame 16, can place edible material on this layer frame 16 and burn, roast or bake like fresh oyster, maize, can not cause the grease to catch fire or the grease burning produces harmful smog gas equally to increase the edible material volume that the oven can be processed. The installation of the layer rack 16 on the inner wall of the upper furnace plate 13 can adopt: the inner wall of the upper furnace plate 13 is provided with a shelf mounting bracket 114, the shelf mounting bracket 114 is provided with shelf insertion holes 115, the shelf 16 adopts a mesh plate, the bottom of the mesh plate is fixedly provided with shelf insertion rods 124, and the shelf 16 is inserted into the shelf insertion holes 115 of the shelf mounting bracket 114 through the shelf insertion rods 124 to complete the detachable connection with the upper furnace plate 13.

The shelves 16 may be detachably mounted on the inner wall of the upper furnace plate 13, and the shelves 16 may be detachably mounted on the inner wall of the main casing 11 at the periphery of the heat source 4; or do not set up layer frame 16 on the inner wall of upper furnace plate 13, and only set up layer frame 16 on the inner wall of main tank 11, can place edible material on this layer frame 16 equally and burn, roast or roast like fresh oyster, maize, can not cause the grease to catch fire or the grease burning produces harmful smog gas equally to increase the edible material volume that the oven can be processed. The installation of the shelves 16 on the inner wall of the main box 11 can also be used: the shelf mounting bracket 114 is installed on the inner wall of the main box 11, the shelf mounting bracket 114 is provided with shelf insertion holes 115, the shelf 16 is a mesh plate, the bottom of the mesh plate is fixedly provided with shelf insertion rods 124, and the shelf 16 is inserted into the shelf insertion holes 115 of the shelf mounting bracket 114 through the shelf insertion rods 124 to complete the detachable connection with the main box 11.

It is preferable that the support 15 supporting the heat source 4 is integrally provided to the shelves 16 on the inner wall of the main casing 11, so that the shelves 16 and the support 15 on the inner wall of the main casing 11 can be disassembled together for convenience in disassembly and assembly. Of course, the support 15 may be integrally disposed on the layer frame 16 on the inner wall of the upper furnace plate 13 according to the specific design requirement, as long as the support 15 can support the heat source 4 below the roasting port 3 and ensure normal use.

The upper furnace plate 13 can be mounted in the following manner: a mounting wall 120 is arranged at the bottom end of the upper furnace plate 13, and a furnace plate mounting hole 121 is arranged on the mounting wall 120; an oven plate mounting base wall 116 is provided on the inner wall of the main casing 11, a connecting column 117 is provided on the oven plate mounting base wall 116, and the upper oven plate 13 is detachably mounted by inserting and connecting the connecting column 117 into the oven plate mounting hole 121. Furthermore, a lock 118 may be installed on the outer wall of the main box 11, a lock hook 119 may be installed on the outer wall of the upper furnace plate 13, and the upper furnace plate 13 may be fixed to the main box 11 by hooking the lock 118 to the lock hook 119. The lock 118 and the lock hook 119 belong to the conventional technologies, and can be purchased in the market according to the needs, and the detailed structure thereof is not described herein.

The furnace roof 2 can be mounted in the following manner: the top wall edge of the upper furnace plate 13 is bent upwards vertically to form a hanging wall 122, the furnace top cover 2 is processed and formed in a stamping mode, a hollow groove is formed in the bottom of the furnace top cover 2, and two ends of the furnace top cover 2 are hung on the hanging wall 122 through the hollow groove in the bottom of the furnace top cover for detachable installation. The movable door panel 5 can be locked when closed by arranging a fixed connecting plate 123 at the top of the upper furnace plate 13, arranging bolt holes on the fixed connecting plate 123 and the movable door panel 5 respectively, and completing locking when the movable door panel 5 is closed by inserting bolts in the bolt holes; a permanent connection plate 123 which can be magnetized is arranged at the top of the upper furnace plate 13, magnets are respectively arranged on the movable door panel 5 corresponding to the permanent connection plate 123, and the movable door panel 5 is fixed on the permanent connection plate 123 through magnet adsorption to complete locking when being closed; or/and bolt holes are correspondingly arranged on the furnace top cover 2 and the movable door panel 5, and the movable door panel 5 is locked when closed through inserting bolts in the bolt holes.

The bottom of the main box 11 can be further provided with foldable foot rests 17, specifically, the foldable foot rests 17 are symmetrically and respectively hinged to two ends of the bottom of the main box 11, the bottom of the main box 11 is provided with a lock catch 118, one of the foldable foot rests 17 is provided with a lock hook 119, and after the foldable foot rests 17 are turned over and folded at the bottom of the main box 11, the foldable foot rests 17 are fixed at the bottom of the main box 11 by hooking the lock catch 118 to the lock hook 119.

The bottom wall of the main box body 11 can be hinged with a support rod 18, and the support rod 18 can be supported at the bottom of the furnace top cover 2 in a turnover mode and can be stored in the lower box cavity 12 in a turnover mode; the supporting effect of the supporting rods 18 can make the furnace roof 2 more stable when placed on the upper furnace plate 13.

An oil collecting box 19 is arranged in the lower box cavity 12 corresponding to the barbecue fork groove 6, and grease generated by food materials strung by the barbecue fork hung on the barbecue fork groove 6 can directly fall into the oil collecting box 19 for collection, so that subsequent centralized cleaning is facilitated. In addition, a barbecue fork base 113 can be arranged in the lower box cavity 12 above the oil collecting box 19, a positioning hole 126 is arranged on the barbecue fork base 113 corresponding to the barbecue fork groove 6, and the lower end of the barbecue fork is inserted and positioned in the positioning hole 126. And this barbecue fork base 113 also can adopt demountable installation mode, specifically can adopt: the two ends of the barbecue fork base 113 extend downwards to form hanging pins 127, the shelf 16 on the inner wall of the main box 11 is provided with a hanging ring 125, and the barbecue fork base 113 is detachably mounted by hanging the hanging pins 127 on the hanging ring 125.

The movable door panel 5 is further provided with a transparent observation window 110, and when the movable door panel 5 is closed, the burning condition of the heat source 4 and the food material broiling condition strung by the barbecue fork can be observed through the transparent observation window 110. The vent holes 111 are preferably arranged on the bottom wall of the main box body 11 and correspondingly located below the heat source 4, adjusting plates 112 are arranged on the bottom wall of the main box body corresponding to the vent holes 111, the adjusting plates 112 are pivotally mounted on the bottom wall of the main box body 11 and can be rotatably adjusted to cover partial or whole areas of the vent holes 111, the sizes of the vent holes 111 can be adjusted by rotating the adjusting plates 112, then the air inlet amount is controlled, and the combustion intensity of the heat source 4 is controlled.

The second embodiment of the portable multifunctional barbecue stove of the present invention shown in fig. 6-7 is different from the first embodiment shown in fig. 1-5 in that the shelf 16 is only installed on the inner wall of the upper plate 13 on one side or/and the inner wall of the main box 11 on one side, and the air vent 111 is installed on the bottom wall of the main box 11 and correspondingly located below the oil collecting box 19.

Various other changes and modifications may be made by those skilled in the art based on the above-described technical solutions and concepts, and all such changes and modifications should fall within the scope of the present invention.

Claims

1. The utility model provides a portable multi-functional oven, includes the furnace frame main part, its characterized in that, be equipped with the stove top lid in the furnace frame main part, the stove top lid has the mouth of toasting, lie in the furnace frame main part stove top lid below corresponds the mouth of toasting is equipped with the heat source, movable mounting has the movable door plant that can open in the furnace frame main part, the stove top lid with lateral part lid that movable door plant corresponds is located on the reason the periphery of heat source distributes and is equipped with the barbecue fork groove.

2. The portable multi-functional barbecue grill according to claim 1, wherein the rack body includes a main body having a lower chamber with an open top, the movable door panel is movably mounted to the opening of the lower chamber and covers the opening of the lower chamber, and the opening of the lower chamber is detachably mounted with an upper panel, the top cover is detachably mounted to the upper panel, the movable door panel is connected to the upper panel or/and the top cover when closed, so that the movable door panel, the upper panel and the top cover enclose an upper chamber, the upper chamber and the lower chamber constitute a cavity, and the heat source is disposed in the cavity.

3. The portable barbecue grill of claim 2, wherein said heat source support is placed in a bracket, said bracket being removably disposed within said chamber.

4. The portable multi-purpose barbecue grill according to claim 2, wherein a shelf is removably installed on the inner wall of the upper plate or/and the inner wall of the main housing at the periphery of the heat source.

5. The portable multifunctional barbecue grill according to claim 2, wherein a foldable foot stool is installed at the bottom of the main housing.

6. The portable multifunctional barbecue stove according to claim 2, wherein a support rod is hinged on the bottom wall of the main box body, and the support rod can be supported at the bottom of the stove top cover in a turnover manner and can be accommodated in the lower box cavity in a turnover manner.

7. The portable multi-purpose barbecue grill of claim 2, wherein an oil collection box is provided in said lower box cavity in correspondence with said barbecue spit groove.

8. The portable multi-purpose barbecue grill of claim 2, wherein a transparent observation window is provided on said movable door panel.

9. The portable multifunction barbecue of claim 2, wherein said main housing is provided with an air vent.

10. The portable multifunctional barbecue grill according to claim 9, wherein an adjusting plate is provided on the main housing corresponding to the vent hole, and the adjusting plate can be rotated to adjust a partial or entire area covering the vent hole.
