Abstract
本实用新型公开了一种用于园林养护的害虫诱捕收集器，外套筒内侧顶端焊接有捕捉斗，安装腔内侧卡接有低压电网，安装腔内侧安装有诱虫灯，外套筒内侧中部焊接有捕捉筒，捕捉筒内侧卡接有高压电网，捕捉筒内侧焊接匚型药剂槽，传动杆底端与传动电机输出端相连接，传动杆侧端焊接有刮除板，外套筒内侧放置有收集桶，通过捕捉斗内部放置的诱虫灯和低压电网对趋光类害虫进行诱捕，通过低压电网和高压电网相互配合，避免害虫穿过捕捉斗，从而有效的将害虫杀死，通过药剂槽内放置到诱虫剂对非趋光性害虫进行诱捕，从而有效的实现了对大部分害虫进行捕杀，捕杀后的害虫掉落到收集桶内，从而便于对害虫的尸体进行收集。
The utility model discloses a pest trapping collector for garden maintenance. A trapping bucket is welded on the top of the inner side of an outer sleeve, a low-voltage power grid is clamped on the inner side of an installation cavity, an insect trap is installed in the inner side of the installation cavity, and a middle part of the inner side of the outer sleeve is installed. There is a welding catching cylinder, the inner side of the catching cylinder is clamped with a high-voltage power grid, the inner side of the catching cylinder is welded with a trough-shaped medicine tank, the bottom end of the transmission rod is connected with the output end of the transmission motor, the side end of the transmission rod is welded with a scraper, and the inner side of the outer sleeve is placed There are collection buckets, trapping phototaxis pests through trap lights and low-voltage power grids placed inside the trapping buckets. The low-voltage power grids and high-voltage power grids cooperate with each other to prevent pests from passing through the trapping buckets, so as to effectively kill the pests. Insect traps are placed in the tank to trap non-phototactic pests, thereby effectively killing most of the pests.
Description
Technical Field
The utility model relates to a gardens maintenance technical field specifically is a collector is traped to pest for gardens maintenance.
Background
The garden refers to a beautiful natural environment and a rest area which are created by applying engineering technology and artistic means in a certain region and by means of reforming terrain, planting trees, flowers and plants, building buildings, arranging garden roads and the like, and the garden comprises a garden, a homestead, a small garden, a park, a vegetable garden, an animal park and the like.
However, when trapping pests, the current insect traps in the market generally adopt a single trapping mode, so that most pests cannot be effectively trapped during trapping, the required effect can be achieved only by using various different insect traps, the efficiency and the effect of trapping and killing are greatly influenced, meanwhile, the pest corpses cannot be directly and quickly treated, and the situation that the corpses are rotten and diseased is caused.
SUMMERY OF THE UTILITY MODEL
The utility model provides a pest trap collector for gardens maintenance, the above-mentioned background art of can effectively solving is proposed and is lured the worm ware when traping the pest, generally through single mode of traping, lead to unable effectual catching most pest when traping, make to use the insect trap of multiple difference just can reach required effect, efficiency and the effect of killing have greatly been influenced, can't direct quick handle the pest corpse simultaneously, lead to the corpse to appear rotting the problem of the condition of pathological change.
In order to achieve the above object, the utility model provides a following technical scheme: a pest trapping collector for garden maintenance comprises an outer sleeve, wherein a rain shielding inclined plate is welded at the top end of the outer sleeve, a pest trapping assembly is installed on the inner side of the outer sleeve, and the pest trapping assembly comprises a trapping hopper, an installation cavity, a low-voltage power grid, a pest trapping lamp, a trapping barrel, a high-voltage power grid, an Contraband type medicament groove, a transmission rod, a transmission motor, a scraping plate, a placing opening, a lower leakage inclined plate and a collecting barrel;
the top end of the inner side of the outer sleeve is welded with a catching bucket, the inner side of the catching bucket is provided with a mounting cavity, the inner side of the mounting cavity is embedded and clamped with a low-voltage power grid at equal intervals, a trap lamp is arranged at the position, close to the low-voltage power grid, on the inner side of the mounting cavity, a catching cylinder is welded in the middle of the inner side of the outer sleeve, a high-voltage power grid is clamped at the position, close to the top end, of the inner side of the capturing cylinder, Contraband type medicament grooves are welded at the position, close to the bottom end, of the inner side of the capturing cylinder, a transmission rod penetrates through the middle of the top end of the high-voltage power grid, the bottom end of the transmission rod is connected with the output end of the transmission motor, the transmission motor is arranged at the bottom end of the high-voltage power grid through a motor base, the top of the side end of the transmission rod is welded with a scraping plate, high voltage electric wire netting and Contraband type medicament groove top one side have all been seted up and have been placed the mouth, the high voltage electric wire netting bottom is located to place mouthful both ends position department welding and has leaks the swash plate down, the outer sleeve inboard is close to bottom position department and has placed the collecting vessel.
Preferably, the inclination angle of catching the fill is the degree, a catch section of thick bamboo external diameter and outer sleeve internal diameter equal, low voltage electric network, moth-killing lamp, high voltage electric network and driving motor input all with external power supply output electric connection.
Preferably, one side of the outer sleeve is provided with an installation assembly, and the installation assembly comprises a fixed installation plate, a clamping groove, a clamping fixed plate, a fixed clamping plate, a movable clamping plate, an adjusting screw and a spring clamping plate;
the welding of outer sleeve one side has fixed mounting panel, the joint fixed plate is installed through joint groove joint in fixed mounting panel one side, the welding of one end one side that fixed mounting panel was kept away from to the joint fixed plate has fixed grip block, the slip joint in one side that fixed grip block was kept away from to joint fixed plate one end has the removal grip block, fixed grip block and the equal symmetry of removal grip block one end run through there is adjusting screw, the equal equidistance welding of fixed grip block and removal grip block one end has a plurality of spring grip block.
Preferably, adjusting screw all is connected through the screw thread with fixed grip block and removal grip block, the joint fixed plate corresponds joint groove position department welding has the joint strip.
Preferably, the outer sleeve bottom is located the activity joint of collecting vessel position department and has Contraband type support frame, the removal hole has been seted up to Contraband type support frame both ends symmetry, the outer sleeve corresponds the welding of removal hole position department and has the installation piece, the pin hole has all been seted up to installation piece and Contraband type support frame one end.
Preferably, the width of the mounting block is equal to that of the moving hole, and a pin is clamped on the inner side of the pin hole.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model has the advantages of being scientific and reasonable in structure, convenience safe in utilization:
1. be provided with the insect catching subassembly, trap phototaxis class pest through trapping the inside trap lamp and the low voltage electric wire netting of placing of fighting, mutually support through low voltage electric wire netting and high voltage electric wire netting, avoid the pest to pass the trapping fill, thereby effectually kill the pest, place the attractant through the medicament inslot and trap non-phototaxis pest, thereby effectual realization is killed most pest, the pest after killing falls in the collecting vessel, thereby be convenient for collect the corpse of pest, avoid pathological change, avoid the rotten secondary pollution that leads to of pest corpse to appear when having guaranteed the effect of deinsectization.
2. Be provided with the installation component, through joint board and grip block to be convenient for with insect trap snap-on to trees, simultaneously through the centre gripping of spring board, make when installing the trees of different diameters on, thereby effectually carry out the centre gripping to it fixed, avoid because of external factor landing or drop.
3. Be provided with Contraband type support frame, removal hole, installation piece and cotter hole to be convenient for fixed and the change to the collecting vessel, thereby be convenient for the quick change collecting vessel of staff, thereby be convenient for collect the corpse of pest, thereby avoid the corpse of pest to pile up, can change the size of collecting vessel according to the volume of pest simultaneously, be convenient for carry out a large amount of collections.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
In the drawings:

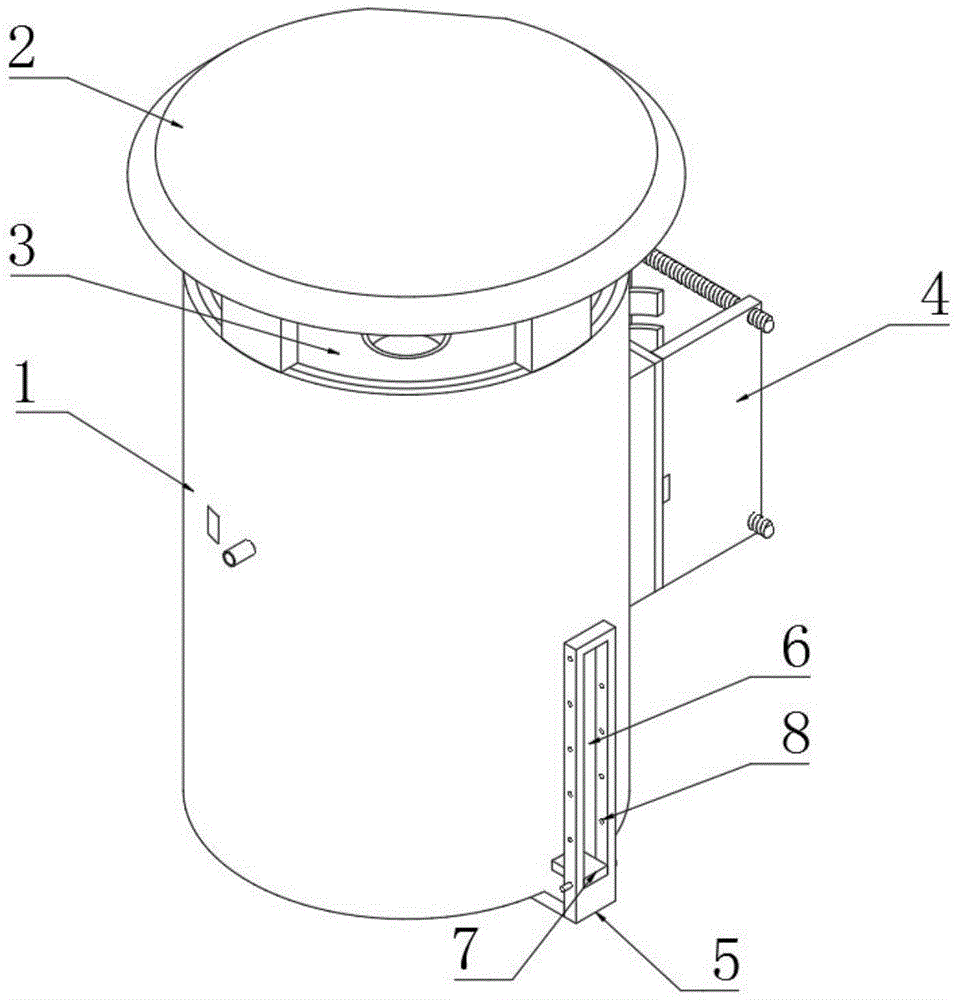

fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is a schematic view of the insect trap assembly of the present invention;
fig. 3 is a schematic view of the installation structure of the high-voltage power grid of the present invention;
fig. 4 is a schematic view of the mounting structure of the transmission motor of the present invention;
FIG. 5 is a schematic structural view of the mounting assembly of the present invention;
reference numbers in the figures: 1. an outer sleeve; 2. a rain-proof sloping plate;
3. an insect catching assembly; 301. a catching bucket; 302. a mounting cavity; 303. a low voltage power grid; 304. a trap lamp; 305. a capturing cylinder; 306. a high voltage power grid; 307. model Contraband pharmaceutical agent tank; 308. a transmission rod; 309. a drive motor; 310. scraping the plate; 311. a placement port; 312. a lower leakage sloping plate; 313. a collection barrel;
4. mounting the component; 401. fixing the mounting plate; 402. a clamping groove; 403. clamping a fixing plate; 404. fixing the clamping plate; 405. moving the clamping plate; 406. adjusting the screw rod; 407. a spring clamping plate;
5. model Contraband support brackets; 6. moving the hole; 7. mounting blocks; 8. a pin hole.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Example (b): as shown in fig. 1-5, the utility model provides a pest trap collector technical scheme for gardens maintenance, a pest trap collector for gardens maintenance, including outer sleeve 1, the welding of outer sleeve 1 top has rain-proof swash plate 2, and the inboard insect catching subassembly 3 of installing of outer sleeve 1, insect catching subassembly 3 includes catching fill 301, installation cavity 302, low voltage electric network 303, moth-killing lamp 304, catching section of thick bamboo 305, high voltage electric network 306, Contraband type medicament groove 307, transfer line 308, driving motor 309, scraping plate 310, place mouthful 311, hourglass swash plate 312 and collecting vessel 313;
the top end of the inner side of the outer sleeve 1 is welded with a catching bucket 301, the inclination angle of the catching bucket 301 is 60 degrees, so that pests can fall off conveniently, the inner side of the catching bucket 301 is provided with an installation cavity 302, the inner side of the installation cavity 302 is embedded and clamped with a low-voltage power grid 303 at equal intervals, the inner side of the installation cavity 302 is provided with a trap lamp 304 near the low-voltage power grid 303, the middle part of the inner side of the outer sleeve 1 is welded with a catching cylinder 305, the outer diameter of the catching cylinder 305 is equal to the inner diameter of the outer sleeve 1 so as to facilitate catching, the inner side of the catching cylinder 305 is clamped with a high-voltage power grid 306 near the top end, an Contraband type medicament groove 307 is welded near the bottom end, the middle part of the top end of the high-voltage power grid 306 is penetrated with a transmission rod 308, the bottom end of the transmission rod 308 is connected with the output end of a transmission motor 309, the transmission motor 309 is arranged at the bottom end of the high-voltage power grid 306 through a motor base, the top part of the side end of the transmission rod 308 is welded with a scraping plate 310, one side of the high-voltage power grid 306 and one side of the Contraband type medicament groove 307 are both provided with placing ports 311, the bottom end of the high-voltage power grid 306 is welded with the lower inclined leakage plate 312 at the two ends of the placing opening 311, the inner side of the outer sleeve 1 is placed with the collecting barrel 313 near the bottom end, the input ends of the low-voltage power grid 303, the trap lamp 304, the high-voltage power grid 306 and the transmission motor 309 are electrically connected with the output end of an external power supply, and the transmission motor 309 is 52ZYT 89-R.
One side of the outer sleeve 1 is provided with an installation component 4, and the installation component 4 comprises a fixed installation plate 401, a clamping groove 402, a clamping fixing plate 403, a fixed clamping plate 404, a movable clamping plate 405, an adjusting screw 406 and a spring clamping plate 407;
the welding of 1 one side of outer sleeve has fixed mounting panel 401, fixed mounting panel 401 installs joint fixed plate 403 through joint groove 402 joint in one side, joint fixed plate 403 corresponds joint groove 402 position department welding and has the joint strip, be convenient for carry out the joint, the welding of one end one side that fixed mounting panel 401 was kept away from to joint fixed plate 403 has fixed grip block 404, the slip joint in one side that fixed grip block 404 was kept away from to joint fixed plate 403 one end has removal grip block 405, fixed grip block 404 and the equal symmetry of removal grip block 405 one end run through there is adjusting screw 406, adjusting screw 406 all is connected through the screw with fixed grip block 404 and removal grip block 405, be convenient for adjust, the equal equidistance welding of fixed grip block 404 and removal grip block 405 one end has a plurality of spring grip block 407.
The utility model discloses a theory of operation and use flow: before insect catching is needed, a worker places a trapping agent in an Contraband type agent groove 307 and places disinfectant water in a collecting barrel 313, places the collecting barrel 313 on a Contraband type supporting frame 5, slides the Contraband type supporting frame 5 along a moving hole 6 Contraband type, inserts a pin into a pin hole 8 after sliding to a required height, so as to fix the Contraband type supporting frame 5 and an installation block 7, places a fixed clamping plate 404 and a moving clamping plate 405 at required installation positions after fixing is completed, rotates an adjusting screw 406, drives the moving clamping plate 405 to move by the adjusting screw 406, enables the spring clamping plate 407 to be attached to two sides of the installation position, so as to complete installation of a clamping fixing plate 403, clamps a clamping groove 402 on the fixed installation plate 401 to the fixed installation plate 403 after installation is completed, so as to complete installation of the fixed installation plate 401, and replaces different clamping fixing plates 403, the insect trap can be arranged on trees with different diameters, so that the insect trap is convenient to adapt to gardens in different environments;
after the insect trap is installed, the low-voltage power grid 303, the trap lamp 304, the high-voltage power grid 306 and the transmission motor 309 are started, pests are attracted by the trap lamp 304 and the trapping agent placed in the Contraband type medicament groove 307, so that the pests reach the position of the catching bucket 301, at the position of the catching hopper 301, the electric shock is killed by the low-voltage power grid 303, so as to enter the catching cylinder 305 along the catching hopper 301, in the catching cylinder 305, the pests are killed by electric shock when falling to the high voltage grid 306, and the transmission motor 309 drives the transmission rod 308 to rotate, the scraping plate 310 is driven by the transmission rod 308 to rotate, so that the corpse of the pests falls into the collecting barrel 313 from the position of the placing opening 311 along the position of the lower leakage inclined plate 312, thereby realize killing and collecting the pest, disinfect the pest through placing inside sterile water simultaneously, keep off the rain through keeping off the rain swash plate 2, avoid the rainwater to get into and influence the device and use.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. A pest trapping collector for garden maintenance, comprising an outer sleeve (1), characterized in that: the rain-shielding inclined plate (2) is welded at the top end of the outer sleeve (1), the insect catching assembly (3) is installed on the inner side of the outer sleeve (1), and the insect catching assembly (3) comprises a catching bucket (301), a mounting cavity (302), a low-voltage power grid (303), an insect attracting lamp (304), a catching cylinder (305), a high-voltage power grid (306), an Contraband type medicament groove (307), a transmission rod (308), a transmission motor (309), a scraping plate (310), a placing opening (311), a lower leakage inclined plate (312) and a collecting barrel (313);
the utility model discloses a high-voltage electric network pesticide trap, including outer sleeve (1), catch the inboard top welding of bucket (301), the installation cavity (302) has been seted up to catch bucket (301), the inboard equidistance embedding joint of installation cavity (302) has low voltage electric network (303), installation cavity (302) inboard is close to low voltage electric network (303) position department and installs moth-killing lamp (304), the inboard middle part welding of outer sleeve (1) has a section of thick bamboo of catching (305), it has high-voltage electric network (306) to catch a section of thick bamboo (305) inboard to be close to top position department joint, catch a section of thick bamboo (305) inboard and be close to bottom position department welding Contraband type medicament groove (307), high-voltage electric network (306) top middle part runs through has transfer line (308), transfer line (308) bottom and drive motor (309) output are connected, drive motor (309) install in high-voltage electric network (306) bottom through the motor seat, transfer line (308) side welding has top scraping plate (310), high voltage electric network (306) and Contraband type medicament groove (307) top one side have all been seted up and have been placed mouth (311), high voltage electric network (306) bottom is located to place mouth (311) both ends position department and has welded down hourglass swash plate (312), collecting vessel (313) have been placed near bottom position department to outer sleeve (1) inboard.
2. A pest trapping collector for use in garden maintenance according to claim 1, wherein the angle of inclination of the trapping bucket (301) is 60 degrees, the outer diameter of the trapping cylinder (305) is equal to the inner diameter of the outer sleeve (1), and the input ends of the low voltage power grid (303), the trap lamp (304), the high voltage power grid (306) and the transmission motor (309) are electrically connected with the output end of the external power supply.
3. A pest trapping collector for use in garden maintenance according to claim 1, wherein a mounting assembly (4) is installed at one side of the outer sleeve (1), the mounting assembly (4) comprises a fixed mounting plate (401), a clamping groove (402), a clamping fixing plate (403), a fixed clamping plate (404), a movable clamping plate (405), an adjusting screw (406) and a spring clamping plate (407);
the welding of outer sleeve (1) one side has fixed mounting panel (401), fixed mounting panel (401) one side is installed joint fixed plate (403) through joint groove (402) joint, the welding of one end one side of keeping away from fixed mounting panel (401) of joint fixed plate (403) has fixed grip block (404), the joint that slides in one side of keeping away from fixed grip block (404) of joint fixed plate (403) one end has removal grip block (405), fixed grip block (404) and removal grip block (405) one end equal symmetry run through have adjusting screw (406), fixed grip block (404) and removal grip block (405) one end equal distance welding have a plurality of spring grip block (407).
4. A pest trapping collector for garden maintenance according to claim 3, wherein the adjusting screw (406) is connected with the fixed clamping plate (404) and the movable clamping plate (405) through threads, and the clamping strip is welded on the clamping fixing plate (403) at the position corresponding to the clamping groove (402).
5. The pest trapping collector for garden maintenance according to claim 1, wherein an Contraband type supporting frame (5) is movably clamped at the position of the collecting barrel (313) at the bottom end of the outer sleeve (1), moving holes (6) are symmetrically formed at two ends of the Contraband type supporting frame (5), a mounting block (7) is welded at the position of the outer sleeve (1) corresponding to the moving holes (6), and a pin hole (8) is formed at one end of each of the mounting block (7) and the Contraband type supporting frame (5).
6. A pest trap collector for use in garden care according to claim 5, wherein said mounting block (7) has a width equal to that of the moving hole (6), and a pin is engaged inside said pin hole (8).
