Abstract
本实用新型涉及光伏装置技术领域，尤其是指一种光伏板清洁车，其包括光伏支架、装设在光伏支架上的若干光伏板以及滚动装设在光伏支架上的清洁装置，所述清洁装置包括清洁滑动车、驱动件、传动组件以及若干清洁滚筒，所述清洁滑动车的底部转动设置有滑轮，驱动件装设在清洁滑动车上，所述驱动件通过传动组件与清洁滚筒以及滑轮传动连接，所述清洁滚筒与所述光伏板滚动抵接，清洁滑动车与光伏支架滚动连接。本实用新型结构新颖，设计巧妙，在清洁滑动车滚动的同时，清洁滚筒对光伏板进行同步清洁，结构简单、成本低廉，可以快速对光伏板进行清洁，有效提高发电效率。
The utility model relates to the technical field of photovoltaic devices, in particular to a photovoltaic panel cleaning vehicle, which comprises a photovoltaic support, several photovoltaic panels installed on the photovoltaic support, and a cleaning device installed on the photovoltaic support in a rolling manner. It includes a cleaning trolley, a driving part, a transmission assembly and a number of cleaning rollers. The bottom of the cleaning trolley is rotatably provided with a pulley, and the driving part is installed on the cleaning trolley. The cleaning roller is in rolling contact with the photovoltaic panel, and the cleaning carriage is in rolling connection with the photovoltaic support. The utility model has novel structure and ingenious design. While cleaning the sliding cart rolling, the cleaning roller synchronously cleans the photovoltaic panels, has a simple structure and low cost, can quickly clean the photovoltaic panels, and effectively improves the power generation efficiency.
Description
Technical Field
The utility model belongs to the technical field of the photovoltaic device technique and specifically relates to indicate a photovoltaic board cleaning cart.
Background
Solar energy is green and clean renewable energy, however, the power generation efficiency of the solar panel is reduced after dust is deposited on the surface of the solar panel. The analysis results show that dust accumulation at 4g/m2 reduces the photovoltaic output efficiency by 62% and also shortens the battery life. Most photovoltaic power plants are operated manually at present, and manual tools are used for regularly cleaning the surfaces of the photovoltaic panels. But the labor efficiency is low and the cost is high. The existing cleaning vehicle is huge in machine and low in efficiency. It is highly desirable to design a high efficiency photovoltaic power plant cleaning apparatus.
Disclosure of Invention
The utility model discloses problem to prior art provides a photovoltaic board cleaning cart, novel structure, design benefit, when clean sliding cart is rolling, clean cylinder carries out cleanness in step to the photovoltaic board, and simple structure, low cost can clean the photovoltaic board fast, effectively improve the generating efficiency.
In order to solve the technical problem, the utility model discloses a following technical scheme:
the utility model provides a pair of photovoltaic board cleaning cart, including the photovoltaic support, install a plurality of photovoltaic boards on the photovoltaic support and roll and install the cleaning device on the photovoltaic support, cleaning device is including clean sliding cart, driving piece, drive assembly and a plurality of clean cylinder, and the one end of clean cylinder is rotated and is set up on clean sliding cart, and the other end and the photovoltaic support roll connection of clean cylinder, the bottom of clean sliding cart is rotated and is provided with the pulley, and the driving piece is installed on clean sliding cart, the driving piece passes through drive assembly and is connected with clean cylinder and pulley drive, clean cylinder with photovoltaic board roll butt, clean sliding cart and photovoltaic support roll connection.
The photovoltaic support is provided with a sliding rail, and the pulley is arranged in the sliding rail in a rolling mode.
The sliding rail is composed of two L-shaped plates, the two L-shaped plates are arranged oppositely, and the two L-shaped plates are fixedly connected through a fixing bolt.
The two pulleys are respectively and rotatably arranged at the front end and the rear end of the cleaning sliding vehicle.
The driving component comprises a first bevel gear, a second bevel gear, a first transmission gear, a second transmission gear and a first synchronous belt, the driving part comprises a first motor, the output end of the first motor is in driving connection with the first bevel gear, the second bevel gear is rotatably arranged on the cleaning sliding vehicle, the first transmission gear is arranged on the back face of the second bevel gear, the first transmission gear is in transmission connection with the second transmission gear through the first synchronous belt, the first bevel gear is in meshing transmission connection with the second bevel gear, a rotating shaft is arranged at the axis of the pulley, and the second transmission gear is sleeved on the periphery of the rotating shaft; the transmission assembly further comprises a third bevel gear, the third bevel gear is sleeved at one end of the cleaning roller, and the first bevel gear is in meshed transmission connection with the third bevel gear.
The driving piece comprises a second motor, the second motor is arranged on the cleaning sliding car, and the output end of the second motor is in driving connection with the cleaning roller.
The other end of the cleaning roller is sleeved with a sleeve head, the sleeve head is provided with a connecting rod, the lower end of the connecting rod is rotatably provided with a roller, and the roller is arranged on the photovoltaic support in a rolling mode.
The other end of the cleaning roller is in threaded connection with a threaded plug, and the threaded plug is used for limiting the sleeve head at the other end of the cleaning roller.
The cleaning sliding trolley is provided with a storage battery and a controller, and the controller is provided with a control button.
Wherein the number of the cleaning rollers is one or more.
The utility model has the advantages that:
the utility model discloses novel structure, design benefit, the during operation, the driving piece orders about drive assembly drives clean cylinder and pulley rotation to drive clean movable trolley and roll on the photovoltaic support, and in the rolling of clean movable trolley, clean cylinder carries out synchronous cleanness to the photovoltaic board, and simple structure, low cost can clean the photovoltaic board fast, effectively improve the generating efficiency.
Drawings

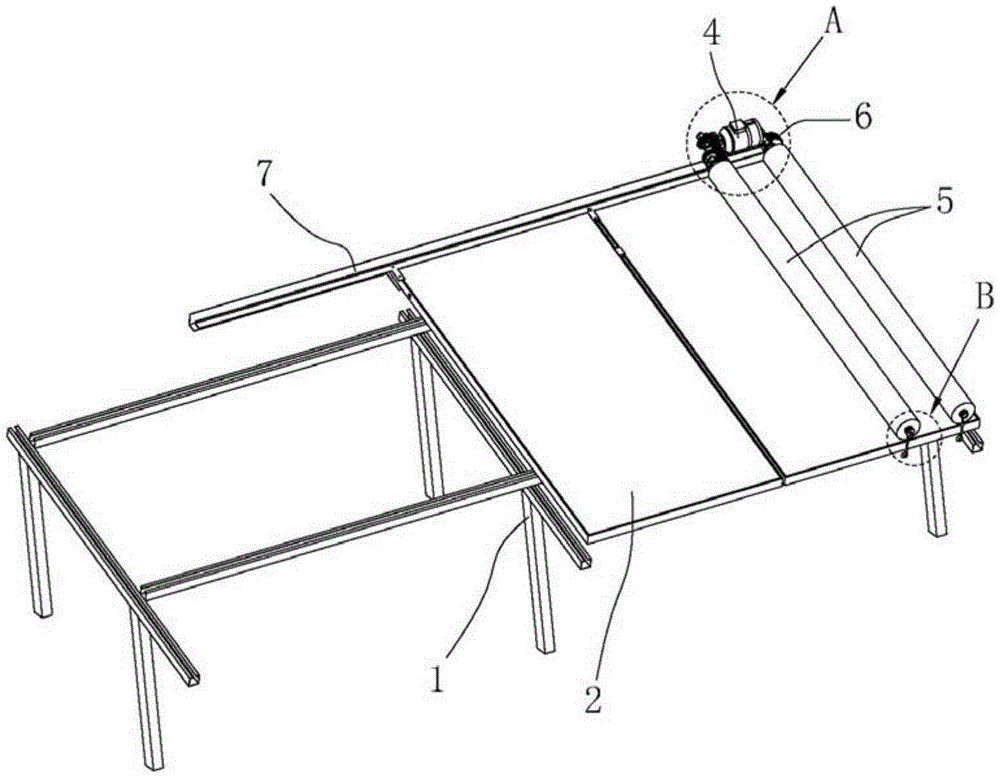

Fig. 1 is the utility model discloses a photovoltaic board cleaning vehicle's schematic structure diagram.
Fig. 2 is another view angle structure diagram of the photovoltaic panel cleaning cart of the present invention.
Fig. 3 is an enlarged view of a point a in fig. 1.
Fig. 4 is an enlarged view at B in fig. 1.
Fig. 5 is an enlarged view at C in fig. 2.
The reference numerals in fig. 1 to 5 include:
1. a photovoltaic support; 2. a photovoltaic panel; 3. cleaning the sliding trolley; 4. a drive member; 5. cleaning the roller; 6. a pulley; 7. a slide rail; 8. a first bevel gear; 9. a second bevel gear; 10. a third bevel gear; 11. a first drive gear; 12. a second transmission gear; 13. a first synchronization belt; 14. a rotating shaft; 15. sleeving heads; 16. a connecting rod; 17. a roller; 18. a threaded plug; 19. and a control button.
Detailed Description
In order to facilitate understanding of those skilled in the art, the present invention will be further described with reference to the following examples and drawings, which are not intended to limit the present invention. The present invention will be described in detail with reference to the accompanying drawings.
The utility model provides a photovoltaic board cleaning cart, as shown in fig. 1 to 5, includes photovoltaic support 1, installs a plurality of photovoltaic boards 2 on photovoltaic support 1 and rolls and install the cleaning device on photovoltaic support 1, cleaning device is including clean slide car 3, driving piece 4, drive assembly and a plurality of cleaning roller 5, and the one end of cleaning roller 5 is rotated and is set up on clean slide car 3, the other end and the 1 roll connection of photovoltaic support of cleaning roller 5, the bottom of clean slide car 3 is rotated and is provided with pulley 6, and driving piece 4 is installed on clean slide car 3, driving piece 4 is connected with cleaning roller 5 and the transmission of pulley 6 through drive assembly, cleaning roller 5 with the 2 roll butts of photovoltaic board, clean slide car 3 and the 1 roll connection of photovoltaic support. Specifically, the utility model discloses novel structure, design benefit, the during operation, driving piece 4 orders about drive assembly drives cleaning roller 5 and pulley 6 and rotates to drive clean movable trolley 3 and roll on photovoltaic support 1, and in clean movable trolley 3 rolling, cleaning roller 5 carries out synchronous cleanness to photovoltaic board 2, and simple structure, low cost can clean photovoltaic board 2 fast, effectively improve the generating efficiency.
This embodiment a photovoltaic board 2 cleaning device, be provided with slide rail 7 on the photovoltaic support 1, pulley 6 rolls and sets up in slide rail 7. Specifically, the sliding rail 7 can limit the pulley 6, and meanwhile, the pulley 6 is ensured to stably move in the sliding rail 7, and the cleaning sliding vehicle 3 is ensured to stably roll; further, the number of the pulleys 6 is two, and the two pulleys 6 are respectively rotatably arranged at the front end and the rear end of the cleaning sliding vehicle 3, so that the stability of the cleaning sliding vehicle 3 during rolling is better.
The photovoltaic panel 2 cleaning device comprises a transmission assembly, wherein the transmission assembly comprises a first bevel gear 8, a second bevel gear 9, a third bevel gear 10, a first transmission gear 11, a second transmission gear 12 and a first synchronous belt 13, the driving part 4 comprises a first motor, the output end of the first motor is in driving connection with the first bevel gear 8, the second bevel gear 9 is rotatably arranged on the cleaning sliding vehicle 3, the first transmission gear 11 is arranged on the back surface of the second bevel gear 9, the first transmission gear 11 is in driving connection with the second transmission gear 12 through the first synchronous belt 13, the first bevel gear 8 is in meshing driving connection with the second bevel gear 9, a rotating shaft 14 is arranged at the axis of a pulley 6, and the second transmission gear 12 is sleeved on the periphery of the rotating shaft 14; the third bevel gear 10 is sleeved at one end of the cleaning roller 5, and the first bevel gear 8 is in meshing transmission connection with the third bevel gear 10.
Specifically, through the above arrangement, the driving part 4 drives the first bevel gear 8 to rotate during operation, and drives the second bevel gear 9 and the third bevel gear 10 to rotate synchronously, and then drives the first transmission gear 11 and the second transmission gear 12 to rotate, so that the pulley 6 rotates, and the cleaning roller 5 rotates, and the cleaning sliding vehicle 3 also moves along the sliding rail 7, so that the cleaning roller 5 cleans the photovoltaic panel 2 on the photovoltaic support 1, and the single driving part 4 can realize synchronous driving, and the structure design is ingenious and novel.
This embodiment a 2 cleaning device of photovoltaic board, another pot head 15 is equipped with to the other pot head of cleaning roller 5, the pot head 15 is provided with connecting rod 16, the lower extreme of connecting rod 16 rotates and is provided with gyro wheel 17, gyro wheel 17 rolls and sets up on the photovoltaic support 1. Specifically, the above arrangement can ensure the stability and reliability of the cleaning roller 5 in operation.
According to the cleaning device for the photovoltaic panel 2, the other end of the cleaning roller 5 is connected with the threaded plug 18 in a threaded manner, and the threaded plug 18 is used for limiting the sleeve head 15 at the other end of the cleaning roller 5. Specifically, the screw plug 18 can position the sleeve head 15 at the other end of the cleaning roller 5, so that the installation and the disassembly are convenient, and the use is convenient.
According to the cleaning device for photovoltaic panel 2, the cleaning sliding trolley is provided with the storage battery and the controller, and the controller is provided with the control button 19. Specifically, the storage battery is electrically connected with the controller and the driving part, and the driving part 4 is a motor; control button 19 includes switch button, speed governing button, motor positive and negative change over switch, and the realization is right the utility model discloses a clean slide car 3 open stop, moving speed and moving direction adjust, wherein, motor positive and negative change over switch can realize that cleaning roller 5 makes a round trip to clean on photovoltaic board 2 and cleans.
In the cleaning device for the photovoltaic panel 2 according to the embodiment, the number of the cleaning rollers 5 is one or more. Specifically, the two cleaning rollers 5 are respectively rotatably arranged at the front end and the rear end of the cleaning sliding vehicle 3, so that the cleaning efficiency is improved; wherein, the periphery wall of cleaning cylinder 5 is provided with clean brush or rag, improves clean effect.
Of course, the cleaning trolley and the driving member 4 of the present invention are both designed to be waterproof, so that the cleaning operation can be performed in the rainy period, the cleaning effect is improved, a large amount of water can be saved, and the reduction of the operation power generation amount in the sunshine can be reduced.
Of course, another embodiment of the present invention is: the driving piece 4 comprises a second motor, the second motor is arranged on the cleaning sliding trolley, and the output end of the second motor is in driving connection with the cleaning roller. At this time, the third bevel gear 10 is not needed to be arranged at one end of the cleaning roller 5, and the cleaning roller 5 is directly driven by the second motor to rotate for cleaning, that is, while the cleaning sliding vehicle is driven by the first motor to move, the cleaning roller 5 is driven by the second motor to rotate for cleaning the photovoltaic panel 2.
The above description is only for the preferred embodiment of the present invention, and the present invention is not limited to the above description, and although the present invention is disclosed in the preferred embodiment, it is not limited to the above description, and any person skilled in the art can make some changes or modifications to equivalent embodiments without departing from the scope of the present invention, but all the technical solutions of the present invention are within the scope of the present invention.
Claims (10)
1. The utility model provides a photovoltaic board cleaning cart which characterized in that: including the photovoltaic support, install a plurality of photovoltaic boards on the photovoltaic support and roll and install cleaning device on the photovoltaic support, cleaning device is including clean sliding cart, driving piece, drive assembly and a plurality of clean cylinder, and the one end of clean cylinder is rotated and is set up on clean sliding cart, the other end and the photovoltaic support roll connection of clean cylinder, the bottom of clean sliding cart is rotated and is provided with the pulley, and the driving piece is installed on clean sliding cart, the driving piece passes through drive assembly and clean cylinder and pulley drive is connected, clean cylinder with photovoltaic board roll butt, clean sliding cart and photovoltaic support roll connection.
2. The photovoltaic panel cleaning cart of claim 1, wherein: be provided with the slide rail on the photovoltaic support, the pulley rolls to be set up in the slide rail.
3. The photovoltaic panel cleaning cart of claim 2, wherein: the slide rail comprises two through L shape plates, and two L shape plates are just to setting up, and two L shape plates pass through fixing bolt fixed connection.
4. The photovoltaic panel cleaning cart of claim 1, wherein: the pulley is provided with two, and two pulleys rotate respectively and set up in the front of clean slide car, back both ends.
5. The photovoltaic panel cleaning cart of claim 1, wherein: the driving component comprises a first bevel gear, a second bevel gear, a first transmission gear, a second transmission gear and a first synchronous belt, the driving part comprises a first motor, the output end of the first motor is in driving connection with the first bevel gear, the second bevel gear is rotatably arranged on the cleaning sliding vehicle, the first transmission gear is arranged on the back surface of the second bevel gear, the first transmission gear is in driving connection with the second transmission gear through a first synchronous belt, the first bevel gear is in meshing driving connection with the second bevel gear, a rotating shaft is arranged at the axis of the pulley, and the second transmission gear is sleeved on the periphery of the rotating shaft; the transmission assembly further comprises a third bevel gear, the third bevel gear is sleeved at one end of the cleaning roller, and the first bevel gear is in meshed transmission connection with the third bevel gear.
6. The photovoltaic panel cleaning cart of claim 1, wherein: the driving piece comprises a second motor, the second motor is arranged on the cleaning sliding trolley, and the output end of the second motor is in driving connection with the cleaning roller.
7. The photovoltaic panel cleaning cart of claim 5, wherein: the other end cover of cleaning roller is equipped with the pullover, the pullover is provided with the connecting rod, the lower extreme of connecting rod rotates and is provided with the gyro wheel, the gyro wheel rolls and sets up on the photovoltaic support.
8. The photovoltaic panel cleaning cart of claim 7, wherein: the other end of the cleaning roller is in threaded connection with a threaded plug, and the threaded plug is used for limiting the sleeve head at the other end of the cleaning roller.
9. The photovoltaic panel cleaning cart of claim 1, wherein: the cleaning sliding trolley is provided with a storage battery and a controller, and the controller is provided with a control button.
10. The photovoltaic panel cleaning cart of claim 1, wherein: the number of the cleaning rollers is one or more.
