CN214847620U

CN214847620U - A bulletin board for engineering cost

Info

Publication number: CN214847620U
Application number: CN202121159257.3U
Authority: CN
Inventors: 谢娜
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-05-27
Filing date: 2021-05-27
Publication date: 2021-11-23
Anticipated expiration: 2031-05-27

Abstract

A bulletin board for engineering cost, comprising two support columns, the tops of the two support columns are fixedly connected with an awning, the opposite sides of the two support columns are fixedly connected with a connecting shaft, and one of the connecting shafts is far from the support column. The side is fixedly connected with a publicity frame, the front of the publicity frame is provided with a first publicity board, the back of the publicity frame is provided with a second publicity board, the bottom of the two support columns is fixedly connected with an I-shaped base, through the installation of solar photovoltaic panels and lighting lamps It is easy to read and also saves energy and protects the environment. By setting up a cleaning device, the function of quickly cleaning the stains on the glass surface is realized. At the same time, two bulletin boards are set up. , solve the problems encountered in the project in time, the second bulletin board is used to display large posters, making the small details more conspicuous, and the publicity is divided into categories, making the overall effect clearer and more beautiful.

Description

A bulletin board for engineering cost

Technical Field

The utility model relates to a bulletin board technical field, concretely relates to bulletin board for engineering cost.

Background

The project cost is the estimated or actual expenditure construction cost of the construction project in the construction period, and in the process of the project cost, a bulletin board is needed to be used for displaying the cost result.

The bulletin board of traditional engineering cost is after long-time use, and a lot of dusts can be piled up on the bulletin board surface, influences the bandwagon's of information bandwagon, in the time of meetting the problem, can not annotate the explanation to the problem moreover, causes cost process unnecessary troublesome, and the show content can not be seen clearly when light is not good, and poster drawing file etc. are not of uniform size, and the interface is mixed and disorderly pleasing to the eye.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is that current bulletin board surface dust is difficult for clearing up, does not have lighting device, can not write the comment, and big or small poster file etc. is in the same place and is pleasing to the eye and easy mistake trouble, and for this, we propose a bulletin board for engineering cost and solve above-mentioned problem.

The utility model provides a technical scheme that technical problem adopted is: the utility model provides a bulletin board for engineering cost, its includes two support columns, two support column top fixedly connected with canopy, two the equal fixedly connected with connecting axle in one side that the support column is relative, the public frame of one side fixedly connected with of keeping away from the support column of connecting axle, public frame openly is provided with first public board, public frame back is equipped with the public board of second, two the bottom fixedly connected with I shape base of support column.

As an optimal technical scheme of the utility model, first public display panel surface is provided with two glass doors, two glass door is through pivot swing joint on the public display frame, two all be provided with cleaning device and door handle on the glass door, the surface of first public display panel is the magnetism blackboard, it has the iron disc to paste on the magnetism blackboard.

As a preferred technical scheme of the utility model, cleaning device includes spout, cleaning brush and cleaning handle, the spout is seted up at the surperficial inboard of public show frame, the both ends card of cleaning brush is in the spout the inside, cleaning brush sliding connection is in the spout, the intermediate position of cleaning brush is provided with cleaning handle.

As an optimal technical scheme of the utility model, the second bulletin board surface is provided with the glass cover, the glass cover is inlayed in the bulletin frame, the push-and-pull handle is installed to second bulletin board one side, be equipped with the space between second bulletin board and the glass cover.

As a preferred technical scheme of the utility model, canopy outside surface mounting has the solar photovoltaic board, the inside battery that is provided with of canopy, four lights of canopy bottom fixedly connected with, solar photovoltaic board and battery electric connection, battery and four light electric connection.

The utility model discloses the beneficial effect who reaches is: through being equipped with solar photovoltaic board and light, it is energy-concerving and environment-protective still to make things convenient for when reading, realized the function of quick clearance glass surface spot through setting up cleaning device, two public display boards have been set up simultaneously, first public display board is used for pasting small-size file drawing, can also carry out the comment explanation on the blackboard, in time solve the problem that meets in the engineering, the second public display board is used for showing large-scale poster, make the small details stand out more conspicuously and stand out, and the class of going on public display of division, make the whole effect clear more and pleasing to the eye.

Drawings

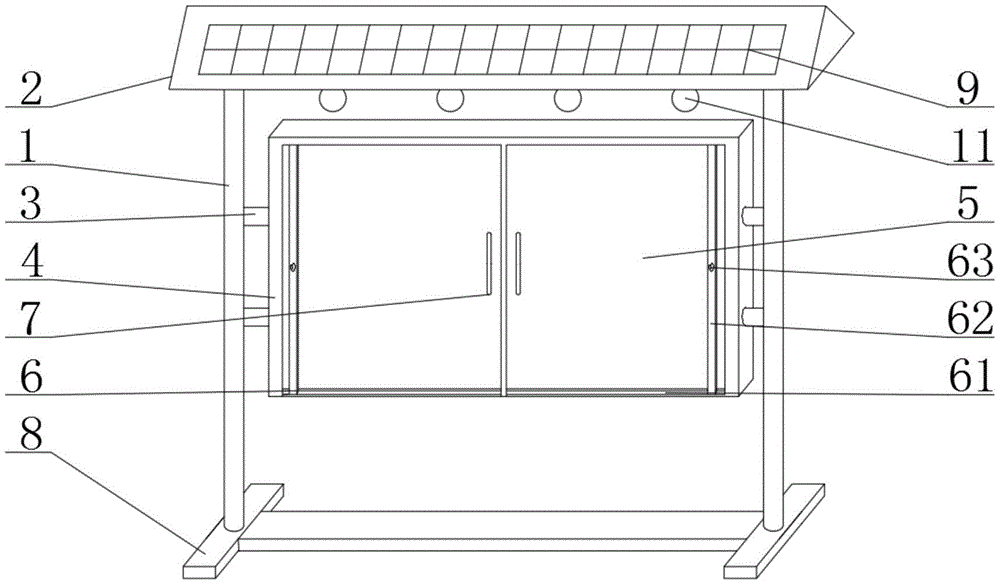

FIG. 1 is a schematic structural view of the main body of a preferred embodiment of the present invention;

fig. 2 is a schematic front view of a preferred embodiment of the present invention;

fig. 3 is a schematic structural view of the back side of a preferred embodiment of the present invention;

fig. 4 is a schematic cross-sectional view of a preferred embodiment of the rain fly of the present invention.

Description of reference numerals: 1. a support pillar; 2. a canopy; 3. a connecting shaft; 4. a display frame; 5. a glass door; 6. a cleaning device; 61. a chute; 62. a cleaning brush; 63. cleaning the handle; 7. a door handle; 8. an I-shaped base; 9. a solar photovoltaic panel; 10. a storage battery; 11. an illuminating lamp; 12. a first bulletin board; 13. a magnetic blackboard; 14. a disc made of iron; 15. a glass cover; 16. a second bulletin board; 17. push and pull the grip.

Detailed Description

The technical solution of the present invention will be clearly and completely described with reference to the accompanying drawings. In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

The present invention will be further explained with reference to the accompanying drawings.

Please refer to fig. 1-4 in combination, the utility model relates to a bulletin board for engineering cost, including two support columns 1, two support columns 1 top fixedly connected with canopy 2, canopy 2 can be used for keeping off the rain for following bulletin board main part, avoid the rainwater to get into the bulletin material paper of wetting, the equal fixedly connected with connecting axle 3 of one side that two support columns 1 are relative, one side fixedly connected with bulletin frame 4 of keeping away from support column 1 of connecting axle 3, four connecting axles 3 are fixed bulletin frame 4 on support column 1, bulletin frame 4 openly is provided with first bulletin board 12, the back of bulletin frame 4 is equipped with second bulletin board 16, the bulletin board is provided with two and is made the bulletin content to look simpler and more clear, two support columns 1 bottom fixedly connected with i shape base 8, it can make overall structure more stable to set up I shape base 8, wind resistance can be strong.

The outer surface of the first public display board 12 is provided with two glass doors 5, the two glass doors 5 are movably connected to the public display frame 4 through a rotating shaft, the two glass doors 5 are respectively provided with a cleaning device 6 and a door handle 7, the surface of the first public display board 12 is a magnetic blackboard 13, an iron disc 14 is adhered to the magnetic blackboard 13, the magnetic blackboard 13 can be used for writing notes and solving problems in the engineering in time, the iron disc 14 is used for adsorbing public display files without leaving any trace to influence the attractiveness, the replacement is convenient and quick, the cleaning device 6 comprises a chute 61, a cleaning brush 62 and a cleaning handle 63, the chute 61 is arranged on the inner side of the surface of the public display frame 4, two ends of the cleaning brush 62 are clamped in the chute 61, the cleaning brush 62 is connected in the chute 61 in a sliding manner, the cleaning handle 63 is arranged in the middle of the cleaning brush 62, the cleaning handle 63 drives the cleaning brush 62 to move back and forth on the chute 61 to achieve the cleaning effect on the glass doors 5, the surface of the second public display board 16 is provided with a glass cover 15, the glass cover 15 is inlaid in the public display frame 4, a push-pull handle 17 is installed on one side of the second public display board 16, a gap is formed between the second public display board 16 and the glass cover 15, the second public display board 16 can be pushed and pulled by the push-pull handle 17 to be taken out of the public display frame 4, a large poster is installed, the poster is put back into the public display frame 4 through the push-pull handle 17 for public display, the solar photovoltaic panel 9 is installed on the surface of the outer side of the awning 2, the storage battery 10 is arranged inside the awning 2, four illuminating lamps 11 fixedly connected with the bottom of the awning 2 are fixedly connected with each other, the solar photovoltaic panel 9 is electrically connected with the storage battery 10, the storage battery 10 is electrically connected with the four illuminating lamps 11, the solar photovoltaic panel 9 absorbs solar energy to be converted into electric energy and is stored in the storage battery 10, and the storage battery 10 provides electric quantity for the four illuminating lamps 11.

Specifically, when the utility model is used, firstly, the front of the bulletin board is reached, the door handle 7 is held to open the glass door 5, four corners of a small engineering cost document are clamped on the surface of the magnetic blackboard 13 of the first bulletin board 12 through the iron-made discs 14, then important problems are commented and explained, people are informed of the problems in time, then the glass door 5 is closed to protect the cost document, when stains are on the glass door 5, the cleaning handle 63 in the cleaning device 6 is used to drive the cleaning brush 62 to slide on the chute 61 to clean the glass door 5, then the back of the bulletin board is reached, the push-pull handle 17 is held to pull out the second bulletin board 16, larger posters are installed on the surface of the second bulletin board 16, after the installation, the second bulletin board 16 with the posters is put back into the bulletin frame 4 to be displayed, at night or when the light is insufficient, the illuminating lamp 11 can be turned on to facilitate watching, and the electric energy of the illuminating lamp 11 is from the solar energy collected by the solar photovoltaic panel 9, so that the solar energy-saving and environment-friendly effects are achieved.

The foregoing is only a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of improvements and decorations can be made without departing from the principle of the present invention, and these improvements and decorations should also be regarded as the protection scope of the present invention.

Other parts not described in detail in the present invention belong to the prior art, and are not described herein again.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.

Claims

1. The utility model provides a bulletin board for engineering cost, a serial communication port, including two support columns (1), two support column (1) top fixedly connected with canopy (2), two equal fixedly connected with connecting axle (3) in one side that support column (1) is relative, one side fixedly connected with bulletin frame (4) of keeping away from support column (1) of connecting axle (3), bulletin frame (4) openly is provided with first public board (12), bulletin frame (4) back is equipped with second public board (16), two the bottom fixedly connected with I shape base (8) of support column (1).

2. The bulletin board for construction cost according to claim 1, wherein two glass doors (5) are arranged on the outer surface of the first bulletin board (12), the two glass doors (5) are movably connected to the bulletin frame (4) through rotating shafts, a cleaning device (6) and a door handle (7) are arranged on each of the two glass doors (5), the surface of the first bulletin board (12) is a magnetic blackboard (13), and an iron disc (14) is adhered to the magnetic blackboard (13).

3. A bulletin board for construction cost according to claim 2, wherein the cleaning device (6) comprises a sliding groove (61), a cleaning brush (62) and a cleaning handle (63), the sliding groove (61) is arranged on the inner side of the surface of the bulletin frame (4), two ends of the cleaning brush (62) are clamped in the sliding groove (61), the cleaning brush (62) is slidably connected in the sliding groove (61), and the cleaning handle (63) is arranged in the middle of the cleaning brush (62).

4. A bulletin board for construction cost according to claim 1, wherein a glass cover (15) is arranged on the outer surface of the second bulletin board (16), the glass cover (15) is embedded in the bulletin frame (4), a push-pull grip (17) is arranged on one side of the second bulletin board (16), and a gap is arranged between the second bulletin board (16) and the glass cover (15).

5. The bulletin board for construction cost according to claim 1, wherein a solar photovoltaic panel (9) is installed on the outer side surface of the awning (2), a storage battery (10) is arranged inside the awning (2), four illuminating lamps (11) are fixedly connected to the bottom of the awning (2), the solar photovoltaic panel (9) is electrically connected with the storage battery (10), and the storage battery (10) is electrically connected with the four illuminating lamps (11).
