Detection device for mobile phone data line

Technical Field

The utility model relates to a data line detects technical field, specifically is a detection device for cell-phone data line.

Background

The data line is used for connecting a mobile device and a computer to achieve the purpose of data transmission or communication, and is a popular point that a channel tool for connecting the computer and the mobile device to transmit files such as videos, bells, pictures and the like is used, at present, along with the development of the electronic industry, the data line becomes an indispensable part in our lives, after the data line is assembled, the data line needs to be tested to detect whether the port wiring of the wiring is firm and carry out fatigue test on the service life of the data line, so that data line detection equipment needs to be used, the existing equipment has many problems, for example, most of the equipment adopts a wheel disc to rotate to drive the detection data line to carry out plugging detection, the wheel disc can only be plugged for one circle, the detection efficiency is low, the detection equipment can generate acting force in the plugging process, the structure is influenced and the like, there is therefore a need for improvements in the prior art.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a detection device for cell-phone data line to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a detection device for a mobile phone data line comprises a detection table, a buffer box and a clamping block, wherein a support frame is fixedly arranged at the left end of the upper surface of the detection table, a supporting plate a is fixedly arranged at the right end of the supporting frame, an equipment box is fixedly arranged at the right end of the upper surface of the detection table, a supporting plate b is fixedly arranged at the left end of the equipment box, a through hole b is arranged at the middle section of the side wall of the supporting plate b, a detection rod is fixedly arranged in the through hole b, the middle section of the side wall of the supporting plate a is provided with a through hole a, a telescopic rod is movably arranged in the through hole a, an air cylinder is fixedly arranged at the upper end of the supporting frame, one end of the telescopic rod is fixedly connected with the driving end of the air cylinder, the other end of the telescopic rod is fixedly connected with the buffer box, the buffer box is characterized in that a movable hole is formed in the middle section of the right side wall of the buffer box, a supporting rod is movably mounted in the movable hole, and a clamping block is fixedly mounted at the right end of the supporting rod and the left end of the detection rod.

Preferably, a support plate is fixedly mounted at the left end inside the buffer box, a buffer rod is fixedly mounted at the left end of the supporting rod, the support plate is fixedly connected at the left end of the buffer rod, a buffer spring is sleeved outside the buffer rod, one end of the buffer spring is fixedly connected with the supporting rod, and the other end of the buffer spring is fixedly connected with the support plate.

Preferably, the lateral wall of grip block is equipped with the centre gripping chamber, the upper end of grip block is seted up threaded hole, and threaded hole and centre gripping chamber are linked together, the hob is installed to the threaded hole internal rotation, the lower extreme of hob is located centre gripping intracavity fixed mounting and has the clamp plate, the inside lower extreme fixed mounting in centre gripping chamber has the block rubber.

Preferably, the upper surface middle section fixed mounting who examines the test table has the slide, and the slide is located between backup pad an and the backup pad b, the lower extreme fixed mounting of baffle-box has the slide bar, the lower extreme slidable mounting of slide bar is in the slide.

Preferably, the upper end fixed mounting of equipment box has the tester, the right-hand member fixed connection tester of test rod, the lower extreme fixed mounting of equipment box has control panel.

Compared with the prior art, the beneficial effects of the utility model are that: this a detection device for cell-phone data line, simple structure, convenient operation pulls out through cylinder drive telescopic link is flexible to insert the test to reduced test waiting period, save time, through the buffering subassembly and the cooperation between the branch that buffer beam and buffer spring constitute, make to pull out the effort of inserting the in-process production and offset, slowed down the influence stable to equipment, thereby improve detection efficiency, make the detection data more accurate.

Drawings

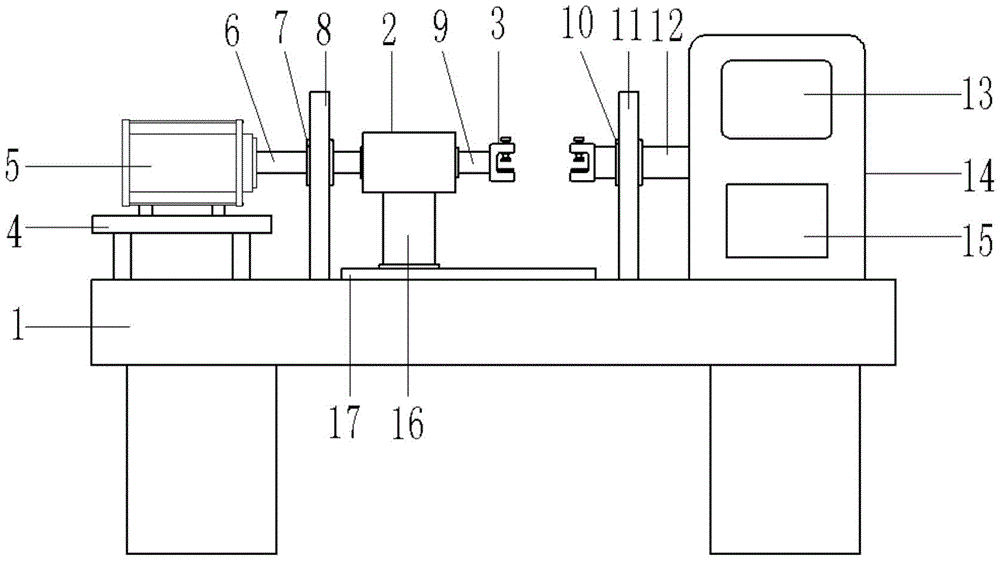

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the inside of the buffer box of the present invention;

fig. 3 is a schematic diagram of the structure of the clamping block of the present invention.

In the figure: the device comprises a detection table 1, a buffer box 2, a clamping block 3, a support frame 4, a cylinder 5, a telescopic rod 6, a through hole 7 a, a support plate 8 a, a support rod 9, a through hole 10 b, a support plate 11 b, a detection rod 12, a tester 13, an equipment box 14, a control panel 15, a slide rod 16, a slide way 17, a support plate 18, a buffer rod 19, a buffer spring 20, a movable hole 21, a threaded hole 22, a screw rod 23, a pressing plate 24, a rubber block 25 and a clamping cavity 26.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1, fig. 2 and fig. 3, the present invention provides a technical solution: a detection device for a mobile phone data line comprises a detection table 1, a buffer box 2 and a clamping block 3, wherein a support frame 4 is fixedly installed at the left end of the upper surface of the detection table 1, a support plate a 8 is fixedly installed at the right end of the support frame 4, an equipment box 14 is fixedly installed at the right end of the upper surface of the detection table 1, a support plate b 11 is fixedly installed at the left end of the equipment box 14, the support plate a 8 and the support plate b 11 are arranged in parallel, a through hole b 10 is formed in the middle section of the side wall of the support plate b 11, a detection rod 12 is fixedly installed in the through hole b 10, a circuit for testing is arranged in the detection rod 12 and is connected with a tester 13 in the equipment box 14, a through hole a 7 is formed in the middle section of the side wall of the support plate a 8, a telescopic rod 6 is movably installed in the through hole a 7, the telescopic rod 6 can be telescopic in the through hole a 7, and the through hole a 7 and the through hole b 10 are on the same horizontal line, the upper end fixed mounting of support frame 4 has cylinder 5, the drive end of the one end fixed connection cylinder 5 of telescopic link 6, the other end fixed connection baffle-box 2 of telescopic link 6, and movable hole 21 has been seted up in the right side wall middle section of baffle-box 2, and movable mounting has branch 9 in the movable hole 21, the equal fixed mounting grip block 3 in the right-hand member of branch 9 and the left end of measuring staff 12.

The buffer box is characterized in that a carrier plate 18 is fixedly mounted at the left end inside the buffer box 2, a buffer rod 19 is fixedly mounted at the left end of the supporting rod 9, the buffer rod 19 is a traditional telescopic cylinder, the left end of the buffer rod 19 is fixedly connected with the carrier plate 18, a buffer spring 20 is sleeved outside the buffer rod 19, one end of the buffer spring 20 is fixedly connected with the supporting rod 9, and the other end of the buffer spring 20 is fixedly connected with the carrier plate 18.

The lateral wall of grip block 3 is equipped with centre gripping chamber 26, and threaded hole 22 has been seted up to the upper end of grip block 3, and threaded hole 22 is linked together with centre gripping chamber 26, and hob 23 is installed to the threaded hole 22 internal rotation, and hob 23 can revolve in threaded hole 22 and revolve out, and the lower extreme of hob 23 is located centre gripping chamber 26 internal fixation and has clamp plate 24, and the inside lower extreme fixed mounting in centre gripping chamber 26 has rubber block 25.

Detect table 1's upper surface middle section fixed mounting has slide 17, and slide 17 is located between backup pad an 8 and the backup pad b 11, and the lower extreme fixed mounting of buffer box 2 has slide bar 16, and slide bar 16's lower extreme slidable mounting is in slide 17, and when buffer box 2 controlled about the flexible of telescopic link 6 down, slide bar 16 can follow buffer box 2 and remove in slide 17 for remove the direction.

The upper end fixed mounting of equipment box 14 has tester 13, and the right-hand member fixed connection tester 13 of check rod 12, the lower extreme fixed mounting of equipment box 14 has control panel 15 for the holistic electronic component of controlgear.

The working process and principle are as follows: when the data line needs to be plugged and unplugged, the data line to be tested is placed in the clamping cavity 26 of the clamping block 3 at the right end of the supporting rod 9, the matched port is clamped in the clamping cavity 26 of the clamping block 3 at the left end of the detection rod 12, the screw rod 23 is rotated downwards and fixed in the clamping cavity 26, the control panel 15 is operated, the air cylinder 5 is started to drive the telescopic rod 6 to stretch repeatedly, the supporting rod 9 and the clamping block 3 start to move leftwards and rightwards, plugging and unplugging tests are carried out, when the port is plugged in by moving rightwards, the buffer spring 20 and the buffer rod 19 shrink, when the port is unplugged by moving leftwards, the buffer spring 20 and the buffer rod 19 rebound, repeated shrinkage rebound, and the acting force of the plugging and unplugging process on the equipment can be offset.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. The utility model provides a detection device for cell-phone data line, is including examining test table (1), baffle-box (2) and grip block (3), its characterized in that: the detection device is characterized in that a support frame (4) is fixedly mounted at the left end of the upper surface of the detection table (1), a support plate a (8) is fixedly mounted at the right end of the support frame (4), an equipment box (14) is fixedly mounted at the right end of the upper surface of the detection table (1), a support plate b (11) is fixedly mounted at the left end of the equipment box (14), a through hole b (10) is formed in the middle section of the side wall of the support plate b (11), a detection rod (12) is fixedly mounted in the through hole b (10), a through hole a (7) is formed in the middle section of the side wall of the support plate a (8), a telescopic rod (6) is movably mounted in the through hole a (7), an air cylinder (5) is fixedly mounted at the upper end of the support frame (4), one end of the telescopic rod (6) is fixedly connected with the driving end of the air cylinder (5), and the other end of the telescopic rod (6) is fixedly connected with the buffer box (2), activity hole (21) have been seted up in the right side wall middle section of baffle-box (2), movable mounting has branch (9) in activity hole (21), the equal fixed mounting grip block (3) in the right-hand member of branch (9) and the left end of test bar (12).

2. The detecting device for the data line of the mobile phone according to claim 1, wherein: the buffer box is characterized in that a support plate (18) is fixedly mounted at the left end inside the buffer box (2), a buffer rod (19) is fixedly mounted at the left end of the support rod (9), the left end of the buffer rod (19) is fixedly connected with the support plate (18), a buffer spring (20) is sleeved outside the buffer rod (19), one end of the buffer spring (20) is fixedly connected with the support plate (9), and the other end of the buffer spring (20) is fixedly connected with the support plate (18).

3. The detecting device for the data line of the mobile phone according to claim 1, wherein: the lateral wall of grip block (3) is equipped with centre gripping chamber (26), threaded hole (22) are seted up to the upper end of grip block (3), and threaded hole (22) are linked together with centre gripping chamber (26), hob (23) are installed to screw hole (22) internal rotation, fixed mounting has clamp plate (24) in the lower extreme of hob (23) is located centre gripping chamber (26), the inside lower extreme fixed mounting of centre gripping chamber (26) has rubber block (25).

4. The detecting device for the data line of the mobile phone according to claim 1, wherein: examine the upper surface middle section fixed mounting of platform (1) and have slide (17), and slide (17) are located between backup pad a (8) and backup pad b (11), the lower extreme fixed mounting of baffle-box (2) has slide bar (16), the lower extreme slidable mounting of slide bar (16) is in slide (17).

5. The detecting device for the data line of the mobile phone according to claim 1, wherein: the upper end fixed mounting of equipment box (14) has tester (13), the right-hand member fixed connection tester (13) of test rod (12), the lower extreme fixed mounting of equipment box (14) has control panel (15).
