Abstract
本实用新型提供一种无纺布清洗装置，包括沿无纺布传送方向依次设置的清洗机构和烘干机构；所述的清洗机构包括清洗箱、左引导件、右引导件和洗刷件，所述的烘干机构包括烘干箱，所述的烘干箱上沿无纺布传送方向依次设有擦拭件和吹风件，所述的擦拭件包括第二N型架、第二气缸、上擦拭辊和下擦拭辊，所述的吹风件包括第三N型架、左支撑辊和右支撑辊。本实用新型的有益效果是：洗刷横板和洗刷辊上的毛刷能够对无纺布进行充分清洗；上擦拭辊和下擦拭辊上的海绵擦能够对清洗后无纺布上下表面的水份进行擦拭，方便烘干；多个暖风机的设置能够使无纺布烘干更彻底，烘干箱能够收集无纺布经过擦拭件处理时产生的水份，方便回收再利用，生产效率高。
The utility model provides a non-woven fabric cleaning device, comprising a cleaning mechanism and a drying mechanism arranged in sequence along the non-woven fabric conveying direction; the cleaning mechanism comprises a cleaning box, a left guide piece, a right guide piece and a scrubbing piece, all of which are The drying mechanism includes a drying box, and the drying box is provided with a wiper and a blower in sequence along the non-woven fabric conveying direction, and the wiper includes a second N-shaped frame, a second air cylinder, and an upper wiper. A roller and a lower wiping roller, and the blowing member includes a third N-shaped frame, a left supporting roller and a right supporting roller. The beneficial effects of the utility model are as follows: the brushes on the scrubbing horizontal plate and the scrubbing roller can fully clean the non-woven fabric; Wiping is convenient for drying; the setting of multiple heaters can make the non-woven fabric dry more thoroughly, and the drying box can collect the moisture generated when the non-woven fabric is processed by the wiper, which is convenient for recycling and high production efficiency.
Description
Technical Field
The utility model belongs to the technical field of production non-woven fabrics equipment, especially, relate to a non-woven fabrics belt cleaning device.
Background
The nonwoven fabric is made of chemical fibers, plant fibers and the like on a wet or dry paper machine under the condition of using water or air as a suspension medium, and is called as a nonwoven fabric although the nonwoven fabric is a cloth and is not woven. The non-woven fabrics can be made into the cloth of various colours so that the use of different scenes, consequently, need color the processing in the processing, and after coloring, the cloth surface has the one deck flooding, need wash it totally, and then do not influence subsequent processing, also guarantee the quality of product simultaneously.
The existing non-woven fabric cleaning equipment is not thorough in cleaning, and subsequent drying working time is long, the uniformity is low, so that the non-woven fabric is wrinkled, and the product quality is affected.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a simple structure, can fully wash and dry the non-woven fabrics, and can collect remaining water stain circulation on the non-woven fabrics and recycle, the non-woven fabrics belt cleaning device of water economy resource especially is fit for being used in the course of working of non-woven fabrics.
The technical scheme of the utility model is that: a non-woven fabric cleaning device comprises a cleaning mechanism and a drying mechanism which are sequentially arranged along the conveying direction of non-woven fabrics;
the cleaning mechanism comprises a cleaning box, a left guide piece, a right guide piece and a cleaning piece, the top wall of the cleaning box is open, the left end and the right end of the cleaning box are respectively provided with the left guide piece and the right guide piece, the structures of the left guide piece and the right guide piece are the same, the left guide piece comprises a front guide plate, a rear guide plate and a guide roller, the lower ends of the front guide plate and the rear guide plate are respectively connected with the upper ends of the front wall and the rear wall of the cleaning box, the front end and the rear end of the guide roller are respectively connected with the front guide plate and the rear guide plate through a front guide shaft and a rear guide shaft, guide bearings are arranged at the connection part, a left stretching roller and a right stretching roller are arranged on the left side and the right side of the cleaning box, the structures of the left stretching roller are the same, the front end and the rear end of the left stretching roller are respectively connected with the front wall and the rear wall of the cleaning box through a front stretching shaft and a rear stretching shaft, and the joints are provided with stretching bearings;
the washing and brushing piece comprises a first N-shaped frame, a first cylinder, a washing and brushing roller and a washing and brushing transverse plate, the lower ends of a front vertical beam and a rear vertical beam of the first N-shaped frame are respectively connected with the upper ends of the front wall and the rear wall of the washing box, the cross beam of the first N-shaped frame is provided with the first cylinder, a piston rod of the first cylinder penetrates through a first through hole in the cross beam of the first N-shaped frame and is connected with the upper end of a first connecting transverse plate, the upper ends of a first front supporting plate and a first rear supporting plate are respectively arranged on the lower surface of the first connecting transverse plate in a front-back mode, the front end and the rear end of the washing and brushing roller are respectively connected with the first front supporting plate and the first rear supporting plate through a front washing and rear washing shaft, washing and brushing bearings are arranged at the connecting positions, and the front end and the rear end of the washing and brushing transverse plate are respectively connected with the front wall and the rear wall of the washing box;
the drying mechanism comprises a drying box, a wiping piece and a blowing piece are sequentially arranged on the drying box along the non-woven fabric conveying direction, the top wall of the drying box is provided with an opening, and the left wall of the drying box is connected with the right wall of the cleaning box;
the wiping piece comprises a second N-shaped frame, a second cylinder, an upper wiping roller and a lower wiping roller, the lower ends of a front vertical beam and a rear vertical beam of the second N-shaped frame are respectively connected with the upper ends of the front wall and the rear wall of the drying box, a second cylinder is arranged on the cross beam of the second N-shaped frame, a piston rod of the second cylinder passes through a second through hole on the cross beam of the second N-shaped frame and is connected with the upper surface of the second connecting transverse plate, the upper ends of a second front support plate and a second rear support plate are respectively arranged on the lower surface of the second connecting transverse plate in a front-back manner, the front end and the rear end of the upper wiping roller are respectively connected with the second front support plate and the second rear support plate through an upper front wiping shaft and an upper rear wiping shaft, the front end and the rear end of the lower wiping roller are respectively connected with the front wall and the rear wall in the drying box through a lower front wiping shaft and a lower rear wiping shaft, and the joints are provided with lower wiping bearings;
the piece of blowing include third N type frame, left supporting roller and right supporting roller, the preceding roof beam of erecting of third N type frame and back erect the roof beam lower extreme and link to each other with stoving case antetheca and back wall upper end respectively, the structure of left supporting roller and right supporting roller the same, the preceding roof beam of erecting of left supporting roller around both ends respectively through fore-stock supporting shaft and back supporting shaft and third N type frame erect the roof beam with the back and link to each other, the crossbeam of third N type frame on be equipped with the mounting hole, preceding roof beam of erecting of third N type frame and back erect the roof beam and on be equipped with preceding mounting hole and back mounting hole respectively, last mounting hole, preceding mounting hole and back mounting hole in install the electric fan heater respectively.
Further, the scrubbing piece is arranged between the left stretching roller and the right stretching roller, and the scrubbing roller is arranged below the space between the left stretching roller and the right stretching roller.
Furthermore, brushes are arranged on the upper surface of the transverse brushing plate and the periphery of the outer surface of the brushing roller.
Furthermore, the washing transverse plate is arranged right below the washing roller.
Further, the lower wiping roller is arranged right below the upper wiping roller.
Furthermore, sponge wipers are circumferentially arranged on the outer surfaces of the upper wiping roller and the lower wiping roller.
Further, stoving case back wall downside be equipped with the circulation export, washing case back wall downside be equipped with the circulation import, the circulation export link to each other with the one end of first connecting pipe, the other end of first connecting pipe link to each other with the import of water pump, the export of water pump link to each other with the one end of second connecting pipe, the other end of second connecting pipe link to each other with the circulation import.
Further, a switch valve is arranged on the first connecting pipe.
The utility model has the advantages and positive effects that: due to the adoption of the technical scheme, the brush on the transverse brushing plate and the brushing roller can fully clean the non-woven fabric; the sponge wipers on the upper wiping roller and the lower wiping roller can wipe the water on the upper surface and the lower surface of the cleaned non-woven fabric, so that the drying is convenient; the setting of a plurality of electric fan heaters can make the non-woven fabrics dry more thoroughly, and the moisture content that the non-woven fabrics produced when the wiper handle can be collected to the stoving case, makes things convenient for the recovery to recycle, and the water economy resource, production efficiency is high.
Drawings

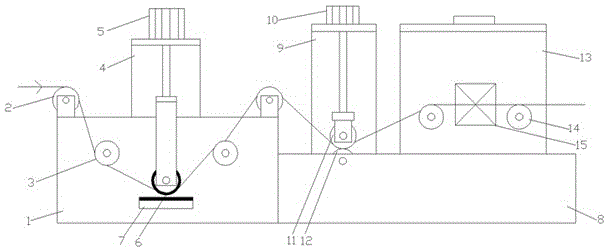

Fig. 1 is a schematic structural diagram of the present invention.
In the figure:
1. cleaning box 2, guide roller 3, left stretching roller
4. A first N-shaped frame 5, a first cylinder 6 and a washing roller
7. Transverse brushing plate 8, drying box 9 and second N-shaped frame
10. A second cylinder 11, an upper wiping roller 12 and a lower wiping roller
13. A third N-shaped frame 14, a right supporting roller 15 and a fan heater.
Detailed Description
As shown in fig. 1, the technical scheme of the utility model is a non-woven fabric cleaning device, which comprises a cleaning mechanism and a drying mechanism which are arranged in sequence along the non-woven fabric conveying direction;
cleaning mechanism including wasing case 1, left guide, right guide and washing piece, washing 1 roof opening of case, washing case 1 go up left and right-hand member and be equipped with left guide and right guide respectively, left guide and right guide structure the same, left guide include preceding guide, back guide board and guide roller 2, preceding guide board, back guide board's lower extreme link to each other with antetheca, the back wall upper end of wasing case 1 respectively, guide roller 1 around both ends link to each other with preceding guide board and back guide board through preceding guide shaft and back guide shaft respectively, and the junction all is equipped with guide bearing, washing case 1 in be equipped with left stretching roller 3 and right stretching roller about, left stretching roller 3 and right stretching roller structure the same, left stretching roller 3 around both ends respectively through preceding stretching shaft, back stretching shaft and wash incasement antetheca wall in case 1, The back walls are connected, and the joints are provided with stretching bearings;
the washing and brushing piece comprises a first N-shaped frame 4, a first cylinder 5, a washing and brushing roller 6 and a washing and brushing transverse plate 7, the lower ends of a front vertical beam and a rear vertical beam of the first N-shaped frame 4 are respectively connected with the upper ends of the front wall and the rear wall of the washing box 1, the first cylinder 5 is arranged on a cross beam of the first N-shaped frame 4, a piston rod of the first cylinder 5 penetrates through a first through hole in the cross beam of the first N-shaped frame 4 and is connected with the upper end of a first connecting transverse plate, the upper ends of the first front support plate and the first rear support plate are respectively arranged on the lower surface of the first connecting transverse plate in the front and at the rear direction, the front end and the rear end of the washing and brushing roller 6 are respectively connected with the first front support plate and the first rear support plate through a front washing shaft and a rear washing shaft, washing and brushing bearings are arranged at the joints, and the front end and the rear end of the washing and transverse plate 7 are respectively connected with the front wall and the rear wall of the washing box 1;
the drying mechanism comprises a drying box 8, a wiping piece and a blowing piece are sequentially arranged on the drying box 8 along the non-woven fabric conveying direction, the top wall of the drying box 8 is open, and the left wall of the drying box 8 is connected with the right wall of the cleaning box 1;
the wiping piece comprises a second N-shaped frame 9, a second cylinder 10, an upper wiping roller 11 and a lower wiping roller 12, the lower ends of a front vertical beam and a rear vertical beam of the second N-shaped frame 9 are respectively connected with the upper ends of the front wall and the rear wall of the drying box 8, the second cylinder 10 is arranged on a cross beam of the second N-shaped frame 9, a piston rod of the second cylinder 10 penetrates through a second through hole in the cross beam of the second N-shaped frame 9 and is connected with the upper surface of a second connecting transverse plate, the upper ends of the second front supporting plate and the second rear supporting plate are respectively arranged on the lower surface of the second connecting transverse plate in the front-back direction, the front end and the rear end of the upper wiping roller 11 are respectively connected with the second front supporting plate and the second rear supporting plate through an upper front wiping shaft and an upper rear wiping shaft, upper wiping bearings are arranged at the connection positions, and the front end and rear end of the lower wiping roller 12 are respectively connected with the inside of the drying box 8 through a lower front wiping shaft and a lower rear wiping shaft, The back walls are connected, and lower wiping bearings are arranged at the joints;
the piece of blowing include third N type frame 13, left supporting roller and right supporting roller 14, the preceding perpendicular roof beam of third N type frame 13 and back erect the roof beam lower extreme and link to each other with stoving case 8 antetheca and back wall upper end respectively, left supporting roller and right supporting roller 14 the same structure, the preceding perpendicular roof beam of both ends respectively through preceding supporting shaft and back supporting shaft and third N type frame around of left supporting roller and back erect the roof beam and link to each other with the back, the crossbeam of third N type frame 13 on be equipped with the mounting hole, preceding perpendicular roof beam of third N type frame 13 and back erect the roof beam on be equipped with preceding mounting hole and back mounting hole respectively, last mounting hole, preceding mounting hole and back mounting hole in install electric fan heater 15 respectively.
In this embodiment, the scrubbing member is disposed between the left stretching roll 3 and the right stretching roll, and the scrubbing roll 6 is disposed below the left stretching roll 3 and the right stretching roll.
In this embodiment, the upper surface of the horizontal brushing plate 7 and the outer surface of the brushing roller 6 are provided with brushes around the circumference.
In this embodiment, the brushing transverse plate 7 is arranged right below the brushing roller 6.
In the present embodiment, the lower wiping roller 12 is provided directly below the upper wiping roller 11.
In this embodiment, sponge wipers are circumferentially arranged on the outer surfaces of the upper wiping roller 11 and the lower wiping roller 12.
In this embodiment, 8 back wall downside of stoving case be equipped with the circulation export, washing case 1 back wall downside be equipped with the circulation import, the circulation export link to each other with the one end of first connecting pipe, the other end of first connecting pipe link to each other with the import of water pump, the export of water pump link to each other with the one end of second connecting pipe, the other end of second connecting pipe link to each other with the circulation import.
In this embodiment, the first connecting pipe is provided with a switch valve.
The working process of the example is as follows: the non-woven fabric sequentially passes through the guide roller of the left guide piece, the left stretching roller, the space between the brushing transverse plate of the washing piece and the brushing roller and the right stretching roller, is led out from the guide roller of the right guide piece, and the cleaning box is filled with water to realize the cleaning effect on the non-woven fabric; the cleaned non-woven fabric enters the drying box and sequentially passes through the wiping part and the blowing part, and when passing through the wiping part, under the action of a second cylinder, the distance between the upper wiping roller and the lower wiping roller is adjusted, so that the non-woven fabric cleaning device is suitable for different non-woven fabrics, and also cleans water stains on the surface of the non-woven fabric; and finally, the non-woven fabric enters a blowing part, and the non-woven fabric is dried under the action of each fan heater. In the whole process, the cloth is conveyed under the driving of the non-woven fabric winding mechanism.
While one embodiment of the present invention has been described in detail, the description is only a preferred embodiment of the present invention, and should not be considered as limiting the scope of the present invention. All the equivalent changes and improvements made according to the application scope of the present invention should still fall within the patent coverage of the present invention.
