CN214817933U

CN214817933U - Adjustable kuppe mounting platform

Info

Publication number: CN214817933U
Application number: CN202120337102.8U
Authority: CN
Inventors: 沈彬
Original assignee: Kedong Automation Technology Jiashan Co ltd
Current assignee: Kedong Automation Technology Jiashan Co ltd
Priority date: 2021-02-06
Filing date: 2021-02-06
Publication date: 2021-11-23
Anticipated expiration: 2031-02-06

Abstract

The utility model discloses an adjustable kuppe mounting platform, panel including L shape, three landing leg subassembly is installed to the downside of panel, landing leg subassembly includes the sleeve pipe and inserts the post, it pegs graft with the sheathed tube inner chamber to insert the post, sheathed tube inner chamber fixed mounting has the layer board, electric jar is installed to the upside of layer board, a plurality of positioning fixture is installed to the upside of panel, the upside fixed mounting of panel has the clamp subassembly of two parallels, the clamp subassembly includes the base, the welding has the sliding sleeve on the base, sliding sleeve sliding connection has the push rod that runs through, the drum has been cup jointed to the tip of push rod, the outer end welding of drum has the circular shape briquetting, the inboard of briquetting is connected with the spring. The utility model discloses utilize the reference column on the positioning fixture to fix a position the centre gripping to the kuppe, the panel is supported by the landing leg subassembly, is equipped with the electric jar among the landing leg subassembly, and through the flexible adjustable panel's of control electric jar height, according to the in-service use needs, can make things convenient for different workman's operation.

Description

Adjustable kuppe mounting platform

Technical Field

The utility model relates to a wind power generation equipment technical field specifically is an adjustable kuppe mounting platform.

Background

The wind deflector of the wind driven generator is also called as a hub cover, a hub cap and the like, and refers to an outer protective cover of a fan hub. The wind deflector of the wind driven generator is an outer protective cover of a fan hub, and airflow can be uniformly distributed according to the streamline shape of the wind deflector when the fan is in a windward state, so that the wind deflector is called as a wind deflector. Also known as hubcaps, etc. The existing process needs to install the air guide sleeve of the cabin by means of a long workbench, the height of the existing workbench is generally not adjustable, workers cannot lift or lower the workbench when installing, so that inconvenience in use and operation is caused, the assembly efficiency is affected, and in addition, the clamping operation of the air guide sleeve on the workbench is inconvenient.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an adjustable kuppe mounting platform to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an adjustable kuppe mounting platform, includes the panel of L shape, three landing leg subassembly is installed to the downside of panel, landing leg subassembly includes the sleeve pipe and inserts the post, it pegs graft with sheathed tube inner chamber to insert the post, sheathed tube inner chamber fixed mounting has the layer board, the electricity jar is installed to the upside of layer board, a plurality of positioning fixture is installed to the upside of panel, the upside fixed mounting of panel has two parallel clamp assemblies, clamp assembly includes the base, the welding has the sliding sleeve on the base, sliding sleeve sliding connection has the push rod that runs through, the drum has been cup jointed to the tip of push rod, the outer end welding of drum has the circular shape briquetting, the inboard of briquetting is connected with the spring.

Preferably, the sleeve and the inserting column are both rectangular tube structures, and the inserting column is in clearance fit with the inner cavity of the sleeve.

Preferably, the lower end of the sleeve is welded with a bottom plate, the upper end of the inserted column is welded with an end plate, the end plate is fixedly installed with the bottom of the panel through bolts, and a piston rod of the electric cylinder is fixedly installed with the end plate.

Preferably, the positioning fixture comprises a rectangular mounting plate, and one or two groups of symmetrical positioning columns are welded on the mounting plate.

Preferably, an L-shaped bracket is mounted on the upper side of the panel.

Preferably, the base is hinged with a handle, a bending part of the handle is hinged with a connecting rod, and the other end of the connecting rod is hinged with the push rod.

Preferably, the outer end of the push rod is welded with a circular sliding block, and the sliding block is connected with the inner cavity of the cylinder in a sliding mode.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses utilize the reference column on the positioning fixture to fix a position the centre gripping to the kuppe, the panel is supported by the landing leg subassembly, is equipped with the electric jar among the landing leg subassembly, and through the flexible adjustable panel's of control electric jar height, according to the in-service use needs, can make things convenient for different workman's operation. The clamp assembly is designed according to a double-rocker mechanism, the handle is pulled to enable the push rod to stretch out, the three hinge joints can be locked when being located on the same horizontal line, the press block is supported to the side face of the air guide sleeve to fix the air guide sleeve, and the operation is quick and convenient.

Drawings

Fig. 1 is a schematic top view of the present invention;

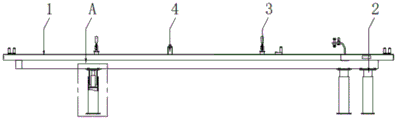

fig. 2 is a schematic view of the structure of the present invention;

FIG. 3 is a schematic view of the clamp assembly of the present invention;

fig. 4 is a partially enlarged view of a portion a in fig. 2 according to the present invention.

In the figure: 1. a panel; 2. a leg assembly; 21. a sleeve; 22. inserting a column; 23. an electric cylinder; 24. a support plate; 3. a clamp assembly; 31. a base; 32. a sliding sleeve; 33. a push rod; 34. a connecting rod; 35. a handle; 36. a slider; 37. a cylinder; 38. a spring; 39. briquetting; 4. positioning a clamp; 5. and (4) a bracket.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: the utility model provides an adjustable kuppe mounting platform, includes the panel 1 of L shape, three leg assembly 2 is installed to the downside of panel 1, and leg assembly 2 includes sleeve pipe 21 and inserts post 22, inserts post 22 and pegs graft with sleeve pipe 21's inner chamber, and sleeve pipe 21 is the rectangular pipe structure with inserting post 22, inserts post 22 and sleeve pipe 21's inner chamber clearance fit, and it can stretch out and draw back sleeve pipe 21 relatively to insert post 22.

The inner chamber fixed mounting of sleeve pipe 21 has layer board 24, and electric jar 23 is installed to the upside of layer board 24, and the lower extreme welding of sleeve pipe 21 has the bottom plate, and the upper end welding of inserting post 22 has the end plate, and the bottom of end plate and panel 1 is with bolt fixed mounting, and the piston rod and the end plate fixed mounting of electric jar 23, the flexible of electric jar 23 can promote to insert post 22 and rise or descend, and then the height of regulation panel 1.

A plurality of positioning fixture 4 is installed to panel 1's upside, positioning fixture 4 distributes along the profile route of kuppe, L-shaped support 5 is installed to panel 1's upside, positioning fixture 4 includes the mounting panel of a rectangle, the welding has the reference column of a set of or two sets of symmetries on the mounting panel, the avris centre gripping of kuppe is between two reference columns, panel 1's upside fixed mounting has two parallel clamp assembly 3, clamp assembly 3 includes base 31, the welding has sliding sleeve 32 on the base 31, sliding sleeve 32 sliding connection has the push rod 33 that runs through, the tip of push rod 33 has cup jointed drum 37, the outer end welding of drum 37 has circular shape briquetting 39, the inboard of briquetting 39 is connected with spring 38, briquetting 39 supports on the kuppe when pressing from both sides.

A handle 35 is hinged to the base 31, a connecting rod 34 is hinged to one bending portion of the handle 35, the other end of the connecting rod 34 is hinged to the push rod 33, a circular sliding block 36 is welded to the outer end of the push rod 33, the sliding block 36 is in sliding connection with the inner cavity of the cylinder 37, and when the push rod 33 is clamped, the push rod 33 extends leftwards to apply pressure to the pressing block 39 through a spring 38.

The working principle is as follows: the utility model discloses be equipped with a plurality of positioning fixture 4 on the panel, positioning fixture 4 utilizes the reference column on positioning fixture 4 to fix a position the centre gripping to the kuppe along the profile distribution of kuppe, and panel 1 is supported by landing leg subassembly 2, is equipped with electric jar 23 among the landing leg subassembly 2, and through the flexible adjustable panel's of control electric jar 23 height, according to the in-service use needs, can make things convenient for different workman's operation. The clamp assembly 3 is designed according to a double-rocker mechanism, the handle 35 is pulled to enable the push rod 33 to extend out, when three hinged points are located on the same horizontal line, the three hinged points can be locked, and the pressing block 39 abuts against the air guide sleeve to fix the air guide sleeve.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. An adjustable dome mounting platform, includes panel (1) of L-shaped, its characterized in that: three leg assemblies (2) are arranged on the lower side of the panel (1), each leg assembly (2) comprises a sleeve (21) and an insert column (22), the inserting column (22) is inserted into the inner cavity of the sleeve (21), the inner cavity of the sleeve (21) is fixedly provided with a supporting plate (24), an electric cylinder (23) is arranged on the upper side of the supporting plate (24), a plurality of positioning clamps (4) are arranged on the upper side of the panel (1), two parallel clamp assemblies (3) are fixedly arranged on the upper side of the panel (1), the clamp assembly (3) comprises a base (31), a sliding sleeve (32) is welded on the base (31), the sliding sleeve (32) is connected with a penetrating push rod (33) in a sliding way, the end part of the push rod (33) is sleeved with a cylinder (37), the outer end of the cylinder (37) is welded with a round pressing block (39), and the inner side of the pressing block (39) is connected with a spring (38).

2. An adjustable pod mounting platform according to claim 1, wherein: the sleeve (21) and the inserting column (22) are both rectangular tube structures, and the inserting column (22) is in clearance fit with an inner cavity of the sleeve (21).

3. An adjustable pod mounting platform according to claim 2, wherein: the welding of the lower extreme of sleeve pipe (21) has the bottom plate, the welding of the upper end of inserting post (22) has the end plate, the bolt fixed mounting is used with the bottom of panel (1) to the end plate, the piston rod and the end plate fixed mounting of electricity jar (23).

4. An adjustable pod mounting platform according to claim 1, wherein: the positioning fixture (4) comprises a rectangular mounting plate, and a set of or two sets of symmetrical positioning columns are welded on the mounting plate.

5. An adjustable pod mounting platform according to claim 1, wherein: an L-shaped bracket (5) is arranged on the upper side of the panel (1).

6. An adjustable pod mounting platform according to claim 1, wherein: the base (31) is hinged with a handle (35), a bending part of the handle (35) is hinged with a connecting rod (34), and the other end of the connecting rod (34) is hinged with a push rod (33).

7. An adjustable pod mounting platform according to claim 6, wherein: the outer end of the push rod (33) is welded with a circular sliding block (36), and the sliding block (36) is connected with the inner cavity of the cylinder (37) in a sliding mode.
