Abstract
本实用新型公开了一种家具生产用打磨抛光一体装置，包括工作台、调节单元、打磨抛光单元和导向夹持单元；工作台：其上表面设有龙门架；调节单元：设置于龙门架的上表面，调节单元的下表面设有电动伸缩杆，电动伸缩杆的伸缩端下端设有电机二；打磨抛光单元：设置于电机二的输出轴下端；导向夹持单元：分别设置于工作台的上表面；其中：还包括控制开关组，所述控制开关组设置于龙门架的右表面，控制开关组的输入端电连接外部电源，电动伸缩杆和电机二的输入端均电连接控制开关组的输出端，该家具生产用打磨抛光一体装置，满足了家具生产时快速高效的打磨需求，实现了家具在生产时不同精度的打磨和抛光。
The utility model discloses an integrated grinding and polishing device for furniture production, comprising a worktable, an adjustment unit, a grinding and polishing unit and a guide and clamping unit; the worktable: a gantry frame is arranged on its upper surface; On the upper surface, the lower surface of the adjustment unit is provided with an electric telescopic rod, and the lower end of the telescopic end of the electric telescopic rod is provided with the second motor; the grinding and polishing unit: set at the lower end of the output shaft of the second motor; The upper surface; wherein: it also includes a control switch group, the control switch group is arranged on the right surface of the gantry, the input end of the control switch group is electrically connected to the external power supply, and the input ends of the electric telescopic rod and the second motor are both electrically connected to the control switch group The output end of the furniture production is a grinding and polishing integrated device, which meets the needs of fast and efficient grinding during furniture production, and realizes the grinding and polishing of furniture with different precisions during production.
Description
Technical Field
The utility model relates to a furniture burnishing and polishing technical field specifically is a furniture production is with integrative device of burnishing and polishing.
Background
Furniture refers to a large category of essential appliances for human beings to maintain normal life, engage in production practice and develop social activities, and the furniture needs to be ground and polished before use to ensure the comfort level of subsequent use of the furniture;
at present, most of polishing devices for furniture production adopt a separate design, firstly, polishing operation is carried out on a polishing machine, and the polishing operation is carried out on the polishing machine after polishing;
the polishing and burnishing integrated device for the existing furniture production cannot meet the polishing requirement of high efficiency during furniture production, workers are inconvenient to replace polishing and burnishing parts, polishing and burnishing of furniture with different precisions during production cannot be achieved, the clamping effect on furniture materials cannot be achieved, the furniture is unstable during transmission, the quality of products cannot be improved, and therefore the polishing and burnishing integrated device for the furniture production is provided for solving the problems.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide a furniture production is with integrative device of burnishing and polishing, high efficiency's demand of polishing when having satisfied furniture production can effectively solve the problem in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: a grinding and polishing integrated device for furniture production comprises a workbench, an adjusting unit, a grinding and polishing unit and a guiding and clamping unit;
a workbench: the upper surface of the portal frame is provided with the portal frame;
an adjusting unit: the lower surface of the adjusting unit is provided with an electric telescopic rod, and the lower end of the telescopic end of the electric telescopic rod is provided with a motor II;
a grinding and polishing unit: the lower end of the output shaft of the motor II is provided with a motor I;
a guiding and clamping unit: are respectively arranged on the upper surfaces of the working tables;
wherein: still include the control switch group, the control switch group sets up in the right surface of portal frame, and external power source is connected to the input electricity of control switch group, and the equal electric connection of input of electric telescopic handle and motor two controls the output of switch group, high efficiency's the demand of polishing when having satisfied furniture production, and it is more convenient when changing the service disk to make the staff, has realized the polishing and the polishing of furniture different precision when production, plays the effect of centre gripping to furniture material, makes furniture more stable when the transmission, has improved the quality of product production.
Furthermore, the adjusting unit comprises an installation strip opening, sliding columns, an I-shaped sliding block, a first motor, a gear and tooth sockets, the installation strip opening is formed in the upper surface of the portal frame, the sliding columns are symmetrically arranged between the left wall surface and the right wall surface of the installation strip opening and are respectively in sliding connection with sliding holes formed in the I-shaped sliding block, the lower end of the I-shaped sliding block is in sliding connection with the strip sliding opening formed in the lower surface of the installation strip opening, an electric telescopic rod is arranged on the lower surface of the I-shaped sliding block, the upper surface of the I-shaped sliding block is provided with the first motor through an installation seat, the lower end of an output shaft of the first motor is provided with the gear, the tooth sockets are formed in the upper end of the rear wall surface of the installation strip opening and are connected with the gear in a meshed mode, the input end of the first motor is electrically connected with the output end of the control switch group, and the polishing requirements for high efficiency during furniture production are met.
Further, the burnishing and polishing unit includes link, fixed block, T type card post, fixing bolt, working disc and spring one, the link sets up the output shaft lower extreme of arranging motor two in, the extrados symmetry of link is equipped with the fixed block, the inside joint of link has T type card post, the horizontal plate body left and right sides in upper end of T type card post passes through fixing bolt fixed connection with horizontal adjacent fixed block respectively, the lower terminal surface of T type card post is equipped with the working disc, the up end of T type card post is equipped with spring one, spring one is located the inner chamber of link, the upper end of spring one and the inner chamber top end face in close contact with of link, the not polishing and the polishing of different precisions of furniture when production have been realized.
Furthermore, rotating rollers which are longitudinally and uniformly distributed are rotatably connected between the left wall surface and the right wall surface of the workbench, so that the furniture is conveyed.
Further, direction centre gripping unit includes mounting panel, guide post, installing frame, rotary column and spring two, the mounting panel symmetry sets up in the upper surface front and back end left and right sides of workstation, equal sliding connection has the guide post in the slide hole that the mounting panel front and back end set up, the end department that the guide post is close to the live-rollers all is equipped with the installing frame, all rotate between the upper and lower wall of installing frame and be connected with the rotary column, all the cover is equipped with spring two on the cylinder of guide post, about spring two the end respectively with the relative medial surface fixed connection of mounting panel and installing frame, the installing frame is located between the adjacent live-rollers respectively, make furniture more stable when the transmission.
Furthermore, the front end and the rear end of the lower surface of the workbench are symmetrically provided with supporting legs, so that the workbench and an upper-end auxiliary structure are supported and fixed.
Compared with the prior art, the beneficial effects of the utility model are that: this furniture production is with integrative device of burnishing and polishing has following benefit:
1. the worker regulates and controls the forward and reverse operation of the motor I through the control switch group, the forward and reverse rotation of the output shaft of the motor I drives the gear to rotate in the forward and reverse direction, the gear can simultaneously drive the I-shaped sliding block and the auxiliary mechanism to reciprocate on the sliding column along the track of the tooth socket in the same amplitude during the forward and reverse rotation, the requirements of different position regulation are further met, the work load of the worker is further reduced, when the I-shaped sliding block moves, the worker regulates and controls the operation of the electric telescopic rod through the control switch group, the telescopic end of the electric telescopic rod extends out to drive the motor II to move downwards until the working disc is abutted against furniture materials, then the worker regulates and controls the operation of the electric telescopic rod to stop operating and simultaneously regulate the operation of the motor II through the control switch group, the working disc is driven by the rotation of the motor II to perform polishing operation on the clamp materials, and the motor II also simultaneously reciprocates along with the I-shaped sliding block in the same amplitude during the operation, and then the demand of high efficiency when having satisfied furniture production polishes.
2. The staff assembles the working disc that is applicable to the operation of polishing, at first the breach of terminal surface corresponds under horizontal plate body and the link of T type card post upper end, then up remove the vertical breach of link along the T type card post, it conflicts to make the spring one with the roof face of link, the horizontal plate body of T type card post upper end corresponds with the annular guide way at link middle part, later anticlockwise rotation T type card post, make the horizontal plate body of T type card post upper end and the vertical draw-in groove joint of link, pass the horizontal plate body of T type card post upper end and with fixed block threaded mounting at last, and then make the staff more convenient when changing the working disc, the polishing and the polishing of furniture different precisions when producing have been realized.
3. The staff puts the home furnishing material that will polish and polish to the live-rollers and conveys, horizontal adjacent rotary column can simultaneously with home furnishing material's the left and right sides both ends contact and through the frictional force rotation that produces when home furnishing material removes in the installing frame when the transmission, and then make home furnishing material play the guide effect when transmitting, home furnishing material of different width can push up the rotary column and remove, the rotary column removes and drives installing frame and guide column and the while is with range removal on the mounting panel plate body, meanwhile, two atress contractions of spring, two spring also utilize the characteristic reverse application of force of spring to play the effect of centre gripping to home furnishing material through installing frame and rotary column when the atress is compressed, further make furniture more stable when the transmission, the quality of product production has been improved.
Drawings

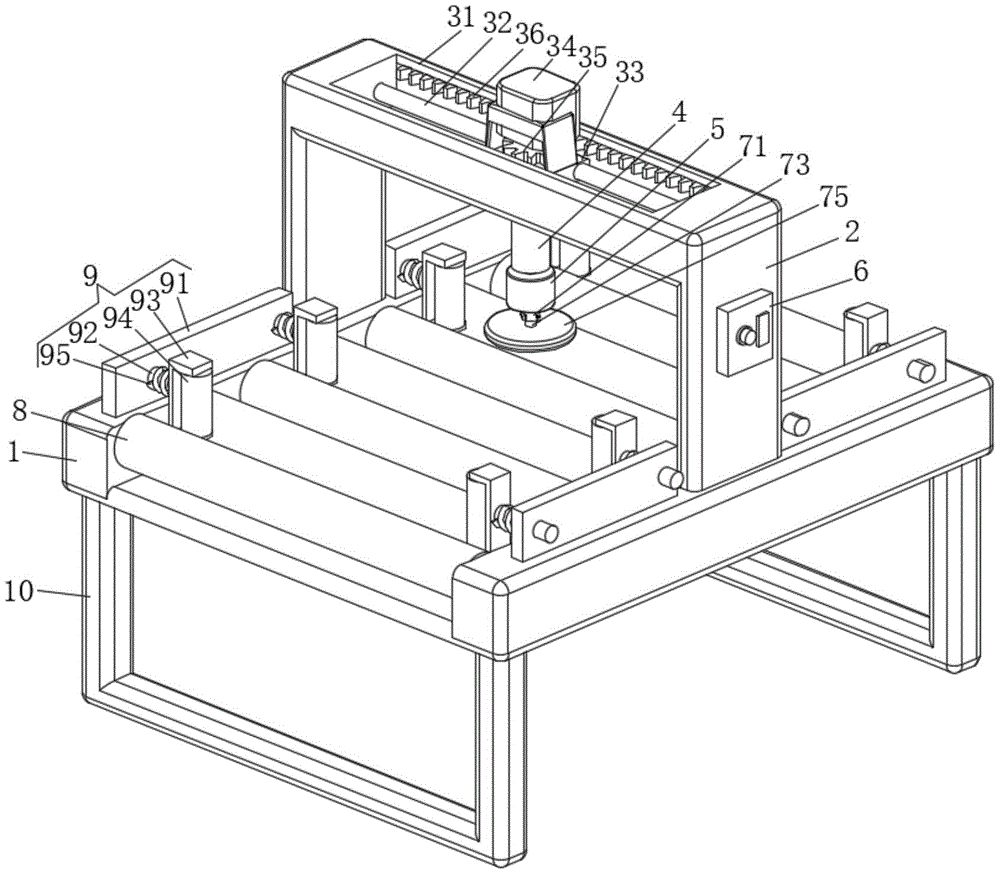

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural diagram of the adjusting unit of the present invention;
fig. 3 is a schematic structural diagram of the polishing unit of the present invention.
In the figure: the device comprises a working table 1, a portal frame 2, an adjusting unit 3, a mounting strip opening 31, a sliding column 32, an I-shaped sliding block 33, a first motor 34, a gear 35, a tooth groove 36, an electric telescopic rod 4, a second motor 5, a control switch group 6, a polishing unit 7, a connecting frame 71, a fixing block 72, a T-shaped clamping column 73, a fixing bolt 74, a working disc 75, a first spring 76, a rotating roller 8, a guiding and clamping unit 9, a mounting plate 91, a guide column 92, a mounting frame 93, a rotating column 94, a second spring 95 and a supporting leg 10.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, rather than all embodiments, and all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention based on the embodiments of the present invention.
Referring to fig. 1-3, the present embodiment provides a technical solution: a grinding and polishing integrated device for furniture production comprises a workbench 1, an adjusting unit 3, a grinding and polishing unit 7 and a guide clamping unit 9;
a workbench 1: the workbench 1 provides an installation place, the upper surface of the workbench is provided with a portal frame 2, and the portal frame 2 plays a role in fixing and supporting;
the adjusting unit 3: the adjusting unit 3 comprises a mounting strip opening 31, sliding columns 32, an I-shaped sliding block 33, a motor I34, a gear 35 and a tooth socket 36, the mounting strip opening 31 is arranged on the upper surface of the portal frame 2, the sliding columns 32 are symmetrically arranged between the left wall surface and the right wall surface of the mounting strip opening 31, the sliding columns 32 are respectively in sliding connection with sliding holes arranged on the I-shaped sliding block 33, the lower end of the I-shaped sliding block 33 is in sliding connection with a strip-shaped sliding opening arranged on the lower surface of the mounting strip opening 31, the lower surface of the I-shaped sliding block 33 is provided with the electric telescopic rod 4, the upper surface of the I-shaped sliding block 33 is provided with the motor I34 through a mounting seat, the lower end of an output shaft of the motor I34 is provided with the gear 35, the upper end of the rear wall surface of the mounting strip opening 31 is provided with the tooth socket 36, and the tooth socket 36 is in meshing connection with the gear 35, the input end of the first motor 34 is electrically connected with the output end of the control switch group 6, a worker regulates and controls the forward and reverse operation of the first motor 34, the forward and reverse rotation of the output shaft of the first motor 34 drives the forward and reverse rotation of the gear 35, the forward and reverse rotation of the gear 35 can simultaneously drive the I-shaped sliding block 33 and the auxiliary mechanism to reciprocate on the sliding column 32 along the track of the tooth socket 36, the requirement of different position regulation is further met, the work load of the worker is further reduced, when the I-shaped sliding block 33 moves, the worker regulates and controls the operation of the electric telescopic rod 4, the telescopic end of the electric telescopic rod 4 extends out to drive the second motor 5 to move downwards until the working disc 75 is abutted against furniture materials, then the worker regulates and controls the operation of the electric telescopic rod 4 to stop operating and simultaneously regulate and control the operation of the second motor 5, the second motor 5 rotates to drive the auxiliary mechanism to polish the furniture materials, and the second motor 5 operates and simultaneously follows the I-shaped sliding block 33 to reciprocate simultaneously and simultaneously, thereby meeting the requirements of quick and efficient polishing in furniture production;
and a grinding and polishing unit 7: the polishing unit 7 comprises a connecting frame 71, fixing blocks 72, T-shaped clamping columns 73, fixing bolts 74, a working disc 75 and springs 76, the connecting frame 71 is arranged at the lower end of the output shaft of the motor II 5, the fixing blocks 72 are symmetrically arranged on the outer arc surface of the connecting frame 71, the T-shaped clamping columns 73 are clamped inside the connecting frame 71, the left side and the right side of a transverse plate body at the upper end of each T-shaped clamping column 73 are respectively and fixedly connected with the transversely adjacent fixing blocks 72 through the fixing bolts 74, the working disc 75 is arranged on the lower end surface of each T-shaped clamping column 73, the springs 76 are arranged on the upper end surface of each T-shaped clamping column 73, the springs 76 are located in the inner cavity of the connecting frame 71, the upper ends of the springs 76 are in close contact with the top end surface of the inner cavity of the connecting frame 71, a worker assembles the working disc 75 suitable for polishing operation, firstly, the transverse plate body at the upper end of each T-shaped clamping column 73 corresponds to a notch on the lower end surface of the connecting frame 71, then the T-shaped clamping column 73 moves upwards along the vertical gap of the connecting frame 71 until the first spring 76 is abutted against the top wall surface of the connecting frame 71, a transverse plate body at the upper end of the T-shaped clamping column 73 corresponds to the annular guide groove in the middle of the connecting frame 71, then the T-shaped clamping column 73 is rotated anticlockwise, the transverse plate body 73 at the upper end of the T-shaped clamping column is clamped with the vertical clamping groove of the connecting frame 71, and finally the fixing bolt 74 penetrates through the transverse plate body at the upper end of the T-shaped clamping column 73 and is in threaded installation with the fixing block 72, so that a worker can replace the working disc 75 more conveniently, and grinding and polishing with different precisions during production of furniture are realized;
the guide holding unit 9: the furniture material guiding and clamping units are respectively arranged on the upper surface of the workbench 1, each guiding and clamping unit 9 comprises a mounting plate 91, guide columns 92, a mounting frame 93, rotary columns 94 and a second spring 95, the mounting plates 91 are symmetrically arranged on the left side and the right side of the front end and the rear end of the upper surface of the workbench 1, the guide columns 92 are respectively connected in sliding holes arranged at the front end and the rear end of the mounting plate 91 in a sliding mode, the mounting frames 93 are respectively arranged at the end parts, close to the rotary rollers 8, of the guide columns 92, the rotary columns 94 are respectively connected between the upper wall surface and the lower wall surface of the mounting frame 93 in a rotating mode, the second springs 95 are respectively sleeved on the columns of the guide columns 92, the left end and the right end of each second spring 95 are respectively fixedly connected with the mounting plates 91 and the opposite inner side surfaces of the mounting frames 93, the mounting frames 93 are respectively positioned between the adjacent rotary rollers 8, a worker puts furniture material to be polished to the rotary rollers 8 for conveying, the transversely adjacent rotary columns 94 can be simultaneously contacted with the left end and the right end of the furniture material during conveying and the furniture material, and the friction force generated during the movement of the furniture material can rotate in the mounting frames 93, the furniture materials are guided during transmission, the furniture materials with different widths can move against the rotating column 94, the rotating column 94 moves to drive the mounting frame 93 and the guide column 92 to simultaneously move on the plate body of the mounting plate 91 in the same amplitude, meanwhile, the spring II 95 is stressed and contracted, the spring II 95 is stressed and compressed, and meanwhile, the characteristic of the spring is utilized to reversely apply force to clamp the furniture materials through the mounting frame 93 and the rotating column 94, so that the furniture is further more stable during transmission, and the quality of product production is improved;
wherein: still include control switch group 6, control switch group 6 sets up in the right surface of portal frame 2, and external power source is connected to control switch group 6's input electricity, and electric telescopic handle 4 and the equal electric connection of input of motor two 5 control switch group 6's output regulates and control each electrical components and operates.
Wherein: the rotating rollers 8 which are longitudinally and uniformly distributed are rotatably connected between the left wall surface and the right wall surface of the workbench 1, and the furniture is conveyed.
Wherein: the front end and the rear end of the lower surface of the workbench 1 are symmetrically provided with supporting legs 10, and a worker puts the device in a proper working area through the supporting legs 10, so that the workbench 1 and an upper-end auxiliary structure are supported and fixed.
The utility model provides a pair of furniture production is with integrative device of burnishing and polishing's theory of operation as follows: firstly, a worker puts the device in a proper working area through the supporting legs 10, so as to support and fix the workbench 1 and an upper-end auxiliary structure, then the worker assembles a working disc 75 suitable for polishing operation, firstly, a transverse plate body at the upper end of the T-shaped clamping column 73 corresponds to a notch at the lower end face of the connecting frame 71, then the T-shaped clamping column 73 moves upwards along a vertical notch of the connecting frame 71 until the first spring 76 is abutted to the top wall face of the connecting frame 71, a transverse plate body at the upper end of the T-shaped clamping column 73 corresponds to an annular guide groove at the middle part of the connecting frame 71, then the T-shaped clamping column 73 is rotated anticlockwise, the transverse plate body 73 at the upper end of the T-shaped clamping column is clamped with the vertical clamping groove of the connecting frame 71, finally, the fixing bolt 74 penetrates through the transverse plate body at the upper end of the T-shaped clamping column 73 and is in threaded installation with the fixing block 72, and further, the worker can replace the working disc 75 more conveniently, the furniture is ground and polished with different precisions during production, then furniture materials needing to be ground and polished are placed on the rotating roller 8 to be conveyed by workers, the transversely adjacent rotating columns 94 can be simultaneously contacted with the left end and the right end of the furniture materials during conveying, friction force generated during movement of the furniture materials rotates in the mounting frame 93, so that the furniture materials can play a role of guiding during conveying, the furniture materials with different widths can move against the rotating columns 94, the rotating columns 94 move to drive the mounting frame 93 and the guide columns 92 to simultaneously move on the plate body of the mounting plate 91 in the same range, meanwhile, the spring II 95 is stressed and contracted, the spring II 95 is stressed and compressed under stress, the characteristic of the spring is utilized to apply force reversely to clamp the furniture materials through the mounting frame 93 and the rotating columns 94, further, the furniture is more stable during conveying, the production quality of the product is improved, and the workers regulate and control the forward and reverse operation of the motor I34 through the control switch group 6, the forward and reverse rotation of the output shaft of the motor I34 drives the gear 35 to rotate in the forward and reverse direction, when the gear 35 rotates in the forward and reverse direction, the I-shaped sliding block 33 and the attachment mechanism are simultaneously driven to reciprocate on the sliding column 32 in the same amplitude along the track of the tooth socket 36, so as to meet the requirements of different position adjustment, further reduce the workload of a worker, when the I-shaped sliding block 33 moves, the worker regulates and controls the operation of the electric telescopic rod 4 through the control switch group 6, the telescopic end of the electric telescopic rod 4 extends out to drive the motor II 5 to move downwards until the working disc 75 is abutted against furniture materials, then the worker regulates and controls the operation of the electric telescopic rod 4 through the control switch group 6 to stop the operation and simultaneously regulate the operation of the motor II 5, the motor II 5 rotates to drive the working disc 75 to perform polishing operation on the clamp materials, and the motor II 5 also simultaneously follows the I-shaped sliding block 33 to reciprocate in the same amplitude during the operation, and then the demand of high efficiency when having satisfied furniture production polishes.
It should be noted that the specific models of the electric telescopic rod 4 disclosed in the above embodiments are WDTW-400, the specific models of the first motor 34 and the second motor 5 are 130M-09520C5-E, and the control switch group 6 is provided with switch buttons which are in one-to-one correspondence with the electric telescopic rod 4, the first motor 34 and the second motor 5 and are used for controlling the switch operations thereof.
The above only is the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention are used in the specification and the attached drawings, or directly or indirectly applied to other related technical fields, and the same principle is included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a furniture production is with integrative device of burnishing and polishing which characterized in that: comprises a workbench (1), an adjusting unit (3), a grinding and polishing unit (7) and a guiding and clamping unit (9);
table (1): the upper surface of the gantry is provided with a gantry (2);
adjusting unit (3): the lower surface of the adjusting unit (3) is provided with an electric telescopic rod (4), and the lower end of the telescopic end of the electric telescopic rod (4) is provided with a second motor (5);
a grinding and polishing unit (7): the lower end of an output shaft of the motor II (5) is provided with a motor;
guide clamping unit (9): are respectively arranged on the upper surface of the workbench (1);
wherein: the gantry crane further comprises a control switch group (6), the control switch group (6) is arranged on the right surface of the gantry frame (2), an external power supply is electrically connected with the input end of the control switch group (6), and the input ends of the electric telescopic rod (4) and the motor II (5) are electrically connected with the output end of the control switch group (6).
2. The furniture production grinding and polishing integrated device as claimed in claim 1, wherein the furniture production grinding and polishing integrated device comprises: the adjusting unit (3) comprises an installation strip opening (31), a sliding column (32), an I-shaped sliding block (33), a first motor (34), a gear (35) and a tooth socket (36), the installation strip opening (31) is arranged on the upper surface of the portal frame (2), the sliding column (32) is symmetrically arranged between the left wall surface and the right wall surface of the installation strip opening (31), the sliding column (32) is respectively in sliding connection with a sliding hole formed in the I-shaped sliding block (33), the lower end of the I-shaped sliding block (33) is in sliding connection with a strip-shaped sliding opening formed in the lower surface of the installation strip opening (31), an electric telescopic rod (4) is arranged on the lower surface of the I-shaped sliding block (33), the upper surface of the I-shaped sliding block (33) is provided with the first motor (34) through an installation seat, the lower end of an output shaft of the first motor (34) is provided with the gear (35), the tooth socket (36) is arranged at the upper end of the rear wall surface of the installation strip opening (31), and the tooth socket (36) is in meshing connection with the gear (35), the input end of the first motor (34) is electrically connected with the output end of the control switch group (6).
3. The furniture production grinding and polishing integrated device as claimed in claim 1, wherein the furniture production grinding and polishing integrated device comprises: polishing unit (7) are including link (71), fixed block (72), T type card post (73), fixing bolt (74), working disc (75) and spring (76), link (71) set up in the output shaft lower extreme of motor two (5), the extrados symmetry of link (71) is equipped with fixed block (72), the inside joint of link (71) has T type card post (73), both sides pass through fixing bolt (74) fixed connection with horizontal adjacent fixed block (72) respectively about the horizontal plate body in upper end of T type card post (73), the lower terminal surface of T type card post (73) is equipped with working disc (75), the up end of T type card post (73) is equipped with spring (76), spring (76) are located the inner chamber of link (71), the upper end of spring (76) and the inner chamber top end face in close contact with of link (71).
4. The furniture production grinding and polishing integrated device as claimed in claim 1, wherein the furniture production grinding and polishing integrated device comprises: and rotating rollers (8) which are longitudinally and uniformly distributed are rotatably connected between the left wall surface and the right wall surface of the workbench (1).
5. The furniture production is with integrative device of burnishing and polishing of claim 4 characterized in that: guide clamping unit (9) include mounting panel (91), guide post (92), installing frame (93), change post (94) and spring two (95), mounting panel (91) symmetry sets up in the upper surface front and back end left and right sides of workstation (1), equal sliding connection has guide post (92) in the slide hole that mounting panel (91) front and back end set up, the end department that guide post (92) are close to live-rollers (8) all is equipped with installing frame (93), all rotate between the upper and lower wall of installing frame (93) and be connected with commentaries on classics post (94), all overlap on the cylinder of guide post (92) and be equipped with spring two (95), the end is respectively with the relative medial surface fixed connection of mounting panel (91) and installing frame (93) about spring two (95), installing frame (93) are located respectively between adjacent live-rollers (8).
6. The furniture production grinding and polishing integrated device as claimed in claim 1, wherein the furniture production grinding and polishing integrated device comprises: the front end and the rear end of the lower surface of the workbench (1) are symmetrically provided with supporting legs (10).
