CN214816195U

CN214816195U - A welding device for laminated plate truss bars

Info

Publication number: CN214816195U
Application number: CN202121587680.3U
Authority: CN
Inventors: 辛显鹏; 胡广胜; 王友善; 付娟
Original assignee: Jinan Fangsheng Concrete Component Co ltd
Current assignee: Jinan Fangsheng Concrete Component Co ltd
Priority date: 2021-07-13
Filing date: 2021-07-13
Publication date: 2021-11-23
Anticipated expiration: 2031-07-13

Abstract

The utility model relates to a welding device, in particular to a welding device for laminated plate truss ribs, which belongs to the technical field of plate truss rib welding. , Through the connecting column structure that can be translated, the convenience of welding the truss bars of the laminated plate is increased, the comfort of the utility model is improved, and the use of manpower and material resources is reduced. The output end of the telescopic rod is fixedly installed with a U-shaped rod, one end of the U-shaped rod is fixedly installed with a connecting rod, and the upper surface of the connecting rod is evenly inlaid with an arc-shaped support plate. The welding and manufacturing of many types of laminated truss bars is more convenient and quick, providing a stable welding platform for the manufacture of frame bars.

Description

Superimposed sheet truss muscle welding set

Technical Field

The utility model relates to a welding set specifically is a superimposed sheet truss muscle welding set belongs to plate truss muscle welding technical field.

Background

The laminated plate truss rib is a special structural device formed by welding several different types of steel bar materials according to a reasonable structure, is mainly applied to a bottom plate of the roof laminated plate, and is mainly used for strengthening the compression resistance and the toughness of the bottom plate and effectively increasing the earthquake resistance of a house.

The existing laminated plate truss rib is welding the in-process of forming, and the quality of formed materials is great, and the welder needs outer people's helping hand in welding process, and can waste a large amount of manpower and material resources energy during welding, and needs staff carrier welding tool to remove when welding, causes the welding inconvenience, can waste staff's physical power, and the model of laminated plate truss rib is numerous, causes numerous troubles for welding process.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a superimposed sheet truss muscle welding set just for solving above-mentioned problem can be applicable to the welded manufacturing of the superimposed sheet truss muscle of numerous models, and can save a large amount of manpower and increase work efficiency.

The utility model discloses a following technical scheme realizes above-mentioned purpose, a superimposed sheet truss muscle welding set, the on-line screen storage device comprises a base, the spout has been seted up to the upper surface of base, the inside slip joint of spout has the spliced pole, the inside of spliced pole has evenly seted up the card hole, the inside equal slip joint in card hole has the die-pin, the inside slip joint of die-pin has the dead lever, the one end fixed mounting of die-pin has the layer board, the one end of layer board is rotated and is installed the bracing piece, the upper surface both ends fixed mounting of spliced pole has electric telescopic handle, electric telescopic handle's output fixed mounting has U type pole, the one end fixed mounting of U type pole has the connecting rod, the arc layer board is evenly inlayed and installed to the upper surface of connecting rod.

Preferably, for the convenience the spliced pole is in the inside of spout removes, the inside of spout is rotated evenly and is installed a gear, the lower surface of spliced pole is inlayed and is installed a rack, a rack with gear intermeshing.

Preferably, for the convenience of adjusting distance between the layer board, the equal fixed mounting of one side of die-pin has No. two gear racks, the inside rotation of spliced pole installs the action bars, the equal fixed mounting of surface of action bars has No. two gears, No. two gears with No. two gear racks intermeshing.

Preferably, in order to adjust and fix the position of the connecting column through the handle, one end of the operating rod penetrates through one end of the connecting column, and a handle is fixedly mounted at one end of the operating rod.

Preferably, for the convenience of adjusting the height of arc layer board, the bracing piece comprises a sleeve, No. two sleeves and slide bar, a sleeve with the one end rotation each other of layer board is connected, the both ends of slide bar respectively with a sleeve No. two sleeve joint that slides each other, No. two telescopic other ends with connecting rod rotation each other is connected.

Preferably, for the convenience the utility model discloses a remove with fixed, the lower surface four corners of base all rotates and installs the gyro wheel that can lock, the inboard of U type pole with the mutual fixed connection in both ends of connecting rod.

Preferably, for the stable movement of the supporting plate, the other end of the fixing rod is fixedly connected with one side of the supporting plate corresponding to the other end of the fixing rod.

The utility model has the advantages that: the utility model discloses have simple convenient and fast's extending structure, make the welding of the coincide plate truss muscle of various numerous models make convenient and fast more, provide a stable welded platform for the manufacturing of frame muscle, through the spliced pole structure that can carry out the translation, increase the welded convenience of coincide plate truss muscle, improve the utility model discloses a travelling comfort reduces the use of manpower and materials, the material resources of using manpower sparingly.

Drawings

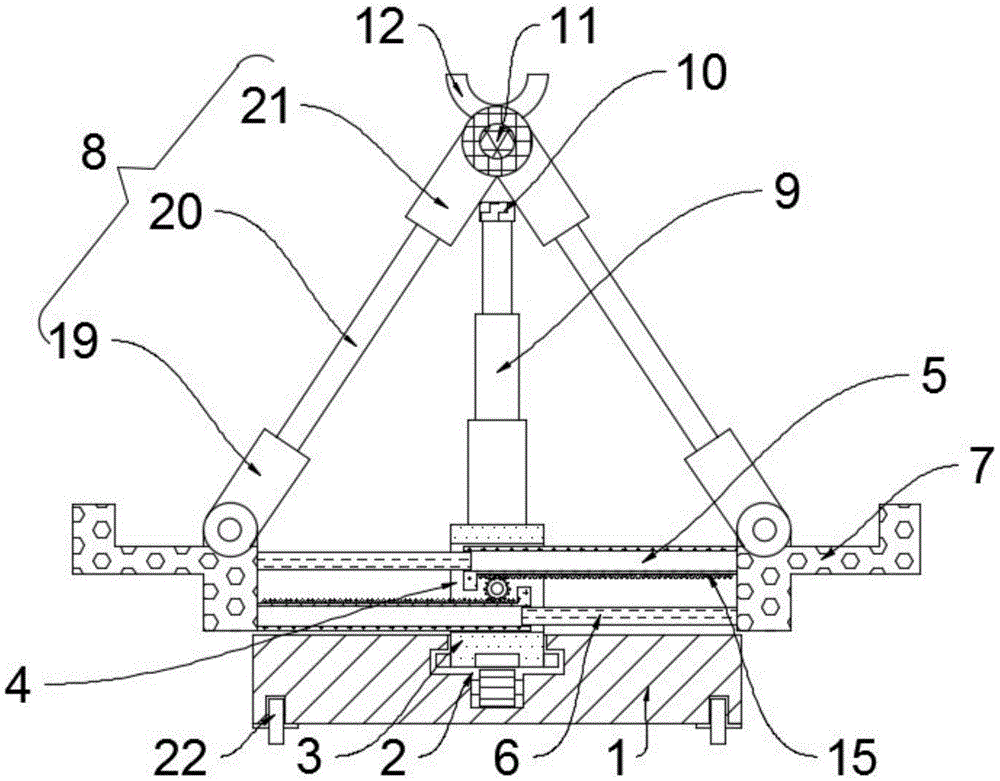

Fig. 1 is a side sectional view of the present invention.

Fig. 2 is a main sectional view of the present invention.

Fig. 3 is a front view of the present invention.

Fig. 4 is a schematic structural view of the connecting column portion of the present invention.

In the figure: 1. the base, 2, the spout, 3, the spliced pole, 4, the card hole, 5, the die-pin, 6, the dead lever, 7, the layer board, 8, the bracing piece, 9, electric telescopic handle, 10, U type pole, 11, the arc layer board, 12, the connecting rod, 13, a gear, 14, a gear, 15, No. two gear racks, 16, the action bars, 17, No. two gears, 18, the handle, 19, sleeve, 20, the slide bar, 21, No. two sleeves, 22, the gyro wheel of locking.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Please refer to fig. 1-4, a superimposed sheet truss muscle welding set, including base 1, spout 2 has been seted up to base 1's upper surface, the inside slip joint of spout 2 has spliced pole 3, card hole 4 has evenly been seted up to spliced pole 3's inside, the inside all slip joint of card hole 4 has die-pin 5, the inside slip joint of die-pin 5 has dead lever 6, the one end fixed mounting of die-pin 5 has layer board 7, the one end of layer board 7 is rotated and is installed bracing piece 8, the upper surface both ends fixed mounting of spliced pole 3 has electric telescopic handle 9, electric telescopic handle 9's output fixed mounting has U type pole 10, the one end fixed mounting of U type pole 10 has connecting rod 11, the upper surface of connecting rod 11 evenly inlays and installs arc layer board 12, can with the utility model discloses reduce and enlarge through this kind of structure.

As a technical optimization scheme, as shown in fig. 2, spout 2's inside is rotated evenly and is installed a gear 13, and the lower surface of spliced pole 3 is inlayed and is installed a rack 14, a rack 14 and a gear 13 intermeshing, becomes rolling friction through a gear 13 with the sliding friction between spliced pole 3 and the spout 2, makes the convenient and fast more of removal of spliced pole 3.

As a technical optimization scheme of the utility model, as shown in fig. 1, the equal fixed mounting in one side of die-pin 5 has No. two gear racks 15, and the inside rotation of spliced pole 3 installs action bars 16, and the equal fixed mounting in surface of action bars 16 has No. two gears 17, and No. two gears 17 and No. two gear racks 15 intermeshing are through the distance between No. two gear racks 15 convenient regulation layer boards 7.

As a technical optimization scheme of the utility model, as shown in fig. 2, the one end of spliced pole 3 is run through to the one end of action bars 16, and the one end fixed mounting of action bars 16 has handle 18, adjusts and fixes the position of No. two rack gears 15 through handle 18.

As a technical optimization scheme of the utility model, as shown in fig. 1, bracing piece 8 comprises sleeve 19, slide bar 20 and No. two sleeves 21, and sleeve 19 is connected with the one end rotation each other of layer board 7, and slide bar 20's both ends respectively with sleeve 19, No. two sleeve 21 joint that slides each other, No. two sleeve 21's the other end and U type pole 10 rotation each other are connected, through the convenient height of adjusting arc layer board 12 of bracing piece 8's structure.

As a technical optimization scheme of the utility model, as shown in fig. 2, the lower surface four corners of base 1 is all rotated and is installed and can be locked gyro wheel 22, and the inboard of U type pole 10 and the mutual fixed connection in both ends of connecting rod 11 are convenient through can locking gyro wheel 22 the utility model discloses a remove with fixed.

As a technical optimization scheme of the utility model, as shown in fig. 1, the other end of dead lever 6 and the mutual fixed connection in one side that layer board 7 corresponds are fixed layer board 7 through dead lever 6.

When the utility model is used, a user places the utility model at a proper position through the lockable rolling wheels 21, and electrically connects the position of the utility model with an external power supply, the user places external reinforcing steel materials on the upper surfaces of the supporting plate 7 and the arc supporting plate 11 respectively, the distance between the supporting plates 7 and the height of the arc supporting plate 11 are adjusted according to needs, the user rotates the handle 17, the handle 17 rotates to drive the operating rod 15 to rotate, the operating rod 15 rotates to drive the second gear 16 to rotate, the second gear 16 rotates to drive the second gear strip 14 to slide in the clamping hole 4, the second gear strip 14 moves to drive the supporting plate 7 to move in the opposite direction, the distance between the supporting plates 7 is enlarged, the second gear strip 14 drives the fixed rod 6 in the moving process, the internal sliding of the supporting rod 5 strengthens the stability of the supporting plate 7 through the supporting rod 5, until moving to suitable position between the layer board 7, the user opens electric telescopic handle 9, and electric telescopic handle 9's output outwards extends and drives dead lever 9 rebound, and dead lever 9 removes and drives connecting rod 10 rebound, and connecting rod 10 rebound drives arc layer board 11 rebound, moves to suitable position until arc layer board 11.

The user places outside steel bar material between arc layer board 11 and layer board 7, support the material through bracing piece 8, make and contact between the material, the user welds the contact point of material through external equipment, the user promotes layer board 7 and drives connecting rod 10 and remove in the inside of spout 2, gear 12 becomes rolling friction with the sliding friction between spliced pole 3 and the spout 2, make spliced pole 3's removal convenient and fast more, and spliced pole 3 removes and drives planker 7 and arc layer board 11 synchronous motion, planker 7 and arc layer board 11 synchronous motion drive steel bar material and remove to one end, make more tie points in the steel bar material remove the user's face, the user welds once more to new tie point, make the welding convenient and fast more of superimposed sheet truss muscle.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A welding device for laminated truss bars, characterized in that it comprises a base (1), a chute (2) is provided on the upper surface of the base (1), and the interior of the chute (2) is slidably clamped. There is a connecting column (3), the interior of the connecting column (3) is evenly provided with a clamping hole (4), and a supporting rod (5) is slidably clamped in the interior of the clamping hole (4), and the supporting rod ( 5) A fixing rod (6) is slidably clamped inside, one end of the supporting rod (5) is fixedly installed with a supporting plate (7), and one end of the supporting plate (7) is rotatably installed with a supporting rod (8), Electric telescopic rods (9) are fixedly installed on both ends of the upper surface of the connecting column (3), and U-shaped rods (10) are fixedly installed at the output ends of the electric telescopic rods (9). A connecting rod (11) is fixedly installed at one end of the connecting rod (11), and the upper surface of the connecting rod (11) is evenly inlaid and installed with an arc-shaped support plate (12).

2 . The welding device for laminated truss bars according to claim 1 , wherein the inside of the chute ( 2 ) rotates evenly and is installed with a gear ( 13 ), and the connecting column ( 3 ) is rotatably mounted. 3 . A No. 1 gear rack (14) is inlaid and installed on the lower surface, and the No. 1 gear rack (14) and the No. 1 gear (13) mesh with each other.

3. The welding device for laminated plate truss bars according to claim 1, characterized in that: one side of the support rod (5) is fixedly installed with a No. 2 gear rack (15), and the connecting column (3) ) is rotatably installed with an operating rod (16), the outer surface of the operating rod (16) is fixedly installed with a second gear (17), the second gear (17) and the second gear rack (15) ) mesh with each other.

4 . The welding device for laminated truss bars according to claim 3 , wherein one end of the operating rod ( 16 ) penetrates one end of the connecting column ( 3 ), and the operating rod ( 16 ) A handle (18) is fixedly installed at one end of the .

5 . The welding device for laminated truss bars according to claim 1 , wherein the support rod ( 8 ) consists of a No. 1 sleeve ( 19 ), a sliding rod ( 20 ) and a No. 2 sleeve ( 21 ). 6 . ), the No. 1 sleeve (19) and one end of the supporting plate (7) are rotatably connected to each other, and the two ends of the sliding rod (20) are respectively connected with the No. 1 sleeve (19), the The No. 2 sleeves (21) are slidably clamped to each other, and the other end of the No. 2 sleeve (21) is rotatably connected to the U-shaped rod (10).

6 . The welding device for laminated plate truss bars according to claim 1 , wherein the four corners of the lower surface of the base ( 1 ) are rotatably installed with lockable rollers ( 22 ), and the U-shaped rod ( The inner side of 10) is fixedly connected with both ends of the connecting rod (11).

7 . The welding device for laminated truss bars according to claim 1 , wherein the other end of the fixing rod ( 6 ) is fixedly connected to the corresponding side of the support plate ( 7 ). 8 .
