Abstract
The utility model discloses a liquid tank sealing filter, which comprises a housin, first vent bottom welded fastening has electric push rod, electric push rod welded fastening has the accuse wind pole, it has a plurality of deep beads to articulate on the accuse wind pole, electric push rod's both sides welded fastening has two support columns on the first vent, the recess inboard is provided with cistern sealing glue film, the inboard welded fastening of cistern sealing glue film has the box on the recess. The utility model discloses the right side of filter screen is provided with the brush board, and the screw rod rotates through the motor and drives the brush board and reciprocate clean to the filter screen, and the fan siphons away dust impurity simultaneously, still sets up electric push rod, protection network, accuse wind pole, deep bead simultaneously, and it is flexible through control electric push rod when device parking and clean, closes first vent with the deep bead, prevents that the dust from passing through first vent, has convenient to use, long service life, continuously keeps the inside clear advantage of filter equipment.
Description
Technical Field
The utility model relates to an air filtration technology field specifically is a liquid tank sealing filter.
Background
With the rapid development of the electronic industry and the pharmaceutical industry, the air cleaning technology plays an increasingly important role. Among the air purification technologies, the most widely, mature and unanimous air filter is required to be installed in a clean room or a clean factory, and when the efficient and ultra-efficient air filter is installed in the clean room or the clean factory, the air filter is required to be installed in a sealed manner, so that the liquid tank sealing filter is required to play an important role in air filtration, but the following defects exist:
in the filtering process, the filtering device is easily blocked by dust and impurities, so that the filtering effect is influenced;
1. when the air filter stops being used, the air outlet end of the filter easily enters dust and impurities, and the filtering effect is influenced by the filtering device.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a liquid tank sealing filter to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: a liquid tank sealing filter comprises a shell, wherein a first vent is formed in the shell, an electric push rod is fixedly welded at the bottom of the first vent, an air control rod is fixedly welded on the electric push rod, a plurality of air baffles are hinged on the air control rod, two support columns are fixedly welded on two sides of the electric push rod on the first vent, the air baffles are hinged with the support columns, a dust collection cavity is formed in the upper side of the first vent on the shell, a dust collection box is arranged in the dust collection cavity, a groove is formed in the right side surface of the shell, a liquid tank sealing adhesive layer is arranged on the inner side of the groove, a box body is fixedly welded on the inner side of the liquid tank sealing adhesive layer on the groove, a second vent is formed in the box body, an active carbon filter plate layer is fixedly welded on the left side of the second vent, and an ultrafine glass fiber filter layer is fixedly welded on the right side of the active carbon filter plate layer in the second vent, the superfine glass fiber filter layer in the second vent is provided with a filter screen, the right side of the filter screen layer in the second vent is provided with a screw rod through a bearing, the screw rod is in threaded connection with a threaded sleeve, one side of the threaded sleeve, which is close to the filter screen, is fixedly welded with a brush plate, a dust suction cavity is formed in the brush plate, a plurality of dust suction holes are formed in the left side in the dust suction cavity, the front side and the rear side of the brush plate are respectively provided with a sliding groove, a sliding block is connected in the sliding groove in a sliding manner, the sliding block and the brush plate are fixedly welded, one end, which is far away from each other, of the first vent and the second vent is fixedly welded with a protective net, the upper side of the second vent on the box body is provided with a cavity, a motor is fixedly welded in the cavity, the top end of the screw rod penetrates through the upper wall of the second vent and enters the cavity, and the motor is connected with the screw rod through a coupler, the left side welded fastening of motor has the fan in the cavity, the air intake welded fastening of fan has the dust absorption pipe, the end of dust absorption pipe passes in the cavity lower wall gets into the second ventilation opening, dust absorption pipe and dust absorption chamber intercommunication, the air outlet welded fastening of fan has the dust collecting tube, the end of dust collecting tube passes cavity inner wall and dust collection chamber outer wall in proper order from the right side to a left side and reachs the dust collecting intracavity, dust collecting tube and dust collection box intercommunication, the upside welded fastening of fan has the controller in the cavity, the right side welded fastening at both ends has the mount pad about the box, electric putter, motor, fan all with controller electric connection.
Preferably, the brush plate is provided with a soft brush.
Preferably, the length of the brush plate is consistent with the width of the filter screen.
Preferably, a chamber door is provided on a left side surface of the dust collecting chamber.
Preferably, the dust suction pipe is a flexible hose.
Preferably, the mounting seat is provided with a mounting opening.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the brush plate is arranged on the right side of the filter screen of the utility model, the screw rod drives the brush plate to move up and down through the rotation of the motor to clean the filter screen, and meanwhile, the fan sucks away dust and impurities, keeps the inside of the filter clean and prolongs the service life of the filter;
2. the utility model discloses still set up electric push rod, protection network, accuse wind pole, deep bead simultaneously, flexible through electric push rod when device parking and clean, the control deep bead closes first vent, prevents that the dust from passing through first vent, has convenient to use, long service life, continuously keeps the inside clear advantage of filter equipment.
Drawings

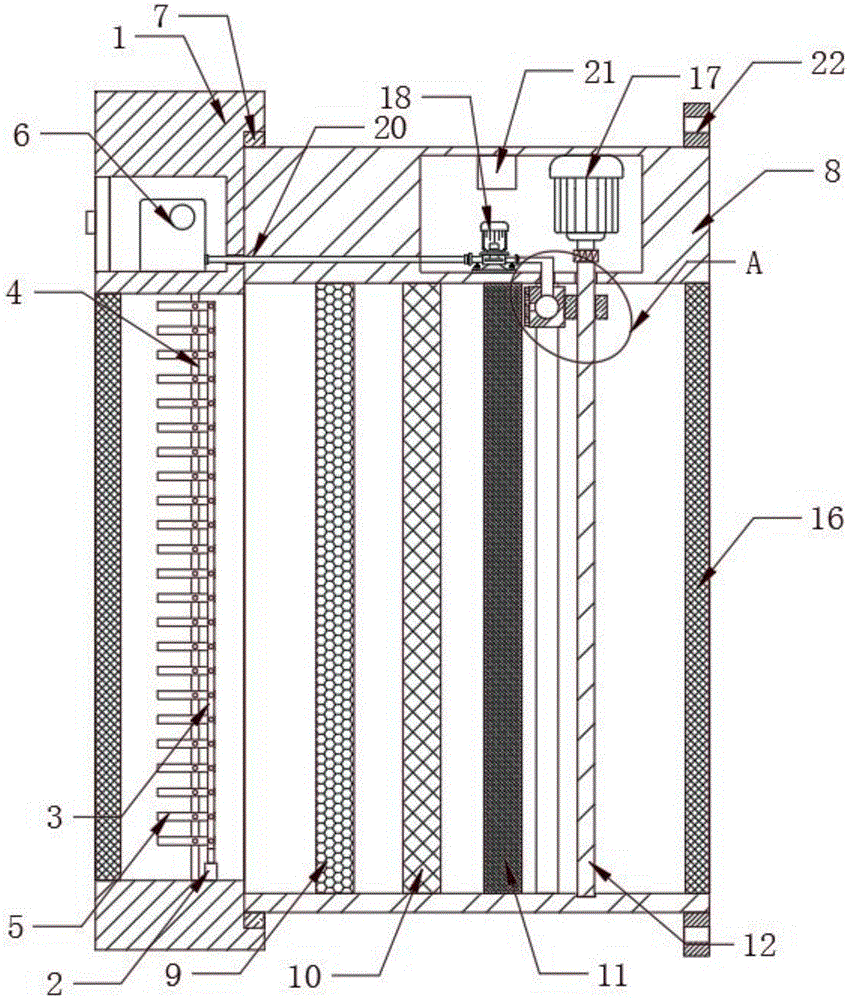

FIG. 1 is a side cross-sectional view of a liquid tank sealing filter according to the present invention;
FIG. 2 is a top cross-sectional view of a liquid tank sealing filter according to the present invention;
fig. 3 is an enlarged view of a structure a in fig. 1.
In the figure: 1. a housing; 2. an electric push rod; 3. a wind control rod; 4. a support pillar; 5. a wind deflector; 6. a dust collecting box; 7. the liquid tank is sealed with an adhesive layer; 8. a box body; 9. an active carbon filter plate layer; 10. a superfine glass fiber filter layer; 11. a filter screen; 12. a screw; 13. a threaded sleeve; 14. brushing the board; 15. a slider; 16. a protective net; 17. an electric motor; 18. a fan; 19. a dust collection pipe; 20. a dust collecting pipe; 21. a controller; 22. And (7) mounting a seat.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a liquid tank sealing filter comprises a shell 1, wherein a first vent is formed in the shell 1, an electric push rod 2 is fixedly welded at the bottom of the first vent, an air control rod 3 is fixedly welded on the electric push rod 2, a plurality of wind shields 5 are hinged on the air control rod 3, two support columns 4 are fixedly welded on two sides of the electric push rod 2 on the first vent, the wind shields 5 are hinged with the support columns 4, a dust collecting cavity is formed in the upper side of the first vent on the shell 1, a dust collecting box 6 is arranged in the dust collecting cavity, a groove is formed in the surface of the right side of the shell 1, a liquid tank sealing glue layer 7 is arranged on the inner side of the groove, a box body 8 is fixedly welded on the inner side of the liquid tank sealing glue layer 7 on the groove, a second vent is formed in the box body 8, an active carbon filter plate layer 9 is fixedly welded on the left side of the second vent, and an ultrafine glass fiber filter layer 10 is fixedly welded on the right side of the active carbon filter plate layer 9 in the second vent, the superfine glass fiber filter layer 10 in the second ventilation opening is provided with a filter screen 11, the right side of the filter screen 11 layer in the second ventilation opening is provided with a screw 12 through a bearing, the screw 12 is in threaded connection with a threaded sleeve 13, one side of the threaded sleeve 13, which is close to the filter screen 11, is fixedly welded with a brush plate 14, a dust suction cavity is formed in the brush plate 14, the left side in the dust suction cavity is provided with a plurality of dust suction holes, the front side and the rear side of the brush plate 14 are respectively provided with a sliding groove, a sliding block 15 is connected in the sliding grooves in a sliding manner, the sliding block 15 and the brush plate 14 are fixedly welded, one end, which is far away from each other, of the first ventilation opening and the second ventilation opening is fixedly welded with a protective screen 16, the upper side of the second ventilation opening on the box body 8 is provided with a cavity, a motor 17 is fixedly welded in the cavity, the top end of the screw 12 penetrates through the upper wall of the second ventilation opening to enter the cavity, the motor 17 is connected with the screw 12 through a coupler, and the left side of the motor 17 in the cavity is fixedly welded with a fan 18, a dust suction pipe 19 is welded and fixed at an air inlet of the fan 18, the tail end of the dust suction pipe 19 penetrates through the lower wall of the cavity and enters the second ventilation opening, the dust suction pipe 19 is communicated with the dust suction cavity, a dust collection pipe 20 is welded and fixed at an air outlet of the fan 18, the tail end of the dust collection pipe 20 sequentially penetrates through the inner wall of the cavity and the outer wall of the dust collection cavity from right to left and reaches the dust collection cavity, the dust collection pipe 20 is communicated with the dust collection box 6, a controller 21 is welded and fixed at the upper side of the fan 18 in the cavity, mounting seats 22 are welded and fixed at the right sides of the upper end and the lower end of the box body 8, and the electric push rod 2, the motor 17 and the fan 18 are electrically connected with the controller 21;
the brush plate 14 is provided with a soft brush, the length of the brush plate 14 is consistent with the width of the filter screen 11, the left side surface of the dust collection cavity is provided with a cavity door, the dust collection pipe 19 is a flexible hose, and the mounting seat 22 is provided with a mounting opening.
The working principle is as follows: when the dust collector is used, large particle dust and insects are blocked outside the filter device through the protective net 16, the air is filtered and purified through the filter screen 11, the superfine glass fiber filter layer 10 and the activated carbon filter plate layer 9, the motor 17 and the fan 18 are controlled by the controller 21 to be started and stopped at regular time, when the controller 21 controls the motor 17 to rotate forward and backward, the screw 12 is driven to rotate forward and backward, the threaded sleeve 13 and the brush plate 14 are driven to move up and down, the filter screen 11 is cleaned while the brush plate 14 moves up and down, meanwhile, the fan 18 sucks the brushed dust through the dust suction hole, the dust enters the dust collection box 6, the electric push rod 2 is controlled to extend out while cleaning, the air control rod 3 is driven to move up, the hinged end of the air baffle 5 is driven to move up, the first air vent of the air baffle is blocked, when the controller 21 controls the motor 17 and the fan 18 to stop after cleaning, the electric push rod 2 contracts so as to drive the air control rod 3 to move downwards and drive the hinged end of the air baffle 5 to move downwards, the first vent is opened, when the filter is required to be stopped to be used, the controller 21 controls the electric push rod 2 to extend out, the air baffle 5 blocks the first vent, when the filter is required to be used, the controller 21 controls the electric push rod 2 to contract, the first vent is opened to be used, and the cavity door is opened at regular time to clean the dust collecting box 6; the utility model discloses filter screen 11's right side is provided with brush board 14, screw rod 12, it reciprocates to filter screen 11 cleanly to rotate drive brush board 14 through motor 17, fan 18 siphons away dust impurity simultaneously, keep the inside cleanness of filter, the life of extension filter, still set up electric push rod 2 simultaneously, the protection network 16, accuse wind pole 3, deep bead 5, it is flexible through electric push rod 2 when device used stop and cleanness, control deep bead 5 is closed first vent, prevent that the dust from passing through first vent, and the steam generator has convenient to use, long service life, continuously keep the inside clear advantage of filter equipment.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A liquid tank sealing filter, comprising a housing (1), characterized in that: the air conditioner is characterized in that a first vent is formed in the shell (1), an electric push rod (2) is fixedly connected to the bottom of the first vent, an air control rod (3) is fixedly connected to the electric push rod (2), a plurality of air baffles (5) are hinged to the air control rod (3), two supporting columns (4) are fixedly mounted on two sides of the electric push rod (2) on the first vent, the air baffles (5) are hinged to the supporting columns (4), a dust collection cavity is formed in the upper side of the first vent on the shell (1), a dust collection box (6) is arranged in the dust collection cavity, a groove is formed in the right side surface of the shell (1), a liquid groove sealing adhesive layer (7) is arranged on the inner side of the groove, a box body (8) is fixedly connected to the inner side of the liquid groove sealing adhesive layer (7) on the groove, a second vent is formed in the box body (8), and an activated carbon layer filtering layer (9) is fixedly connected to the left side of the second vent, the right side fixedly connected with superfine glass fiber filter layer (10) on active carbon filter plate layer (9) in the second ventilation opening, superfine glass fiber filter layer (10) is provided with filter screen (11) in the second ventilation opening, the right side on filter screen (11) layer is rotated and is provided with screw rod (12) in the second ventilation opening, threaded connection has thread bush (13) on screw rod (12), one side fixedly connected with brush board (14) that is close to filter screen (11) on thread bush (13), it has the dust absorption chamber to open in brush board (14), a plurality of dust absorption hole has been seted up in the left side in the dust absorption chamber, the spout has all been seted up to both sides around brush board (14), sliding connection has slider (15) in the spout, slider (15) and brush board (14) fixed connection, the equal fixedly connected with protection network (16) of one end that first vent and second ventilation opening kept away from each other, the upside of second ventilation opening has been seted up the cavity on box (8), fixedly connected with motor (17) in the cavity, the top of screw rod (12) passes in the upper wall entering cavity of second ventilation opening, motor (17) passes through the coupling joint with screw rod (12), the left side fixedly connected with fan (18) of motor (17) in the cavity, the air intake fixedly connected with dust absorption pipe (19) of fan (18), the end of dust absorption pipe (19) passes in the cavity lower wall gets into second ventilation opening, dust absorption pipe (19) and dust absorption chamber intercommunication, the air outlet fixedly connected with dust collecting tube (20) of fan (18), the end of dust collecting tube (20) passes cavity inner wall and dust collection chamber outer wall in proper order from right side to left side and arrives in the dust collection chamber, dust collecting tube (20) and dust collection box (6) intercommunication, the upside fixedly connected with controller (21) of fan (18) in the cavity, the right side fixedly connected with mount pad (22) at both ends about box (8), electric putter (2), motor (17), fan (18) all with controller (21) electric connection.
2. A liquid channel sealing filter as claimed in claim 1, wherein: the brush plate (14) is provided with a soft brush.
3. A liquid channel sealing filter as claimed in claim 1, wherein: the length of the brush plate (14) is consistent with the width of the filter screen (11).
4. A liquid channel sealing filter as claimed in claim 1, wherein: and a cavity door is arranged on the left side surface of the dust collection cavity.
5. A liquid channel sealing filter as claimed in claim 1, wherein: the dust suction pipe (19) is a flexible hose.
6. A liquid channel sealing filter as claimed in claim 1, wherein: the mounting seat (22) is provided with a mounting opening.
