Abstract
本实用新型公开了一种医疗器械用具有烘干功能的消毒装置，包括箱体、顶盖和出气口，所述箱体的顶部活动连接有顶盖，所述顶盖顶部的一侧开设有出气口，所述箱体内部的底部固定连接有矩形块，所述矩形块顶部的中部开设有消毒池，所述箱体外壁一侧的底部固定连接有保护壳，所述保护壳的内部安装有伺服电机，所述伺服电机的输出轴固定连接有转杆，本实用新型通过启动伺服电机，将医疗器械浸泡在消毒池内消毒，同时也方便提起，不用工作人员戴上手套拿取，更不会带入细菌导致污染箱体内部环境的情况，使消毒更彻底，另外将消毒和烘干结合一体，不用等待自然晾干，提高消毒的效率。
The utility model discloses a sterilizing device with a drying function for medical instruments, comprising a box body, a top cover and an air outlet, the top of the box body is movably connected with a top cover, and one side of the top of the top cover is provided with Air outlet, a rectangular block is fixedly connected to the bottom of the inside of the box, a disinfection tank is opened in the middle of the top of the rectangular block, a protective shell is fixedly connected to the bottom of one side of the outer wall of the box, and the inside of the protective shell is installed There is a servo motor, and the output shaft of the servo motor is fixedly connected with a rotating rod. By starting the servo motor, the utility model soaks the medical equipment in the disinfection tank for disinfection, and at the same time, it is also convenient to lift, and the staff does not need to wear gloves to take it, let alone It will bring in bacteria and pollute the internal environment of the box, so that the disinfection is more thorough. In addition, the disinfection and drying are combined, and there is no need to wait for natural drying, which improves the efficiency of disinfection.
Description
Technical Field
The utility model relates to a degassing unit field specifically is a medical instrument is with degassing unit field that has stoving function.
Background
The medical apparatus refers to instruments, equipment, appliances, in-vitro diagnostic reagents and calibrators, materials and other similar or related articles which are directly or indirectly used for the human body, and comprises required computer software, and the medical apparatus is used for diagnosing, preventing, monitoring, treating or relieving diseases; diagnosis, monitoring, treatment, mitigation, or functional compensation of injury; the medical instrument industry relates to multiple industries such as medicine, machinery, electronics, plastics and the like, is a high-technology industry with multiple disciplines crossing, dense knowledge and dense funds, and a large number of excellent medical instrument brands in China rise rapidly along with the continuous increase of competition of the medical instrument industry, and gradually become the fuzz in the medical instrument industry.
The small-size article of current medical instrument is after using, need disinfect the processing in time, thereby be favorable to using next time, present degassing unit mainly adopts and soaks medical instrument in the antiseptic solution, thereby reach disinfection's effect, but still there are some weak points, for example soak a period of time after, need the staff to wear protective gloves, drag for the medical instrument who has soaked in the disinfection pond, can bring the bacterium into to the difficult understanding, lead to polluting the inside environment of disinfection box, can not reach thorough sterile efficiency, in addition ordinary degassing unit, lack the stoving function, long waiting time, low efficiency, consequently, need a medical instrument to solve above-mentioned problem with the degassing unit who has stoving function urgently.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a medical instrument is with degassing unit who has stoving function to the problem that the time of drying the long term efficiency is low is thoroughly disinfected and waits to dry that provides in solving above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a medical instrument is with degassing unit that has stoving function, includes box, top cap and gas outlet, the top swing joint of box has the top cap, the gas outlet has been seted up to one side at top cap top, the inside bottom fixedly connected with rectangular block of box, the disinfection pond has been seted up at the middle part at rectangular block top, the bottom fixedly connected with protective housing of box outer wall one side, the internally mounted of protective housing has servo motor, servo motor's output shaft fixedly connected with bull stick, one side of bull stick runs through the lateral wall of box and extends to the inside of box.
As a preferred technical scheme of the utility model, the middle part of bull stick and the first bevel gear of the equal fixedly connected with of one end of bull stick, two one side of first bevel gear all meshes and is connected with second bevel gear, two the equal fixedly connected with threaded rod in top of second bevel gear, two the one end of threaded rod all runs through the top and swing joint in the inside top of box of rectangular block.
As a preferred technical scheme of the utility model, two the middle part of threaded rod all is equipped with the thread bush, one side fixedly connected with floor of thread bush, the opposite side fixedly connected with centre gripping ring of floor.
As an optimized technical proposal of the utility model, the middle part cover of the clamping ring is provided with a disinfection frame, and the position of the disinfection frame is positioned right above the disinfection pool.
As a preferred technical scheme of the utility model, the opposite side fixedly connected with heating chamber of box outer wall, the bottom fixedly connected with air-blower of heating chamber one side, the air outlet of air-blower communicates with each other with the inside of heating chamber, the inside of heating chamber is inlayed and is established and be connected with the heater strip.
As a preferred technical scheme of the utility model, the top fixedly connected with connecting pipe of heating chamber opposite side, the other end fixedly connected with stoving ring of connecting pipe, the outside fixed connection of stoving ring is in the middle part of box inner wall, a plurality of stoving hole has been seted up to the inboard of stoving ring.
Compared with the prior art, the beneficial effects of the utility model are that:
1. this medical instrument is with degassing unit who has stoving function, through the inside servo motor of start-up protective housing, through the meshing transmission of first bevel gear and second bevel gear, it moves along the screw thread of threaded rod to drive the thread bush, it removes to drive the centre gripping ring through the floor, the medical instrument who will treat disinfection puts into disinfection frame inside, in the inside of embedding centre gripping ring, can soak medical instrument and disinfect in the disinfection pond, also conveniently mention simultaneously, do not wear gloves and take with the staff, more can not bring the condition that the bacterium leads to polluting box internal environment into, it is more thorough to make the disinfection.
2. This medical instrument is with degassing unit who has stoving function, through starting the air-blower, with the air through the heating chamber, heat through the heater strip, reach the stoving ring from the connecting pipe, spout in the inboard a plurality of stoving hole of seting up of stoving ring, the middle part of stoving ring rises to the frame of disinfecting, from the frame of disinfecting all around evenly dry medical instrument, convenient operation, it combines integratively to disinfect and dry, need not wait for and naturally dry, improve sterile efficiency.
Drawings

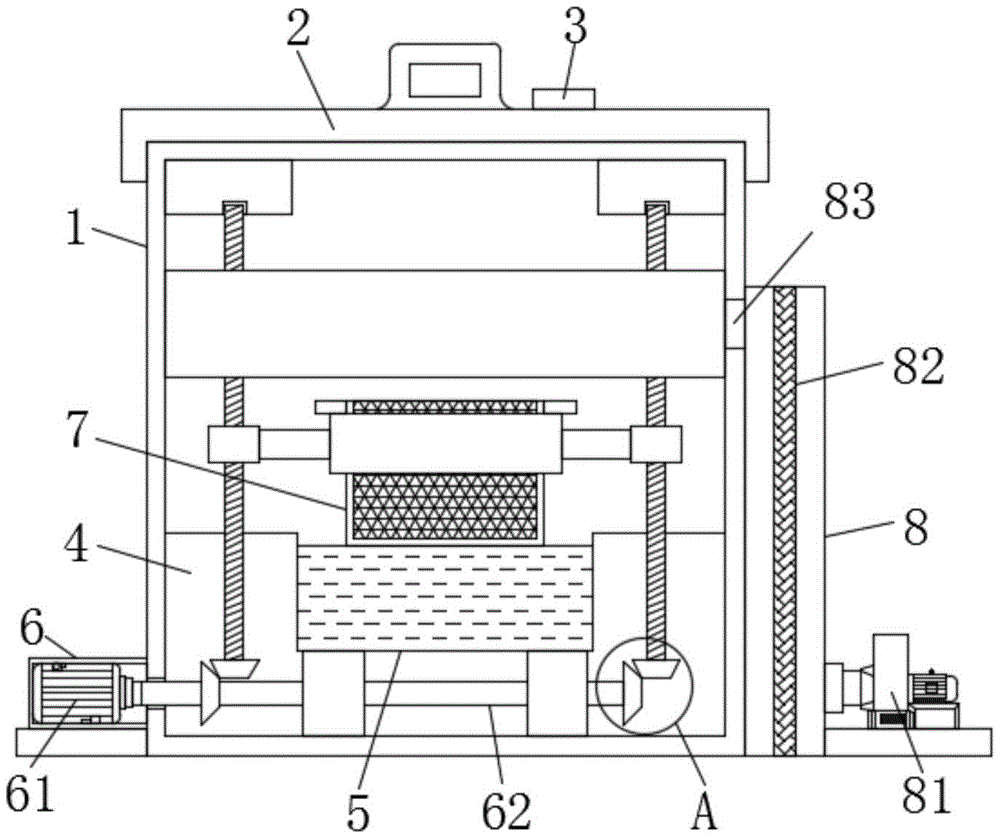

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is an enlarged view of a portion a in fig. 1 according to the present invention;
fig. 3 is a schematic view of a clamping ring of the present invention;
fig. 4 is a schematic view of the drying ring of the present invention.
In the figure: 1. a box body; 2. a top cover; 3. an air outlet; 4. a rectangular block; 5. a disinfection tank; 6. a protective shell; 61. a servo motor; 62. a rotating rod; 63. a first bevel gear; 64. a second bevel gear; 65. a threaded rod; 66. a threaded sleeve; 67. a rib plate; 68. clamping the circular ring; 7. a sterilizing frame; 8. a heating chamber; 81. a blower; 82. heating wires; 83. a connecting pipe; 84. drying the circular ring; 85. and drying the holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution of a sterilization device with drying function for medical instruments:
according to the figures 1, 2 and 3, a sterilizing device with drying function for medical instruments comprises a box body 1, a top cover 2 and an air outlet 3, wherein the top of the box body 1 is movably connected with the top cover 2, one side of the top cover 2 is provided with the air outlet 3, the bottom of the interior of the box body 1 is fixedly connected with a rectangular block 4, the middle part of the top of the rectangular block 4 is provided with a sterilizing tank 5, the bottom of one side of the outer wall of the box body 1 is fixedly connected with a protective shell 6, the interior of the protective shell 6 is provided with a servo motor 61, an output shaft of the servo motor 61 is fixedly connected with a rotating rod 62, one side of the rotating rod 62 penetrates through the side wall of the box body 1 and extends to the interior of the box body 1, the middle part of the rotating rod 62 and one end of the rotating rod 62 are fixedly connected with first bevel gears 63, one sides of the two first bevel gears 63 are respectively connected with second bevel gears 64 in a meshing manner, and threaded rods 65 are respectively fixedly connected with the tops of the two second bevel gears 64, the top and swing joint in the inside top of box 1 that rectangular block 4 all run through to the one end of two threaded rods 65, the middle part of two threaded rods 65 all overlaps and is equipped with thread bush 66, one side fixedly connected with floor 67 of thread bush 66, the opposite side fixedly connected with centre gripping ring 68 of floor 67, the middle part cover of centre gripping ring 68 is equipped with disinfection frame 7, the position of disinfection frame 7 is located disinfection pond 5 directly over, start servo motor 61, alright rise disinfection frame 7 from disinfection pond 5, avoid taking the environment inside pollution box 1, make the disinfection more thorough.
According to fig. 1 and 4, another side fixedly connected with heating chamber 8 of box 1 outer wall, the bottom fixedly connected with air-blower 81 of heating chamber 8 one side, the air outlet of air-blower 81 communicates with each other with the inside of heating chamber 8, the inside of heating chamber 8 is inlayed and is established and be connected with heater strip 82, the top fixedly connected with connecting pipe 83 of heating chamber 8 opposite side, the other end fixedly connected with stoving ring 84 of connecting pipe 83, the outside fixed connection of stoving ring 84 is in the middle part of box 1 inner wall, a plurality of stoving hole 85 has been seted up to the inboard of stoving ring 84, start air-blower 81 and constantly blow the steam from stoving hole 85, three hundred sixty degrees dry disinfection frame 7, high efficiency.
When specifically using, the utility model relates to a medical instrument is with degassing unit who has stoving function, protective housing 6 is connected in the bottom in the box 1 outside during the use, start the servo motor 61 of 6 internally mounted of protective housing, it rotates to drive bull stick 62, through the meshing transmission of first bevel gear 63 with second bevel gear 64, it rotates to drive threaded rod 65, make thread bush 66 can be along the screw thread removal of threaded rod 65, it removes to drive centre gripping ring 68 through floor 67, it is inside to treat sterile medical instrument and put into disinfection frame 7, in the inside of embedding centre gripping ring 68, can soak medical instrument and disinfect in disinfection pond 5, also conveniently mention simultaneously, do not wear gloves and take with the staff, more can not bring into the condition that the bacterium leads to polluting 1 internal environment of box, make the disinfection more thorough.
Start air-blower 81 simultaneously, pass through heating chamber 8 with the air, heat through heater strip 82 in the inside of heating chamber 8, reach stoving ring 84 through connecting pipe 83, spout in a plurality of stoving hole 85 that the inboard was seted up of stoving ring 84, the middle part of stoving ring 84 rises to disinfection frame 7, dry medical instrument evenly around from disinfection frame 7, steam can go out from the gas outlet 3 that top cap 2 top was seted up, high durability and convenient operation, combine disinfection and stoving an organic whole, need not wait for and naturally dry, improve sterile efficiency.
In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, and is only for convenience of description and simplification of description, and does not indicate or imply that the indicated device or element must have a particular orientation, be constructed and operated in a particular orientation, and thus should not be construed as limiting the present invention.
In the present invention, unless otherwise explicitly specified or limited, for example, it may be fixedly connected, detachably connected, or integrated; can be mechanically or electrically connected; they may be directly connected or indirectly connected through an intermediate medium, and may be connected through the inside of two elements or in an interaction relationship between two elements, unless otherwise specifically defined, and the specific meaning of the above terms in the present invention will be understood by those skilled in the art according to specific situations.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
