本实用新型公开了一种用于建筑设计的图架，涉及建筑设计技术领域，包括固定架，所述固定架上铰接有一展板，所述展板与固定架之间设置有一锁止机构，所述展板上滑动设置有一夹持组件，所述夹持组件包括滑动板及夹持杆，所述滑动板与夹持杆之间设置有第一弹簧，所述滑动板上开设有一通槽，所述提拉杆远离滑动板的一端固定连接在夹持杆上。通过固定架、展板、夹持组件、滑动板、夹持杆、第一弹簧、通槽、提拉杆之间的配合，通过驱动提拉杆，使得夹持杆远离展板的表面，然后将图纸放置在展板的表面上，第一弹簧恢复弹性形变的过程带动夹持杆贴合在展板的表面上，然后驱动滑动板可以根据图纸的大小来控制滑动的距离，将图纸固定。
The utility model discloses a drawing frame used for architectural design, which relates to the technical field of architectural design. A clamping assembly is slidably arranged on the display plate, the clamping assembly includes a sliding plate and a clamping rod, a first spring is arranged between the sliding plate and the clamping rod, a through groove is formed on the sliding plate, and the One end of the lifting rod away from the sliding plate is fixedly connected to the clamping rod. Through the cooperation between the fixing frame, the exhibition board, the clamping assembly, the sliding board, the clamping rod, the first spring, the through groove, and the lifting rod, and by driving the lifting rod, the clamping rod is kept away from the surface of the exhibition board, and then the drawing is placed on the On the surface of the display board, the process of restoring elastic deformation of the first spring drives the clamping rod to fit on the surface of the display board, and then drives the sliding plate to control the sliding distance according to the size of the drawing to fix the drawing.
Description
Technical Field
The utility model relates to an architectural design technical field specifically is a drawing frame for architectural design.
Background
The building design means that before the building is built, a designer makes a general idea of problems existing or possibly occurring in the construction process and the use process according to the construction task, plans a method and a scheme for solving the problems and expresses the problems by using drawing paper and documents. As a common basis for the mutual cooperation of material preparation, construction organization work and various kinds of work in the manufacturing and construction work. The whole project can be carried out in a unified and step-by-step manner within a preset investment quota range according to a carefully considered preset scheme. And the built building can fully meet various requirements and purposes expected by users and society.
Present drawing frame for architectural design, chinese patent like application number CN202020176273.2 name "a drawing frame for architectural design" discloses a drawing frame for architectural design, including the bottom plate, both ends all have the third movable rod through first powerful damping pivot swing joint about the bottom plate top, the internal surface of third movable rod upper end has first movable rod through fifth powerful damping pivot swing joint, the internal surface of first movable rod middle-end passes through fourth powerful damping pivot swing joint, the internal surface of first movable rod upper end has the second movable rod through third powerful damping pivot swing joint, the internal surface of second movable rod upper end passes through both ends about second powerful damping pivot swing joint in the roof bottom. The utility model discloses set up first powerful damping pivot, first movable rod, second movable rod and the powerful damping pivot of second, reached adjustable purpose, solved current architectural design's drawing frame and did not possess the function of regulation, lead to not satisfying people's user demand's problem.
The defects of the prior art are as follows: in the existing drawing frame for design, when the drawing frame is used, drawing paper needs to be placed on the drawing frame and fixed through a fixing device, the traditional fixing mode can be usually fixed through a simplest clamp or a rubberized fabric, and therefore the drawing paper can be broken in the fixing process or the disassembling process of the construction drawing paper, and loss is caused; in addition, the angle of the traditional drawing frame cannot be adjusted, the use of workers cannot be better met, and the practicability is lower.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a drawing frame for architectural design to solve the shortcoming that breaks the drawing easily among the above-mentioned prior art.
In order to achieve the above object, the present invention provides the following technical solutions: the utility model provides a drawing frame for architectural design, includes the mount, it has a panel to articulate on the mount, be provided with a locking mechanism between panel and the mount, the slip is provided with a centre gripping subassembly on the panel, the centre gripping subassembly includes sliding plate and supporting rod, be provided with first spring between sliding plate and the supporting rod, the elasticity of first spring makes the supporting rod laminating on the surface of panel, a logical groove has been seted up on the sliding plate, it is provided with a lifting rod to lead to the inslot, the one end fixed connection that the sliding plate was kept away from to the lifting rod is on the supporting rod.
Furthermore, the bottom of the display board is fixedly connected with a fixed board, the fixed board is provided with a first chute, and the sliding board is slidably arranged in the first chute.
Further, the last rotation of panel is connected with a branch, the one end that the panel was kept away from to branch slides and sets up on the mount, be provided with a locking mechanism between branch and the mount.
Further, locking mechanism includes sliding block and second spout, the second spout is seted up on the mount, the sliding block slides and sets up in the second spout, branch rotates to be connected on the sliding block, vertical slip is provided with a joint board on the sliding block, be provided with the second spring between joint board and the sliding block, the one end fixedly connected with handle of sliding block is kept away from to the joint board, set up on the second spout and connect complex spacing groove with the joint integrated circuit board.
Further, fixedly connected with a slide bar on the mount bottom, the one end that the mount was kept away from to the slide bar slides and sets up in the loop bar, set up a screw hole on the loop bar side, screw hole female connection has a threaded rod, the threaded rod is kept away from one of loop bar and is served and be provided with the knob, be provided with a plurality of and threaded rod joint complex spacing holes on the slide bar.
Furthermore, one end of the loop bar, which is far away from the sliding rod, is fixedly connected with a base, and a plurality of leveling screws used for leveling are arranged on the base.
Furthermore, a shelf is arranged on the display board.
Compared with the prior art, the beneficial effects of the utility model are that: through the mount, the panel, the centre gripping subassembly, the sliding plate, the supporting rod, first spring, lead to the groove, carry the cooperation between the pull rod, carry the pull rod through the drive to one side of keeping away from the sliding plate, drive the supporting rod motion, make the supporting rod keep away from the surface of panel, then place the picture on the panel surface, the process that first spring resumes elastic deformation after the pine hand drives the supporting rod laminating at the panel on the surface, and then it is fixed with the drawing, then the gliding distance can be controlled according to the size of drawing to the drive sliding plate, and then better fix the drawing on the panel, improve the practicality of this picture frame.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments described in the present invention, and other drawings can be obtained by those skilled in the art according to these drawings.

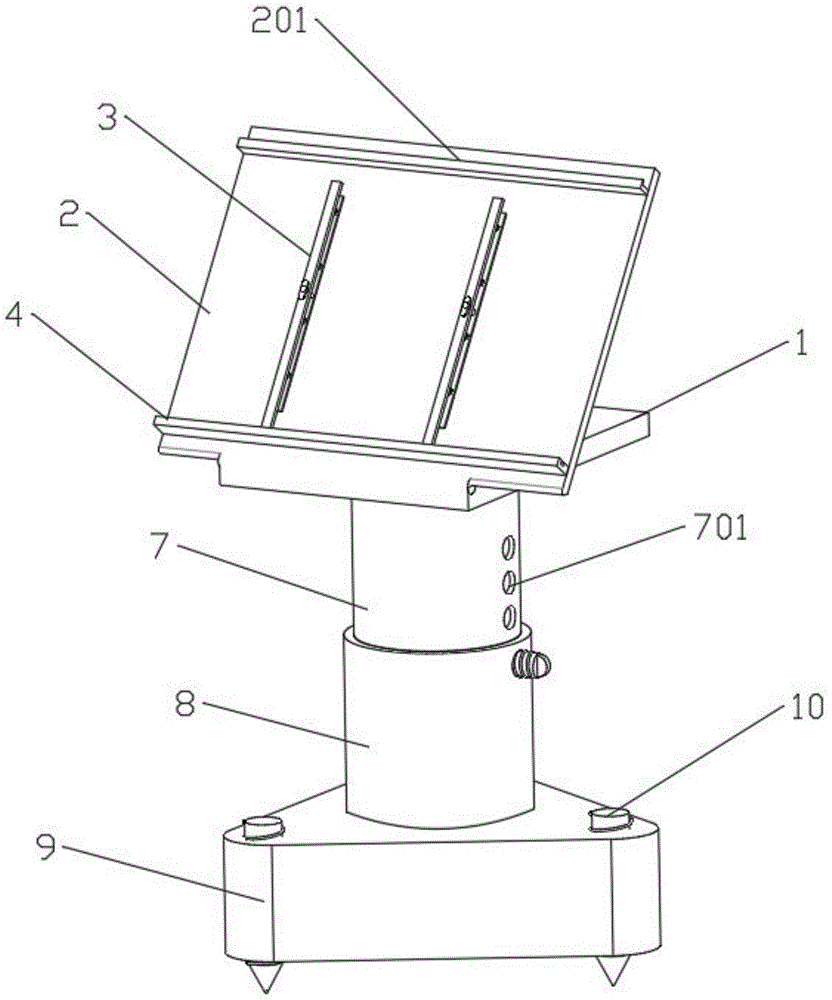

Fig. 1 is a schematic view of an overall structure provided by an embodiment of the present invention;
fig. 2 is a schematic overall side view structure diagram provided in the embodiment of the present invention;
fig. 3 is a schematic view of another overall view structure provided in the embodiment of the present invention;
fig. 4 is a schematic structural view of a clamping assembly according to an embodiment of the present invention;
fig. 5 is a schematic structural view of a connection mode of the sliding plate and the fixed plate according to an embodiment of the present invention;
fig. 6 is an enlarged schematic view of the area a in fig. 3.
Description of reference numerals: 1. a fixed mount; 2. exhibition boards; 201. a rack; 3. a clamping assembly; 301. a clamping rod; 302. a sliding plate; 303. a first spring; 304. lifting a pull rod; 305. a through groove; 4. a fixing plate; 401. a first chute; 5. a strut; 6. a locking mechanism; 601. a slider; 602. a second spring; 603. a telescopic rod; 604. a clamping and connecting plate; 605. a handle; 606. a limiting groove; 607. a second chute; 7. a slide bar; 701. a limiting hole; 8. a loop bar; 801. a threaded hole; 802. a threaded rod; 803. a knob; 9. a base; 10. leveling screw
Detailed Description
In order to make the technical solution of the present invention better understood by those skilled in the art, the present invention will be further described in detail with reference to the accompanying drawings.
Please refer to fig. 1-6, an embodiment of the present invention provides a easel for architectural design, including a fixing frame 1, there is a display board 2 hinged on the fixing frame 1, a locking mechanism 6 is provided between the display board 2 and the fixing frame 1, a clamping component 3 is provided on the display board 2 in a sliding manner, the clamping component 3 includes a sliding plate 302 and a clamping rod 301, a first spring 303 is provided between the sliding plate 302 and the clamping rod 301, the clamping rod 301 is attached on the surface of the display board 2 by the elastic force of the first spring 303, a through groove 305 has been provided on the sliding plate 302, a lifting rod 304 is provided in the through groove 305 in a sliding manner, one end of the lifting rod 304 far away from the sliding plate 302 is fixedly connected on the clamping rod 301.
Specifically, the drawing frame comprises a fixing frame 1, a display board 2 is hinged to the fixing frame 1, the angle of the drawing frame can be adjusted according to the self needs of a user through the hinged arrangement, the practicability of the drawing frame is improved, the locking mechanism 6 is arranged and used for controlling and adjusting the angle of the drawing frame and then locking and fixing are carried out, the operation is simple and convenient, a clamping assembly 3 is arranged on the display board 2 in a sliding mode and used for clamping a drawing used for design, paper is convenient to spread, and the number of the clamping assemblies 3 can be two and is respectively distributed on two sides of the display board 2; when using this centre gripping subassembly 3, at first through to one side drive lifting rod 304 of keeping away from sliding plate 302, drive supporting rod 301 motion, make supporting rod 301 keep away from the surface of panel 2, then place the picture on the surface of panel 2, the process that first spring 303 resumes elastic deformation after the pine hand drives supporting rod 301 laminating on the surface of panel 2, and then fixed the drawing, then drive sliding plate 302, can come the gliding distance of control according to the size of drawing, and then better fix the drawing on panel 2.
The bottom of the display board 2 is fixedly connected with a fixed board 4, the fixed board 4 is provided with a first sliding chute 401, and the sliding board 302 is slidably disposed in the first sliding chute 401.
Preferably, the shape of the first sliding groove 401 is a trapezoid, and the bottom of the sliding plate 302 is also a trapezoid, so that the sliding plate can have a limiting function while sliding, and the clamping assembly 3 is prevented from falling.
Last rotation of panel 2 is connected with a branch 5, the one end that panel 2 was kept away from to branch 5 slides and sets up on mount 1, be provided with a locking mechanism 6 between branch 5 and the mount 1, locking mechanism 6 includes sliding block 601 and second spout 607, second spout 607 is seted up on mount 1, sliding block 601 slides and sets up in second spout 607, branch 5 rotates to be connected on sliding block 601, vertical slip is provided with a joint board 604 on sliding block 601, be provided with second spring 602 between joint board 604 and the sliding block 601, the one end fixedly connected with handle 605 of sliding block 601 is kept away from to joint board 604, set up on the second spout 607 with joint board 604 joint complex spacing groove 606.
Preferably, when the angle of the drawing frame needs to be adjusted, firstly, the handle 605 drives the clamping plate to slide upwards, so that the clamping plate 604 slides in the limit groove 606, and then the sliding block 601 can slide in the sliding groove 607, and then the supporting rod 5 is driven to slide on the fixing frame 1, after the preset position is adjusted, the handle 605 is loosened, the second spring 602 drives the clamping plate 4 to be clamped into the limit groove 606 in the process of recovering the elastic force, so that the sliding block 601 is fixed again, and then the angle of the drawing frame is adjusted, wherein the telescopic rod 603 is arranged in the second spring 602, and the limiting effect can be achieved.
Fixedly connected with a slide bar 7 on the mount 1 bottom, the one end that the mount 1 was kept away from to slide bar 7 is slided and is set up in loop bar 8, has seted up a screw hole 801 on the loop bar 8 side, and screw hole 801 female connection has a threaded rod 802, and threaded rod 802 keeps away from one of loop bar 8 and serves and be provided with knob 803, is provided with a plurality ofly on the slide bar 7 and connects complex spacing hole 701 with threaded rod 802.
Preferably, when the height of this drawing frame needs to be adjusted, the knob 903 is used for driving the threaded rod 802 to rotate, so that the threaded rod 802 is pulled out from the limiting hole 701, then the sliding rod 7 is driven up and down, and after sliding to a set position, the threaded rod 802 is clamped into the limiting hole 701 again, so that the height of the drawing frame can be fixed, and the practicability of the drawing frame is improved.
One end of the loop bar 8 far away from the sliding bar 7 is fixedly connected with a base 9, and a plurality of leveling screws 10 used for leveling are arranged on the base 9.
Preferably, when the ground is needed to be uneven in use, the whole picture frame is adjusted through the screw 10, so that the whole picture frame is ensured to be in a horizontal state and is convenient to use.
The display board 2 is provided with a shelf 201.
Preferably, through setting up supporter 201, be convenient for place simple instrument, convenient to use such as pen, ruler etc. improves the practicality of this picture frame.
The working principle is as follows: when the clamping assembly 3 is used, firstly, the lifting rod 304 is driven to one side far away from the sliding plate 302 to drive the clamping rod 301 to move, so that the clamping rod 301 is far away from the surface of the display board 2, then, the drawing is placed on the surface of the display board 2, after hands are loosened, the process that the first spring 303 recovers elastic deformation drives the clamping rod 301 to be attached to the surface of the display board 2, the drawing is further fixed, then, the sliding plate 302 is driven, the sliding distance can be controlled according to the size of the drawing, and the drawing is further better fixed on the display board 2; when the angle of this drawing frame needs to be adjusted, at first, drive joint board upwards through handle 605 and slide for joint board 604 slides from spacing groove 606, and then sliding block 601 can slide in spout 607, and then drive branch 5 and slide on mount 1, adjust to established position back, loosen handle 605, second spring 602 resumes the in-process drive joint board 4 joint of elasticity and advances spacing groove 606 in, thereby it is fixed with sliding block 601 once more, and then the realization is adjusted the angle of this drawing frame.
While certain exemplary embodiments of the present invention have been described above by way of illustration only, it will be apparent to those of ordinary skill in the art that the described embodiments may be modified in various different ways without departing from the spirit and scope of the present invention. Accordingly, the drawings and description are illustrative in nature and should not be construed as limiting the scope of the invention.
Claims (7)
1. A drawing frame for architectural design, its characterized in that: comprises a fixed frame (1);
a display board (2) is hinged on the fixing frame (1), and a locking mechanism (6) is arranged between the display board (2) and the fixing frame (1);
the display board is characterized in that a clamping component (3) is arranged on the display board (2) in a sliding mode, the clamping component (3) comprises a sliding plate (302) and a clamping rod (301), a first spring (303) is arranged between the sliding plate (302) and the clamping rod (301), the clamping rod (301) is attached to the surface of the display board (2) through the elastic force of the first spring (303), a through groove (305) is formed in the sliding plate (302), a lifting rod (304) is arranged in the through groove (305) in a sliding mode, and one end, far away from the sliding plate (302), of the lifting rod (304) is fixedly connected to the clamping rod (301).
2. A drawing frame for architectural design according to claim 1, wherein: the bottom of the display board (2) is fixedly connected with a fixing board (4), a first sliding groove (401) is formed in the fixing board (4), and the sliding board (302) is arranged in the first sliding groove (401) in a sliding mode.
3. A drawing frame for architectural design according to claim 1, wherein: the last rotation of panel (2) is connected with a branch (5), the one end that panel (2) were kept away from in branch (5) slides and sets up on mount (1), be provided with a locking mechanism (6) between branch (5) and mount (1).
4. A drawing frame for architectural design according to claim 3, wherein: the locking mechanism (6) comprises a sliding block (601) and a second sliding groove (607), the second sliding groove (607) is formed in the fixed frame (1), the sliding block (601) is arranged in the second sliding groove (607) in a sliding mode, the supporting rod (5) is connected to the sliding block (601) in a rotating mode, a clamping plate (604) is vertically arranged on the sliding block (601) in a sliding mode, a second spring (602) is arranged between the clamping plate (604) and the sliding block (601), and one end, far away from the sliding block (601), of the clamping plate (604) is fixedly connected with a handle (605);
and a limiting groove (606) matched with the clamping plate (604) in a clamping manner is formed in the second sliding groove (607).
5. A drawing frame for architectural design according to claim 1, wherein: fixedly connected with slide bar (7) on mount (1) bottom, the one end that mount (1) was kept away from in slide bar (7) slides and sets up in loop bar (8), set up a screw hole (801) on loop bar (8) side, screw hole (801) female connection has a threaded rod (802), one of loop bar (8) is kept away from in threaded rod (802) is served and is provided with knob (803), be provided with on slide bar (7) a plurality of and threaded rod (802) joint complex spacing hole (701).
6. A drawing frame for architectural design according to claim 5, wherein: one end of the loop bar (8) far away from the sliding bar (7) is fixedly connected with a base (9), and a plurality of leveling screws (10) used for leveling are arranged on the base (9).
7. A drawing frame for architectural design according to claim 1, wherein: the display board (2) is provided with a shelf (201).
