CN214790656U

CN214790656U - LED waterproof wall washing lamp with steel needle insertion type structure

Info

Publication number: CN214790656U
Application number: CN202120479380.7U
Authority: CN
Inventors: 徐剑波; 张锋斌; 邓利卫; 陈东
Original assignee: Shenzhen Ex Lighting Technology Holdings Co Ltd
Current assignee: Shenzhen Ex Lighting Technology Holdings Co Ltd
Priority date: 2021-03-05
Filing date: 2021-03-05
Publication date: 2021-11-19
Anticipated expiration: 2031-03-05

Abstract

The utility model discloses a pinwheel plug-in structure LED waterproof pinwheel, including the glass apron, LED lamp plate and section bar, it has the LED lamp plate to inlay in the LED lamp plate draw-in groove of section bar, the silica gel inslot of section bar inner wall both sides is provided with first silica gel strip and second silica gel strip respectively, the glass inslot is installed the glass apron, first steel needle has been inserted in the gap between first limit upper surface of glass apron and the glass groove, a first limit for compressing tightly first silica gel strip and glass apron, second steel needle has been inserted in the gap between glass apron second limit upper surface and the glass groove, a second limit for compressing tightly second silica gel strip and glass apron, the both ends of section bar are provided with first end cover and second end cover respectively, first end cover and second end cover pass through bolt and section bar fixed connection. The utility model discloses a waterproof key accessories is done to bayonet steel needle, has the size stability, and the cost drops into fewly, waterproof reliable advantage for simple to operate is swift, has improved the packaging efficiency of LED lamp.

Description

LED waterproof wall washing lamp with steel needle insertion type structure

Technical Field

The utility model belongs to the technical field of the LED lamps and lanterns, in particular to steel needle plug-in structure LED waterproof wall lamp that washes.

Background

The LED wall washing lamp is a novel energy-saving lamp, and is also called an LED line lamp because the LED wall washing lamp is in a strip shape. With the development of the technology in the LED lighting industry, the LED lighting lamp is widely applied to the fields of architectural lighting, landscape brightening and the like, and is mainly used for architectural decoration lighting or used for outlining large buildings. The LED wall washing lamp can realize dynamic effects of gradual change, jump, color flicker, random flicker, gradual change alternation and the like through the control of the built-in microchip, and can also realize effects of chasing, scanning and the like through the control of DMX. At present, the main application places comprise single buildings, exterior wall illumination of historical building groups, light transmission illumination inside and outside buildings, indoor local illumination, greening landscape illumination, billboard illumination, special facility illumination of medical treatment, culture and the like, atmosphere illumination of entertainment places such as bars, dance halls and the like. At present, the LED wall washing lamp on the market is waterproof, generally, a glue waterproof structure is arranged on light-emitting surface glass, and screws are arranged at two ends of the glue waterproof structure for waterproofing. However, the process of gluing and waterproofing glass is complex, the time for waiting for glue drying is long, and the delivery time is affected.

SUMMERY OF THE UTILITY MODEL

In order to solve the problem, the utility model provides a pinneedle plug-in structure LED waterproof pinup to it is complicated to solve the waterproof technology of current LED lamp, reduces production efficiency's problem.

In order to achieve the above object, the utility model provides a pinneedle plug-in structure LED waterproof pinup, include: the LED lamp panel comprises a glass cover plate, an LED lamp panel and a section bar, wherein the section bar is a rectangular metal groove, an LED lamp panel clamping groove, a silica gel groove and a glass groove are arranged on the inner walls of two sides of the groove, the silica gel groove is positioned above the LED lamp panel clamping groove, the glass groove is positioned above the silica gel groove and is communicated with the silica gel groove, the LED lamp panel is embedded in the LED lamp panel clamping groove of the section bar, a first silica gel strip and a second silica gel strip are respectively arranged in the silica gel grooves of two sides of the inner wall of the section bar, the glass cover plate is arranged in the glass groove, a first steel needle is inserted in a gap between the upper surface of a first edge of the glass cover plate and the glass groove and is used for compressing the first silica gel strip and a first edge of the glass cover plate, a second steel needle is inserted in a gap between the upper surface of a second edge of the glass cover plate and the glass groove and is used for compressing the second edge of the glass cover plate, and a first end cover and a second end cover are respectively arranged at two ends of the sectional material and are fixedly connected with the sectional material through bolts.

According to the utility model discloses a specific embodiment, first end cover with the structure of second end cover is the same, wherein first end cover includes protecgulum and hou gai, the protecgulum is the cuboid structure, first screw hole, second screw hole, third screw hole and fourth screw hole have been seted up respectively to the side of protecgulum, the back lid is inlayed the inside of protecgulum, and the hole site is left to the corresponding position that the protecgulum set up the screw hole.

According to the utility model discloses a specific embodiment, the protecgulum through first bolt, second bolt, third bolt and fourth bolt in proper order with back lid and section bar fixed connection.

According to the utility model discloses a concrete embodiment, the lower surface of section bar is provided with first support and second support, first support with the second support through short bolt with section bar fixed connection.

According to the utility model discloses a specific embodiment, first support with the structure of second support is the same, wherein first support includes support base and leg joint spare, the support base with leg joint spare passes through long bolt fixed connection.

According to the utility model discloses a specific embodiment, the first part of support base is rectangle metal component, the second part perpendicular to of support base the first part sets up, just the base of second part with the long limit of rectangle on one side of the first part is connected, the top of second part is arc and is provided with the screw hole.

According to the utility model discloses a specific embodiment, leg joint spare's first part is the rectangle recess, the base at the both ends of rectangle recess is provided with the screw hole respectively, leg joint spare's second part is for setting up the arc of rectangle recess lower surface is protruding, the axle center department of second part is provided with the screw thread through-hole, the size of screw thread through-hole with the screw hole phase-match of support base.

According to the utility model discloses a concrete embodiment, the support base with the screw thread through-hole coincidence of leg joint spare stacks, the stay bolt passes first nut, second nut, support base and leg joint spare's screw thread through-hole, third nut and fourth nut in proper order, and the terminal suit fifth nut fastening of stay bolt.

According to the utility model discloses a concrete embodiment, the LED lamp plate is the rectangle lamp plate, just the LED lamp plate size with the size phase-match of section bar.

According to the utility model discloses a specific embodiment, the glass apron is rectangle glass board, just the size of glass apron with the size phase-match of section bar.

Compared with the prior art, the utility model provides a pair of pinwheel plug-in structure LED waterproof pinwheel adopts bayonet pinwheel to do waterproof key accessories, has the size stability, and the cost input is few, waterproof reliable advantage for simple to operate is swift, has improved the packaging efficiency of LED lamp.

Drawings

Fig. 1 is a schematic structural view of a steel needle insertion type structure LED waterproof wall washer lamp according to an embodiment of the present invention.

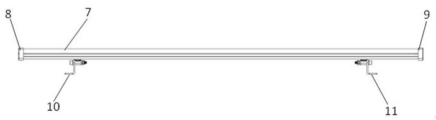

Fig. 2 is a side view of a steel needle insertion type structure LED waterproof wall washer lamp according to an embodiment of the present invention.

Fig. 3 is a perspective view of a steel needle insertion type structure LED waterproof wall washer lamp according to an embodiment of the present invention.

Fig. 4 is a schematic structural diagram of an end cap according to an embodiment of the present invention.

Fig. 5 is a schematic view of a bracket structure provided according to an embodiment of the present invention.

Fig. 6 is an installation schematic diagram of a steel needle insertion type structure LED pinup lamp according to an embodiment of the present invention.

Reference numerals:

1-a first steel needle; 2-a second steel needle; 3-a glass cover plate; 4-first silica gel; 5-second silica gel; 6-LED lamp panel; 7-section bar; 8-a first end cap; 9-a second end cap; 10-a first scaffold; 11-a second support; 12-a jig;

081-front cover; 082-rear cover; 083 — a first bolt; 084-a second bolt; 085-a third bolt; 086-a fourth bolt;

101-long bolt; 102-a first nut; 103-a second nut; 104-a bracket connection; 105-a third nut; 106-fourth screw cap; 107-fifth screw cap; 108-short bolts; 109-bracket base.

Detailed Description

The present invention will be described in detail below with reference to specific embodiments in order to make the concept and idea of the present invention more clearly understood by those skilled in the art. It is to be understood that the embodiments presented herein are only a few of all embodiments that the present invention may have. Those skilled in the art who review this disclosure will readily appreciate that many modifications, variations, and alternatives to those embodiments described below, in whole or in part, are possible and are contemplated as falling within the scope of the claimed invention.

As used herein, the terms "first," "second," and the like are not intended to imply any order, quantity, or importance, but rather are used to distinguish one element from another. As used herein, the terms "a," "an," and other similar terms are not intended to mean that there is only one of the things, but rather that the pertinent description is directed to only one of the things, which may have one or more. As used herein, the terms "comprises," "comprising," and other similar words are intended to refer to logical interrelationships, and are not to be construed as referring to spatial structural relationships. For example, "a includes B" is intended to mean that logically B belongs to a, and not that spatially B is located inside a. Furthermore, the terms "comprising," "including," and other similar words are to be construed as open-ended, rather than closed-ended. For example, "a includes B" is intended to mean that B belongs to a, but B does not necessarily constitute all of a, and a may also include C, D, E and other elements.

The terms "embodiment," "present embodiment," "an embodiment," "one embodiment," and "one embodiment" herein do not mean that the pertinent description applies to only one particular embodiment, but rather that the description may apply to yet another embodiment or embodiments. It will be understood by those skilled in the art that any description made herein of one embodiment may be substituted, combined, or otherwise combined with the description made herein of another embodiment or embodiments, and that the resulting new embodiments may be readily apparent to those skilled in the art, and are within the scope of the present invention.

Example 1

Additional aspects and advantages of embodiments of the invention will be set forth in part in the description which follows and, in part, will be obvious from the description, or may be learned by practice of embodiments of the invention.

As shown in fig. 1-6, the embodiment of the utility model provides a steel needle plug-in structure LED waterproof wall washer lamp, include: the LED lamp panel comprises a glass cover plate 3, an LED lamp panel 6 and a section bar 7, wherein the section bar 7 is a rectangular metal groove, an LED lamp panel clamping groove, a silica gel groove and a glass groove are arranged on the inner walls of two sides of the groove, the silica gel groove is positioned above the LED lamp panel clamping groove, the glass groove is positioned above the silica gel groove and is communicated with the silica gel groove, the LED lamp panel 6 is embedded in the LED lamp panel clamping groove of the section bar, a first silica gel strip 4 and a second silica gel strip 5 are respectively arranged in the silica gel grooves of two sides of the inner wall of the section bar 7, the glass cover plate 3 is arranged in the glass groove, a first steel needle 1 is inserted in a gap between the first edge surface of the glass cover plate 3 and the glass groove and is used for compressing the first silica gel strip 4 and the first edge of the glass cover plate 3, a second steel needle 2 is inserted in a gap between the second edge surface of the glass cover plate 3 and the glass groove and is used for compressing the second edge of the second silica gel strip 5 and the glass cover plate 3, a first end cover plate 8 and a second end cover 9 are respectively arranged at two ends of the section bar 7, the first end cover 8 and the second end cover 9 are fixedly connected with the section bar 7 through bolts.

Specifically, the first end cap 8 and the second end cap 9 have the same structure, wherein the first end cap 8 includes a front cap 081 and a rear cap 082, the front cap 081 is a rectangular parallelepiped structure, a first threaded hole, a second threaded hole, a third threaded hole and a fourth threaded hole are respectively opened on a side surface of the front cap 081, the rear cap 082 is embedded in the front cap 081, and a hole position is left at a corresponding position where the threaded hole is arranged on the front cap 081. Front cover 081 is fixedly connected to rear cover 082 and section bar 7 by first bolt 083, second bolt 084, third bolt 085 and fourth bolt 086.

Specifically, the lower surface of the profile 7 is provided with a first bracket 10 and a second bracket 11, and the first bracket 10 and the second bracket 11 are fixedly connected with the profile 7 through short bolts 108. The first bracket 10 and the second bracket 11 have the same structure, wherein the first bracket 10 comprises a bracket base 109 and a bracket connecting piece 104, and the bracket base 109 and the bracket connecting piece 104 are fixedly connected through a long bolt 101. The first part of the bracket base 109 is a rectangular metal component, the second part of the bracket base 109 is arranged perpendicular to the first part, the bottom edge of the second part is connected with the rectangular long edge on one side of the first part, and the top end of the second part is arc-shaped and provided with a threaded hole. The first part of the bracket connecting piece 104 is a rectangular groove, the bottom edges of the two ends of the rectangular groove are respectively provided with a threaded hole, the second part of the bracket connecting piece 104 is an arc-shaped bulge arranged on the lower surface of the rectangular groove, the axle center of the second part is provided with a threaded through hole, and the size of the threaded through hole is matched with the threaded hole of the bracket base 109. The threaded through holes of the bracket base 109 and the bracket connector 104 are overlapped, the long bolt 101 sequentially passes through the first nut 102, the second nut 103, the threaded through holes of the bracket base 109 and the bracket connector 105, the third nut 105 and the fourth nut 106, and the end of the long bolt 101 is sleeved with the fifth nut 107 for fastening.

Specifically, the LED lamp panel 6 is a rectangular lamp panel, and the size of the LED lamp panel 6 is matched with the size of the section bar 7. The glass cover plate 3 is a rectangular glass plate, and the size of the glass cover plate 3 is matched with that of the section bar 7.

Example 2

Fig. 6 shows the installation process of the LED waterproof wall lamp with the steel needle insertion structure, as shown in fig. 6, in the installation process of the LED waterproof wall lamp, after the LED lamp panel is installed, at first, the silica gel strip is placed in the silica gel groove of the section bar, then, the glass cover plate is inserted into the glass groove of the section bar, the glass cover plate is extruded downwards by the jig 12, at this time, a gap appears between the glass cover plate and the glass groove, after the silica gel strip is compressed by the glass cover plate, two steel needles are simultaneously inserted into the gap between the glass cover plate and the glass groove from one end of the lamp, and then, the jig is removed, so as to compress the silica gel strip and the glass cover plate, the inserted steel needles fasten the glass cover plate and the silica gel strip on the section bar, so that the glass cover plate and the silica gel strip are tightly pressed on the section bar, and a waterproof effect is achieved.

To sum up, the utility model provides a pair of pinwheel plug-in structure LED waterproof pinup adopts bayonet pinwheel to do waterproof key accessories, has the dimensionally stable, and the cost drops into fewly, waterproof reliable advantage for simple to operate has swiftly improved the packaging efficiency of LED lamp.

The concepts, principles and concepts of the present invention have been described above in detail in connection with specific embodiments (including examples and illustrations). It should be understood by those skilled in the art that the embodiments of the present invention may be embodied in many different forms and that various changes, modifications, substitutions and equivalents of the steps, methods, devices and components described in the above embodiments may be made by those skilled in the art after reading the present specification and should be considered as falling within the scope of the present invention. The protection scope of the present invention is subject to the claims only.

Claims

1. The utility model provides a pinneedle plug-in structure LED waterproof wall washer which characterized in that includes: the LED lamp panel comprises a glass cover plate, an LED lamp panel and a section bar, wherein the section bar is a rectangular metal groove, an LED lamp panel clamping groove, a silica gel groove and a glass groove are arranged on the inner walls of two sides of the groove, the silica gel groove is positioned above the LED lamp panel clamping groove, the glass groove is positioned above the silica gel groove and is communicated with the silica gel groove, the LED lamp panel is embedded in the LED lamp panel clamping groove of the section bar, a first silica gel strip and a second silica gel strip are respectively arranged in the silica gel grooves of two sides of the inner wall of the section bar, the glass cover plate is arranged in the glass groove, a first steel needle is inserted in a gap between the upper surface of a first edge of the glass cover plate and the glass groove and is used for compressing the first silica gel strip and a first edge of the glass cover plate, a second steel needle is inserted in a gap between the upper surface of a second edge of the glass cover plate and the glass groove and is used for compressing the second edge of the glass cover plate, and a first end cover and a second end cover are respectively arranged at two ends of the sectional material and are fixedly connected with the sectional material through bolts.

2. The LED waterproof wall washing lamp with the steel needle insertion type structure as claimed in claim 1, wherein the first end cover and the second end cover are identical in structure, the first end cover comprises a front cover and a rear cover, the front cover is of a cuboid structure, a first threaded hole, a second threaded hole, a third threaded hole and a fourth threaded hole are formed in the side face of the front cover respectively, the rear cover is embedded in the front cover, and hole sites are reserved at corresponding positions of the threaded holes formed in the front cover.

3. The LED waterproof wall washing lamp with the steel needle insertion type structure as claimed in claim 2, wherein the front cover is fixedly connected with the rear cover and the section bar in sequence through a first bolt, a second bolt, a third bolt and a fourth bolt.

4. The LED waterproof wall washer lamp with the steel needle insertion type structure as claimed in claim 1, wherein a first bracket and a second bracket are arranged on the lower surface of the section bar, and the first bracket and the second bracket are fixedly connected with the section bar through short bolts.

5. The LED waterproof wall washer lamp with the steel needle insertion type structure as claimed in claim 4, wherein the first bracket and the second bracket have the same structure, wherein the first bracket comprises a bracket base and a bracket connecting piece, and the bracket base and the bracket connecting piece are fixedly connected through a long bolt.

6. The LED waterproof wall washer lamp with the steel needle insertion type structure as claimed in claim 5, wherein the first portion of the bracket base is a rectangular metal component, the second portion of the bracket base is arranged perpendicular to the first portion, the bottom edge of the second portion is connected with the long rectangular edge on one side of the first portion, and the top end of the second portion is arc-shaped and provided with a threaded hole.

7. The LED waterproof wall washing lamp with the steel needle insertion type structure as claimed in claim 5, wherein the first part of the bracket connecting piece is a rectangular groove, threaded holes are respectively formed in the bottom edges of the two ends of the rectangular groove, the second part of the bracket connecting piece is an arc-shaped protrusion arranged on the lower surface of the rectangular groove, a threaded through hole is formed in the axis of the second part, and the size of the threaded through hole is matched with that of the threaded hole of the bracket base.

8. The LED waterproof wall washing lamp with the steel needle insertion structure as claimed in claim 5, wherein the bracket base and the threaded through hole of the bracket connecting piece are overlapped, the long bolt sequentially passes through the first nut, the second nut, the threaded through hole of the bracket base and the bracket connecting piece, the third nut and the fourth nut, and a fifth nut is sleeved at the tail end of the long bolt for fastening.

9. The LED waterproof wall washing lamp with the steel needle insertion type structure according to claim 5, wherein the LED lamp panel is a rectangular lamp panel, and the size of the LED lamp panel is matched with that of the section bar.

10. The LED waterproof wall washer lamp with the steel needle insertion structure as claimed in claim 1, wherein the glass cover plate is a rectangular glass plate, and the size of the glass cover plate is matched with that of the section bar.
