Abstract
本实用新型涉及铝单板技术领域，且公开了一种医疗机构用环保型烤瓷铝单板，包括铝板和连接框，所述铝板的数量为两个且呈左右对称分布在连接框两侧。该医疗机构用环保型烤瓷铝单板，通过向下推动拉杆，连接块下移，使得两个第一连接杆向两侧移动，使得第一连接杆也向两侧移动，把卡块推到固定框内，然后旋转螺纹杆，使得L型卡块相向移动，此时可将铝板与连接框安装在一起，反向旋转螺纹杆，同理可将铝板与从连接框上拆卸下来，实现了便于安装拆卸的目的，通过设置缓冲弹簧和安装板，声波带动安装板产生震动，安装板的震动将声波的能量转化为热量，再经过消音棉和隔音毡板吸收和隔离部分声音，实现了降噪的目的。
The utility model relates to the technical field of aluminum veneers, and discloses an environment-friendly porcelain-fired aluminum veneer for medical institutions, which comprises an aluminum plate and a connecting frame. The number of the aluminum plates is two and is symmetrically distributed on both sides of the connecting frame. . The medical institution uses an environmentally friendly ceramic aluminum veneer. By pushing down the pull rod, the connecting block moves down, so that the two first connecting rods move to both sides, so that the first connecting rod also moves to both sides, pushing the clamping block. into the fixed frame, and then rotate the threaded rod to make the L-shaped block move toward each other. At this time, the aluminum plate and the connecting frame can be installed together, and the threaded rod can be rotated in the opposite direction. Similarly, the aluminum plate can be removed from the connecting frame to achieve In order to facilitate installation and disassembly, by setting the buffer spring and the installation plate, the sound wave drives the installation plate to vibrate, and the vibration of the installation plate converts the energy of the sound wave into heat, and then absorbs and isolates part of the sound through the muffler cotton and the sound insulation felt board. the purpose of noise reduction.
Description
Technical Field
The utility model relates to an aluminium veneer technical field specifically is an environment-friendly porcelain aluminium veneer for medical institution.
Background
The aluminum veneer is a building decoration material processed and formed by chromizing and the like and then adopting a fluorocarbon spraying technology, the spraying process is generally divided into two-coating, three-coating or four-coating, the fluorocarbon coating has excellent corrosion resistance and weather resistance, can resist acid rain, salt mist and various air pollutants, has excellent cold and heat resistance, can resist strong ultraviolet irradiation, can keep colorfast for a long time, does not pulverize and has long service life.
The aluminium veneer that present medical institution used is a building material that people often contacted, can appear damaging after long-time the use, need dismantle to overhaul or change, owing to adopt bolt etc. to fix and can lead to the dismantlement process very troublesome, this kind of material sound insulation effect is not good moreover, can not provide good quiet environment of fostering for patient, so provides an environment-friendly porcelain aluminium veneer for medical institution and solves above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a not enough to prior art, the utility model provides an environment-friendly porcelain aluminium veneer for medical institution possesses convenient to install and dismantles and fall advantages such as making an uproar, the aluminium veneer of having solved present medical institution and using is the building material of people's frequent contact, can appear damaging after long-time the use, need dismantle and overhaul or change, it is very troublesome owing to adopt bolt etc. to fix and can lead to the dismantlement process, moreover this kind of material sound insulation effect is not good, can not provide the problem of good quiet environment of fostering for patient.
(II) technical scheme
For the purpose of realizing the aforesaid be convenient for installation dismantlement and making an uproar, the utility model provides a following technical scheme: an environment-friendly porcelain aluminum veneer for medical institutions comprises aluminum plates and a connecting frame, wherein the number of the aluminum plates is two, the aluminum plates are symmetrically distributed on the two sides of the connecting frame in a bilateral mode, the opposite sides of the two aluminum plates are respectively attached to the left side and the right side of the connecting frame, the left side and the right side of the top of each aluminum plate are fixedly provided with fixing frames, the opposite sides of the second fixing frame and the third fixing frame are respectively attached to the left side and the right side of the connecting frame, the top of each fixing frame is movably provided with a threaded rod, one end of the threaded rod extends to the interior of the threaded rod and is movably connected with the top of each aluminum plate, the outer side of the threaded rod is in threaded connection with two L-shaped clamping blocks, the opposite sides of the L-shaped clamping blocks on the left side and the right side of each aluminum plate are movably connected with the inner wall of each fixing frame, a sound insulation felt plate, sound insulation cotton and a mounting plate are sequentially and fixedly mounted between the left side and the right side of the inner wall of each aluminum plate from top to bottom, two T-shaped plates are fixedly mounted on the left side and right sides of the bottom of each sound insulation cotton, one end of each mounting plate penetrates through the mounting plate and extends to the bottom of each mounting plate, the bottom parts of the four T-shaped plates are all fixedly provided with a buffer spring with one end fixedly connected with the bottom part of the inner wall of the aluminum plate, the left side and the right side of the inner wall of the connecting frame are both fixedly provided with mounting frames, the top of the connecting frame is movably provided with a pull rod with one end extending to the inside, pull rod bottom fixed mounting has the connecting block, the connecting block front side articulates there is the head rod that quantity was two and was bilateral symmetry distribution, two head rod one side of the back of the body all articulates there is one end to run through and extend to the inside second connecting rod of installing frame, two the equal fixed mounting in one side of the back of the body of second connecting rod back of the body has one end to extend to the inside fixture block of fixed frame, two equal movable mounting in both sides has one end and installing frame inner wall swing joint's gyro wheel, two about the fixture block relative one side and be located the second connecting rod equal fixed mounting in both sides have one end and installing frame inner wall fixed connection's reset spring.
Preferably, two sections of threads are arranged on the threaded rod, and the two sections of threads are equal in length and opposite in direction.
Preferably, the upper side and the lower side of each clamping block are provided with grooves matched with the L-shaped clamping blocks.
Preferably, the upper side and the lower side of the clamping block are fixedly provided with rotating shafts, one ends of the rotating shafts are movably connected with the upper side and the lower side of the inner wall of the mounting frame, sliding grooves are formed in the upper side and the lower side of the inner wall of the mounting frame, and the idler wheel is movably connected with the clamping block and the mounting frame through the rotating shafts and the sliding grooves.
Preferably, the through holes matched with the clamping blocks are formed in the left side and the right side of the inner wall of the connecting frame and the inner wall of one side, opposite to the two fixing frames, of the inner wall of the connecting frame.
Preferably, handles are fixedly mounted at the tops of the pull rod and the threaded rod.
(III) advantageous effects
Compared with the prior art, the utility model provides an environment-friendly porcelain aluminium veneer for medical institution possesses following beneficial effect:
this environment-friendly porcelain aluminium veneer for medical institution, through promoting the pull rod downwards, the connecting block moves down, make two head rods move to both sides, make the head rod also move to both sides, push away the fixture block in fixed frame, then rotatory threaded rod, make L type fixture block remove in opposite directions, can install aluminum plate and carriage this moment together, reverse rotation threaded rod, can dismantle aluminum plate and follow the carriage with the same reason, the purpose of being convenient for install and dismantle has been realized, through setting up buffer spring and mounting panel, the sound wave drives the mounting panel and produces vibrations, the vibrations of mounting panel turn into the heat with the energy of sound wave, absorb and keep apart partial sound through amortization cotton and sound-proof felt board again, the purpose of making an uproar has been realized falling.
Drawings

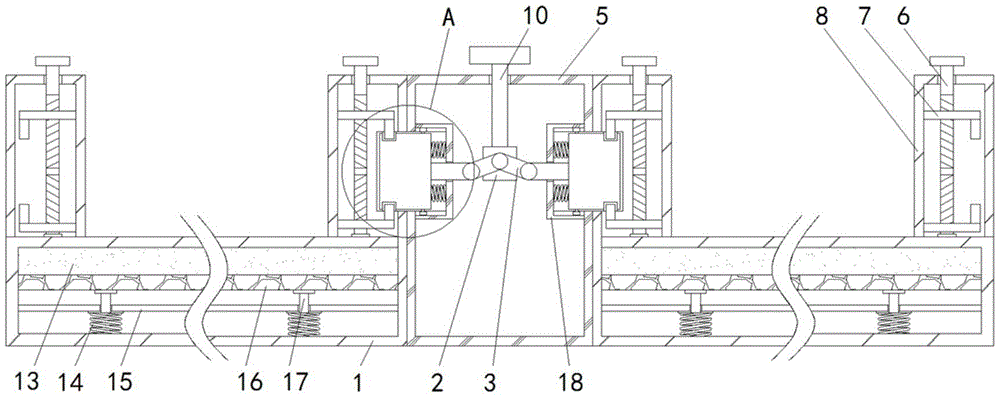

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is an enlarged view of a portion a in fig. 1 according to the present invention.
In the figure: 1 aluminum plate, 2 connecting blocks, 3 head rods, 4 rollers, 5 connecting frames, 6 threaded rods, 7L-shaped fixture blocks, 8 fixing frames, 9 reset springs, 10 pull rods, 11 second connecting rods, 12 fixture blocks, 13 sound insulation felt plates, 14 buffer springs, 15 mounting plates, 16 noise reduction cotton, 17T-shaped plates and 18 mounting frames.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, an environment-friendly porcelain aluminum veneer for medical institutions comprises two aluminum plates 1 and a connecting frame 5, wherein the two aluminum plates 1 are symmetrically distributed on two sides of the connecting frame 5, opposite sides of the two aluminum plates 1 are respectively attached to the left side and the right side of the connecting frame 5, fixed frames 8 are fixedly mounted on the left side and the right side of the top of each aluminum plate 1, opposite sides of the second fixed frame 8 and the third fixed frame 8 are respectively attached to the left side and the right side of the connecting frame 5, a threaded rod 6 is movably mounted at the top of each fixed frame 8, one end of each threaded rod extends to the inside of each threaded rod and is movably connected with the top of each aluminum plate 1, two threads are arranged on each threaded rod 6, the two threads are equal in length and opposite in direction, two L-shaped clamping blocks 7 are connected to the outer side of each threaded rod 6, opposite sides of the L-shaped clamping blocks 7 on the left side and the right side of each aluminum plate 1 are movably connected with the inner wall of each fixed frame 8, and sound insulation felt plates 13 are fixedly mounted between the left side and the right side of the inner wall of each aluminum plate 1 from top to bottom, The silencing cotton comprises silencing cotton 16 and mounting plates 15, T-shaped plates 17 with one ends penetrating through the mounting plates 15 and extending to the bottoms of the two silencing cotton 16 are fixedly mounted on the left and right sides of the bottoms of the two silencing cotton 16, buffer springs 14 with one ends fixedly connected with the bottoms of the inner walls of the aluminum plates 1 are fixedly mounted on the bottoms of the four T-shaped plates 17, mounting frames 18 are fixedly mounted on the left and right sides of the inner walls of the connecting frames 5, pull rods 10 with one ends extending to the insides of the connecting frames 5 are movably mounted on the tops of the connecting frames 5, handles are fixedly mounted on the tops of the pull rods 10 and the threaded rods 6, connecting blocks 2 are fixedly mounted at the bottoms of the pull rods 10, two first connecting rods 3 which are symmetrically distributed in the left and right are hinged on the front sides of the connecting blocks 2, second connecting rods 11 with one ends penetrating through and extending to the insides of the mounting frames 18 are hinged on the opposite sides of the two first connecting rods 3, and fixture blocks 12 with one ends extending to the insides of the fixing frames 8 are fixedly mounted on the opposite sides of the two second connecting rods 11, the left side and the right side of the inner wall of the connecting frame 5 and the inner wall of one side of the two fixing frames 8 opposite to each other are respectively provided with a through hole matched with the clamping block 12, the upper side and the lower side of the clamping block 12 are respectively provided with a groove matched with the L-shaped clamping block 7, the upper side and the lower side of the two clamping blocks 12 are respectively and movably provided with a roller 4, one end of each roller is movably connected with the inner wall of the mounting frame 18, the upper side and the lower side of the clamping block 12 are respectively and fixedly provided with a rotating shaft, one end of each rotating shaft is movably connected with the upper side and the lower side of the inner wall of the mounting frame 18, the rollers 4 are respectively and movably connected with the clamping block 12 and the mounting frame 18 through the rotating shaft and the sliding grooves, the reset spring 9, one end of which is fixedly connected with the inner wall of the mounting frame 18, is fixedly arranged at the upper side and the lower side of the two clamping blocks 12 opposite to each connecting rod 11, the two first connecting rods 3 move towards both sides by pushing the pull rod 10 downwards, the clamping block 12 is pushed into the fixed frame 8, then the threaded rod 6 is rotated, so that the L-shaped clamping block 7 moves oppositely, the aluminum plate 1 and the connecting frame 5 can be installed together at the moment, the threaded rod 6 is rotated reversely, the aluminum plate 1 and the connecting frame 5 can be disassembled in the same way, the aim of facilitating installation and disassembly is achieved, through the arrangement of the buffer spring 14 and the installation plate 15, the sound wave drives the installation plate 15 to vibrate, the vibration of the installation plate 15 converts the energy of the sound wave into heat, and the sound absorption and isolation of partial sound are realized through the sound absorption cotton 16 and the sound insulation felt plate 13, the aim of reducing noise is achieved, the problem that an aluminum veneer used for the current medical institution is a building material which is frequently contacted by people is solved, the aluminum veneer is damaged after long-time use and needs to be disassembled for maintenance or replacement, the disassembly process is very troublesome due to the adoption of bolts and the like for fixing, and the sound insulation effect of the material is poor, the problem of not providing a well quiet curing environment for the patient.
In conclusion, the environment-friendly porcelain aluminum veneer for medical institutions pushes the pull rod 10 downwards, the connecting block 2 moves downwards, so that the two first connecting rods 3 move towards two sides, the first connecting rods 3 also move towards two sides, the clamping block 12 is pushed into the fixing frame 8, then the threaded rod 6 is rotated, the L-shaped clamping block 7 moves towards each other, the aluminum plate 1 and the connecting frame 5 can be installed together at the moment, the threaded rod 6 is rotated reversely, the aluminum plate 1 and the connecting frame 5 can be detached in the same way, the purpose of facilitating installation and detachment is achieved, through the arrangement of the buffer spring 14 and the mounting plate 15, the sound waves drive the mounting plate 15 to generate vibration, the vibration of the mounting plate 15 converts the energy of the sound waves into heat, and the sound is absorbed and isolated by the sound-absorbing cotton 16 and the sound-insulating felt plate 13, the purpose of reducing noise is achieved, and the problem that the existing aluminum veneer for medical institutions is a building material frequently contacted by people is solved, the damage can appear after using for a long time, need dismantle and overhaul or change, because adopt bolt etc. to fix and can lead to dismantling the process very troublesome, this kind of material sound insulation effect is not good moreover, can not provide the problem of good quiet maintenance environment for patient.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
