CN214780495U

CN214780495U - Building material elevating platform for building construction

Info

Publication number: CN214780495U
Application number: CN202120344149.7U
Authority: CN
Inventors: 孙志远
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-02-05
Filing date: 2021-02-05
Publication date: 2021-11-19
Anticipated expiration: 2031-02-05

Abstract

The utility model discloses a building material lifting platform for building construction, which belongs to the technical field of building construction machinery. One end of the bottom plate is fixedly connected with a support cylinder, the output end of the support cylinder is fixedly connected with a support plate, one end of the bottom plate is fixedly connected with an air pump box, and one side of the air pump box on the bottom plate is fixedly connected with a general control box, so Two No. 1 guide frames are fixedly connected to the top of the bottom plate, and lift frames are fixedly connected to both ends of the No. 1 guide frame on the bottom plate. Through the design of the unloading control box, the walking motor and the screw nut pair, there is no need for manpower to pull out the material, and the safety is good. The laser sensor avoids the blocking of the walking board, and the stability is high. The design of the movable limit rod is convenient for sliding and cutting without manual handling, which greatly improves the cutting efficiency and is economical.

Description

Building material elevating platform for building construction

Technical Field

The utility model belongs to the technical field of the construction machinery, specifically speaking relates to a building material elevating platform is used in construction is built in room.

Background

Construction materials are various materials used in construction works. Building materials are widely varied and broadly classified into inorganic materials, organic materials and composite materials. In the construction process of the building, the multi-purpose tower crane is used for material transportation. However, for some low-rise buildings, the building is mostly transported to a designated floor in a hoisting mode, and then the building is manually extended out to pull the transport platform into the building for unloading. The mode has the disadvantages of poor safety, low conveying efficiency, high labor intensity of workers and poor practicability.

In view of this, the present invention is provided.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model lies in overcoming prior art's is not enough, provides a building material elevating platform for construction is built in room, for solving above-mentioned technical problem, the utility model discloses a technical scheme's basic design is:

a building material lifting platform for building construction comprises a bottom plate and lifting cylinders, wherein four telescopic frames are fixedly connected to two sides of the bottom plate, a supporting cylinder is fixedly connected to one end, far away from the bottom plate, of each telescopic frame, a supporting disk is fixedly connected to the output end of the supporting cylinder, an air pump box is fixedly connected to one end of the bottom plate, a general control box is fixedly connected to one side of the air pump box on the bottom plate, two first guide frames are fixedly connected to the top of the bottom plate, lifting frames are fixedly connected to two ends of the first guide frames on the bottom plate, one ends of the lifting frames are embedded in the first guide frames, a second guide frame is sleeved outside one end, far away from the first guide frames, of each lifting frame is fixedly connected with a lifting plate, the second guide frame is fixedly connected with the lifting plates, and six lifting cylinders are fixedly connected to the lifting frames through hinges, the jacking cylinder pass through the air duct with the air pump case is connected, the bottom plate the expansion bracket the supporting disk with the effect that the support cylinder all played the outrigger, the air pump case is convenient for supply with high pressure gas for the device, total control case is convenient for always manage equipment, the crane plays the effect that the lift was supported, the jacking cylinder is convenient for provide lift power for the crane.

As a further aspect of the present invention: one side of the lifting plate is fixedly connected with a walking motor, one side of the lifting plate is fixedly connected with an unloading control box, the walking motor is connected with the unloading control box through a wire, the walking motor is convenient for providing unloading power for the device, and the unloading control box is convenient for remote control.

As a further aspect of the present invention: the output end of the walking motor is fixedly connected with a walking plate through a screw nut pair, the bottom of the walking plate is fixedly connected with walking wheels, the walking wheels are embedded in one side of the lifting plate, the walking plate plays a role in stable support, and the walking wheels are convenient for the walking plate to move.

As a further aspect of the present invention: lifting plate one end fixedly connected with protection frame, protection frame is kept away from one side of lifting plate is embedded to have laser sensor, laser sensor pass through the wire with the control box of unloading is connected, laser sensor is convenient for monitor whether reach the flat bed position.

As a further aspect of the present invention: four fixing bases of walking board one end fixedly connected with, it has the spacing pole to inlay on the fixing base, the cover is equipped with fixed cover on the spacing pole, fixed cover one side is through hinge fixedly connected with stiffener, the stiffener other end pass through the hinge with the fixing base is connected, the spacing pole plays the effect of spacing protection.

As a further aspect of the present invention: the one end fixedly connected with reducing gear box that the fixing base was kept away from to the walking board, reducing gear box output fixedly connected with unloading motor, the reducing gear box output is through pivot fixedly connected with four movable limiting rods, the unloading motor is convenient for do move the limiting rod and provide power, move the limiting rod and play the effect of spacing protection and the unloading of being convenient for.

After the technical scheme is adopted, compared with the prior art, the utility model following beneficial effect has.

1. The utility model discloses, through the control box of unloading, walking motor and screw nut are vice, can pass through cell-phone software controlling device, make its automatic walking board that will fill the building materials, in the building is sent under the effect of walking wheel, need not the manpower and explores out and draw the material, the security is better, through laser sensor, can accurate detection reach the flat bed position, avoid walking board jamming, stability is higher.

2. The utility model discloses, through reducing gear box, unloading motor and the design that moves the gag lever post, can drive through the unloading motor and move the gag lever post rotation, make its one end touch ground, the unloading of being convenient for slide need not artifical transport, very big improvement unloading efficiency, the economic nature is better.

The following describes embodiments of the present invention in further detail with reference to the accompanying drawings.

Drawings

The accompanying drawings, which are incorporated in and constitute a part of this application, illustrate embodiments of the invention and, together with the description, serve to explain the invention without limitation. It is obvious that the drawings in the following description are only some embodiments, and that for a person skilled in the art, other drawings can be derived from them without inventive effort. In the drawings:

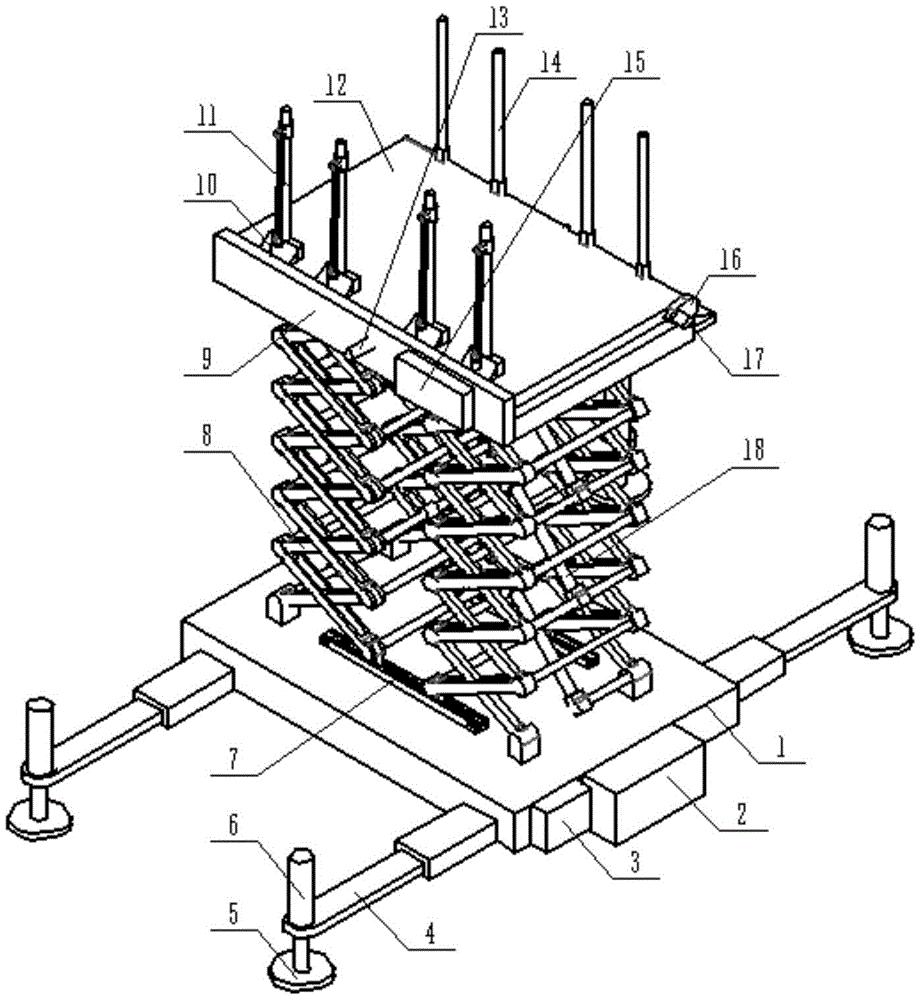

fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a front view of the present invention;

fig. 3 is a side view of the present invention.

In the figure: 1-a bottom plate; 2-an air pump box; 3-a master control box; 4-a telescopic frame; 5-a support disk; 6-a support cylinder; 7-a first guide frame; 8-lifting frame; 9-a lifting plate; 10-a fixed seat; 11-a position-limiting rod; 12-a walking board; 13-a walking motor; 14-moving a limiting rod; 15-a discharge control box; 16-a reduction gearbox; 17-a blanking motor; 18-a jacking cylinder; 19-guide frame II; 20-a protective frame; 21-a laser sensor; 22-road wheels; 23-screw nut pair; 24-a reinforcing frame; 25-fixing sleeve.

It should be noted that the drawings and the description are not intended to limit the scope of the inventive concept in any way, but to illustrate the inventive concept by those skilled in the art with reference to specific embodiments.

Detailed Description

To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments, and the following embodiments are used for illustrating the present invention, but do not limit the scope of the present invention.

As shown in figures 1 to 3, a building material lifting platform for building construction comprises a bottom plate 1 and a lifting cylinder 18, wherein four expansion brackets 4 are fixedly connected to two sides of the bottom plate 1, a supporting cylinder 6 is fixedly connected to one end of each expansion bracket 4 far away from the bottom plate 1, a supporting plate 5 is fixedly connected to the output end of each supporting cylinder 6, an air pump box 2 is fixedly connected to one end of the bottom plate 1, a master control box 3 is fixedly connected to one side of the air pump box 2 on the bottom plate 1, two first guide frames 7 are fixedly connected to the top of the bottom plate 1, lifting frames 8 are fixedly connected to two ends of the first guide frame 7 on the bottom plate 1, one ends of the lifting frames 8 are embedded in the first guide frames 7, a second guide frame 19 is sleeved outside one end of each lifting frame 8 far away from the first guide frame 7, a lifting plate 9 is fixedly connected to one end of each lifting frame 8 far away from the second guide frame 19, and the second guide frame 19 is fixedly connected with the lifting plate 9, six jacking cylinders 18 through hinge fixedly connected with in the crane 8, jacking cylinder 18 passes through the air duct and is connected with air pump box 2, bottom plate 1, expansion bracket 4, supporting disk 5 and support cylinder 6 all play the effect of outrigger, air pump box 2 is convenient for supply with high pressure gas for the device, total control box 3 is convenient for always manage equipment, crane 8 plays the effect that the lift supported, jacking cylinder 18 is convenient for provide lift power for crane 8.

Wherein, one side of the lifting plate 9 is fixedly connected with a walking motor 13, one side of the walking motor 13 on the lifting plate 9 is fixedly connected with a discharging control box 15, the walking motor 13 is connected with the discharging control box 15 through a wire, the walking motor 13 is convenient for providing discharging power for the device, and the discharging control box 15 is convenient for remote control; the output end of the walking motor 13 is fixedly connected with a walking plate 12 through a screw-nut pair 23, the bottom of the walking plate 12 is fixedly connected with a walking wheel 22, the walking wheel 22 is embedded in one side of the lifting plate 9, the walking plate 12 plays a role of stable support, and the walking wheel 22 is convenient for the walking plate 12 to move; one end of the lifting plate 9 is fixedly connected with a protection frame 20, a laser sensor 21 is embedded in one side of the protection frame 20, which is far away from the lifting plate 9, the laser sensor 21 is connected with the unloading control box 15 through a conducting wire, and the laser sensor 21 is convenient for monitoring whether the lifting plate reaches a leveling position; one end of the walking plate 12 is fixedly connected with four fixed seats 10, a positioning and limiting rod 11 is embedded in each fixed seat 10, a fixed sleeve 25 is sleeved on each positioning and limiting rod 11, one side of each fixed sleeve 25 is fixedly connected with a reinforcing frame 24 through a hinge, the other end of each reinforcing frame 24 is connected with the corresponding fixed seat 10 through a hinge, and the positioning and limiting rods 11 play a role in limiting protection; one end of the walking plate 12, far away from the fixing seat 10, is fixedly connected with a reduction gearbox 16, the input end of the reduction gearbox 16 is fixedly connected with a blanking motor 17, the output end of the reduction gearbox 16 is fixedly connected with four movable limiting rods 14 through rotating shafts, the blanking motor 17 is convenient for providing power for the movable limiting rods 14, and the movable limiting rods 14 play roles of limiting protection and blanking convenience.

The utility model discloses a theory of operation is: before use, the device is moved to a proper position, the protective frame 20 is close to the wall surface of a building, the telescopic frame 4 is pulled open, the supporting function is started through the master control box 3, the supporting cylinder 6 works to drive the supporting disc 5 to move downwards to a set position, when the device is used, after materials are added, the jacking function is started through the master control box 3, the jacking cylinder 18 works to drive the lifting plate 9 to move upwards through the lifting frame 8, when the lifting frame 8 moves to a floor port quickly, the upward moving speed is slowed, the laser sensor 21 starts to work, when the laser sensor 21 detects a signal mutation, the jacking cylinder 18 stops working, at the moment, the bottom of the walking wheel 22 is just in the same plane with the floor surface, after a material receiving person is connected with the unloading control box 15 through the Bluetooth of a mobile phone, the material pushing function is started through the mobile phone software, the walking motor 13 works, the walking plate 12 is pushed to move into the floor through the screw nut pair 23 under the action of the walking wheel 22, afterwards, the discharging function is started through mobile phone software, the discharging motor 17 works, the limiting rod 14 is driven to rotate through the reduction gearbox 16, one end of the limiting rod is in contact with the ground, discharging can be conducted in a sliding mode, discharging efficiency is greatly improved, the boxing structure is reasonable in design, and the boxing device is convenient to use, high in stability and safety, high in practicability and good in economy.

The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in any way, and although the present invention has been disclosed with reference to the above preferred embodiment, but not to limit the present invention, any person skilled in the art can make some changes or modifications to equivalent embodiments without departing from the scope of the present invention, and any simple modification, equivalent change and modification made to the above embodiments by the technical spirit of the present invention still fall within the scope of the present invention.

Claims

1. The utility model provides a building material elevating platform for construction is built in room, includes bottom plate (1) and jacking cylinder (18), its characterized in that, four expansion bracket (4) of bottom plate (1) both sides fixedly connected with, keep away from on expansion bracket (4) the one end fixedly connected with support cylinder (6) of bottom plate (1), support cylinder (6) output end fixedly connected with supporting disk (5), bottom plate (1) one end fixedly connected with air pump case (2), on bottom plate (1) one side fixedly connected with master control case (3) of air pump case (2), two leading truck (7) of bottom plate (1) top fixedly connected with, on bottom plate (1) leading truck (7) both ends fixedly connected with crane (8), crane (8) one end is embedded in leading truck (7), crane (8) are kept away from the one end overcoat of leading truck (7) has No. two leading trucks (19) Keep away from on crane (8) the one end fixedly connected with lifter plate (9) of No. two leading truck (19), No. two leading trucks (19) with lifter plate (9) fixed connection, through hinge fixedly connected with six in crane (8) jacking cylinder (18), jacking cylinder (18) pass through the air duct with air pump case (2) are connected.

2. The building material lifting platform for building construction according to claim 1, wherein a traveling motor (13) is fixedly connected to one side of the lifting plate (9), an unloading control box (15) is fixedly connected to one side of the traveling motor (13) on the lifting plate (9), and the traveling motor (13) is connected with the unloading control box (15) through a wire.

3. The building material lifting platform for building construction according to claim 2, wherein the output end of the walking motor (13) is fixedly connected with a walking plate (12) through a screw-nut pair (23), the bottom of the walking plate (12) is fixedly connected with a walking wheel (22), and the walking wheel (22) is embedded in one side of the lifting plate (9).

4. The building material lifting platform for building construction according to claim 3, wherein a protective frame (20) is fixedly connected to one end of the lifting plate (9), a laser sensor (21) is embedded in one side, far away from the lifting plate (9), of the protective frame (20), and the laser sensor (21) is connected with the unloading control box (15) through a wire.

5. The building material lifting platform for building construction according to claim 3, wherein one end of the walking plate (12) is fixedly connected with four fixing seats (10), the fixing seats (10) are embedded with limiting rods (11), the limiting rods (11) are sleeved with fixing sleeves (25), one side of each fixing sleeve (25) is fixedly connected with a reinforcing frame (24) through a hinge, and the other end of each reinforcing frame (24) is connected with the fixing seat (10) through a hinge.

6. The building material lifting platform for building construction according to claim 5, wherein one end of the walking plate (12) far away from the fixed seat (10) is fixedly connected with a reduction gearbox (16), the input end of the reduction gearbox (16) is fixedly connected with a blanking motor (17), and the output end of the reduction gearbox (16) is fixedly connected with four movable limiting rods (14) through rotating shafts.
