Abstract
The utility model discloses a stamp roll cooling body relates to stamp equipment, aims at solving among the prior art to the relatively poor problem of cooling effect of cloth, and its technical scheme main points are: rotate the embossing roll of connecting on support frame and the support frame, the compression roller, be connected with the fixed axle on the support frame, be equipped with a plurality of condenser tube on the periphery wall of fixed axle, condenser tube's one end fixedly connected with feed liquor pipe, condenser tube's other one end fixedly connected with drain pipe, rotate on the fixed axle and be connected with the cylinder, condenser tube is located between cylinder and the fixed axle, is equipped with between compression roller and the cylinder to be used for driving the synchronous pivoted drive assembly of compression roller and cylinder, the utility model discloses at the during operation, staff's control coolant liquid gets into condenser tube from the feed liquor pipe end for condenser tube cools off the cylinder, makes the cooling effect of the cloth of following cylinder surface process improve.
Description
Technical Field
The utility model relates to a stamp equipment, more specifically say, it relates to a stamp roll cooling body.
Background
The embossing roll is suitable for embossing concave-convex patterns of plastic sheets, films, aluminum foils, leather, hard plates, wallpaper, floor tiles, glass, paper and the like, improves the aesthetic feeling of the surface of a product, strengthens the anti-counterfeiting effect, protects the trademark and the like. And can be used for developing embossing rollers with different patterns according to the requirements of customers.
The stamp surface fabric on the embossing roll is after the stamp is ended, generally need carry out cooling treatment through water injection pipe with the coolant liquid injection to the cloth in the cooling device for the stamp quality improves, but among the present cooling body, after the coolant liquid cooling a period, the temperature can rise and the temperature at embossing roll both ends risees, leads to the cooling effect to reduce, and the cooling effect is relatively poor, reduces the quality of surface fabric product.
Therefore, a new solution is needed to solve this problem.
SUMMERY OF THE UTILITY MODEL
The purpose of the present invention is to provide a cooling mechanism for a printing roll with good cooling effect to solve the above-mentioned problems.
The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a embossing roll cooling body, including the support frame with embossing roll, the compression roller of connection rotate on the support frame, be connected with the fixed axle on the support frame, be equipped with a plurality of condenser tube on the periphery wall of fixed axle, condenser tube's one end fixedly connected with feed liquor pipe, condenser tube's other one end fixedly connected with drain pipe, it is connected with the cylinder to rotate on the fixed axle, condenser tube is located between cylinder and the fixed axle, be equipped with between compression roller and the cylinder and be used for driving the synchronous pivoted drive assembly of compression roller and cylinder.
By adopting the technical scheme, the fixing shaft and the cooling water pipe are arranged, when the rotary drum is in work, the rotary drum is driven to rotate on the peripheral wall of the fixing shaft by the compression roller and the embossing roller through the transmission assembly between the compression roller and the rotary drum, the rotary drum can be uniformly heated when the rotary drum rotates, the problem that the cloth is deformed due to the friction heat generated when the cloth passes through the rotary drum is effectively avoided, because one end of the cooling water pipe is fixedly connected with the liquid inlet pipe and the other end of the cooling water pipe is fixedly connected with the liquid outlet pipe, when the rotary drum is in work, a worker controls the cooling liquid to enter the cooling water pipe from the liquid inlet pipe end, so that the cooling water pipe cools the rotary drum, when the cooling liquid in the cooling water pipe is replaced, the worker controls the cooling liquid to flow out from the liquid outlet pipe end, and simultaneously injects the cooling liquid into the cooling water pipe, and the effect of replacing the cooling liquid in the cooling water pipe is realized, further improving the cooling effect of the cloth when passing through the roller.
The utility model discloses further set up to: the utility model discloses a cooling water pipe, including fixed axle, one end cover of fixed axle is equipped with collector pipe one, the other end cover of fixed axle is equipped with collector pipe two, collector pipe one is equipped with a plurality of joint pipes one towards the one end of support frame, collector pipe two is towards one side fixedly connected with joint pipe two of support frame, the equal fixedly connected with a plurality of joints of opposite side of collector pipe one and collector pipe two, connect and condenser pipe threaded connection.
By adopting the technical scheme, when in use, by arranging the water collecting pipe I, the water collecting pipe II, the joint pipe I and the joint pipe II, the worker firstly utilizes the water injection pipe to be in threaded connection with the first pipe joint and the second pipe joint and connects the joints with the cooling water pipe, then the cooling liquid is controlled to enter the first water collecting pipe from the water injection pipe, so that the cooling liquid in the first water collecting pipe enters the cooling water pipe from the joint and then flows into the second water collecting pipe through the cooling water pipe, and at the moment, the second joint pipe is controlled by the staff, so that the cooling liquid which is just injected is prevented from flowing out from the two ends of the joint pipe, after working for a certain time, the worker controls the joint pipe II to enable the cooling liquid in the cooling water pipe to flow out from the two ends of the joint pipe, thereby, the effect of replacing the cooling liquid in the cooling water pipe is realized, and the cooling effect is improved.
The utility model discloses further set up to: the transmission assembly comprises a first gear fixedly connected to two ends of the pressing roller, a rotating shaft fixedly connected to two ends of the roller and a hollow connecting shaft fixedly connected to the peripheral wall of the first water collecting pipe and the peripheral wall of the second water collecting pipe, the rotating shaft is rotatably connected with the hollow connecting shaft, a second gear is fixedly connected to the rotating shaft, and a chain meshed with the first gear and the second gear is arranged between the first gear and the second gear.
Through adopting above-mentioned technical scheme, through setting up gear one, gear two, chain, when the compression roller rotates, make the gear at compression roller both ends drive the chain and rotate, and then make the epaxial gear two of rotation and gear one carry out synchronous rotation, and then make the compression roller can realize synchronous rotation with the cylinder, when the cloth passes through the cylinder, have certain tensioning effect to the cloth, make the cloth can be by better processing, and then increase the quality of cloth.
The utility model discloses further set up to: the support frame is connected with a connecting roller, and the horizontal height of the fixing shaft is greater than that of the compression roller and that of the connecting roller.
Through adopting above-mentioned technical scheme, through setting up the connecting roll, when the cloth that the stamp was accomplished passes through the cylinder, because the level of fixed axle is higher than the level of compression roller and the level of connecting the roller, produce through connecting the roller and push down the effort to the cloth, and then make the area of contact increase between cloth and the cylinder, further improve the cooling effect to the cloth.
The utility model discloses further set up to: the vacuum heat insulation column is sleeved on the fixed shaft and is positioned between the fixed shaft and the cooling water pipe.
Through adopting above-mentioned technical scheme, through setting up horizontal vacuum heat insulation post, the coolant liquid passes through the feed liquor pipe and gets into condenser pipe after, flows into in collector pipe two from the drain pipe by condenser pipe again to from the two end outflows of joint pipe, at this moment, because the vacuum heat insulation post has thermal-insulated effect, can avoid energy transfer to other parts to the equipment, also can balance the transmission of coolant liquid in the condenser pipe, reduction energy loss.
The utility model discloses further set up to: the support frame is run through at the both ends of fixed axle, offer the spout that is used for holding fixed axle sliding connection on the support frame, offer the restricted groove that is used for holding the fixed axle both ends on the bottom of spout.
Through adopting above-mentioned technical scheme, through setting up spout and restricted slot, during the installation, after the staff installed the fixed axle with collector pipe one, collector pipe two and cylinder on, connect the chain on gear two earlier, then go into the spout with the both ends card of fixed axle in to make it carry out the displacement to restricted slot along the length direction of spout, make things convenient for the staff to install the fixed axle.
The utility model discloses further set up to: the water collecting pipe I, the water collecting pipe II, the joint pipe I, the joint pipe II and the cooling water pipe are all made of stainless steel materials.
Through adopting above-mentioned technical scheme, set up to the stainless steel through with collector pipe one, collector pipe two and condenser tube for because good corrosion resisting property and higher hardness, make the collector pipe can not take place to deform because of the centrifugal force that produces when the cooling roller rotates, and difficult because rust with the long-term contact of coolant liquid, and then the life of reinforcing equipment.
The utility model discloses further set up to: and the joint pipe II positioned on the water collecting pipe II is vertically arranged.
Through adopting above-mentioned technical scheme, export through with joint pipe two sets up down, make when changing the coolant liquid in the cooling water pipe, the coolant liquid in the cooling water pipe flows through collector pipe two, and then make the coolant liquid in the collector pipe two flow through the water injection pipe of joint pipe two ends, because the opening of joint pipe two sets up down, be favorable to discharging the coolant liquid that the temperature rose in the cooling water pipe, and then make the coolant liquid temperature in the cooling water pipe lower, thereby it is better to increase the cooling effect to the cloth.
To sum up, the utility model discloses following beneficial effect has:
by adopting the technical scheme, the fixing shaft and the cooling water pipe are arranged, when the rotary drum is in work, the rotary drum is driven to rotate on the peripheral wall of the fixing shaft by the compression roller and the embossing roller through the transmission assembly between the compression roller and the rotary drum, the rotary drum can be uniformly heated when the rotary drum rotates, the problem that the cloth is deformed due to the friction heat generated when the cloth passes through the rotary drum is effectively avoided, because one end of the cooling water pipe is fixedly connected with the liquid inlet pipe and the other end of the cooling water pipe is fixedly connected with the liquid outlet pipe, when the rotary drum is in work, a worker controls the cooling liquid to enter the cooling water pipe from the liquid inlet pipe end, so that the cooling water pipe cools the rotary drum, when the cooling liquid in the cooling water pipe is replaced, the worker controls the cooling liquid to flow out from the liquid outlet pipe end, and simultaneously injects the cooling liquid into the cooling water pipe, and the effect of replacing the cooling liquid in the cooling water pipe is realized, further improving the cooling effect of the cloth when passing through the roller.
Drawings
Fig. 1 is a schematic structural view of the present invention;

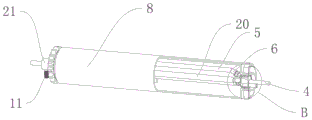

FIG. 2 is a schematic structural view of the middle fixing shaft, the roller and the second gear of the present invention;
FIG. 3 is a cross-sectional view of the fixed shaft, the roller and the second gear of the present invention;
FIG. 4 is a schematic structural view of a cooling water pipe, a first water collecting pipe and a second water collecting pipe of the present invention;
FIG. 5 is an enlarged view taken at A in FIG. 4;
fig. 6 is an enlarged view at B in fig. 3.
Reference numerals: 1. a support frame; 2. a printing roller; 3. a compression roller; 4. a fixed shaft; 5. a cooling water pipe; 6. a liquid inlet pipe; 7. a liquid outlet pipe; 8. a drum; 9. a first water collecting pipe; 91. a cylinder; 92. the flange is integral; 93. an inner tube; 10. a first joint pipe; 11. a second joint pipe; 12. a joint; 13. a first gear; 14. a rotating shaft; 15. a hollow connecting shaft; 16. a second gear; 17. a chain; 18. a connecting roller; 19. a chute; 20. a vacuum heat insulation column; 21. and a second water collecting pipe.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1-4, a embossing roll 2 cooling mechanism, including support frame 1 and embossing roll 2, compression roller 3, which are connected with the support frame 1, the support frame 1 is connected with a fixed shaft 4, the peripheral wall of the fixed shaft 4 is provided with a plurality of cooling water pipes 5, one end of the cooling water pipe 5 is fixedly connected with a liquid inlet pipe 6, the other end of the cooling water pipe 5 is fixedly connected with a liquid outlet pipe 7, the fixed shaft 4 is connected with a roller 8, the cooling water pipe 5 is located between the roller 8 and the fixed shaft 4, a transmission component for driving the compression roller 3 and the roller 8 to rotate synchronously is arranged between the compression roller 3 and the roller 8, so as to improve the cooling effect to the cloth.
Referring to fig. 1-5, one end of the fixed shaft 4 is sleeved with a first water collecting pipe 9, the other end of the fixed shaft 4 is sleeved with a second water collecting pipe 21, one end of the first water collecting pipe 9 facing the support frame 1 is provided with a plurality of first joint pipes 10, one side of the second water collecting pipe 21 facing the support frame 1 is fixedly connected with a second joint pipe 11, the other side of the first water collecting pipe 9 and the second water collecting pipe 21 is fixedly connected with a plurality of joints 12, the joints 12 are in threaded connection with the cooling water pipe 5, the first water collecting pipe 9 and the second water collecting pipe 21 have the same internal structure, the first water collecting pipe 9 and the second water collecting pipe 21 are both composed of an i-shaped component and a cylinder 91, the i-shaped component is assembled with an inner pipe 93 through flange collar material-flange forming-flange punching-flange crimping-flange ribbing-flange integral piece 92-spot welding-surface treatment-cleaning and drying-packaging, and then welding, surface treatment, cleaning, drying and packaging the cylinder 91 and the I-shaped part, and then respectively welding the joint 12, the joint pipe I10 and the joint pipe II 11 at corresponding positions by drilling holes on the water collecting pipe I9 and the water collecting pipe II 21, wherein the joint pipe II 11 positioned on the water collecting pipe II 21 is vertically arranged.
Referring to fig. 1, 2 and 6, the transmission assembly includes a first gear 13 fixedly connected to two ends of the press roll 3, a rotating shaft 14 fixedly connected to two ends of the roller 8, and a hollow connecting shaft 15 fixedly connected to the outer peripheral wall of the first water collecting pipe 9 and the second water collecting pipe 21, the rotating shaft 14 is rotatably connected to the hollow connecting shaft 15, a second gear 16 is fixedly connected to the rotating shaft 14, and a chain 17 engaged with the first gear 13 and the second gear 16 is arranged between the first gear 13 and the second gear 16, so that the roller 8 and the press roll 3 rotate synchronously.
Referring to fig. 3, 4 and 6, the support frame 1 is connected with a connecting roller 18, the horizontal height of the fixing shaft 4 is greater than the horizontal height of the pressing roller 3 and the horizontal height of the connecting roller 18, a vacuum heat insulation column 20 is sleeved on the fixing shaft 4, the vacuum heat insulation column 20 is located between the fixing shaft 4 and the cooling water pipe 5, the contact area between the cloth and the roller 8 is increased, and the cooling efficiency of the cloth is improved.
Referring to fig. 1, two ends of the fixing shaft 4 penetrate through the supporting frame 1, a sliding groove 19 for accommodating the fixing shaft 4 in sliding connection is formed in the supporting frame 1, and a limiting groove for accommodating two ends of the fixing shaft 4 is formed in the bottom end of the sliding groove 19, so that a worker can conveniently install the fixing shaft 4.
Referring to fig. 3-6, the first water collecting pipe 9, the second water collecting pipe 21, the joint 12, the first joint pipe 10, the second joint pipe 11 and the cooling water pipe 5 are all made of stainless steel, so that the service lives of the first water collecting pipe 9, the second water collecting pipe 21, the joint 12, the first joint pipe 10, the second joint pipe 11 and the cooling water pipe 5 are prolonged.
The working principle is as follows: during installation, a worker firstly sleeves the water collecting pipes at two ends of the fixed shaft 4, then two ends of the cooling water pipe 5 are respectively in threaded connection with the joints 12 on the water collecting pipes at two ends of the fixed shaft 4, after connection is completed, the roller 8 is sleeved on the peripheral wall of the fixed shaft 4, the cooling water pipe 5 is positioned between the roller 8 and the fixed shaft 4, then the gear II 16 is welded on the rotating shaft 14 at two ends of the roller 8, the water injection pipe is connected to the joint pipe I10 and the joint pipe II 11, then after the chain 17 is sleeved on the gear II 16, two ends of the fixed shaft 4 can be clamped into the sliding groove 19 and can be displaced into the limiting groove along the length direction of the sliding groove 19, then the worker can install the embossing roller 2 and the press roller 3 on the support frame 1 and connect the chain 17 to the gear I13, during operation, the worker controls cooling liquid to enter the liquid inlet pipe 6 through the joint pipe I10 and then enter the cooling water pipe 5, finally, the fabric enters a second water collecting pipe 21 through a cooling water pipe 5, the second joint pipe 11 is controlled to prevent the coolant from flowing out, then the embossing roller 2 and the press roller 3 can be controlled to rotate, the press roller 3 drives the first gear 13 to rotate and drives the second gear 16 and the first gear 13 to synchronously rotate through a chain 17, namely, the press roller 3 and the roller 8 synchronously rotate, and because the horizontal height of the fixed shaft 4 is greater than the horizontal heights of the press roller 3 and the connecting roller 18, the fabric passes through the roller 8 when the press roller 3 and the roller 8 synchronously rotate, the connecting roller 18 generates downward pressure on the fabric, the contact area between the fabric and the roller 8 is increased, and because the vacuum heat insulation column 20 is arranged between the cooling water pipe 5 and the roller 8, the transmission of the coolant in the cooling water pipe 5 can be balanced, the energy loss is reduced, and when the fabric flows into the second water collecting pipe 21 through the cooling water pipe 5, the cooling effect on printed products is improved, when the cooling liquid in the cooling water pipe 5 is replaced, the cooling liquid is controlled by the worker to flow out of the second joint pipe 11, and the opening of the second joint pipe 11 faces downwards, so that the cooling liquid can flow out when the temperature in the cooling water pipe 5 rises.
It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.
Claims (8)
1. The utility model provides an embossing roll cooling body which characterized in that: including support frame (1) with rotate embossing roll (2), compression roller (3) of connection on support frame (1), be connected with fixed axle (4) on support frame (1), be equipped with a plurality of cooling water pipes (5) on the periphery wall of fixed axle (4), the one end fixedly connected with feed liquor pipe (6) of cooling water pipe (5), the other one end fixedly connected with drain pipe (7) of cooling water pipe (5), it is connected with cylinder (8) to rotate on fixed axle (4), cooling water pipe (5) are located between cylinder (8) and fixed axle (4), be equipped with between compression roller (3) and cylinder (8) and be used for driving compression roller (3) and cylinder (8) synchronous pivoted transmission assembly.
2. The cooling mechanism of an embossing roll as set forth in claim 1, wherein: one pot head of fixed axle (4) is equipped with collector pipe one (9), another pot head of fixed axle (4) is equipped with collector pipe two (21), collector pipe one (9) are equipped with a plurality of joint pipe one (10) towards the one end of support frame (1), collector pipe two (21) are towards one side fixedly connected with joint pipe two (11) of support frame (1), the equal fixedly connected with a plurality of joints (12) of opposite side of collector pipe one (9) and collector pipe two (21), joint (12) and cooling water pipe (5) threaded connection.
3. The cooling mechanism of an embossing roll as set forth in claim 2, wherein: the transmission assembly comprises a first gear (13) and a hollow connecting shaft (15), wherein the first gear (13) and the fixed connection are arranged at two ends of the pressing roller (3), the hollow connecting shaft (15) is fixedly connected to the outer peripheral walls of a first water collecting pipe (9) and a second water collecting pipe (21) at two ends of the roller (8), the rotating shaft (14) is rotatably connected with the hollow connecting shaft (15), a second gear (16) is fixedly connected to the rotating shaft (14), and a chain (17) meshed with the first gear (13) and the second gear (16) is arranged between the first gear (13) and the second gear (16).
4. The cooling mechanism of an embossing roll as set forth in claim 1, wherein: the supporting frame (1) is connected with a connecting roller (18), and the horizontal height of the fixed shaft (4) is greater than that of the pressing roller (3) and that of the connecting roller (18).
5. The cooling mechanism of an embossing roll as set forth in claim 1, wherein: the support frame (1) is run through at the both ends of fixed axle (4), offer on support frame (1) and be used for holding fixed axle (4) sliding connection's spout (19), the limited slot that is used for holding fixed axle (4) both ends is offered to the bottom of spout (19).
6. The cooling mechanism of an embossing roll as set forth in claim 1, wherein: the vacuum heat insulation column (20) is sleeved on the fixed shaft (4), and the vacuum heat insulation column (20) is located between the fixed shaft (4) and the cooling water pipe (5).
7. The cooling mechanism of an embossing roll as set forth in claim 2, wherein: the water collecting pipe I (9), the water collecting pipe II (21), the joint (12), the joint pipe I (10), the joint pipe II (11) and the cooling water pipe (5) are all made of stainless steel materials.
8. The cooling mechanism of an embossing roll as set forth in claim 2, wherein: the second joint pipe (11) positioned on the second water collecting pipe (21) is vertically arranged.
