Abstract
本实用新型公开了一种耐洗涤的塑料衬布，包括基布，所述基布的上下侧面上均固定有抗皱耐洗层，所述抗皱耐洗层由第一纤维线和第二纤维线编织而成，所述抗皱耐洗层的侧面上固定有杀菌层，所述杀菌层的侧面上固定有透气层，所述透气层的侧面上固定有保温层，通过设置抗皱耐洗层使得与传统的衬布相比更加的抗皱耐洗，进一步的，所述第一纤维线的具体材料为聚酯纤维，所述第二纤维线的具体材料为聚乙烯纤维，通过设置由聚乙烯纤维制成的第二纤维线使得抗皱耐洗层的韧性得到大大增强，进一步的，所述抗皱耐洗层的厚度为0.2mm，所述抗皱耐洗层的侧面上覆盖有高分子胶，具有很高的抗皱性能，并且具有杀菌保温性能。
The utility model discloses a washing-resistant plastic lining cloth, which comprises a base cloth, wherein anti-wrinkle and wash-resistant layers are fixed on the upper and lower sides of the base cloth, and the anti-wrinkle and wash-resistant layers are woven by first fiber threads and second fiber threads. A sterilization layer is fixed on the side of the anti-wrinkle and washable layer, a breathable layer is fixed on the side of the sterilization layer, and a thermal insulation layer is fixed on the side of the breathable layer. Compared with the lining cloth, it is more wrinkle-resistant and washable. Further, the specific material of the first fiber line is polyester fiber, and the specific material of the second fiber line is polyethylene fiber. The second fiber thread greatly enhances the toughness of the anti-wrinkle and washable layer. Further, the thickness of the anti-wrinkle and washable layer is 0.2 mm. performance, and has sterilization and thermal insulation properties.
Description
Technical Field
The utility model relates to a lining cloth technical field specifically is a plastics lining cloth that wash fastness.
Background
The lining cloth is a large variety of clothing accessories, and plays a role of a framework on the clothing, namely, reinforced concrete is required to be used as the framework when a house is built; the clothes are made by using lining cloth as a framework, and the shape, the color and the graceful style can be formed by the modeling, reinforcing and shape-preserving functions of the lining cloth, but the existing lining cloth is soft, and wrinkles appear on the surface of the clothes after the clothes are made by washing for several times, so that the ornamental value of the clothes is reduced, and therefore, the plastic lining cloth which is washing-resistant is provided.
SUMMERY OF THE UTILITY MODEL
The to-be-solved technical problem of the utility model is to overcome current defect, provide a washing-resistant plastics lining cloth, have very high crease resistance to have the thermal insulation performance that disinfects, can effectively solve the problem in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: the plastic lining cloth is wash-resistant, and comprises a base cloth, wherein crease-resistant wash-resistant layers are fixed on the upper side surface and the lower side surface of the base cloth, the crease-resistant wash-resistant layers are formed by weaving first fiber threads and second fiber threads, sterilization layers are fixed on the side surfaces of the crease-resistant wash-resistant layers, breathable layers are fixed on the side surfaces of the sterilization layers, heat-insulation layers are fixed on the side surfaces of the breathable layers, and compared with the traditional lining cloth, the crease-resistant wash-resistant layers are more crease-resistant and wash-resistant.
Furthermore, the specific material of the first fiber line is polyester fiber, the specific material of the second fiber line is polyethylene fiber, and the toughness of the crease-resistant washable layer is greatly enhanced by arranging the second fiber line made of polyethylene fiber.
Furthermore, the thickness of the anti-wrinkle washable layer is 0.2mm, the side face of the anti-wrinkle washable layer is covered with polymer glue, and the first fiber line and the second fiber line are adhered together by the polymer glue.
Further, the specific material of the sterilization layer is bamboo fiber, the thickness of the sterilization layer is 0.3mm, and sterilization is performed by arranging the sterilization layer.
Further, the specific material of ventilative layer is silk, the thickness of ventilative layer is 0.2mm, breathes freely through setting up ventilative layer.
Furthermore, the heat preservation layer is woven by cotton threads, and the cotton threads are all cotton threads and are heat preserved by arranging the heat preservation layer.
Compared with the prior art, the beneficial effects of the utility model are that: the washing-resistant plastic lining cloth has the following advantages:
1. the anti-wrinkle washable layer in the utility model is woven by polyester fiber and polyethylene fiber, because the polyester fiber has anti-wrinkle performance, and the polyethylene fiber is a semi-crystalline polymer with stronger toughness, the cloth made is more anti-wrinkle washable than the traditional lining cloth;
2. the utility model discloses a layer of disinfecting that the setting was made by bamboo fibre makes the utility model discloses have very strong bactericidal performance, moreover the utility model discloses a heat preservation that the setting was woven by the cotton thread of cotton and is formed makes the utility model discloses a thermal insulation performance also obtains the reinforcing.
Drawings

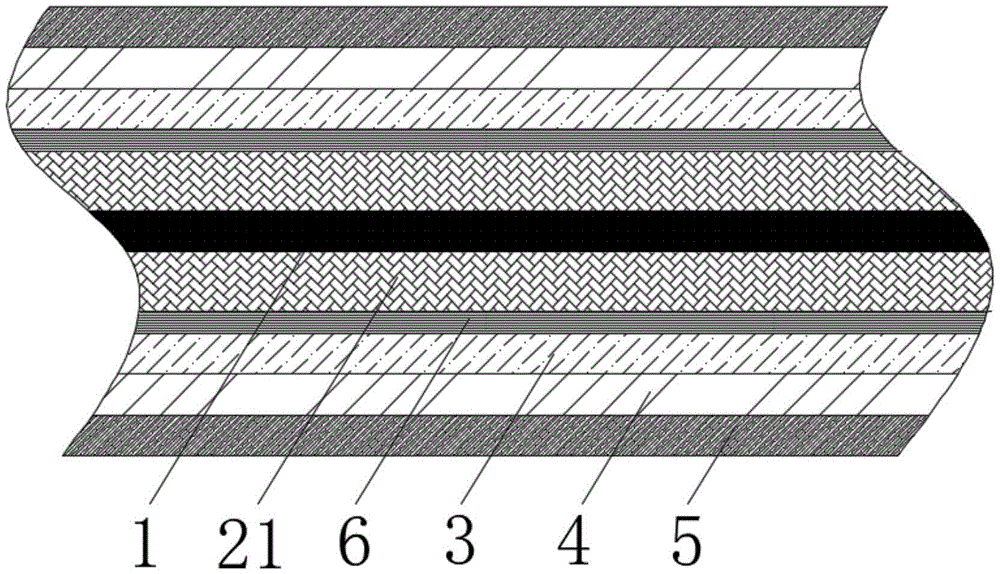

FIG. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a schematic view of the structure of the first fiber line of the present invention.
In the figure: 1 base cloth, 2 crease-resistant washable layers, 21 first fiber lines, 22 second fiber lines, 3 sterilization layers, 4 breathable layers, 5 heat preservation layers and 6 high-polymer glue.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-2, the present embodiment provides a technical solution: a wash-resistant plastic lining cloth comprises a base cloth 1, wherein wrinkle-resistant wash-resistant layers 2 are fixed on the upper side and the lower side of the base cloth 1 respectively, the wrinkle-resistant wash-resistant layers 2 are formed by weaving first fiber lines 21 and second fiber lines 22, sterilization layers 3 are fixed on the side faces of the wrinkle-resistant wash-resistant layers 2, breathable layers 4 are fixed on the side faces of the sterilization layers 3, heat preservation layers 5 are fixed on the side faces of the breathable layers 4, the first fiber lines 21 are made of polyester fibers, the second fiber lines 22 are made of polyethylene fibers, the wrinkle-resistant wash-resistant layers 2 are 0.2mm in thickness, the side faces of the wrinkle-resistant wash-resistant layers 2 are covered with high polymer glue 6, the sterilization layers 3 are made of bamboo fibers, the sterilization layers 3 are 0.3mm in thickness, the breathable layers 4 are made of silk, the breathable layers 4 are 0.2mm in thickness, the heat preservation layers 5 are formed by weaving cotton threads, the cotton threads are all-cotton threads, and compared with the traditional lining cloth, the wrinkle-resistant wash-resistant layers 2 are arranged to be more wrinkle-resistant, make crease-resistant washable layer 2's toughness obtain strengthening greatly through the second fiber line 22 that the setting was made by the polyethylene fiber, glue 6 through setting up the polymer and adhere first fiber line 21 and second fiber line 22 together, disinfect layer 3 through setting up and disinfect, breathe freely through setting up ventilative layer 4, keep warm through setting up heat preservation 5.
The utility model provides a pair of plastic lining cloth that wash-resistant's theory of operation as follows: through the first fiber line 21 that sets up polyester fiber material and the second fiber line 22 that polyethylene fiber made for it is more resistant crease-resist washable to compare with traditional lining cloth, and make bactericidal performance and thermal insulation performance also strengthened through setting up layer 3 of disinfecting made by bamboo fibre and weaving the heat preservation 5 that forms by the cotton thread of whole cotton, and also make more comfortable when wearing after making the clothes through setting up ventilative layer 4 made by silk.
The above is only the embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structures or equivalent processes of the present invention can be used in other related technical fields, directly or indirectly, or in the same way as the present invention.
Claims (6)
1. A washing-resistant plastic lining cloth is characterized in that: the fabric comprises a base fabric (1), wherein crease-resistant washable layers (2) are fixed on the upper side surface and the lower side surface of the base fabric (1), the crease-resistant washable layers (2) are formed by weaving first fiber threads (21) and second fiber threads (22), sterilization layers (3) are fixed on the side surfaces of the crease-resistant washable layers (2), breathable layers (4) are fixed on the side surfaces of the sterilization layers (3), and heat insulation layers (5) are fixed on the side surfaces of the breathable layers (4).
2. A wash resistant plastic interlining according to claim 1, characterized in that: the specific material of the first fiber line (21) is polyester fiber, and the specific material of the second fiber line (22) is polyethylene fiber.
3. A wash resistant plastic interlining according to claim 1, characterized in that: the thickness of the anti-wrinkle washable layer (2) is 0.2mm, and the side surface of the anti-wrinkle washable layer (2) is covered with polymer glue (6).
4. A wash resistant plastic interlining according to claim 1, characterized in that: the specific material of the sterilizing layer (3) is bamboo fiber, and the thickness of the sterilizing layer (3) is 0.3 mm.
5. A wash resistant plastic interlining according to claim 1, characterized in that: the specific material of ventilative layer (4) is silk, the thickness of ventilative layer (4) is 0.2 mm.
6. A wash resistant plastic interlining according to claim 1, characterized in that: the heat-insulating layer (5) is formed by weaving cotton threads, and the cotton threads are all cotton threads.
