Abstract

The utility model discloses a polishing device for processing precision instruments, which comprises a fixed structure and a cooling structure, a motor is started, a rack drives a rubber pad to slide, when a first electric conduction piece is contacted with a second electric conduction piece, the first electromagnet and the second electromagnet are electrified and attracted, the first electromagnet drives a fourth electric conduction piece to move to the second electromagnet, after the fourth electric conduction piece is separated from a third electric conduction piece, a first circuit is disconnected, the motor stops rotating, the machined product is prevented from being damaged due to over-tight clamping, in the cooling structure, a water pump is started to wash the machined product and a polisher for cooling, after washing, water flows into a first water tank through leak holes on the upper surface of the first water tank, the first water tank is communicated with the second water tank through a communicating pipe, thereby realizing the recycling of water, saving water resources, after polishing, garbage on the first water tank is washed into a solid collecting tank through a sloping plate, the pollution of the scrap garbage to the environment is avoided.

Description

Precision instruments processing is with equipment of polishing
Technical Field
The utility model relates to a processing equipment field of polishing specifically is an equipment of polishing is used in precision instruments processing.
Background
Machine of processing polishing has been indispensable in modern factory, can be better polish the polishing to the article, accelerate production efficiency, equipment of polishing can be used in the course of working of precision instruments, but the current equipment of polishing that is used for precision instruments processing to use, in the use, can not be convenient carry out the centre gripping to the work piece and fix, the dynamics is good when the centre gripping is controlled, the degree of difficulty when having increaseed the operation, work piece and polisher all can produce high temperature when processing is polished, the work piece produces the deformation when serious, play the effect of processing polishing not, also can shorten the life of polisher.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a precision instruments processing is with equipment of polishing is convenient for fix and cool down the processing to the work piece.
The purpose of the utility model can be realized by the following technical scheme:
a polishing device for machining a precision instrument comprises a U-shaped frame, a wood block, a first slide rail, a second slide rail, a first slide block, a second slide block, a rubber pad, a cooling structure, a first electric conduction sheet, a second electric conduction sheet, a third electric conduction sheet, a fourth electric conduction sheet, a spring, a first electromagnet, a second electromagnet, a motor, a gear, a rack, a baffle, an inclined plate and a solid collecting box, wherein the cooling structure is arranged at the middle position of the U-shaped frame, the wood block is fixed at the bottom of the upper surface of the U-shaped frame, the first slide rail is respectively arranged on the top surfaces of two opposite side walls of the U-shaped frame, two pairs of first slide blocks are buckled on the first slide rail, the two rubber pads are fixed on each pair of the two first slide blocks, one of the rubber pads is connected with the rack in a welding manner, the other rubber pad is connected with the wood block through the spring, the first electric conduction sheet is fixed on the side wall of the other rubber pad, the one end at first slide rail is fixed to the second electric conduction piece, the second slide rail is installed at the billet upper surface, cooperation spiral-lock has the second slider on the second slide rail, second slider upper surface is fixed with fourth electric conduction piece and first electro-magnet, second slide rail both ends are fixed with third electric conduction piece and second electro-magnet, the motor is fixed on U type frame inside wall, install the gear in the pivot of motor, rack and gear intermeshing.
As a further aspect of the present invention: the utility model discloses a cooling structure, including first water tank, second water tank, water pumper, hose, shower nozzle, communicating pipe and small opening, first water tank and second water tank are installed side by side at U type frame intermediate position, the small opening has been seted up at first water tank top, the both ends of communicating pipe communicate with first water tank and second water tank respectively, the water pumper is installed at second water tank side, the water pumper goes out the head end intercommunication of water end and hose, the end that absorbs water of water pumper passes through pipe and second water tank intercommunication, the shower nozzle is installed to the hose tail end, the baffle is fixed around first water tank upper surface, the drain has been seted up to the baffle side, the swash plate is installed to the port department of drain, solid collecting box installs between first water tank and second water tank, the swash plate bottom is erect at solid collecting box top.
As a further aspect of the present invention: the third electrical conductor sheet and the fourth electrical conductor sheet are in the same straight line.
As a further aspect of the present invention: the second electrical conductor sheet is mounted between the first electrical conductor sheet and the wood block.
As a further aspect of the present invention: and the fourth electric conducting sheet and the first electromagnet are fixed on the second sliding block in parallel.
As a further aspect of the present invention: the side wall of the rubber pad is provided with an arc-shaped groove.
As a further aspect of the present invention: two rows of a plurality of weep holes are symmetrically arranged on the top of the first water tank.
As a further aspect of the present invention: the third electric conducting piece and the fourth electric conducting piece are connected in series into a first circuit through a lead, a power supply and a motor, and the first electric conducting piece and the second electric conducting piece are connected in series into a second circuit through the lead and the power supply, the first electromagnet and the second electromagnet.
The utility model has the advantages that the gear on the motor drives the rack to move, when a processed product is clamped between two rubber cushions, the spring can be compressed, when the processed product is continuously compressed, the first electric conducting piece is contacted with the second electric conducting piece, at the moment, the first electromagnet and the second electromagnet are electrified and attracted, the first electromagnet drives the fourth electric conducting piece to move to the second electromagnet, when the fourth electric conducting piece is separated from the third electric conducting piece, the first circuit is disconnected, the motor stops rotating, the processed product is prevented from being damaged due to over-tight clamping, and the arrangement of the spring and the rubber cushions plays a role in buffering the clamping process of the processed product;
in the processing polishing process, fill water in first water tank and the second water tank, open the water pumper, take water out from the second water tank, water is from the shower nozzle spout through the hose, wash the cooling to processing product and polisher, water flows into in the first water tank through the small opening of first water tank upper surface after washing again, after the water level surpassed communicating pipe highly in first water tank, can flow into in the second water tank automatically, thereby can realize the cyclic utilization of a water, the water resource has been practiced thrift, in wasing the solid collecting box with rubbish on the first water tank through the swash plate after polishing, avoid the pollution of piece rubbish to the environment.
Drawings
In order to facilitate understanding for those skilled in the art, the present invention will be further described with reference to the accompanying drawings.

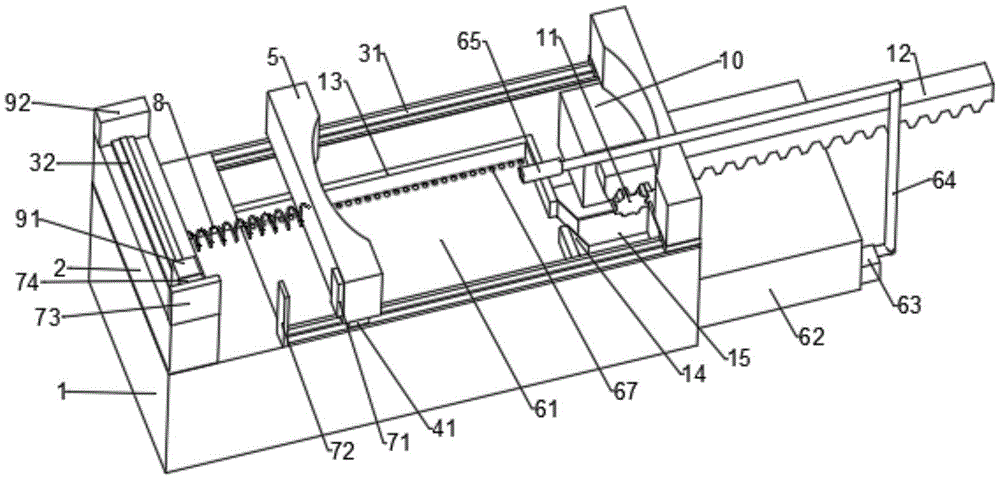

Fig. 1 is an isometric view of the present invention;
FIG. 2 is an overall front view of the present invention;
fig. 3 is a partial cross-sectional view of the present invention;
in the figure: 1. a U-shaped frame; 2. wood blocks; 31. a first slide rail; 32. a second slide rail; 41. a first slider; 42. a second slider; 5. a rubber pad; 6. a cooling structure; 61. a first water tank; 62. a second water tank; 63. a water pump; 64. a hose; 65. a spray head; 66. a communicating pipe; 67. a leak hole; 71. a first electrically conductive sheet; 72. a second electrically conductive sheet; 73. a third electrical conductive sheet; 74. a fourth electrical conductive sheet; 8. a spring; 91. a first electromagnet; 92. a second electromagnet; 10. a motor; 11. a gear; 12. a rack; 13. a baffle plate; 14. a sloping plate; 15. and a solid collecting box.
Detailed Description
The technical solution of the present invention will be described clearly and completely with reference to the following embodiments, and it should be understood that the described embodiments are only a part of the embodiments of the present invention, and not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
As shown in fig. 1-3, a polishing device for precision instrument processing comprises a U-shaped frame 1, a wood block 2, a first slide rail 31, a second slide rail 32, a first slide block 41, a second slide block 42, rubber pads 5, a cooling structure 6, a first electric conduction sheet 71, a second electric conduction sheet 72, a third electric conduction sheet 73, a fourth electric conduction sheet 74, a spring 8, a first electromagnet 91, a second electromagnet 92, a motor 10, a gear 11, a rack 12, a baffle 13, an inclined plate 14 and a solid collection box 15, wherein the cooling structure 6 is installed at the middle position of the U-shaped frame 1, the wood block 2 is fixed at the bottom of the upper surface of the U-shaped frame 1, the first slide rail 31 is respectively installed on the top surface of two opposite side walls of the U-shaped frame 1, two pairs of first slide blocks 41 are buckled on the first slide rail 31, two rubber pads 5 are fixed on each pair of the two first slide blocks 41, one rubber pad 5 is connected with the rack 12 by welding, the other rubber pad 5 is connected with the wood block 2 by the spring 8, first electric conduction piece 71 is fixed on the lateral wall of another rubber pad 5, second electric conduction piece 72 is fixed in the one end of first slide rail 31, second slide rail 32 is installed at the billet 2 upper surface, the second slider 42 is equipped with to the cooperation lock on the second slide rail 32, second slider 42 upper surface is fixed with fourth electric conduction piece 74 and first electro-magnet 91, second slide rail 32 both ends are fixed with third electric conduction piece 73 and second electro-magnet 92, motor 10 is fixed on U type frame 1 inside wall, install gear 11 in motor 10's the pivot, rack 12 and gear 11 intermeshing.
The cooling structure 6 comprises a first water tank 61, a second water tank 62, a water pump 63, a hose 64, a spray head 65, a communicating pipe 66 and a leak hole 67, wherein the first water tank 61 and the second water tank 62 are arranged in the middle of the U-shaped frame 1 in parallel, the leak hole 67 is formed in the top of the first water tank 61, two ends of the communicating pipe 66 are respectively communicated with the first water tank 61 and the second water tank 62, the water pump 63 is arranged on the side edge of the second water tank 62, the water outlet end of the water pump 63 is communicated with the head end of the hose 64, the water suction end of the water pump 63 is communicated with the second water tank 62 through a pipe, the spray head 65 is arranged at the tail end of the hose 64, a baffle 13 is fixed around the upper surface of the first water tank 61, a sewage discharge outlet is formed in the side edge of the baffle 13, an inclined plate 14 is arranged on the sewage discharge outlet, a solid collecting box 15 is arranged between the first water tank 61 and the second water tank 62, the bottom of the inclined plate 14 is erected at the top of the solid collecting box 15, and high temperature is generated during polishing of a processed product, the water is used for washing, cooling and cleaning the processed product and the grinding machine, the processed product and the grinding machine are prevented from being damaged by high temperature, solid garbage is swept into the solid collecting box 15 through the inclined plate 14 for treatment, and pollution of the scrap garbage to people and the environment is avoided.
The third electric-conducting piece 73 and the fourth electric-conducting piece 74 are in the same line, and the third electric-conducting piece 73 and the fourth electric-conducting piece 74 can be contacted and separated.
The second electric conduction piece 72 is installed between the first electric conduction piece 71 and the wood block 2, and the first electric conduction piece 71 comes into contact with the second electric conduction piece 72 when the spring 8 is compressed to some extent.
The fourth conducting strip 74 and the first electromagnet 91 are fixed on the second sliding block 42 in parallel, when the first conducting strip 71 and the second conducting strip 72 are contacted, the second circuit is turned on, the first electromagnet 91 drives the fourth conducting strip 74 to move to the second electromagnet 92, after the fourth conducting strip 74 and the third conducting strip 73 are separated, the first circuit is turned off, and the motor 10 stops rotating.
The side wall of the rubber pad 5 is provided with an arc-shaped groove which corresponds to the surface shape of the fixed processed product and can be uniformly stressed.
Two rows of a plurality of small openings 67 have been seted up to first water tank 61 top symmetry, wash the cooling back water and flow into first water tank 61 through small opening 67, and solid particulate matter is blockked at first water tank 61 upper surface.
The third conductive sheet 73 and the fourth conductive sheet 74 are connected in series to form a first circuit through a conducting wire and a power supply and the motor 10, the first conductive sheet 71 and the second conductive sheet 72 are connected in series to form a second circuit through a conducting wire and a power supply and the first electromagnet 91 and the second electromagnet 92, the first conductive sheet 71 is in contact with the second conductive sheet 72, the first electromagnet 91 and the second electromagnet 92 are electrified and attracted, the first electromagnet 91 drives the fourth conductive sheet 74 to move to the second electromagnet 92, and when the fourth conductive sheet 74 is separated from the third conductive sheet 73, the first circuit is disconnected, and the motor 10 stops rotating.
The utility model discloses a theory of operation: the processed product is placed between two rubber pads 5, a first circuit is formed by connecting a third electric conduction sheet 73 and a fourth electric conduction sheet 74 in series through a lead, a power supply and a motor 10, a second circuit is formed by connecting a first electric conduction sheet 71 and a second electric conduction sheet 72 in series through a lead and a power supply with a first electromagnet 91 and a second electromagnet 92, the first circuit is started, a gear 11 on the motor 10 drives a rack 12 to rotate, the rack 12 drives the rubber pads 5 to move, when the processed product is clamped between the two rubber pads 5, pressurization is continued, a spring 8 is compressed, when the first electric conduction sheet 71 is contacted with the second electric conduction sheet 72, the second circuit is started, the first electromagnet 91 drives the fourth electric conduction sheet 74 to move, after the fourth electric conduction sheet 74 is separated from the third electric conduction sheet 73, the first circuit is disconnected, the motor 10 stops rotating, the clamping is prevented from being over-tight and damaging the processed product is prevented, and the arrangement of the spring 8 and the rubber pads 5 has a buffer effect on the clamping process of the processed product, the largest surface of the groove on the surface of the rubber pad 5 is attached to the surface of the processed product, so that the stress is uniform, after the processed product is fixed, the water pump 63 is turned on, the water in the second water tank 62 is sprayed out from the spray head 65 through the hose 64, the processed product and the sander are washed and cooled, the water flowing down flows into the leak hole 67 through the blocking of the baffle 13 and enters the first water tank 61, the first water tank 61 is communicated with the second water tank 62 through the communicating pipe 66, so that the water in the first water tank 61 and the second water tank 62 can be recycled, the ground particle garbage falls to the upper surface of the first water tank 61, and is treated in the solid collection box 15 after being cleaned by the inclined plate 14, the device has ensured the fixed that the processing article both can stabilize to the controllability of centre gripping dynamics, can not impaired advantage again, and cooling structure 6 sets up protection processing article and polisher and can not break down because of being heated, high efficiency's guarantee production quality.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (8)

1. A polishing device for machining of a precision instrument is characterized by comprising a U-shaped frame (1), a wood block (2), a first slide rail (31), a second slide rail (32), a first slide block (41), a second slide block (42), a rubber pad (5), a cooling structure (6), a first electric conduction sheet (71), a second electric conduction sheet (72), a third electric conduction sheet (73), a fourth electric conduction sheet (74), a spring (8), a first electromagnet (91), a second electromagnet (92), a motor (10), a gear (11), a rack (12), a baffle (13), an inclined plate (14) and a solid collecting box (15), wherein the cooling structure (6) is arranged at the middle position of the U-shaped frame (1), the wood block (2) is fixed at the bottom of the upper surface of the U-shaped frame (1), the first slide rails (31) are respectively arranged on the top surfaces of two opposite side walls of the U-shaped frame (1), two pairs of first sliding blocks (41) are buckled on the first sliding rail (31), two rubber pads (5) are fixed on each pair of two first sliding blocks (41), one of the rubber pads (5) is connected with the rack (12) in a welding manner, the other rubber pad (5) is connected with the wood block (2) through a spring (8), a first electric conduction sheet (71) is fixed on the side wall of the other rubber pad (5), a second electric conduction sheet (72) is fixed at one end of the first sliding rail (31), the second sliding rail (32) is installed on the upper surface of the wood block (2), a second sliding block (42) is buckled on the second sliding rail (32) in a matching manner, a fourth electric conduction sheet (74) and a first electromagnet (91) are fixed on the upper surface of the second sliding block (42), a third electric conduction sheet (73) and a second electromagnet (92) are fixed at two ends of the second sliding rail (32), the motor (10) is fixed on the inner side wall of the U-shaped frame (1), a gear (11) is installed on a rotating shaft of the motor (10), and the rack (12) and the gear (11) are meshed with each other.
2. The polishing equipment for machining of precision instruments according to claim 1, wherein the cooling structure (6) comprises a first water tank (61), a second water tank (62), a water pump (63), a hose (64), a nozzle (65), a communicating pipe (66) and a leak hole (67), the first water tank (61) and the second water tank (62) are installed in the middle of the U-shaped frame (1) in parallel, the leak hole (67) is formed in the top of the first water tank (61), two ends of the communicating pipe (66) are respectively communicated with the first water tank (61) and the second water tank (62), the water pump (63) is installed on the side of the second water tank (62), the water outlet end of the water pump (63) is communicated with the head end of the hose (64), the water suction end of the water pump (63) is communicated with the second water tank (62) through a conduit, the nozzle (65) is installed at the tail end of the hose (64), baffle (13) are fixed around first water tank (61) upper surface, the drain has been seted up to baffle (13) side, swash plate (14) are installed to the port department of drain, install between first water tank (61) and second water tank (62) solid collecting box (15), establish at solid collecting box (15) top in swash plate (14) bottom frame.
3. A finishing apparatus for precision machining according to claim 1, wherein the third (73) and fourth (74) electrical conductors are collinear.
4. A finishing device for precision machining according to claim 1, characterised in that the second electrical conductor sheet (72) is mounted between the first electrical conductor sheet (71) and the wood block (2).
5. A finishing apparatus for precision machining of instruments according to claim 1, characterized in that said fourth electrically conductive strip (74) and said first electromagnet (91) are fixed in parallel on said second slide (42).
6. The polishing device for processing the precision instrument as recited in claim 1, wherein an arc-shaped groove is formed on the side wall of the rubber pad (5).
7. The polishing device for machining of precision instruments according to claim 2, wherein two rows of a plurality of leak holes (67) are symmetrically formed in the top of the first water tank (61).
8. The polishing apparatus for precision instrument processing as claimed in claim 1, wherein said third conductive sheet (73) and said fourth conductive sheet (74) are connected in series to form a first circuit through a wire, a power supply and a motor (10), and said first conductive sheet (71) and said second conductive sheet (72) are connected in series to form a second circuit through a wire and a power supply and said first electromagnet (91) and said second electromagnet (92).
