CN214767727U - A spiral distributing device applied to organic waste biodegradation equipment - Google Patents

Abstract

The utility model discloses a screw material distributing device applied to an organic waste biodegradation device, comprising a casing, a bottom end of the casing is sleeved and installed with a base; a bracket, the bottom end of the base is formed into a rectangle and fixedly installed with a bracket; Bending plate, the outer surface of the casing is fixedly connected with a bending plate; fixing frame, the bending plate is fixedly installed with a fixing frame near the middle of the casing; screw material distribution device, the screw material distribution device is installed on the casing and fixed between the racks, and the screw distributing device is used to separate different garbage. First, the turntable and the drum are matched together. The rotation of the turntable can effectively separate the wet garbage from solid and liquid, which is beneficial to the subsequent degradation of the equipment. After the work is started, stirring the solid waste separated from the solid and liquid in the drum is conducive to the improvement of the dissolution rate of the degradation agent, so that the subsequent equipment can be carried out smoothly.

Description

A spiral distributing device applied to organic waste biodegradation equipment

technical field

The utility model relates to the technical field of organic waste biodegradation equipment, in particular to a screw distributing device applied to organic waste biodegradation equipment.

Background technique

Organic waste: Also known as wet waste, it refers to waste containing organic matter in domestic waste. Mainly paper, fiber, bamboo, kitchen dregs and so on. More than 50% of the municipal solid waste is organic waste, and it is increasing year by year, among which waste paper and waste plastics grow the fastest.

Organic waste refers to the part of decomposable organic matter in daily waste. Organic waste includes food residues, vegetable roots, vegetable leaves, animal hooves, horns, melon peels, fruit scraps, eggshells, fish scales, eggshells, hair, plant branches, leaves, weeds, animal carcasses, livestock manure, etc. The organic garbage should be collected by a special person, and the collection container must be sealed, covered, leak-proof, fly-proof and rodent-proof.

The existing garbage classification policy has been implemented in some cities, but there are still quite a few tier 2-3 cities in China that have not been implemented in place, so all kinds of wet garbage are always mixed together, and long-term non-treatment will lead to stench. , and cause the cleaning staff to be difficult to classify and handle, which brings inconvenience to the degradation of organic matter. If you want to add degradants on it to degrade it, the rate of degradation will be very slow, so it is necessary to separate different organic wastes. In order to fully degrade it, we propose a screw feeding device for organic waste biodegradation equipment.

Utility model content

The purpose of the present utility model is to provide a screw material distribution device applied to the organic waste biodegradation equipment, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a screw material distribution device applied to organic waste biodegradation equipment, comprising a shell, the bottom end of the shell is sleeved and installed with a base; a bracket, around the bottom end of the base; A bracket is fixedly installed in a rectangular shape; a bending plate, the outer surface of the shell is fixedly connected with a bending plate; a fixing frame, a fixing frame is fixedly installed on the bending plate near the middle of the shell; The feeding device is installed between the shell and the fixing frame, and the screw feeding device is used to separate different garbage.

Preferably, the interior of the casing is connected with a feeding chute on the upper surface close to the base, and a turntable is installed on the upper surface of the feeding chute.

Preferably, a drum is connected to the inner wall of the turntable, and a built-in dismounting plate is opened on the surface of the drum.

Preferably, a small hole is sleeved at the bottom end of the inner wall of the built-in dismantling plate.

Preferably, the motor is fixedly connected to one end of the fixing frame away from the upper surface of the casing, and the bottom end of the base is provided with a water passage.

Preferably, the screw distribution device includes: a transmission gear, a first screw rod, a first transition gear, a stirring rod, a rocker, a second transition gear and a stirring plate, one end of the motor is fixedly connected with a transmission gear, and the screw distribution device is located in A first transition gear is connected to one end away from the upper surface of the casing, the bottom end of the first transition gear is installed with a first screw rod at a position close to the transmission gear, and the transmission gear meshes with the first screw rod, and the middle part of the drum is installed There is a stirring rod, and one end of the stirring rod is connected with the screw material distribution device, the bottom end of the stirring rod is fixedly connected with a plurality of stirring plates, and the bottom end of the first screw rod is installed with a second transition gear, a transmission gear and a second transition gear A rocker is connected between the connecting shafts.

Compared with the prior art, the beneficial effects of the utility model are: firstly, the turntable and the drum are matched together, and the rotation of the turntable turntable can effectively separate the wet garbage from solid and liquid, which is beneficial to the subsequent work of the degradation equipment. Stirring the solid waste separated from solid and liquid in the drum is beneficial to increase the dissolution rate of the degrading agent, so that the subsequent equipment can be carried out smoothly.

Description of drawings

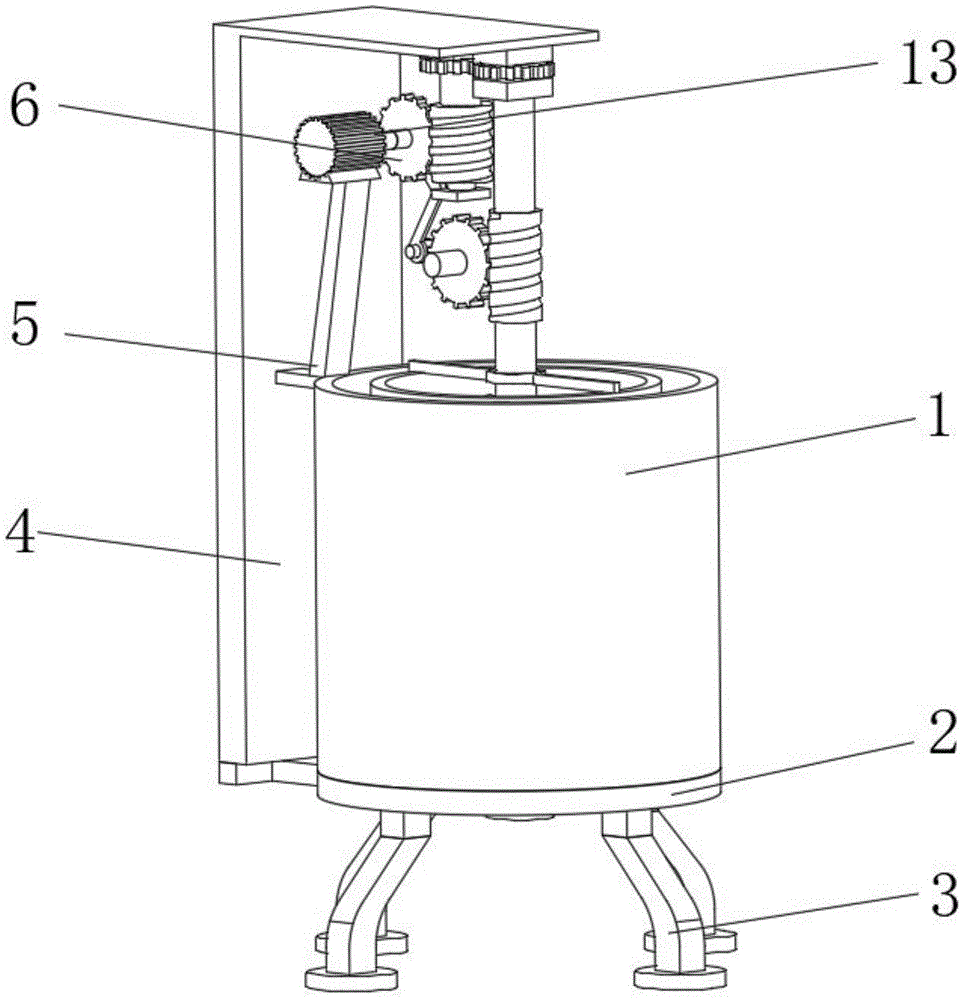

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the structural representation of the utility model roller;

3 is a schematic structural diagram of the interior of the housing of the utility model;

Fig. 4 is the structural representation of the utility model helical material distribution device

FIG. 5 is a schematic structural diagram of the overall bottom view of the utility model.

In the figure: 1-shell; 2-base; 3-support; 4-bending plate; 5-fixed frame; 6-screw distribution device; 7-roller; 8-turntable; 9-built-in dismantling plate; 10- Small hole; 11- receiving chute; 12- handle; 13- motor; 14- transmission gear; 15- first screw rod; 16- first over gear; 17- stirring rod; 18- rocker; 19- second Over gear; 20- agitating plate; 21- water port.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-5, the present utility model provides a technical scheme of a screw distributing device applied to organic waste biodegradation equipment: a screw distributing device applied to organic waste biodegradation equipment, comprising a shell 1, the said The bottom end of the shell 1 is sleeved and installed with a base 2; a bracket 3, the bottom end of the base 2 is formed into a rectangle and fixedly installed with the bracket 3; a bending plate 4, the outer surface of the shell 1 is fixedly connected with a fold Bending plate 4; fixing frame 5, the bending plate 4 is fixedly installed with a fixing frame 5 in the middle position close to the shell 1; screw distribution device 6, the screw distribution device 6 is installed on the shell 1 and the fixing frame 5, and the screw distributing device 6 is used to separate different garbage.

The inside of the casing 1 is connected with a feeding chute 11 on the upper surface close to the base 2 , and a turntable 9 is installed on the upper surface of the feeding chute 11 .

The inner wall of the turntable 9 is connected with a drum 7 , and the surface of the drum 7 is provided with a built-in dismantling plate 10 .

A small hole 8 is sleeved at the bottom end of the inner wall of the built-in dismantling plate 10 .

A handle 12 is fixedly connected to the middle of the bottom end of the material receiving slot 11 .

The fixing frame 5 is fixedly connected with the motor 13 at one end away from the upper surface of the housing 1 , and the bottom end of the base 2 is provided with a water passage 21 .

The screw distribution device 6 includes: a transmission gear 14, a first lead screw 15, a first transition gear 16, a stirring rod 17, a rocker 18, a second transition gear 19 and a stirring plate 20, and one end of the motor 13 is fixed A transmission gear 14 is connected, the screw distributor 6 is connected with a first transition gear 16 at one end away from the upper surface of the housing 1 , and the bottom end of the first transition gear 16 is installed at a position close to the transmission gear 14 There is a first screw rod 15, and the transmission gear 14 is meshed with the first screw rod 15. A stirring rod 17 is installed in the middle of the drum 7, and one end of the stirring rod 17 is connected with the screw distribution device 6. The stirring rod 17 A plurality of stirring plates 20 are fixedly connected to the bottom end of the first screw rod 15, a second transition gear 19 is installed at the bottom end of the first screw rod 15, and a rocker 18 is connected to the connecting shaft between the transmission gear 14 and the second transition gear 19. .

Working principle: First pour the garbage into the drum 7, then turn on the motor under the turntable 8 to turn the garbage up to separate the solid and liquid. The external conduit at the water inlet 21 discharges the sewage away. At this time, only the solid waste of organic waste remains inside the drum 7, and then the motor 13 can be turned on, and the motor 13 will drive the rotation of the transmission gear 14, and the transmission gear 14 will conduct the first transmission. When the first lead screw 15 rotates, the first lead screw 15 rotates, the first transition gear 16 rotates, then the stirring rod 17 rotates, and the transmission gear 14 drives the second transition gear 19 to rotate through the connected rocker 18, and the second transition gear 19 rotates. The engagement between 19 and the stirring rod 17 will move the stirring rod 17 up and down, and then due to the stirring of the stirring plate 20, the organic waste such as paper scraps and kitchen waste will become small granular solids. , and then as the holes on the surface of the turntable 8 fall into the inside of the feeding chute 11, such as bamboos are still in the drum 7, and finally turn the handle 12 and the feeding chute 11 will turn out along the bottom end of the base 2, Sort out the small garbage, and then continue to rotate the built-in disassembly disk 9 to remove the turntable 8 and the drum 7, and take out the large bamboo garbage machine, and then carry out subsequent processing of these garbage (the built-in disassembly disk can be used). 9. The base 2, the drum 7 and the feeding chute 11 are all provided with threads).

It should be noted that, in this document, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. any such actual relationship or sequence exists. Moreover, the terms "comprising", "comprising" or any other variation thereof are intended to encompass a non-exclusive inclusion such that a process, method, article or device that includes a list of elements includes not only those elements, but also includes not explicitly listed or other elements inherent to such a process, method, article or apparatus.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a be applied to spiral feed divider of organic rubbish biodegradable equipment which characterized in that includes:

the device comprises a shell (1), wherein a base (2) is sleeved at the bottom end of the shell (1);

the support (3) is fixedly arranged around the bottom end of the base (2) in a rectangular shape;

the outer circle surface of the shell (1) is fixedly connected with a bending plate (4);

the fixing frame (5) is fixedly arranged at the middle position of the bending plate (4) close to the shell (1);

the spiral separating device (6) is arranged between the shell (1) and the fixing frame (5), and the spiral separating device (6) is used for separating different garbage.

2. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 1 is characterized in that: the upper surface that base (2) are being pressed close to in the inside of casing (1) is connected with and connects silo (11), the last surface mounting who connects silo (11) has built-in detaching disc (9).

3. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 2 is characterized in that: the inner wall of the built-in detaching disc (9) is connected with a roller (7), and a small hole (10) is formed in the surface of the roller (7).

4. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 3 is characterized in that: the bottom end of the inner wall of the small hole (10) is sleeved with a turntable (8).

5. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 4 is characterized in that: the middle part of the bottom end of the material receiving groove (11) is fixedly connected with a handle (12).

6. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 5 is characterized in that: the motor (13) is fixedly connected to one end of the upper surface of the fixing frame (5) far away from the shell (1), and a water opening (21) is formed in the bottom end of the base (2).

7. The spiral distributing device applied to the organic garbage biodegradation equipment according to claim 6 is characterized in that: the spiral material distributing device (6) comprises: drive gear (14), first lead screw (15), first excessive gear (16), stirring rod (17), rocker (18), the excessive gear of second (19) and stir board (20), the one end fixedly connected with drive gear (14) of motor (13), spiral feed divider (6) is connected with first excessive gear (16) in the one end department of keeping away from the upper surface of casing (1), first lead screw (15) is installed in the position that is close to drive gear (14) in the bottom of first excessive gear (16), and drive gear (14) and first lead screw (15) meshing, the mid-mounting of cylinder (7) has stirring rod (17), and the one end of stirring rod (17) is connected with spiral feed divider (6), the bottom fixedly connected with a plurality of stirring boards (20) of stirring rod (17), the excessive gear of second (19) is installed to the bottom of first lead screw (15), a rocker (18) is connected between the transmission gear (14) and the second transition gear (19) through a connecting shaft.
