CN214764180U - A dust-removing spray device for a construction site - Google Patents
A dust-removing spray device for a construction site Download PDFInfo
- Publication number
- CN214764180U CN214764180U CN202022893102.4U CN202022893102U CN214764180U CN 214764180 U CN214764180 U CN 214764180U CN 202022893102 U CN202022893102 U CN 202022893102U CN 214764180 U CN214764180 U CN 214764180U
- Authority
- CN
- China
- Prior art keywords
- water tank
- filter screen
- wall
- shaped
- sliding
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02A—TECHNOLOGIES FOR ADAPTATION TO CLIMATE CHANGE
- Y02A20/00—Water conservation; Efficient water supply; Efficient water use
- Y02A20/108—Rainwater harvesting
Landscapes
- Water Treatment By Sorption (AREA)
Abstract
本实用新型提供了一种工地用除尘喷淋装置，属于喷淋装置技术领域。该一种工地用除尘喷淋装置，包括水箱和雨水收集处理组件。所述雨水收集处理组件包括方筒和杂质清扫件以及初过滤件，所述方筒固定连通至所述水箱顶部，所述初过滤件包括安装框架和不锈钢过滤网，所述不锈钢过滤网连接至所述安装框架内壁，所述安装框架两侧均开设有滑腔，两个所述滑腔内均滑动连接有滑动块，两个所述滑动块和对应的所述滑腔间均连接有弹簧，所述杂质清扫件包括支板和收集篮以及U形清洁刷。在本实用新型中，雨水收集处理组件不仅能够对雨水进行收集过滤，还能够将过滤拦截后的杂质进行清扫，增加了雨水收集的效果和效率。
The utility model provides a dust-removing spray device for construction sites, which belongs to the technical field of spray devices. The utility model relates to a dust-removing and spraying device for a construction site, comprising a water tank and a rainwater collection and treatment component. The rainwater collection and treatment assembly includes a square cylinder, an impurity cleaning member, and a primary filter. The square cylinder is fixedly connected to the top of the water tank. The primary filter includes a mounting frame and a stainless steel filter screen. The stainless steel filter screen is connected to On the inner wall of the installation frame, there are sliding cavities on both sides of the installation frame, sliding blocks are slidably connected in the two sliding cavities, and springs are connected between the two sliding blocks and the corresponding sliding cavities. , the impurity cleaning member includes a support plate, a collection basket and a U-shaped cleaning brush. In the present invention, the rainwater collection and treatment component can not only collect and filter rainwater, but also clean the impurities after filtering and interception, thereby increasing the effect and efficiency of rainwater collection.
Description
Technical Field
The utility model relates to a spray set field particularly, relates to a building site is with dust removal spray set.
Background
A large amount of dust pollution is usually generated in the construction process of a construction site, and a dust removal spraying device is usually adopted to carry out spraying dust removal operation on the construction site.
However, the existing dust removal spraying device lacks the function of rainwater filtration collection, and can not clean the large impurities intercepted in the rainwater collection and filtration process, so that rainwater recycling can not be effectively realized, and the rainwater recycling efficiency can not be improved.
SUMMERY OF THE UTILITY MODEL
In order to compensate above not enough, the utility model provides a building site is with dust removal spray set aims at improving current dust removal spray set and lacks the rainwater and filter the function of collecting, also can not collect the problem that big impurity after the filterable in-process will be intercepted cleans at the rainwater.
The utility model discloses a realize like this:
the utility model provides a building site is with removing dust spray set, collect the processing component including water tank and rainwater.
The rainwater collecting and processing component comprises a square barrel, an impurity cleaning piece and a primary filtering piece, the square barrel is fixedly communicated with the top of the water tank, the primary filtering piece comprises an installation frame and a stainless steel filtering net, the stainless steel filtering net is connected to the inner wall of the installation frame, sliding cavities are formed in two sides of the installation frame, sliding blocks are connected in the two sliding cavities in a sliding mode, springs are connected between the two sliding blocks and the corresponding sliding cavities, insertion hole positions matched with the sliding blocks are formed in two sides of the square barrel in a penetrating mode, the impurity cleaning piece comprises a support plate, a collection basket and a U-shaped cleaning brush, a positioning frame is clamped at the bottom of the collection basket, the positioning frame is fixed to the water tank, the support plate is connected to the square barrel, an electric push rod I is fixedly connected to the support plate, and the electric push rod I is connected with an electric push rod II, the electric push rod II is connected with the U-shaped cleaning brush, a connecting rod is fixed on the inner side of the U-shaped cleaning brush and connected with a U-shaped scraper blade, and the U-shaped cleaning brush and the U-shaped scraper blade are in movable contact with the outer surface of the stainless steel filter screen.
The utility model discloses an in one embodiment, collection basket activity laminating is in the lateral wall of square tube, just square tube outer wall top is connected with and extends to the stock guide of collection basket outer top.
In an embodiment of the present invention, the length of the inner wall of the U-shaped scraper and the U-shaped cleaning brush is equal to the length of the side of the stainless steel filter screen.
This dust removal spray set is used in building site still includes filtering component once more, filtering component once more includes active carbon filter screen frame and U-shaped mounting panel, active carbon filter screen frame is connected to the U-shaped mounting panel, run through on the water tank set up with the rectangle mouth of active carbon filter screen frame looks adaptation, be connected with the inserted block on the active carbon filter screen frame, the slot with inserted block looks adaptation is seted up to the inner wall of water tank.
In an embodiment of the utility model, the outer wall of the activated carbon filter screen frame is adhered with a sealing rubber pad I which is adhered to the inner wall of the water tank, and the inner wall of the U-shaped mounting plate is adhered with a sealing rubber pad II which is adhered to the outer wall of the water tank.
The utility model discloses an in one embodiment, the equal fixedly connected with knob of U-shaped mounting panel both sides wall, water tank both sides wall all seted up with the thread groove of knob looks adaptation.
This dust removal spray set is used in building site still includes movable spray assembly, movable spray assembly includes the water pump and draws water hard tube I and servo motor and ball screw are vice, draw water hard tube I communicate in the water tank bottom, the water pump install extremely draw water on the hard tube I.
The utility model discloses an in one embodiment, I outer end intercommunication of hard tube that draws water has the bellows, bellows outer end intercommunication has the hard tube II that draws water, II outer end intercommunications of hard tube that draw water have atomizer.
The utility model discloses an in one embodiment, the ball screw is vice to be connected to the servo motor output, it is vice that the last rotation of ball screw is connected with ball screw nut, ball screw nut vice with II fixed connection of hard tube draw water.
The utility model discloses an in the embodiment, be connected with the slide bar on the ball nut pair, set up on the water tank outer wall with the slide rail of slide bar looks adaptation.
The utility model has the advantages that: the dust-removing spraying device for the construction site, which is obtained by the design, can collect rainwater in the rainwater weather by means of the arrangement of the square cylinder when in use, the rainwater is recycled, the stainless steel filter screen can intercept large impurity particles or fallen leaves when the rainwater enters the water tank, the electric push rod I can drive the electric push rod II to move to a proper position, so that the bottom end of the U-shaped scraper blade and the upper end of the square cylinder are positioned on the same horizontal line, the U-shaped scraper blade and the U-shaped cleaning brush are driven by the electric push rod II to move from right to left, thereby leading the U-shaped scraper blade and the U-shaped cleaning brush to respectively scrape and clean the intercepted impurities on the upper part of the stainless steel filter screen, therefore, the impurity stainless steel filter screen can be pushed into the collecting basket, and the probability of blockage of the stainless steel filter screen can be reduced.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings that are required to be used in the embodiments will be briefly described below, it should be understood that the following drawings only illustrate some embodiments of the present invention, and therefore should not be considered as limiting the scope, and for those skilled in the art, other related drawings can be obtained according to the drawings without inventive efforts.

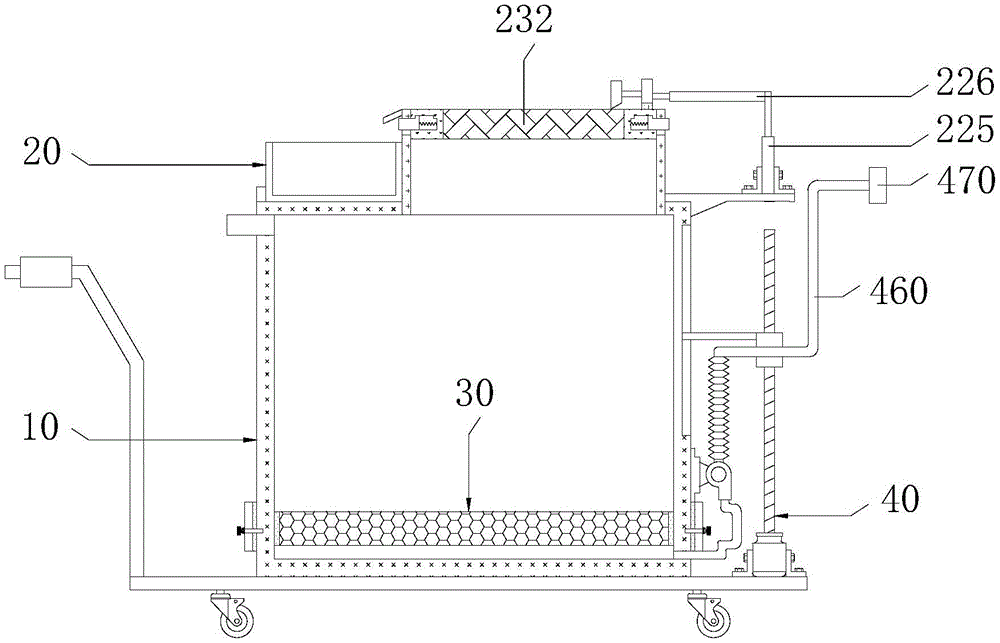

FIG. 1 is a schematic structural view of a dust removal spraying device for a construction site according to an embodiment of the present invention;
fig. 2 is a schematic structural view of a rainwater collecting and processing assembly provided by the embodiment of the present invention;
fig. 3 is a schematic diagram of the external structure in fig. 2 according to an embodiment of the present invention;
FIG. 4 is a schematic structural view of the position relationship between the U-shaped scraper and the stainless steel filter screen before the U-shaped scraper and the stainless steel filter screen are contacted with each other according to the embodiment of the present invention;
fig. 5 is a schematic structural view of a positional relationship between a square tube and a plugging hole site according to an embodiment of the present invention;
fig. 6 is a schematic structural view of a primary filter member according to an embodiment of the present invention;
fig. 7 is a schematic structural view of a position relationship between the water tank and the activated carbon filter screen frame according to the embodiment of the present invention;
fig. 8 is a schematic structural view of a secondary filter assembly according to an embodiment of the present invention;
fig. 9 is a schematic structural view of a movable spray assembly provided by an embodiment of the present invention.
In the figure: 10-a water tank; 20-a rainwater collection and treatment component; 210-square cylinder; 220-impurity cleaning element; 221-support plate; 222-a collection basket; 223-U-shaped cleaning brushes; 224-a positioning frame; 225-electric push rod I; 226-electric push rod II; 227-U-shaped scrapers; 228-a connecting rod; 230-a primary filter element; 231-a mounting frame; 232-stainless steel filter screen; 233-sliding chamber; 234-a slider; 235-a spring; 240-plug hole site; 250-a material guide plate; 30-a secondary filtration module; 310-an activated carbon filter screen frame; 320-a U-shaped mounting plate; 330-sealing rubber pad I; 340-sealing rubber pad II; 350-a knob; 40-a movable spray assembly; 410-a water pump; 420-water pumping hard pipe I; 430-a servo motor; 440-ball screw pair; 450-a bellows; 460-water pumping hard pipe II; 470-atomizing spray head; 480-a slide bar; 490-ball screw nut set.
Detailed Description
To make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the drawings of the embodiments of the present invention are combined to clearly and completely describe the technical solutions of the embodiments of the present invention, and obviously, the described embodiments are some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Thus, the following detailed description of the embodiments of the present invention, presented in the accompanying drawings, is not intended to limit the scope of the invention, as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It should be noted that: like reference numbers and letters refer to like items in the following figures, and thus, once an item is defined in one figure, it need not be further defined and explained in subsequent figures.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
In the present disclosure, unless expressly stated or limited otherwise, the first feature "on" or "under" the second feature may comprise direct contact between the first and second features, or may comprise contact between the first and second features not directly. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.
Examples
Referring to fig. 1, the present invention provides a dust removing and spraying device for construction site, which comprises a water tank 10 and a rainwater collecting and processing assembly 20.
Wherein, the water tank 10 can store water to be sprayed; the rainwater collection and treatment assembly 20 can collect and filter rainwater, can clean impurities after filtering and intercepting, and improves rainwater collection effect and efficiency.
Please refer to fig. 1, 2, 3, 5, 6, the rainwater collection processing assembly 20 includes that the square tube 210 cleans 220 and just filters piece 230 with impurity, the square tube 210 is fixed to be communicated to the top of the water tank 10, wherein, still remain the removal base of wheel through the screw connection in the bottom of the water tank 10, make things convenient for this spray set to remove, just filter piece 230 and include installation frame 231 and stainless steel filter screen 232, stainless steel filter screen 232 is connected to installation frame 231 inner wall, sliding chamber 233 has all been seted up to installation frame 231 both sides, all sliding connection has sliding block 234 in two sliding chamber 233, all be connected with spring 235 between two sliding blocks 234 and the corresponding sliding chamber 233, the grafting hole site 240 with sliding block 234 looks adaptation runs through to set up in square tube 210 both sides.
Referring to fig. 1, 2, 3 and 4, the impurity cleaning element 220 includes a support plate 221, a collection basket 222 and a U-shaped cleaning brush 223, a positioning frame 224 is fastened to the bottom of the collection basket 222 for facilitating the collection basket 222 to be detached and taken, the positioning frame 224 is welded to the water tank 10, specifically, the collection basket 222 is movably attached to the outer side wall of the square tube 210, a material guide plate 250 extending to the upper part outside the collection basket 222 is welded to the top of the outer wall of the square tube 210, and the impurities cleaned by the U-shaped cleaning brush 223 and the U-shaped scraper 227 can be smoothly guided into the collection basket 222 by using the material guide plate 250. The support plate 221 is welded to the square tube 210, an electric push rod I225 is fixedly connected to the support plate 221 through a screw, an electric push rod II 226 is connected to the electric push rod I225 through a screw, the electric push rod II 226 is connected with the U-shaped cleaning brush 223 through a screw, a connecting rod 228 is fixed to the inner side of the U-shaped cleaning brush 223 through a screw, the connecting rod 228 is connected with a U-shaped scraper 227 through a screw, the U-shaped cleaning brush 223 and the U-shaped scraper 227 are in movable contact with the outer surface of the stainless steel filter screen 232, the length of the inner wall of the U-shaped scraper 227 and the length of the inner wall of the U-shaped cleaning brush 223 are identical to the length of the side of the stainless steel filter screen 232, and a hair portion of the bottom of the U-shaped cleaning brush 223 can be movably inserted into holes of the stainless steel filter screen 232, and therefore the U-shaped cleaning brush 223 can clean impurities and blocked particles of the stainless steel filter screen 232 conveniently.
Referring to fig. 1, 7 and 8, the dust removal spray device for construction sites further comprises a secondary filter assembly 30, the secondary filter assembly 30 comprises an activated carbon filter screen frame 310 and a U-shaped mounting plate 320, the activated carbon filter screen frame 310 is connected to the U-shaped mounting plate 320 through screws, a rectangular opening matched with the activated carbon filter screen frame 310 is formed in the water tank 10 in a penetrating manner, and the U-shaped mounting plate 320 covers the rectangular opening. There is the inserted block through the screw on the active carbon filter screen frame 310, the slot with inserted block looks adaptation is seted up to water tank 10 inner wall, the sealed rubber pad I330 that the active carbon filter screen frame 310 outer wall hugged closely mutually with water tank 10 inner wall through powerful adhesive is inherent, the sealed rubber pad II 340 to the water tank 10 outer wall is still hugged closely through powerful adhesive is inherent to the inner wall of U-shaped mounting panel 320, the equal fixedly connected with knob 350 of the both sides wall of U-shaped mounting panel 320, wherein, the screw hole of intercommunication and knob 350 looks adaptation is still all run through to the both sides wall of U-shaped mounting panel 320. Thread grooves matched with the knobs 350 are formed in two side walls of the water tank 10, the two knobs 350 are screwed and fixed with the corresponding thread grooves, the U-shaped mounting plate 320 is conveniently fixed to the outer wall of the water tank 10, the activated carbon filter screen frame 310 is conveniently fixed to the water tank 10, and the activated carbon filter screen frame 310 is convenient to rapidly disassemble and assemble.
Referring to fig. 1 and 9, the dust-removing spray device for construction sites further comprises a movable spray assembly 40, the movable spray assembly 40 comprises a water pump 410, a water pumping hard pipe i 420, a servo motor 430 and a ball screw pair 440, the water pumping hard pipe i 420 is communicated with the bottom of the water tank 10, the water pump 410 is mounted on the water pumping hard pipe i 420 through a bolt, the outer end of the water pumping hard pipe i 420 is communicated with a corrugated pipe 450 through a quick joint, the outer end of the corrugated pipe 450 is communicated with a water pumping hard pipe ii 460 through a quick joint, the outer end of the water pumping hard pipe ii 460 is communicated with an atomizing nozzle 470, the ball screw pair 440 is connected to the output end of the servo motor 430 through a coupler, the ball screw pair 440 is rotatably connected with the ball screw nut pair 490, the ball screw nut pair 490 is welded with the water pumping hard pipe ii 460, a slide rod 480 is welded on the ball screw nut pair 490, a slide rail matched with the slide rod is arranged on the outer wall of the water tank 10, the sliding rod 480 and the sliding rail are matched to indirectly increase the stability of the up-and-down translation of the atomizer 470.
This building site is with dust removal spray set's theory of operation: before use, the two sliding blocks 234 are pressed towards the corresponding sliding cavities 233, the two springs 235 are compressed along with the movement of the sliding blocks 234, the primary filter member 230 which is being pressed is pushed to the inner wall of the square tube 210, after the two sliding blocks 234 are aligned to the matched insertion hole positions 240, the two sliding blocks 234 can be movably inserted into the corresponding insertion hole positions 240 by means of the elastic recovery capacity of the springs 235, so that the stainless steel filter screen 232 can be quickly disassembled and assembled, the U-shaped mounting plate 320 can be conveniently fixed to the outer wall of the water tank 10 by screwing the two knobs 350 and the corresponding threaded grooves, and the activated carbon filter screen frame 310 can be conveniently fixed into the water tank 10, so that the activated carbon filter screen frame 310 can be quickly disassembled and assembled; when the rainwater collection device is used, rainwater can be collected in rainwater weather by means of the square barrel 210, the rainwater can be recycled, the stainless steel filter screen 232 can be used for intercepting large impurity particles or fallen leaves when the rainwater enters the water tank 10, the electric push rod I225 can drive the electric push rod II 226 to move to a proper position, so that the bottom end of the U-shaped scraper 227 and the upper end of the square barrel 210 are on the same horizontal line, the electric push rod II 226 can drive the U-shaped scraper 227 and the U-shaped cleaning brush 223 to move from right to left, so that the U-shaped scraper 227 and the U-shaped cleaning brush 223 can respectively scrape and clean the intercepted impurities on the upper portion of the stainless steel filter screen 232, the impurity stainless steel filter screen 232 can be pushed into the collection basket 222, the probability of blockage of the stainless steel filter screen 232 can be reduced, and after the rainwater is collected into the water tank 10, utilize activated carbon filter screen frame 310 to carry out interception once more to the mixed tiny particle impurity of aquatic and filter, open water pump 410 and servo motor 430, loop through I420 of hard tube and bellows 450 and draw water II 460 of hard tube and take out water to atomizer 470 department, spray with the help of atomizer 470 and remove dust, utilize servo motor 430 to drive ball screw pair 440 and rotate, thereby can make ball screw nut pair 490 reciprocate on ball screw pair 440, and then can make atomizer 470 reciprocate and spray, can augment the scope that removes dust and spray like this, promote the effect that the building site removed dust.
It should be noted that the specific model specifications of the electric push rod i 225, the electric push rod ii 226, the stainless steel filter screen 232, the U-shaped scraper 227, the spring 235, the U-shaped cleaning brush 223, the activated carbon filter screen frame 310, the water pump 410, the servo motor 430 and the atomizer 470 need to be determined according to the actual specification of the device, and the specific model selection calculation method adopts the prior art in the field, and therefore, detailed description is omitted.
The power supply and the principle of the electric push rod i 225, the electric push rod ii 226, the servo motor 430 and the water pump 410 are clear to those skilled in the art and will not be described in detail herein.
The above description is only a preferred embodiment of the present invention and is not intended to limit the present invention, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
1. Building site is with dust removal spray set, its characterized in that includes
A water tank (10);
the rainwater collection and treatment assembly (20) comprises a square barrel (210), an impurity cleaning piece (220) and a primary filtering piece (230), the square barrel (210) is fixedly communicated with the top of the water tank (10), the primary filtering piece (230) comprises an installation frame (231) and a stainless steel filtering net (232), the stainless steel filtering net (232) is connected to the inner wall of the installation frame (231), sliding cavities (233) are formed in two sides of the installation frame (231), sliding blocks (234) are connected in the two sliding cavities (233) in a sliding mode, springs (235) are connected between the two sliding blocks (234) and the corresponding sliding cavities (233), and inserting hole positions (240) matched with the sliding blocks (234) are formed in two sides of the square barrel (210) in a penetrating mode;
the impurity cleaning piece (220) comprises a support plate (221), a collecting basket (222) and a U-shaped cleaning brush (223), a positioning frame (224) is clamped at the bottom of the collecting basket (222), the positioning frame (224) is fixed to the water tank (10), the support plate (221) is connected to the square barrel (210), an electric push rod I (225) is fixedly connected to the support plate (221), an electric push rod II (226) is connected to the electric push rod I (225), the electric push rod II (226) is connected with the U-shaped cleaning brush (223), a connecting rod (228) is fixed to the inner side of the U-shaped cleaning brush (223), the connecting rod (228) is connected with a U-shaped scraping plate (227), and the U-shaped cleaning brush (223) and the U-shaped scraping plate (227) are in movable contact with the outer surface of the stainless steel filter screen (232).
2. The dust removal spraying device for the construction site as claimed in claim 1, wherein the collecting basket (222) is movably attached to the outer side wall of the square cylinder (210), and a material guide plate (250) extending to the upper part outside the collecting basket (222) is connected to the top of the outer wall of the square cylinder (210).
3. A dust-removing spray device for construction sites according to claim 1, characterized in that the length of the inner wall of the U-shaped scraper (227) and the U-shaped cleaning brush (223) is the same as the length of the side of the stainless steel filter screen (232).
4. The dust removal spraying device for the construction site is characterized by further comprising a secondary filtering assembly (30), wherein the secondary filtering assembly (30) comprises an activated carbon filter screen frame (310) and a U-shaped mounting plate (320), the activated carbon filter screen frame (310) is connected to the U-shaped mounting plate (320), a rectangular opening matched with the activated carbon filter screen frame (310) is formed in the water tank (10) in a penetrating mode, an inserting block is connected to the activated carbon filter screen frame (310), and an inserting groove matched with the inserting block is formed in the inner wall of the water tank (10).
5. A dust-removing spray device for construction sites according to claim 4, wherein a sealing rubber gasket I (330) clinging to the inner wall of the water tank (10) is adhered to the outer wall of the activated carbon filter screen frame (310), and a sealing rubber gasket II (340) clinging to the outer wall of the water tank (10) is adhered to the inner wall of the U-shaped mounting plate (320).
6. The dust removal spraying device for the construction site as claimed in claim 4, wherein knobs (350) are fixedly connected to two side walls of the U-shaped mounting plate (320), and thread grooves matched with the knobs (350) are formed in the two side walls of the water tank (10).
7. A dust-removing spray device for construction sites as claimed in claim 1, further comprising a movable spray assembly (40), wherein the movable spray assembly (40) comprises a water pump (410), a water pumping hard pipe i (420), a servo motor (430) and a ball screw pair (440), the water pumping hard pipe i (420) is communicated with the bottom of the water tank (10), and the water pump (410) is mounted on the water pumping hard pipe i (420).
8. A dust removal spray device for a construction site as claimed in claim 7, wherein the outer end of the water pumping hard pipe I (420) is communicated with a corrugated pipe (450), the outer end of the corrugated pipe (450) is communicated with a water pumping hard pipe II (460), and the outer end of the water pumping hard pipe II (460) is communicated with the atomizing spray head (470).
9. The dust removal spraying device for the construction site as claimed in claim 8, wherein the ball screw pair (440) is connected to the output end of the servo motor (430), a ball screw nut pair (490) is rotatably connected to the ball screw pair (440), and the ball screw nut pair (490) is fixedly connected with the water pumping hard pipe II (460).
10. The dust removal spraying device for the construction site as claimed in claim 9, wherein a sliding rod (480) is connected to the ball screw nut pair (490), and a sliding rail adapted to the sliding rod (480) is formed on the outer wall of the water tank (10).
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202022893102.4U CN214764180U (en) | 2020-12-02 | 2020-12-02 | A dust-removing spray device for a construction site |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202022893102.4U CN214764180U (en) | 2020-12-02 | 2020-12-02 | A dust-removing spray device for a construction site |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN214764180U true CN214764180U (en) | 2021-11-19 |
Family
ID=78710403
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202022893102.4U Expired - Fee Related CN214764180U (en) | 2020-12-02 | 2020-12-02 | A dust-removing spray device for a construction site |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN214764180U (en) |
Cited By (1)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN119236577A (en) * | 2024-11-13 | 2025-01-03 | 东台市优诺新能源有限公司 | A kind of construction atomization dust reduction equipment and method |
-
