Abstract

The utility model discloses an intelligent wardrobe with dehumidification function, which comprises a cabinet body, a plurality of clothes storage rooms are arranged inside the cabinet body, and a support pipe is fixedly connected inside the clothes storage rooms at a position close to the top. A heating slot is provided inside the cabinet and at a position below each clothes storage room, and a sliding frame is slidably connected to the inside of the heating slot. In the utility model, the heating wire, temperature and humidity sensor, controller, solenoid valve and exhaust fan can be arranged to realize the dehumidification operation in a single clothes storage room, and it is not necessary to dehumidify all of them, which greatly saves the use cost, and the motor rotates through the The threaded rod can drive the support rod to move, thereby driving the clothes hanging on the hook to move back and forth, so as to facilitate the air flow between the clothes, thereby greatly increasing the dehumidification effect, and the sliding frame and the maintenance cover are provided to facilitate maintenance.

Description

Intelligent wardrobe with dehumidification function

Technical Field

The utility model relates to a furniture wardrobe technical field especially relates to an intelligence wardrobe with dehumidification function.

Background

The wardrobe is a cabinet for storing clothes, and comprises a large-capacity intelligent disinfection wardrobe, a power-free glass-through wardrobe, a stainless steel wardrobe, an ultraviolet disinfection cleaning wardrobe, a damp-proof multifunctional wardrobe, a male and female wardrobe, a drying cockroach-preventing wardrobe, a folding wardrobe and a simple wardrobe. The wardrobe is commonly divided into a vertical hinged door, an inner and outer sliding doors of the wardrobe and the like, and the boards used by the wardrobe generally comprise stainless steel, metal, wood and the like, and are one of furniture commonly used in families;

now relate to an intelligence wardrobe with dehumidification function, traditional wardrobe does not have intelligent dehumidification function mostly, the wardrobe does not have intelligent dehumidification function and will not dry the air in the wardrobe in time, and then because the humid environment leads to the clothes in the wardrobe to go mildy, thereby influence people's trip, and current intelligence wardrobe has the dehumidification function, nevertheless carry out the dehumidification in the whole wardrobe in the time, and because the clothes is close to when the dehumidification, make the moisture between the clothes be difficult to detach, not only the dehumidification effect is unsatisfactory, still the condition that the long-time dehumidification of possibility caused the clothes to damage.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving the defects existing in the prior art and providing an intelligent wardrobe with a dehumidification function.

In order to achieve the above purpose, the utility model adopts the following technical scheme: an intelligent wardrobe with a dehumidification function comprises a wardrobe body, wherein a plurality of clothes storage rooms are arranged inside the wardrobe body, supporting pipes are fixedly connected to the positions, close to the tops, inside the clothes storage rooms, heating grooves are formed in the positions, located below the clothes storage rooms, of the wardrobe body, sliding frames are connected to the inside of the heating grooves in a sliding mode, heating wires are fixedly installed inside the sliding frames, a plurality of through holes are formed in the tops of the heating grooves and communicated with the bottoms of the clothes storage rooms, cavities are formed in the tops of the wardrobe body, air outlet pipes are fixedly connected to the tops of the clothes storage rooms in a penetrating mode, connecting pipes are arranged inside the cavities, the tops of the air outlet pipes are communicated with the connecting pipes, electromagnetic valves are installed inside the air outlet pipes, exhaust pipes are fixedly connected to one sides of the cavities in a penetrating mode, and one ends of the connecting pipes are connected with the exhaust pipes, the inside fixed mounting of blast pipe has the air discharge fan, every temperature and humidity sensor is all installed to the inner wall that stores up the clothing room, the internally mounted of cavity has the controller, the inside sliding connection of stay tube has the bracing piece, a plurality of connecting blocks of the last surface interval fixedly connected with of bracing piece, the spout has been seted up to the upper surface of stay tube, spout and fixedly connected with couple are run through on the top of connecting block, the inside threaded rod of connecting through the screw thread rotation of running through of one end of bracing piece.

Further, the inner wall of the cabinet body and the position close to the supporting tube are provided with a groove, a motor is arranged inside the groove, and an output shaft of the motor is connected with one end of the threaded rod.

Furthermore, a plurality of air inlets are formed in one side of the outer surface of the sliding frame, and a first dust screen is embedded in the position, close to the air inlets, in the sliding frame.

Furthermore, the outer surface both sides symmetry fixedly connected with engaging lug of sliding frame, the surface of engaging lug runs through there is the screw, the engaging lug is connected with the surface of the cabinet body through the screw.

Furthermore, the antetheca hinge of the cabinet body is rotated and is connected with a plurality of cabinet doors, just the surface mounting of cabinet door has the handle.

Further, the antetheca embedding of cavity is installed the maintenance lid, just the maintenance lid is for dismantling the connection, the inside embedding of blast pipe is installed the second dust screen.

Further, the heating wire, the electromagnetic valve, the exhaust fan, the temperature and humidity sensor and the motor are all connected with the controller through wires.

The utility model has the advantages that:

the utility model discloses when using, this intelligence wardrobe with dehumidification function, temperature and humidity sensor can transmit every humidity condition between storing up the clothing for the controller, and then through the corresponding heater strip of controller control, including a motor, an end cap, a controller, and a cover plate, solenoid valve and air discharge fan start, the heater strip produces the heat and can accelerate the evaporation of water in storing up the clothing room, can accelerate the circulation of air speed through the air discharge fan, the motor rotates and can drive the bracing piece through the threaded rod and remove, thereby drive the clothes round trip movement of hanging on the couple, thereby be convenient for the air flow between the clothes, thereby greatly increased dehumidification effect, thereby realize storing up the dehumidification between the clothing to the singleness, need not all dehumidifies, use cost is practiced thrift greatly, and be convenient for maintain through the sliding frame that sets up and maintenance lid.

Drawings

Fig. 1 is a schematic view of the overall structure of the present invention;

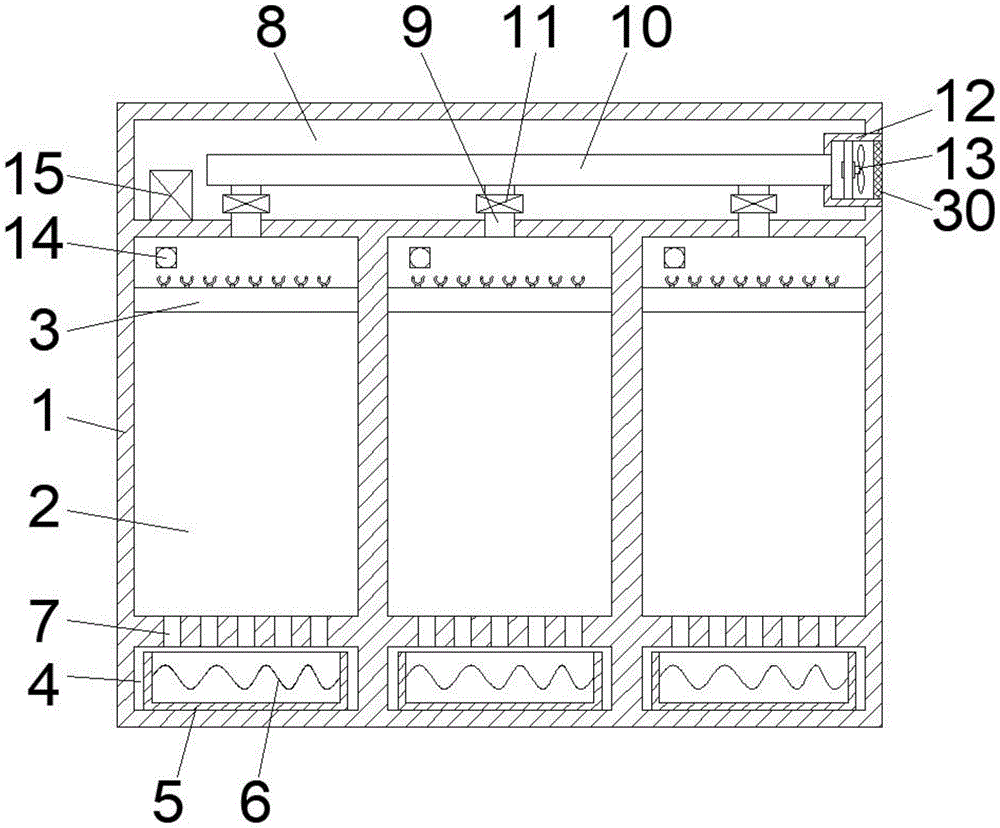

fig. 2 is a schematic view of the internal structure of the support tube of the present invention;

fig. 3 is a top view of the sliding frame of the present invention;

fig. 4 is a perspective view of the present invention.

Illustration of the drawings:

1. a cabinet body; 2. a clothes storage room; 3. supporting a tube; 4. a heating tank; 5. a sliding frame; 6. heating wires; 7. a through hole; 8. a cavity; 9. an air outlet pipe; 10. a connecting pipe; 11. an electromagnetic valve; 12. an exhaust pipe; 13. an exhaust fan; 14. a temperature and humidity sensor; 15. a controller; 16. a support bar; 17. connecting blocks; 18. a chute; 19. hooking; 20. a threaded rod; 21. a groove; 22. a motor; 23. an air inlet; 24. a first dust screen; 25. connecting lugs; 26. a screw; 27. a cabinet door; 28. a handle; 29. maintaining the cover; 30. and a second dust screen.

Detailed Description

Fig. 1 to 4 show, which relate to an intelligent wardrobe with dehumidification function, comprising a cabinet body 1, a plurality of clothes storage rooms 2 are arranged inside the cabinet body 1, a supporting tube 3 is fixedly connected inside the clothes storage rooms 2 and at a position close to the top, a heating groove 4 is arranged inside the cabinet body 1 and below each clothes storage room 2, a sliding frame 5 is slidably connected inside the heating groove 4, a heating wire 6 is fixedly installed inside the sliding frame 5, a plurality of through holes 7 are arranged at the top of the heating groove 4, the through holes 7 are communicated with the bottom of the clothes storage rooms 2, a cavity 8 is arranged inside the top of the cabinet body 1, an air outlet pipe 9 is fixedly connected to the top of the clothes storage rooms 2 in a penetrating manner, a connecting pipe 10 is arranged inside the cavity 8, the top end of the air outlet pipe 9 is communicated with the connecting pipe 10, an electromagnetic valve 11 is installed inside each air outlet pipe 9, an exhaust pipe 12 is fixedly connected to one side of the cavity 8, one end of connecting pipe 10 is connected with blast pipe 12, the inside fixed mounting of blast pipe 12 has air discharge fan 13, temperature and humidity sensor 14 is all installed to every inner wall that stores up clothing room 2, the internally mounted of cavity 8 has controller 15, the inside sliding connection of stay tube 3 has bracing piece 16, the last surperficial interval fixedly connected with of bracing piece 16 a plurality of connecting blocks 17, spout 18 has been seted up to the upper surface of stay tube 3, spout 18 and fixedly connected with couple 19 are run through on the top of connecting block 17, the inside threaded rod 20 that has run through the screw thread rotation connection of one end of bracing piece 16.

When the intelligent wardrobe with the dehumidification function is used, when a certain temperature and humidity sensor 14 senses that the humidity in the corresponding clothes storage room 2 is too high, at the moment, the controller 15 controls the corresponding heating wire 6, the motor 22, the electromagnetic valve 11 and the exhaust fan 13 to be started, the heating wire 6 generates heat to accelerate the evaporation of water in the clothes storage room 2, the exhaust fan 13 is started to suck moisture in the clothes storage room 2 through the connecting pipe 10 and the air outlet pipe 9, so that the air circulation speed is accelerated, the motor 22 rotates to drive the threaded rod 20 to rotate, the threaded rod 20 rotates to drive the supporting rod 16 to move back and forth in the supporting pipe 3, so that clothes hung on the hook 19 can be driven to move back and forth, the air flow between the clothes is facilitated, the dehumidification effect is greatly increased, the dehumidification of the single clothes storage room 2 is realized, the dehumidification is not needed to be carried out, and the use cost is greatly saved, when maintenance is needed, the maintenance of the heating wire 6 can be carried out only by unscrewing the screw 26 and drawing out the sliding frame 5, and the maintenance of the exhaust system can be carried out by opening the maintenance cover 29, which is greatly convenient for maintenance personnel.

In a further scheme, a groove 21 is formed in the inner wall of the cabinet body 1 and in a position close to the support tube 3, a motor 22 is installed inside the groove 21, an output shaft of the motor 22 is connected with one end of a threaded rod 20, the motor 22 rotates to drive the threaded rod 20 to rotate, and the threaded rod 20 rotates to drive the support rod 16 to move back and forth in the support tube 3, so that clothes hung on the hook 19 can be driven to move back and forth.

In a further scheme, a plurality of air inlet holes 23 are formed in one side of the outer surface of the sliding frame 5, a first dust screen 24 is embedded in the position, close to the air inlet holes 23, in the sliding frame 5, the air inlet holes 23 are used for facilitating the entry of external air, and the first dust screen 24 is used for preventing dust from entering the sliding frame 5.

In a further scheme, two sides of the outer surface of the sliding frame 5 are symmetrically and fixedly connected with connecting lugs 25, screws 26 penetrate through the outer surface of the connecting lugs 25, and the connecting lugs 25 are connected with the outer surface of the cabinet body 1 through the screws 26, so that the sliding frame 5 is convenient to fix and detach.

In a further scheme, a plurality of cabinet doors 27 are hinged and rotatably connected to the front wall of the cabinet body 1, a handle 28 is mounted on the outer surface of each cabinet door 27, the cabinet doors 27 are located in a relatively closed space for the clothes storage room 2, and the handle 28 is used for facilitating the rotation of the cabinet doors 27.

In a further scheme, maintenance lid 29 is installed in the antetheca embedding of cavity 8, just maintenance lid 29 is for dismantling the connection, the inside embedding of blast pipe 12 is installed second dust screen 30, is convenient for carry out the inside maintenance of cavity 8 through detachable maintenance lid 29, and second dust screen 30 is in order to avoid the dust to get into in blast pipe 12.

In a further scheme, the heating wire 6, the electromagnetic valve 11, the exhaust fan 13, the temperature and humidity sensor 14 and the motor 22 are all connected with the controller 15 through wires, so as to realize dehumidification in the single clothes storage room 2.

The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.

Claims

1. The utility model provides an intelligence wardrobe with dehumidification function, includes the cabinet body (1), its characterized in that: the improved wardrobe is characterized in that a plurality of clothes storage rooms (2) are arranged inside the wardrobe body (1), a supporting pipe (3) is fixedly connected to the position, close to the top, inside the clothes storage rooms (2), a heating groove (4) is formed in the position, located below each clothes storage room (2), inside the cabinet body (1), a sliding frame (5) is connected to the heating groove (4) in a sliding mode, heating wires (6) are fixedly installed inside the sliding frame (5), a plurality of through holes (7) are formed in the top of the heating groove (4), the through holes (7) are communicated with the bottom of the clothes storage rooms (2), a cavity (8) is formed in the top of the wardrobe body (1), an air outlet pipe (9) is fixedly connected to the top of the clothes storage rooms (2) in a penetrating mode, a connecting pipe (10) is arranged inside the cavity (8), and the top end of the air outlet pipe (9) is communicated with the connecting pipe (10), an electromagnetic valve (11) is arranged in each air outlet pipe (9), an exhaust pipe (12) is fixedly connected with one side of the cavity (8) in a penetrating way, one end of the connecting pipe (10) is connected with an exhaust pipe (12), an exhaust fan (13) is fixedly installed inside the exhaust pipe (12), a temperature and humidity sensor (14) is installed on the inner wall of each clothes storage room (2), a controller (15) is arranged in the cavity (8), a support rod (16) is connected in the support tube (3) in a sliding way, the upper surface of the supporting rod (16) is fixedly connected with a plurality of connecting blocks (17) at intervals, the upper surface of the supporting tube (3) is provided with a sliding groove (18), the top end of the connecting block (17) penetrates through the sliding groove (18) and is fixedly connected with a hook (19), a threaded rod (20) which is rotatably connected through threads penetrates through the inner part of one end of the supporting rod (16).

2. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: the utility model discloses a cabinet body, including cabinet body (1), the inner wall of cabinet body and be close to the position of stay tube (3) and set up recess (21), the internally mounted of recess (21) has motor (22), the output shaft of motor (22) is connected with the one end of threaded rod (20).

3. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: a plurality of air inlets (23) are formed in one side of the outer surface of the sliding frame (5), and a first dust screen (24) is embedded in the position, close to the air inlets (23), in the sliding frame (5).

4. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: the outer surface both sides symmetry fixedly connected with engaging lug (25) of slide frame (5), screw (26) have been run through to the surface of engaging lug (25), engaging lug (25) are connected with the surface of the cabinet body (1) through screw (26).

5. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: the front wall hinge of the cabinet body (1) is rotatably connected with a plurality of cabinet doors (27), and handles (28) are mounted on the outer surfaces of the cabinet doors (27).

6. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: maintenance lid (29) is installed in the antetheca embedding of cavity (8), just maintenance lid (29) are for dismantling the connection, second dust screen (30) are installed in the inside embedding of blast pipe (12).

7. The intelligent wardrobe with dehumidification function as claimed in claim 1, wherein: the heating wire (6), the electromagnetic valve (11), the exhaust fan (13), the temperature and humidity sensor (14) and the motor (22) are all connected with the controller (15) through leads.
