CN214737317U - Steel-concrete combined rigid frame bridge connected through slots - Google Patents

Steel-concrete combined rigid frame bridge connected through slots Download PDF

Info

Publication number
CN214737317U
CN214737317U CN202022772000.7U CN202022772000U CN214737317U CN 214737317 U CN214737317 U CN 214737317U CN 202022772000 U CN202022772000 U CN 202022772000U CN 214737317 U CN214737317 U CN 214737317U
Authority
CN
China
Prior art keywords
plate
prefabricated
sections
steel
plates
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Active
Application number
CN202022772000.7U
Other languages
Chinese (zh)
Inventor
宁平华
王晟
周伟光
张松涛
乐小刚
熊洪波
胡会勇
刘兵
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
Guangzhou Municipal Engineering Design & Research Institute Co Ltd
Original Assignee
Guangzhou Municipal Engineering Design & Research Institute Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by Guangzhou Municipal Engineering Design & Research Institute Co Ltd filed Critical Guangzhou Municipal Engineering Design & Research Institute Co Ltd
Priority to CN202022772000.7U priority Critical patent/CN214737317U/en
Application granted granted Critical
Publication of CN214737317U publication Critical patent/CN214737317U/en
Active legal-status Critical Current
Anticipated expiration legal-status Critical

Links

Images

Abstract

The utility model discloses a slot connection's steel-concrete combination rigid frame bridge, this steel-concrete combination rigid frame bridge include a plurality of prefabricated girder segments, pier stud, prefabricated crossbeam segments, longitudinal joint section and transverse connection section, and adjacent segment is indulged the bridge and is formed the girder structure to connecting, and adjacent girder structure passes through the transverse connection section and connects formation bridge span structure. The prefabricated pier top section is divided into a prefabricated pier top section a and a prefabricated pier top section b, the prefabricated pier top section a is arranged right above the pier stud, and no pier stud is arranged right below the prefabricated pier stud section b; the prefabricated pier top section a is provided with a slotted hole, an exposed reinforcing steel bar is arranged above the pier stud and inserted into the slotted hole, and high-strength concrete grout is poured into the slotted hole to realize the connection of the prefabricated beam and the pier stud. The steel-concrete composite rigid frame bridge member connected by the slots is convenient to manufacture, transport and construct, is beneficial to fully exerting the structural advantages and the advantages of assembly construction of the steel-concrete composite beam, can realize industrial production, sectional transport and assembly construction, and meets the requirement of green development.

Description

Steel-concrete combined rigid frame bridge connected through slots
Technical Field
The utility model relates to a bridge technical field, in particular to slot connection's steel reinforced concrete combination rigid frame bridge.
Background
Along with the acceleration of the urbanization process, municipal bridge construction projects are gradually increased, and the traffic capacity of a construction area is easily suddenly reduced by the traditional cast-in-place construction, so that the smoothness and the safety of roads are influenced, even traffic interruption often occurs, and the working life of residents is greatly influenced; in addition, the traditional cast-in-place site has large workload, low construction efficiency, high overall energy consumption and serious disturbance phenomenon, and the assembled bridge can remarkably accelerate the construction progress, reduce the interference to the existing traffic and be beneficial to environmental protection through member industrialized manufacturing and assembling construction.
The reinforced concrete composite beam exerts respective material advantages of steel and concrete, is a bridge structure with strong competitiveness, is easy to design into an assembly type member, and is convenient and fast to construct on site. The design method of the assembly type steel-concrete combined continuous beam commonly used at the present stage is to set the main beam as a longitudinal sectional component and need to set a large-scale bent cap structure, so that the structure height is increased, the building cost is improved, and the aesthetic feeling is greatly reduced. In addition, splicing among sections is realized through the support of the temporary piers on site, the setting time of the temporary piers usually runs through the whole bridge construction process, the interference of construction on the passage of roads below is increased, and meanwhile, the investment of construction units is increased. Although the temporary piers are removed after the steel beams are spliced by the cast-in-place concrete layer after the steel beams are constructed firstly, a large number of templates need to be erected on the site, the site workload is increased, and the steel consumption of the structure is increased due to the stability requirement in the construction process of the steel beams and the characteristic that the steel beams are combined with the concrete later.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a slot connection's steel reinforced concrete combination rigid frame bridge to at least one of the problem of proposing among the solution above-mentioned background art.
The technical scheme adopted for solving the technical problems is as follows:
a slot-connected steel-concrete combined rigid frame bridge comprises a plurality of prefabricated main beam sections, a pier column, prefabricated cross beam sections, prefabricated pier top sections, a longitudinal connecting section and a transverse connecting section, wherein the prefabricated main beam sections comprise prefabricated end sections, prefabricated pier top sections and prefabricated middle beam sections, the prefabricated main beam sections comprise steel beams, beam top concrete plates, beam bottom concrete and a plurality of shear connecting pieces, the steel beams comprise first top plates, first bottom plates and first web plates, the beam top concrete plates are positioned above the first top plates, the beam bottom concrete is positioned in a negative bending moment area of the first bottom plates, and the shear connecting pieces are welded in the negative bending moment areas of the first top plates and the first bottom plates and integrally connect the beam top concrete plates, the beam bottom concrete and main beams;
the prefabricated pier top sections comprise prefabricated pier top sections a and prefabricated pier top sections b, the prefabricated pier top sections a are arranged right above the pier stud, and no pier stud is arranged right below the prefabricated pier stud sections b;
the prefabricated pier top section a comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate, an overhanging bottom plate, an overhanging web plate, a hole wall steel plate, a transverse partition plate, a longitudinal partition plate, a hole wall steel plate stud, a first bottom plate stud and a second bottom plate stud, wherein the second bottom plate is provided with an opening, the hole wall steel plate is arranged between the second web plates at the position of the opening, the hole wall steel plate and the second web plate form a slotted hole, the hole wall steel plate stud is arranged inside the slotted hole, the second top plate above the slotted hole is provided with a grouting hole, an exposed reinforcing steel bar is arranged above the pier column and inserted into the slotted hole, and high-strength concrete slurry is poured into the slotted hole from the grouting hole to realize the connection of the prefabricated pier top section a and the pier column; the transverse partition plates are perpendicular to the second web plates and are provided with a plurality of transverse partition plates, the first base plate studs are arranged above the second base plate between the transverse partition plates and the hole wall steel plates, and concrete with a certain thickness is poured; the longitudinal partition plate and the second web plate are arranged in parallel to enhance the torsion resistance of an overhanging plate of the precast pier top section a, the second bottom plate stud is arranged above the overhanging bottom plate between the longitudinal partition plate and the second web plate, and concrete with a certain thickness is poured to resist local larger pressure;
the prefabricated pier top section b comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate, an overhanging bottom plate, an overhanging web plate, transverse partition plates, longitudinal partition plates, first bottom plate studs and second bottom plate studs, wherein the first bottom plate studs are arranged above the second bottom plate between the transverse partition plates, and concrete with a certain thickness is poured;
the prefabricated beam segment is arranged between the prefabricated pier top segment a and the prefabricated pier top segment b and consists of a third top plate, a third bottom plate, a third web plate and a stiffening rib, and the third bottom plate and the overhanging bottom plate, the third web plate and the overhanging web plate and the third top plate and the overhanging top plate are connected in a welding mode;
and the prefabricated pier top sections are respectively welded with the prefabricated end sections and the prefabricated middle beam sections to form a main beam structure, and a bridge deck is poured to form a bridge span structure.
Furthermore, bolt holes are formed in the end portions of the overhanging bottom plate, the overhanging web plate, the third bottom plate and the third web plate, the third bottom plate and the overhanging bottom plate and the third web plate and the overhanging web plate are connected into a whole through connecting plates and high-strength bolts, and the third top plate and the overhanging top plate are connected into a whole through welding;
and top plates between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and welded and fixed, and bottom plates and web plates between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and are fixedly connected through connecting plates and high-strength bolts.
Further, an temporary anchor ear is arranged above the pier stud and serves as a construction stage support of the prefabricated pier top section a.
Furthermore, two longitudinal connecting steel members are arranged above the top plate where the precast pier top section, the precast middle beam section and the precast end section are butted with the precast middle beam section, one end of each longitudinal connecting steel member is pre-buried and fixed in the beam top concrete plate, the other end of one longitudinal connecting steel member extends to the upper side of the adjacent top plate and is butted and welded and fixed with the longitudinal connecting steel member correspondingly arranged above the adjacent top plate, and the other end of the other longitudinal connecting steel member is butted and welded and fixed with the longitudinal connecting steel member correspondingly extending out of the adjacent top plate; the longitudinal connecting steel members are provided with round holes, transverse steel bars penetrate into the round holes, wet seams of the cast-in-place longitudinal connecting sections form the longitudinal connecting sections, wet seams of the cast-in-place transverse connecting sections form the transverse connecting sections, and then a bridge span structure is formed.
Further, the longitudinal connecting steel member is an angle steel, and the bottom of the angle steel is fixedly welded with the top plate.
The utility model has the advantages that: the capping beam is hidden in the main beam structure to form a hidden beam structure, so that the pier column height is reduced, the aesthetic feeling is improved, and the overall manufacturing cost is reduced; the prefabricated beam is internally provided with a slotted hole, a shear connecting piece is arranged in the slotted hole, exposed steel bars of the pier stud are inserted into the slotted hole, rigid connection between the pier stud and the capping beam is realized through high-strength concrete grout, the steel consumption of the structure is reduced by utilizing the advantages of a system, and the manufacturing cost is saved; the longitudinal connecting steel members are utilized to realize connection between the sections, the problem that large sections are difficult to transport and hoist is solved, the structural advantages of the reinforced concrete composite beam are favorably and fully exerted, the construction is quick and convenient, the industrialized production, the sectional transportation and the assembly construction can be realized, and the traffic interference time is favorably shortened.
Drawings
The invention is further described with reference to the following figures and examples:

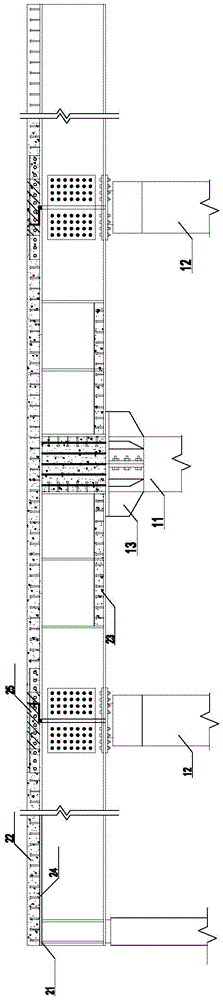

FIG. 1 is a sectional view of a segment with a span number of 3;
FIG. 2 is a schematic side view of a slot;
FIG. 3 is a top view of a slot-connected steel-concrete composite rigid frame bridge;
FIG. 4 is a schematic cross-sectional view of a slot.
Detailed Description
Referring to fig. 1 to 4, an embodiment of the present invention provides a slot-connected steel-concrete composite rigid frame bridge, which includes a plurality of prefabricated girder segments, a pier stud 11, a prefabricated beam segment, a prefabricated pier top segment, a longitudinal connecting segment and a transverse connecting segment, wherein the prefabricated girder segments include prefabricated end segments, prefabricated pier top segments and prefabricated middle beam segments, the prefabricated girder segments include a steel beam 21, a beam top concrete plate 22, a beam bottom concrete 23 and a plurality of shear connectors 24, the steel beam 21 includes a first top plate, a first bottom plate and a first web plate, the beam top concrete plate 22 is located above the first top plate, the beam bottom concrete plate 23 is located in a negative bending moment area of the first bottom plate, the shear connectors 24 are welded in the negative bending moment area of the first top plate and the first bottom plate and connect the beam top concrete plate 22, the beam bottom concrete 23 and a girder into a whole; the prefabricated pier top section comprises a prefabricated pier top section a and a prefabricated pier top section b, the prefabricated pier top section a is arranged right above the pier stud 11, and no pier stud 11 is arranged right below the prefabricated pier stud 11 section b.
The prefabricated pier top section a comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate 36, an overhanging bottom plate 38, an overhanging web plate 37, a hole wall steel plate 32, a transverse partition plate 33, a longitudinal partition plate 34, a hole wall steel plate stud 35, a first bottom plate stud and a second bottom plate stud, wherein the second bottom plate is provided with an opening 31, the hole wall steel plate 32 is arranged between the second web plates at the position of the opening 31, the hole wall steel plate 32 and the second web plate form a slotted hole, the hole wall steel plate stud 35 is arranged inside the slotted hole, the second top plate above the slotted hole is provided with a grouting hole, an exposed steel bar 111 is arranged above the pier stud 11, the exposed steel bar 111 is inserted into the slotted hole, and high-strength concrete grout is poured into the slotted hole from the grouting hole to realize the connection of the prefabricated pier top section a and the pier stud 11; the transverse partition plates 33 are perpendicular to the second web plates and are provided with a plurality of blocks, first bottom plate studs are arranged above the second bottom plates between the transverse partition plates 33 and the hole wall steel plates 32, and concrete with a certain thickness is poured; the longitudinal partition plate 34 is arranged in parallel with the second web plate to enhance the torsion resistance of the overhanging plate of the prefabricated pier top section a, a second bottom plate stud is arranged above the overhanging bottom plate 38 between the longitudinal partition plate 34 and the second web plate, and concrete with certain thickness is poured to resist local larger pressure; the prefabricated pier top section b comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate 36, an overhanging bottom plate 38, an overhanging web plate 37, transverse partition plates 33, longitudinal partition plates 34, first bottom plate studs and second bottom plate studs, wherein the first bottom plate studs are arranged above the second bottom plate between the transverse partition plates 33, and concrete with a certain thickness is poured; the prefabricated beam sections are arranged between the prefabricated pier top sections a and b and are composed of a third top plate, a third bottom plate, a third web plate and stiffening ribs, and the third bottom plate is connected with the overhanging bottom plate 38, the third web plate is connected with the overhanging web plate 37 and the third top plate is connected with the overhanging top plate 36 in a welding mode; and the prefabricated pier top sections are respectively welded with the prefabricated end sections and the prefabricated middle beam sections to form a main beam structure, and the bridge deck is poured to form a bridge span structure.
In some embodiments, bolt holes are formed in the end portions of the overhanging bottom plate 38, the overhanging web 37, the third bottom plate and the third web, the third bottom plate and the overhanging bottom plate 38 and the third web and the overhanging web 37 are integrally connected through connecting plates and high-strength bolts, and the third top plate and the overhanging top plate 36 are integrally connected through welding; the top plates between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and welded and fixed, and the bottom plates and the webs between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and are fixedly connected through connecting plates and high-strength bolts. The fixed connection among the top plate, the web plate and the bottom plate is realized through bolt connection and welding, so that the strength is ensured, and the construction is convenient.
Further, set up interim staple bolt 13 above pier stud 11, interim staple bolt 13 supports as the construction stage of prefabricated pier top segment a.
In some embodiments, two longitudinal connecting steel members 25 are arranged above the top plate where the precast pier top section and the precast center sill section are butted, and the precast end section and the precast center sill section are butted, one end of each longitudinal connecting steel member 25 is pre-buried and fixed in the beam top concrete plate 22, the other end of one longitudinal connecting steel member 25 extends to the upper side of the adjacent top plate, and is butted and welded with the longitudinal connecting steel member 25 correspondingly arranged above the adjacent top plate, and the other end of the other longitudinal connecting steel member 25 is butted and welded with the longitudinal connecting steel member 25 correspondingly extending from the adjacent top plate; the longitudinal connecting steel member 25 is provided with a round hole, a transverse steel bar penetrates into the round hole, a wet joint of the longitudinal connecting section is cast in place to form a longitudinal connecting section, and a wet joint of the transverse connecting section is cast in place to form a transverse connecting section, so that a bridge span structure is formed.
Preferably, the longitudinal connecting steel member 25 is an angle steel, and the bottom of the angle steel is welded and fixed with the top plate.
In the embodiment, the capping beam is hidden in the main beam structure to form a hidden beam structure, so that the height of the pier stud 11 is reduced, the aesthetic feeling is improved, and the total manufacturing cost is reduced; the prefabricated beam is internally provided with a slotted hole, a shear connecting piece 24 is arranged in the slotted hole, exposed steel bars 111 of the pier stud 11 are inserted into the slotted hole, rigid connection between the pier stud 11 and the capping beam is realized through high-strength concrete grout, the steel consumption of the structure is reduced by utilizing the advantages of a system, and the manufacturing cost is saved; the steel-concrete composite rigid frame bridge member connected by the slots is convenient to manufacture, transport and construct, is beneficial to fully exerting the structural advantages and the advantages of assembly construction of the steel-concrete composite beam, can realize industrial production, sectional transport and assembly construction, and meets the requirement of green development. And the bottoms of the hogging moment areas of the precast pier top sections are provided with partition plates for enhancing the torsion resistance of the structure and studs and beam bottom concrete 23 for improving local stress.
Meanwhile, the longitudinal connecting steel members 25 are used for realizing the connection between the sections, so that the problem that the large sections are difficult to transport and hoist is solved, the structural advantages of the steel-concrete composite beam are fully exerted, the construction is quick and convenient, the industrial production, the sectional transportation and the assembly construction can be realized, and the traffic interference time is shortened; the sections of the prefabricated main beam are subjected to bolt welding between the sections, so that the welding quality problem possibly caused by the overhead welding of the bottom plate is avoided, and the pressed area of the main beam structure is increased due to the widening of the top plate; the longitudinal connecting steel member 25 is matched with the top plate for welding, and the temporary pier 12 below the longitudinal connecting section can be detached after the welding is finished, so that the traffic interference time to the road below is greatly reduced; the longitudinal connecting steel member 25 is internally provided with a circular hole, the first steel bar is penetrated, then concrete is poured, and the prefabricated main beam sections and the beam top concrete plate 22 can be effectively poured and connected into a whole on the premise of assembly construction, so that the construction is simplified. In addition, when the prefabricated sections are manufactured, the prefabricated middle beam sections are set to be pre-bent structures, so that the compression performance of concrete can be fully utilized, the steel consumption is reduced, and the cracking of pier top concrete is avoided.
The prefabricated main beam sections meet the requirement of coordination of engineering building modules, industrial large-scale production is facilitated, the width of wet joints of the transverse connecting sections can be adjusted, and the prefabricated main beam sections are suitable for application of the widening sections.
The following construction method of the slot-connected steel-concrete composite rigid frame bridge comprises the following steps:
s1, manufacturing a prefabricated pier top section a, a prefabricated pier top section b, a prefabricated end section, a prefabricated middle beam section and a prefabricated beam section;
s2, pouring or hoisting the pier stud 11, installing a temporary anchor ear 13, hoisting the prefabricated pier top section a, extending the exposed steel bar 111 of the pier stud 11 into a slotted hole in the prefabricated pier top section a, arranging a temporary pier 12 below an interface among the prefabricated pier top section a, the prefabricated pier top section b, the prefabricated end section and the prefabricated middle beam section, hoisting the prefabricated pier top section a, the prefabricated pier top section b, the prefabricated end section and the prefabricated middle beam section, adjusting the linear shape of the main beam and connecting the sections;
s3, penetrating transverse reinforcing steel bars into the circular holes of the longitudinal connecting steel members 25, performing connection operation of other reinforcing steel bars, pouring wet joints of the longitudinal connecting sections and beam bottom concrete 23 in sequence, and pouring high-strength concrete slurry into the slotted holes from top grouting holes to realize connection of the prefabricated beam and the pier stud 11;
s4, removing the temporary pier 12;
s5, pouring wet joints of the transverse connecting sections, and pouring concrete bridge decks of the prefabricated pier top sections;
s6, constructing a bridge deck and accessory facilities.
Preferably, in step S1, the precast center sill segment is fabricated into a composite girder structure with pre-bending prestress by using the pre-bending principle, and the method specifically includes the following steps:
utilizing a reaction frame to fix beam tops at two ends of the prefabricated middle beam section;
arranging a jack at the bottom of the prefabricated middle beam section and applying a jacking force, and replacing the jack with a midspan beam bottom support when the jacking force reaches a preset value;
subsequently casting a beam-top concrete slab 22 on top of the precast center beam section;
carrying out jacking force unloading after the strength of the beam top concrete plate 22 on the top of the precast middle beam section meets the requirement;
and (5) completing prebending.
The embodiments of the present invention have been described in detail with reference to the accompanying drawings, but the present invention is not limited to the above embodiments, and various changes can be made without departing from the gist of the present invention within the scope of knowledge possessed by those skilled in the art.

Claims (5)

1. The utility model provides a slot-connected's steel reinforced concrete combination rigid frame bridge which characterized in that: the prefabricated girder sections comprise prefabricated end sections, prefabricated pier top sections and prefabricated middle girder sections, the prefabricated girder sections comprise girder beams, girder top concrete plates, girder bottom concrete and a plurality of shear connectors, the girder beams comprise first top plates, first bottom plates and first web plates, the girder top concrete plates are positioned above the first top plates, the girder bottom concrete is positioned in a negative bending moment area of the first bottom plates, and the shear connectors are welded in the negative bending moment areas of the first top plates and the first bottom plates and connect the girder top concrete plates, the girder bottom concrete and the girder into a whole;
the prefabricated pier top sections comprise prefabricated pier top sections a and prefabricated pier top sections b, the prefabricated pier top sections a are arranged right above the pier stud, and no pier stud is arranged right below the prefabricated pier top sections b;
the prefabricated pier top section a comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate, an overhanging bottom plate, an overhanging web plate, a hole wall steel plate, a transverse partition plate, a longitudinal partition plate, a hole wall steel plate stud, a first bottom plate stud and a second bottom plate stud, wherein the second bottom plate is provided with an opening, the hole wall steel plate is arranged between the second web plates at the position of the opening, the hole wall steel plate and the second web plate form a slotted hole, the hole wall steel plate stud is arranged inside the slotted hole, the second top plate above the slotted hole is provided with a grouting hole, an exposed reinforcing steel bar is arranged above the pier column and inserted into the slotted hole, and high-strength concrete slurry is poured into the slotted hole from the grouting hole to realize the connection of the prefabricated pier top section a and the pier column; the transverse partition plates are perpendicular to the second web plates and are provided with a plurality of transverse partition plates, the first base plate studs are arranged above the second base plate between the transverse partition plates and the hole wall steel plates, and concrete with a certain thickness is poured; the longitudinal partition plate and the second web plate are arranged in parallel to enhance the torsion resistance of an overhanging plate of the precast pier top section a, the second bottom plate stud is arranged above the overhanging bottom plate between the longitudinal partition plate and the second web plate, and concrete with a certain thickness is poured to resist local pressure;
the prefabricated pier top section b comprises a second top plate, a second bottom plate, a second web plate, an overhanging top plate, an overhanging bottom plate, an overhanging web plate, transverse partition plates, longitudinal partition plates, first bottom plate studs and second bottom plate studs, wherein the first bottom plate studs are arranged above the second bottom plate between the transverse partition plates, and concrete with a certain thickness is poured;
the prefabricated beam segment is arranged between the prefabricated pier top segment a and the prefabricated pier top segment b and consists of a third top plate, a third bottom plate, a third web plate and a stiffening rib, and the third bottom plate and the overhanging bottom plate, the third web plate and the overhanging web plate and the third top plate and the overhanging top plate are connected in a welding mode;
and the prefabricated pier top sections are respectively welded with the prefabricated end sections and the prefabricated middle beam sections to form a main beam structure, and a bridge deck is poured to form a bridge span structure.
2. The slot-connected steel-concrete composite rigid frame bridge according to claim 1, wherein: bolt holes are formed in the end portions of the overhanging bottom plate, the overhanging web plate, the third bottom plate and the third web plate, the third bottom plate and the overhanging bottom plate as well as the third web plate and the overhanging web plate are connected into a whole through connecting plates and high-strength bolts, and the third top plate and the overhanging top plate are connected into a whole through welding;
and top plates between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and welded and fixed, and bottom plates and web plates between the prefabricated pier top sections and the prefabricated middle beam sections and between the prefabricated end sections and the prefabricated middle beam sections are mutually butted and are fixedly connected through connecting plates and high-strength bolts.
3. The slot-connected steel-concrete composite rigid frame bridge according to claim 2, wherein: and an temporary anchor ear is arranged above the pier stud and used as a construction stage support of the prefabricated pier top section a.
4. The slot-connected steel-concrete composite rigid frame bridge according to claim 3, wherein: two longitudinal connecting steel members are arranged above the top plate where the precast pier top section and the precast middle beam section are butted, and the precast end section and the precast middle beam section are butted, one end of each longitudinal connecting steel member is pre-buried and fixed in the beam top concrete plate, the other end of one longitudinal connecting steel member extends to the upper part of the adjacent top plate, is butted with the longitudinal connecting steel member correspondingly arranged above the adjacent top plate and then is welded and fixed, and the other end of the other longitudinal connecting steel member is butted with the longitudinal connecting steel member correspondingly extending out of the adjacent top plate and then is welded and fixed; the longitudinal connecting steel members are provided with round holes, transverse steel bars penetrate into the round holes, wet seams of the cast-in-place longitudinal connecting sections form the longitudinal connecting sections, wet seams of the cast-in-place transverse connecting sections form the transverse connecting sections, and then a bridge span structure is formed.
5. The slot-connected steel-concrete composite rigid frame bridge according to claim 4, wherein: the longitudinal connecting steel member is an angle steel, and the bottom of the angle steel is fixedly welded with the top plate.
