CN214731995U - A kind of inductive vibration plate - Google Patents
A kind of inductive vibration plate Download PDFInfo
- Publication number
- CN214731995U CN214731995U CN202120952421.XU CN202120952421U CN214731995U CN 214731995 U CN214731995 U CN 214731995U CN 202120952421 U CN202120952421 U CN 202120952421U CN 214731995 U CN214731995 U CN 214731995U
- Authority
- CN
- China
- Prior art keywords
- material channel
- vibrating disc
- channel
- disc body
- inductive
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Jigging Conveyors (AREA)
Abstract
本实用新型公开了一种电感振动盘，包括振动盘本体，所述振动盘本体内设置有螺旋料道且呈渐开上升式，所述振动盘本体的出口与转轨连接，所述螺旋料道与转轨之间还设置有吹气料道，所述螺旋料道上设置有第一调整槽和两个导料槽，所述第一调整槽呈弧形且向出料方向尺寸逐渐减小，所述导料槽和吹气料道均倾斜设置，所述振动盘本体上设置有多个第一气孔，所述第一气孔位于螺旋料道上方，所述吹气料道上设置有第二调整槽和多个第二气孔，所述螺旋料道位于第二调整槽下方，减少对电感磨损的同时提高工作效率。
The utility model discloses an inductive vibrating disc, which comprises a vibrating disc body. A spiral material channel is arranged in the vibrating plate body and is in an involute rising type. The outlet of the vibrating disc body is connected with a turning rail. There is also an air blowing material channel between the turning rail and the spiral material channel. A first adjustment groove and two material guide grooves are arranged on the spiral material channel. The material guiding chute and the air blowing material channel are both inclined and arranged, the vibrating plate body is provided with a plurality of first air holes, the first air holes are located above the spiral material channel, and the air blowing material channel is provided with a second adjustment groove And a plurality of second air holes, the spiral material channel is located under the second adjustment groove, which reduces the wear on the inductance and improves the work efficiency.
Description
Technical Field
The utility model relates to a vibration dish field especially relates to an inductance vibration dish.
Background
The vibrating disc is an auxiliary device of an automatic assembly machine, can orderly discharge specific products, and can be matched with the automatic assembly machine to assemble all parts of the products together to form a complete product. The existing vibration disc can reject the inductance which is not in line with the detection requirement by directly utilizing an air blowing method when the inductance is transported, the inductance with wrong direction is too much, the inductance is directly abraded due to the rejection, and the working efficiency is low.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects, the utility model aims to provide an inductance vibration dish which can improve the work efficiency when reducing the abrasion of the inductance.
In order to achieve the above purpose, the utility model discloses a technical scheme is: the utility model provides an inductance vibration dish, includes the vibration dish body, this internal spiral material way that is provided with of vibration dish just is the formula that rises of gradually opening, the export and the turn rail of vibration dish body are connected, still be provided with between spiral material way and the turn rail and blow the material way, be provided with first adjustment tank and two baffle houses on the spiral material way, first adjustment tank is the arc and reduces gradually to ejection of compact direction size, the baffle house with blow the material and say all slope settings, be provided with a plurality of first gas pockets on the vibration dish body, first gas pocket is located spiral material way top, it is provided with second adjustment tank and a plurality of second gas pocket on the material way to blow, the spiral material is said and is located second adjustment tank below.
Further, the bottom surface of the vibration disc body is provided with three arc-shaped grooves in a counterclockwise manner.
Furthermore, the downward sloping is provided with the sieve material slide in the vibration dish body, arbitrary one the arc recess communicates with sieve material slide, two the baffle box all is located sieve material slide top and is connected with it.
Further, still be provided with the feed chute in the vibration dish body, feed chute one end is connected with spiral material way, all the other two the arc recess all communicates with the feed chute.
Further, be provided with the waste material passageway on the vibration dish body, the waste material passageway is located spiral material way one side and rather than the intercommunication.
Furthermore, the turning rail is connected with the straight rail, and a linear controller is arranged at the bottom of the straight rail.
Compared with the prior art, the utility model, its beneficial effect lies in:
1. the direction of the inductor is adjusted through the matching of the first adjusting groove, the first air hole positioned at the tail end of the first adjusting groove, the second adjusting groove and the second air hole positioned at the tail end of the first adjusting groove, so that the abrasion of direct screening on the inductor is avoided;
2. through the matching of the guide chute and the air blowing material channel which are inclined downwards and the first air hole and the second air hole on the air blowing material channel which are respectively positioned above the guide chute, the inductors which do not meet the conditions fall into the vibration disc and are rearranged and conveyed;
3. unqualified inductors are discharged by arranging a waste material channel.
Drawings

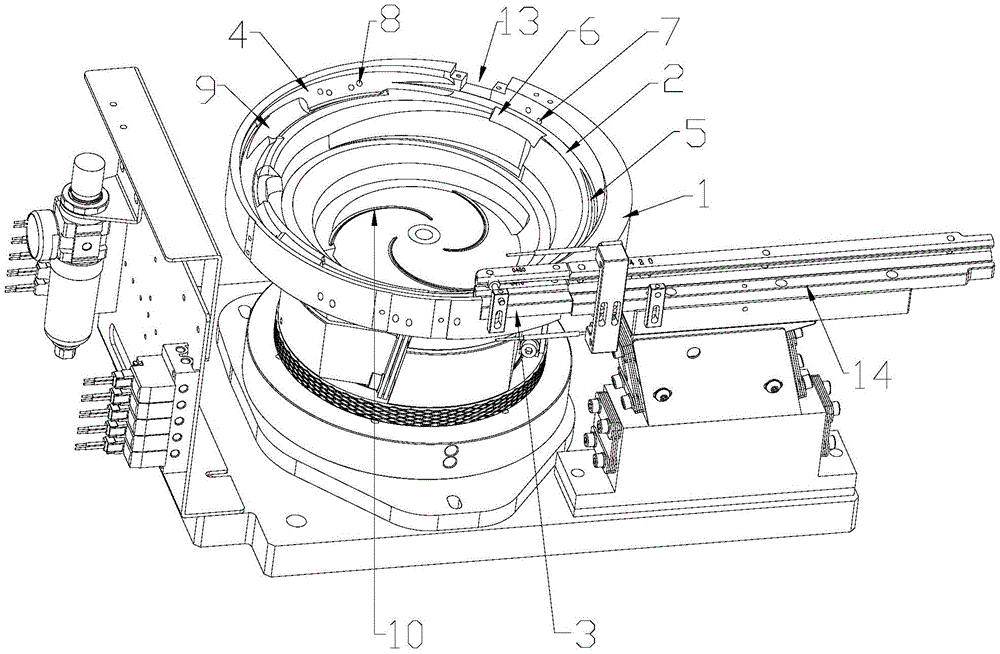

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the vibrating disk body.
In the figure:
1-vibrating the tray body; 2-a spiral material channel; 3-transferring; 4-blowing the material channel; 5-a material guide groove; 6-a first adjustment slot; 7-a first air vent; 8-second pores; 9-a second adjustment groove; 10-arc groove; 11-a material screening chute; 12-a feed chute; 13-a waste channel; 14-straight rail.
Detailed Description
The following detailed description of the preferred embodiments of the present invention will be provided in conjunction with the accompanying drawings, so as to enable those skilled in the art to more easily understand the advantages and features of the present invention, and thereby define the scope of the invention more clearly and clearly.
Referring to fig. 1 and 2, an inductance vibration disc comprises a vibration disc body 1, wherein a spiral material channel 2 is arranged in the vibration disc body 1 and is in a gradually-opened ascending type, an outlet of the vibration disc body 1 is connected with a rotating rail 3, an air blowing material channel 4 is also arranged between the spiral material channel 2 and the rotating rail 3, a first adjusting groove 6 and two material guide grooves 5 are arranged on the spiral material channel 2, the first adjusting groove 6 is arc-shaped and gradually reduces in size towards a discharging direction, the material guide grooves 5 and the air blowing material channel 4 are both obliquely arranged, a plurality of first air holes 7 are formed in the vibration disc body 1, the first air holes 7 are located above the spiral material channel 2, a second adjusting groove 9 and a plurality of second air holes 8 are formed in the air blowing material channel 4, and the spiral material channel 2 is located below the second adjusting groove 9;
in the embodiment, three arc-shaped grooves 10 are arranged on the bottom surface of the vibration disc body 1 anticlockwise, a screening slideway 11 is arranged in the vibration disc body 1 in a downward inclined mode, any one arc-shaped groove 10 is communicated with the screening slideway 11, two guide chutes 5 are positioned above and connected with the screening slideway 11, a feed chute 12 is further arranged in the vibration disc body 1, one end of the feed chute 12 is connected with the spiral material channel 2, and the other two arc-shaped grooves 10 are communicated with the feed chute 12;
in the embodiment, the vibration disc body 1 is provided with the waste material channel 13, and the waste material channel 13 is positioned on one side of the spiral material channel 2 and communicated with the spiral material channel to realize seed changing and material cleaning;
in this embodiment, the turning rail 3 is connected to the straight rail 14, and the bottom of the straight rail 14 is provided with a linear controller to realize inductive transmission.
The specific working process is as follows: the inductor at the bottom of the vibration disc body 1 moves along the arc-shaped grooves 10 and moves to the spiral material channel 2 through the feeding chute 12, because the screening material slide ways 11 are arranged in a downward inclined mode, the inductor can only move from the spiral material channel 2, when the inductor moves through the first adjusting chute 6, if the direction of the inductor is opposite to the set direction, the first air hole 7 at the tail end of the first adjusting chute 6 blows air to adjust the position of the inductor, if the position is still wrong after adjustment, when the inductor passes through the material guide chute 5, the first air hole 7 above the inductor blows air to enable the inductor to slide onto the inclined screening material slide ways 11, finally the inductor falls into the arc-shaped grooves 10 connected with the inductor through the screening material slide ways 11, and the inductor is arranged on the spiral material channel 2 from the rest two arc-shaped grooves 10 through vibration;
in order to avoid screen leakage, when the inductor moves through the material channel of the air blowing material channel 4, if the direction of the inductor is opposite to the set direction, the second air holes 8 at the tail ends of the second adjusting grooves 9 blow air to adjust the position of the inductor, and if the adjusted position is still wrong, the rest second air holes 8 blow air to enable the inductor to fall to the spiral material channel 2 for re-adjustment.
The above embodiments are only for illustrating the technical concept and features of the present invention, and the purpose thereof is to enable those skilled in the art to understand the contents of the present invention and implement the present invention, so as not to limit the protection scope of the present invention, and all equivalent changes or modifications made according to the spirit of the present invention should be covered in the protection scope of the present invention.
