CN214727506U

CN214727506U - Portable label printer of product

Info

Publication number: CN214727506U
Application number: CN202120413755.XU
Authority: CN
Inventors: 郭北航
Original assignee: Hebei Zhixingmingdao Internet Of Things Technology Co ltd
Current assignee: Zhixing Mingdao Hebei Technology Co ltd
Priority date: 2021-02-25
Filing date: 2021-02-25
Publication date: 2021-11-16
Anticipated expiration: 2031-02-25

Abstract

The utility model discloses a product portable label printer, comprising a casing structure, a transmission device, a power source, a driven structure and a printing device. The inner lower end of the casing structure is provided with a power source, and the upper end of the power source is provided with a transmission device , the upper end of the transmission device is provided with a printing device, and the back of the printing device is provided with a driven structure. The utility model is provided with a servo motor, a rotating shaft, a rotating roller, a connecting head and a fixed column, so that the device can pass the servo motor. The rotation drives the rotating shaft to rotate, so as to drive the rotating roller to rotate, and then the label to be printed can be detached from the rotating roller. With the lower ink tube, ink storage tank, fixing block and scraper blade, the required content can be printed on the label. The device is simple in structure and small in size, can be easily carried and used when going out, and meets people's needs for use.

Description

Portable label printer of product

Technical Field

The utility model belongs to the technical field of the printer, concretely relates to portable label printer of product.

Background

Along with the increasing degrees of production automation and office automation, various production and office equipment required in daily work of people are more and more, and along with the continuous expansion of unit scale, branches, business outlets, production bases and the like are more and more, no matter the mobility of staff, the adjustment of staff work posts and the establishment and the cancellation of departments are more frequent than before, so that higher requirements are put forward on the management of the office equipment and the production equipment.

The existing product portable label printer has the following problems: the existing label printer is large in size, inconvenient to carry and use and incapable of meeting actual use requirements.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a portable label printer of product to the current label printer size that proposes in solving above-mentioned background art is great, portable, and use inconvenient problem moreover.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a product portable label printer, includes shell structure, transmission, power, driven structure and printing device, shell structure's inside lower extreme is provided with the power, the upper end of power is provided with transmission, transmission's upper end is provided with printing device, printing device's the back is provided with driven structure, transmission includes servo motor, pivot, live-rollers, connector and fixed column, servo motor's right-hand member transmission is connected with the pivot, the right-hand member fixedly connected with live-rollers of pivot, the right-hand member fixedly connected with connector of live-rollers, the right-hand member swing joint of connector has the fixed column.

Preferably, shell structure includes roof, shell, dust guard, first telescopic link, the USB interface that charges, second telescopic link, the lower extreme fixedly connected with shell of roof, the front of shell is provided with the USB interface that charges, the first telescopic link of lower extreme one side fixedly connected with of dust guard, opposite side fixedly connected with second telescopic link.

Preferably, driven structure includes first limiting plate, second limiting plate, first spliced pole, recess, head rod, driven voller, second connecting rod and second spliced pole, the back of first limiting plate is provided with the second limiting plate, one side fixedly connected with head rod of driven voller, opposite side fixedly connected with second connecting rod, the right-hand member swing joint of head rod has the first spliced pole, the right-hand member swing joint of second connecting rod has the second spliced pole, the left end of first spliced pole is seted up flutedly.

Preferably, the printing device comprises a lower ink tube, an ink storage tank, a fixing block and a doctor blade, the fixing block is fixedly connected to the lower end of the ink storage tank, the doctor blade is fixedly connected to the lower end of the fixing block, and the lower ink tube is arranged at the left end of the fixing block.

Preferably, one side of the lower ink tube is fixedly connected with an ink storage box, and the other side of the lower ink tube is fixedly connected with a doctor blade.

Preferably, the lower end of the top plate is fixedly connected with an ink storage tank.

Compared with the prior art, the utility model provides a portable label printer of product possesses following beneficial effect:

the utility model discloses a set up servo motor, the pivot, the live-rollers, connector and fixed column, make this device rotate through servo motor and drive the pivot and rotate to can drive the live-rollers and rotate, and then can break away from the label that needs print from the live-rollers, under the cooperation china ink pipe, store up china ink case, fixed block and ink scraping knife, can print the content that needs on the label, the simple structure of this device, the size is less, can conveniently carry the use when going out, accord with people's user demand.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description, do not constitute a limitation of the invention, in which:

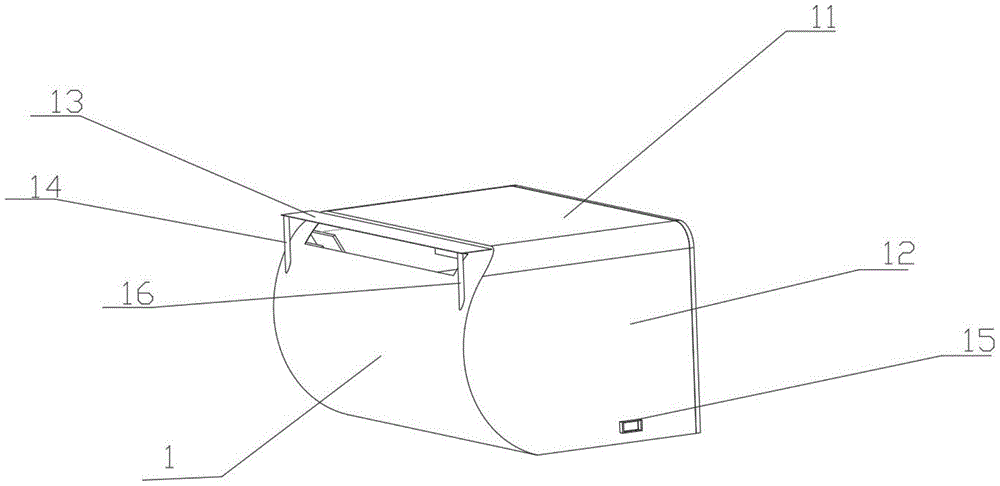

fig. 1 is a schematic structural view of a portable label printer according to the present invention;

FIG. 2 is a cross-sectional view of the portable label printer of the present invention;

fig. 3 is a cross-sectional view of the portable label printer of the present invention from another perspective;

in the figure: 1. a housing structure; 2. a transmission device; 3. a power source; 4. a driven structure; 5. a printing device; 11. a top plate; 12. a housing; 13. a dust-proof plate; 14. a first telescopic rod; 15. a USB charging interface; 16. a second telescopic rod; 21. a servo motor; 22. a rotating shaft; 23. a rotating roller; 24. a connector; 25. fixing a column; 41. a first limit plate; 42. a second limiting plate; 43. a first connecting column; 44. a groove; 45. a first connecting rod; 46. a driven roller; 47. a second connecting rod; 48. a second connecting column; 51. an ink discharging pipe; 52. an ink storage tank; 53. a fixed block; 54. a doctor blade.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "front", "rear", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.

Referring to fig. 1-3, the utility model provides a product portable label printer, which comprises a housing structure 1, a transmission device 2, a power supply 3, a driven structure 4 and a printing device 5, wherein the power supply 3 is arranged at the lower end of the interior of the housing structure 1, the transmission device 2 is arranged at the upper end of the power supply 3, the printing device 5 is arranged at the upper end of the transmission device 2, the driven structure 4 is arranged at the back of the printing device 5, the transmission device 2 comprises a servo motor 21, a rotating shaft 22, a rotating roller 23, a connector 24 and a fixed column 25, the right end of the servo motor 21 is in transmission connection with the rotating shaft 22, the right end of the rotating shaft 22 is fixedly connected with the rotating roller 23, the right end of the rotating roller 23 is fixedly connected with the connector 24, the right end of the connector 24 is movably connected with the fixed column 25, the rotating shaft 22 is driven to rotate by the rotation of the servo motor 21, so as to drive the rotating roller 23 to rotate, and further to separate the label to be printed from the rotating roller 23.

Shell structure 1 includes roof 11, shell 12, dust guard 13, first telescopic link 14, USB charges interface 15, second telescopic link 16, the lower extreme fixedly connected with shell 12 of roof 11, the front of shell 12 is provided with USB charge interface 15, USB charges interface 15 and can be when power 3 does not have the electricity, charge through the treasured that charges, facilitate the use, the first telescopic link 14 of lower extreme one side fixedly connected with of dust guard 13, opposite side fixedly connected with second telescopic link 16, dust guard 13 can be through the flexible and up-and-down motion of first telescopic link 14 and second telescopic link 16, can fall dust guard 13 when not using, thereby reduce the dust and get into in the casing.

Referring to fig. 2, the driven structure 4 includes a first limiting plate 41, a second limiting plate 42, a first connecting column 43, a groove 44, a first connecting rod 45, a driven roller 46, a second connecting rod 47 and a second connecting column 48, the back of the first limiting plate 41 is provided with the second limiting plate 42, one side fixedly connected with first connecting rod 45 of the driven roller 46, another side fixedly connected with second connecting rod 47, the right end of the first connecting rod 45 is movably connected with the first connecting column 43, the right end of the second connecting rod 47 is movably connected with the second connecting column 48, and the groove 44 is provided at the left end of the first connecting column 43.

Referring to fig. 3, the printing device 5 includes a lower ink tube 51, an ink storage tank 52, a fixing block 53 and a doctor blade 54, the fixing block 53 is fixedly connected to the lower end of the ink storage tank 52, the doctor blade 54 is fixedly connected to the lower end of the fixing block 53, the lower ink tube 51 is disposed at the left end of the fixing block 53, the doctor blade 54 is hollow, the inside of the doctor blade 54 can be filled with ink through the lower ink tube 51, the blade head of the doctor blade 54 is made of ink-permeable material, and a label can be printed through the blade head.

Specifically, one side of the lower ink tube 51 is fixedly connected with an ink storage tank 52, the other side is fixedly connected with a doctor blade 54, and the lower end of the top plate 11 is fixedly connected with the ink storage tank 52.

The utility model discloses a theory of operation and use flow: the utility model discloses install the back, open dust guard 13 through first telescopic link 14 and second telescopic link 16, open servo motor 21, rotate through servo motor 21 and drive pivot 22 and rotate to can drive live-rollers 23 and rotate, and then can break away from the tag that needs to print from live-rollers 23, cooperation driven voller 46 rotates, and the tag passes through between first limiting plate 41 and the second limiting plate 42.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A product portable label printer, includes shell structure (1), transmission (2), power (3), driven structure (4) and printing device (5), its characterized in that: the utility model discloses a printing device, including shell structure (1), power (3), transmission (2), printing device (5), driven structure (4), transmission (2), servo motor (21), pivot (22), live-rollers (23), connector (24) and fixed column (25), the right-hand member transmission of servo motor (21) is connected with pivot (22), the right-hand member fixedly connected with live-rollers (23) of pivot (22), the right-hand member fixedly connected with connector (24) of live-rollers (23), the right-hand member swing joint of connector (24) has fixed column (25).

2. A product portable label printer as claimed in claim 1, wherein: shell structure (1) includes roof (11), shell (12), dust guard (13), first telescopic link (14), USB charge interface (15), second telescopic link (16), lower extreme fixedly connected with shell (12) of roof (11), the front of shell (12) is provided with USB interface (15) that charges, the first telescopic link of lower extreme one side fixedly connected with (14) of dust guard (13), opposite side fixedly connected with second telescopic link (16).

3. A product portable label printer as claimed in claim 1, wherein: driven structure (4) include first limiting plate (41), second limiting plate (42), first spliced pole (43), recess (44), head rod (45), driven voller (46), second connecting rod (47) and second spliced pole (48), the back of first limiting plate (41) is provided with second limiting plate (42), one side fixedly connected with head rod (45) of driven voller (46), opposite side fixedly connected with second connecting rod (47), the right-hand member swing joint of head rod (45) has first spliced pole (43), the right-hand member swing joint of second connecting rod (47) has second spliced pole (48), recess (44) are seted up to the left end of head rod (43).

4. A product portable label printer as claimed in claim 1, wherein: the printing device (5) comprises a lower ink pipe (51), an ink storage box (52), a fixing block (53) and a doctor blade (54), wherein the fixing block (53) is fixedly connected to the lower end of the ink storage box (52), the doctor blade (54) is fixedly connected to the lower end of the fixing block (53), and the lower ink pipe (51) is arranged at the left end of the fixing block (53).

5. A product portable label printer according to claim 4, wherein: one side of the lower ink pipe (51) is fixedly connected with an ink storage box (52), and the other side of the lower ink pipe is fixedly connected with a doctor blade (54).

6. A product portable label printer as claimed in claim 2, wherein: the lower end of the top plate (11) is fixedly connected with an ink storage box (52).
