本实用新型公开了一种铺料行车减速电机拆卸悬挂装置，铺料行车的传动轴与减速电机的输出轴相连接，减速电机的顶部设有电机悬挂部，电机悬挂部上开有悬挂孔，悬挂装置包括可拆卸安装在铺料行车机架上的连接板，连接板一侧设有安装板，安装板位于铺料行车上方，安装板底部设有左右相对的两个悬挂部件，两个悬挂部件上可拆卸安装有沿左右方向延伸的悬挂杆，电机悬挂部的悬挂孔套装在悬挂杆上，且电机悬挂部能在悬挂杆上位于两个悬挂部件之间的部位左右滑动。本实用新型相比现有技术具有以下优点：实现了铺料行车减速电机的拆卸和安装仅需单人即可作业。
The utility model discloses a dismantling suspension device of a deceleration motor for a paving crane. A transmission shaft of the paving crane is connected with an output shaft of the deceleration motor. The top of the deceleration motor is provided with a motor suspension part, and the motor suspension part is provided with a suspension hole. The suspension device includes a connecting plate detachably installed on the paving vehicle frame, one side of the connecting plate is provided with a mounting plate, the mounting plate is located above the paving vehicle, and the bottom of the mounting plate is provided with two left and right opposite suspension parts, two suspension parts. A suspension rod extending in the left and right directions is detachably installed on the component, the suspension hole of the motor suspension part is sleeved on the suspension rod, and the motor suspension part can slide left and right on the part of the suspension rod located between the two suspension parts. Compared with the prior art, the utility model has the following advantages: the disassembly and installation of the deceleration motor for the paving vehicle can be realized by only one person.
Description
Technical Field
The utility model belongs to the technical field of mechanical equipment technique and specifically relates to a stone driving gear motor dismantles linkage that relates to.
Background
The spreading travelling crane has the function of conveying the materials conveyed from the upstream into the storage cabinet and forming the stored materials with a certain material layer height. According to the structural characteristics of the paving travelling crane equipment, the paving travelling crane is respectively driven by one reducing motor to drive the conveying belt, one reducing motor drives the wheels to travel, a direct-connection installation mode is adopted between the two reducing motors and the transmission shaft of the paving travelling crane, and all the connecting parts are in rigid connection. When a transmission shaft of the spreading travelling crane is loosened or broken, the transmission shaft needs to be replaced, at the moment, a motor needs to be separated from the transmission shaft of the spreading travelling crane by using a special tool, then a new transmission shaft is replaced, and then a speed reducing motor and the new transmission shaft are installed.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome prior art's is not enough, provides a stone driving gear motor dismantles linkage to realize that stone driving gear motor's dismantlement and installation only need one can the operation.
The utility model discloses a realize through following technical scheme:
the utility model provides a stone driving gear motor dismantles linkage, the transmission shaft of stone driving is connected with gear motor's output shaft, and the axis of establishing the transmission shaft of stone driving extends along controlling the direction, and gear motor's top is equipped with motor linkage, and it has the hole that hangs that extends along controlling the direction to open in the motor linkage, linkage includes the connecting plate of demountable installation in stone driving frame, and connecting plate one side is equipped with the mounting panel, and the mounting panel is located stone driving top, and two relative suspension members about the mounting panel bottom is equipped with, and demountable installation has the pole that hangs that extends along controlling the direction on two suspension members, and the hole suit that hangs of motor linkage is on hanging the pole, and the motor linkage can be located the position horizontal slip between two suspension members on hanging the pole.
Furthermore, one of the two suspension parts at the bottom of the connecting plate is provided with a through hole, the other suspension part is provided with a threaded hole, the suspension rod is a screw rod, the rod part of the screw rod sequentially penetrates through the through hole and the threaded hole and then is screwed with a nut, the detachable installation between the screw rod and the two suspension parts is realized, and the screw rod, the through hole and the threaded hole are coaxially arranged.
Furthermore, a plurality of waist-shaped holes are formed in the connecting plate, and bolts penetrate through the waist-shaped holes and are screwed into the paving travelling crane frame, so that the connecting plate and the paving travelling crane frame are installed.
Compared with the prior art, the utility model has the following advantages:
the utility model provides a pair of linkage is dismantled to stone traveling crane gear motor, it is at the stone traveling crane shelf location linkage, through the hole sliding fit that hangs of the pole that hangs on the linkage and motor linkage, realized hanging the support in midair to gear motor on the one hand, on the other hand has realized leading to gear motor's horizontal slip, the gear motor of being convenient for leaves the transmission shaft of stone traveling crane, reserve the space for the change of transmission shaft, after the transmission shaft has been changed, slide gear motor original road to initial position again, the accurate nature of complex between gear motor and the transmission shaft has been guaranteed, single can the operation in narrow and small space in the high altitude, and operation labour saving and time saving, the maintenance efficiency of equipment has effectively been improved.
Drawings

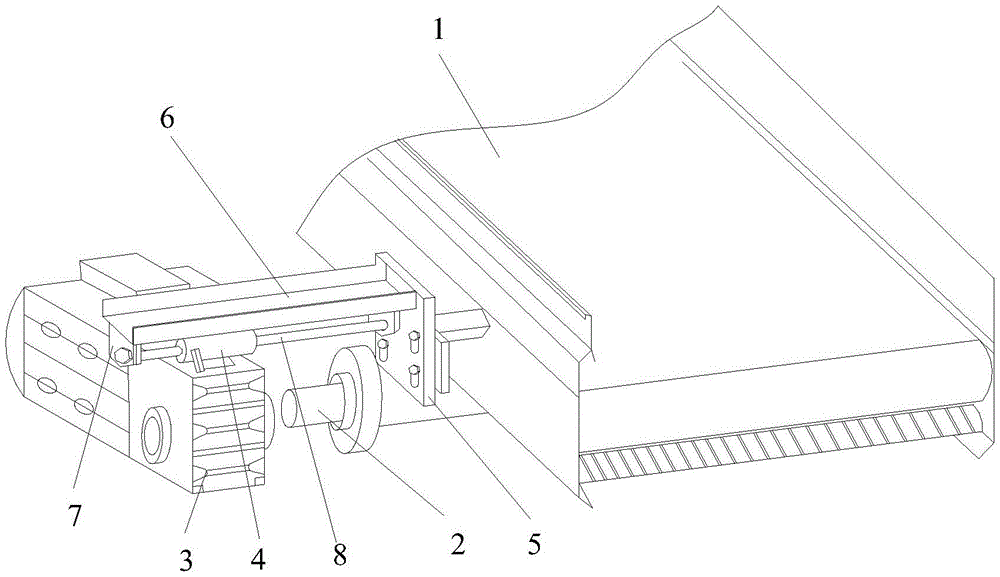

Fig. 1 is a perspective view of the present invention.
Fig. 2 is a front view of the present invention.
Fig. 3 is a left side view of the present invention.
Fig. 4 is a perspective view of the present invention in use.
Reference numbers in the figures: 1, paving and traveling; 2, driving a shaft; 3, a speed reducing motor; 4 a motor suspension part; 5 connecting plates; 6, mounting a plate; 7 a suspension member; 8 hanging rods; 9, a nut; 10 waist-shaped holes; 11 bolts.
Detailed Description
The embodiments of the present invention will be described in detail below, and the present embodiment is implemented on the premise of the technical solution of the present invention, and a detailed implementation manner and a specific operation process are given, but the scope of the present invention is not limited to the following embodiments.
Referring to fig. 1 to 4, the present embodiment provides a dismounting and hanging device for a speed reduction motor of a paving travelling crane, a transmission shaft 2 of the paving travelling crane 1 is connected with an output shaft of the speed reduction motor 3, an axis of the transmission shaft 2 of the paving travelling crane 1 extends along a left-right direction, a motor hanging portion 4 is arranged at the top of the speed reduction motor 3, and a hanging hole extending along the left-right direction is formed in the motor hanging portion 4.
The suspension device comprises a connection plate 5 which is detachably mounted on a frame of a paving travelling crane 1, a mounting plate 6 is arranged on one side of the connection plate 5, the mounting plate 6 can adopt U-shaped channel steel, the mounting plate 6 is positioned above the paving travelling crane 1, two suspension parts 7 which are opposite to each other about the mounting plate 6 is arranged at the bottom of the mounting plate 6, suspension rods 8 which extend along the left and right directions are detachably mounted on the two suspension parts 7, suspension holes of a motor suspension part 4 are sleeved on the suspension rods 8, and the motor suspension part 4 can slide left and right at the positions, between the two suspension parts 7, on the suspension rods 8.
Two hang parts 7 at the bottom of connecting plate 5, it has the perforation to open on one of them hang part 7, it has the screw hole to open on another hang part 7, hangs the pole 8 and is the screw rod, and the pole portion of screw rod is twisted on nut 9 after passing perforation and screw hole in proper order, realizes the demountable installation between screw rod and two hang parts 7, and screw rod, perforation, screw hole coaxial setting.
A plurality of waist-shaped holes 10 are formed in the connecting plate 5, and bolts 11 penetrate through the waist-shaped holes 10 and are screwed into the frame of the spreading traveling crane 1, so that the connecting plate 5 and the frame of the spreading traveling crane 1 are installed. The vertical position of the connecting plate 5 can be adjusted by adjusting the vertical position of the bolt 11 in the waist-shaped hole 10, so that the vertical position of the suspension rod 8 can be finely adjusted to be accurately matched with the suspension hole of the motor suspension part 4 of the speed reduction motor 3.
When the transmission shaft 2 of the paving travelling crane 1 needs to be replaced, the connecting plate 5 is installed on the frame of the paving travelling crane 1, then the rod part of the screw rod sequentially penetrates through the through hole of one suspension part 7 and the suspension hole of the motor suspension part 4 and then is screwed into the threaded hole of the other suspension part 7, the rod part of the screw rod penetrates through the threaded hole of the other suspension part 7 and is screwed with the nut 9, the screw rod cannot move left and right under the limiting action of the head part of the screw rod and one suspension part 7 and the limiting action of the nut 9 and the other suspension part 7, and then the suspension support of the speed reducing motor 3 is completed. And then, detaching the speed reducing motor 3 from the transmission shaft 2 of the spreading travelling crane 1 by using a detaching tool, enabling the speed reducing motor 3 to slide leftwards along the suspension rod 8, enabling the speed reducing motor 3 to leave the transmission shaft 2, and after a new transmission shaft 2 is replaced, moving the speed reducing motor 3 rightwards, and enabling the speed reducing motor 3 and the transmission shaft 2 to be well installed.
The above description is only exemplary of the present invention and should not be construed as limiting the present invention, and any modifications, equivalents and improvements made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
