CN214719013U

CN214719013U - High-efficient cotton fibre cleaning equipment

Info

Publication number: CN214719013U
Application number: CN202121056191.5U
Authority: CN
Inventors: 席丽平; 王金聚
Original assignee: Hebei Fuxin Textile Co ltd
Current assignee: Hebei Fuxin Textile Co ltd
Priority date: 2021-05-17
Filing date: 2021-05-17
Publication date: 2021-11-16
Anticipated expiration: 2031-05-17

Abstract

The utility model relates to the technical field of lint cleaning, in particular to a high-efficiency lint cleaning device, comprising a collection bucket, a bucket cover is connected to the collection bucket, and a collection liner is arranged in the collection bucket, and the bucket cover is connected and installed through a fixed pipe and a telescopic pipe There is a suction pipe, the bottom end of the fixed pipe is connected with an inner row pipe, a plurality of operating rods are arranged through the side wall of the barrel cover, and the bottom and top ends of the plurality of operating rods are respectively connected with a lower pressure ring plate and a connecting ring. A limiting piece is arranged on the rod, a fixing ring, a curtain ring and an operating ring are sequentially connected to the top of the collecting liner, a support ring is connected to the upper part of the inner side wall of the collecting bucket, a fine suction pipe is connected to the suction pipe, and the suction end of the suction pipe is connected to the upper part of the inner side wall of the collecting barrel. The suction end of the fine suction tube is respectively provided with a suction blocking cover and a fine suction blocking cover, which can prevent the cotton wool from falling out when the bucket lid is opened, and collect cotton wool and other impurities in the inner tank from falling out of it, and it is convenient for some Absorb in smaller places.

Description

High-efficient cotton fibre cleaning equipment

Technical Field

The utility model relates to a clean technical field of cotton fibre specifically is a high-efficient cotton fibre cleaning equipment.

Background

In the daily production and processing process of the textile industry, a plurality of similar light substances such as cotton wool, flying velvet, cotton threads, cloth strips and rag leftover materials can be generated, the fine fiber floaters and the like are easy to gather and adhere to the corners of gaps of equipment, the traditional manual cleaning is difficult, the cleaning difficulty is high, and the workload is large.

To this type of waste disposal, the special industry dust catcher of textile industry has been researched and developed in the market, be used for clearing up the cotton fibre specially, light fiber waste such as fine hair flies, roughly include the organism, be provided with the collecting vessel on the organism, the upper portion of collecting vessel is connected with the bung, and the inside of collecting vessel is provided with the collection inner bag, install the suction tube through fixed pipe and flexible pipe intercommunication on the bung, the gyro wheel is installed to the bottom of organism, when it is using, can manually control in the collection inner bag that the suction tube inhales impurity such as cotton fibre in the collecting vessel, and can open the bung when needing, take out the collection inner bag and clear up.

Although the prior art scheme in the aforesaid is convenient for inhale impurity such as clean cotton fibre, still have some defects, because impurity texture such as cotton fibre is lighter, the cotton fibre of gathering in collecting the inner bag scatters out when the bung is opening easily, cause secondary pollution, and collect the inner bag and taking the in-process that removes, impurity such as cotton fibre also easily from here drifts out, simultaneously because the pipe diameter of suction tube is great relatively, though inhale the efficiency of collection higher, but be not convenient for inhale the collection to some comparatively tiny places.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a not enough to prior art, the utility model provides a high-efficient cotton fibre cleaning equipment to the cotton fibre in the collection inner bag that proposes in solving the background art easily scatters out when the bung is opening, and collects the inner bag and also easily from here the floating out of impurity such as cotton fibre when taking to hold the removal, is not convenient for carry out the problem of suction collection to some comparatively tiny places simultaneously.

(II) technical scheme

In order to achieve the above object, the utility model provides a following technical scheme: a high-efficiency cotton cleaning device comprises a machine body, wherein a collecting barrel is arranged on the machine body, a barrel cover is connected to the upper portion of the collecting barrel, a collecting inner container is arranged inside the collecting barrel, a suction pipe is arranged on the barrel cover through a fixed pipe and a telescopic pipe in a communicating mode, an inner discharge pipe is communicated with the bottom end of the fixed pipe, a plurality of operating rods penetrate through the side wall of the barrel cover, the bottom ends of the operating rods are located inside the barrel cover and fixedly connected with a lower pressing ring plate, the top ends of the operating rods are located on the upper side of the barrel cover and fixedly connected with a connecting frame, a limiting part is arranged on each operating rod, a fixing ring is fixedly connected to the top end of the collecting inner container, an operating ring is fixedly connected to the top end of the fixing ring through a cloth curtain ring, a supporting ring for supporting the operating ring is fixedly connected to the upper portion of the inner side wall of the collecting barrel, and a fine suction pipe is communicated and installed on the side wall of the suction pipe, and the suction end of the suction pipe and the suction end of the fine suction pipe are respectively provided with a suction stop cover and a fine suction stop cover.

Preferably, the limiting part is a limiting insertion rod, and a limiting through hole matched with the limiting insertion rod is formed in the side wall of the operating rod.

Furthermore, a plurality of inclined supporting soft strips are uniformly distributed on the side wall of the cloth curtain ring.

Still further, inhale and keep off the equal fixedly connected with go-between on the lateral wall that the lid was kept off with the smart inhaling, inhale equal fixedly connected with on the lateral wall of pipe and smart straw and prevent losing the ring to between the go-between on preventing losing the ring on the pipe and inhaling and keeping off the lid, prevent losing the ring on smart straw and smart inhaling and keep off the go-between on covering and all being connected with the connection rope.

As a further scheme of the scheme, the outer side walls of the suction blocking cover and the fine suction blocking cover are fixedly connected with storage rings, and the outer side walls of the suction pipe and the fine suction pipe are fixedly connected with storage hooks.

As a further scheme of the scheme, the side walls of the suction blocking cover and the fine suction blocking cover are both connected with sealing plugs.

On the basis of the scheme, one end of the limiting insertion rod is fixedly connected with an operation seat.

On the basis of the scheme, the top end of the barrel cover is provided with a plurality of accommodating slots matched with the limiting insertion rods corresponding to the limiting insertion rods.

(III) advantageous effects

Compared with the prior art, the utility model provides a high-efficient cotton fibre cleaning equipment possesses following beneficial effect:

1. this high-efficient cotton fibre cleaning equipment, the interior calandria of fixed bobbin end intercommunication can make the inside of collecting the inner bag by direct row of impurity such as inspiratory cotton fibre, and simultaneously, through go-between and a plurality of action bars, can drive the lower clamping ring board that is located the inside of bung and go up and down in the bung, thereby be convenient for carry out certain pushing down to impurity such as the cotton fibre of collecting the inner bag inside and collecting, impurity such as the cotton fibre of collecting in the messenger collection inner bag is difficult for directly scattering out when the bung opens, the locating part that sets up on the action bars can the high position of spacing action bars running through on the bung, so that reduce the influence to normal work in the collecting vessel.

2. This high-efficient cotton fibre cleaning equipment, the support ring is used for supporting the operating ring, so that the inside accessible space of operating ring can keep passable state, through solid fixed ring, the cooperation of cloth curtain ring sum operating ring, can make the cloth curtain ring at operating ring pivoted in-process by the spiral rotation to blocking the inside accessible space of operating ring, thereby impurity such as cotton fibre that can will collect in the collection inner bag is restricted in collecting the inner bag, make impurity such as cotton fibre when collecting the inner bag and holding the removal difficult the whereabouts of following of collection inner bag.

3. This high-efficient cotton fibre cleaning equipment, stop the suction end of covering installation shutoff essence straw when the essence is inhaled to when the suction end of inhaling the pipe is open state, can use to inhale the pipe and carry out the work of higher suction set of efficiency, stop the suction end of inhaling the pipe when inhaling, and when the suction end of essence straw is open state, can use the essence straw to inhale set work comparatively tiny place, the practicality is higher.

Drawings

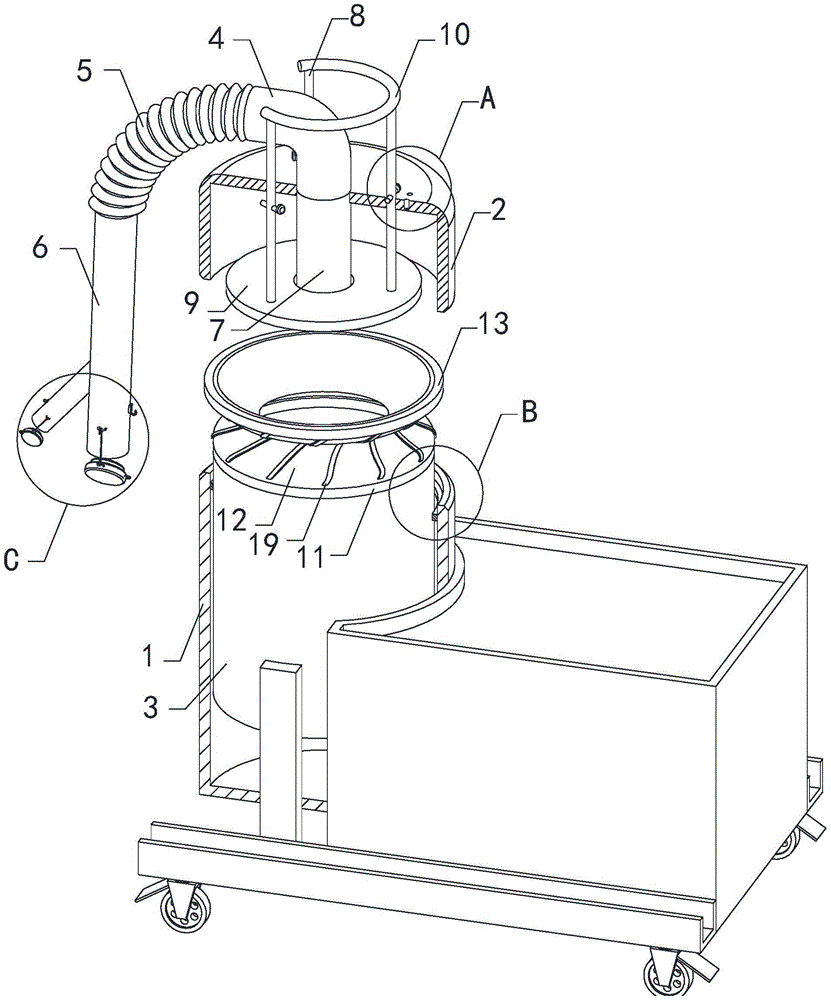

FIG. 1 is a schematic view of the exploded perspective structure of the present invention;

FIG. 2 is a schematic view of a portion of the enlarged structure of FIG. 1;

FIG. 3 is a schematic view of a portion of the enlarged structure of FIG. 1 at B according to the present invention;

fig. 4 is a schematic view of a partial enlarged structure at C in fig. 1 according to the present invention;

fig. 5 is a schematic view of the overall three-dimensional structure of the present invention.

In the figure: 1. a collection barrel; 2. a barrel cover; 3. collecting the inner container; 4. a fixed tube; 5. a telescopic pipe; 6. a suction tube; 7. an inner calandria; 8. an operating lever; 9. pressing the ring plate downwards; 10. a connecting frame; 11. a fixing ring; 12. a cord loop; 13. an operating ring; 14. a support ring; 15. a fine straw; 16. a suction flap; 17. a fine suction stop cover; 18. a limiting inserted rod; 19. obliquely supporting the soft strips; 20. a connecting ring; 21. a loss prevention ring; 22. connecting ropes; 23. a receiving ring; 24. a receiving hook; 25. a sealing plug; 26. an operation seat.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1-5, a high-efficiency cotton cleaning device comprises a device body, wherein a collecting barrel 1 is arranged on the device body, a barrel cover 2 is connected to the upper part of the collecting barrel 1, a collecting inner container 3 is arranged inside the collecting barrel 1, a suction pipe 6 is arranged on the barrel cover 2 through a fixed pipe 4 and a telescopic pipe 5, an inner discharge pipe 7 is communicated with the bottom end of the fixed pipe 4, a plurality of operating rods 8 are arranged on the side wall of the barrel cover 2 in a penetrating manner, the bottom ends of the operating rods 8 are arranged inside the barrel cover 2 and are fixedly connected with a lower press ring plate 9, the top ends of the operating rods 8 are arranged on the upper side of the barrel cover 2 and are fixedly connected with a connecting frame 10, the lower press ring plate 9 arranged inside the barrel cover 2 can be driven to lift in the barrel cover 2 through a connecting ring 20 and the operating rods 8, so as to press down impurities such as cotton collected inside the collecting inner container 3, impurity such as the cotton fibre of collection in the messenger collection inner bag 3 is difficult for directly scattering out when opening at bung 2, be provided with the locating part on the action bars 8, the locating part is spacing inserted bar 18, set up the spacing through-hole that matches with spacing inserted bar 18 on the lateral wall of action bars 8, when spacing inserted bar 18 traverses in spacing through-hole, spacing inserted bar 18 can the high position of spacing action bars 8 running through on bung 2, so that reduce the influence to normal work in the collecting vessel 1, the one end fixedly connected with operation panel 26 of spacing inserted bar 18, be convenient for operate spacing inserted bar 18, the top of bung 2 corresponds a plurality of spacing inserted bars 18 and has seted up a plurality of slots of accomodating that match with spacing inserted bar 18, the effect that a plurality of accomodating the slot setting lies in can accomodating spacing inserted bar 18 when spacing inserted bar 18 need not to use.

Further, a fixed ring 11 is fixedly connected to the top end of the collecting inner container 3, an operation ring 13 is fixedly connected to the top of the fixed ring 11 through a cloth curtain ring 12, a plurality of inclined supporting soft strips 19 are uniformly distributed on the side wall of the cloth curtain ring 12 to facilitate the spiral rotation of the cloth curtain ring 12, a support ring 14 for supporting the operation ring 13 is fixedly connected to the upper portion of the inner side wall of the collecting barrel 1, the support ring 14 is used for supporting the operation ring 13 so that the accessible space inside the operation ring 13 can be kept in a accessible state, when the operation ring 13 is rotated to approach or fit the fixed ring 11, the curtain ring 12 can be spirally rotated to block the passing space inside the operation ring 13, thereby can be with collecting impurity such as cotton fibre of collecting in the inner bag 3 by the restriction in collecting inner bag 3, make and collect inner bag 3 and be difficult for falling out from it when holding the removal impurity such as cotton fibre.

Furthermore, the side wall of the suction pipe 6 is communicated with and installed with the fine suction pipe 15, and the suction end of the suction pipe 6 and the suction end of the fine suction pipe 15 are respectively provided with a suction stop cover 16 and a fine suction stop cover 17, the side walls of the suction stop cover 16 and the fine suction stop cover 17 are both connected with a sealing plug 25, which is convenient for further improving the plugging effect of the suction stop cover 16 and the fine suction stop cover 17, the outer side walls of the suction stop cover 16 and the fine suction stop cover 17 are both fixedly connected with a connecting ring 20, the outer side walls of the suction pipe 6 and the fine suction pipe 15 are both fixedly connected with an anti-loss ring 21, and a connecting rope 22 is respectively connected between the anti-loss ring 21 on the suction pipe 6 and the connecting ring 20 on the suction stop cover 16, and the connecting ring 20 on the fine suction stop cover 17, which is convenient for reducing the loss of the suction stop cover 16 and the fine suction stop cover 17, the outer side walls of the suction stop cover 16 and the fine suction stop cover 17 are both fixedly connected with a receiving ring 23, and the outer side walls of the suction pipe 6 and the fine suction pipe 15 are fixedly connected with a receiving hook 24, so that when the suction blocking cover 16 and the fine suction blocking cover 17 are not needed to be used, the receiving ring 23 can be hung on the receiving hook 24 for receiving and hanging.

In conclusion, the working principle and working process of the efficient cotton cleaning device are that when impurities such as cotton wool are cleaned, the suction pipe 6 or the fine suction pipe 15 can be selected to be used according to the position to be sucked and collected, when a large amount of impurities such as cotton wool are required to be sucked and collected, the suction end of the fine suction pipe 15 can be sealed and blocked by the fine suction blocking cover 17, the suction end of the suction pipe 6 is opened, then the suction pipe 6 is used for sucking and collecting with high efficiency, when a small place is required to be sucked and collected, the suction end of the suction pipe 6 can be sealed and blocked by the suction blocking cover 16, the suction end of the fine suction pipe 15 is opened, and then the fine suction pipe 15 can be used for sucking and collecting with small size or accuracy.

When impurity such as cotton fibre is inhaled in the collecting vessel 1, interior calandria 7 can make the inside of collecting inner bag 3 of more direct row of impurity such as inhaled cotton fibre, when needing to clear up in the collecting vessel 1, can extract and insert in accomodating the slot earlier spacing inserted bar 18 that traverses in the spacing through-hole and accomodate well, then accessible go-between 20 and a plurality of action bars 8 drive down and push down the jam plate 9 and carry out certain pushing down to impurity such as cotton fibre of collecting inner bag 3 inside collection, impurity such as cotton fibre of collecting in the messenger collection inner bag 3 is difficult for directly scattering out when bung 2 opens.

When collecting inner bag 3 and need take out to clear up, can be earlier through the handle ring 13, cloth curtain ring 12 and solid fixed ring 11 will collect inner bag 3 and propose from collecting vessel 1, then can fix solid fixed ring 11 on one hand, the other hand rotates handle ring 13 towards a direction, make cloth curtain ring 12 at handle ring 13 pivoted in-process by the spiral rotation to blocking the inside accessible space of handle ring 13, thereby can be with collecting impurity such as cotton fibre of inner bag 3 internal collection by the restriction in collecting inner bag 3, it is difficult for following the falling out to collect impurity such as cotton fibre when inner bag 3 is holding the removal, when empting impurity such as cotton fibre in collecting inner bag 3, reverse rotation handle ring 13 makes cloth curtain ring 12 resume to smooth-going state at handle ring 13 pivoted in-process, it can to empty impurity such as cotton fibre in collecting inner bag 3 again.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. A high-efficiency cotton wool cleaning device, comprising a body, a collection bucket (1) is provided on the body, a bucket cover (2) is connected to the upper part of the collection bucket (1), and a collection liner is arranged inside the collection bucket (1) (3), a suction pipe (6) is connected and installed on the barrel cover (2) through a fixed pipe (4) and a telescopic pipe (5), and is characterized in that: the bottom end of the fixed pipe (4) is connected with an inner pipe (7), a plurality of operating rods (8) are arranged through the side wall of the barrel cover (2), and the bottom ends of the plurality of operating rods (8) are located inside the barrel cover (2) and are fixedly connected with a downward pressure The ring plate (9), the top ends of the plurality of operating rods (8) are located on the upper side of the barrel cover (2) and are fixedly connected with a connecting frame (10), the operating rod (8) is provided with a limiting member, and the collecting liner The top of (3) is fixedly connected with the fixing ring (11), and the top of the fixing ring (11) is fixedly connected with the operating ring (13) through the curtain ring (12), and the upper part of the inner side wall of the collecting bucket (1) is fixedly connected. In the support ring (14) supporting the operation ring (13), the fine suction pipe (15) is connected and installed on the side wall of the suction pipe (6), and the suction end of the suction pipe (6) and the fine suction pipe (15) are connected. The suction end is respectively provided with a suction blocking cover (16) and a fine suction blocking cover (17).

2. A high-efficiency batt cleaning device according to claim 1, characterized in that: the limiting member is a limiting insertion rod (18), and the side wall of the operating rod (8) is provided with a limit The limit through hole matched with the insertion rod (18).

3 . The high-efficiency batt cleaning device according to claim 2 , wherein a plurality of inclined supporting soft strips ( 19 ) are evenly distributed on the side wall of the cloth curtain ring ( 12 ). 4 .

4. A high-efficiency batt cleaning device according to claim 3, wherein a connecting ring (20) is fixedly connected to the outer side walls of the suction blocking cover (16) and the fine suction blocking cover (17), An anti-loss ring (21) is fixedly connected to the outer side walls of the suction pipe (6) and the fine suction pipe (15), and the anti-loss ring (21) on the suction pipe (6) is connected with the suction stopper (16) A connecting rope (22) is connected between the rings (20) and between the anti-loss ring (21) on the fine suction pipe (15) and the connecting ring (20) on the fine suction blocking cover (17).

5. A high-efficiency batt cleaning device according to claim 4, wherein a receiving ring (23) is fixedly connected to the outer side walls of the suction blocking cover (16) and the fine suction blocking cover (17), In addition, receiving hooks (24) are fixedly connected to the outer side walls of the suction pipe (6) and the fine suction pipe (15).

6 . The high-efficiency batt cleaning device according to claim 5 , wherein sealing plugs ( 25 ) are connected to the side walls of the suction blocking cover ( 16 ) and the fine suction blocking cover ( 17 ). 7 .

7 . The high-efficiency batt cleaning device according to claim 6 , wherein an operation seat ( 26 ) is fixedly connected to one end of the limit insertion rod ( 18 ). 8 .

8 . The high-efficiency batt cleaning device according to claim 7 , wherein the top of the barrel cover ( 2 ) is provided with a plurality of limit insertion rods ( 18 ) corresponding to the plurality of limit insertion rods ( 18 ). 9 . ) to match the storage slot.
