Abstract
本实用新型公开了一种喷塑除尘装置，涉及除尘技术领域，本实用新型包括承载装置、移动装置、磨面装置、辅助装置以及收集装置，承载装置包括底板以及安装框，底板为长方形板状结构，移动装置包括固定架、丝杆、移动架以及支撑块，固定架上表面以及支撑块上表面均与安装框下表面焊接，支撑块设有一通孔，丝杆一端与通孔旋转配合。本实用新型一种喷塑除尘装置，移动电机与丝杆，方便磨面以及辅助装置在除尘过程中灵活移动，磨刷对设备上方的顽固污渍进行清除，提高装置的除尘效率，旋转喷头全方位对需除尘的装置进行清洁，除尘刷进一步的进行清洁，提高清洁效率的同时，除去安装轨上的污垢，使污垢收集起来。
The utility model discloses a plastic spray dust removal device, which relates to the technical field of dust removal. The utility model comprises a bearing device, a moving device, a surface grinding device, an auxiliary device and a collecting device. The bearing device comprises a bottom plate and an installation frame, and the bottom plate is in the shape of a rectangular plate. Structure, the mobile device includes a fixed frame, a screw rod, a movable frame and a support block. The upper surface of the fixed frame and the upper surface of the support block are welded with the lower surface of the installation frame. The support block is provided with a through hole, and one end of the screw rod is rotatably matched with the through hole. The utility model relates to a plastic-spraying dust-removing device, which moves a motor and a screw rod, which facilitates the flexible movement of the grinding surface and the auxiliary device during the dust-removing process. To clean the device that needs to be dedusted, the dedusting brush will further clean, improve the cleaning efficiency, and remove the dirt on the mounting rail to collect the dirt.
Description
Technical Field
The utility model relates to a dust removal technical field, in particular to spraying plastics dust collector.
Background
The plastic spraying is to perform special treatment on the surface of the device to improve the special properties of the surface of the device, such as oxidation resistance, wear resistance, corrosion resistance and the like.
In the spraying plastics process, often can spray other equipment on, because the dust that the spraying plastics produced is more stubborn, often is difficult to clear away, need carry out the stubborn spot that multiple means could clear away the equipment surface, for this reason, we provide a spraying plastics dust collector.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides a spraying plastics dust collector can effectively solve and clear away the problem of stubborn spot on the stubborn equipment among the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a plastic spraying dust removal device comprises a bearing device, a moving device, a face grinding device, an auxiliary device and a collecting device, wherein the bearing device comprises a bottom plate and a mounting frame, the bottom plate is of a rectangular plate-shaped structure, the moving device comprises a fixing frame, a lead screw, a moving frame and a supporting block, the upper surface of the fixing frame and the upper surface of the supporting block are welded to the lower surface of the mounting frame, the supporting block is provided with a through hole, one end of the lead screw is in rotating fit with the through hole, the side surface of the moving frame is provided with an opening, the inner surface of the opening is connected with the outer surface of the lead screw, the face grinding device comprises a motor cylinder, the upper surface of the motor cylinder is welded to the lower surface of the moving frame, a face grinding motor is installed in the motor cylinder, the auxiliary device comprises a connecting plate, a spraying box and a rotating nozzle, one end of the connecting plate is welded to the side surface of the moving frame, and the upper surface of the spraying box is connected with the connecting plate, the utility model discloses a dust removal device, including spraying box, rotatory nozzle, collection device, lifting rod, dust removal frame, telescopic cylinder, telescopic link, dust removal brush, dust removal frame, telescopic cylinder, telescopic link, dust removal brush, spraying box lower surface is equipped with a mounting groove, rotatory nozzle installs in the mounting groove, collection device includes lift cylinder, lifter, installation rail, dust removal frame, telescopic cylinder, telescopic link and dust removal brush, lift cylinder lower surface and bottom plate upper surface connection, lifter one end and lift cylinder upper surface connection, the lifter other end and installation rail lower surface welding, dust removal frame lower surface and bottom plate upper surface welding, the telescopic cylinder is installed in a dust removal frame side surface, telescopic link one end and telescopic cylinder upper surface connection, the telescopic link other end and dust removal brush side surface connection, wherein the shape of mounting groove is circular.
Preferably, the bearing device further comprises a plurality of supports, the number of the supports is four, the supports mainly play a role in supporting the mounting frame, and the mounting frame is used for mounting and fixing the moving device.
Preferably, the mobile device further comprises a mobile motor, a motor groove is formed in one side surface of the fixing frame, the mobile motor is installed in the motor groove, the other end of the screw rod is matched with the mobile motor in a rotating mode, the mobile motor is mainly used for driving the screw rod to rotate, the screw rod rotates to drive the mobile frame to move, and the mobile frame is used for supporting and installing a plurality of devices.
Preferably, the grinding device further comprises a grinding brush, a motor shaft brush is arranged on the lower surface of the grinding motor, the grinding brush is connected with the grinding motor through a motor shaft, the grinding motor drives the grinding brush to rotate, and the grinding brush performs surface grinding work.
Preferably, auxiliary device still includes the dust removal fan, dust removal fan upper surface is connected with the connecting plate lower surface, sprays the box and provides the cleaning solution for rotatory nozzle, and rotatory nozzle can be to the cleaning solution of spouting all around, and the dust removal fan blows equipment away and carries out surperficial floating dust.
Preferably, the collecting device further comprises a collecting box, the surface of one side of the collecting box is connected with one end of the bottom plate, the lifting cylinder is used for lifting equipment on the lifting cylinder, the installation rail is provided with the equipment needing dust removal, the telescopic cylinder controls the device on the telescopic cylinder to stretch, the dust removing brush is used for cleaning the surface of the equipment needing dust removal, and the collecting box is used for collecting the dust under cleaning.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. the utility model discloses in, through setting up moving motor and lead screw, conveniently grind face and auxiliary device and remove in a flexible way at the dust removal in-process.
2. The utility model discloses in, through setting up the scrubbing brush, clear away the stubborn spot of equipment top, improve the dust collection efficiency of device.
3. The utility model discloses in, through setting up rotatory nozzle, the all-round device that removes dust that needs cleans.
4. The utility model discloses in, through setting up the dust removal brush, further clean, when improving clean efficiency, detach the dirt on the installation rail, make the dirt collect.
Drawings

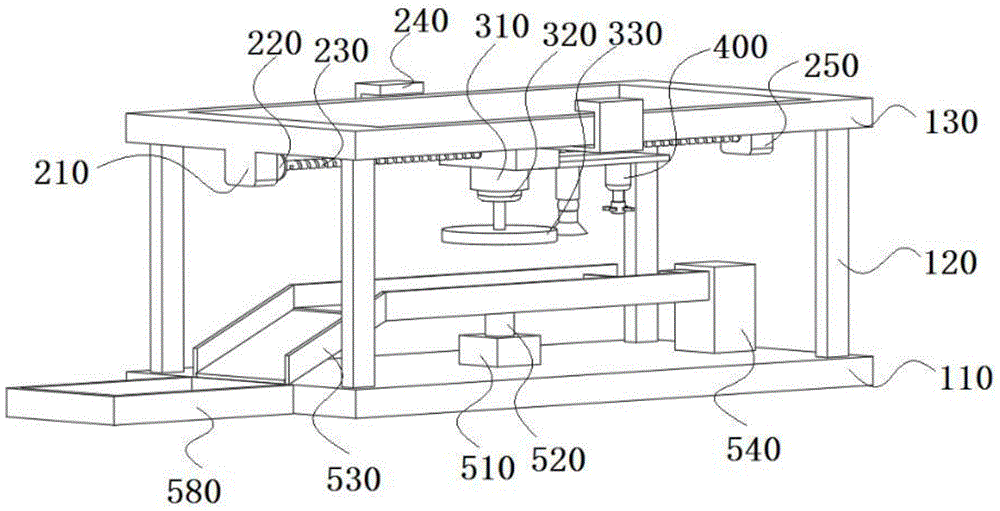

FIG. 1 is a schematic view of the overall structure of the plastic-spraying dust-removing device of the present invention;
fig. 2 is a schematic external isometric structural view of a plastic-spraying dust removal device according to the present invention;
fig. 3 is a schematic external isometric structural view of a plastic-blasting dust removal device according to the present invention;
fig. 4 is a schematic view of the structure of the plastic-spraying dust-removing device according to the present invention.
In the figure: 100. a carrying device; 110. a base plate; 120. a support; 130. installing a frame; 200. a mobile device; 210. a fixed mount; 220. a moving motor; 230. a screw rod; 240. a movable frame; 250. a support block; 300. a flour milling device; 310. a motor cartridge; 320. a flour milling motor; 330. grinding and brushing; 400. an auxiliary device; 410. a connecting plate; 420. a spraying box; 430. rotating the spray head; 440. a dust removal fan; 500. a collection device; 510. a lift cylinder; 520. a lifting rod; 530. mounting a rail; 540. a dust removal frame; 550. a telescopic cylinder; 560. a telescopic rod; 570. a dust removal brush; 580. and a collection box.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end" and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to which the reference is made must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "disposed," "connected," and the like are to be construed broadly, and for example, "connected" may be either fixedly connected or detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-4, the present invention relates to a plastic spraying dust removing device, which comprises a carrying device 100, a moving device 200, a surface grinding device 300, an auxiliary device 400 and a collecting device 500, wherein the carrying device 100 comprises a bottom plate 110 and a mounting frame 130, the bottom plate 110 is a rectangular plate-shaped structure, the moving device 200 comprises a fixing frame 210, a screw 230, a moving frame 240 and a supporting block 250, the upper surface of the fixing frame 210 and the upper surface of the supporting block 250 are welded to the lower surface of the mounting frame 130, the supporting block 250 is provided with a through hole, one end of the screw 230 is rotatably matched with the through hole, a side surface of the moving frame 240 is provided with an opening, the inner surface of the opening is connected with the outer surface of the screw 230, the surface grinding device 300 comprises a motor cylinder 310, the upper surface of the motor cylinder 310 is welded to the lower surface of the moving frame 240, the surface grinding motor 320 is mounted in the motor cylinder 310, the auxiliary device 400 comprises a connecting plate 410, a spraying box 420 and a rotary nozzle 430, one end of the connecting plate 410 is welded with the surface of one side of the moving frame 240, the upper surface of the spraying box 420 is connected with the lower surface of the connecting plate 410, the lower surface of the spraying box 420 is provided with a mounting groove, the rotary spray head 430 is mounted in the mounting groove, the collecting device 500 comprises a lifting cylinder 510, a lifting rod 520, a mounting rail 530, a dust removing frame 540, a telescopic cylinder 550, a telescopic rod 560 and a dust removing brush 570, the lower surface of the lifting cylinder 510 is connected with the upper surface of the bottom plate 110, one end of the lifting rod 520 is connected with the upper surface of the lifting cylinder 510, the other end of the lifting rod 520 is welded with the lower surface of the mounting rail 530, the lower surface of the dust removing frame 540 is welded with the upper surface of the bottom plate 110, the telescopic cylinder 550 is mounted on one side of the dust removing frame 540, one end of the telescopic rod 560 is connected with the upper surface of the telescopic cylinder 550, the other end of the telescopic rod 560 is connected with the surface of one side of the dust removing brush 570, and the mounting groove is circular.
Referring to fig. 1, the supporting device 100 further includes four brackets 120, and the brackets 120 are disposed between the upper surface of the base plate 110 and the lower surface of the mounting frame 130, wherein the number of the brackets 120 is four, the brackets 120 mainly support the mounting frame 130, and the mounting frame 130 is used for mounting and fixing the mobile device 200.
Referring to fig. 1, the mobile device 200 further includes a mobile motor 220, a motor slot is disposed on a side surface of the fixing frame 210, the mobile motor 220 is installed in the motor slot, the other end of the screw rod 230 is rotatably matched with the mobile motor 220, the mobile motor 220 mainly functions to drive the screw rod 230 to rotate, the screw rod 230 rotates to drive the mobile frame 240 to move, and the mobile frame 240 functions to support and install a plurality of devices.
Referring to fig. 1, the surface grinding apparatus 300 further includes a grinding brush 330, a motor shaft brush 330 is disposed on the lower surface of the surface grinding motor 320, and is connected to the surface grinding motor 320 through a motor shaft, the surface grinding motor 320 drives the grinding brush 330 to rotate, and the grinding brush 330 performs surface grinding.
Referring to fig. 3, the auxiliary device 400 further includes a dust removing fan 440, an upper surface of the dust removing fan 440 is connected to a lower surface of the connection plate 410, the spraying box 420 provides the cleaning liquid for the spin nozzle 430, the spin nozzle 430 can spray the cleaning liquid around, and the dust removing fan 440 blows away floating dust on the surface of the device.
Referring to fig. 1 to 3, the collecting device 500 further includes a collecting box 580, a surface of one side of the collecting box 580 is connected to one end of the base plate 110, the lifting cylinder 510 is used for lifting and lowering the devices thereon, the mounting rail 530 is used for mounting the devices to be dedusted, the telescopic cylinder 550 is used for controlling the devices thereon to be telescopic, the dedusting brush 570 is used for cleaning the surface of the dedusted devices, and the collecting box 580 collects the cleaned dust.
The following is the working principle of the utility model:
referring to fig. 1-4, the present invention relates to a plastic spraying dust removing device, wherein the model of the grinding motor 320 is YE2-132S1-2, the device is placed on the mounting rail 530, the dust removing fan 440 is started to clean the floating dust on the surface of the device, after the cleaning of the floating dust on the surface is completed, the telescoping cylinder 550 is actuated to place the device under the brush 330, the flour-milling motor 320 is actuated, the flour-milling motor 320 drives the brush 330 to move, stubborn stains on the equipment are cleaned, after the cleaning is finished, the rotating spray head 430 cleans the equipment, the lifting rod 520 is lowered, when the lifting rod reaches a proper position, the telescopic cylinder 550 is started, the telescopic cylinder 550 drives the telescopic rod 560 to move back and forth, the dust removing brush 570 is connected to the telescopic cylinder 550, the surface of the equipment is subjected to dust removing cleaning again, finally removed dirt and dust can flow into the collecting box 580, damage to the surrounding environment is prevented, and cleaning and sweeping are facilitated.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. The utility model provides a spraying plastics dust collector, includes load-bearing device (100), mobile device (200), mill face device (300), auxiliary device (400) and collection device (500), its characterized in that: the bearing device (100) comprises a bottom plate (110) and a mounting frame (130), the bottom plate (110) is of a rectangular plate-shaped structure, the moving device (200) comprises a fixing frame (210), a screw rod (230), a moving frame (240) and a supporting block (250), the upper surface of the fixing frame (210) and the upper surface of the supporting block (250) are welded to the lower surface of the mounting frame (130), a through hole is formed in the supporting block (250), one end of the screw rod (230) is in rotating fit with the through hole, an opening is formed in one side surface of the moving frame (240), the inner surface of the opening is connected with the outer surface of the screw rod (230), the surface grinding device (300) comprises a motor barrel (310), the upper surface of the motor barrel (310) is welded to the lower surface of the moving frame (240), a surface grinding motor (320) is mounted in the motor barrel (310), and the auxiliary device (400) comprises a connecting plate (410), Spray box (420) and rotatory nozzle (430), connecting plate (410) one end and removal frame (240) one side surface welding, spray box (420) upper surface and connecting plate (410) lower surface connection, it is equipped with a mounting groove to spray box (420) lower surface, rotatory nozzle (430) are installed in the mounting groove, collection device (500) include lift cylinder (510), lifter (520), installation rail (530), dust removal frame (540), telescoping cylinder (550), telescopic link (560) and dust removal brush (570), lift cylinder (510) lower surface and bottom plate (110) upper surface connection, lifter (520) one end and lift cylinder (510) upper surface connection, lifter (520) other end and installation rail (530) lower surface welding, dust removal frame (540) lower surface and bottom plate (110) upper surface welding, telescoping cylinder (550) are installed in dust removal frame (540) one side surface, one end of the telescopic rod (560) is connected with the upper surface of the telescopic cylinder (550), and the other end of the telescopic rod (560) is connected with the surface of one side of the dust removing brush (570).
2. The plastic spraying dust removing device of claim 1, wherein: the bearing device (100) further comprises a plurality of brackets (120), and the plurality of brackets (120) are arranged between the upper surface of the bottom plate (110) and the lower surface of the mounting frame (130).
3. The plastic spraying dust removing device of claim 1, wherein: the moving device (200) further comprises a moving motor (220), a motor groove is formed in one side surface of the fixing frame (210), the moving motor (220) is installed in the motor groove, and the other end of the screw rod (230) is in rotating fit with the moving motor (220).
4. The plastic spraying dust removing device of claim 1, wherein: the flour milling device (300) further comprises a milling brush (330), a motor shaft is arranged on the lower surface of the flour milling motor (320), and the milling brush (330) is connected with the flour milling motor (320) through the motor shaft.
5. The plastic spraying dust removing device of claim 1, wherein: the auxiliary device (400) further comprises a dust removing fan (440), and the upper surface of the dust removing fan (440) is connected with the lower surface of the connecting plate (410).
6. The plastic spraying dust removing device of claim 1, wherein: the collecting device (500) further comprises a collecting box (580), and one side surface of the collecting box (580) is connected with one end of the bottom plate (110).
