CN214715796U - An automatic batching and stirring equipment for pig breeding - Google Patents

Abstract

The utility model belongs to the technical field of pig breeding, in particular to an automatic batching and stirring device used for pig breeding. Aiming at the problems that the existing stirring equipment for pig feed breeding has a single stirring mode, and it is difficult to stir the pig feed quickly and efficiently, the utility model is The following scheme is proposed, which includes a box body, a plurality of material boxes are fixedly installed on the top of the box body, a feeding pipe is connected to the bottom of the material box, a solenoid valve is fixedly installed on the feeding pipe, and two sides of the box body are provided with inclined planes. A first stirring shaft is rotatably installed in the two inclined holes, a plurality of first stirring rods are fixedly installed on the outside of the first stirring shaft, and a first cone is fixedly installed at one end of the two first stirring shafts outside the box. For gears, horizontal plates are fixedly installed on both sides of the box body, and vertical holes are opened on the tops of the two horizontal plates. The utility model makes the stirring shaft vibrate laterally while stirring the pig feed in different directions, thereby improving the mixing efficiency and uniformity of the pig feed.

Description

An automatic batching and stirring equipment for pig breeding

technical field

The utility model relates to the technical field of pig breeding, in particular to an automatic batching and stirring device for pig breeding.

Background technique

With the expansion of pig breeding scale and the continuous improvement of breeding technology, more and more attention is paid to the production and processing of pig feed. For example, different feeds are mostly used, and the combination is produced and processed according to the ratio of nutrients and mixing and mixing. feed.

However, pig feed is usually a thick object with high viscosity. Compared with ordinary dry or wet materials, it is very difficult to mix them evenly when mixing different objects. The existing mixing equipment for pig feed breeding has a single stirring method. , it is difficult to stir the pig feed quickly and efficiently, so we propose an automatic batching and stirring equipment for pig breeding to solve the above problems.

Utility model content

The purpose of the utility model is to solve the shortcomings of the existing mixing equipment for pig feed breeding, which has a single mixing method and is difficult to stir the pig feed quickly and efficiently, and proposes an automatic batching mixing equipment for pig breeding.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

An automatic batching and stirring device for pig breeding, comprising a box body, a plurality of material boxes are fixedly installed on the top of the box body, a feeding pipe is connected to the bottom of the material box, a solenoid valve is fixedly installed on the feeding pipe, and the box body There are inclined holes on both sides of the machine, and the first stirring shaft is rotatably installed in the two inclined holes, and a plurality of first stirring rods are fixedly installed on the outside of the first stirring shaft, and the two first stirring shafts are located at one end of the outer side of the box. A first bevel gear is fixedly installed, horizontal plates are fixedly installed on both sides of the box body, vertical holes are opened on the tops of the two horizontal plates, and vertical shafts are rotatably installed in the two vertical holes. A second bevel gear and a third bevel gear are fixedly installed on each of the vertical shafts, and the two first bevel gears are respectively meshed with the corresponding second bevel gears. Cylinders are rotatably installed in the circular holes, the outer sides of the two cylinders are fixedly sleeved with fourth bevel gears, the two third bevel gears are respectively meshed with the corresponding fourth bevel gears, and the two cylinders slide inside. The same second stirring shaft is installed, a plurality of second stirring rods are fixedly installed on the outside of the second stirring shaft, and a vertical plate is rotatably sleeved on the outside of the second stirring shaft, and one of the two vertical shafts is fixedly installed on the vertical shaft. There is a cam, the cam is in active contact with one side of the vertical plate, a mounting plate is fixedly installed on one side of the box body, a motor is fixedly installed at the bottom of the mounting plate, and the top of one of the two vertical shafts is fixedly connected with the output shaft of the motor A limit groove is set on the top inner wall of the cylinder, a limit plate is fixedly installed on the top of the second stirring shaft, a discharge pipe is connected to the bottom of the box, and a control valve is fixedly installed on the discharge pipe.

Preferably, one end of two horizontal bars is fixedly installed on one side of the box body, and the vertical plate is slidably sleeved on the outside of the two horizontal bars to guide the horizontal movement of the vertical plate.

Preferably, the other ends of the two cross bars are fixedly installed with the same connecting plate, one end of the two return springs is fixedly connected to one side of the connecting plate, and the other ends of the two return springs are fixedly connected to the other side of the vertical plate , reset the vertical plate.

Preferably, a sealing ring is fixedly sleeved on the outer side of the cylinder, and the two sealing rings are respectively connected to the inner walls of the box body in a movable and sealing manner to seal the box body.

Preferably, a baffle is fixedly installed at one end of the second stirring shaft, and the baffle is movably abutted with the other side of the vertical plate to limit the position of the second stirring shaft.

Preferably, the outer side of the second stirring shaft is fixedly sleeved with a limiting shaft sleeve, and the limiting shaft sleeve is movably abutted with one side of the vertical plate to further limit the axial movement of the second stirring shaft.

In the utility model, the automatic batching and stirring equipment used for pig breeding is to place different raw materials of pig feed in each material box, and then open the electromagnetic valve, so as to separate the raw materials through a plurality of discharge pipes. Automatic batching is carried out, and then by turning on the motor, the motor output shaft drives the vertical shaft on one side to rotate, and the vertical shaft on one side drives the cylinder and the second stirring shaft to rotate through the meshing of the third bevel gear and the fourth bevel gear. , the second stirring shaft drives the second stirring rod to rotate, stirring and mixing the raw materials, the cylinder drives the vertical shaft on the other side to rotate through the meshing of the fourth bevel gear and the third bevel gear, and the two vertical shafts respectively drive the corresponding The second bevel gear rotates, the two second bevel gears respectively drive the corresponding first bevel gears to rotate, the two first bevel gears respectively drive the corresponding first stirring shafts to rotate, and the two first stirring shafts respectively drive the corresponding first bevel gears to rotate. A stirring rod rotates to improve the stirring and mixing effect of feed materials;

In the utility model, the automatic batching and stirring equipment for pig breeding is driven by the rotation of the vertical shaft while driving the cam to rotate. Compression, the cam continues to rotate, the vertical plate slides in reverse under the elastic force of the return spring, and the cam continues to rotate, thereby driving the vertical plate to vibrate horizontally. The restriction on the lateral movement of the second stirring shaft by the sleeve drives the second stirring shaft to rotate and vibrate laterally, further improving the stirring and mixing effect of the second stirring rod;

The utility model has a reasonable structure design, and the mixing efficiency and uniformity of the pig feed are improved by stirring the pig feed in different directions while simultaneously causing the stirring shaft to vibrate laterally, with high reliability.

Description of drawings

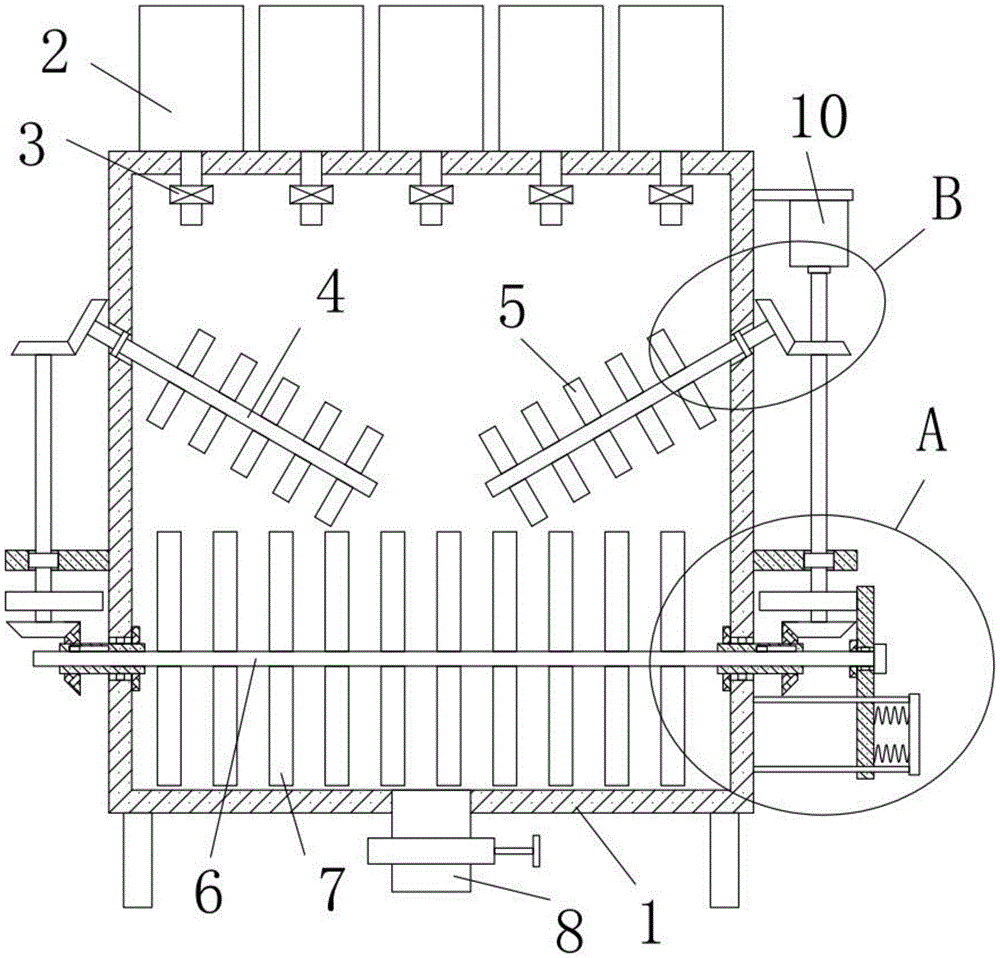

Fig. 1 is the structural representation of a kind of automatic batching and stirring equipment for pig breeding proposed by the utility model;

2 is a schematic structural diagram of part A of a kind of automatic batching and stirring equipment for pig breeding proposed by the utility model;

3 is a schematic structural diagram of part B of an automatic batching and stirring device for pig breeding proposed by the present invention.

In the figure: 1. Box body; 2. Material box; 3. Solenoid valve; 4. The first stirring shaft; 5. The first stirring rod; 6. The second stirring shaft; 7. The second stirring rod; 8. Discharging Tube; 9, sealing ring; 10, motor; 11, first bevel gear; 12, second bevel gear; 13, third bevel gear; 14, fourth bevel gear; 15, vertical shaft; 16, horizontal plate; 17 , cam; 18, vertical plate; 19, cylinder; 20, limit plate; 21, cross bar; 22, return spring; 23, connecting plate; 24, baffle plate; 25, limit shaft sleeve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

1-3, an automatic batching and stirring equipment for pig breeding includes a box body 1, a plurality of material boxes 2 are fixedly installed on the top of the box body 1, and a feed pipe is connected to the bottom of the material box 2. A solenoid valve 3 is fixedly installed, inclined holes are opened on both sides of the box body 1, a first stirring shaft 4 is rotatably installed in the two inclined holes, and a plurality of first stirring rods 5 are fixedly installed on the outside of the first stirring shaft 4 , the first bevel gears 11 are fixedly installed at one end of the two first stirring shafts 4 located on the outer side of the box body 1, the horizontal plates 16 are fixedly installed on both sides of the box body 1, and the tops of the two horizontal plates 16 are provided with vertical A vertical shaft 15 is rotatably installed in the two vertical holes, the second bevel gear 12 and the third bevel gear 13 are fixedly installed on the two vertical shafts 15, and the two first bevel gears 11 are respectively connected with the corresponding The second bevel gears 12 mesh with each other, circular holes are formed on both sides of the box body 1, cylinders 19 are rotatably installed in the two circular holes, and the outer sides of the two cylinders 19 are fixedly sleeved with a fourth bevel gear 14. The two third bevel gears 13 mesh with the corresponding fourth bevel gears 14 respectively, the same second stirring shaft 6 is slidably installed in the two cylinders 19, and a plurality of Two stirring rods 7, and a vertical plate 18 is rotatably sleeved on the outer side of the second stirring shaft 6, and a cam 17 is fixedly installed on one vertical shaft 15 of the two vertical shafts 15, and the cam 17 is movable against one side of the vertical plate 18. A mounting plate is fixedly installed on one side of the box body 1, and a motor 10 is fixedly installed at the bottom of the mounting plate. The top of one vertical shaft 15 of the two vertical shafts 15 is fixedly connected with the output shaft of the motor 10. A limit groove is set on the top, a limit plate 20 is fixedly installed on the top of the second stirring shaft 6 , a discharge pipe 8 is connected to the bottom of the box body 1 , and a control valve is fixedly installed on the discharge pipe 8 .

In the present invention, one side of the box body 1 is fixedly installed with one end of two horizontal bars 21 , and the vertical plate 18 is slidably sleeved on the outside of the two horizontal bars 21 to guide the horizontal movement of the vertical plate 18 .

In the present invention, the other ends of the two cross bars 21 are fixedly installed with the same connecting plate 23, one side of the connecting plate 23 is fixedly connected with one end of two return springs 22, and the other ends of the two return springs 22 are connected to the vertical The other side of the plate 18 is fixedly connected to reset the riser 18 .

In the utility model, the outer side of the cylinder 19 is fixedly sleeved with a sealing ring 9 , and the two sealing rings 9 are respectively connected with the inner walls on both sides of the box body 1 movably and sealingly to seal the box body 1 .

In the present invention, a baffle 24 is fixedly installed at one end of the second stirring shaft 6 , and the baffle 24 is movably abutted with the other side of the vertical plate 18 to limit the position of the second stirring shaft 6 .

In the present invention, the outer side of the second stirring shaft 6 is fixedly sleeved with the limiting shaft sleeve 25 , and the limiting shaft sleeve 25 is movably abutted with one side of the vertical plate 18 to further limit the axial movement of the second stirring shaft 6 . bit.

In the utility model, when in use, different raw materials of pig feed are placed in each feeding box 2, and then the solenoid valve 3 is opened, so as to automatically batch the raw materials through a plurality of discharge pipes, and then by turning on the motor 10. The output shaft of the motor 10 drives the vertical shaft 15 on one side to rotate, and the vertical shaft 15 on one side drives the cylinder 19 and the second stirring shaft 6 to rotate through the meshing of the third bevel gear 13 and the fourth bevel gear 14, The second stirring shaft 6 drives the second stirring rod 7 to rotate to stir and mix the raw materials. The cylinder 19 drives the vertical shaft 15 on the other side to rotate through the meshing of the fourth bevel gear 14 and the third bevel gear 13. The two The vertical shaft 15 drives the corresponding second bevel gears 12 to rotate respectively, the two second bevel gears 12 respectively drive the corresponding first bevel gears 11 to rotate, and the two first bevel gears 11 respectively drive the corresponding first stirring shaft 4 to rotate, The two first stirring shafts 4 respectively drive the corresponding first stirring rods 5 to rotate, thereby improving the stirring and mixing effect of the feed raw materials. When the vertical shaft 15 rotates, it drives the cam 17 to rotate, and the cam 17 is pushed by the abutment with the vertical plate 18 The vertical plate 18 moves to one side and compresses the return spring 22, the cam 17 continues to rotate, the vertical plate 18 slides in the reverse direction under the elastic force of the return spring 22, and the cam 17 continues to rotate, thereby driving the vertical plate 18 to vibrate horizontally and vertically. The plate 18 cooperates with the rotation of the second stirring shaft 6 and drives the second stirring shaft 6 to rotate while the baffle 24 and the limiting shaft sleeve 25 limit the lateral movement of the second stirring shaft 6 to vibrate laterally to further enhance the second stirring shaft 6. The stirring and mixing effect of the stirring rod 7.

Claims (6)

1. An automatic blending and stirring device for pig breeding comprises a box body (1) and is characterized in that a plurality of feed boxes (2) are fixedly mounted at the top of the box body (1), feed pipes are communicated with the bottoms of the feed boxes (2), electromagnetic valves (3) are fixedly mounted on the feed pipes, inclined holes are formed in two sides of the box body (1), first stirring shafts (4) are rotatably mounted in the two inclined holes, a plurality of first stirring rods (5) are fixedly mounted on the outer sides of the first stirring shafts (4), first bevel gears (11) are fixedly mounted at one ends of the two first stirring shafts (4) which are positioned on the outer sides of the box body (1), transverse plates (16) are fixedly mounted on two sides of the box body (1), vertical holes are formed in the tops of the two transverse plates (16), vertical shafts (15) are rotatably mounted in the two vertical holes, second bevel gears (12) and third bevel gears (13) are fixedly mounted on the two vertical shafts (15), two first bevel gears (11) are respectively meshed with corresponding second bevel gears (12), circular holes are formed in two sides of the box body (1), cylinders (19) are installed in the two circular holes in a rotating mode, fourth bevel gears (14) are fixedly sleeved on the outer sides of the two cylinders (19), two third bevel gears (13) are respectively meshed with corresponding fourth bevel gears (14), the two cylinders (19) are internally and slidably provided with the same second stirring shaft (6), a plurality of second stirring rods (7) are fixedly installed on the outer sides of the second stirring shafts (6), vertical plates (18) are rotatably sleeved on the outer sides of the second stirring shafts (6), a cam (17) is fixedly installed on one vertical shaft (15) of the two vertical shafts (15), the cam (17) is movably abutted to one side of each vertical plate (18), a mounting plate is fixedly installed on one side of the box body (1), and a motor (10) is fixedly installed at the bottom of the mounting plate, the top of a vertical shaft (15) in two vertical shafts (15) and the output shaft fixed connection of motor (10) have seted up the spacing groove on the top inner wall of drum (19), the top fixed mounting of second (mixing) shaft (6) has limiting plate (20), the bottom intercommunication of box (1) has discharging pipe (8), and fixed mounting has the control valve on discharging pipe (8).

2. The automatic blending and stirring equipment for pig breeding according to claim 1 is characterized in that one end of two cross rods (21) is fixedly installed on one side of the box body (1), and the vertical plate (18) is sleeved on the outer sides of the two cross rods (21) in a sliding manner.

3. The automatic blending and stirring equipment for pig breeding according to claim 2, characterized in that the other ends of the two cross rods (21) are fixedly provided with the same connecting plate (23), one side of the connecting plate (23) is fixedly connected with one ends of the two return springs (22), and the other ends of the two return springs (22) are fixedly connected with the other side of the vertical plate (18).

4. The automatic blending and stirring equipment for pig breeding according to claim 1, characterized in that the outside of the cylinder (19) is fixedly sleeved with a sealing ring (9), and the two sealing rings (9) are respectively connected with the inner walls of the two sides of the box body (1) in a movable and sealed manner.

5. The automatic blending and stirring equipment for pig breeding according to claim 1, characterized in that one end of the second stirring shaft (6) is fixedly provided with a baffle (24), and the baffle (24) is movably abutted against the other side of the vertical plate (18).

6. The automatic blending and stirring equipment for pig breeding according to claim 1, wherein a limiting shaft sleeve (25) is fixedly sleeved on the outer side of the second stirring shaft (6), and the limiting shaft sleeve (25) is movably abutted to one side of the vertical plate (18).
