Abstract
本实用新型公开了一种磁共振乳腺线圈定位装置，涉及磁共振乳腺线圈技术领域。本实用新型包括托架，托架下方固定连接有支撑腿；托架上设有第一矩形孔，第一矩形孔一相对内壁设有一对沿托架长度方向设置的滑孔，第一矩形孔内滑动连接有乳腺线圈；乳腺线圈上设有一对乳腺容纳部，乳腺线圈两端活动连接有一对压板，压板表面固定连接有与滑孔滑动配合的滑块；托架上一端滑动连接一头枕，托架上另一端固定连接有定位板。本实用新通过在托架上连接有定位板对患者脚部定位，从而避免了患者在托架不断调节身体位置，使用时，只需调节乳腺线圈位置和头枕位置即可。
The utility model discloses a magnetic resonance breast coil positioning device, which relates to the technical field of magnetic resonance breast coils. The utility model comprises a bracket, the lower part of the bracket is fixedly connected with a supporting leg; the bracket is provided with a first rectangular hole, an opposite inner wall of the first rectangular hole is provided with a pair of sliding holes arranged along the length direction of the bracket, and the first rectangular hole is provided with a pair of sliding holes along the length direction of the bracket. A breast coil is slidably connected inside; a pair of breast accommodating parts is arranged on the breast coil, a pair of pressure plates are movably connected at both ends of the breast coil, and the surface of the pressure plates is fixedly connected with a sliding block slidingly matched with the sliding hole; one end of the bracket is slidably connected with a headrest, The other end of the bracket is fixedly connected with a positioning plate. The utility model positions the patient's feet by connecting a positioning plate on the bracket, thereby avoiding the patient's constant adjustment of the body position on the bracket, and only needs to adjust the position of the breast coil and the headrest during use.
Description
Technical Field
The utility model belongs to the technical field of magnetic resonance mammary gland coil, especially, relate to a magnetic resonance mammary gland coil positioner.
Background
Need use the mammary gland coil when carrying out mammary gland magnetic resonance examination, ordinary mammary gland coil is for being provided with the sunken rectangular bodily form base member of two hemispheroids, during the inspection, is crouched on this mammary gland coil by the inspector face down, treats that two breasts of inspection place respectively in two hemispheroids are sunken, and the electromagnetic signal that magnetic resonance instrument gathered the coil conveying carries out imaging analysis, and then the medical science physiological condition of diagnosis mammary gland.
The existing supporting bracket of the mammary gland coil has the following defects:
1. the mammary gland coil is fixed on the bracket and cannot be adjusted, the height of each person is different, and when the mammary gland coil is used, a patient needs to move the body to match the mammary gland coil, so that the use is inconvenient;
2. during detection, a patient needs to lie on the bracket, and the bracket may cause discomfort to the patient due to the fact that the hip bone is relatively protruded during the course of the patient;
3. there is not positioner on the bracket to make the patient lie prone on the bracket and need adjust the position, can't accomplish one step and target in place.
Disclosure of Invention
An object of the utility model is to provide a magnetic resonance mammary gland coil positioner, the mammary gland coil is adjustable in position on the bracket, and fixedly connected with locating plate on the bracket, need constantly remove the health and take two inconvenient problems when having solved the patient and having detected.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a magnetic resonance mammary gland coil positioning device, which comprises a bracket, wherein a supporting leg is fixedly connected below the bracket; a first rectangular hole is formed in the bracket, a pair of sliding holes arranged along the length direction of the bracket are formed in one opposite inner wall of the first rectangular hole, and a mammary gland coil is connected in the first rectangular hole in a sliding mode; the mammary gland coil is provided with a pair of mammary gland accommodating parts, two ends of the mammary gland coil are movably connected with a pair of pressing plates, two end faces of the mammary gland coil are fixedly connected with a pair of sliding rods, the pressing plates are provided with through holes in sliding fit with the sliding rods, and the surfaces of the pressing plates are fixedly connected with sliding blocks in sliding fit with the sliding holes; the two end faces of the mammary gland coil are both in threaded connection with a screw rod, one end of the screw rod is extended into the mammary gland accommodating part, an adjusting clamp is connected into the mammary gland accommodating part, the surface of the adjusting clamp is connected with one end of the screw rod, and the other end of the screw rod is fixedly connected with an adjusting handle; one end of the bracket is connected with a headrest in a sliding mode, the bracket is fixedly connected with a sliding rail in sliding fit with the headrest, and the other end of the bracket is fixedly connected with a positioning plate.
Furthermore, an arc-shaped groove is formed in the headrest, and a sponge cushion is connected to the inner surface of the arc-shaped groove.
Furthermore, the surface of the sliding rod is connected with a spring, and the spring is arranged between the pressing plate and the mammary gland coil.
Further, adjust the card and be the arc piece structure, mammary gland portion internal surface with adjust the equal fixedly connected with foam-rubber cushion of card internal surface.
Furthermore, a pair of rod bodies is symmetrically and fixedly connected to the bracket, elastic cloth used for supporting the human hip bone is fixedly connected between the two rod bodies, a pair of connecting blocks is fixedly connected to the two ends of each rod body, and the connecting blocks are fixedly connected to the bracket.
Furthermore, a second rectangular hole is formed in the bracket and is positioned below the elastic cloth.
The utility model discloses following beneficial effect has:
1. the utility model discloses mammary gland coil can remove in first rectangular hole to the patient that adapts to different heights detects convenient to use.
2. The utility model discloses a be connected with the locating plate on the bracket and fix a position patient foot to avoided the patient to constantly adjust the health position at the bracket, during the use, only need adjust mammary gland coil position and headrest position can.
3. The utility model discloses a be connected with elasticity cloth on the bracket and support human hip bone, prevent that the bracket from causing the injury to human hip bone, improved the comfort level that the patient examined time measuring.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

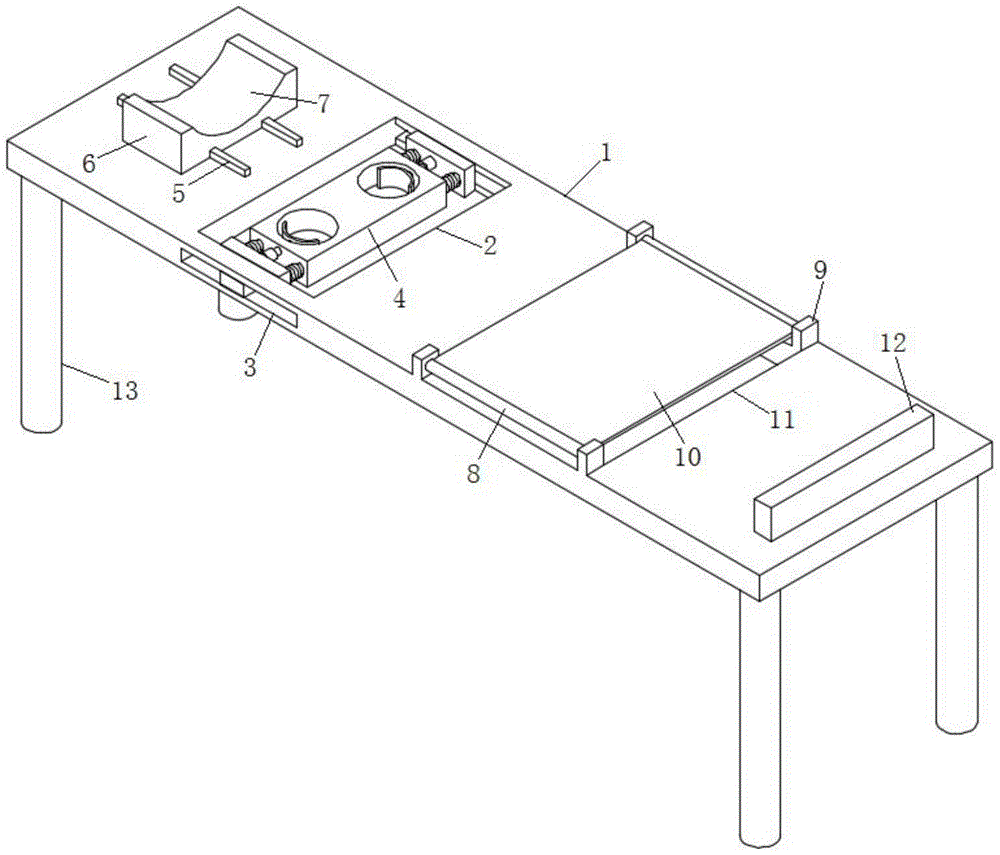

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic diagram of a breast coil;
in the drawings, the components represented by the respective reference numerals are listed below:
1-bracket, 2-first rectangular hole, 3-slide hole, 4-mammary gland coil, 401-mammary gland accommodating part, 402-slide bar, 403-pressing plate, 404-through hole, 405-slide hole, 406-screw rod, 407-adjusting handle, 408-adjusting card, 409-spring, 5-slide rail, 6-headrest, 7-arc groove, 8-rod body, 9-connecting block, 10-elastic cloth, 11-second rectangular hole, 12-positioning plate and 13-supporting leg.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "rectangular hole", "upper", "lower", "inner", "both ends", "middle", "one end", "inner", and the like indicate positional or positional relationships, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the referenced component or element must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-2, the utility model relates to a magnetic resonance mammary gland coil positioning device, which comprises a bracket 1, wherein the bracket 1 is in a rectangular structure, and a supporting leg 13 is fixedly connected below the bracket 1; be equipped with first rectangular hole 2 on the bracket 1, 2 relative inner walls in first rectangular hole are equipped with a pair of slide opening 3 that sets up along 1 length direction of bracket, sliding connection has mammary gland coil 4 in 2 first rectangular hole, mammary gland coil 4 and 3 sliding connection in slide opening, it is comfortable on bracket 1 for making things convenient for the patient to lie prone, one end sliding connection headrest 6 on bracket 1, fixedly connected with and 6 sliding fit's of headrest slide rail 5 on bracket 1, other end fixedly connected with is used for the locating plate 12 to patient's foot location on bracket 1.
Referring to fig. 2, a pair of breast accommodating portions 401 are disposed on the breast coil 4, the breast accommodating portions 401 are groove-shaped, a pair of pressing plates 403 are movably connected to two ends of the breast coil 4, a pair of sliding rods 402 are fixedly connected to two end surfaces of the breast coil 4, a through hole 404 slidably engaged with the sliding rod 402 is disposed on the pressing plate 403, and a sliding block 405 slidably engaged with the sliding hole 3 is fixedly connected to a surface of the pressing plate 403; in order to ensure that the position of the breast of the patient in the breast accommodating part 401 is correct, two end faces of the breast coil 4 are both in threaded connection with a screw rod 406, one end of the screw rod 406 extends into the breast accommodating part 401, an adjusting clamp 408 is connected in the breast accommodating part 401, the surface of the adjusting clamp 408 is connected with one end of the screw rod 406, the screw rod 406 can rotate relative to the adjusting clamp 408, the other end of the screw rod 406 is fixedly connected with an adjusting handle 407, the screw rod 406 can be rotated through the adjusting handle 407, so that the adjusting clamp 408 is driven to move, and the breast of the patient is adjusted to be in the correct position.
Preferably, in order to make the head of the patient comfortable, an arc-shaped groove 7 is arranged on the headrest 6, and the sponge cushion is connected to the inner surface of the arc-shaped groove 7.
Preferably, in order to stabilize the mammary gland coil 4 in the first rectangular hole 2, the surface of the sliding rod 402 is connected with a spring 409, the spring 409 is arranged between the pressing plate 403 and the mammary gland coil 4, the spring 409 is in a compressed state, and one surface of the pressing plate 403 is tightly attached to the side wall of the first rectangular hole 2 through the elastic force of the spring 409 on the pressing plate 403, so that the stability of the mammary gland coil 4 is ensured.
Preferably, the adjusting card 408 is an arc-shaped structure, and the sponge pad is fixedly connected to both the inner surface of the breast accommodating portion 401 and the inner surface of the adjusting card 408.
Preferably, in order to prevent the comfort of the hip of the patient when the patient lies on the stomach, a pair of rod bodies 8 are symmetrically and fixedly connected to the bracket 1, an elastic cloth 10 used for supporting the hip of the human body is fixedly connected between the two rod bodies 8, two ends of the elastic cloth 10 are sleeved on the rod bodies 8, two ends of each rod body 8 are fixedly connected with a pair of connecting blocks 9, and the connecting blocks 9 are fixedly connected to the bracket 1.
Preferably, the bracket 1 is provided with a second rectangular hole 11 below the elastic cloth 10.
One specific application of this embodiment is: the utility model discloses during the use, the patient lies prone on bracket 1, and patient foot flushes with locating plate 12, and elasticity cloth 10 supports patient hipbone position, adjusts the position of back mammary gland coil 4 in first rectangular hole 2, and the patient mammary gland is placed in mammary gland portion 401, and accessible lead screw 406 is adjusted the position of patient mammary gland in mammary gland portion 401, and the patient head lies prone in 6 departments of headrest, then can carry out the mammary gland detection to the patient.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
Claims (6)
1. A magnetic resonance mammary gland coil positioner which characterized in that: comprises a bracket (1), wherein a supporting leg (13) is fixedly connected below the bracket (1);
a first rectangular hole (2) is formed in the bracket (1), a pair of sliding holes (3) arranged along the length direction of the bracket (1) are formed in one opposite inner wall of the first rectangular hole (2), and a mammary gland coil (4) is connected in the first rectangular hole (2) in a sliding mode;
a pair of mammary gland accommodating parts (401) is arranged on the mammary gland coil (4), a pair of pressing plates (403) is movably connected to two ends of the mammary gland coil (4), a pair of sliding rods (402) is fixedly connected to two end faces of the mammary gland coil (4), through holes (404) in sliding fit with the sliding rods (402) are formed in the pressing plates (403), and sliding blocks (405) in sliding fit with the sliding holes (3) are fixedly connected to the surfaces of the pressing plates (403);
two end faces of the mammary gland coil (4) are both in threaded connection with a screw rod (406), one end of the screw rod (406) is extended into the mammary gland accommodating part (401), an adjusting clamp (408) is connected into the mammary gland accommodating part (401), the surface of the adjusting clamp (408) is connected with one end of the screw rod (406), and the other end of the screw rod (406) is fixedly connected with an adjusting handle (407);
one end sliding connection headrest (6) on bracket (1), fixedly connected with on bracket (1) with headrest (6) sliding fit's slide rail (5), other end fixedly connected with locating plate (12) on bracket (1).
2. A magnetic resonance breast coil positioning apparatus as claimed in claim 1, wherein: an arc-shaped groove (7) is arranged on the headrest (6), and a sponge cushion is connected to the inner surface of the arc-shaped groove (7).
3. A magnetic resonance breast coil positioning apparatus as claimed in claim 1 or 2, wherein: the surface of the sliding rod (402) is connected with a spring (409), and the spring (409) is arranged between the pressing plate (403) and the mammary gland coil (4).
4. A magnetic resonance breast coil positioning device as claimed in claim 3, wherein: the adjusting card (408) is of an arc-shaped sheet structure, and sponge pads are fixedly connected to the inner surface of the breast accommodating part (401) and the inner surface of the adjusting card (408).
5. A magnetic resonance breast coil positioning apparatus as claimed in claim 1, 2 or 4, wherein: the artificial hip joint is characterized in that a pair of rod bodies (8) are symmetrically and fixedly connected to the bracket (1), elastic cloth (10) used for supporting the hip bone of a human body is fixedly connected between the two rod bodies (8), a pair of connecting blocks (9) are fixedly connected to the two ends of each rod body (8), and the connecting blocks (9) are fixedly connected to the bracket (1).
6. A magnetic resonance breast coil positioning device as claimed in claim 5, wherein: and a second rectangular hole (11) is formed in the bracket (1) and is arranged below the elastic cloth (10).
