CN214712441U

CN214712441U - Novel cleaning tool

Info

Publication number: CN214712441U
Application number: CN202120309770.XU
Authority: CN
Inventors: 吕惠宇
Original assignee: Wuyi Baiwang Industry And Trade Co ltd
Current assignee: Wuyi Baiwang Industry And Trade Co ltd
Priority date: 2021-02-03
Filing date: 2021-02-03
Publication date: 2021-11-16
Anticipated expiration: 2031-02-03

Abstract

The utility model belongs to the technical field of daily necessities, in particular to a novel cleaning tool, comprising a mop bucket and a mop. The mop is composed of a mop rod and a mop head, the mop head is rotatably connected below the mop rod, and the mop barrel is provided with a A piercing hole for the mop head to enter, the piercing hole is provided with a squeezer, and the squeezer squeezes and cleans the wipes on the mop head during the process of the mop head entering the piercing hole and moving in the piercing hole, and the mop bucket A slot is arranged at the bottom, and the mop head can be inserted into the slot after entering through the opening; the purpose of the utility model is to provide a novel cleaning tool that is convenient to use.

Description

Novel cleaning tool

Technical Field

The utility model belongs to the technical field of articles for daily use, in particular to novel cleaning tool.

Background

Along with the improvement of living standard, people's living environment has also improved a lot, and the house is clean and tidy more comfortable, and daily broom can't satisfy daily demand at all, and flat mop also appears thereupon, and the flat mop on the current market is usually when the wringing mop head, often can contact the sewage in the mop bucket during the mop head, leads to secondary pollution, causes inconvenient using.

Disclosure of Invention

In order to overcome the defects in the prior art, the utility model aims to provide a novel cleaning tool which is convenient to use.

The purpose of the utility model is realized like this:

the utility model provides a novel cleaning tool, includes mop bucket and mop, and the mop comprises mop pole and mop head, the mop head rotates to be connected in mop pole below, set up the mouth of wearing that supplies the mop head to get into on the mop bucket, wear to be provided with the squeezer in the mouth, the mop head gets into wears the mouth and extrudees the washing to the overhead cleaning material of mop in wearing the in-process squeezer that removes in mouthful to, mop bucket below is provided with the slot, and the mop head can insert in the slot after wearing mouthful entering.

The top edge of the slot is inclined outwards to form an opening edge.

The mop bucket bottom is upwards protruding and is formed a mounting table, and the mounting table is connected with the slot.

A fixing groove is formed in the mounting table, and a fixing bulge matched with the fixing groove is formed in the inserting groove; or, be provided with fixed arch on the mount table, be provided with the fixed slot with fixed protruding adaptation on the slot, the mount table can be dismantled with the slot and be connected.

Still be provided with clear water bucket, suction pump on the mop bucket and for the power that the suction pump provided the energy, it is provided with a plurality of spout to wear a mouthful side, inside and can be carried the liquid in the clear water bucket to spout department blowout through the pipeline to suction pump one end switch-on clear water bucket.

The clear water bucket outside is provided with the protective housing, form between protective housing and the clear water bucket and hold the chamber, suction pump and power all set up and are holding the intracavity.

The spouts are uniformly arranged on one side of the through hole and are all arranged at the same height.

Still include interconnect's control mainboard and sensor, the sensor sets up inside the mop bucket or sets up on wearing the mouth, when the sensor detects the mop head and inserts and wear the mouth, control mainboard order suction pump drive water from spout department blowout and maintain a spray time, get into a dead time after the spray time finishes, the suction pump stop work all the time in the dead time, but the suction pump restart after the dead time finishes.

The circuit breaker also comprises a switch connected with the control mainboard, and the circuit of the control mainboard can be switched on or off by driving the switch.

The utility model discloses beneficial effect does:

1. when the mop head enters the penetrating opening and is inserted into the slot, the mop head is fixed by the penetrating opening and the slot, so that the shaking of the mop is effectively reduced. The mop is more stable in arrangement state; in the process of squeezing and cleaning the mop head by using the through hole, sewage of the mop head wiper flows into the mop barrel, the sewage level outside the slot is higher than that in the slot, and the mop head can be inserted into the slot to effectively reduce secondary pollution of the sewage to the mop head, so that the mop is more convenient and clean to use.

2. The opening edge increases the area of the upper opening of the slot, reduces the difficulty of aligning the mop head and inserting the mop head into the slot, and is convenient to use.

3. When the mop is inserted into the through opening, the sensor can tend to make the nozzle spray water automatically after receiving the signal, so that the operation steps of washing the mop by a user are saved, and the use is very convenient; the setting of spray time can be so that wash the mop in fixed time at every turn, prevent to wash for a long time in the dead time, the suction pump stop work all the time, can prevent that the mop from repeatedly triggering the sensor when utilizing to wear mouthful wringing wiping material, avoid washing many times in the short time, so saved water for the use is more reasonable.

Drawings

Fig. 1 is a schematic structural diagram of the present invention;

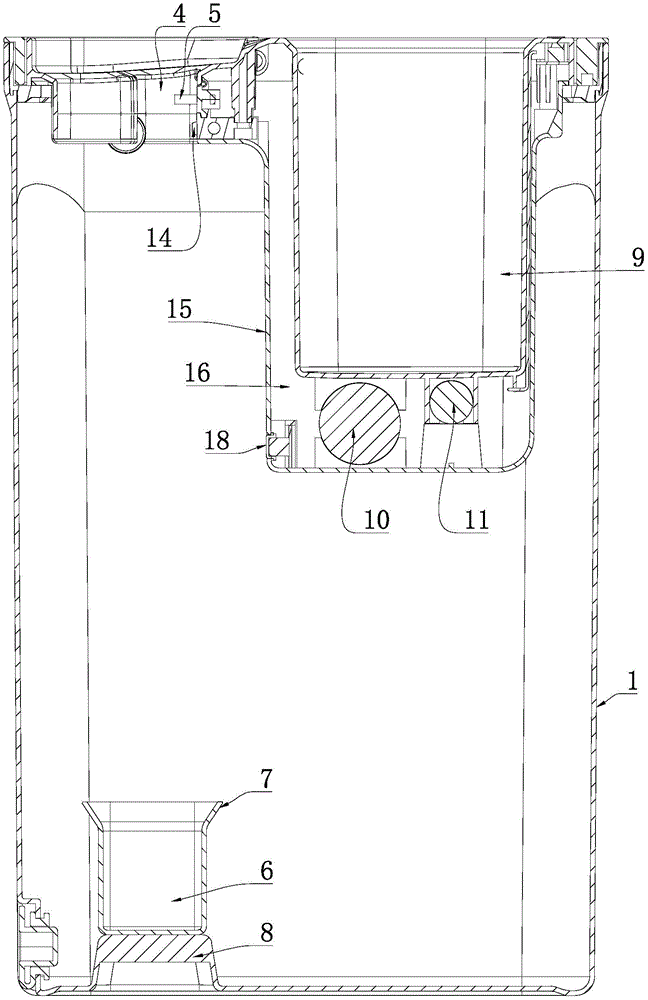

fig. 2 is a schematic view of the internal structure of the present invention;

FIG. 3 is one of the partial structural schematic diagrams of the present invention;

FIG. 4 is a schematic view of the parts of the slop pail of the present invention;

FIG. 5 is a schematic view of a socket component of the present invention;

fig. 6 is a second partial schematic structural view of the present invention;

fig. 7 is a third schematic view of a part of the structure of the present invention;

FIG. 8 is a fourth schematic view of the structure of the present invention;

the reference numbers in the figures mean:

1-mop bucket, 2-mop rod, 3-mop head, 4-penetrating port, 5-squeezer,

6-slot, 7-opening edge, 8-mounting table, 9-clear water bucket, 10-water pump,

11-a power supply, 12-a first water pipe, 13-a second water pipe, 14-a nozzle, 15-a protective shell,

16-containing cavity, 17-control mainboard, 18-sensor, 19-switch, 20-fixing projection,

21-fixed slot.

Detailed Description

The invention will be further described in the following with reference to the accompanying drawings in which:

referring to FIGS. 1-8: the utility model provides a novel cleaning tool, includes mop bucket 1 and mop, and the mop comprises mop pole 2 and mop head 3, mop head 3 rotates to be connected in mop pole 2 below, set up the mouth 4 of wearing that supplies mop head 3 to get into on the mop bucket 1, wear to be provided with squeezer 5 in the mouth 4, mop head 3 gets into and wears mouth 4 and extrudees the washing to the overhead wiper of mop in the in-process squeezer 5 that removes wearing mouth 4 to, 1 below of mop bucket is provided with slot 6, and can insert in slot 6 after mop head 3 gets into from wearing mouth 4.

When the mop head 3 enters the penetrating opening 4 and is inserted into the slot 6, the mop head 3 is fixed by the penetrating opening 4 and the slot 6, and the shaking of the mop is effectively reduced. The mop is more stable in arrangement state; in the process of squeezing and cleaning the wiping materials on the mop head 3 by using the through hole 4, sewage of the wiping materials on the mop head 3 flows into the mop barrel 1, the sewage level outside the slot 6 is higher than the sewage level in the slot 6, and the mop head 4 is inserted into the slot 6, so that the secondary pollution of the sewage to the mop head 3 can be effectively reduced, and the use is more convenient and clean; the through opening 4 can be used for washing the mop head 3 and can also be used for squeezing the mop head 3, so that the multifunctional mop has multiple functions and is convenient to use.

The top edge of the slot 6 extends outwards in an inclined way to form an opening edge 7; the opening edge 7 increases the area of the upper opening of the slot 6, reduces the difficulty of aligning the mop head 3 and inserting the mop head into the slot 6, and is convenient to use.

The bottom of the mop bucket 1 protrudes upwards to form a mounting table 8, and the mounting table 8 is connected with the slot 6; the installation position of the slot 6 is higher due to the arrangement of the installation table 8, the difficulty of sewage flowing into the slot 6 is increased, and under the condition that the sewage level in the slot 6 is not changed, more sewage can be contained between the outside of the slot 6 and the mop bucket 1, so that the using effect is better.

A fixing groove 21 is formed in the mounting table 8, and a fixing protrusion 20 matched with the fixing groove 21 is formed in the slot 6; or, a fixing protrusion 20 is arranged on the mounting table 8, a fixing groove 21 matched with the fixing protrusion 20 is arranged on the slot 6, and the mounting table 8 is detachably connected with the slot 6; the utility model discloses it is preferred fixed protrusion 20 sets up in slot 6 bottom.

Still be provided with clear water bucket 9, suction pump 10 on the mop bucket 1 and for the power 11 that suction pump 10 provided the energy, it is provided with a plurality of spout 14 to wear 4 sides, inside and can be carried the liquid in clear water bucket 9 to spout 14 department blowout through the pipeline to suction pump 10 one end switch-on clear water bucket 9.

The water flow sprayed by the spray opening 14 can wash the mop head 3, and dirt falls downwards, so that the cleaning effect is good; the user can hold water in the clear water barrel 9 once to clean the mop head 3 for a plurality of times, so the use is convenient.

The utility model discloses it is preferred be connected with first raceway 12 and second raceway 13 on the suction pump 10, inside first raceway 12 was connected to clear water bucket 9, spout 14 was connected to second raceway 13.

The outside of clear water bucket 9 is provided with protective housing 15, form between protective housing 15 and the clear water bucket 9 and hold chamber 16, suction pump 10 and power 11 all set up in holding chamber 16.

The protective shell 15 can isolate the power supply and the water pump 10 from liquid in the sewage bucket 5, so that the power supply 11 and the water pump 10 are prevented from being corroded and short-circuited, normal use is guaranteed, and the service life is longer.

The nozzles 14 are uniformly arranged on one side of the through opening 4, and the nozzles 14 are all arranged at the same height.

Still include interconnect's control mainboard 17 and sensor 18, sensor 18 sets up inside mop bucket 1 or sets up on wearing mouthful 4, when sensor 18 detected mop head 3 and inserted and wear mouthful 4, control mainboard 17 ordered suction pump 10 and driven water and spout and maintain a spraying time from spout 14, enter a dead time after the spraying time finishes, suction pump 10 stops work all the time in the dead time, and suction pump 10 can restart after the dead time finishes.

The utility model discloses it is preferred spray time sets up to 8 seconds, the dead time sets up to 50 seconds.

When the mop is inserted into the through opening 4, the sensor 18 can make the nozzle 14 spray water automatically after receiving the signal, so that the operation steps of washing the mop by a user are saved, and the use is very convenient; the arrangement of the spraying time can enable the mop to be washed in fixed time at every time, so that long-time washing is prevented, in the dead time, the water suction pump 10 is always stopped working, the sensor 18 can be prevented from being repeatedly triggered when the mop is used for squeezing out the wiping materials through the through hole 4, multiple times of washing in a short time is avoided, water is saved, and the using mode is more reasonable.

The intelligent control system also comprises a switch 19 connected with the control mainboard 17, and the circuit of the control mainboard 17 can be switched on or off by driving the switch 19; when the user only needs the function of squeezing the wearing opening 4, the user only needs to turn off the switch 19, so the design is more humanized.

The product must relate to the circuit, however, the utility model discloses the control mainboard 17 that adopts for outer piece of assisting, according to the demand of our side product, provide circuit design producer, the producer can provide corresponding control mainboard 17, i s side only need the wiring can. And, the utility model discloses only need drive suction pump, switch 19 etc. circuit design is very simple, and the personnel in this field can be very simple design good control mainboard 17.

The above-mentioned embodiment is only the preferred embodiment of the present invention, and does not limit the protection scope of the present invention according to this, so: all equivalent changes made according to the structure, shape and principle of the utility model are covered within the protection scope of the utility model.

Claims

1. A novel cleaning tool, comprising a mop bucket (1) and a mop, the mop being composed of a mop rod (2) and a mop head (3), the mop head (3) being rotatably connected under the mop rod (2), which It is characterized in that: the mop bucket (1) is provided with a through hole (4) for the mop head (3) to enter, a squeezer (5) is arranged in the through hole (4), and the mop head (3) enters The squeezer (5) squeezes and cleans the wipes on the mop head (3) during the piercing (4) and moving in the piercing (4), and a slot is provided under the mop bucket (1). (6), the mop head (3) can be inserted into the slot (6) after entering through the opening (4).

2 . The novel cleaning tool according to claim 1 , wherein the top edge of the slot ( 6 ) extends obliquely outward to form an opening edge ( 7 ). 3 .

3. A novel cleaning tool according to claim 1 or 2, characterized in that: the bottom of the mop bucket (1) protrudes upward to form a mounting table (8), and the mounting table (8) is connected to the slot ( 6) Connect.

4. A novel cleaning tool according to claim 3, characterized in that: a fixing groove (21) is provided on the mounting table (8), and a fixing groove (21) is provided on the slot (6) ) adapted fixing projections (20); or, the mounting platform (8) is provided with fixing projections (20), and the slot (6) is provided with fixing projections (20) adapted A fixing slot (21), the mounting platform (8) and the slot (6) are detachably connected.

5. A novel cleaning tool according to claim 1 or 2 or 4, characterized in that: the mop bucket (1) is also provided with a clean water bucket (9), a water pump (10) and a water pump (10). 10) A power supply (11) for providing energy, a plurality of spouts (14) are provided on the side of the through-hole (4), and one end of the suction pump (10) is connected to the inside of the clean water bucket (9) and can drain the clean water bucket (9). The liquid in 9) is transported to the nozzle (14) through the pipeline to be ejected.

6. A novel cleaning tool according to claim 5, characterized in that: a protective shell (15) is provided on the outside of the clean water bucket (9), and a protective shell (15) is provided between the protective shell (15) and the clean water bucket (9). An accommodating cavity (16) is formed, and both the suction pump (10) and the power source (11) are arranged in the accommodating cavity (16).

7 . The novel cleaning tool according to claim 6 , wherein the nozzles ( 14 ) are evenly arranged on one side of the piercing ( 4 ), and the nozzles ( 14 ) are all arranged at the same height. 8 .

8. A novel cleaning tool according to claim 1 or 2 or 4 or 6 or 7, characterized in that it further comprises a control main board (17) and a sensor (18) that are connected to each other, and the sensor (18) is provided with Inside the mop bucket (1) or provided on the piercing (4), the sensor (18) detects that the mop head (3) is inserted into the piercing (4), and the control motherboard (17) commands the suction pump (10) to drive The water is sprayed from the spout (14) and maintained for a spraying time. After the spraying time ends, it enters a stagnant time. During the stagnant time, the suction pump (10) always stops working. Restart.

9. A novel cleaning tool according to claim 8, characterized in that it further comprises a switch (19) connected with the control mainboard (17), and driving the switch (19) can control the circuit of the mainboard (17). access or disconnection.
