Abstract
本实用新型公开了一种基于大数据处理设备的散热装置，涉及电子设备技术领域。本实用新型包括保护组件、散热部和冷却组件，散热部插接在保护组件上，冷却组件固定连接在保护组件上，冷却组件上插接有散热部，散热部包括散热板和散热件，散热板上固定连接有散热件，散热件插接在保护组件中，冷却组件包括冷却部和固定部，固定部的外侧固定连接有冷却部，固定部内侧通过螺丝固定连接在保护组件上。本实用新型通过设置散热部和冷却组件，在使用的时候，散热件可以吸收保护组件中各区域的热量，使保护组件中的温差更小，减少由于局部高温带来的问题，并利用冷却部中流动的水，可以使散热板降温更快，可以更快的吸收保护组件中的温度，非常的方便。
The utility model discloses a heat dissipation device based on big data processing equipment, which relates to the technical field of electronic equipment. The utility model comprises a protection assembly, a heat dissipation part and a cooling assembly, the heat dissipation part is plugged on the protection assembly, the cooling assembly is fixedly connected to the protection assembly, the cooling assembly is plugged with a heat dissipation part, the heat dissipation part comprises a heat dissipation plate and a heat dissipation part, and the heat dissipation part A heat sink is fixedly connected to the board, and the heat sink is inserted into the protection component. The cooling component includes a cooling part and a fixing part. The outer side of the fixing part is fixedly connected with a cooling part; By arranging the heat dissipation part and the cooling assembly in the utility model, when in use, the heat dissipation part can absorb the heat of each area in the protection assembly, so that the temperature difference in the protection assembly is smaller, and the problem caused by the local high temperature is reduced, and the cooling part is used. The water flowing in the cooling plate can cool down the heat sink faster and absorb the temperature in the protection component faster, which is very convenient.
Description
Technical Field
The utility model belongs to the technical field of electronic equipment, especially, relate to a heat abstractor based on big data processing equipment.
Background
The heat dissipation device based on big data processing equipment is a device for dissipating heat of a host machine applied to big data processing, is quite common in the life at present, and although the heat dissipation device based on the big data processing equipment at present can accelerate the heat dissipation of the host machine in the using process by using a heat dissipation plate, the heat dissipation device still has the following defects in the actual using process:
1. when the existing heat dissipation device based on the big data processing equipment dissipates heat inside the protective shell through the heat dissipation plate, the temperature inside the protective shell far away from the heat dissipation plate is sometimes overhigh;
2. when the existing heat dissipation device based on the big data processing equipment uses the heat dissipation plate to cool, the heat in the heat dissipation plate is conducted out at a low speed, and the heat dissipation efficiency is affected.
Therefore, the existing heat dissipation device based on big data processing equipment has poor practicability and cannot meet the requirements in practical use, so that an improved technology is urgently needed in the market to solve the problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a heat abstractor based on big data processing equipment, through radiating part and cooling module, can make the difference in temperature in the protection subassembly littleer and increase the radiating rate of heating panel, solved current protection subassembly in the use the temperature difference great, local high and the slower problem of heating panel radiating rate.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a heat abstractor based on big data processing equipment, including protection component, radiating part and cooling module, the radiating part is pegged graft on protection component, cooling module fixed connection is on protection component, it has the radiating part to peg graft on the cooling module, the radiating part includes heating panel and radiating part, fixedly connected with radiating part on the heating panel, the radiating part is pegged graft in protection component, cooling module includes cooling part and fixed part, the outside fixedly connected with cooling part of fixed part, the fixed part inboard is passed through screw fixed connection on protection component.
Further, the protection subassembly includes protective housing and heat dissipation motor, set up a set of mounting groove of arranging from top to bottom on the protective housing, the bottom of protective housing is provided with the arch, has seted up the bleeder vent in the middle of the arch, the top fixedly connected with heat dissipation motor of bleeder vent, the first ware subassembly of top fixedly connected with of heat dissipation motor through setting up the bleeder vent, can be when heat dissipation motor work, can blow the lower air of temperature to first ware subassembly, reduces first ware subassembly's temperature, through setting up the arch, can prevent that water on the ground from entering into in the protective housing.
Furthermore, a group of fixing grooves which are arranged up and down is formed in the fixing portion, a group of transmission grooves are formed between every two adjacent fixing grooves, and a heat conducting piece is arranged in the middle of each transmission groove.
Furthermore, the heating panel passes through the fixed slot of fixed part and pegs graft on the radiating part, adjacent two all be provided with between the heating panel heat-conducting element, the radiating piece pegs graft in the mounting groove, through setting up heat-conducting element, can make the heating panel temperature at heat-conducting element both ends the same for prevent that partial heating panel from leading to ageing serious problem because the high temperature, through setting up the radiating piece of range from top to bottom, can all transmit the temperature of each part of protective housing to the heating panel, reduce the temperature in the protective housing.
Further, the cooling part comprises a circulating box and a cooling pipe, the cooling pipe is sleeved on the circulating box, and the circulating box is fixedly connected to the fixing part through bolts.
Furthermore, a set of parallel limiting holes is formed in the heat dissipation plate, cooling pipes are inserted in the limiting holes, the cooling pipes can be limited on the heat dissipation plate through the limiting holes, and the temperature of the heat dissipation plate can be reduced through flowing water in the cooling pipes.
The utility model discloses following beneficial effect has:
1. the utility model discloses a set up the heat dissipation portion, when using, through the heat dissipation piece of arranging about setting up, can absorb the heat in the protection subassembly to on transmitting the heating panel, the absorptive temperature of heating panel is arranged in the air and the cooling module, can make the difference in temperature littleer in the protection subassembly, reduces because the problem that local high temperature brought.
2. The utility model discloses a set up cooling module, when using, through setting up the cooling portion, utilize the water that flows in the cooling portion, can accelerate the heating panel with absorptive heat exhaust speed, make the heating panel cooling faster, temperature in the absorption protection subassembly that can be faster to reduce the temperature in the protection subassembly, convenience very.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

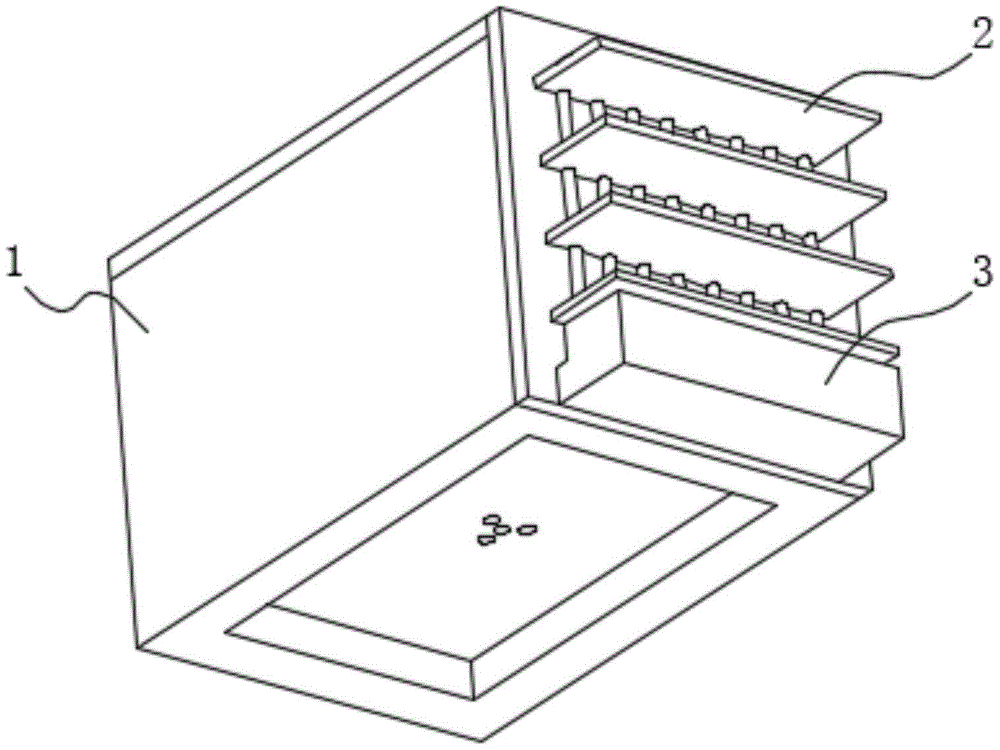

FIG. 1 is a schematic structural diagram of a heat dissipation device based on a big data processing device;
fig. 2 is a schematic sectional structural view of the protection assembly of the present invention;
FIG. 3 is a schematic structural view of the connection between the heat dissipation part and the cooling module according to the present invention;
fig. 4 is a schematic structural view of the heat dissipation portion of the present invention;
fig. 5 is a schematic structural diagram of the cooling assembly of the present invention.
In the drawings, the components represented by the respective reference numerals are listed below:
1. a protection component; 11. a protective shell; 111. mounting grooves; 112. air holes are formed; 12. a heat dissipation motor; 2. a heat dissipating section; 21. a heat dissipation plate; 211. a limiting hole; 22. a heat sink; 3. a cooling assembly; 31. a cooling section; 311. a circulation box; 312. a cooling tube; 32. a fixed part; 321. a heat conducting member.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
Referring to fig. 1-5, the present invention relates to a heat dissipation device based on big data processing equipment, which comprises a protection component 1, a heat dissipation part 2 and a cooling component 3, wherein the heat dissipation part 2 is inserted into the protection component 1, the cooling component 3 is fixedly connected to the protection component 1, and the heat dissipation part 2 is inserted into the cooling component 3.
As shown in fig. 1-4, the protection assembly 1 includes a protection shell 11 and a heat dissipation motor 12, the protection shell 11 is provided with a set of mounting slots 111 arranged up and down, the bottom of the protection shell 11 is provided with a protrusion, the middle of the protrusion is provided with an air vent 112, the heat dissipation motor 12 is fixedly connected above the air vent 112, the upper part of the heat dissipation motor 12 is fixedly connected with a component assembly, the heat dissipation part 2 includes a heat dissipation plate 21 and a heat dissipation part 22, the heat dissipation plate 21 is fixedly connected with the heat dissipation part 22, the heat dissipation part 22 is inserted into the protection assembly 1, the fixing part 32 of the cooling assembly 3 is provided with a set of fixing slots arranged up and down, a set of transmission slots is arranged between two adjacent fixing slots, the middle of each transmission slot is provided with a heat conduction element 321, the heat dissipation plate 21 is inserted into the heat dissipation part 2 through the fixing slots of the fixing part 32, and the heat conduction elements 321 are arranged between two adjacent heat dissipation plates 21, the heat dissipation member 22 is inserted in the mounting groove 111, when mounting, firstly, the heat dissipation member 2 is inserted in the fixing groove on the fixing portion 32, then the heat dissipation member 22 is inserted in the mounting groove 111, finally, the component assembly in the protection shell 11 is fixedly connected on the protrusion, when using, the external air is sucked into the protection shell 11 from the air holes 112 through the heat dissipation motor 12, the high-temperature area is generated in the component assembly, the heat is taken away through the air flow, the heat dissipation member 22 conducts the heat to the heat dissipation plate 21, through the heat conduction member 321 arranged between the two heat dissipation plates 21, the heat can be transferred from the heat dissipation plate 21 with high temperature to the heat dissipation plate 21 with low temperature, and the temperature difference between each heat dissipation plate 21 is small.
As shown in fig. 1 and fig. 3-5, the cooling assembly 3 includes a cooling portion 31 and a fixing portion 32, the cooling portion 31 is fixedly connected to the outer side of the fixing portion 32, the inner side of the fixing portion 32 is fixedly connected to the protection assembly 1 through screws, the cooling portion 31 includes a circulation box 311 and a cooling pipe 312, the cooling pipe 312 is sleeved on the circulation box 311, the circulation box 311 is fixedly connected to the fixing portion 32 through bolts, a set of parallel limit holes 211 is formed on the heat dissipation plate 21 of the heat dissipation portion 2, the cooling pipe 312 is inserted into the limit holes 211, when the cooling assembly is installed, the circulation box 311 is fixedly connected to the outer side of the fixing portion 32 through bolts, then the heat dissipation portion 2 is inserted into the fixing portion 32, the fixing portion 32 is fixed to the protection assembly 1 through screws, and the cooling pipe 312 is inserted into the limit holes 211 of the heat dissipation plate 21, when the cooling plate 21 is used, the heat in the protection assembly 1 is transferred out, the circulation tank 311 discharges the flowing water into the cooling pipe 312, and the flowing water takes away the temperature of the heat dissipation plate 21, so that the temperature of the heat dissipation plate 21 is reduced more quickly, and the heat dissipation plate 21 can transfer more heat in the protection component 1.
One specific application of this embodiment is: the first step, when installing, at first peg graft cooling part 2 on cooling module 3, the second step, then fix cooling module 3 on protection module 1 through the screw, the third step, when using, through cooling part 2 with the temperature reduction in the protection module 1, can reduce the temperature on the cooling module 2 fast through cooling module 3.
The above is only the preferred embodiment of the present invention, and the present invention is not limited thereto, any technical solutions recorded in the foregoing embodiments are modified, and some technical features thereof are replaced with equivalent ones, and any modification, equivalent replacement, and improvement made thereby all belong to the protection scope of the present invention.
