Abstract
本实用新型公开了一种空气环境中污染物的监测装置，包括监测装置本体，监测装置本体的顶部外壁通过合页连接有金属壳，金属壳的内部设置有太阳能电池板，监测装置本体的顶部外壁通过螺栓连接有滑轨，滑轨的内部滑动连接有滑板，滑板与金属壳之间通过轴铰接有连杆，滑板的内部通过螺纹连接有压紧螺栓，压紧螺栓的顶部外壁焊接有加力板，监测装置本体的底部内壁设置有电源模块，电源模块与太阳能电池板通过导线呈电性连接。本实用新型通过设置的太阳能电池板和电源模块，利用太阳能电池板可以通过太阳能进行发电，并储存在电源模块的内部，使得检测装置在野外的范围更加的广泛，进而增加了污染物检测装置的使用范围。
The utility model discloses a monitoring device for pollutants in an air environment, comprising a monitoring device body, a top outer wall of the monitoring device body is connected with a metal shell through hinges, a solar cell panel is arranged inside the metal shell, and the top of the monitoring device body is The outer wall is connected with the slide rail by bolts, the slide rail is slidably connected inside the slide rail, the connecting rod is hinged between the slide plate and the metal shell through the shaft, the inner part of the slide plate is connected with the pressing bolt through the thread, and the top outer wall of the pressing bolt is welded with a plus The power plate is provided with a power module on the bottom inner wall of the monitoring device body, and the power module and the solar panel are electrically connected through wires. The utility model uses the solar cell panel and the power module to generate electricity through the solar energy and stores it in the power module, so that the detection device has a wider range in the field, thereby increasing the pollutant detection device. range of use.
Description
Technical Field
The utility model relates to an empty gas detection surveys equipment technical field, especially relates to a monitoring devices of pollutant among air circumstance.
Background
Along with the improvement of the living standard of people, people pay more and more attention to the quality of air, therefore need use equipment to monitor the pollutant in the air environment of each area for know the air pollution condition in this area.
When the monitoring device for pollutants in the air environment in the prior art is installed, a power supply for power transmission needs to be considered near the installation, so that the application range of the detection device is limited, the heat dissipation and dehumidification performances are poor, and the detection device is damaged due to overheating or humid air. Therefore, it is desirable to design a device for monitoring pollutants in an air environment to solve the above problems.
Disclosure of Invention
The utility model aims at solving the problem of narrow application range, poor heat dissipation and dehumidification effect in the prior art and providing a monitoring device for pollutants in air environment.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a monitoring devices of pollutant among air circumstance, includes the monitoring devices body, there is the metal casing top outer wall of monitoring devices body through hinge connection, the inside of metal casing is provided with solar cell panel, there is the slide rail top outer wall of monitoring devices body through bolted connection, the inside sliding connection of slide rail has the slide, it has the connecting rod to articulate through the axle between slide and the metal casing, there is clamp bolt inside of slide through threaded connection, clamp bolt's top outer wall welding has the gusset, the bottom inner wall of monitoring devices body is provided with power module, power module is electric connection through the wire with solar cell panel.
The key concept of the technical scheme is as follows: utilize solar cell panel can generate electricity through solar energy to store in power module's inside, make detection device more extensive in open-air scope, and then increased pollutant detection device's application range.
Further, the inner wall of the bottom of the monitoring device body is connected with a cooling fan through a bolt, the outer wall of one side of the monitoring device body is provided with a temperature and humidity sensor, the inner wall of the bottom of the monitoring device body is connected with a control module through a bolt, and the cooling fan, the power supply module and the temperature and humidity sensor are all electrically connected with the control module through wires.
Further, there is a wind direction sensor on one side outer wall of the monitoring device body through bolted connection, the wind direction sensor is electrically connected with the monitoring device body through a wire, there is a wind speed sensor on one side outer wall of the monitoring device body through bolted connection, the wind speed sensor is electrically connected with the monitoring device body through a wire.
Furthermore, the bottom of the monitoring device body is provided with a support cylinder, a connecting rod is inserted into the support cylinder, and the connecting rod is connected with the monitoring device body through a flange.
Furthermore, a nut is welded on the outer wall of one side of the support cylinder, and a fastening bolt is connected inside the nut through threads.
Furthermore, a window is formed in the outer wall of one side of the monitoring device body, and a light-transmitting plate is arranged inside the window.
Furthermore, the outer wall of the bottom of the supporting cylinder is welded with a base, and the outer wall of the bottom of the base is provided with a fixing hole.
The utility model has the advantages that:
1. through the solar cell panel and the power module who set up, utilize solar cell panel can generate electricity through solar energy to store in power module's inside, make detection device more extensive in open-air scope, and then increased pollutant detection device's application range.
2. Through temperature and humidity sensor, control module and the radiator fan who sets up, utilize temperature and humidity sensor to monitor the inside temperature and humidity of detection device for control radiator fan through control module carries out automatic operation, and then has realized the effect that monitoring devices body heat dissipation, dehumidification performance are good.
3. Through the slide rail, slide and the clamp bolt that set up, make the slide fix in the inside of slide rail through the rotation to clamp bolt, and then make the inside solar cell panel of metal casing can carry out the change of angle, and then when being fit for installing in different dimensions on earth, conveniently carry out the effect adjusted.
4. Through the fastening bolt, a branch section of thick bamboo and the connecting rod that set up, the rotation that utilizes fastening bolt makes the connecting rod fix in the inside of a branch section of thick bamboo, and then makes the monitoring devices body can rise and reduce for detection device can carry out altitude mixture control's effect according to the geographical environment of difference.
Drawings

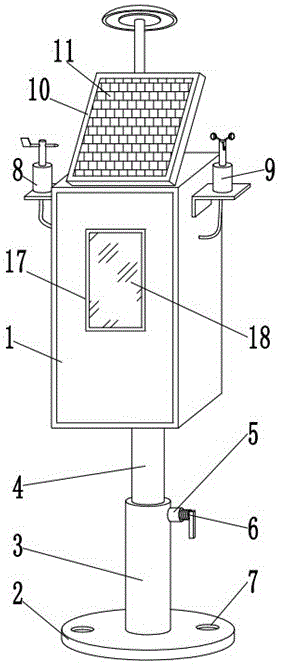

Fig. 1 is a schematic view of the overall structure of a device for monitoring pollutants in an air environment according to the present invention;
fig. 2 is a schematic cross-sectional structure diagram of a device for monitoring pollutants in an air environment according to the present invention;
fig. 3 is a schematic structural view of a slide rail of a device for monitoring pollutants in an air environment according to the present invention;
fig. 4 is a control flow chart of the monitoring device for pollutants in an air environment according to the present invention.
In the figure: the device comprises a monitoring device body 1, a base 2, a support 3, a connecting rod 4, a nut 5, a fastening bolt 6, a fixing hole 7, a wind direction sensor 8, a wind speed sensor 9, a metal shell 10, a solar cell panel 11, a connecting rod 12, a sliding rail 13, a sliding plate 14, a pressing bolt 15, a reinforcing plate 16, a window 17, a light-transmitting plate 18, a power module 19, a temperature and humidity sensor 20, a cooling fan 21 and a control module 22.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Please refer to fig. 1 to 4 simultaneously, a monitoring device for pollutants in air environment, including monitoring device body 1, monitoring device body 1 is a monitoring device for pollutants in air in the prior art, top outer wall of monitoring device body 1 has metal shell 10 through hinge connection, inside of metal shell 10 is provided with solar cell panel 11, model of solar cell panel 11 is THL360, top outer wall of monitoring device body 1 has slide rail 13 through bolted connection, inside sliding connection of slide rail 13 has slide 14, there is connecting rod 12 through the axle hinge between slide 14 and metal shell 10, inside of slide 14 has clamp bolt 15 through threaded connection, top outer wall welding of clamp bolt 15 has gusset 16, bottom inner wall of monitoring device body 1 is provided with power module 19, power module 19 is a storage battery in the prior art, power module 19 is electrically connected with solar cell panel 11 through the wire.
As can be seen from the above description, the present invention has the following advantages: through the solar cell panel 11 and the power module 19 that set up, utilize solar cell panel 11 can generate electricity through solar energy to store in power module 19's inside, make monitoring devices body 1 more extensive in the scope in the field, and then increased pollutant detection device's application range.
Further, the inner wall of the bottom of the monitoring device body 1 is connected with a cooling fan 21 through a bolt, the model of the cooling fan 21 is G-100, the outer wall of one side of the monitoring device body 1 is provided with a temperature and humidity sensor 20, the model of the temperature and humidity sensor 20 is BM100, the inner wall of the bottom of the monitoring device body 1 is connected with a control module 22 through a bolt, the model of the control module 22 is CN32PT, the cooling fan 21, the power module 19 and the temperature and humidity sensor 20 are all electrically connected with the control module 22 through wires, and the control module 22 is used for controlling the cooling fan 21 to automatically operate.
Further, there is wind direction sensor 8 one side outer wall of monitoring devices body 1 through bolted connection, wind direction sensor 8's model is HGFXSV50V, wind direction sensor 8 is electric connection through wire and monitoring devices body 1, there is wind speed sensor 9 one side outer wall of monitoring devices body 1 through bolted connection, wind speed sensor 9's model is MULTI-5P, wind speed sensor 9 is electric connection through wire and monitoring devices body 1, utilize wind direction sensor 8 and wind speed sensor 9 to detect the wind speed and the wind direction in this area of department.
Further, the bottom of monitoring devices body 1 is provided with a section of thick bamboo 3, and the inside of a section of thick bamboo 3 is pegged graft and is had connecting rod 4, and connecting rod 4 passes through the flange and is connected with monitoring devices body 1 for connecting rod 4 can stimulate in the inside of a section of thick bamboo 3.
Further, the outer wall welding of one side of a branch section of thick bamboo 3 has nut 5, and there is fastening bolt 6 nut 5's inside through threaded connection, utilizes fastening bolt 6 to contradict fixedly connecting rod 4 for monitoring devices body 1 can carry out altitude mixture control.
Further, the outer wall of one side of the monitoring device body 1 is provided with a window 17, a light-transmitting plate 18 is arranged inside the window 17, and the light-transmitting plate 18 is made of glass materials, so that the inside of the monitoring device body 1 can be observed conveniently.
Further, the base 2 is welded on the outer wall of the bottom of the support cylinder 3, the fixing hole 7 is formed in the outer wall of the bottom of the base 2, and the base 2 is fixed through the fixing hole 7 through a bolt convenient to use.
By adopting the temperature and humidity sensor 20, the control module 22 and the cooling fan 21, the temperature and the humidity inside the monitoring device body 1 are monitored by the temperature and humidity sensor 20, so that the cooling fan 21 is controlled by the control module 22 to automatically operate, and the effects of good heat dissipation and dehumidification performances of the monitoring device body 1 are realized.
In the following, some preferred embodiments or application examples are listed to help those skilled in the art to better understand the technical content of the present invention and the technical contribution of the present invention to the prior art:
example 1
The utility model provides a monitoring devices of pollutant among air circumstance, including monitoring devices body 1, monitoring devices body 1 is the monitoring facilities of pollutant in prior art's the air, there is metal casing 10 monitoring devices body 1's top outer wall through hinge connection, the inside of metal casing 10 is provided with solar cell panel 11, solar cell panel 11's model is THL360, there is slide rail 13 monitoring devices body 1's top outer wall through bolted connection, slide rail 13's inside sliding connection has slide 14, there is connecting rod 12 through the axle is articulated between slide 14 and the metal casing 10, there is clamp bolt 15 slide 14's inside through threaded connection, clamp bolt 15's top outer wall welding has gusset 16, monitoring devices body 1's bottom inner wall is provided with power module 19, power module 19 is prior art's battery, power module 19 is electric connection through the wire with solar cell panel 11.
The inner wall of the bottom of the monitoring device body 1 is connected with a cooling fan 21 through a bolt, the type of the cooling fan 21 is G-100, the outer wall of one side of the monitoring device body 1 is provided with a temperature and humidity sensor 20, the type of the temperature and humidity sensor 20 is BM100, the inner wall of the bottom of the monitoring device body 1 is connected with a control module 22 through a bolt, the type of the control module 22 is CN32PT, the cooling fan 21, the power supply module 19 and the temperature and humidity sensor 20 are all electrically connected with the control module 22 through wires, and the control module 22 is used for controlling the cooling fan 21 to automatically run; the monitoring device comprises a monitoring device body 1, a wind direction sensor 8, a wind speed sensor 9, a wind speed sensor 8, a wind direction sensor 9, a lead and a monitoring device body 1, wherein the outer wall of one side of the monitoring device body 1 is connected with the wind direction sensor 8 through a bolt, the model of the wind direction sensor 8 is HGFXSV50V, the wind direction sensor 8 is electrically connected with the monitoring device body 1 through the lead, the outer wall of one side of the monitoring device body 1 is connected with the wind speed sensor 9 through the bolt, the model of the wind speed sensor 9 is MULTIL-5P, the wind speed sensor 9 is electrically connected with the monitoring device body 1 through the lead, and the wind speed and the wind direction of the area are detected by the wind direction sensor 8 and the wind speed sensor 9; a support cylinder 3 is arranged at the bottom of the monitoring device body 1, a connecting rod 4 is inserted into the support cylinder 3, and the connecting rod 4 is connected with the monitoring device body 1 through a flange, so that the connecting rod 4 can be pulled in the support cylinder 3; a nut 5 is welded on the outer wall of one side of the supporting cylinder 3, a fastening bolt 6 is connected inside the nut 5 through threads, and the fastening bolt 6 is used for abutting and fixing the connecting rod 4, so that the height of the monitoring device body 1 can be adjusted; a window 17 is formed in the outer wall of one side of the monitoring device body 1, a light-transmitting plate 18 is arranged inside the window 17, and the light-transmitting plate 18 is made of glass materials, so that the inside of the monitoring device body 1 can be observed conveniently; the bottom outer wall welding of a branch section of thick bamboo 3 has base 2, and the bottom outer wall of base 2 is opened has fixed orifices 7, fixes base 2 through 7 convenient to use bolts of fixed orifices.
The working principle is as follows: when the height of the monitoring device body 1 needs to be adjusted, the fastening bolt 6 is rotated to ensure that the fastening bolt 6 does not contact with the connecting rod 4, the connecting rod 4 is pulled in the support tube 3 to change the height of the monitoring device body 1, the fastening bolt 6 is rotated to ensure that the fastening bolt 6 is abutted against and fixed on the connecting rod 4, so that the mounting height of the detection device can be changed, when the inclination angle of the solar cell panel 11 in the metal shell 10 needs to be changed, the compression bolt 15 is rotated through the reinforcing plate 16 to ensure that the compression bolt 15 is not abutted against the inner wall of the bottom of the sliding rail 13, the sliding plate 14 slides in the sliding rail 13 to ensure that the included angle between the metal shell 10 and the monitoring device body 1 is changed, and the compression bolt 15 is rotated through the reinforcing plate 16 again, the pressing bolt 15 is used for fixing the sliding plate 14 in the sliding rail 13, so that the fixing of the inclination angle of the solar cell panel 11 can be realized; utilize solar cell panel 11 to generate electricity to store the electric energy in power module 19's inside, make monitoring device body 1 carry out normal work.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
