Abstract
本实用新型提供了基于5G通信的恶劣天气设备状态监测装置，其解决技术问题的技术方案包括远程工作站以及安装横梁，所述安装横梁上安装有可拆卸的安装支架，所述安装支架上连接有微气象模块以及监控模块，所述安装横梁上安装有倾角传感器，所述微气象模块、监控模块以及倾角传感器与远程工作站之间采用5G网络通信连接，本实用新型可提高监测准确度以及效率，提高安全性，减少人工成本。
The utility model provides a bad weather equipment state monitoring device based on 5G communication, and the technical solution for solving the technical problem includes a remote workstation and an installation beam, wherein a detachable installation bracket is installed on the installation beam, and a detachable installation bracket is connected to the installation bracket. A micro-meteorological module and a monitoring module, an inclination sensor is installed on the installation beam, and a 5G network communication connection is adopted between the micro-meteorological module, the monitoring module, the inclination sensor and the remote workstation, and the utility model can improve the monitoring accuracy and efficiency, Improve safety and reduce labor costs.
Description
Technical Field
The utility model belongs to the technical field of the electric wire netting circuit monitoring.
Background
When a power grid line suffers from a typhoon disaster, personnel are evacuated from the site in consideration of safety, and incomplete information control of power grid equipment on the disaster site can cause improper emergency command and delay the emergency repair efficiency. Through 5G communication technology and equipment state monitoring facilities combination, setting up little meteorological area in the great region that receives the wind force, important line passageway installation real time monitoring early warning device realizes that equipment state is visual, provides real-time information for emergency command. In the stage of emergency, the emergency inspection equipment of the 5G communication technology is applied, so that remote guidance of an expert team can be realized through troubleshooting, low time delay of a transmission picture is ensured, and timely error correction and prompt of improving the safety of inspection personnel are ensured. Through using 5G communication technology, remote monitoring reduces the human cost, realizes personnel's training, safety supervision, the efficiency promotion is guided to remote technology, reduces typhoon disaster loss, promotes emergent commander's efficiency and degree of accuracy.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a bad weather equipment state monitoring devices based on 5G communication can improve the monitoring degree of accuracy and efficiency, improves the security, reduces the cost of labor.
The utility model provides a bad weather equipment status monitoring devices based on 5G communication, its technical scheme who solves technical problem includes remote workstation and installation crossbeam, install the detachable installing support on the installation crossbeam, be connected with little meteorological module and monitoring module on the installing support, install inclination sensor on the installation crossbeam, adopt 5G network communication connection between little meteorological module, monitoring module and inclination sensor and the remote workstation.
Preferably, the solar energy micro-meteorological monitoring system further comprises a solar cell panel, the solar cell panel is connected with the mounting cross beam through a mounting bracket, and a power storage part of the solar cell panel is electrically connected with the microclimate module, the monitoring module and the inclination angle sensor respectively.
Preferably, the tilt angle sensor is horizontally installed on a horizontal end face of the installation beam, or the tilt angle sensor is vertically installed on a vertical end face of the installation beam.
Preferably, the mounting bracket is fixed on the mounting cross beam through two horizontal tension bolts, the mounting bracket and the lower end of the vertical support plate of the mounting cross beam are fixed in a tensioned manner through a vertical tension bolt, and a sleeve for mounting accessories is arranged on the mounting bracket.
Preferably, monitoring module, microclimate module and solar cell panel install on same installing support, monitoring module install at telescopic lower extreme, be connected through angle adjusting device between monitoring module and the sleeve, microclimate module installs in telescopic upper end, solar cell panel installs at the sleeve middle part and is located monitoring module's upper portion.
Preferably, the angle adjusting device comprises a U-shaped support fixedly connected with the lower end of the sleeve, arc-shaped connecting holes are formed in two side plates of the U-shaped support, a supporting piece is fixed on the monitoring module, and the supporting piece is located inside the U-shaped support and connected with the connecting holes through bolts.
Preferably, the solar cell panel, the monitoring module and the microclimate module are respectively and fixedly connected with the mounting beam through independent mounting brackets.
Preferably, the detection range of the tilt sensor is ± 30 °.
In conclusion, the application the technical scheme of the utility model, following beneficial effect has at least:
1. by designing the tilt angle sensor, whether the support arranged under the action of typhoon is inclined or not can be monitored;
2. by designing the monitoring module, the monitoring module adopts the camera which can take pictures intermittently or periodically, the scene condition is fed back in time, the monitoring module is convenient for workers to know at any time and can respond in time;
3. the micro-meteorological module can be designed to master the meteorological conditions on site in time;
4. the solar cell panel is designed, so that automatic operation of the equipment can be realized;
5. by adopting 5G network communication to carry out remote interaction, the monitoring precision and the feedback efficiency are improved, and the phenomenon of peak delay when a disaster occurs is avoided.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the drawings needed to be used in the description of the embodiments will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

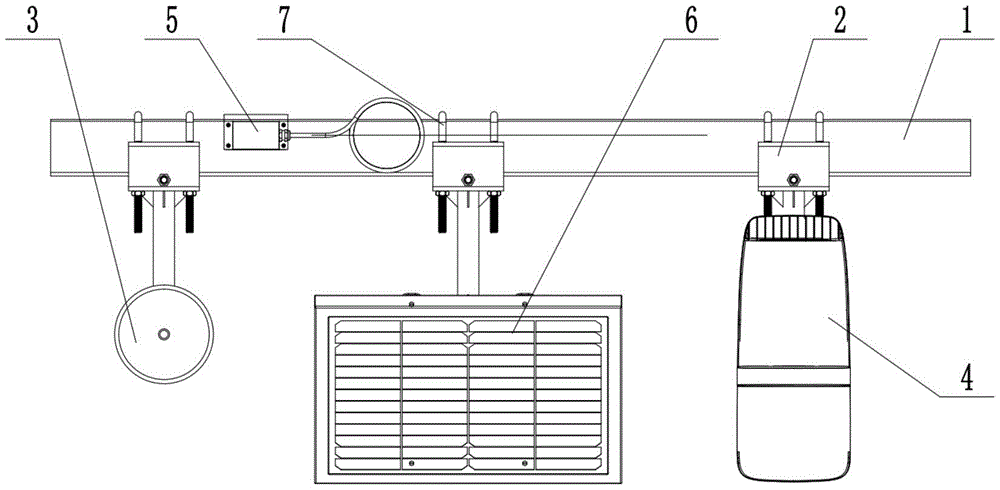

Fig. 1 is a schematic top view of the present invention;
fig. 2 is a side view of the present invention.
In the figure; a cross beam 1 and a support 2 are installed; a microclimate module 3; a monitoring module 4; a tilt sensor 5; a solar cell panel 6; a tension bolt 7; a U-shaped support 8; and connecting to the aperture 9.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As can be seen from the attached drawings 1-2, the utility model provides a severe weather equipment state monitoring device based on 5G communication, which comprises a remote workstation and a field device, wherein the field device is pre-installed and comprises an installation beam 1, a detachable installation support 2 is installed on the installation beam 1, a microclimate module 3 and a monitoring module 4 are connected on the installation support 2, an inclination angle sensor 5 is installed on the installation beam, the microclimate module 3, the monitoring module 4 and the inclination angle sensor 5 are connected with the remote workstation by adopting 5G network communication, the installation beam 1 in the technical scheme can be an installation foundation specially arranged for the monitoring and inspection device, and can also be installed by depending on telegraph poles, towers or electric equipment racks and the like in an electric network system, the microclimate module 3 of the utility model adopts a microclimate sensor, it can be used to monitor temperature, humidity and wind direction and speed, the temperature range that wherein can monitor: -40-125 ℃ with a precision of ± 0.2 ℃; humidity range: 0-100% RH, precision + -3% RH; wind speed range: 0-60m/s, precision +/-0.3 m/s; wind direction range: 16 directions with 1 direction precision. The monitoring module 4 adopts a camera head, supports remote active photographing, video recording, equipment GPS information acquisition, photographing interval change and the like, and has the characteristics of integrated design, intelligent image analysis, real-time online, maintenance-free, long service life, flexible deployment, convenience in installation, wireless transmission, safety, reliability and the like. The inclination angle sensor is used for monitoring the inclination degree of the installation technology influenced by wind power, wherein the detection range of the inclination angle sensor 5 is +/-30 degrees, and the highest precision can reach 0.02 degrees.
In order to make the technical scheme of the utility model can long-range continuous work, adopt solar cell panel as power source, solar cell panel passes through installing support 2 and is connected with installation crossbeam 1, and solar cell panel 6's electric storage portion is connected with microclimate module 3, monitoring module 4 and angular transducer 5 electricity respectively, can carry out sustainable work in open-air important area.
The utility model discloses well inclination sensor's mounting means provides following two kinds of embodiments, and first is horizontal installation on the horizontal end face of installation crossbeam 1, and second is that inclination sensor 5 is vertical to be installed on the vertical terminal surface of installation crossbeam 1.
The utility model discloses the convenience of installation and the stability of installation need be considered in being connected of well installing support 2 and installation crossbeam 1, the utility model provides an installation embodiment of installing support 2, fix on the installation crossbeam through two horizontally tie bolt 7 on installing support 2, it is taut fixed through a vertical tie bolt 7 between the lower extreme of the vertical backup pad of installing support 2 and installation crossbeam 1, be used for preventing empting of installing support 2, tie bolt 7 through level and vertical direction mutually supports, can realize the better laminating of installing support 2 and installation crossbeam 1 terminal surface, guarantee the stability of installation, be equipped with the sleeve that is used for installing the annex on installing support 2.
The utility model discloses well monitoring module 4, microclimate module 3 and solar cell panel 6's mounting means has two kinds, and first is that monitoring module 4, microclimate module 3 and solar cell panel 6 install on same installing support 2, monitoring module 4 install at telescopic lower extreme, be connected through angle adjusting device between monitoring module 4 and the sleeve, microclimate module installs in telescopic upper end, and solar cell panel 6 installs at the sleeve middle part and is located monitoring module 4's upper portion. Secondly, the solar cell panel 6, the monitoring module and the microclimate module are respectively and fixedly connected with the mounting beam 1 through the independent mounting bracket 2. Wherein the position of installation monitoring module 4 is equipped with angle adjusting device for adjusting monitoring device's installation angle, make the shooting angle more suitable, angle adjusting device include with sleeve lower extreme fixed connection's U-shaped support 8, curved connecting hole 9 has all been seted up on the both sides board that the U-shaped supported, be fixed with support piece on monitoring module 4, support piece is located U-shaped support 8 inside and is connected with connecting hole 9 through the bolt, when equipment fixing, through being connected support piece and the different positions of arc connecting hole 9, the different installation angle of adjustable module.
The utility model discloses utilize artificial intelligence recognition algorithm, relevant technologies such as embedded, develop long-range product of shooing, optional shaft tower heeling module, little meteorological module, the realization is shot and is detected the circuit scene, gather iron tower slope data, meteorological relevant data, combine management platform and believe show platform a little, can report to the police and through the webpage to unusual circumstances such as crane among the transmission line, the tower crane, mountain fire, shaft tower slope, strong wind, modes such as believe in time inform the user a little, provide data support and supplementary decision-making for the user deals with the unusual circumstances. The product supports remote active photographing, video recording, equipment GPS information acquisition, photographing interval change and the like, and has the advantages of being integrated in design, intelligent image analysis, real-time online, free of maintenance, long in service life, flexible in deployment, convenient to install, capable of achieving wireless transmission, safe and reliable and the like.
The utility model discloses use 5G communication technology's emergent equipment of patrolling and examining, through the on-the-spot video, promote staff's operation security, improve intelligent management level, the regional operation of patrolling and examining of fault line in bad weather, work such as the long-range problem investigation that carries on of technical expert team promotes the speed upgrading of typhoon day trouble solution, the quick recovery of guarantee electric wire netting.
During specific design, pictures and videos of key information can be returned through intelligent terminals such as a mobile phone and a tablet, construction site monitoring is carried out through improvement, and due to the fact that the construction site has random and temporary characteristics, the scheme of optical fiber wired access is not suitable for being adopted. If the 4G network is adopted for returning, the capacity of the 4G network is limited in a construction site of a dense urban area, continuous and stable multi-channel videos cannot be provided for returning at the same time, and the 4G network coverage cannot meet the service access requirement in an open area in the suburbs.
The 5G is utilized to provide a stable and continuous video return function, and on-site individual equipment is provided with a plurality of simple mobile cameras, such as a epaulet camera, a button camera, a pen container camera and the like, to monitor the site in real time according to the requirements. In emergency, the movable camera focuses on a local area to provide a real-time decision, and after the emergency repair is finished, the movable camera can be reused on other sites. In severe weather such as typhoon, patrol personnel cannot transmit signals through a special monitoring instrument when staying on site, and the real-time feedback of the on-site line state information can be ensured.
The foregoing is a preferred embodiment of the present invention, and it should be noted that, for those skilled in the art, a plurality of improvements and decorations can be made without departing from the principle of the present invention, and these improvements and decorations are also considered as the protection scope of the present invention.
