CN214660962U

CN214660962U - a multifunctional fan

Info

Publication number: CN214660962U
Application number: CN202120219481.0U
Authority: CN
Inventors: 王俊华; 郑嘉雯
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-27
Filing date: 2021-01-27
Publication date: 2021-11-09
Anticipated expiration: 2031-01-27

Abstract

The utility model provides a multifunctional fan, which comprises a lower part of a base, a humidifying part, an upper part of the base, a control part, a fan, and a table lamp part. A humidification part and a table lamp part are added to the traditional fan, and the functions of each part are controlled by a PCBA control board, and the functions of each part can be controlled by a PCBA control board. It can realize the traditional fan function, and can realize the humidifier function and table lamp lighting function at the same time. It occupies a smaller area, is convenient to use, and is more suitable for the modern life concept.

Description

Multifunctional fan

Technical Field

The utility model relates to a fan technical field, in particular to multifunctional fan.

Background

The existing fan has a single function and only has a blowing function, certain limitation exists during use, and a user needs to purchase new equipment additionally when wanting to use a lighting function or a humidifying function. The traditional fan lacks humanized consideration in design, the users in the current era pursue life quality more, and the comfortable indoor environment can improve the working and learning efficiency of the users. This multifunctional fan both can play the effect of fan, can also work as the desktop desk lamp and use, has the efficiency of humidification more, and the use is not in particular taken up the place, and it adapts to modern's life theory more.

SUMMERY OF THE UTILITY MODEL

In view of this, the utility model provides a multifunctional fan to prior art's problem, designs a fan that possesses desk lamp and humidification function, solves current technical problem.

The utility model aims at realizing through the following technical scheme:

the utility model provides a multifunctional fan, includes base lower part, humidification part, base upper portion, control unit, fan, desk lamp part, base lower part and base upper portion pass through screw fixed connection and form inside cavity, humidification part pass through the screw fixation on base upper portion cavity medial surface, desk lamp part pass through desk lamp mounting through-hole fixed mounting on base upper portion by the desk lamp hose, the fan pass through fan mounting hole fixed mounting on base upper portion, control unit pass through screw fixed mounting on base upper portion, humidification part, fan, desk lamp part three be connected with the control unit electricity respectively.

Further, the humidification part include storage water tank, atomizer, one-way water injection soft rubber stopper, atomizer installing port, one-way water injection soft rubber stopper install in storage water tank water inlet department, the atomizer pass through the atomizer installing port and install on the storage water tank.

Further, the control unit include PCBA control panel, function button install on base upper portion, the PCBA control panel pass through the screw fixation and correspond function button position department on base upper portion, the PCBA control panel and atomizer, fan, desk lamp part electricity be connected.

Further, the desk lamp part comprises a desk lamp hose and a desk lamp holder, the desk lamp holder is fixedly connected with the desk lamp hose, and the desk lamp hose can be bent to change the direction of the desk lamp holder.

Furthermore, the upper part of the base is provided with a water injection port, and the position of the water injection port corresponds to the position of the unidirectional water injection soft rubber plug.

Furthermore, the upper part of the base is provided with a spray nozzle, and the position of the spray nozzle corresponds to the position of the atomizer.

The beneficial effects of the utility model reside in that:

the utility model discloses done further innovative design on traditional fan, added humidification part and desk lamp part on traditional fan, through each partial function of PCBA control panel control, can realize humidifier function and desk lamp illumination function when realizing traditional fan function. After the design, a plurality of small household appliances with functions are combined into one product, and a client only needs one appliance to realize three functions, so that the use cost is saved, the occupied area is smaller, the use is convenient, and the life concept of modern people is adapted.

Drawings

FIG. 1 is a schematic view of an embodiment of the present invention;

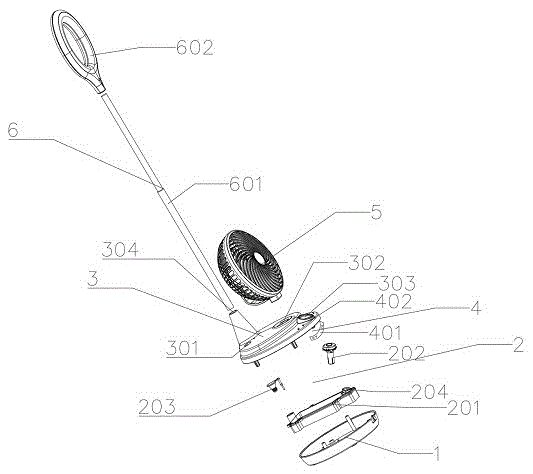

fig. 2 is an exploded view of the product of fig. 1.

The reference numerals are explained below:

1 is a base lower part, 2 is a humidifying part, 3 is a base upper part, 4 is a control part, 5 is a fan, 6 is a desk lamp part, 201 is a water storage tank, 202 is an atomizer, 203 is a one-way water injection soft rubber plug, 204 is an atomizer mounting port, 301 is a water injection port, 302 is a fan mounting hole, 303 is a spray nozzle, 304 is a desk lamp mounting through hole, 401 is a PCBA control board, 402 is a function button, 601 is a desk lamp soft pipe, and 602 is a desk lamp cap.

Detailed Description

The embodiments of the present disclosure are described in detail below with reference to the accompanying drawings.

The embodiments of the present disclosure are described below with specific examples, and other advantages and effects of the present disclosure will be readily apparent to those skilled in the art from the disclosure in the specification. It is to be understood that the described embodiments are merely illustrative of some, and not restrictive, of the embodiments of the disclosure. The disclosure may be embodied or carried out in various other specific embodiments, and various modifications and changes may be made in the details within the description without departing from the spirit of the disclosure. It is to be noted that the features in the following embodiments and examples may be combined with each other without conflict. All other embodiments, which can be derived by a person skilled in the art from the embodiments disclosed herein without making any creative effort, shall fall within the protection scope of the present disclosure.

In order to improve the traditional fan, realize a tractor serves several functions, convenience of customers uses more, the utility model discloses specific content is as follows shows.

It should be noted that the atomizer 202, the fan 5, the desk lamp part 6, and the PCBA control board 401 are all mature products or parts in the existing market, and these parts can be obtained by purchasing products with corresponding specifications, so the present invention does not give further details on the specific structures and the realization principles of these parts.

Referring to fig. 1 and 2, an embodiment of the present invention is a multifunctional fan, which includes a base lower portion 1, a humidifying component 2, a base upper portion 3, a control component 4, a fan 5, and a desk lamp component 6.

Base lower part 1 passes through screw fixed connection and forms inside cavity with base upper portion 3, and humidification part 2 arranges this inside cavity in, fixes on 3 cavity medial surfaces in base upper portion through the screw.

The upper part 3 of the base is provided with a desk lamp mounting through hole 304, a fan mounting hole 302, a water injection port 301 and a spray port 303, and the desk lamp mounting through hole, the fan mounting through hole, the water injection port 301 and the spray port 303 are mainly used for mounting connection among all parts and water inlet and mist outlet.

The desk lamp part 6 comprises a desk lamp hose 601 and a desk lamp cap 602, and the desk lamp part 6 is fixedly mounted on the base upper part 3 through the desk lamp hose 601 through the desk lamp mounting through hole 304. Desk lamp holder 602 is fixed on desk lamp hose 601, and desk lamp hose 601 flexible changes desk lamp holder 602 direction, makes things convenient for the illumination to use.

The fan 5 is fixedly arranged on the upper part 3 of the base through the fan mounting hole 302 and just positioned on the same plane with the spray outlet 303, so that the humidifying function can be realized while blowing air.

The humidifying component 2 comprises a water storage tank 201, an atomizer 202, a one-way water injection soft rubber plug 203 and an atomizer mounting port 204. The one-way water injection soft rubber plug 203 is arranged at the water inlet of the water storage tank 201, and the one-way water injection soft rubber plug 203 can realize that only water can be added and the water cannot flow back, thereby realizing good sealing performance. The atomizer 202 is mounted on the water reservoir 201 via an atomizer mounting opening 204, facing a spray opening 303 provided in the upper part 3 of the base, from which it can be discharged to the environment after atomization.

The control part 4 includes a PCBA control board 401, function buttons 402. The function button 402 is installed on base upper portion 3, and PCBA control panel 401 passes through the screw fixation and corresponds function button 402 position department in base upper portion 3, and the accessible touches PCBA control panel 401 and corresponds the position and realizes whole equipment control according to function button 402. Wherein PCBA control panel 401 is connected with atomizer 202, fan 5, desk lamp part 6 electricity, and PCBA control panel 401 has external power source access circuit, and PCBA control panel 401 is again controlled the current output to realize the control function of whole equipment.

The above description is for illustrative purposes only and is not intended to limit the present invention, and any modifications, equivalent substitutions, improvements, etc. that do not depart from the spirit and principles of the present invention should be construed as within the scope of the present invention.

Claims

1. A multifunctional fan is characterized in that: comprises a base lower part (1), a humidifying component (2), a base upper part (3), a control component (4), a fan (5) and a desk lamp component (6), the lower part (1) of the base is fixedly connected with the upper part (3) of the base through screws to form an internal cavity, the humidifying component (2) is fixed on the inner side surface of the cavity of the upper part (3) of the base through screws, the desk lamp component (6) is fixedly arranged on the upper part (3) of the base through a desk lamp hose (601) through a desk lamp mounting through hole (304), the fan (5) is fixedly arranged on the upper part (3) of the base through a fan mounting hole (302), the control component (4) is fixedly arranged on the upper part (3) of the base through screws, the humidifying component (2), the fan (5) and the desk lamp component (6) are respectively electrically connected with the control component (4).

2. The multifunctional fan as claimed in claim 1, wherein: humidification part (2) include storage water tank (201), atomizer (202), one-way water injection soft plug (203), atomizer installing port (204), one-way water injection soft plug (203) install in storage water tank (201) water inlet department, atomizer (202) install on storage water tank (201) through atomizer installing port (204).

3. The multifunctional fan as claimed in claim 1, wherein: control unit (4) include PCBA control panel (401), function button (402) install on base upper portion (3), PCBA control panel (401) pass through the screw fixation and correspond function button (402) position department on base upper portion (3), PCBA control panel (401) be connected with atomizer (202), fan (5), desk lamp part (6) electricity.

4. The multifunctional fan as claimed in claim 1, wherein: desk lamp part (6) include desk lamp hose (601), desk lamp holder (602) and desk lamp hose (601) fixed connection, desk lamp hose (601) flexible change desk lamp holder (602) direction.

5. The multifunctional fan as claimed in claim 1, wherein: the base upper portion (3) be provided with water filling port (301), water filling port (301) position correspond the position of one-way water injection soft plug (203).

6. The multifunctional fan as claimed in claim 1, wherein: the base upper portion (3) be provided with fog nozzle (303), fog nozzle (303) position correspond the position of atomizer (202).
