Abstract

The utility model discloses a high-efficient environmental protection formula sewage treatment clarification plant, including the filter chamber, the side of filter chamber is provided with back flush device, back flush device's side is provided with the backwash export, the side of backwash export is provided with the water inlet, the side of water inlet is provided with the delivery port, the side of delivery port is provided with crushing room, the side of smashing the room is provided with centrifugal separation room, centrifugal separation room's side is provided with handles the clean room, the side of handling the clean room is provided with the outlet, the filter chamber all is provided with the apron with the upper end of smashing room and centrifugal separation room. A high-efficient environmental protection formula sewage treatment clarification plant, simple structure, simple to operate, area is little, reduction equipment cost has improved the purification efficiency of sewage, promotes quality of water filter effect, is convenient for retrieve the combustible gas that produces among the sewage treatment process.

Description

High-efficient environmental protection formula sewage treatment clarification plant
Technical Field
The utility model relates to a sewage treatment technical field, in particular to high-efficient environmental protection formula sewage treatment clarification plant.
Background
Fresh water resources are gradually reduced, water saving is the responsibility of each citizen's meaning, but at our side, water resources are still not fully utilized, water used in car washing plants, bath centers, swimming pools and the like is directly discharged to sewers, the water can still have a large degree of availability after being treated, water treatment equipment in the current market is of a precipitation type, a filtration type, a large volume and difficult operation, and cannot be effectively popularized and applied, and a sewage treatment process is an effective process method for various economic, reasonable, scientific and practical urban domestic sewage and industrial wastewater. The sewage treatment is a process for making sewage meet the water quality requirement of a certain water body or reuse and purifying the sewage. Sewage purification is widely applied to various fields such as buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like, and increasingly enters daily life of common people, if industrial sewage is not treated in time, the environment is influenced, and physical and psychological health of common people is also damaged, for example, in a high-efficiency environment-friendly sewage treatment and purification device (application number: CN202020768019.1) disclosed in the Chinese patent literature, the purification cost of sewage is higher, secondary pollution is easy to generate, the sewage treatment effect is poor, and in addition, the internal blockage caused by cleaning of treated sundries is inconvenient, so that the purification effect is influenced, and the surrounding ecological safety can be influenced due to random discharge of combustible gas generated in the sewage treatment process.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a main aim at provides a high-efficient environmental protection formula sewage treatment clarification plant, can effectively solve the problem in the background art.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a high-efficient environmental protection formula sewage treatment clarification plant, includes the filter chamber, the side of filter chamber is provided with back flush unit, back flush unit's side is provided with the backwash export, the side of backwash export is provided with the water inlet, the side of water inlet is provided with the delivery port, the side of delivery port is provided with crushing room, the side of crushing room is provided with centrifugal separation room, centrifugal separation room's side is provided with the processing clean room, the side of processing clean room is provided with the outlet, the filter chamber all is provided with the apron with the upper end of crushing room and centrifugal separation room.
Preferably, the backwashing device is movably connected with the filtering chamber, the backwashing outlet, the water inlet and the water outlet are fixedly connected with the backwashing device, the crushing chamber is movably connected with the water outlet, the crushing chamber is movably connected with the centrifugal separation chamber, and the water outlet is fixedly connected with the treatment purifying chamber.
By adopting the technical scheme, the following technical effects can be achieved: through being provided with back flush unit, can be with the clearance of dirt impurity in the filter chamber, improve quality of water purification efficiency.
Preferably, the side of filter chamber is provided with a motor, the side of motor is provided with the wash bowl, be swing joint between motor and the wash bowl, the inside of wash bowl is provided with the filter material, be swing joint between filter material and the wash bowl, the rear end of filter chamber is provided with the hinge, be swing joint between apron and the filter chamber for the hinge, the front end of smashing the room is provided with the buckle, smash and be swing joint through the buckle between room and the apron.
By adopting the technical scheme, the following technical effects can be achieved: through the cooperation of a motor and wash bowl, through inside filter material, disinfect, go out algae when improving the suspended solid and get rid of the effect, scale control, anticorrosive, simple structure, simple to operate, area is little, reduction equipment cost.
Preferably, the upper end of crushing room is provided with the motor No. two, the lower extreme of motor No. two is provided with the axis of rotation, be swing joint between axis of rotation and the motor No. two, the lower extreme of axis of rotation is provided with crushing fan piece, be fixed connection between crushing fan piece and the axis of rotation, the upper end of crushing fan piece is provided with first filtration chute, the lower extreme of first filtration chute is provided with the second and filters the chute, the lower extreme that the second filtered the chute is provided with the third and filters the chute, first filtration chute and second filter the chute and third and filter the chute all and smash the room between be swing joint.
By adopting the technical scheme, the following technical effects can be achieved: through the cooperation of No. two motors and crushing flabellum, smash impurity, filter chute through first filtration chute, second and third and filter chute and separate out impurity filtration.
Preferably, the inside side of smashing the room is provided with the filter chamber, the filter chamber inlays in the inside side surface of smashing the room, the upper end of centrifugal separation room is provided with No. three motors, the ramp of No. three motors is provided with the puddler, be swing joint between puddler and No. three motors, the side of puddler is provided with rotating vane, be swing joint between rotating vane and the puddler, the lower extreme of centrifugal separation room is provided with the drain, be swing joint between drain and the centrifugal separation room.
By adopting the technical scheme, the following technical effects can be achieved: through the cooperation of the third motor and the rotating blades, sewage can be stirred at a high speed, the sewage is centrifuged, substances heavier than water are precipitated, substances lighter than water float on the water surface, and the sewage purification efficiency is improved
Preferably, the front end of the third motor is provided with an electricity storage mechanism, the electricity storage mechanism is fixedly connected with the centrifugal separation chamber, the upper end of the electricity storage mechanism is provided with a solar panel, the solar panel is movably connected with the electricity storage mechanism, the upper end of the treatment purification chamber is provided with an air suction pipe, the lower end of the air suction pipe is provided with a combustible gas recovery device, the air suction pipe is movably connected with the combustible gas recovery device, the side end of the air suction pipe is provided with a movable window, and the movable window is movably connected with the treatment purification chamber.
By adopting the technical scheme, the following technical effects can be achieved: can save the engineering power consumption through solar panel and accumulate mechanism, can supply power when externally cutting off the power supply, save the cost, through setting up combustible gas recovery unit, apparent improvement sewage treatment's efficiency, the water cleanliness factor after handling is higher moreover, has practiced thrift the energy.
Compared with the prior art, the utility model discloses following beneficial effect has:
1. through the cooperation of a motor and wash bowl, through inside filter material, disinfect, go out algae when improving the suspended solid and get rid of the effect, scale control, anticorrosive, simple structure, simple to operate, area is little, reduction equipment cost can carry out the back flush operation simultaneously, through setting up combustible gas recovery unit, is showing improvement sewage treatment's efficiency, and the water cleanliness factor after handling is higher moreover, has practiced thrift the energy.
2. Through the cooperation of No. two motors with crushing flabellum, smash impurity, through first filtration ramp, the second filters ramp and third and filters ramp and separate out impurity filtration, through the cooperation of No. three motors with rotating vane, can stir sewage at a high speed, make sewage centrifugation, the material that is heavier than water deposits, the material that is lighter than water floats on the surface of water, the purification efficiency of sewage has been improved, solar panel can save the engineering power consumption with the accumulate mechanism, can supply power when externally cutting off the power supply, and the cost is saved.
Drawings

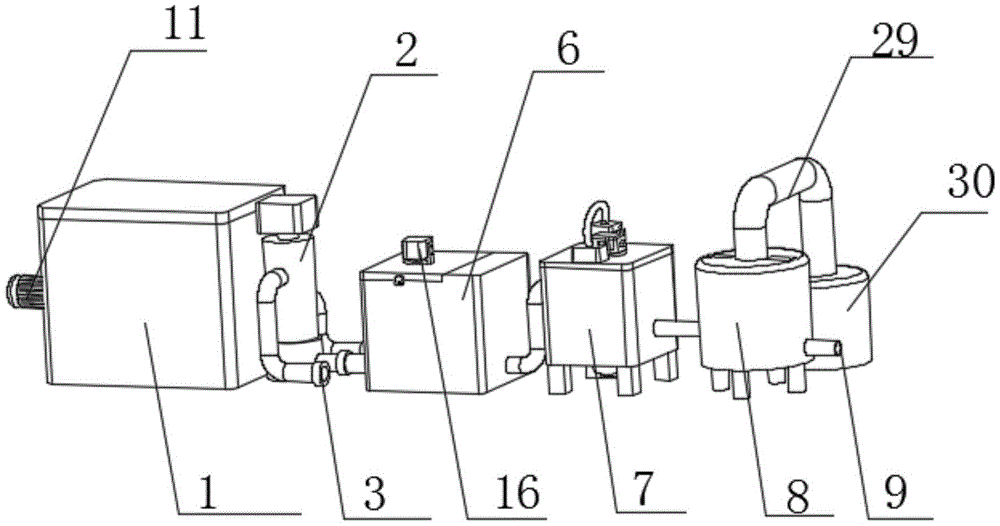

FIG. 1 is a schematic view of the overall structure of a high-efficiency environmental-protection sewage treatment and purification device of the present invention;
FIG. 2 is a top view of the high-efficiency environmental protection type sewage treatment and purification device of the present invention;
FIG. 3 is a front sectional view of the high-efficiency environmental protection type sewage treatment and purification device of the present invention;
fig. 4 is an enlarged view of a in fig. 3 of the high-efficiency environment-friendly sewage treatment and purification device of the present invention.
In the figure: 1. a filtering chamber; 2. a backwashing device; 3. a backwash outlet; 4. a water inlet; 5. a water outlet; 6. a crushing chamber; 7. a centrifugal separation chamber; 8. a treatment purification chamber; 9. a water outlet; 10. a cover plate; 11. a first motor; 12. a cleaning cylinder; 13. filtering the material; 14. a hinge; 15. buckling; 16. a second motor; 17. a rotating shaft; 18. crushing fan blades; 19. a first filtering chute; 20. a second filtering chute; 21. a third filtering chute; 22. a filter chamber; 23. a third motor; 24. a solar panel; 25. an electricity storage mechanism; 26. a stirring rod; 27. a rotating blade; 28. a sewage draining outlet; 29. an air intake duct; 30. a combustible gas recovery device; 31. and (4) a movable window.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
The first embodiment is as follows:
as shown in fig. 1 and 2, a backwashing device 2 is arranged at the side end of a filtering chamber 1, a backwashing outlet 3 is arranged at the side end of the backwashing device 2, a water inlet 4 is arranged at the side end of the backwashing outlet 3, a water outlet 5 is arranged at the side end of the water inlet 4, a crushing chamber 6 is arranged at the side end of the water outlet 5, a centrifugal separation chamber 7 is arranged at the side end of the crushing chamber 6, a treatment purifying chamber 8 is arranged at the side end of the centrifugal separation chamber 7, a water outlet 9 is arranged at the side end of the treatment purifying chamber 8, cover plates 10 are respectively arranged at the upper ends of the filtering chamber 1, the crushing chamber 6 and the centrifugal separation chamber 7, the backwashing device 2 is movably connected with the filtering chamber 1, the backwashing outlet 3, the water inlet 4 and the water outlet 5 are fixedly connected with the backwashing device 2, the crushing chamber 6 is movably connected with the water outlet 5, the crushing chamber 6 is movably connected with the centrifugal separation chamber 7, and the water outlet 9 is fixedly connected with the treatment purifying chamber 8, through the arrangement of the back washing device 2, dirt and impurities in the filtering chamber 1 can be cleaned, the water purification efficiency is improved, the first motor 11 is arranged at the side end of the filtering chamber 1, the cleaning barrel 12 is arranged at the side end of the first motor 11, the first motor 11 is movably connected with the cleaning barrel 12, the filtering material 13 is arranged in the cleaning barrel 12, the filtering material 13 is movably connected with the cleaning barrel 12, the rear end of the filtering chamber 1 is provided with a hinge 14, the hinge 14 is movably connected between the cover plate 10 and the filtering chamber 1, the front end of the crushing chamber 6 is provided with a buckle 15, the crushing chamber 6 is movably connected with the cover plate 10 through the buckle 15, through the cooperation of a motor 11 and wash bowl 12, through inside filter material 13, disinfect, go out algae when improving the suspended solid and get rid of the effect, scale control, anticorrosive, simple structure, simple to operate, area is little, reduction equipment cost.
Example two:
on the basis of the first embodiment, as shown in fig. 3 and 4, the upper end of the crushing chamber 6 is provided with a second motor 16, the lower end of the second motor 16 is provided with a rotating shaft 17, the rotating shaft 17 is movably connected with the second motor 16, the lower end of the rotating shaft 17 is provided with a crushing fan 18, the crushing fan 18 is fixedly connected with the rotating shaft 17, the upper end of the crushing fan 18 is provided with a first filtering chute 19, the lower end of the first filtering chute 19 is provided with a second filtering chute 20, the lower end of the second filtering chute 20 is provided with a third filtering chute 21, the first filtering chute 19, the second filtering chute 20 and the third filtering chute 21 are movably connected with the crushing chamber 6, impurities are crushed through the matching of the second motor 16 and the crushing fan, the impurities are filtered and precipitated through the first filtering chute 19, the second filtering chute 20 and the third filtering chute 21, the inner side end of the crushing chamber 6 is provided with a filtering cavity 22, the filter cavity 22 is embedded on the outer surface of the inner side end of the crushing chamber 6, the upper end of the centrifugal separation chamber 7 is provided with a third motor 23, a chute of the third motor 23 is provided with a stirring rod 26, the stirring rod 26 is movably connected with the third motor 23, the side end of the stirring rod 26 is provided with a rotating blade 27, the rotating blade 27 is movably connected with the stirring rod 26, the lower end of the centrifugal separation chamber 7 is provided with a sewage discharge outlet 28, the sewage discharge outlet 28 is movably connected with the centrifugal separation chamber 7, through the matching of the third motor 23 and the rotating blade 27, sewage can be stirred at a high speed, the sewage is centrifuged, substances heavier than water are precipitated, substances lighter than water float on the water surface, the purification efficiency of the sewage is improved, the front end of the third motor 23 is provided with an electricity storage mechanism 25, the electricity storage mechanism 25 is fixedly connected with the centrifugal separation chamber 7, the upper end of the electricity storage mechanism 25 is provided with a solar panel 24, be swing joint between solar panel 24 and the electricity storage mechanism 25, the upper end of handling the clean room 8 is provided with breathing pipe 29, the lower extreme of breathing pipe 29 is provided with combustible gas recovery unit 30, be swing joint between breathing pipe 29 and the combustible gas recovery unit 30, the side of breathing pipe 29 is provided with movable window 31, be swing joint between movable window 31 and the processing clean room 8, can save the engineering power consumption through solar panel 24 and electricity storage mechanism 25, can supply power when externally cutting off the power supply, the cost is saved, through setting up combustible gas recovery unit 30, the improvement of showing sewage treatment's efficiency, and the water cleanliness factor after handling is higher, the energy has been practiced thrift.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims (6)

1. The utility model provides a high-efficient environmental protection formula sewage treatment clarification plant, includes filter chamber (1), its characterized in that: the filter chamber is characterized in that a backwashing device (2) is arranged at the side end of the filter chamber (1), a backwashing outlet (3) is arranged at the side end of the backwashing device (2), a water inlet (4) is arranged at the side end of the backwashing outlet (3), a water outlet (5) is arranged at the side end of the water inlet (4), a crushing chamber (6) is arranged at the side end of the water outlet (5), a centrifugal separation chamber (7) is arranged at the side end of the crushing chamber (6), a treatment purification chamber (8) is arranged at the side end of the centrifugal separation chamber (7), a water outlet (9) is arranged at the side end of the treatment purification chamber (8), and cover plates (10) are arranged at the upper ends of the filter chamber (1), the crushing chamber (6) and the centrifugal separation chamber (7).
2. The high-efficiency environment-friendly sewage treatment and purification equipment as claimed in claim 1, wherein: the backwashing device (2) is movably connected with the filtering chamber (1), the backwashing outlet (3), the water inlet (4), the water outlet (5) are fixedly connected with the backwashing device (2), the crushing chamber (6) is movably connected with the water outlet (5), the crushing chamber (6) is movably connected with the centrifugal separation chamber (7), and the water outlet (9) is fixedly connected with the treatment purifying chamber (8).
3. The high-efficiency environment-friendly sewage treatment and purification equipment as claimed in claim 1, wherein: the side of filter chamber (1) is provided with motor (11), the side of motor (11) is provided with wash bowl (12), be swing joint between motor (11) and wash bowl (12), the inside of wash bowl (12) is provided with filter material (13), be swing joint between filter material (13) and wash bowl (12), the rear end of filter chamber (1) is provided with hinge (14), be hinge (14) between apron (10) and filter chamber (1) for swing joint, the front end of smashing room (6) is provided with buckle (15), be swing joint through buckle (15) between smashing room (6) and apron (10).
4. The high-efficiency environment-friendly sewage treatment and purification equipment as claimed in claim 1, wherein: the upper end of smashing room (6) is provided with No. two motor (16), the lower extreme of No. two motor (16) is provided with axis of rotation (17), be swing joint between axis of rotation (17) and No. two motor (16), the lower extreme of axis of rotation (17) is provided with crushing fan piece (18), be fixed connection between crushing fan piece (18) and axis of rotation (17), the upper end of crushing fan piece (18) is provided with first filtration chute (19), the lower extreme of first filtration chute (19) is provided with second filtration chute (20), the lower extreme of second filtration chute (20) is provided with third filtration chute (21), first filtration chute (19) and second filtration chute (20) and third filtration chute (21) all with smash between the room (6) swing joint.
5. The high-efficiency environment-friendly sewage treatment and purification equipment as claimed in claim 1, wherein: the inside side of smashing room (6) is provided with filter chamber (22), filter chamber (22) inlay in the inside side surface of smashing room (6), the upper end of centrifugal separation room (7) is provided with No. three motor (23), the ramp of No. three motor (23) is provided with puddler (26), be swing joint between puddler (26) and No. three motor (23), the side of puddler (26) is provided with rotating vane (27), be swing joint between rotating vane (27) and puddler (26), the lower extreme of centrifugal separation room (7) is provided with drain (28), be swing joint between drain (28) and centrifugal separation room (7).
6. The high-efficiency environment-friendly sewage treatment and purification equipment as claimed in claim 5, wherein: the front end of No. three motor (23) is provided with accumulate mechanism (25), be fixed connection between accumulate mechanism (25) and the centrifugal separation room (7), the upper end of accumulate mechanism (25) is provided with solar panel (24), be swing joint between solar panel (24) and accumulate mechanism (25), the upper end of handling purge chamber (8) is provided with breathing pipe (29), the lower extreme of breathing pipe (29) is provided with combustible gas recovery unit (30), be swing joint between breathing pipe (29) and combustible gas recovery unit (30), the side of breathing pipe (29) is provided with movable window (31), be swing joint between movable window (31) and the processing purge chamber (8).
