Abstract
本申请提供的电力用互感器搬运装置，包括板车组件和门形桥架；门形桥架包括分别设置在门形桥架两端的可调式伸缩支撑杆和可旋转式伸缩支撑杆，可调式伸缩支撑杆和可旋转式伸缩支撑杆之间通过中间的连接杆连接，连接杆上装设有可遥控的起吊装置，起吊装置上连接有起吊机，起吊装置连接起吊机沿连接杆做往复运动；板车组件包括装有电池组的移动拖板车以及装设在移动拖板车载物板上的嵌入式滑道，嵌入式滑道与门形桥架的可旋转式伸缩支撑杆底部连接。本装置使用便捷，操作灵活、无需外接供电；针对电力互感器吊装尤其是高压开关柜柜内空间狭小的环境，本装置可将互感器直接吊入柜内进行安装，操作方式简单明了，可实现单人互感器安装更换现场作业。
The power transformer handling device provided by the present application includes a pallet assembly and a portal bridge; the portal bridge includes adjustable telescopic support rods and rotatable telescopic support rods respectively arranged at both ends of the portal bridge, and the adjustable telescopic support rods It is connected with the rotatable telescopic support rod through a connecting rod in the middle. The connecting rod is equipped with a remote-controlled hoisting device. The hoisting device is connected with a hoist. The hoisting device is connected with the hoist to reciprocate along the connecting rod; It includes a mobile trailer equipped with a battery pack and an embedded slideway installed on the object board of the mobile trailer. The embedded slideway is connected to the bottom of the rotatable telescopic support rod of the portal bridge. The device is easy to use, flexible in operation, and does not require an external power supply; for the hoisting of power transformers, especially in the environment where the space in the high-voltage switch cabinet is small, the device can directly hoist the transformer into the cabinet for installation. The operation method is simple and clear, and can achieve Single-person transformer installation and replacement site work.
Description
Technical Field
The application relates to the technical field of mechanical hoisting, in particular to a mutual inductor carrying device for electric power.
Background
The heavy objects are carried or installed by using a crane for assistance in the work. However, the conventional crane can be used only in open outdoor, the portal crane can be used only in a warehouse with a large space, and the situation that the crane assists in carrying heavy objects is often greatly limited by the operating environment.
It is well known that 10kV and 35kV equipment in a transformer substation usually adopt a switch cabinet arrangement form, and compared with a traditional open arrangement form, a high-voltage switch cabinet body has a compact structure, so that the floor area of the transformer substation can be effectively reduced; equipment is all installed in the cabinet, and equipment life is effectively increased. Meanwhile, the high-integration equipment arrangement mode also reduces the working intensity of equipment during operation and maintenance. However, due to the design characteristics of high integration and compact structure of the high-voltage switch cabinet, the width and height in the cabinet are greatly limited, so that an operator can only bend down to enter the equipment in the cabinet when the operator overhauls the equipment in the cabinet.
Due to the development of science and technology, the current power utilization scenes are continuously increased, and the power consumption is continuously increased. At this time, the capacity increase of the mutual inductor in the cabinet is required. Because the peculiar structural style of high tension switchgear can't use conventional crane, to the change of the mutual-inductor in the cabinet at present stage, can only adopt the mode of manual work usually, push the mutual-inductor to the high tension switchgear door with the trailer before, carry into the cubical switchboard with the mutual-inductor that weight is greater than 50 kilograms by the manual work in, whole working process inefficiency, the operation risk in the handling can't obtain effective control, very easily causes the harm of personnel and equipment. The use of the trailer can only solve the carrying of the mutual inductor outside the cabinet body, and the carrying problem of the mutual inductor in the cabinet still can not be effectively solved.
SUMMERY OF THE UTILITY MODEL
The application provides a mutual-inductor handling device for electric power to when solving traditional mutual-inductor for electric power and carrying, because the manual work causes whole working process inefficiency, the operation risk in the handling can't obtain effective control, very easily causes the problem of the harm of personnel and equipment.
The technical scheme adopted by the application for solving the technical problems is as follows:
a mutual inductor carrying device for electric power comprises a plate trailer assembly and a portal bridge frame;
the portal bridge frame comprises an adjustable telescopic support rod and a rotatable telescopic support rod which are respectively arranged at two ends of the portal bridge frame, the adjustable telescopic support rod and the rotatable telescopic support rod are connected through a middle connecting rod, a remotely-controllable hoisting device is arranged on the connecting rod, a hoisting machine is connected to the hoisting device, and the hoisting device is connected with the hoisting machine and reciprocates along the connecting rod;
the plate trailer assembly comprises a mobile plate trailer provided with a battery pack and an embedded slide arranged on a carrying plate of the mobile plate trailer, and the embedded slide is connected with the bottom of a rotatable telescopic supporting rod of the portal bridge frame.
Optionally, the mobile trailer further comprises a drag rod arranged at one end of the carrying plate, and a carrying platform of the mobile trailer is formed by the carrying plate and the drag rod.
Optionally, two universal wheels and two directional wheels are respectively installed at four corners of the bottom of the object carrying plate, a group of battery packs is installed at the center of the bottom of the object carrying plate, the battery packs are used for providing power for the lifting device, and a charging interface matched with the battery packs is arranged on the object carrying plate.
Optionally, a base is arranged at the bottom of the adjustable telescopic supporting rod;
the rotatable telescopic supporting rod is connected with the embedded slideway on the carrying plate through a sliding block, and a rotating assembly is arranged on the rod body of the rotatable telescopic supporting rod.
Optionally, the lifting device is installed at the bottom of the connecting rod of the portal bridge frame, and the lifting device is connected with the remote controller through a control cable.
Optionally, the remote controller is integrated with a central function key for operating the crane, and the central function key comprises an on-off key, an emergency stop key, a left direction key, a right direction key, a lifting key, a lowering key and a display screen for displaying the weight of the lifting mutual inductor of the remotely controllable lifting device and the residual electric quantity of the battery pack below the trailer.
The technical scheme provided by the application comprises the following beneficial technical effects:
the application provides a mutual inductor carrying device for electric power, which comprises a plate trailer assembly and a portal bridge frame; the portal bridge frame comprises an adjustable telescopic support rod and a rotatable telescopic support rod which are respectively arranged at two ends of the portal bridge frame, the adjustable telescopic support rod and the rotatable telescopic support rod are connected through a middle connecting rod, a remotely-controllable hoisting device is arranged on the connecting rod, a hoisting machine is connected to the hoisting device, and the hoisting device is connected with the hoisting machine to reciprocate along the connecting rod; the plate trailer assembly comprises a movable plate trailer provided with a battery pack and an embedded slideway arranged on a carrying plate of the movable plate trailer, and the embedded slideway is connected with the bottom of a rotatable telescopic supporting rod of the portal bridge frame. The device is convenient to use, flexible to operate and free of external power supply; aiming at the environment that the space in a power transformer hoisting cabinet, particularly a high-voltage switch cabinet is narrow, the hoisting device can directly hoist the transformer into the cabinet for installation, the operation mode is simple and clear, and the field operation of installing and replacing the single transformer can be realized.
Drawings
In order to more clearly explain the technical solution of the present application, the drawings needed to be used in the embodiments will be briefly described below, and it is obvious to those skilled in the art that other drawings can be obtained according to the drawings without creative efforts.

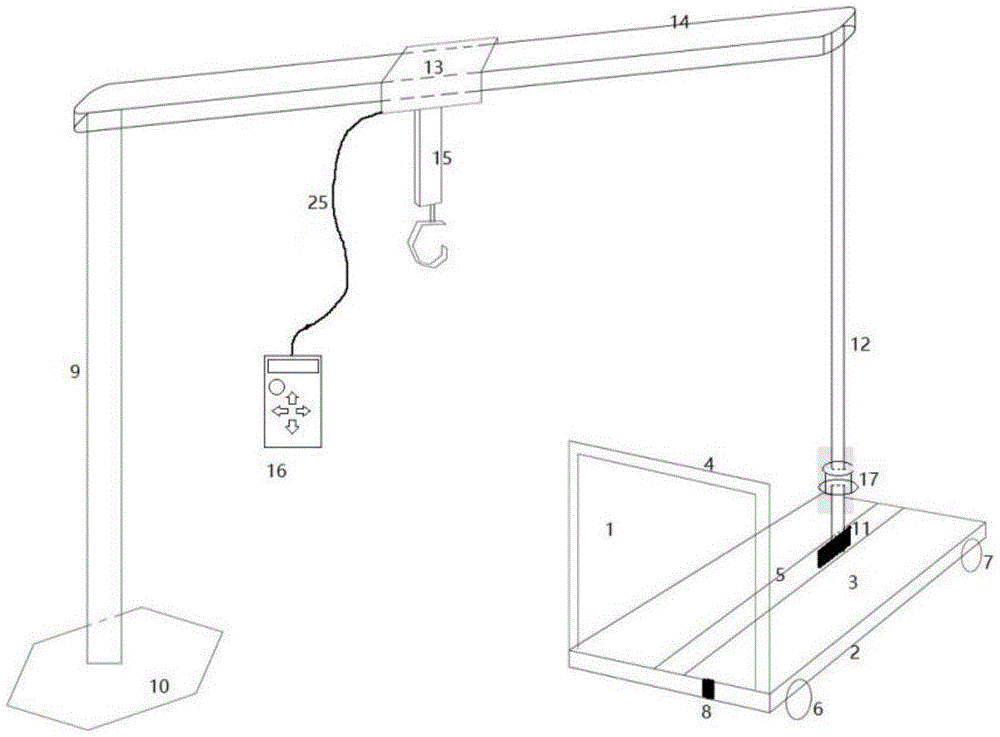

Fig. 1 is a schematic overall structural diagram of a handling device for an electric power mutual inductor according to an embodiment of the present application;
FIG. 2 is a schematic structural view of a mobile trailer according to an embodiment of the present application;
FIG. 3 is a schematic structural view of a gantry and a crane provided in the embodiment of the present application
Fig. 4 is a schematic structural diagram of a remote controller according to an embodiment of the present application.
Description of reference numerals:
1-moving the trailer; 2-a battery pack; 3-carrying plate; 4-pulling the rod; 5-an embedded slideway; 6-universal wheel; 7-a phase fixing wheel; 8-a charging interface; 9-adjustable telescopic supporting rods; 10-a base; 11-inner slide block; 12-a rotatable telescopic support rod; 13-a hoisting device; 14-gantry bridge; 15-a crane; 16-a remote controller; 17-a rotating assembly; 18-on-off key; 19-emergency stop key; 20-left arrow key; 21-right direction key; 22-a lift key; 23-down key; 24-a display screen; 25-control cable.
Detailed Description
In order to make the technical solutions in the present application better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application; it is to be understood that the embodiments described are only a few embodiments of the present application and not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
Referring to fig. 1, fig. 1 is a schematic structural diagram of an overall power transformer handling device according to an embodiment of the present disclosure, where the handling device includes a pallet truck assembly and a gantry 14;
the portal bridge frame 14 comprises an adjustable telescopic support rod 9 and a rotatable telescopic support rod 12 which are respectively arranged at two ends of the portal bridge frame 14, the adjustable telescopic support rod 9 and the rotatable telescopic support rod 12 are connected through a middle connecting rod, a remotely-controllable hoisting device 13 is arranged on the connecting rod, a hoisting machine 15 is connected to the hoisting device 13, and the hoisting device 13 is connected with the hoisting machine 15 and reciprocates along the connecting rod;
the plate trailer assembly comprises a mobile plate trailer 1 provided with a battery pack 2 and an embedded slideway 5 arranged on a loading plate 3 of the mobile plate trailer 1, wherein the embedded slideway 5 is connected with the bottom of a rotatable telescopic supporting rod 12 of a portal bridge 14.
During the use, group battery 2 is through doing hoisting device 13 provides the power, the power transformer has been placed on carrying board 3, when needs carry power transformer to the internal portion of high tension switchgear cabinet, at first through rotating assembly 17 with the internal portion of portal bridge frame 14 rotatory entering high tension switchgear cabinet, then will be connected with hoisting device 13 of hoist 15 and slide to the one end that portal bridge frame 14 removed trailer 1, will place the power transformer on removing trailer 1 and carry board 3 through hoist 15 and hang to the internal portion of high tension switchgear cabinet through the connecting rod on portal bridge frame 14, transfer power transformer, accomplish the external transport to the internal of cabinet of power transformer from high tension switchgear cabinet.
In one embodiment, the mobile trailer 1 further includes a towing bar 4 disposed at one end of the loading plate 3, so that the mobile trailer 1 can move flexibly, and the loading plate 3 and the towing bar 4 form a loading platform of the mobile trailer 1.
Two universal wheels 6 and two directional wheels 7 are respectively installed at four corners of the bottom of the object carrying plate 3, so that the mobile pallet truck 1 can conveniently move in all directions, a group of battery packs 2 are installed at the center of the bottom of the object carrying plate 3, the battery packs 2 are used for providing power for the lifting device 13, and a charging interface 8 matched with the battery packs 2 is arranged on the object carrying plate 3.
The bottom of the adjustable telescopic supporting rod 9 is provided with a base 10;
the rotatable telescopic supporting rod 12 is connected with the embedded slide way 5 on the object carrying plate 3 through a sliding block 11, and a rotating assembly 17 is arranged on the rod body of the rotatable telescopic supporting rod 12.
The hoisting device 13 is arranged at the bottom of the connecting rod of the portal bridge frame 14, and the hoisting device 13 is connected with the remote controller 16 through a control cable 25.
The remote controller 16 is integrally provided with a central function key for operating the crane 15, which comprises an on-off key 18, an emergency stop key 19, a left direction key 20, a right direction key 21, a lifting key 22, a lowering key 23 and a display screen 24 for displaying the weight of the mutual inductor lifted by the remotely controllable lifting device 13 and the residual electric quantity of the battery pack 2 below the trailer.
Specifically, referring to fig. 1, in fig. 1, a moving trailer 1 is composed of a carrying plate 3 with a battery pack 2, two universal wheels 6 and two directional wheels 7 arranged below the carrying plate and a drag rod 4 connected above the carrying plate, an embedded slideway 5 is arranged on the carrying plate 3 of the moving trailer 1, an inner slide block 11 is arranged in the embedded slideway 5, the inner slide block 11 is connected with a portal bridge frame 14 lifting device 13, a remotely controllable lifting device 15 is arranged on the portal lifting device 14 to form a power transformer carrying device, and meanwhile, a rotatable telescopic support rod 12 and a rotating assembly 17 can move on the moving trailer 1 along the embedded slideway 5 through the inner slide block 11. When mutual inductor transport for electric power is realized on the mobile pallet truck 1 provided with the inner sliding block 11, the inner sliding block 11 can help realize moving the door-shaped bridge 14 position in the high-voltage switch cabinet body under the condition of not moving the mobile pallet truck 1, and the hanging point of the internal equipment of the cabinet body is conveniently selected, so that the power mutual inductor can be flexibly selected to be placed at a more accurate fixed point, and the electric mutual inductor can be placed at a more accurate fixed point.
Referring to fig. 2, a schematic view of the mobile trailer 1 is shown. 2 directional wheels 7 are arranged below the object carrying plate 3, the advancing direction of the plate front is controlled when the 2 universal wheels 6 are conveniently dragged, a battery pack 2 for supplying power to a lifting device 13 is combined below the object carrying plate 3, and a charging interface 8 capable of charging the battery pack 2 is arranged at the edge of the object carrying plate 3; the dragging rod 4 is arranged above the object carrying plate 3, the dragging plate vehicle 1 is convenient to drag, the embedded slide rail 5 is arranged on the object carrying plate 3, the inner slide block 11 is arranged in the slide rail, the door-shaped bridge frame 14 is convenient to move, the positions of the door-shaped bridge frame 14 and the lifting device 13 can be conveniently adjusted when the mutual inductor is lifted, and the lifting requirement in a small space is met.
Referring to fig. 3 and 4, there is shown a schematic view of gantry 14 hoist 13 and remote control 16. The rotatable telescopic support rod 12 is connected with the inner slide block 11 on the embedded slide way 5, the rotating component 17 arranged on the rotatable telescopic support rod 12 is matched with the inner slide block 11 to realize the front and back movement and rotation of the portal bridge frame in the embedded slide way 5 of the object carrying plate, so that the hoisting operation of switch cabinets with different types and sizes can be more easily coped with, the other end of the portal bridge frame is connected with the base 10 through the adjustable telescopic support rod 9 to provide stable support for the portal bridge frame 14, the portal bridge frame 14 is provided with a hoisting device 13 capable of moving along the bridge frame, the lower part of the portal bridge frame is provided with a telescopic hoisting machine 15, the electric energy of the hoisting machine is supplied by a battery pack 2 arranged below the object carrying plate 3, the hoisting device 13 is connected with a remote controller 16 through a control cable 25, the remote controller 16 is connected with a central function key for operating the hoisting machine 15, an on-off key 18, an emergency stop key 19 and a left direction key 20, A right direction key 21, a lifting key 22, a lowering key 23 and a display screen 24 for displaying the weight of the mutual inductor lifted by the remotely controllable lifting device 13 and the residual capacity of the battery pack 2 below the trailer. The mutual inductor handling device for electric power that provides in this embodiment, the operation is directly perceived, the field operation personnel's of being convenient for use.
To sum up, the mutual-inductor handling device for electric power that this application embodiment provided for to having and using portably, can control hoisting accessory with the remote controller, the one-man operation of being convenient for can be pertinence promote, remove the nimble laborsaving of mutual-inductor in the narrow and small space of high tension switchgear.
It is noted that relational terms such as "first" and "second," and the like, may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that an article or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.
The above description is merely exemplary of the present application and is presented to enable those skilled in the art to understand and practice the present application. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the application. Thus, the present application is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
It will be understood that the present application is not limited to what has been described above and shown in the accompanying drawings, and that various modifications and changes can be made without departing from the scope thereof. The scope of the application is limited only by the appended claims.
