CN214650946U

CN214650946U - An environmentally friendly trash can for property management

Info

Publication number: CN214650946U
Application number: CN202120409154.1U
Authority: CN
Inventors: 黄昕; 高见; 张丽瑶
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-02-24
Filing date: 2021-02-24
Publication date: 2021-11-09
Anticipated expiration: 2031-02-24

Abstract

The utility model discloses an environmental protection trash can for property management, comprising a base, a sliding door, a handle, a sink and a faucet. The surface of the limit bar is fixedly connected with the sliding door, and the interior of the fixing frame is movably connected with garbage The surface of the trash can is fixedly connected with a handle, the top of the outer plate is fixedly connected with a washbasin, the upper surface of the washbasin is provided with a washbasin, and the upper surface of the washbasin is fixedly connected with a faucet. The main advantage of the utility model is to provide an environmentally friendly trash can for property management. The device provides a comprehensive cleaning structure. After throwing the trash into the trash can in the sliding door, and then closing the sliding door, the foul smell is not easy to dissipate. After the garbage is finished, residents can also clean up their personal hygiene on the hand-washing table above the garbage can. Cleaning can collect water on the spot to clean the garbage can and nearby areas, so that cleaning does not need to go back and forth to collect water for cleaning, saving a lot of manpower and improving the efficiency of cleaning. Cleaning labor efficiency.

Description

Environment-friendly garbage bin for property management

Technical Field

The utility model relates to a garbage bin equipment technical field specifically is an environmental protection garbage bin for property management.

Background

A trash can, also known as a waste bin or bin, is a container for holding trash. Most of the garbage bags are made of metal or plastic, and when the garbage bags are used, the garbage bags can be pricked up and discarded. The garbage can is a container for storing dirt and containing dirt in people's life, and is also a refraction of social culture, along with the development of society, various garbage cans fill around people's life in each district, and gradually become an indispensable part in the property and resident's life, but the existing traditional garbage can is very easy to be sour and smelly, and people who lose the garbage are easily stained with dirt while destroying the attractiveness of the district, so that the mood of residents is influenced.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

The utility model provides a to prior art not enough, the utility model provides an environmental protection garbage bin for property management has solved the problem of proposing in the above-mentioned background art.

(II) technical scheme

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides an environmental protection garbage bin for property management, includes the base, the last fixed surface of base is connected with the planking, the last fixed surface of base is connected with spacing thick stick, the fixed surface of spacing thick stick is connected with the sliding door, the fixed surface of sliding door is connected with the handle, the inside fixedly connected with mount of sliding door, the inside swing joint of mount has the garbage bin, the fixed surface of garbage bin is connected with the handle, the top fixedly connected with wash platform of planking, the upper surface of wash platform is provided with the pond of washing hand, the last fixed surface of wash platform is connected with the ashtray, the last fixed surface of wash platform is connected with tap.

Optionally, the upper surface of the faucet is fixedly connected with a switch.

Optionally, the surface of the outer plate is fixedly connected with a flowerpot rack.

Optionally, the bottom of the hand washing basin is fixedly connected with a drain pipe.

Optionally, a water supply pipe is fixedly connected to the bottom of the faucet.

Optionally, the inside fixedly connected with filter plate of garbage bin, the top fixedly connected with waterproof board of base, the last fixed surface of waterproof board is connected with sewage discharge pipe.

(III) advantageous effects

The utility model provides an environmental protection garbage bin for property management possesses following beneficial effect:

the utility model has the advantages of the utility model provides an environmental protection garbage bin is used in property management, this equipment provides a synthesize clearance structure, the resident can pull open the sliding door when needs abandon rubbish, close the sliding door again after throwing rubbish into the garbage bin in the sliding door, place rubbish in a relatively confined environment, the foul smell is difficult for giving off, the environment near the garbage bin has been protected, the resident also can be on the spot in the wash platform of garbage bin top and clear up the personal hygiene after losing rubbish, people's mood has been improved when having protected the resident hygiene, the setting of wash platform has also made things convenient for the clearance of property personnel of keeping a public place clean simultaneously, it can adopt water to clear up garbage bin and near on the spot to keep a public place clean, it need not to make a round trip to adopt water clean to make a public place clean, a large amount of manpower has been saved, the labor efficiency of keeping a public place clean has been promoted.

For traditional environmental protection garbage bin for property management, this equipment more can conveniently assist the use according to user's needs, for example, the back of garbage bin is provided with the flowerpot frame, can place green planting wherein, has increased the pleasing to the eye effect of district when improving near garbage bin's environment, and the garbage bin bottom is provided with the filter plate simultaneously, can separate the subsidiary sewage of rubbish and then in time get rid of through sewage discharge pipe, avoids sewage to worsen garbage bin internal environment.

Drawings

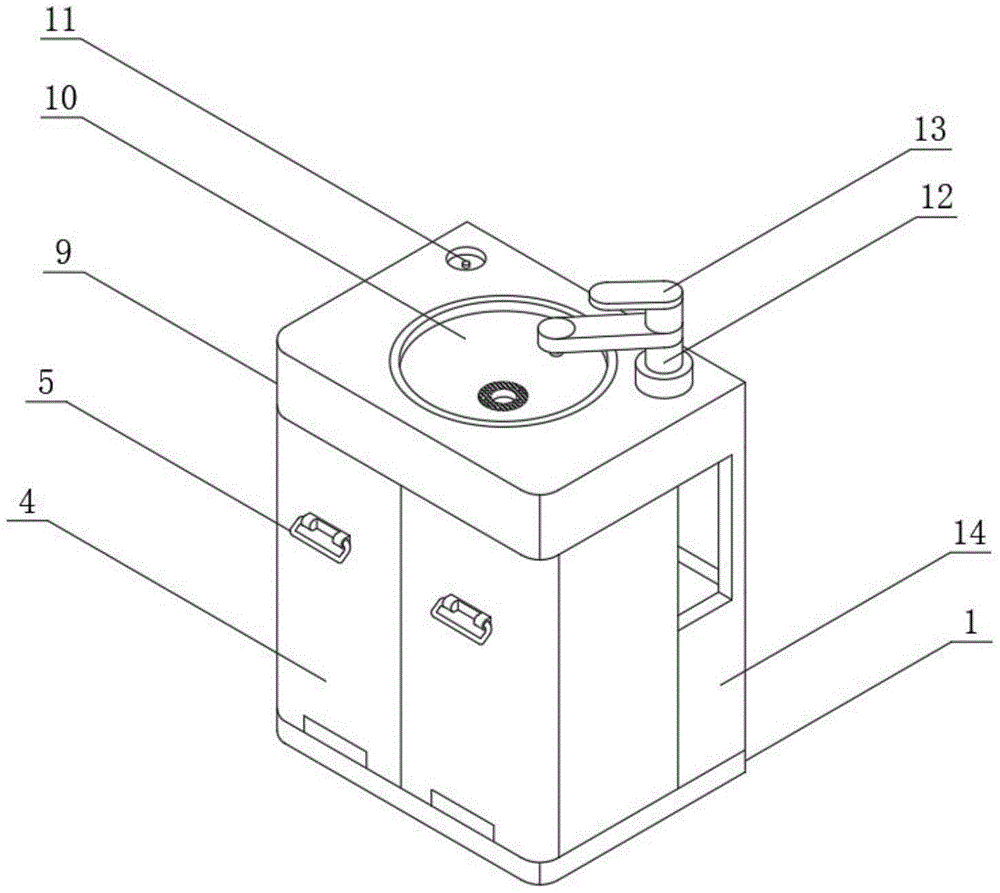

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the garbage can according to the present invention;

fig. 3 is a schematic view of the sectional structure of the present invention.

In the figure: 1. a base; 2. an outer plate; 3. a limit lever; 4. sliding the door; 5. a handle; 6. a fixed mount; 7. a trash can; 8. a handle; 9. a hand washing table; 10. washing hands in a sink; 11. an ashtray; 12. a faucet; 13. a switch; 14. a flower pot frame; 15. a drain pipe; 16. a water supply pipe; 17. filtering the plate; 18. a waterproof sheet; 19. a sewage discharge pipe.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

Referring to fig. 1 to 3, the present invention provides a technical solution: an environment-friendly trash can for property management comprises a base 1, an outer plate 2 is fixedly connected to the upper surface of the base 1, a limiting bar 3 is fixedly connected to the upper surface of the base 1, a sliding door 4 is fixedly connected to the surface of the limiting bar 3, a handle 5 is fixedly connected to the surface of the sliding door 4, a fixing frame 6 is fixedly connected to the inner portion of the sliding door 4, a trash can 7 is movably connected to the inner portion of the fixing frame 6, a lifting handle 8 is fixedly connected to the surface of the trash can 7, a hand washing table 9 is fixedly connected to the top of the outer plate 2, a hand washing basin 10 is arranged on the upper surface of the hand washing table 9, an ashtray 11 is fixedly connected to the upper surface of the hand washing table 10, a faucet 12 is fixedly connected to the upper surface of the hand washing basin 10, a switch 13 is fixedly connected to the upper surface of the outer plate 12, a flowerpot rack 14 is fixedly connected to the surface of the outer plate 2, a drain pipe 15 is fixedly connected to the bottom of the hand washing basin 11, and a water supply pipe 16 is fixedly connected to the bottom of the faucet 12, the garbage can 7 is fixedly connected with a filter plate 17 inside, the top of the base 1 is fixedly connected with a waterproof plate 18, the upper surface of the waterproof plate 18 is fixedly connected with a sewage discharge pipe 19, meanwhile, the garbage can 7 is provided with a handle 8, when the garbage can is cleaned, the garbage can 7 can be lifted on a washbasin 10 to be cleaned in all directions, the cleaning difficulty is reduced, the garbage can 7 can be set as a classified garbage can, the garbage can is convenient to recycle, the environment is protected, energy is saved, a resident can pull open the sliding door 4 when needing to discard the garbage, the garbage can be thrown into the garbage can 7 in the sliding door 4 and then close the sliding door 4, the garbage can be placed in a relatively closed environment, the odor is not easy to be emitted, the environment near the garbage can 7 is protected, and the resident can clean the personal hygiene on the spot at the washbasin 9 above the garbage can 7 after the garbage is thrown, the sanitation of residents is protected, meanwhile, the mood of people is improved, meanwhile, the arrangement of the hand washing platform 9 is convenient for cleaning personnel for property cleaning, the cleaning can be carried out by collecting water on site to clean the garbage can 7 and nearby, so that the cleaning is not required to be carried out by collecting water back and forth, a large amount of manpower is saved, the cleaning labor efficiency is improved, compared with the traditional environment-friendly garbage can for property management, the equipment can be used for assisting according to the requirements of users, for example, a flowerpot frame 14 is arranged on the back of the garbage can and can be used for placing green plants therein, the environment nearby the garbage can 7 is improved, the aesthetic effect of a small area is improved, meanwhile, a filter plate 17 is arranged at the bottom of the garbage can 7, the sewage attached to the garbage can be separated and then discharged in time through a sewage discharge pipe 19, the sewage is prevented from deteriorating the internal environment of the garbage can, the detailed description of known functions and known parts is omitted in the embodiment of the equipment, in order to ensure the compatibility of the equipment, the adopted operation means are all kept consistent with the parameters of the instruments on the market.

In conclusion, when the environment-friendly trash can for property management is used, residents can pull open the sliding door 4 when the residents need to discard the trash, the trash is thrown into the trash can 7 in the sliding door 4 and then the sliding door 4 is closed, the trash is placed in a relatively closed environment, odor is not easy to emit, the environment near the trash can 7 is protected, the residents can clean personal sanitation on the hand washing table 9 above the trash can 7 on the spot after the trash is thrown, the mood of the residents is improved while the sanitation of the residents is protected, meanwhile, the hand washing table 9 is convenient for cleaning of property cleaning personnel, the garbage can 7 and the environment near the trash can be cleaned by collecting water on the spot, the cleaning is free of back and forth water collection cleaning, a large amount of manpower is saved, the cleaning labor efficiency is improved, compared with the traditional environment-friendly trash can for property management, the device can be used for assisting according to the needs of the users, for example, the back of the garbage can is provided with a flowerpot frame 14, green plants can be placed in the flowerpot frame, the attractive effect of a community is increased while the environment near the garbage can 7 is improved, meanwhile, the bottom of the garbage can 7 is provided with a filter plate 17, the sewage attached to garbage can be separated and then timely discharged through a sewage discharge pipe 19, and the internal environment of the garbage can is prevented from being deteriorated by the sewage.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The utility model provides an environmental protection garbage bin for property management, includes base (1), its characterized in that: the utility model discloses a wash basin, including base (1), fixed surface, the last fixed surface of base (1) is connected with planking (2), the last fixed surface of base (1) is connected with spacing thick stick (3), the fixed surface of spacing thick stick (3) is connected with sliding door (4), the fixed surface of sliding door (4) is connected with handle (5), the inside fixedly connected with mount (6) of sliding door (4), the inside swing joint of mount (6) has garbage bin (7), the fixed surface of garbage bin (7) is connected with handle (8), the top fixedly connected with wash platform (9) of planking (2), the upper surface of wash platform (9) is provided with wash basin (10), the last fixed surface of wash platform (9) is connected with ashtray (11), the last fixed surface of wash platform (9) is connected with tap (12).

2. The environment-friendly trash can for property management according to claim 1, wherein: the upper surface of the water faucet (12) is fixedly connected with a switch (13).

3. The environment-friendly trash can for property management according to claim 1, wherein: the surface of the outer plate (2) is fixedly connected with a flowerpot rack (14).

4. The environment-friendly trash can for property management according to claim 1, wherein: the bottom of the hand washing basin (10) is fixedly connected with a drain pipe (15).

5. The environment-friendly trash can for property management according to claim 1, wherein: the bottom of the water tap (12) is fixedly connected with a water supply pipe (16).

6. The environment-friendly trash can for property management according to claim 1, wherein: the inside fixedly connected with filter plate (17) of garbage bin (7), the top fixedly connected with waterproof board (18) of base (1), the last fixed surface of waterproof board (18) is connected with sewage discharge pipe (19).
