Abstract

The utility model relates to a coating preparation dehydration device, which relates to the technical field of coating production and processing equipment and comprises a bracket and a dehydration box body which is fixedly locked at the upper side of the bracket through bolts, wherein the top surface of the dehydration box body is provided with two feeding ports, the side surface of the dehydration box body is provided with two inclined air ports, the upper side of the dehydration box body is provided with a fan heater and a driving motor, the air inlet end and the air outlet end of the fan heater are both connected with air pipes, the two air pipes are respectively connected with the two inclined air ports, the driving motor shaft is connected with a rotating shaft, one end of the rotating shaft vertically penetrates through the middle part at the inner side of the dehydration box body, the middle part at the inner side of the dehydration box body is vertically provided with a hollow conveying cylinder, the lower side of the hollow conveying cylinder is fixedly connected with the dehydration box body, the rotating shaft is alternately arranged inside the hollow conveying cylinder, the bottom of the inner cavity of the dehydration box body is provided with an inward inclined slope, the hollow conveying cylinder is arranged in the middle of the inclined slope, and a stirring frame is installed on a rotating shaft in the dewatering box body.

Description

Coating preparation dewatering equipment
Technical Field
The utility model relates to a coating preparation dewatering equipment relates to coating production processing equipment worker technical field.
Background
The traditional name of the coating in China is paint, the sensitivity of the coating to the attack of microorganisms depends on the chemical properties of the coating and a solvent, the type of surface covering and the condition of coating film exposure, the coating is a continuous film which is coated on the surface of a protected or decorated object and can form firm adhesion with the coated object, and the coating is usually viscous liquid which is prepared by taking resin, oil or emulsion as a main material, adding or not adding pigments and fillers, adding corresponding auxiliary agents and using organic solvents or water. The production and processing of the coating need to be dehydrated, but the existing dehydrator for the coating is single in equipment, slow in dehydration work efficiency and not uniform enough, so that a coating preparation dehydration device is needed.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a coating preparation dewatering equipment to the not enough of prior art to solve the problem mentioned in the above-mentioned background art.
In order to achieve the above purpose, the present invention is realized by the following technical solution: a paint preparation dehydration device, which comprises a bracket and a dehydration box body locked and fixed on the upper side of the bracket through bolts, the top surface of the dewatering box body is provided with two feeding ports, the side surface of the dewatering box body is provided with two inclined air ports, the upper side of the dehydration box body is provided with a warm air blower and a driving motor, the air inlet end and the air outlet end of the warm air blower are both connected with air pipes, the two air pipes are respectively connected with the two inclined air ports, the shaft of the driving motor is connected with a rotating shaft, one end of the rotating shaft vertically penetrates through the middle part of the inner side of the dewatering box body, a hollow conveying cylinder is vertically arranged in the middle part of the inner side of the dewatering box body, the lower side of the hollow conveying cylinder is fixedly connected with the dewatering box body, the rotating shaft is inserted in the hollow conveying cylinder, the bottom of the inner cavity of the dewatering box body is provided with an inward inclined slope, the hollow conveying cylinder is arranged in the middle of the inclined slope, and the stirring frame is installed on the rotating shaft inside the dewatering box body.
Further, helical blade is installed in the inboard pivot of cavity conveying cylinder, cavity conveying cylinder upside and downside are equipped with two discharge ports and two lower feed inlets respectively, two discharge ports locate helical blade top both sides, two helical blade bottom both sides are located to the discharge port down.
Furthermore, each upper discharge hole is arranged between two inclined air holes, and two lower discharge holes are arranged in the middle of the inclined slope.
Further, the bottom of the hollow conveying cylinder is hollow, a discharge valve is arranged below the hollow conveying cylinder, the discharge valve is arranged at the bottom of the dewatering box body, and the spiral blade is arranged right above the discharge valve.
Further, the stirring frame is the shape of falling U, just the equal level in stirring frame downside both ends is provided with the stirring rod of a plurality of, each is located to the cavity feed cylinder middle part between the stirring rod.
Furthermore, the surface of the upper side of the inclined slope is also provided with a heating plate, and two ends of the stirring frame are arranged above the heating plate.
Furthermore, a filter screen is arranged at the joint of the air pipe connected with the air inlet end of the fan heater and the inclined air port.
The utility model discloses compounding agitating unit's structure is ingenious to be arranged rationally: on one hand, a fan heater arranged on the upper side of the dehydration box body is connected and communicated with the inclined air port through an air pipe, the fan heater can improve air flow and is beneficial to improving dehydration efficiency, the inclined slope at the bottom of the dehydration box body is provided with a heating plate, and the coating on the periphery of the hollow conveying cylinder is stirred through a stirring frame, so that the coating is stirred and heated uniformly, and the drying speed is accelerated;
on the other hand, the cavity is carried the section of thick bamboo upside and is provided with two discharge ports and two lower feed inlets respectively, two lower feed inlets can be inboard with the leading-in cavity transport section of thick bamboo of coating under the effect of slope, and throw out the whereabouts again to two discharge ports through helical blade upward transportation, make coating can fully contact with the hot-blast abundant contact that the slope wind gap was seen off, further improve its stoving effect, and can improve the coating bulk flow effect, and, the discharge valve is located the helical blade below, be favorable to improving coating ejection of compact speed, for prior art, it has positive profitable result of use more.
Drawings
Other features, objects and advantages of the invention will become more apparent upon reading of the detailed description of non-limiting embodiments with reference to the following drawings:

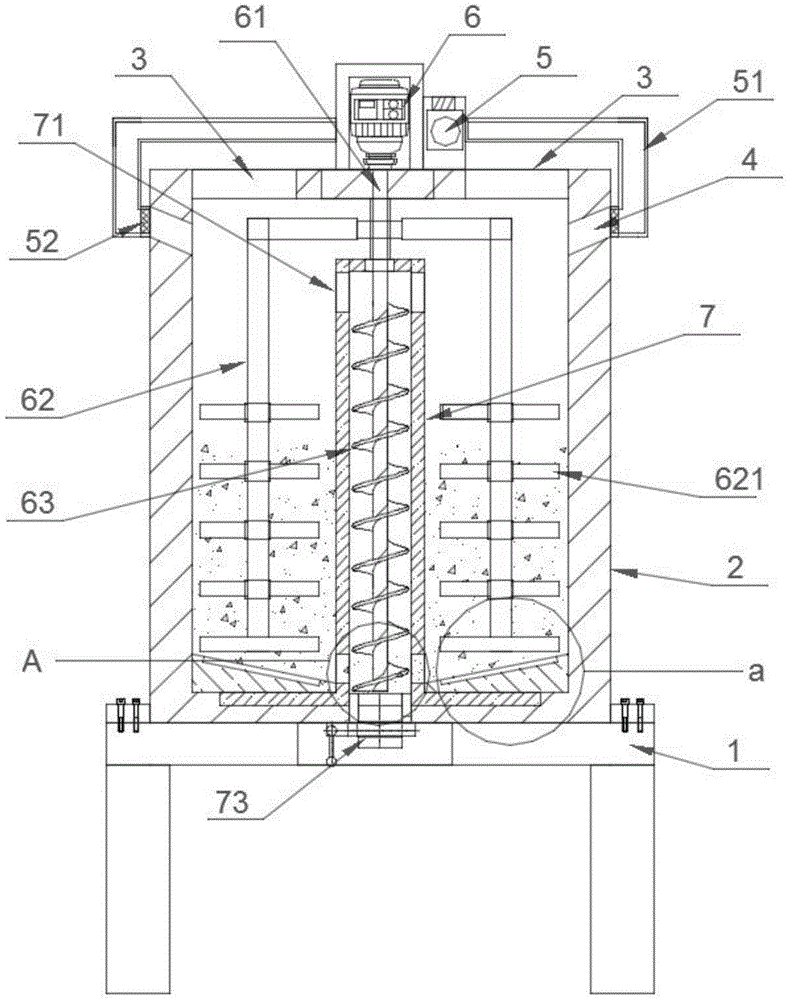

fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure A of FIG. 1 according to the present invention;
FIG. 3 is a schematic view of the structure a in FIG. 1 according to the present invention;
in the figure: the device comprises a support 1, a dewatering box body 2, a feeding port 3, an inclined air port 4, a warm air blower 5, an air pipe 51, a filter screen 52, a driving motor 6, a rotating shaft 61, a stirring frame 62, a stirring rod 621, a spiral blade 63, a hollow conveying cylinder 7, an upper discharging port 71, a lower feeding port 72, a discharging valve 73, an inclined slope 8 and a heating plate 81.
Detailed Description
In order to make the technical means, creation features, achievement purposes and functions of the present invention easy to understand, the present invention is further described below with reference to the following embodiments.
Referring to fig. 1-3, the present invention provides a technical solution of a paint preparation and dehydration apparatus: the structure of the dehydration box comprises a support 1 and a dehydration box body 2 fixedly locked on the upper side of the support 1 through bolts, wherein the top surface of the dehydration box body 2 is provided with two feeding ports 3, the side surface of the dehydration box body 2 is provided with two inclined air ports 4, the upper side of the dehydration box body 2 is provided with a fan heater 5 and a driving motor 6, the air inlet end and the air outlet end of the fan heater 5 are both connected with air pipes 51, the two air pipes 51 are respectively connected with the two inclined air ports 4, the driving motor 6 is connected with a rotating shaft 61 through a shaft, one end of the rotating shaft 61 vertically penetrates through the middle part inside the dehydration box body 2, the middle part inside the dehydration box body 2 is vertically provided with a hollow conveying cylinder 7, the lower side of the hollow conveying cylinder 7 is fixedly connected with the dehydration box body 2, the rotating shaft 61 is alternately arranged inside the hollow conveying cylinder 7, and the bottom of the inner cavity of the dehydration box body 2 is provided with an inward inclined slope 8, the hollow conveying cylinder 7 is arranged in the middle of the inclined slope 8, the stirring frame 62 is arranged on the rotating shaft 61 in the dehydration box body 2, the helical blade 63 is arranged on the rotating shaft 61 at the inner side of the hollow conveying cylinder 7, two upper discharge ports 71 and two lower feed ports 72 are respectively arranged on the upper side and the lower side of the hollow conveying cylinder 7, the two upper discharge ports 71 are arranged on two sides of the top of the helical blade 63, the two lower feed ports 72 are arranged on two sides of the bottom of the helical blade 63, each upper discharge port 71 is arranged between the two inclined air ports 4, the two lower feed ports 72 are arranged in the middle of the inclined slope 8, the bottom of the hollow conveying cylinder 7 is hollow, a discharge valve 73 is arranged below the hollow conveying cylinder, the discharge valve 73 is arranged at the bottom of the dehydration box body 2, the helical blade 63 is arranged right above the discharge valve 73, the stirring frame 62 is in an inverted U shape, and a plurality of stirring rods 621 are horizontally arranged at two ends of the lower side of the stirring frame 62, the hollow conveying cylinder 7 is arranged in the middle between the stirring rods 621, the upper side surface of the inclined slope 8 is further provided with a heating plate 81, two ends of the stirring frame 62 are arranged above the heating plate 81, and a filter screen 52 is arranged at the joint of the air pipe 51 connected with the air inlet end of the fan heater 5 and the inclined air port 4.
The utility model discloses at the theory of operation, coating is dropped into by two pan feeding mouths 3, start electric fan heater 5 after dropping into, and driving motor 6 and hot plate 81, hot plate 81 heats coating, driving motor 6 drives pivot 61, pivot 61 drives stirring frame 62 and stirring rod 621 and stirs in dehydration box body 2 inboard, electric fan heater 5 that sets up is connected and is communicated with slope wind gap 4 through tuber pipe 51, this electric fan heater 5 can improve the air flow, be favorable to improving the efficiency of dehydration, make coating stirring be heated evenly, accelerate the stoving speed, slope 8 at dehydration box body 2 bottom can lead into coating from two lower feed inlets 72 inside hollow conveying cylinder 7, and drive helical blade 63 through pivot 61 and upwards carry coating to two upper discharge mouth 71 and throw out the whereabouts again, make coating can fully contact with the hot-blast that slope wind gap 4 sent out, further improve its stoving effect, and can improve the whole mobile effect of coating to, bleeder valve 73 locates helical blade 63 below, is favorable to the coating to carry downwards behind the counter-rotation of pivot 61, improves coating ejection of compact speed.
It should be noted that, the utility model relates to a coating preparation dewatering equipment, it mainly improves above-mentioned structure, and its function, part and structure that do not mention can adopt among the prior art can realize the part and the structure of corresponding function and implement.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention may be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (7)

1. A coating preparation dewatering equipment which characterized in that: comprises a bracket (1) and a dehydration box body (2) which is fixedly locked at the upside of the bracket (1) through bolts, wherein the top surface of the dehydration box body (2) is provided with two feeding ports (3), the side surface of the dehydration box body (2) is provided with two inclined air ports (4), the upside of the dehydration box body (2) is provided with an air heater (5) and a driving motor (6), the air inlet end and the air outlet end of the air heater (5) are both connected with air pipes (51), the two air pipes (51) are respectively connected with the two inclined air ports (4), the driving motor (6) is in shaft connection with a rotating shaft (61), one end of the rotating shaft (61) vertically penetrates through the middle part of the inner side of the dehydration box body (2), the middle part of the inner side of the dehydration box body (2) is vertically provided with a hollow conveying cylinder (7), the lower side of the hollow conveying cylinder (7) is fixedly connected with the dehydration box body (2), and the rotating shaft (61) is alternately arranged inside the hollow conveying cylinder (7), the dehydration box body (2) inner chamber bottom is established to inside slope (8), the middle part of slope (8) is located in cavity delivery cylinder (7), stirring frame (62) are installed to inside pivot (61) of dehydration box body (2).
2. The paint preparation dewatering apparatus of claim 1, wherein: helical blade (63) are installed in pivot (61) of cavity conveying cylinder (7) inboard, cavity conveying cylinder (7) upside and downside are equipped with two upper discharge gate (71) and two lower feed inlet (72) respectively, two helical blade (63) top both sides are located in upper discharge gate (71), two helical blade (63) bottom both sides are located in lower feed inlet (72).
3. The paint preparation dewatering apparatus of claim 2, wherein: each upper discharge hole (71) is arranged between two inclined air ports (4), and two lower feed holes (72) are arranged in the middle of an inclined slope (8).
4. The paint preparation dewatering apparatus of claim 3, wherein: the hollow conveying cylinder (7) is hollow, a discharge valve (73) is arranged below the hollow conveying cylinder, the discharge valve (73) is arranged at the bottom of the dewatering box body (2), and the spiral blade (63) is arranged right above the discharge valve (73).
5. The paint preparation dewatering apparatus of claim 1, wherein: stirring frame (62) are the shape of falling U, just the equal level in stirring frame (62) downside both ends is provided with stirring rod (621) of a plurality of, each is located in cavity delivery cylinder (7) middle part between stirring rod (621).
6. The paint preparation dewatering apparatus of claim 1, wherein: heating plate (81) are still installed to slope (8) upside surface, hot plate (81) top is located at stirring frame (62) both ends.
7. The paint preparation dewatering apparatus of claim 1, wherein: and a filter screen (52) is arranged at the joint of the air pipe (51) connected with the air inlet end of the fan heater (5) and the inclined air port (4).
