Abstract
本申请公开了一种计算机网络工程用排线架，包括下排线板、转动结构、调节结构和固定结构，所述下排线板顶端设置有上排线板，所述下排线板两侧皆设置有连接板。通过第一螺杆和第一滑块配合，使得下排线板可以根据线体的走向进行角度调节，且通过第一滑块和第一滑槽配合，方便对下排线板的高度进行调节，解决了现有的下排线板角度调节较为不便的问题，提高了下排线板的实用性，解决了现有的下排线板在使用时线体之间的距离调节较为不便的问题，提高了排线架的适用性，且通过移动板和弹簧配合，使得线体与下排线板和上排线板具有一定活动空间，避免线体在小范围活动时造成拉扯，提高了下排线板使用时防护效果。
The application discloses a wiring frame for computer network engineering, comprising a lower wiring board, a rotating structure, an adjusting structure and a fixing structure. The top of the lower wiring board is provided with an upper wiring board, and the lower wiring board has two Both sides are provided with connecting plates. Through the cooperation of the first screw and the first slider, the angle of the lower cable plate can be adjusted according to the direction of the wire body, and through the cooperation of the first slider and the first chute, it is convenient to adjust the height of the lower cable plate. The invention solves the problem that the angle adjustment of the existing lower wiring board is relatively inconvenient, improves the practicability of the lower wiring board, and solves the problem that the distance between the wire bodies is relatively inconvenient to adjust when the existing lower wiring board is in use. The applicability of the cable rack is improved, and through the cooperation of the moving plate and the spring, the cable body, the lower cable plate and the upper cable plate have a certain space for movement, so as to avoid pulling the cable body when it moves in a small range, and improve the lower row The protective effect of the wire board when in use.
Description
Technical Field
The application relates to a wire arrangement frame, in particular to a wire arrangement frame for computer network engineering.
Background
When computer network engineering is installed to net twine and electric wire etc., for the convenience of follow-up maintenance of looking for, avoid the line body winding to cause the confusion, all can sort the line body and fix through the creel stand.
When the conventional winding displacement frame is used, the winding displacement frame is fixed with the connecting surface through the connecting plates on two sides, but the conventional winding displacement frame is fixedly connected with the connecting plates, so that the conventional winding displacement frame cannot be rotated and adjusted according to the trend of a wire body when being used, most of the conventional winding displacement frame can only pass through the winding displacement frame, the wire body is inconvenient to replace during subsequent maintenance, and the practicability of the winding displacement frame is reduced.
The position of traditional winding displacement board's line hole all is fixed, can't adjust according to the distance between the line body, and because the line body is when using, probably because the line body is dragged in the maintenance at line body both ends, because do not have the free space between current winding displacement board and the line body, lead to the line body to cause the damage easily when dragging, has reduced the protection effect of winding displacement frame. Therefore, a creel stand for computer network engineering is proposed to solve the above problems.
Disclosure of Invention
A creel stand for computer network engineering comprises a lower wire arranging plate, a rotating structure, an adjusting structure and a fixing structure, wherein the upper wire arranging plate is arranged at the top end of the lower wire arranging plate, and connecting plates are arranged on two sides of the lower wire arranging plate;
the rotating structure comprises a first sliding block, connecting blocks are fixed on two sides of the lower wiring board, connecting rods are fixed on two ends of the upper wiring board, one end, penetrating to the bottom of each connecting block, of each connecting rod is connected with a first fixing block through a thread groove, first screw rods are fixed on the outer sides of the connecting blocks, the first sliding blocks are fixed on the first screw rods, first sliding grooves matched with the first sliding blocks are formed in the connecting plates, and second fixing blocks are connected to the first screw rods on the side edges of the connecting plates through threaded holes;
the adjusting structure comprises a second sliding block and a second screw rod, clamping plates are equally arranged at the top end of the lower wire arranging plate and the bottom end of the upper wire arranging plate, the second sliding blocks are fixed at the bottom ends of the clamping plates below the clamping plates, second sliding grooves matched with the second sliding blocks are formed in the lower wire arranging plate, the second screw rods are fixed at the top ends of the clamping plates above the clamping plates, third sliding grooves matched with the second screw rods are formed in the upper wire arranging plate, and one ends of the second screw rods extending to the upper portion of the upper wire arranging plate are connected with third fixing blocks through threaded holes;
the fixed knot constructs including the movable plate, the inside movable plate that all is provided with of grip block, and the movable plate is close to one side of grip block and all is fixed with the carriage release lever, the carriage release lever all with grip block inside sliding connection, all be fixed with the spring between carriage release lever and the grip block inside.
Furthermore, the upper end and the lower end of the connecting plate are both fixed with fixing plates, fixing holes are symmetrically fixed in the fixing plates, and the fixing plates are all arranged in an L shape.
Furthermore, fixing holes matched with the connecting rods are formed in the connecting blocks, and rubber pads are glued to one side, close to the connecting blocks, of the first fixing block and one side, close to the connecting plates, of the second fixing block.
Furthermore, the bottom ends of the first fixing blocks are all fixed with auxiliary rods, and the auxiliary rods are all arranged in an inverted U shape.
Further, first slider all sets up to cylindrically, the all symmetry in second fixed block surface is fixed with the dwang, the diameter width of second fixed block all is greater than the width of first spout.
Furthermore, the clamping plates are all arranged to be semicircular in matching with the electric wire, and the diameter width of the third fixing block is larger than the width of the third sliding groove.
Furthermore, the second screw rods are all arranged to be T-shaped, the length of the second sliding groove is equal to that of the third sliding groove, and the second sliding blocks are all arranged to be I-shaped.
Furthermore, protective pads are glued on the inner sides of the moving plates, and the moving plates and the protective pads are both arranged in an arc shape matched with the clamping plates.
Further, the height between the two moving plates is smaller than the diameter height of the moving plates, and the diameter height of the moving plates is smaller than the diameter height of the clamping plate.
Furthermore, the movable rods are all arranged to be T-shaped, and the clamping plates are all internally provided with movable grooves matched with the movable rods.
The beneficial effect of this application is: the application provides a creel stand for computer network engineering.
Drawings
In order to more clearly illustrate the embodiments of the present application or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art that other drawings can be obtained according to the drawings without inventive exercise.

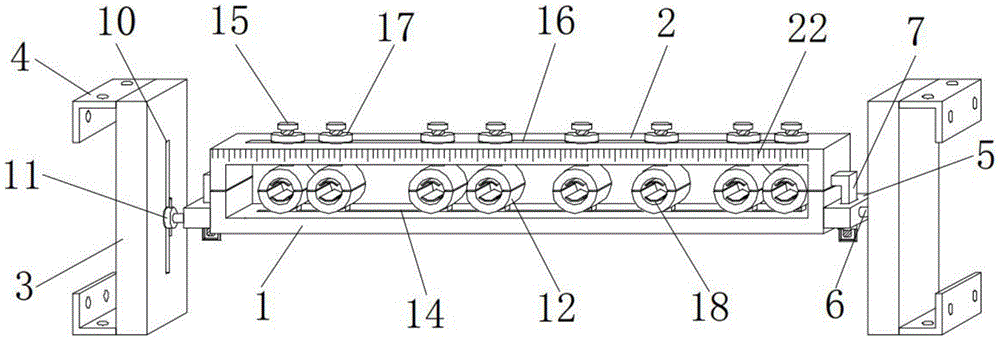

FIG. 1 is a schematic perspective view of an embodiment of the present application;
fig. 2 is a schematic perspective view illustrating an upper line-discharging plate according to an embodiment of the present application;
FIG. 3 is a schematic cross-sectional elevation view of an embodiment of the present application;
FIG. 4 is a schematic sectional front view of a partial structure in use according to an embodiment of the present application;
FIG. 5 is an enlarged view of the structure at A in FIG. 3 according to an embodiment of the present application;
fig. 6 is an enlarged schematic view of a structure at B in fig. 3 according to an embodiment of the present application.
In the figure: 1. lower line board, 2, last line board of arranging, 3, connecting plate, 4, fixed plate, 5, connecting block, 6, first screw rod, 7, connecting rod, 8, first fixed block, 9, first slider, 10, first spout, 11, second fixed block, 12, grip block, 13, slider, 14, second spout, 15, second screw rod, 16, third spout, 17, third fixed block, 18, movable plate, 19, protection pad, 20, carriage release lever, 21, spring.
Detailed Description
In order to make the technical solutions better understood by those skilled in the art, the technical solutions in the embodiments of the present application will be clearly and completely described below with reference to the drawings in the embodiments of the present application, and it is obvious that the described embodiments are only partial embodiments of the present application, but not all embodiments. All other embodiments, which can be derived by a person skilled in the art from the embodiments given herein without making any creative effort, shall fall within the protection scope of the present application.
It should be noted that the terms "first," "second," and the like in the description and claims of this application and in the drawings described above are used for distinguishing between similar elements and not necessarily for describing a particular sequential or chronological order. It should be understood that the data so used may be interchanged under appropriate circumstances such that embodiments of the application described herein may be used. Furthermore, the terms "comprises," "comprising," and "having," and any variations thereof, are intended to cover a non-exclusive inclusion, such that a process, method, system, article, or apparatus that comprises a list of steps or elements is not necessarily limited to those steps or elements expressly listed, but may include other steps or elements not expressly listed or inherent to such process, method, article, or apparatus.
In this application, the terms "upper", "lower", "left", "right", "front", "rear", "top", "bottom", "inner", "outer", "middle", "vertical", "horizontal", "lateral", "longitudinal", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings. These terms are used primarily to better describe the present application and its embodiments, and are not used to limit the indicated devices, elements or components to a particular orientation or to be constructed and operated in a particular orientation.
Moreover, some of the above terms may be used to indicate other meanings besides the orientation or positional relationship, for example, the term "on" may also be used to indicate some kind of attachment or connection relationship in some cases. The specific meaning of these terms in this application will be understood by those of ordinary skill in the art as appropriate.
Furthermore, the terms "mounted," "disposed," "provided," "connected," and "sleeved" are to be construed broadly. For example, it may be a fixed connection, a removable connection, or a unitary construction; can be a mechanical connection, or an electrical connection; may be directly connected, or indirectly connected through intervening media, or may be in internal communication between two devices, elements or components. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art as appropriate.
It should be noted that the embodiments and features of the embodiments in the present application may be combined with each other without conflict. The present application will be described in detail below with reference to the embodiments with reference to the attached drawings.
Referring to fig. 1-6, a creel for computer network engineering comprises a lower wire-discharging plate 1, a rotating structure, an adjusting structure and a fixing structure, wherein the top end of the lower wire-discharging plate 1 is provided with an upper wire-discharging plate 2, and both sides of the lower wire-discharging plate 1 are provided with connecting plates 3;
the rotating structure comprises a first sliding block 9, connecting blocks 5 are fixed on two sides of a lower wiring board 1, connecting rods 7 are fixed on two ends of an upper wiring board 2, one end, penetrating to the bottom of each connecting block 5, of each connecting rod 7 is connected with a first fixing block 8 through a thread groove, first screw rods 6 are fixed on the outer sides of the connecting blocks 5, the first sliding blocks 9 are fixed on the first screw rods 6, first sliding grooves 10 matched with the first sliding blocks 9 are formed in connecting plates 3, and second fixing blocks 11 are connected on the first screw rods 6 on the side edges of the connecting plates 3 through threaded holes;
the adjusting structure comprises a second sliding block 13 and a second screw rod 15, clamping plates 12 are uniformly arranged at the top end of the lower wire arranging plate 1 and the bottom end of the upper wire arranging plate 2, the second sliding block 13 is fixed at the bottom end of the lower clamping plate 12, second sliding grooves 14 matched with the second sliding blocks 13 are formed in the lower wire arranging plate 1, the second screw rod 15 is fixed at the top end of the upper clamping plate 12, third sliding grooves 16 matched with the second screw rods 15 are formed in the upper wire arranging plate 2, and one ends of the second screw rods 15 extending to the upper portion of the upper wire arranging plate 2 are connected with third fixing blocks 17 through threaded holes;
the fixed structure comprises a movable plate 18, the movable plate 18 is arranged inside the clamping plate 12, movable rods 20 are fixed on one sides of the movable plates 18 close to the clamping plate 12, the movable rods 20 are slidably connected with the inside of the clamping plate 12, and springs 21 are fixed between the movable rods 20 and the inside of the clamping plate 12.
The fixing plates 4 are fixed at the upper end and the lower end of the connecting plate 3, fixing holes are symmetrically fixed in the fixing plates 4, the fixing plates 4 are all arranged in an L shape, the connecting plate 3 and the connecting surface can be conveniently fixed through the fixing plates 4, and the connecting plate can be fixed through the left side and the right side or the upper end and the lower end; fixing holes matched with the connecting rods 7 are formed in the connecting blocks 5, rubber pads are glued to one side, close to the connecting blocks 5, of the first fixing block 8 and one side, close to the connecting plate 3, of the second fixing block 11, friction force is increased through the rubber pads, and the first fixing block 8 and the second fixing block 11 are fixed more firmly after being screwed; auxiliary rods are fixed at the bottom ends of the first fixing blocks 8, are arranged in an inverted U shape, and are convenient for screwing the first fixing blocks 8; the first sliding blocks 9 are all arranged in a cylindrical shape, the outer surfaces of the second fixing blocks 11 are symmetrically fixed with rotating rods, the diameter width of the second fixing blocks 11 is larger than the width of the first sliding grooves 10, the first sliding blocks 9 can move in the first sliding grooves 10, the angles of the lower wire discharging plates 1 and the upper wire discharging plates 2 can be adjusted by rotating the first sliding blocks 9, the second fixing blocks 11 can be screwed by the rotating rods more conveniently, and the second fixing blocks 11 can be clamped and fixed with the connecting plate 3 after being screwed; the clamping plates 12 are all arranged to be semicircular and matched with the electric wire, the diameter width of the third fixing block 17 is larger than the width of the third sliding groove 16, the clamping plates 12 can fix the wire body conveniently, and the third fixing block 17 is enabled to be screwed, so that the third fixing block 17 is abutted and fixed on the upper wiring board 2; the second screw rods 15 are all arranged in a T shape, the length of the second sliding groove 14 is equal to that of the third sliding groove 16, and the second sliding blocks 13 are all arranged in an I shape, so that the third fixed block 17 can only move on the second screw rods 15, the third fixed block 17 is prevented from being separated from the second screw rods 15, and meanwhile, the second sliding blocks 13 can only horizontally move in the second sliding grooves 14; the inner sides of the moving plates 18 are glued with protective pads 19, the moving plates 18 and the protective pads 19 are both arranged in an arc shape matched with the clamping plates 12, the wires are protected by the protective pads 19, and the wires are conveniently clamped and fixed by the moving plates 18; the height between the two moving plates 18 is smaller than the diameter height of the moving plates 18, and the diameter height of the moving plates 18 is smaller than the diameter height of the clamping plate 12, so that when the wire body is placed on the moving plates 18, the moving plates 18 can clamp and fix the wire body under the pushing of the springs 21; the moving rods 20 are all arranged in a T shape, and moving grooves matched with the moving rods 20 are formed in the clamping plate 12, so that the moving plate 18 is prevented from being separated from the clamping plate 12.
When the wire arranging frame is used, when the wire arranging frame is needed, the connecting plate 3 is fixed with the connecting surface through the bolt, when the angle of the lower wire arranging plate 1 is needed to be adjusted, the second fixing blocks 11 on the two sides are screwed through the rotating rods, so that the clamping and fixing of the second fixing blocks 11 on the connecting plate 3 are released, the lower wire arranging plate 1 is pulled firstly, the lower wire arranging plate 1 is pulled to the required height, the lower wire arranging plate 1 is rotated according to the wiring of the wire body, the second fixing blocks 11 are screwed reversely, so that the second fixing blocks 11 move to be abutted against the connecting plate 3 under the matching of threads, the lower wire arranging plate 1 and the connecting plate 3 can be fixed through the second fixing blocks 11, then the wire body is placed on the moving plate 18 inside the corresponding clamping plate 12 one by one, then the clamping plates 12 on the upper wire arranging plate 2 are aligned with the clamping plates 12 on the lower wire arranging plate 1, the upper wiring board 2 is pressed to enable the connecting rod 7 to penetrate through the connecting block 5, then the first fixing block 8 is screwed to the connecting rod 7 at the bottom end of the connecting block 5, the lower wiring board 1 and the upper wiring board 2 can be fixed, when the position of a certain wire body needs to be adjusted, the third fixing block 17 corresponding to the top end of the wire body is firstly screwed to enable the third fixing block 17 to move on the second screw 15 under the matching of threads, after the third fixing block 17 moves to the upper wiring board 2 and is released from fixing, the second screw 15 is pulled to enable the second screw 15 to move in the third sliding groove 16, meanwhile, the second sliding block 13 is driven to move in the second sliding groove 14, after the wire body moves to the required position, the third fixing block 17 is reversely screwed to enable the third fixing block 17 to move downwards and abut against the upper wiring board 2 for fixing, when the maintenance of the lower wiring board 1 and the inner portion of the upper wiring board 2 needs to continue, the first fixing block 8 is screwed through the auxiliary rod, so that after the fixation between the connecting rod 7 and the connecting block 5 is released, the upper wiring board 2 is lifted from the lower wiring board 1, and then the wire body inside the clamping plate 12 can be maintained or replaced.
The application has the advantages that:
1. the lower wiring board 1 is simple in structure and convenient to operate, the angle of the lower wiring board 1 can be adjusted according to the line direction through the matching of the first screw 6 and the first sliding block 9, the height of the lower wiring board 1 can be conveniently adjusted through the matching of the first sliding block 9 and the first sliding groove 10, the problem that the angle of the existing lower wiring board 1 is inconvenient to adjust is solved, and the practicability of the lower wiring board 1 is improved;
2. the wire arranging frame is reasonable in structure, the clamping plate 12 can be adjusted according to the distance between the wire bodies through the matching of the second screw 15 and the second sliding block 13, the problem that the distance between the wire bodies is inconvenient to adjust when the existing lower wire arranging plate 1 is used is solved, and the applicability of the wire arranging frame is improved;
3. this application is rational in infrastructure, through connecting block 5 and the cooperation of connecting rod 7, conveniently with lower wiring board 1 and the fixed with the 2 splits of last wiring board to the maintenance will be changed to the convenient inside line body of clamping plate 12, and through the cooperation of movable plate 18 and spring 21, make the line body and lower wiring board 1 and last wiring board 2 have certain activity space, avoid the line body to cause when the minizone activity to drag, improved the protective effect when lower wiring board 1 uses.
It is well within the skill of those in the art to implement, without undue experimentation, the present application is not directed to software and process improvements, as they relate to circuits and electronic components and modules.
The above description is only a preferred embodiment of the present application and is not intended to limit the present application, and various modifications and changes may be made by those skilled in the art. Any modification, equivalent replacement, improvement and the like made within the spirit and principle of the present application shall be included in the protection scope of the present application.
