CN214621867U

CN214621867U - A urology sampling device

Info

Publication number: CN214621867U
Application number: CN202120223042.7U
Authority: CN
Inventors: 王忠军; 其他发明人请求不公开姓名
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-26
Filing date: 2021-01-26
Publication date: 2021-11-05
Anticipated expiration: 2031-01-26

Abstract

The utility model discloses a urine sampling device for urology, which comprises a chassis, a vertical frame is fixedly installed on both sides of the top of the chassis, and a horizontal frame is fixedly installed on the top position between the two vertical frames. The top of the horizontal frame is provided with a housing near the center, the bottom of the housing penetrates to the outside of the horizontal frame, the inside of the housing is a hollow structure, and a screw rod is arranged near the center in the housing, so A fixing block is fixedly installed at the top position in the housing, and the bottom of the screw rod is movably connected with the bearing fixedly installed at the center position at the top of the fixing block. The urine sampling device for urology is used in conjunction with a screw rod, a threaded sleeve, a connecting block, a long rod, a fixed block, a push block and a piston. When taking urine, the medical staff only needs to turn the rocker to remove the container from the container. The urine is sucked into the casing, the urine taking process is fast and convenient, the urine leakage from the casing can be effectively avoided, and the use of the user is convenient.

Description

Urine ware is got in urological department's sampling

Technical Field

The utility model relates to an uropoiesis science and technology art field specifically is a urine ware is got in urological department's sampling.

Background

Urology is a medical science that specializes in the male and female urinary tracts and the male reproductive system and is mainly subdivided from surgery. The urinary and reproductive systems of men are inseparable, the urinary tract of women is opened at the external genitalia, and in a urological department, medical staff needs to sample and detect urine of patients, and urine gas is generally used for extracting urine in a container when the urine is sampled and detected.

Traditional urological department's sampling gets urine ware, most all can use the cylinder to get urine, uses the cylinder to get the inconvenience that urine was very, when dragging the cylinder, needs to use both hands to come the cooperation to get urine in addition, if do not hold good dynamics, makes the cylinder bump the container easily to spill the urine, reduced and got urine efficiency, the user's of not being convenient for use. Therefore, we propose a urological sampling urinal.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a urine ware is got in urological department's sampling to provide traditional urological department's sampling in solving above-mentioned background art and get the urine ware, most all can use the cylinder to get urine, use the cylinder to get the inconvenience that urine was very, when dragging the cylinder, need use both hands to cooperate to get urine in addition, if do not hold good dynamics, make the cylinder bump the container easily, thereby spill the urine, reduced and got urine efficiency, the problem that the user of not being convenient for used.

In order to achieve the above object, the utility model provides a following technical scheme: a urological sampling urine collector comprises a chassis, wherein vertical frames are fixedly mounted at the top of the chassis by means of positions on two sides, a cross frame is fixedly mounted between the two vertical frames by means of a position on the top, a shell is arranged at the top of the cross frame by means of a central position, the bottom of the shell penetrates to the outside of the cross frame, the inside of the shell is of a hollow structure, a lead screw is arranged in the shell by means of the central position, a fixed block is fixedly mounted in the shell by means of the position on the top, the bottom of the lead screw is movably connected with the top of the fixed block by means of a bearing fixedly mounted by means of the central position, a threaded sleeve is connected to the surface of the lead screw by means of a position on the bottom of the lead screw, connecting blocks are fixedly connected to the two sides of the threaded sleeve by means of the central position, long rods are fixedly connected to one sides of the bottoms of the two connecting blocks which are opposite to each other, and pushing blocks are fixedly mounted at the bottoms of the two long rods, the bottom fixed mounting who promotes the piece has the piston, the outer wall of piston and the inner wall contact of casing, the casing leans on the imbibition mouth intercommunication that central point put and set up through its bottom to have the straw, the equal fixed mounting in top position that leans on of casing both sides has the horizontal piece, the slot has all been seted up to the both sides position that leans on at the horizontal frame top, the equal fixedly connected with inserted block in both sides position that leans on of two horizontal piece bottoms, the bottom of two inserted blocks run through respectively to the inside of two slots and with the inner wall contact of slot, two perpendicular frame back of the body one side have the screw rod by the equal threaded connection in top position.

Compared with the prior art, the beneficial effects of the utility model are that:

the urological department sampling urine collector is used by matching the screw rod, the threaded sleeve, the connecting block, the long rod, the fixed block, the pushing block and the piston, when taking urine, the medical staff can suck the urine in the container into the shell by only rotating the rocker, the urine taking process is quick and convenient, the urine can be effectively prevented from leaking out of the shell, the use of a user is facilitated, and the chassis, the supporting plate, the vertical frame, the transverse block, the slot, the inserting block, the screw rod and the limiting clamp are matched for use, the round slot can be put into the container when urine is extracted, then the cross frame is penetrated through the shell, the insert enters the slot to limit the shell, the two limit clamps are fixed by clamping the shell through the rotary screw rod, medical workers can not knock down the container due to the fact that the shells are forcefully violent when the urine is extracted, the urine is convenient to disassemble and assemble, the work efficiency is improved, and the use requirements of users are met.

Drawings

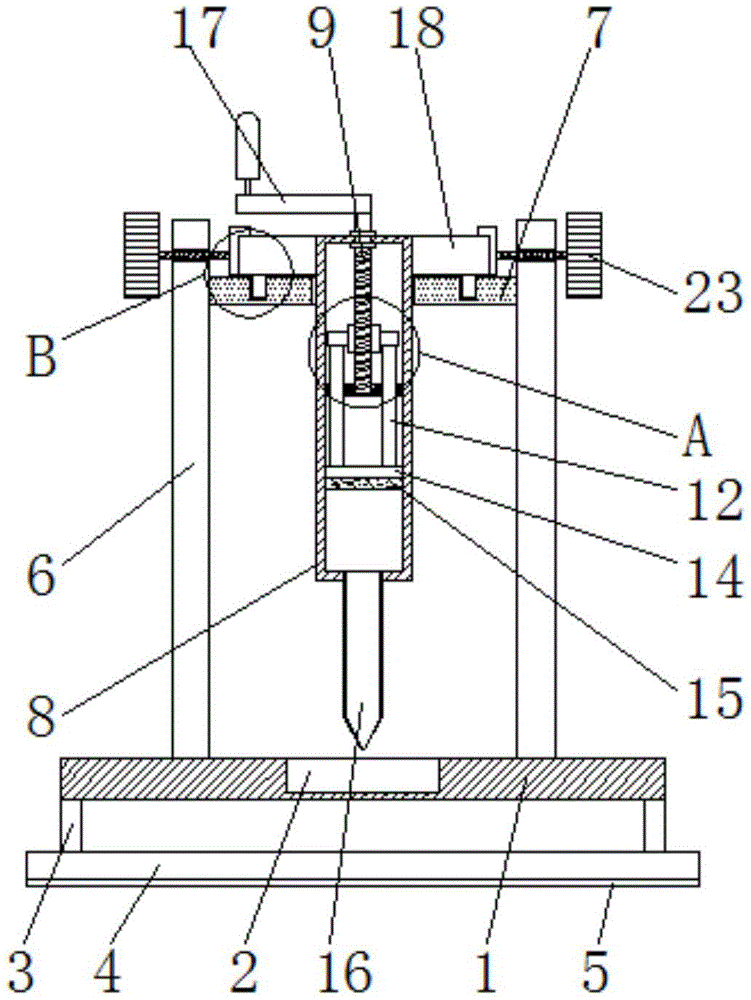

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is an enlarged view of a portion of FIG. 1;

fig. 3 is a partially enlarged schematic view of B in fig. 2 according to the present invention;

fig. 4 is a perspective view of the structure of the chassis of the present invention.

In the figure: 1. a chassis; 2. a circular groove; 3. a support plate; 4. a stabilizing plate; 5. a rubber pad; 6. erecting; 7. a cross frame; 8. a housing; 9. a screw rod; 10. a threaded sleeve; 11. connecting blocks; 12. a long rod; 13. a fixed block; 14. a pushing block; 15. a piston; 16. a straw; 17. a rocker; 18. a transverse block; 19. a slot; 20. inserting a block; 21. a screw; 22. a limiting clamp; 23. a knob.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a urological sampling urine collector comprises a chassis 1, vertical frames 6 are fixedly mounted at the top of the chassis 1 by means of two side positions, a cross frame 7 is fixedly mounted between the two vertical frames 6 by means of a top position, a shell 8 is arranged at the top of the cross frame 7 by means of a center position, the bottom of the shell 8 penetrates to the outside of the cross frame 7, the inside of the shell 8 is of a hollow structure, a lead screw 9 is arranged at the center position inside the shell 8, a fixed block 13 is fixedly mounted at the top position inside the shell 8, the bottom of the lead screw 9 is movably connected with a bearing fixedly mounted at the top of the fixed block 13 by means of the center position, a thread sleeve 10 is in threaded connection with the bottom position of the surface of the lead screw 9, connecting blocks 11 are fixedly connected at the center positions at two sides of the thread sleeve 10 by means of the center position, long rods 12 are fixedly connected at the opposite sides of the bottoms of the two connecting blocks 11, the bottoms of the two long rods 12 penetrate to the outside of the fixed block 13, bottom fixed mounting of two stock 12 has the promotion piece 14, the bottom fixed mounting who promotes piece 14 has piston 15, the outer wall of piston 15 and the inner wall contact of casing 8, casing 8 leans on the imbibition mouth intercommunication that central point put and set up through its bottom to have a straw 16, the equal fixed mounting in top position that leans on of casing 8 both sides has horizontal piece 18, slot 19 has all been seted up to the both sides position of leaning on at horizontal frame 7 top, the equal fixedly connected with inserted block 20 in both sides position that leans on of two 18 bottoms of horizontal piece, the bottom of two inserted blocks 20 run through respectively to the inside of two slot 19 and with slot 19's inner wall contact, the equal threaded connection of top position that leans on one side of the back of the body has screw rod 21 for two perpendicular frames 6.

The utility model discloses in: the top of the chassis 1 is provided with a circular groove 2, and the circular groove 2 is positioned near the center of the top of the chassis 1; the round groove 2 is designed to place a container filled with urine into the round groove 2.

The utility model discloses in: supporting plates 3 are fixedly arranged on two sides of the bottom of the chassis 1, stabilizing plates 4 are fixedly arranged at the bottoms of the two supporting plates 3, and rubber pads 5 are fixedly connected to the bottoms of the stabilizing plates 4; the design of backup pad 3, firm board 4 and rubber pad 5 can play the firm and skid-proof effect of support to chassis 1, has improved holistic stability.

The utility model discloses in: the top of the screw rod 9 penetrates to the outside of the shell 8 and is fixedly provided with a rocker 17, and a crank is fixedly arranged at a position close to one side of the top of the rocker 17; due to the design of the rocker 17 and the crank, a medical worker can hold the crank to rotate the rocker 17, so that urine can be extracted.

The utility model discloses in: the opposite sides of the two screws 21 respectively penetrate through the outer parts of the two vertical frames 6 and are fixedly provided with limiting clamps 22, and the inner walls of the two limiting clamps 22 are respectively contacted with the outer walls of the two transverse blocks 18; the design of limit clamp 22 can carry out the centre gripping to the crosspiece 18 of casing 8 both sides spacing, avoids medical personnel when extracting the urine, and unstable condition can appear in casing 8.

The utility model discloses in: the two opposite sides of the two screw rods 21 are fixedly provided with knobs 23, and the surfaces of the knobs 23 are provided with anti-skid grains; the knob 23 and the anti-slip pattern are designed so that the user can hold the housing 8 by rotating the knob 23 on both sides.

The working principle is as follows: firstly, put into circular slot 2 on chassis 1 the container that is equipped with the urine, then run through crossbearer 7 with casing 8, when the inserted block 20 of the crossbearer 18 bottom in casing 8 both sides got into inside slot 19, and simultaneously, the straw 16 of casing 8 bottom was located the inside of container perpendicularly, medical personnel can rotate the knob 23 of both sides respectively and make screw rod 21 promote spacing clamp 22 and carry out the centre gripping with the both sides of crossbearer 18 and fix, thereby make casing 8 stabilize and crossbearer 7, after the fixing finishes, medical personnel hold the crank and rotate rocker 17, rocker 17 drives lead screw 9 and makes thread bush 10 upwards move, thread bush 10 drives the connecting block 11 of both sides and makes the stock 12 of bottom drive promotion piece 14 upwards to move, promotion piece 14 drives the piston 15 of bottom and inhales the urine in the container through straw 16 into the inside of casing 8, the process of drawing the urine is stable and swift.

In summary, the following steps: the urological department sampling urine collector is used by matching the screw rod 9, the threaded sleeve 10, the connecting block 11, the long rod 12, the fixing block 13, the pushing block 14 and the piston 15, when urine is collected, medical staff can suck urine in a container into the shell 8 only by rotating the rocker 17, the urine collection process is quick and convenient, the urine can be effectively prevented from leaking out of the shell 8, the use of a user is facilitated, the chassis 1, the supporting plate 3, the vertical frame 6, the transverse frame 7, the transverse block 18, the slot 19, the inserting block 20, the screw 21 and the limiting clamp 22 are used in a matching way, when urine is collected, the container can be placed into the circular groove 2, then the shell 8 penetrates through the transverse frame 7, the inserting block 20 enters the slot 19 to limit the shell 8, the two limiting clamps 22 are fixed by rotating the screw 21, when the medical staff collects urine, the shell 8 cannot be knocked down by the shell 8 due to strength, easy dismounting has improved work efficiency, has satisfied user's user demand.

Claims

1. A urological sampling urine collector, comprising a chassis (1), characterized in that: the structure is characterized in that vertical frames (6) are fixedly mounted at the top of the chassis (1) by means of two side positions, a transverse frame (7) is fixedly mounted between the two vertical frames (6) by means of a top position, a shell (8) is arranged at the top of the transverse frame (7) by means of a center position, the bottom of the shell (8) penetrates through the outside of the transverse frame (7), the inside of the shell (8) is of a hollow structure, a lead screw (9) is arranged at the top of the shell (8) by means of the center position, a fixed block (13) is fixedly mounted in the shell (8) by means of the top position, the bottom of the lead screw (9) is movably connected with a bearing fixedly mounted at the top of the fixed block (13) by means of the center position, a threaded sleeve (10) is connected to the surface of the lead screw by means of bottom position threads, connecting blocks (11) are fixedly connected to the center positions of the two sides of the threaded sleeve (10), and a long rod (12) is fixedly connected to one side of the two connecting blocks (11) which are back on the bottom, the bottoms of the two long rods (12) are both penetrated to the outside of the fixed block (13), the bottoms of the two long rods (12) are fixedly provided with a pushing block (14), a piston (15) is fixedly arranged at the bottom of the pushing block (14), the outer wall of the piston (15) is contacted with the inner wall of the shell (8), the shell (8) is communicated with a suction pipe (16) through a liquid suction port which is arranged at the bottom of the shell close to the center, transverse blocks (18) are fixedly arranged at the positions close to the tops of the two sides of the shell (8), slot (19) have all been seted up to both sides position by of crossbearer (7) top, the equal fixedly connected with inserted block (20) in both sides position by of two crossbearers (18) bottom, the bottom of two inserted blocks (20) run through respectively to the inside of two slots (19) and with the inner wall contact of slot (19), two erect frame (6) back of the body one side by the equal threaded connection in top position have screw rod (21).

2. A urological sampling and urine collector according to claim 1, wherein: the top of the chassis (1) is provided with a circular groove (2), and the circular groove () is positioned at the position close to the center of the top of the chassis (1).

3. A urological sampling and urine collector according to claim 1, wherein: the supporting plates (3) are fixedly mounted on two sides of the bottom of the chassis (1), the stabilizing plates (4) are fixedly mounted at the bottoms of the two supporting plates (3), and rubber pads (5) are fixedly connected to the bottoms of the stabilizing plates (4).

4. A urological sampling and urine collector according to claim 1, wherein: the top of the screw rod (9) penetrates through the outer part of the shell (8) and is fixedly provided with a rocker (17), and a crank is fixedly arranged at the position, close to one side, of the top of the rocker (17).

5. A urological sampling urine collector according to claim 1, wherein the opposite sides of the two screws (21) respectively penetrate through the outside of the two vertical frames (6) and are fixedly provided with the limiting clamps (22), and the inner walls of the two limiting clamps (22) respectively contact with the outer walls of the two cross blocks (18).

6. A urological sampling and urine collector according to claim 1, wherein: the two screws (21) are fixedly provided with knobs (23) on the opposite sides, and anti-skid grains are arranged on the surfaces of the knobs (23).
