The utility model relates to the technical field of water purification devices, in particular to a low power consumption type water purification device, comprising a water purifier body, a second support plate is placed on the bottom of the water purifier body, and the second support plate and The water purifier bodies are connected by a positioning mechanism, the surface of the water purifier body is sleeved with a protective shell, and the protective shell and the second support plate are connected by a plurality of fixing mechanisms, and the fixing mechanisms include a first support plate. By arranging a second support plate and a protective casing around the low-energy-consumption water purifier, the utility model plays a protective role for the surrounding of the low-energy-consumption water purifier. The surface of the protective shell prevents the low-energy water purifier from being adversely affected by external impact, plays a protective role for the low-energy water purifier, and prevents oil fume from adhering to the control panel of the low-energy water purifier, which is convenient for staff to operate.

Description

Low-power consumption type purifier

Technical Field

The utility model relates to a purifier technical field especially relates to a low-power consumption type purifier.

Background

The low energy consumption water purifier just goes to understand literally very easily, the low energy consumption indicates that the consumption of the energy is few, and then play energy-concerving and environment-protective effect, and the low energy consumption water purifier among the prior art is at the in-process of installation, its outside does not have the mechanism of protection, make the water purifier receive external force striking, can direct action on its surface, make surperficial shell or inside original paper damage, if the shell damages, then the holistic leakproofness of shell is destroyed, humid air gets into the inside of shell and can cause the damage to electrical components, and the original paper receives external force striking damage and directly leads to the unable normal use of water purifier, and the water purifier is placed the kitchen usually, the oil smoke in the kitchen is more, if the oil smoke is attached to the control panel of water purifier, be unfavorable for people's use.

Disclosure of Invention

The utility model aims at solving the defects existing in the prior art and providing a low-power consumption water purifying device.

In order to achieve the above purpose, the utility model adopts the technical scheme that: a low-power-consumption water purifier comprises a water purifier body, wherein a second supporting plate is placed at the bottom of the water purifier body, the second supporting plate is connected with the water purifier body through a positioning mechanism, a protective shell is sleeved on the surface of the water purifier body, the protective shell is connected with the second supporting plate through a plurality of fixing mechanisms, each fixing mechanism comprises a first supporting plate, a rotating mechanism is connected between the first supporting plate and the second supporting plate, an installation pipe fitting is installed at the top of the first supporting plate through a screw, an installation rod is inserted in the installation pipe fitting in a sliding mode, a long hole is formed in the side face of the installation rod, a second screw hole corresponding to the long hole is formed in the top end of the installation pipe fitting, a second stud is installed on the inner thread of the second screw hole and is inserted in the long hole, extension spring has been placed to the inside of installation pipe fitting, extension spring's both ends weld respectively on the surface of the one end of installation pole and first backup pad, there is first baffle on the top of installation pole through the screw mounting, the bottom of first baffle and protective housing's top contact.

Preferably, two stop blocks are mounted at the top of the protective shell through screws, and the two stop blocks are symmetrically arranged on two symmetrical side surfaces of the first stop plate.

Preferably, slewing mechanism includes the fixed axle, the side at the second backup pad is passed through to the one end of fixed axle, the movable cover in surface of fixed axle is equipped with the installation piece, the bottom at first backup pad is passed through the mounting screw to the one end of installation piece, the one end of fixed axle has the second baffle through the mounting screw.

Preferably, the positioning mechanism comprises two screw pipes, one ends of the screw pipes are welded at the top of the second supporting plate, the two screw pipes are symmetrically arranged on two symmetrical side surfaces of the water purifier body, screw rods are inserted into the other end threads of the screw pipes, a fixing plate is installed at one end of each screw rod through a screw, a first screw hole and a second screw hole are formed in the side surface of the fixing plate, the first screw hole corresponds to the water purifier body in position, a first stud is installed on the internal thread of the first screw hole, and the first stud and the second screw hole are in contact with the two symmetrical side surfaces of the water purifier body.

Preferably, the two symmetrical side surfaces of the second supporting plate are provided with openings, and the openings are rectangular.

Preferably, the mounting panel is installed through the screw in the bottom of second backup pad, arrange perpendicularly between mounting panel and the second backup pad, install a plurality of bracing pieces through the screw between mounting panel and the second backup pad, the bracing piece is equipped with two at least and symmetrical arrangement.

Compared with the prior art, the utility model discloses following beneficial effect has:

the utility model discloses a set up second backup pad and protective housing around low energy consumption water purifier for play the effect of protection around the low energy consumption water purifier, when receiving external force striking, act on the surface of second backup pad or protective housing at first, prevent that the low energy consumption water purifier from receiving external force striking to cause adverse effect, play the effect of protection to the low energy consumption water purifier, prevent simultaneously that the oil smoke from adhering to the control panel of low energy consumption water purifier, the operation of staff of being convenient for;

the utility model discloses a set up fixed establishment for it is firm to connect between second backup pad and the protecting sheathing, is used for improving the stability of second backup pad and protecting sheathing to the protection of low energy consumption water purifier, and fixed establishment still is convenient for the protecting sheathing to dismantle from the second backup pad moreover, and the staff of being convenient for operates the low energy consumption water purifier.

Drawings

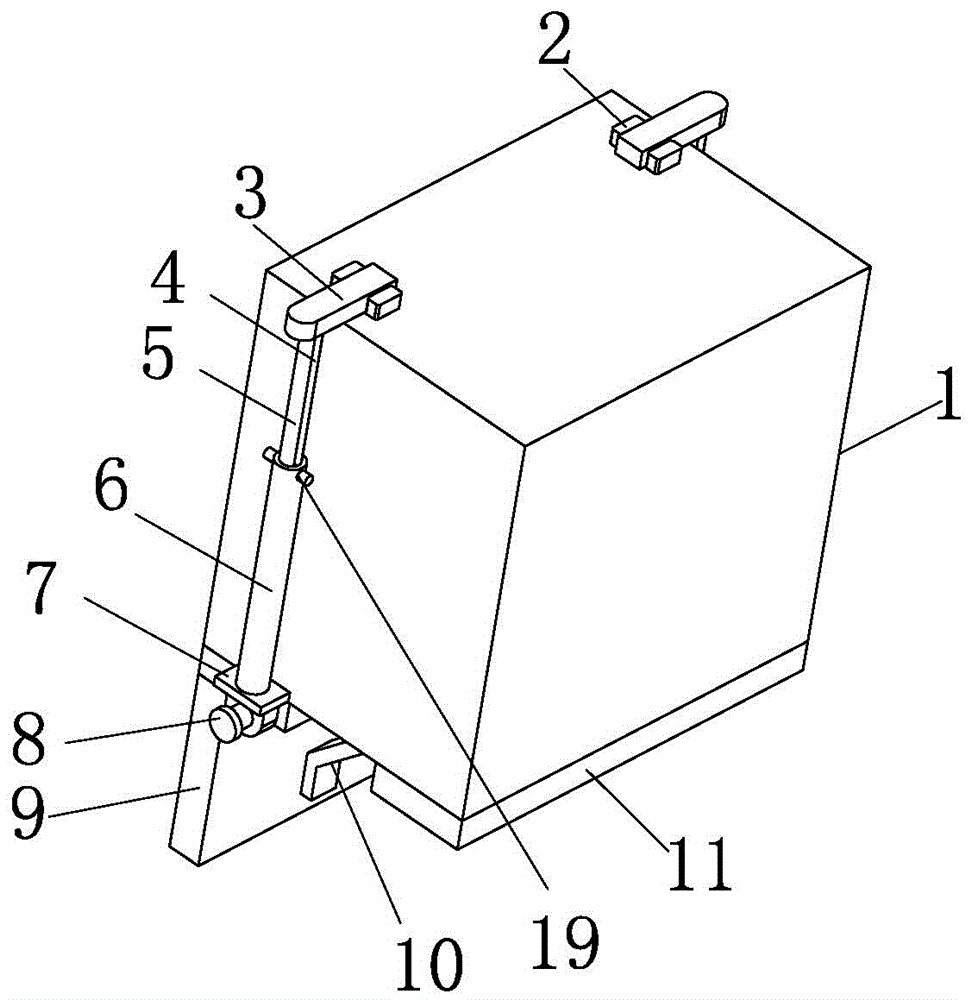

FIG. 1 is an isometric view of a low power consumption water purification device of the present invention;

FIG. 2 is a schematic view of the connection between the supporting plate and the positioning mechanism of the low power consumption water purifying device of the present invention;

FIG. 3 is a schematic view of the connection structure between the mounting plate and the supporting plate of the low power consumption water purifying device of the present invention;

FIG. 4 is a schematic view of a connection structure between a rotating mechanism and a first supporting plate of a low power consumption water purifying device of the present invention;

fig. 5 is a schematic structural view of a fixing mechanism of a low power consumption water purifying device of the present invention.

In the figure: protective housing 1, dog 2, first baffle 3, rectangular hole 4, installation pole 5, installation pipe fitting 6, first backup pad 7, second baffle 8, mounting panel 9, bracing piece 10, second backup pad 11, opening 12, screwed pipe 13, screw rod 14, first double-screw bolt 15, fixed plate 16, first screw 17, water purifier body 18, second screw 19, second double-screw bolt 20, extension spring 21, fixed axle 22, installation piece 23.

Detailed Description

The following description is presented to disclose the invention so as to enable any person skilled in the art to practice the invention. The preferred embodiments in the following description are given by way of example only, and other obvious variations will occur to those skilled in the art.

A low-power consumption type water purifying device as shown in fig. 1-5, which comprises a water purifier body 18, a second supporting plate 11 is placed at the bottom of the water purifier body 18, the second supporting plate 11 is connected with the water purifier body 18 through a positioning mechanism, the positioning mechanism comprises two screw pipes 13, one ends of the two screw pipes 13 are welded at the top of the second supporting plate 11, the two screw pipes 13 are symmetrically arranged on two symmetrical side surfaces of the water purifier body 18, a screw 14 is inserted into the other end of the two screw pipes 13, a fixing plate 16 is installed at one end of each screw 14 through a screw, first screw holes 17 are formed on the side surfaces of the two fixing plates 16, the two first screw holes 17 correspond to the water purifier body 18, first studs 15 are installed on the internal threads of the two first screw holes 17, and one ends of the two first studs 15 are in contact with the two symmetrical side surfaces of the water purifier body 18. When the water purifier body 18 is placed at the top of the second support plate 11, in order to improve the stability of the position of the water purifier body 18, the two first studs 15 are sequentially rotated, the two first studs 15 are rotated in the two first screw holes 17, one ends of the two first studs 15 are respectively moved to two symmetrical side surfaces of the water purifier body 18, the two first studs 15 clamp and fix the water purifier body 18, the stability of the water purifier body 18 placed on the second support plate 11 is improved, and the stability of the water purifier body 18 during working is further improved.

The surface cover of water purifier body 18 is equipped with protective housing 1, connect through a plurality of fixed establishment between protective housing 1 and the second backup pad 11, fixed establishment includes first backup pad 7, be connected with slewing mechanism between first backup pad 7 and the second backup pad 11, slewing mechanism includes fixed axle 22, the side at second backup pad 11 is passed through to the one end of fixed axle 22, the movable cover in surface of fixed axle 22 is equipped with installation piece 23, the bottom at first backup pad 7 is passed through to the one end of installation piece 23, there is second baffle 8 one end of fixed axle 22 through the mounting screw. When taking out protective housing 1 from second backup pad 11, stimulate earlier installation pole 5, installation pole 5 slides in installation pipe fitting 6, installation pole 5 drives first baffle 3 and moves in the vertical direction simultaneously, move to certain distance after first baffle 3, can rotate first baffle 3, first baffle 3 is in proper order through installation pole 5, installation pipe fitting 6 and first backup pad 7 drive installation piece 23 and rotate at the surface of fixed axle 22, a top for driving first baffle 3 from protective housing 1 rotates to its below, a take out from second backup pad 11 for make things convenient for protective housing 1.

There is installation pipe fitting 6 at the top of first backup pad 7 through the bolt mounting, the inside slip of installation pipe fitting 6 is pegged graft and is had installation pole 5, rectangular hole 4 has been seted up to the side of installation pole 5, second screw 19 corresponding with rectangular hole 4 position is seted up on the top of installation pipe fitting 6, second double-screw bolt 20 is installed to the internal thread of second screw 19, second double-screw bolt 20 alternates in the inside in rectangular hole 4, second double-

screw bolt

20 and 19 threaded connection of second screw hole, a stability for improving second double-screw bolt 20 position is located, and second double-screw bolt 20 alternates in the inside in rectangular hole 4, a spacing effect is played for installation pole 5, stability when installation pole 5 slides in installation pipe fitting 6 has been improved.

An extension spring 21 is placed inside the installation pipe fitting 6, two ends of the extension spring 21 are respectively welded at one end of the installation rod 5 and the surface of the first supporting plate 7, a first baffle plate 3 is installed at the top end of the installation rod 5 through screws, the bottom of the first baffle plate 3 is contacted with the top of the protective shell 1, when the protective shell 1 is stably placed at the top of the second supporting plate 11, an opening is formed in the bottom of the protective shell 1 in advance, the protective shell 1 is conveniently sleeved on the periphery of the water purifier body 18, after the bottom of the protective shell 1 is contacted with the top of the second supporting plate 11, the installation rod 5 can be pulled, the installation rod 5 slides in the installation pipe fitting 6 and is used for adjusting the height between the installation rod 5 and the installation pipe fitting 6 according to the height of the protective shell 1, along with the movement of the installation rod 5, the installation rod 5 pulls the extension spring 21, the extension spring 21 is stressed and then is extended in length, the first baffle 3 can be rotated, the first baffle 3 drives the mounting block 23 to rotate on the surface of the fixed shaft 22 through the mounting rod 5, the mounting pipe fitting 6 and the first supporting plate 7 in sequence, after the first baffle 3 is rotated to the upper part of the protective shell 1, namely, the acting force on the first baffle 3 can be cancelled, the tension spring 21 pulls the mounting rod 5 by the acting force of the tension spring 21 under the state of no stress, the mounting rod 5 moves in the mounting pipe fitting 6 and is used for shortening the length between the mounting rod 5 and the mounting pipe fitting 6, when the mounting rod 5 drives the bottom of the first baffle 3 to contact with the top of the protective shell 1, the first baffle 3 is pulled by the acting force of the extension spring 21, the first baffle 3 applies acting force to the protective shell 1, for pressing the shield case 1 on top of the second support plate 11, the stability of the connection between the shield case 1 and the second support plate 11 is improved.

Two check blocks 2 are installed at the top of the protective shell 1 through screws, and the two check blocks 2 are symmetrically arranged on two symmetrical side surfaces of the first baffle 3. Two dog 2 arrange the both sides at first baffle 3 for play spacing effect to first baffle 3 on the horizontal direction, and then improved first baffle 3 and pressed the stability at protective housing 1 top, further improved the stability of protective housing 1 laying in second backup pad 11.

Two symmetrical sides of the second supporting plate 11 are both provided with openings 12, and the openings 12 are rectangular. The opening 12 is arranged to facilitate the water purifier body 18 to pass through the opening 12 through a water pipe to be respectively connected with an external water delivery pipeline and a water outlet tap, so as to facilitate the distribution and arrangement of the water pipe.

The bottom of second backup pad 11 has mounting panel 9 through the screw mounting, and perpendicular arrangement between mounting panel 9 and the second backup pad 11 has a plurality of bracing pieces 10 through the screw mounting between mounting panel 9 and the second backup pad 11, and bracing piece 10 is equipped with two at least and symmetrical arrangement. When the second support plate 11 is connected with the wall, the mounting plate 9 is only required to be penetrated through by screws and be installed in the wall in a threaded manner, and the mounting plate 9 is connected and fixed with the wall, and meanwhile, the stability of the position of the second support plate 11 is improved. The support rod 10 is used for supporting the second support plate 11, and the stability of the position of the water purifier body 18 is improved.

The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the principles of the present invention may be applied to any other embodiment without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.

Claims

1. A low-power-consumption water purifying device comprises a water purifier body (18) and is characterized in that a second supporting plate (11) is placed at the bottom of the water purifier body (18), the second supporting plate (11) is connected with the water purifier body (18) through a positioning mechanism, a protective shell (1) is sleeved on the surface of the water purifier body (18), the protective shell (1) is connected with the second supporting plate (11) through a plurality of fixing mechanisms, each fixing mechanism comprises a first supporting plate (7), a rotating mechanism is connected between the first supporting plate (7) and the second supporting plate (11), an installation pipe fitting (6) is installed at the top of the first supporting plate (7) through a screw, an installation rod (5) is inserted in the installation pipe fitting (6) in a sliding mode, and a long hole (4) is formed in the side face of the installation rod (5), second screw (19) that correspond with rectangular hole (4) position are seted up on the top of installation pipe fitting (6), second double-screw bolt (20) are installed to the internal thread of second screw (19), second double-screw bolt (20) alternate in the inside of rectangular hole (4), extension spring (21) have been placed to the inside of installation pipe fitting (6), the both ends of extension spring (21) are welded respectively on the surface of the one end of installation pole (5) and first backup pad (7), there is first baffle (3) on the top of installation pole (5) through the screw mounting, the bottom of first baffle (3) contacts with the top of protecting sheathing (1).

2. A low power consumption water purifier as claimed in claim 1, wherein two stoppers (2) are mounted on the top of the protective casing (1) by screws, and the two stoppers (2) are symmetrically arranged on two symmetrical sides of the first baffle (3).

3. A water purifying device with low power consumption as claimed in claim 1, wherein the rotating mechanism comprises a fixed shaft (22), one end of the fixed shaft (22) is mounted on the side of the second supporting plate (11) through a screw, a mounting block (23) is movably sleeved on the surface of the fixed shaft (22), one end of the mounting block (23) is mounted on the bottom of the first supporting plate (7) through a screw, and a second baffle (8) is mounted on one end of the fixed shaft (22) through a screw.

4. The water purifier with low power consumption as claimed in claim 1, wherein the positioning mechanism comprises two screw pipes (13), one ends of the two screw pipes (13) are welded on the top of the second support plate (11), the two screw pipes (13) are symmetrically arranged on two symmetrical side surfaces of the water purifier body (18), screw rods (14) are inserted into the other ends of the two screw pipes (13) in a threaded manner, a fixing plate (16) is installed at one end of each screw rod (14) through a screw, first screw holes (17) are formed in the side surfaces of the two fixing plates (16), the two first screw holes (17) correspond to the water purifier body (18) in position, first screw bolts (15) are installed on the internal threads of the two first screw holes (17), and one ends of the two first screw bolts (15) are in contact with the two symmetrical side surfaces of the water purifier body (18).

5. A low power consumption water purification device as claimed in claim 1, wherein the openings (12) are opened on two symmetrical sides of the second support plate (11), and the openings (12) are rectangular.

6. A water purifying apparatus with low power consumption as claimed in claim 1, wherein the bottom of the second supporting plate (11) is provided with a mounting plate (9) by screws, the mounting plate (9) and the second supporting plate (11) are vertically arranged, a plurality of support rods (10) are arranged between the mounting plate (9) and the second supporting plate (11) by screws, and at least two support rods (10) are symmetrically arranged.
