The utility model relates to an environmental protection dust removal technical field specifically is an industrial tail gas dust collector, which comprises a bracket, the top fixedly connected with collection ash mechanism and the dust removal mechanism of support, collection ash mechanism is including collecting the ash box, the bottom fixed connection that collects the ash box is in the top of support, one side fixedly connected with intake pipe of collection ash box surface, two first card strips of inner wall fixedly connected with of collection ash box. The utility model has the advantages that: this industry tail gas dust collector, through set up first filter screen in collection grey mechanism, effective filtration a large amount of impurity, upper surface through at first filter screen sets up the shock motor, it adheres on first filter screen to have avoided the foreign particles, through set up the electrostatic generator in dust removal mechanism, make the blowout water droplet have electrostatic absorption's function, through the second filter screen, first pump machine, cooperation between drinking-water pipe and the water tank, make this industry tail gas dust collector have water source cyclic utilization's effect.
Description
Technical Field
The utility model relates to an environmental protection dust removal technical field, especially an industrial tail gas dust collector.
Background
In the industry carries out the production process, often discharge a large amount of harmful gas, not only caused huge pollution to the environment, and harm biological health, therefore, the tail gas to industry emission strictly carries out purification treatment, in industrial waste gas treatment, its tail gas contains a large amount of dust, it is one of them important project to remove dust, industrial tail gas dust collector is one of the important component parts of environmental protection equipment, present industrial tail gas dust collector adopts sack dust removal and a plurality of filter to filter the dust removal more, often cause the dust removal result not up to standard, the filter blocks up scheduling problem easily, and some dust collecting equipment that utilize the water source are too extravagant to the water source.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome prior art's shortcoming, provide an industrial tail gas dust collector. The purpose of the utility model is realized through the following technical scheme: the industrial tail gas dust removal device comprises a bracket, wherein the top of the bracket is fixedly connected with an ash collecting mechanism and a dust removal mechanism; the dust collecting mechanism comprises a dust collecting box body, the top of the support is fixedly connected with the dust collecting box body, one side of the outer surface of the dust collecting box body is fixedly connected with an air inlet pipe, the inner wall of the dust collecting box body is fixedly connected with two first clamping strips, a first filter screen is clamped inside the two first clamping strips, the upper surface of the first filter screen is fixedly provided with a vibration motor, the inner wall of the dust collecting box body is fixedly connected with a dust collecting hopper, the lower surface of the dust collecting box body is fixedly connected with a dust collecting box, the upper surface of the dust collecting box body is fixedly connected with an air outlet pipe, one end, close to the dust collecting box body, of the air outlet pipe penetrates through the upper surface of the dust collecting box body and extends to the inner wall of the dust collecting box body, one end, far away from the dust collecting box body, of the air outlet pipe is fixedly connected with an air pump, and one end, far away from the dust collecting box body, of the air outlet pipe is fixedly connected with the input end of the air pump; the dust removal mechanism comprises a dust removal box body, the top of the support is fixedly connected with the dust removal box body, the top and the bottom of the inner wall of the dust removal box body are respectively welded with a second clamping strip, the second clamping strip divides the interior of the dust removal box body into a first dust removal chamber and a second dust removal chamber, the inside of the second clamping strip is connected with a filter plate in a clamping manner, the bottom of the dust removal box body is fixedly connected with a dust collection box, the inner wall of the dust collection box body is fixedly connected with a second filter screen, the bottom of the dust collection box is provided with a water pumping hole, a first pump is fixedly arranged on one side surface, close to the water pumping hole, of the outer surface of the dust collection box body, the output end of the first pump is fixedly connected with a water pumping pipe, one end, far away from the first pump, of the water pumping pipe is fixedly connected with a water tank, the water tank is fixedly connected with the upper surface of the dust removal box body through four fixing rods arranged at the bottom of the water tank body, one side surface of the water tank is provided with a water filling port, the bottom fixed mounting of water tank has the outlet pipe, the one end fixed mounting that the water tank was kept away from to the outlet pipe has the second pump machine, the output fixed mounting of second pump machine has electrostatic generator, electrostatic generator's output fixedly connected with static water pipe, electrostatic generator's one end is kept away from to the static water pipe runs through the top of dust removal box and extends to the inside of first clean room, electrostatic generator's one end fixedly connected with shower nozzle is kept away from to the static water pipe, the inner wall fixed mounting of second clean room has the installing frame, the inside joint of installing frame has the cotton board of active carbon, the gas vent has been seted up to the upper surface of second clean room.
Optionally, one end of the air inlet pipe close to the ash collecting box body penetrates through one side face of the ash collecting box body and extends to the inner wall of the ash collecting box body.
Optionally, the two first clamping strips are the same in size and shape and are respectively located on two symmetrical sides of the inner wall of the ash collecting box body.
Optionally, the bottom of the ash collecting hopper penetrates through the bottom of the ash collecting box body and extends to the outer surface of the ash collecting box body.
Optionally, a hole matched with the bottom of the dust collecting hopper is formed in the top of the dust collecting box.
Optionally, the output end of the air suction pump penetrates through the upper surface of the dust removal box body and extends to the inner wall of the first dust removal chamber.
Optionally, the bottom of the dust-removing box body penetrates through the upper surface of the dust-collecting box and extends to the inner wall of the dust-collecting box.
The utility model has the advantages of it is following:
1. this industrial tail gas dust collector through setting up first filter screen in collection grey mechanism, has effectively filtered a large amount of impurity, has alleviateed and has filtered the burden, sets up the shock motor through the upper surface at first filter screen, has effectively avoided a large amount of adhesion of foreign particles on first filter screen, avoids a large amount of foreign particles to cause the jam to first filter screen.
2. This industry tail gas dust collector sets up electrostatic generator through the output of the second pump machine in dust removal mechanism, has reached the purpose that the blowout water droplet has the electrostatic adsorption function, has effectively strengthened the adsorption efficiency of water droplet to tail gas flying dust, through the cooperation that sets up second filter screen, first pump machine, drinking-water pipe and water tank in dust removal mechanism, makes this industry tail gas dust collector have water source cyclic utilization's effect.
Drawings

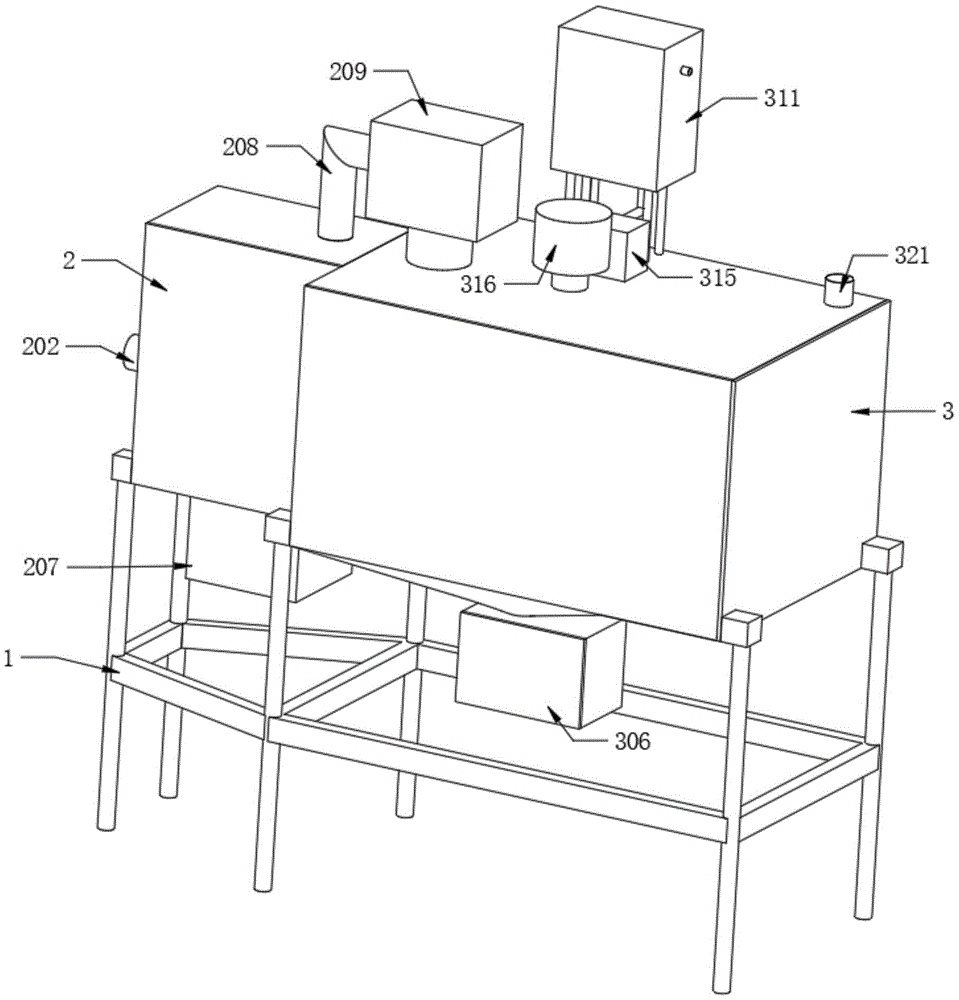

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic structural view of the ash collecting mechanism of the present invention;
FIG. 3 is a schematic structural view of the dust removing mechanism of the present invention;
fig. 4 is a schematic structural diagram of the water tank of the present invention.
In the figure: 1-bracket, 2-ash collecting mechanism, 201-ash collecting box body, 202-air inlet pipe, 203-first clamping strip, 204-first filter screen, 205-vibration motor, 206-ash collecting hopper, 207-ash collecting box, 208-air outlet pipe, 209-air pump, 3-dust removing mechanism, 301-dust removing box body, 302-second clamping strip, 303-first dust removing chamber, 304-second dust removing chamber, 305-filter plate, 306-dust collecting box, 307-second filter screen, 308-water pumping hole, 309-first pump, 310-water pumping pipe, 311-water tank, 312-fixed rod, 313-water filling port, 314-water outlet pipe, 315-second pump, 316-electrostatic generator, 317-electrostatic water pipe, 318-spray head, 319-mounting frame, 320-activated carbon plate, 321-exhaust port.
Detailed Description
The invention will be further described with reference to the accompanying drawings, but the scope of the invention is not limited to the following description.
As shown in fig. 1-4, an industrial tail gas dust removal device comprises a bracket 1, wherein the top of the bracket 1 is fixedly connected with an ash collecting mechanism 2 and a dust removal mechanism 3; the ash collecting mechanism 2 comprises an ash collecting box body 201, the top of the bracket 1 is fixedly connected with the ash collecting box body 201, one side of the outer surface of the ash collecting box body 201 is fixedly connected with an air inlet pipe 202, one end of the air inlet pipe 202, which is close to the ash collecting box body 201, penetrates through one side surface of the ash collecting box body 201 and extends to the inner wall of the ash collecting box body 201, the inner wall of the ash collecting box body 201 is fixedly connected with two first clamping strips 203, the two first clamping strips 203 are same in size and shape and are respectively positioned at two symmetrical sides of the inner wall of the ash collecting box body 201, first filter screens 204 are clamped inside the two first clamping strips 203, a large amount of impurities are effectively filtered by arranging the first filter screens 204 on the ash collecting mechanism 2, the filtering burden is reduced, vibrating motors 205 are fixedly arranged on the upper surfaces of the first filter screens 204, and the vibrating motors 205 are arranged on the upper surfaces of the first filter screens 204, so that a large amount of impurity particles are effectively prevented from being adhered to the outer surfaces of the first filter screens 204, the first filter screen 204 is prevented from being blocked by a large number of foreign particles, the inner wall of the ash collecting box body 201 is fixedly connected with an ash collecting hopper 206, the bottom of the ash collecting hopper 206 penetrates through the bottom of the ash collecting box body 201 and extends to the outer surface of the ash collecting box body 201, the lower surface of the ash collecting box body 201 is fixedly connected with an ash collecting box 207, the top of the ash collecting box 207 is provided with a hole matched with the bottom of the ash collecting hopper 206, the upper surface of the ash collecting box body 201 is fixedly connected with an air outlet pipe 208, one end, close to the ash collecting box body 201, of the air outlet pipe 208 penetrates through the upper surface of the ash collecting box body 201 and extends to the inner wall of the ash collecting box body 201, one end, far away from the ash collecting box body 201, of the air outlet pipe 208 is fixedly connected with an air suction pump 209, and one end, far away from the ash collecting box body 201, of the air outlet pipe 208 is fixedly connected with the input end of the air suction pump 209; the dust removing mechanism 3 comprises a dust removing box body 301, the top of the bracket 1 is fixedly connected with the dust removing box body 301, the top and the bottom of the inner wall of the dust removing box body 301 are respectively welded with a second clamping strip 302, the inside of the dust removing box body 301 is divided into a first dust removing chamber 303 and a second dust removing chamber 304 by the two second clamping strips 302, the inside of the two second clamping strips 302 is clamped with a filter plate 305, the bottom of the dust removing box body 301 is fixedly connected with a dust collecting box 306, the bottom of the dust removing box body 301 penetrates through the upper surface of the dust collecting box 306 and extends to the inner wall of the dust collecting box 306, the inner wall of the dust collecting box 306 is fixedly connected with a second filter screen 307, the bottom of the dust collecting box 306 is provided with a water pumping hole 308, one side of the outer surface of the dust collecting box 306 close to the water pumping hole 308 is fixedly provided with a first pump 309, the output end of the first pump 309 is fixedly connected with a water pumping pipe 310, the water pumping pipe 310 is far away from the one end of the first pump 309, through the cooperation of the second filter screen 307, the first pump 309, the water pumping pipe 310 and the water tank 311 which are arranged on the dust removing mechanism 3, the industrial tail gas dust removing device has the effect of water source cyclic utilization, the water tank 311 is fixedly connected with the upper surface of the dust removing box body 301 through four fixing rods 312 arranged at the bottom of the water tank 311, one side surface of the water tank 311 is provided with a water filling port 313, the bottom of the water tank 311 is fixedly provided with a water outlet pipe 314, one end, far away from the water tank 311, of the water outlet pipe 314 is fixedly provided with the second pump 315, the output end of the second pump 315 is fixedly provided with an electrostatic generator 316, the output end, far away from the electrostatic generator 316, of the water tank 311 is provided with the electrostatic generator 316, the purpose that sprayed water drops have the electrostatic adsorption function is achieved, the adsorption capacity of the water drops on tail gas flying dust is effectively enhanced, the output end of the electrostatic generator 316 is fixedly connected with the electrostatic water pipe 317, one end, far away from the electrostatic generator 317 penetrates through the top of the dust removing box body 301 and extends into the first dust removing chamber 303 Portion, the one end fixedly connected with shower nozzle 318 of static generator 316 is kept away from to static water pipe 317, and the output of aspiration pump 209 runs through the upper surface of dust removal box 301 and extends to the inner wall of first clean room 303, and the inner wall fixed mounting of second clean room 304 has installing frame 319, and the inside joint of installing frame 319 has the cotton board of active carbon 320, and gas vent 321 has been seted up to the upper surface of second clean room 304.
As an optimal technical solution of the utility model: one end of the air inlet pipe 202 close to the dust collecting box 201 penetrates through one side surface of the dust collecting box 201 and extends to the inner wall of the dust collecting box 201.
As an optimal technical solution of the utility model: the two first clamping strips 203 are the same in size and shape and are respectively positioned on two symmetrical sides of the inner wall of the ash collecting box body 201.
As an optimal technical solution of the utility model: the bottom of the dust hopper 206 penetrates the bottom of the dust collecting box 201 and extends to the outer surface of the dust collecting box 201.
As an optimal technical solution of the utility model: the top of the dust collecting box 207 is provided with a hole matched with the bottom of the dust collecting hopper 206.
As an optimal technical solution of the utility model: the output end of the suction pump 209 penetrates the upper surface of the dust removing box body 301 and extends to the inner wall of the first dust removing chamber 303.
As an optimal technical solution of the utility model: the bottom of the dust box 301 penetrates the upper surface of the dust box 306 and extends to the inner wall of the dust box 306.
The working process of the utility model is as follows: when industrial tail gas is dedusted, the gas inlet pipe 202 is connected to a tail gas discharge port, the power supply of the industrial tail gas dedusting device is started, the air extracting pump 209 extracts air, the tail gas enters the dust collecting box body 201 along the gas inlet pipe 202, a large amount of dust is filtered under the filtering of the first filter screen 204, under the vibration of the vibration motor 205, impurity particles adhered to the first filter screen 204 are vibrated to fall off, the dust particles fall into the dust collecting box 207 along the dust collecting hopper 206, the dust entering the first filter screen 204 enters the first dedusting chamber 303 along the gas outlet pipe 208, water in the water tank 311 is extracted by the second pump 315, water beads with electrostatic adsorption generated under the action of the electrostatic generator 316 are sprayed into the first dedusting chamber 303, the water beads can adsorb dust impurities and fall into the dust collecting box 306, the tail gas is filtered by the filter plate 305 and enters the second dedusting chamber 304 and is filtered by the activated carbon plate 320, finally, the water is discharged out of the dust removing device through the air outlet 321, the water entering the dust collecting box 306 is separated by filtration under the action of the second filter screen 307, the water passing through the second filter screen 307 permeates into the bottom of the dust collecting box 306 and is pumped out by the first pump 309, and the water is injected into the water tank through the water pumping pipe 310 for recycling.
In summary, the following steps: this industry tail gas dust collector, through set up first filter screen 204 on collection grey mechanism 2, effective filtration has a large amount of impurity, the burden of filtration has been alleviateed, upper surface through at first filter screen 204 sets up shock motor 205, effectively avoided a large amount of adhesion of impurity particle at the surface of first filter screen 204, avoid a large amount of impurity particle to cause the jam to first filter screen 204, output through second pump 315 on dust removal mechanism 3 sets up electrostatic generator 316, the mesh that the spun water droplet has the electrostatic adsorption function has been reached, the adsorption efficiency of water droplet to tail gas flying dust has effectively been strengthened, through set up second filter screen 307 on dust removal mechanism 3, first pump 309, the cooperation of drinking-water pipe 310 and water tank 311, make this industry tail gas dust collector have water source cyclic utilization's effect.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (7)
1. The utility model provides an industrial tail gas dust collector which characterized in that: the dust collector comprises a bracket (1), wherein the top of the bracket (1) is fixedly connected with a dust collecting mechanism (2) and a dust removing mechanism (3);
the ash collecting mechanism (2) comprises an ash collecting box body (201), the top of the support (1) is fixedly connected with the ash collecting box body (201), one side of the outer surface of the ash collecting box body (201) is fixedly connected with an air inlet pipe (202), the inner wall of the ash collecting box body (201) is fixedly connected with two first clamping strips (203), two first clamping strips (203) are clamped with a first filter screen (204), the upper surface of the first filter screen (204) is fixedly provided with a vibrating motor (205), the inner wall of the ash collecting box body (201) is fixedly connected with an ash collecting hopper (206), the lower surface of the ash collecting box body (201) is fixedly connected with an ash collecting box (207), the upper surface of the ash collecting box body (201) is fixedly connected with an air outlet pipe (208), one end of the air outlet pipe (208) close to the ash collecting box body (201) penetrates through the upper surface of the ash collecting box body (201) and extends to the inner wall of the ash collecting box body (201), one end of the air outlet pipe (208) far away from the ash collecting box body (201) is fixedly connected with an air suction pump (209), and one end of the air outlet pipe (208) far away from the ash collecting box body (201) is fixedly connected with the input end of the air suction pump (209); the dust removal mechanism (3) comprises a dust removal box body (301), the top fixedly connected with dust removal box body (301) of the support (1), the top and the bottom of the inner wall of the dust removal box body (301) are respectively welded with a second clamping strip (302), the second clamping strip (302) divides the inside of the dust removal box body (301) into a first dust removal chamber (303) and a second dust removal chamber (304), the two inner clamping strips (302) are connected with a filter plate (305), the bottom fixedly connected with a dust collection box (306), the inner wall fixedly connected with a second filter screen (307) of the dust collection box (306), the bottom of the dust collection box (306) is provided with a water pumping hole (308), one side of the outer surface of the dust collection box (306) close to the water pumping hole (308) is fixedly provided with a first pump (309), the output end of the first pump (309) is fixedly connected with a water pumping pipe (310), the one end fixedly connected with water tank (311) of first pump (309) is kept away from to drinking-water pipe (310), four dead levers (312) that water tank (311) were equipped with through its bottom link to each other with the last fixed surface of dust removal box (301), a side of water tank (311) is equipped with water filling port (313), the bottom fixed mounting of water tank (311) has outlet pipe (314), the one end fixed mounting that water tank (311) were kept away from in outlet pipe (314) has second pump (315), the output fixed mounting of second pump (315) has electrostatic generator (316), the output fixedly connected with electrostatic generator (316) of electrostatic generator (316) has electrostatic water pipe (317), the one end that electrostatic generator (316) was kept away from in electrostatic water pipe (317) runs through the top of dust removal box (301) and extends to the inside of first dust removal room (303), the one end fixedly connected with shower nozzle (318) that electrostatic generator (316) was kept away from in electrostatic water pipe (317), the inner wall fixed mounting of second clean room (304) has installing frame (319), the inside joint of installing frame (319) has cotton board of active carbon (320), gas vent (321) have been seted up to the upper surface of second clean room (304).
2. The industrial tail gas dust removal device according to claim 1, characterized in that: one end of the air inlet pipe (202) close to the ash collecting box body (201) penetrates through one side face of the ash collecting box body (201) and extends to the inner wall of the ash collecting box body (201).
3. The industrial tail gas dust removal device according to claim 1, characterized in that: the two first clamping strips (203) are the same in size and shape and are respectively positioned on two symmetrical sides of the inner wall of the ash collecting box body (201).
4. The industrial tail gas dust removal device according to claim 1, characterized in that: the bottom of the ash collecting hopper (206) penetrates through the bottom of the ash collecting box body (201) and extends to the outer surface of the ash collecting box body (201).
5. The industrial tail gas dust removal device according to claim 1, characterized in that: the top of the ash collecting box (207) is provided with a hole matched with the bottom of the ash collecting bucket (206).
6. The industrial tail gas dust removal device according to claim 1, characterized in that: the output end of the air suction pump (209) penetrates through the upper surface of the dust removal box body (301) and extends to the inner wall of the first dust removal chamber (303).
7. The industrial tail gas dust removal device according to claim 1, characterized in that: the bottom of the dust removing box body (301) penetrates through the upper surface of the dust collecting box (306) and extends to the inner wall of the dust collecting box (306).
