CN214581837U - An intelligent integrated hot water system device - Google Patents
An intelligent integrated hot water system device Download PDFInfo
- Publication number
- CN214581837U CN214581837U CN202120723294.6U CN202120723294U CN214581837U CN 214581837 U CN214581837 U CN 214581837U CN 202120723294 U CN202120723294 U CN 202120723294U CN 214581837 U CN214581837 U CN 214581837U
- Authority
- CN
- China
- Prior art keywords
- hot water
- water
- collecting plate
- heat collecting
- side wall
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/40—Solar thermal energy, e.g. solar towers
- Y02E10/44—Heat exchange systems
Landscapes
- Heat-Pump Type And Storage Water Heaters (AREA)
Abstract
本实用新型公开了一种智能一体化热水系统装置，包括圆柱形的储水箱，所述储水箱外壁上环绕一周固定设有保温层，所述保温层外侧壁设有侧壁集热板，所述侧壁集热板底部固定设有盖板，所述保温层、侧壁集热板与盖板所构成的容腔内设有换热水腔，所述换热水腔顶部设有换热出水管，所述换热水腔底部连接有贯穿盖板设置的换热进水管，所述换热进水管与进水泵固定连接，所述保温层上端设有顶部集热板，所述储水箱内设有热水出水管以及连接顶部集热板的加热管，所述盖板底部设有支撑腿。本实用新型结构简单，占地面积小，能节省安装时间和减少热量流失，大大提高了太阳能热水系统的实用性。
The utility model discloses an intelligent integrated hot water system device, which comprises a cylindrical water storage tank, an outer wall of the water storage tank is fixedly provided with a thermal insulation layer around a circumference, and a side wall heat collecting plate is arranged on the outer side wall of the thermal insulation layer. A cover plate is fixedly arranged at the bottom of the side wall heat collecting plate, a water exchange cavity is arranged in the cavity formed by the insulation layer, the side wall heat collecting plate and the cover plate, and a heat exchange cavity is arranged at the top of the heat exchange cavity A hot water outlet pipe, the bottom of the hot water exchange chamber is connected with a heat exchange water inlet pipe arranged through the cover plate, the heat exchange water inlet pipe is fixedly connected with the inlet water pump, the upper end of the insulation layer is provided with a top heat collecting plate, the storage A hot water outlet pipe and a heating pipe connected to the top heat collecting plate are arranged in the water tank, and a supporting leg is arranged at the bottom of the cover plate. The utility model has the advantages of simple structure and small footprint, which can save installation time and reduce heat loss, and greatly improves the practicability of the solar water heating system.
Description
Technical Field
The utility model relates to a solar water heating system technical field, concretely relates to intelligent integrative hot water system device.
Background
With the enhancement of energy-saving and environmental-protection awareness, solar energy is widely applied to civil buildings and public buildings. The solar water heating system collects solar energy by using a solar heat collector, fully converts solar light energy into heat energy under the irradiation of sunlight, automatically controls functional components such as a circulating pump or an electromagnetic valve through a control system, transmits the heat energy collected by the system to a large-scale water-discharging heat-preserving water tank, heats water in the water-storing heat-preserving water tank by matching equivalent energy sources such as electric power, gas, fuel oil and the like, and becomes stable quantitative energy equipment.
The solar water heating system in the prior art generally comprises a heat collecting plate for absorbing solar heat and converting the solar heat into heat energy and a heat preservation water tank for storing hot water, but the solar energy has the disadvantages of intermittency and low energy density, so that the corresponding disadvantages are also existed when the solar water heating system is used: firstly, solar water heating system receives the place condition restriction, and collecting area is not enough, can't reach required heat output, and secondly during overcast and rainy snow days etc. bad weather in succession, the heat of solar panel thermal-arrest is not enough, and collecting efficiency is low, and the hot water heat in the holding water box runs off soon, leads to bad weather to use hot water difficulty, and solar water heating system whole practicality is not high.
SUMMERY OF THE UTILITY MODEL
The utility model discloses a solve the problem that proposes in the above-mentioned technical background, provide an intelligent integrative hot water system device, have simple structure, area is little, the effectual advantage of heat preservation, improve solar water heating system's practicality.
The utility model adopts the following technical scheme:
the utility model provides an intelligence integration hot-water heating system device, includes the columniform storage water tank, the fixed heat preservation that is equipped with of a week is gone up to the storage water tank outer wall, the heat preservation lateral wall is equipped with lateral wall thermal-arrest board, the fixed apron that is equipped with in lateral wall thermal-arrest board bottom, the appearance intracavity that heat preservation, lateral wall thermal-arrest board and apron constitute is equipped with the heat transfer water cavity, heat transfer water cavity top is equipped with the heat transfer outlet pipe, heat transfer water cavity bottom is connected with the heat transfer inlet tube that runs through the apron setting, heat transfer inlet tube and intake pump fixed connection, the heat preservation upper end is equipped with top thermal-arrest board, be equipped with the hot water outlet pipe in the storage water tank and connect the heating pipe of top thermal-arrest board, the apron bottom is equipped with the supporting leg.
As the utility model relates to an intelligence integration hot water system device's preferred technical scheme, storage water tank inner wall still is equipped with water level sensor and lower water level sensor, install single chip microcomputer controller on the lateral wall thermal-arrest board outer wall.
As the utility model relates to an intelligence integration hot-water heating system device's preferred technical scheme, lateral wall thermal-arrest board is the type of falling L setting, and its up end is located same water flat line with heat preservation up end.
As the utility model relates to an intelligence integration hot-water heating system device's preferred technical scheme, heat transfer outlet pipe and hot water outlet pipe set up respectively in the both sides of heating pipe, and all from last to running through top thermal-arrest board, heat preservation, storage water tank down in proper order.
As a preferred technical scheme of the intelligent integrated hot water system device, the heating pipe runs through water storage tank top and heat preservation to fix in the water storage tank bottom.
As the utility model relates to an intelligence integration hot-water heating system device's preferred technical scheme, the supporting leg is equipped with three at least, and even equidistance distributes.
The utility model has the advantages that:
the utility model arranges the heat collecting plate on the outer wall of the water storage tank, so that the heat collecting plate and the water storage tank are in an integrated structure, no additional installation is needed for the heat collecting plate, the floor area of the device is greatly reduced, and the installation time is saved; the top thermal-arrest board keeps warm to the heating pipe energy supply, and hot water to in the storage water tank reduces the heat and runs off, and during bad weather, single chip microcomputer controller uses the electric energy to control the heating pipe, heats and keeps warm hot water, avoids using the problem of hot water difficulty, improves solar water heating system's practicality.
Drawings

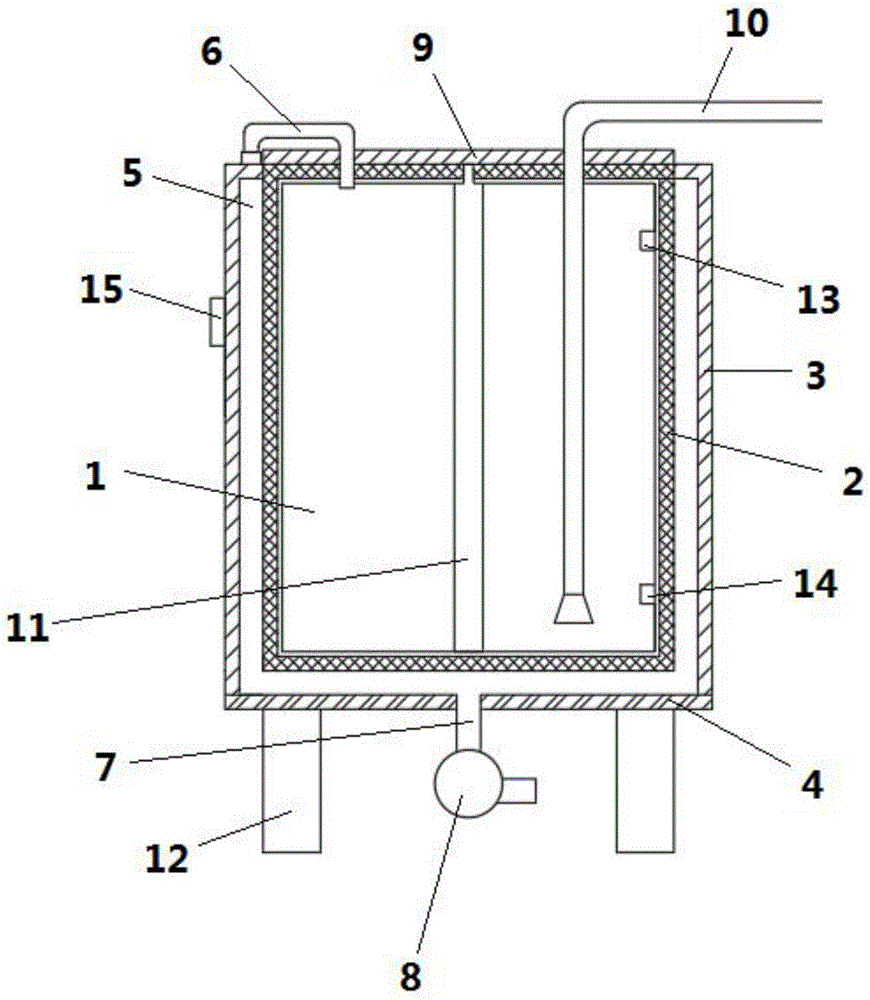

Fig. 1 is a schematic structural view of the present invention;
the symbols in the drawings illustrate that: the water heater comprises a water storage tank 1, a heat preservation layer 2, a side wall heat collection plate 3, a cover plate 4, a heat exchange water cavity 5, a heat exchange water outlet pipe 6, a heat exchange water inlet pipe 7, a water inlet pump 8, a top heat collection plate 9, a hot water outlet pipe 10, a heating pipe 11, supporting legs 12, an upper water level sensor 13, a lower water level sensor 14 and a single-chip microcomputer controller 15.
Detailed Description
The invention will now be described in further detail with reference to the accompanying drawings.
As shown in FIG. 1, an intelligent integrated hot water system device comprises a cylindrical water storage tank 1, wherein a heat insulating layer 2 is fixedly arranged on the outer wall of the water storage tank 1 around one circle, a side wall heat collecting plate 3 is arranged on the outer side wall of the heat insulating layer 2, a cover plate 4 is fixedly arranged at the bottom of the side wall heat collecting plate 3, a heat exchange water cavity 5 is arranged in a cavity formed by the heat insulating layer 2, the side wall heat collecting plate 3 and the cover plate 4, the heat collecting plate is arranged on the outer wall of the water storage tank, so that the heat collecting plate and the water storage tank are in an integrated structure, the heat collecting plate does not need to be additionally mounted, the floor area of equipment is greatly reduced, the mounting time is saved, a heat exchange water outlet pipe 6 is arranged at the top of the heat exchange water cavity 5, a heat exchange water inlet pipe 7 penetrating through the cover plate 4 is connected to the bottom of the heat exchange water inlet pipe 7 and fixedly connected with a water inlet pump 8, and a top heat collecting plate 9 is arranged at the upper end of the heat insulating layer 2, a hot water outlet pipe 10 and a heating pipe 11 connected with a top heat collecting plate 9 are arranged in the water storage tank 1, and a supporting leg 12 is arranged at the bottom of the cover plate 4.
Further, the utility model discloses in, 1 inner wall of storage water tank still is equipped with water level sensor 13 and lower water level sensor 14, install single chip microcomputer controller 15 on the 3 outer walls of lateral wall thermal-arrest board, single chip microcomputer controller 15.
The utility model discloses in, lateral wall thermal-arrest board 3 is the setting of type of falling L, and its up end is located same water flat line with heat preservation 2 up end.
The utility model discloses in, heat transfer outlet pipe 6 sets up respectively in the both sides of heating pipe 11 with hot water outlet pipe 10, and all from last to running through top heat collection plate 9, heat preservation 2, storage water tank 1 down in proper order, hot water outlet pipe 10 bottom still is fixed with cage head cover (not marked in the figure), cage head cover is the round platform form, increases the delivery port area.
The utility model discloses in, heating pipe 11 runs through 1 top of storage water tank and heat preservation 2 to fix in 1 bottom of storage water tank.
The utility model discloses in, supporting leg 12 is equipped with three at least, and even equidistance distributes, plays the effect of supporting hot water system device weight.
In this embodiment, lateral wall thermal-collecting tube thermal-arrest, water carries out the heat transfer in getting into the heat transfer water cavity through the intake pump, then gets into the storage water tank through the heat transfer outlet pipe and saves, and the heating pipe in the storage water tank is by top thermal-arrest board energy supply, heats the heat preservation to hot water to when bad weather, single chip microcomputer control heating pipe uses other energy such as electric energy to heat the heat preservation to the water in the storage water tank, supplies water to the user through the hot water outlet pipe at last.
Finally, it should be noted that: these embodiments are merely illustrative of the present invention and do not limit the scope of the invention. In addition, other variations and modifications will be apparent to persons skilled in the art based on the foregoing description. And are neither required nor exhaustive of all embodiments. And obvious changes and modifications may be made without departing from the scope of the present invention.
