Abstract

The utility model discloses a bracket, which is used for supporting mobile terminals such as a mobile phone, a tablet computer or a reader. The bracket comprises a base, and the base comprises a base body and a limit block, and the limit block is arranged on the the upper surface of the base body; a connecting rod, one end of the connecting rod is rotatably and slidably installed in the limiting block; a placing board, the placing board has a device for placing a mobile phone, a tablet computer or a reader The placing side of the mobile terminal, the placing plate is rotatably connected to the base body, the placing plate is rotatably connected to the other end of the connecting rod, and the placing plate is provided with a first place for accommodating the limiting block. an accommodating slot; when the bracket is not in use, the connecting rod is accommodated in the limiting block, the limiting block is accommodated in the first accommodating slot, and the bracket is in a folded state, thereby reducing the volume of the bracket , to make the stand easy to carry.

Description

Support frame

Technical Field

The utility model relates to the field of daily necessities, in particular to support.

Background

At present, the mobile phone is not only an indispensable communication tool in people's modern life, but also an intelligent electronic device integrating multiple functions of entertainment, office, navigation and the like; after the mobile phone is used for a long time, hand fatigue is easy to cause, even hand joints are damaged, and therefore, a plurality of mobile phone supports appear on the market.

In the prior art, a support for supporting a mobile terminal such as a mobile phone, a tablet personal computer or a reader is generally large in size, so that the support is inconvenient to carry, and the difficulty in use is increased.

SUMMERY OF THE UTILITY MODEL

The utility model mainly aims at providing a support aims at solving prior art for support such as mobile phone, panel computer or reading mobile terminal's such as ware support carries inconvenient technical problem.

In order to achieve the above object, the utility model provides a support, the support is used for supporting mobile terminal such as cell-phone, panel computer or reading ware, the support includes:

the base comprises a base body and a limiting block, and the limiting block is arranged on the upper surface of the base body;

one end of the connecting rod is rotatably and slidably arranged in the limiting block;

the placing plate is provided with a placing side face for placing a mobile terminal such as a mobile phone, a tablet personal computer or a reader, the placing plate is rotatably connected with the base body and is rotatably connected with the other end of the connecting rod, and the placing plate is provided with a first accommodating groove for accommodating the limiting block;

wherein, the base and the placing plate can form a folding state in a rotating mode.

Optionally, the limiting block is provided with a limiting groove, and the length of the limiting groove is greater than or equal to 0 cm and less than or equal to 10 cm.

Optionally, the base further comprises supporting legs, the base body is provided with a second accommodating groove for accommodating the supporting legs, and the supporting legs are rotatably connected with the base body.

Optionally, the support leg rotatable angle is greater than or equal to 0 degree and less than or equal to 150 degrees.

Optionally, the length of the supporting foot is greater than or equal to 3 cm and less than or equal to 10 cm.

Optionally, one end of the base body, which is close to the placing side face, is provided with a protrusion bent upwards.

Optionally, the upper surface of the protrusion is provided with a non-slip block.

Optionally, the placing side of the placing plate is provided with an anti-slip block.

Optionally, the anti-slip blocks are made of magnetic materials, and the anti-slip blocks are used for adsorbing and fixing the mobile terminal placed on the placing side face.

Optionally, the bottom surface of the base is provided with anti-slip blocks.

In the utility model, the limiting block is arranged on the base body, one end of the connecting rod can be rotatably and slidably arranged in the limiting block, the other end of the connecting rod can be rotatably connected with the placing plate, and the placing plate is supported and fixed by the connecting rod; because the length of the connecting rod is fixed, one end of the connecting rod is adjusted to slide in the limiting block, so that the inclination angles of the connecting rod are different, and the placing plate is driven by the connecting rod to reach different inclination angles for users to use; the placing plate is provided with a first accommodating groove for accommodating the limiting block, when the support is in a non-use state, one end of the connecting rod can slide from one end, close to the placing plate, in the limiting block to one end, far away from the placing plate, in the limiting block, and finally the connecting rod is accommodated in the limiting block, meanwhile, the connecting rod drives the placing plate to rotate towards the base, the limiting block is accommodated in the first accommodating groove in the placing plate, at the moment, the placing plate is attached to the base, and the support is in a folded state, so that the volume occupied by the support is reduced, and the support is convenient to carry; meanwhile, the first accommodating groove arranged on the placing plate reduces the weight of the placing plate, so that the whole weight of the support is reduced, and the technical problem that the support for supporting mobile terminals such as mobile phones, tablet computers or readers is inconvenient to carry in the prior art is solved.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the structures shown in the drawings without creative efforts.

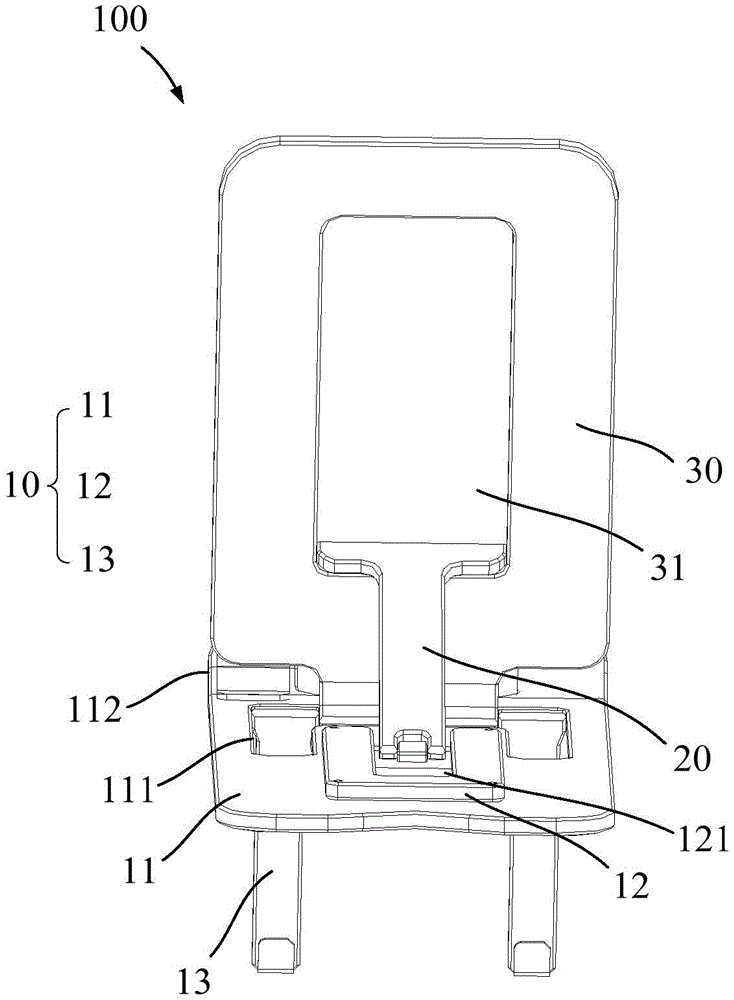

Fig. 1 is a schematic structural view of an embodiment of the bracket of the present invention;

FIG. 2 is a left side view of the bracket of FIG. 1;

FIG. 3 is a top view of the bracket of FIG. 1;

fig. 4 is a front view of an embodiment of the stand according to the present invention, the stand being in a folded state;

fig. 5 is a rear view of an embodiment of the stand according to the present invention, the stand being in a folded state;

fig. 6 is a schematic structural view of a second embodiment of the bracket of the present invention.

The reference numbers illustrate:

reference numerals	Name (R)	Reference numerals	Name (R)
				100	Support frame	121	Limiting groove
10	Base seat	13	Supporting foot
				11	Base body	20	Connecting rod
111	Second holding tank	30	Placing plate
				112	Projection	31	First holding tank
12	Limiting block	40	Anti-skid block

The objects, features and advantages of the present invention will be further described with reference to the accompanying drawings.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

It should be noted that, if directional indications (such as upper, lower, left, right, front and rear … …) are involved in the embodiment of the present invention, the directional indications are only used to explain the relative position relationship between the components, the motion situation, etc. in a specific posture (as shown in the drawings), and if the specific posture is changed, the directional indications are changed accordingly.

In addition, if there is a description relating to "first", "second", etc. in the embodiments of the present invention, the description of "first", "second", etc. is for descriptive purposes only and is not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one such feature. In addition, the technical solutions in the embodiments may be combined with each other, but it must be based on the realization of those skilled in the art, and when the technical solutions are contradictory or cannot be realized, the combination of the technical solutions should not be considered to exist, and is not within the protection scope of the present invention.

The utility model provides a support 100, support 100 is used for supporting mobile terminal such as cell-phone, panel computer or reading ware, support 100 includes:

the base 10 comprises a base 10 body and a limiting block 12, wherein the limiting block 12 is arranged on the upper surface of the base 10 body;

a connecting rod 20, one end of the connecting rod 20 is rotatably and slidably mounted in the limiting block 12;

the placing plate 30 is provided with a placing side surface for placing a mobile terminal such as a mobile phone, a tablet personal computer or a reader, the placing plate 30 is rotatably connected with the base 10 body, the placing plate 30 is rotatably connected with the other end of the connecting rod 20, and the placing plate 30 is provided with a first accommodating groove 31 for accommodating the limiting block 12;

wherein, the base 10 and the placing plate 30 can be folded by rotating.

In practical application, when the support 100 is in an unused state, that is, in a daily carrying or idle state, as shown in fig. 4 and fig. 5, the support 100 can be slidably mounted at one end of the connecting rod 20 in the limiting block 12, so that the connecting rod 20 is accommodated in the limiting block 12, and meanwhile, the connecting rod 20 drives the placing plate 30 to rotate towards the base 10 until the placing plate 30 is attached to the base 10, the limiting block 12 is accommodated in the first accommodating groove 31, and at this time, the support 100 forms a folded state, so that the space occupied by the support 100 is reduced, and the support 100 is convenient to carry and place.

When the support 100 is in a use state, that is, when people need to use the support 100 to support and place a mobile phone, a tablet personal computer or a reader in a working or leisure time period in daily life, as shown in fig. 1 and 2, the placing plate 30 can be rotated along the rotating shaft connected with the base 10, so that the placing plate 30 and the base 10 are separated from each other from the attaching state, and meanwhile, the placing plate 30 drives the connecting rod 20 to slide from the limiting block 12, so that the support 100 in a folded state forms an open state, and at this time, the connecting rod 20 can support the placing plate 30, so that the placing plate 30 is inclined to form a certain angle; the position of one end of the connecting rod 20 in the limiting block 12 is adjusted, so that the placing plate 30 is fixed at different inclination angles; and adjust the position of connecting rod 20 one end in stopper 12 through the mode of pulling to the in-process of the inclination of board 30 is placed in the change, observe when placing board 30 and reach required inclination, can directly loosen the one end of connecting rod 20 in stopper 12, the link of connecting rod 20 and stopper 12 can be automatically fixed this moment, thereby make and place board 30 automatic fixation in required inclination, and need not to adopt extra fixed approach, and is very convenient, has increased the practicality of support 100.

In the utility model, the limiting block 12 is arranged on the base 10 body, one end of the connecting rod 20 is rotatably and slidably arranged in the limiting block 12, the other end of the connecting rod 20 is rotatably connected with the placing plate 30, and the placing plate 30 is supported and fixed by the connecting rod 20; because the length of the connecting rod 20 is fixed, one end of the connecting rod 20 is adjusted to slide in the limiting block 12, so that the inclination angles of the connecting rod 20 are different, the placing plate 30 is driven by the connecting rod 20, and the placing plate 30 can reach different inclination angles for users to use; the placing plate 30 is provided with a first accommodating groove 31 for accommodating the limiting block 12, when the support 100 is in a non-use state, one end of the connecting rod 20 can slide from one end of the limiting block 12 close to the placing plate 30 to one end of the limiting block 12 far away from the placing plate 30, and finally the connecting rod 20 is accommodated in the limiting block 12, meanwhile, the connecting rod 20 drives the placing plate 30 to rotate towards the base 10, the limiting block 12 is accommodated in the first accommodating groove 31 arranged on the placing plate 30, at the moment, the placing plate 30 is attached to the base 10, and the support 100 is in a folded state, so that the volume occupied by the support 100 is reduced, and the support is convenient to carry; meanwhile, the weight of the placing board 30 is also reduced by the first accommodating groove 31 formed in the placing board 30, so that the overall weight of the support 100 is reduced, and the technical problem that the support 100 for supporting a mobile terminal such as a mobile phone, a tablet computer or a reader is inconvenient to carry in the prior art is solved.

Further, as shown in fig. 3, the limiting block 12 has a limiting groove 121, and the length of the limiting groove 121 is greater than or equal to 0 cm and less than or equal to 10 cm. Specifically, one end of the connecting rod 20 is installed in the limiting groove 121, and the connecting rod 20 drives the placing plate 30 by adjusting the position of the end of the connecting rod 20 in the limiting groove 121, so as to change the inclination angle of the placing plate 30; since the length of the limiting groove 121 is 0 cm to 10 cm, the inclination angle formed by the placing plate 30 and the base 10 can be adjusted within a range of 0 to 90 degrees.

Further, as shown in fig. 1 and fig. 2, the base 10 further includes a supporting leg 13, the body of the base 10 is provided with a second accommodating groove 111 for accommodating the supporting leg 13, and the supporting leg 13 is rotatably connected with the body of the base 10. Specifically, the supporting legs 13 can rotate in a direction away from the placing plate 30 to support the base 10, so as to further adjust the inclination angle formed by the placing plate 30 and the horizontal plane and the height of the placing plate 30, thereby increasing the practicability of the bracket 100; when need not to use supporting legs 13, can with supporting legs 13 toward the bottom of base 10 rotates and accomodates supporting legs 13 in second holding tank 111, reduces the shared volume of support 100, portable and place.

The support leg 13 can rotate at an angle greater than or equal to 0 degree and less than or equal to 150 degrees. The height and the angle of the placing plate 30 can be further adjusted by supporting the base 10 through the supporting feet 13 during the use of the bracket 100; when the rotation angle of the supporting leg 13 is too large, the inclination angle formed by the placing plate 30 and the horizontal plane is too large, which is not suitable for the use habit of the general user, the practicability is low, and the reliability of the supporting leg 13 itself may be affected, therefore, the rotatable angle range of the supporting leg 13 is preferably 0 degree to 150 degrees.

It is understood that the length of the supporting feet 13 is greater than or equal to 3 cm and less than or equal to 10 cm. The height and the angle of the placing plate 30 can be further adjusted by supporting the base 10 through the supporting feet 13 during the use of the bracket 100; when the length of the supporting leg 13 is too small, the effect of using the supporting leg 13 to adjust the height and angle of the placing plate 30 is not obvious, the practicability is low, when the length of the supporting leg 13 is too large, the support 100 can be placed in an unstable state, and the original practicability of the support 100 is reduced; therefore, the length of the supporting foot 13 is preferably in the range of 3 cm to 10 cm, and the length of the supporting foot 13 can be 3 cm, 4 cm, 5 cm, 6 cm, 7 cm, 8 cm, 9 cm or 10 cm.

In addition, the bottom of the supporting foot 13 is provided with an anti-slip block 40 to increase the friction between the supporting foot 13 and the contact plane, thereby increasing the stability of the bracket 100.

In an embodiment, the supporting leg 13 includes two supporting legs and a connecting plate, two ends of the connecting plate are respectively and fixedly connected with the two supporting legs, and the supporting leg 13 is integrally H-letter shaped, so that the weight of the supporting leg 13 can be reduced to the greatest extent on the premise of ensuring the structural stability of the supporting leg 13.

In the two embodiments, as shown in fig. 6, the supporting foot 13 is shaped like a plate, so that the structure of the supporting foot 13 is more stable and firm.

Further, as shown in fig. 2 and fig. 3, an end of the base 10 body near the placing side is provided with a protrusion 112 bent upward. Because the placing side face is used for placing mobile terminals such as mobile phones, tablet computers or readers, when the mobile terminals are placed for use, the mobile terminals may slide downwards along the placing side face or even slide onto a plane, and therefore the protrusion 112 is used for abutting against the bottom of the mobile terminals, and the mobile terminals are prevented from sliding when the mobile terminals are placed for use. In the related art, the mobile phone support 100 supports the bottom of the mobile terminal by using a supporting plate, the bottom of the mobile terminal is supported by using the protrusion 112 arranged on the base 10 in the support 100, the two effects are the same, but the overall structure of the support 100 is simplified by using the protrusion 112, the weight of the support 100 is reduced, the production material of the support 100 is saved, and the production cost of the support 100 is reduced.

Further, as shown in fig. 2, the upper surface of the protrusion 112 is provided with a non-slip block. Specifically, since the protrusion 112 is used for abutting against the bottom of the mobile terminal, in order to further prevent the mobile terminal from sliding on the base 10, an anti-slip block may be disposed on the upper surface of the protrusion 112, and the anti-slip block is made of a silica gel material, which may increase the friction force between the bottom of the mobile terminal and the base 10, so that the mobile terminal is more stable when placed on the placement side.

Further, as shown in fig. 3 and 4, the placing side of the placing plate 30 is provided with a non-slip block. Because the placing side face is used for placing mobile terminals such as mobile phones, tablet computers or readers, in order to prevent the mobile terminals from sliding on the placing side face, the placing side face is provided with the anti-slip blocks so as to increase the friction force between the placing plate 30 and the contact face of the mobile terminals, and therefore the mobile terminals are more stable when placed on the placing side face, and the anti-slip blocks can be made of silica gel materials.

In other embodiments, the anti-slip blocks disposed on the placing plate 30 are made of magnetic materials. Because the housings of mobile terminals such as mobile phones, tablet computers, readers and the like are usually made of metal materials, the anti-slip blocks arranged on the placing side surfaces of the placing plates 30 are made of magnetic materials, and can generate certain adsorption force on the housings of the mobile terminals such as the mobile phones, the tablet computers, the readers and the like. When the user uses the support 100 to support the mobile terminal, the anti-slip blocks on the placing plate 30 adsorb and fix the mobile terminal, so that the fixing effect of placing the mobile terminal on the placing side is better.

Further, as shown in fig. 5, the bottom surface of the base 10 is provided with anti-slip blocks. Specifically, can the bottom surface of base 10 sets up a plurality of non slipping spur, the non slipping spur adopts the silica gel material to increase the frictional force between the bottom surface of base 10 and the contact plane, thereby improve the stability of support 100 when placing mobile terminal and using, avoid support 100 after placing mobile terminal, take place to slide on the plane by mobile terminal's weight oppression, influence user's use experience.

In addition, it is worth mentioning that the overall thickness of the bracket 100 ranges from 8 mm to 1 cm, wherein the thickness of the base 10 is greater than or equal to 4 mm and less than or equal to 6 mm, and the thickness of the placing plate 30 is greater than or equal to 2 mm and less than or equal to 4 mm; therefore, the size and the weight of the support 100 are smaller than those of the mobile phone support 100 in the related art, so that the mobile phone support 100 is more convenient to carry and store, and the practicability of the support 100 is improved.

The above only is the preferred embodiment of the present invention, not limiting the scope of the present invention, all the equivalent structure changes made by the contents of the specification and the drawings under the inventive concept of the present invention, or the direct/indirect application in other related technical fields are included in the patent protection scope of the present invention.

Claims

1. A bracket, the bracket is used to support mobile terminals such as a mobile phone, a tablet computer or a reader, and the bracket comprises:

a base, the base includes a base body and a limit block, and the limit block is arranged on the upper surface of the base body;

a connecting rod, one end of the connecting rod is rotatably and slidably installed in the limiting block;

a placing board, the placing board has a placing side for placing mobile terminals such as mobile phones, tablet computers or readers, the placing board is rotatably connected to the base body, and the placing board is connected to the other end of the connecting rod rotatably connected, the placing plate is provided with a first accommodating groove for accommodating the limiting block;

Wherein, the base and the placing plate can be rotated to make the bracket form a folded state.

2 . The bracket according to claim 1 , wherein the limiting block has a limiting groove, and the length of the limiting groove is greater than or equal to 0 cm and less than or equal to 10 cm. 3 .

3 . The stand according to claim 1 , wherein the base further comprises support feet, the base body is provided with a second accommodating groove for accommodating the support feet, and the support feet and the base body can be connected. 4 . Turn the connection.

4 . The stand according to claim 3 , wherein the rotatable angle of the support feet is greater than or equal to 0 degrees and less than or equal to 150 degrees. 5 .

5 . The stand according to claim 3 , wherein the length of the support feet is greater than or equal to 3 cm and less than or equal to 10 cm. 6 .

6 . The stand according to claim 1 , wherein an upwardly bent protrusion is provided at one end of the base body close to the placing side surface. 7 .

7 . The bracket of claim 6 , wherein an anti-skid block is provided on the upper surface of the protrusion. 8 .

8 . The stand according to claim 1 , wherein the placing side of the placing plate is provided with an anti-skid block. 9 .

9 . The stand according to claim 8 , wherein the anti-skid block is made of magnetic material, and the anti-skid block is used to adsorb and fix the mobile terminal placed on the placing side. 10 .

10. The stand according to any one of claims 1 to 9, wherein the bottom surface of the base is provided with an anti-skid block.
