The utility model discloses a wisdom green house's complementary power generation equipment of scene electricity, including the under casing, two sets of first electric putter of interior bottom fixedly connected with of under casing, it is two sets of first electric putter's one end fixedly connected with alternately lift, two sets of telescopic links of interior bottom fixedly connected with of under casing, it is two sets of the upper end fixedly connected with support case of telescopic link, the lower extreme of support case is provided with the slide rail, slide rail and alternately lift sliding connection, two sets of protective housing of upper end fixedly connected with of support case, it is two sets of the equal fixedly connected with servo motor in inside of protective housing, it is two sets of servo motor's output all is provided with the motor shaft. The utility model discloses in, through the first electric putter and the cross lift that set up, can adjust the height of solar cell panel, wind wheel, pivot and generator, can freely adjust self height according to surrounding environment, can improve equipment's flexibility.

Description

Wisdom green house's complementary power generation equipment of scene electricity
Technical Field
The utility model relates to a power generation facility field especially relates to a complementary power generation facility of wisdom green house scene electricity.
Background
Wind power generation refers to converting kinetic energy of wind into electric energy. Wind energy is a clean and pollution-free renewable energy source and is used by people for a long time, mainly water pumping, surface grinding and the like are realized through a windmill, people are interested in how to generate electricity by utilizing wind, and solar power generation is to convert light energy into electric energy and is a clean and pollution-free energy source.
When the existing wind-light-electricity complementary power generation equipment is used, the flexibility is poor, the solar cell panel can only work in a fixed point and fixed direction, and the wind power generation can only rotate in the fixed direction, so that the flexibility is low, and the wind-light-electricity complementary power generation equipment is convenient for people to use.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing the wind, light and electricity complementary power generation equipment of the intelligent agricultural greenhouse.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a wind-solar-electricity complementary power generation device of an intelligent agricultural greenhouse comprises a bottom box, wherein two groups of first electric push rods are fixedly connected to the inner bottom of the bottom box, one ends of the two groups of first electric push rods are fixedly connected with a cross lifter, the inner bottom of the bottom box is fixedly connected with two groups of telescopic rods, the upper ends of the two groups of telescopic rods are fixedly connected with a supporting box, the lower end of the supporting box is provided with a slide rail which is connected with the cross lifter in a sliding way, the upper end of the supporting box is fixedly connected with two groups of protection boxes, the insides of the two groups of protection boxes are fixedly connected with servo motors, the output ends of the two groups of servo motors are respectively provided with a motor shaft, the upper ends of the two groups of motor shafts are respectively fixedly connected with a rotating plate, the upper end of one group of the rotating plates is fixedly connected with a second electric push rod, and the upper end of the other group of the rotating plates is fixedly connected with a support column;
two sets of second electric putter's upper end is all rotated and is connected with the fixed plate, and is two sets of the upper end of fixed plate is all rotated and is connected with the fixing base, and is two sets of the upper end fixedly connected with solar cell panel of fixing base, the upper end fixedly connected with wind direction sensor of supporting box.
As a further description of the above technical solution:
the inside fixedly connected with second battery of supporting box, the inside fixedly connected with charge controller of supporting box, the second battery is located one side of charge controller.
As a further description of the above technical solution:
the inside fixedly connected with first battery and inverter of supporting box, first battery is located one side of inverter.
As a further description of the above technical solution:
the lower extreme fixedly connected with two sets of sliders of commentaries on classics board, the spout has been seted up to the upper end of guard box, spout and slider sliding connection.
As a further description of the above technical solution:
two sets of first electric putter is located between two sets of telescopic links, the telescopic link comprises slide bar and sleeve, and slide bar and sleeve sliding connection.
As a further description of the above technical solution:
the lower end of the bottom box is fixedly connected with four groups of supporting legs, and the four groups of supporting legs are uniformly distributed on the lower end face of the bottom box.
As a further description of the above technical solution:
the outer fixed surface of support column is connected with the strengthening frame, the lower extreme and the commentaries on classics board fixed connection of strengthening frame.
As a further description of the above technical solution:
the upper end fixedly connected with generator of support column, the one end of generator is provided with the pivot, the surface fixedly connected with wind wheel of pivot.
The utility model discloses following beneficial effect has:
1. the utility model discloses a height of solar cell panel, wind wheel, pivot and generator can be adjusted to the first electric putter and the cross lift that set up, can be according to surrounding environment, freely adjusts self height, can improve equipment's flexibility.
2. The utility model discloses a servo motor, motor shaft, second electric putter, fixed plate and the fixing base that set up can adjust solar cell panel's height and direction, can adjust solar cell panel's direction according to solar direction for solar cell panel can be fully and sunshine contact, thereby improves solar charging panel's the effect of charging.
3. The utility model discloses a direction of wind wheel, generator and pivot can be adjusted to the servo motor and the motor shaft that set up, through the wind direction sensor who sets up, can respond to the wind direction, and both combine, can adjust the direction of wind wheel, generator and pivot according to the wind direction of natural wind, can improve equipment wind power generation's effect.
4. The utility model discloses a telescopic link that sets up can play spacing effect to the supporting box, can prevent that the supporting box from taking place the skew, can improve the stability when supporting box removes.
Drawings

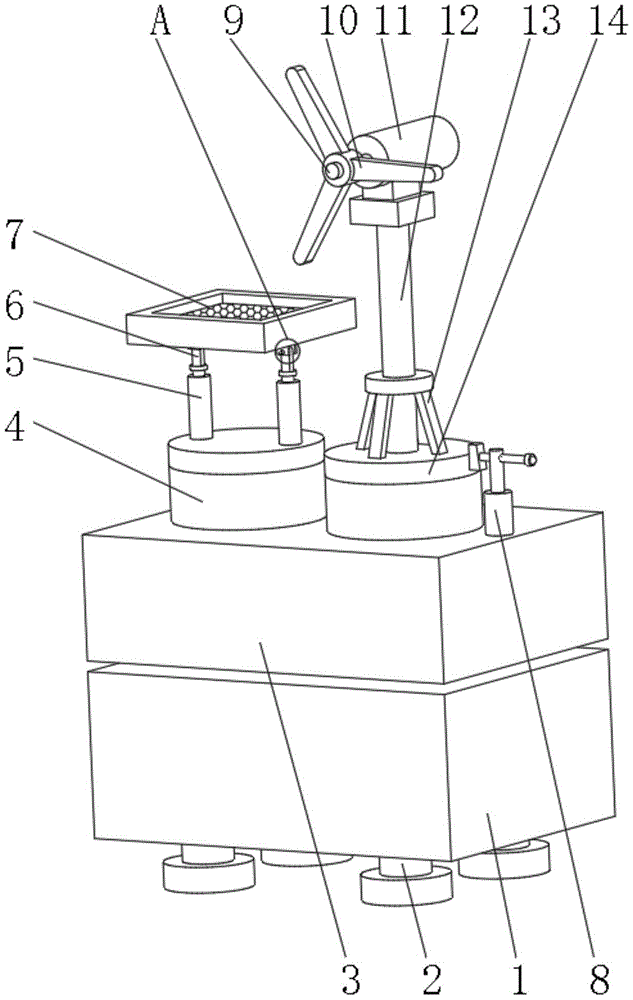

Fig. 1 is a schematic perspective view of a wind, photovoltaic and electric hybrid power generation device of a smart agricultural greenhouse according to the present invention;
fig. 2 is a side view of the wind, photovoltaic and hybrid power generation device of the smart agricultural greenhouse provided by the present invention;
fig. 3 is a front cross-sectional view of the wind, photovoltaic and hybrid power generation device of the smart agricultural greenhouse provided by the present invention;
FIG. 4 is an enlarged view taken at A in FIG. 1;
fig. 5 is an enlarged view of a portion a in fig. 3.
Illustration of the drawings:
1. a bottom box; 2. supporting legs; 3. a support box; 4. a protective box; 5. a second electric push rod; 6. a fixing plate; 7. a solar panel; 8. a wind direction sensor; 9. a rotating shaft; 10. a wind wheel; 11. a generator; 12. a support pillar; 13. a reinforcing frame; 14. rotating the plate; 15. a motor shaft; 16. a fixed seat; 17. a servo motor; 18. a first storage battery; 19. an inverter; 20. a telescopic rod; 21. a first electric push rod; 22. a charge controller; 23. a cross lifter; 24. a second storage battery; 25. a chute; 26. a slide block.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-5, the present invention provides an embodiment: a wind-solar-electricity complementary power generation device of a smart agricultural greenhouse comprises a bottom box 1, wherein two groups of first electric push rods 21 are fixedly connected to the inner bottom of the bottom box 1, one ends of the two groups of first electric push rods 21 are fixedly connected with a cross lifter 23, the first electric push rods 21 are started to control the cross lifter 23 to stretch and further adjust the heights of a solar cell panel 7, a wind wheel 10, a rotating shaft 9 and a generator 11, the heights of the two groups of first electric push rods can be freely adjusted according to the surrounding environment, the flexibility of the device can be improved, two groups of telescopic rods 20 are fixedly connected to the inner bottom of the bottom box 1, the two groups of first electric push rods 21 are positioned between the two groups of telescopic rods 20, each telescopic rod 20 consists of a slide rod and a sleeve, the slide rods are slidably connected with the sleeves, the function of limiting can be performed on a support box 3, the support box 3 can be prevented from being deviated, and the stability of the support box 3 during moving can be improved, the upper end of two sets of telescopic links 20 is fixedly connected with supporting box 3, the lower extreme of supporting box 3 is provided with the slide rail, slide rail and cross lift 23 sliding connection, the upper end fixedly connected with two sets of protective boxes 4 of supporting box 3, the equal fixedly connected with servo motor 17 in the inside of two sets of protective boxes 4, the output of two sets of servo motor 17 all is provided with motor shaft 15, the equal fixedly connected with commentaries on classics board 14 in upper end of two sets of motor shaft 15, the lower extreme fixedly connected with two sets of sliders 26 of commentaries on classics board 14, spout 25 has been seted up to the upper end of protective box 4, spout 25 and slider 26 sliding connection can start spacing effect to commentaries on classics board 14, can make commentaries on classics board 14 more stable when rotating, wherein the upper end fixedly connected with second electric putter 5 of a set of commentaries on classics board 14, the upper end fixedly connected with support column 12 of another set of commentaries on classics board 14, start servo motor 17, can drive motor shaft 15, second electric putter 5, Fixed plate 6, fixing base 16, solar cell panel 7, motor shaft 15, support column 12, generator 11, pivot 9 rotate with wind wheel 10, can adjust solar cell panel 7 shine the direction, can adjust the direction of wind wheel 10, generator 11 and pivot 9 simultaneously, make its direction unanimous with the natural wind, can improve equipment wind power generation's effect.
The upper ends of the two groups of second electric push rods 5 are rotatably connected with fixed plates 6, the upper ends of the two groups of fixed plates 6 are rotatably connected with fixed seats 16, the upper ends of the two groups of fixed seats 16 are fixedly connected with solar panels 7, the two groups of second electric push rods 5 are controlled to stretch and retract, the height of the solar panels 7 can be adjusted, when the two groups of second electric push rods 5 are different in elongation, the irradiation angle of the solar panels 7 can be adjusted, then the direction and the angle of the solar panels 7 are adjusted according to the direction of the sun, so that the solar panels 7 can be fully contacted with the sunlight, the charging effect of the solar panels 7 is improved, a second storage battery 24 is fixedly connected inside the supporting box 3, the electric energy converted from the solar energy can be stored, a wind direction sensor 8 is fixedly connected at the upper end of the supporting box 3, the wind direction can be sensed, a charging controller 22 is fixedly connected inside the supporting box 3, play the guard action, second battery 24 is located one side of charge controller 22, the first battery 18 of inside fixedly connected with and the inverter 19 of supporting box 3, inverter 19 can be changeed direct current electric energy into the alternating current of fixed frequency and fixed voltage, first battery 18 can be stored wind power generation's electric energy, first battery 18 is located one side of inverter 19, the outer fixed surface of support column 12 is connected with strengthening frame 13, support column 12 that can consolidate, the lower extreme and the commentaries on classics board 14 fixed connection of strengthening frame 13, the upper end fixedly connected with generator 11 of support column 12, the one end of generator 11 is provided with pivot 9, the outer fixed surface of pivot 9 is connected with wind wheel 10, the natural wind drives the wind wheel 10 rotatory, pass through the increaser again and promote rotatory speed, and then impel generator 11 to generate electricity.
The lower extreme fixedly connected with four groups of supporting legs 2 of under casing 1 and four groups of supporting legs 2 evenly distribute on the lower terminal surface of under casing 1, can be convenient for people to place whole equipment.
The working principle is as follows: when the solar energy collecting device works, the first electric push rod 21 is started, the extension of the cross lifter 23 can be controlled, the heights of the solar cell panel 7, the wind wheel 10, the rotating shaft 9 and the generator 11 are further adjusted, then the heights of the cross lifter can be adjusted according to the surrounding environment, after the height adjustment is completed, when the sunlight is sufficient, the servo motor 17 is started, the motor shaft 15, the second electric push rods 5, the fixing plate 6, the fixing seat 16 and the solar cell panel 7 can be driven to rotate, the irradiation direction of the solar cell panel 7 can be adjusted, the extension of the two groups of second electric push rods 5 is controlled, the height of the solar cell panel 7 can be adjusted, when the extension amounts of the two groups of second electric push rods 5 are different, the irradiation angle of the solar cell panel 7 can be adjusted, then the direction and the angle of the solar cell panel 7 are adjusted according to the sun direction, so that the solar cell panel 7 can be fully contacted with the sunlight, at night or in cloudy days, firstly, the wind direction is sensed by the wind direction sensor 8, then the servo motor 17 is started, the motor shaft 15, the support column 12, the generator 11, the rotating shaft 9 and the wind wheel 10 can be driven to rotate, the directions of the wind wheel 10, the generator 11 and the rotating shaft 9 can be adjusted to be consistent with the direction of natural wind, then the natural wind drives the wind wheel 10 to rotate, and then wind power generation can be started.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (8)

1. The utility model provides a complementary power generation facility of wisdom green house scene electricity, includes under casing (1), its characterized in that: the inner bottom of the bottom box (1) is fixedly connected with two groups of first electric push rods (21), one end of each group of first electric push rods (21) is fixedly connected with a cross lifter (23), the inner bottom of the bottom box (1) is fixedly connected with two groups of telescopic rods (20), the upper end of each group of telescopic rods (20) is fixedly connected with a support box (3), the lower end of each support box (3) is provided with a slide rail, the slide rail is in sliding connection with the cross lifter (23), the upper end of each support box (3) is fixedly connected with two groups of protection boxes (4), the inner parts of the two groups of protection boxes (4) are fixedly connected with servo motors (17), the output ends of the two groups of servo motors (17) are respectively provided with a motor shaft (15), the upper ends of the two groups of motor shafts (15) are respectively and fixedly connected with a rotating plate (14), one group of the upper ends of the rotating plates (14) is fixedly connected with a second electric push rod (5), the upper end of the other group of the rotating plates (14) is fixedly connected with a supporting column (12);
two sets of the upper end of second electric putter (5) is all rotated and is connected with fixed plate (6), and is two sets of the upper end of fixed plate (6) is all rotated and is connected with fixing base (16), and is two sets of the upper end fixedly connected with solar cell panel (7) of fixing base (16), the upper end fixedly connected with wind direction sensor (8) of supporting box (3).
2. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the inside fixedly connected with second battery (24) of supporting box (3), the inside fixedly connected with charge controller (22) of supporting box (3), second battery (24) are located one side of charge controller (22).
3. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the supporting box (3) is fixedly connected with a first storage battery (18) and an inverter (19) inside, and the first storage battery (18) is located on one side of the inverter (19).
4. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the lower end of the rotating plate (14) is fixedly connected with two groups of sliding blocks (26), the upper end of the protective box (4) is provided with a sliding groove (25), and the sliding groove (25) is in sliding connection with the sliding blocks (26).
5. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: two sets of first electric putter (21) are located between two sets of telescopic link (20), telescopic link (20) comprise slide bar and sleeve, and slide bar and sleeve sliding connection.
6. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the lower end of the bottom box (1) is fixedly connected with four groups of supporting legs (2), and the four groups of supporting legs (2) are uniformly distributed on the lower end face of the bottom box (1).
7. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the outer surface of the supporting column (12) is fixedly connected with a reinforcing frame (13), and the lower end of the reinforcing frame (13) is fixedly connected with the rotating plate (14).
8. The wind, light and electricity hybrid generation device for the intelligent agricultural greenhouse as claimed in claim 1, wherein: the upper end fixedly connected with generator (11) of support column (12), the one end of generator (11) is provided with pivot (9), the external fixed surface of pivot (9) is connected with wind wheel (10).
