Abstract
本实用新型公开了一种推台锯板机，其技术方案是：包括架体、锯片和夹持推动机构，所述架体的内腔设置有锯片，所述架体内腔的底部固定连接有夹持推动机构，所述夹持推动机构包括第一电机和第二电机，所述夹持推动机构的外侧设置有第一电机，所述第一电机的输出端固定连接有正反螺纹杆，所述正反螺纹杆远离第一电机的一端贯穿夹持推动机构并延伸至夹持推动机构的内腔，所述正反螺纹杆的外侧螺纹连接有螺纹套，所述螺纹套的顶部固定连接有夹紧板，一种推台锯板机有益效果是：从而达到推台锯板机增加了夹持装置，不再需要人工按压，且可以自动化推动板材，减少了使用者的劳动力，提高了生产效率，继而满足了使用者的需求。
The utility model discloses a table-pushing sawing machine, the technical scheme of which is that it comprises a frame body, a saw blade and a clamping and pushing mechanism, the inner cavity of the frame body is provided with a saw blade, and the bottom of the inner cavity of the frame body is fixed A clamping and pushing mechanism is connected, the clamping and pushing mechanism includes a first motor and a second motor, a first motor is arranged on the outer side of the clamping and pushing mechanism, and the output end of the first motor is fixedly connected with positive and negative threads A rod, one end of the positive and negative threaded rod away from the first motor penetrates the clamping and pushing mechanism and extends to the inner cavity of the clamping and pushing mechanism, the outer side of the positive and negative threaded rod is threadedly connected with a threaded sleeve, and the top of the threaded sleeve is A clamping plate is fixedly connected, and the beneficial effect of a table sawing machine is: the clamping device is added to the table sawing machine, manual pressing is no longer required, and the plate can be pushed automatically, reducing the labor of the user, Improve production efficiency, and then meet the needs of users.
Description
Technical Field
The utility model relates to a sliding table saw field, concretely relates to sliding table saw trigger.
Background
The main machine part of the sliding table saw comprises a machine body, a workbench, a longitudinal and transverse guide plate, a main saw, a scribing saw, a transmission and other parts, the structure and the working principle of the sliding table saw are different from those of a common circular saw, the sliding table saw can be independently used as the common circular saw, the precise and completely cutting plate saw is subjected to dynamic balance or static balance, a foundation is not needed under the general condition, the sliding table saw can be added on a flat ground, a workpiece is placed on a movable workbench during machining operation, the movable workbench is manually pushed to realize feeding movement of the workpiece, the operation is very convenient, attention should be paid to safety all the time during flexible operation and use, and accidents are prevented.
The prior art has the following defects: the existing push bench board sawing machine is large in labor intensity due to the fact that a clamping device is lacked and manual pressing is needed in the using process, and plates cannot be automatically pushed, and are pushed to be manually pushed, so that production efficiency is low, potential safety hazards are easily generated when the saw blades are manually pushed to pass through the wood boards, the requirements of users cannot be met, and benefits of the users cannot be guaranteed.
Therefore, a need exists for a sliding table saw machine.
SUMMERY OF THE UTILITY MODEL
Therefore, the utility model provides a sliding table saw trigger uses through the cooperation of second motor and disc to solve current sliding table saw trigger and lack clamping device, and unable automatic promotion panel, problem that intensity of labour is big.
In order to achieve the above object, the present invention provides the following technical solutions: a sliding table saw blade machine comprises a frame body, a saw blade and a clamping and pushing mechanism, wherein the saw blade is arranged in an inner cavity of the frame body, the clamping and pushing mechanism is fixedly connected to the bottom of the inner cavity of the frame body, the clamping and pushing mechanism comprises a first motor and a second motor, the first motor is arranged on the outer side of the clamping and pushing mechanism, a positive and negative threaded rod is fixedly connected to the output end of the first motor, one end, far away from the first motor, of the positive and negative threaded rod penetrates through the clamping and pushing mechanism and extends to the inner cavity of the clamping and pushing mechanism, a threaded sleeve is connected to the outer side of the positive and negative threaded rod in a threaded manner, a clamping plate is fixedly connected to the top of the threaded sleeve, the top of the clamping plate penetrates through the clamping and pushing mechanism and extends to the outer side of the clamping and pushing mechanism, a driving wheel is fixedly connected to the outer side of the positive and negative threaded rod, a driven wheel is arranged in the inner cavity of the frame body, and the driving wheel and the driven wheel are connected through belt transmission, the inner circle fixedly connected with bull stick from the driving wheel, the outside fixedly connected with saw bit of bull stick, centre gripping pushing mechanism's inner chamber is provided with the second motor, the output fixedly connected with disc of second motor, the top fixedly connected with stopper of disc, the top of disc is provided with empty chase, the top of stopper runs through empty chase and extends to the outside of empty chase, the top fixedly connected with push pedal of empty chase, centre gripping pushing mechanism is run through at the top of push pedal.
Preferably, the switch is installed in the outside of support body, the electrical property output of switch respectively with the electrical property input electric connection of first motor and second motor.
Preferably, the outer side of the hollow groove frame is fixedly connected with a sliding rod, the two sides of the inner wall of the clamping and pushing mechanism are fixedly connected with sliding rails matched with the sliding rod, and the sliding rod is connected with the sliding rails in a sliding mode.
Preferably, the outer side of the clamping and pushing mechanism is fixedly connected with a protection frame, and an inner cavity of the protection frame is fixedly connected with the outer side of the first motor.
Preferably, one side fixedly connected with limiting plate of centre gripping pushing mechanism inner wall, the one end that first motor was kept away from to positive and negative threaded rod runs through centre gripping pushing mechanism and extends to centre gripping pushing mechanism's inner chamber.
Preferably, the bottom of the threaded sleeve is fixedly connected with a sliding block, the bottom of the inner cavity of the clamping and pushing mechanism is provided with a sliding groove matched with the sliding block, and the sliding block is connected with the sliding groove in a sliding manner.
Preferably, the outer side of the second motor is fixedly connected with a positioning frame, and the bottom of the positioning frame is fixedly connected with the bottom of the inner cavity of the clamping and pushing mechanism.
The utility model has the advantages that:
the utility model discloses a second motor and disc cooperation are used, the user places panel on centre gripping pushing mechanism, the user opens first motor through the switch, first motor drives the clamp plate through positive and negative threaded rod and thread bush to the panel centre gripping, positive and negative threaded rod passes through action wheel and belt and drives from the driving wheel rotation, drive the saw bit through the bull stick from the driving wheel and cut panel, the user opens the second motor through the switch, the second motor passes through the disc and passes through stopper drive empty chase and push pedal removal, the push pedal promotes the panel cutting, it lacks clamping device to have solved current sliding table saw trigger, and unable automatic promotion panel, the problem that intensity of labour is big.
1. The utility model is provided with the switch, which is convenient for the user to open and close the first motor and the second motor, thereby reducing the labor force of the user; through being provided with the slide bar, stability when having improved empty slot frame and removing takes place to rock when preventing empty slot frame from removing.
2. The utility model is provided with the protection frame, which can protect the first motor and prevent the first motor from being damaged by external collision; through being provided with the limiting plate, can restrict the position of positive and negative threaded rod, prevent that positive and negative threaded rod from taking place the phenomenon of skew.
3. The utility model improves the stability of the thread bush when moving by arranging the sliding block, and prevents the thread bush from shaking when moving; through being provided with the locating frame, prevent that the second motor from taking place the phenomenon that drops, the effectual life who prolongs the second motor.
Drawings

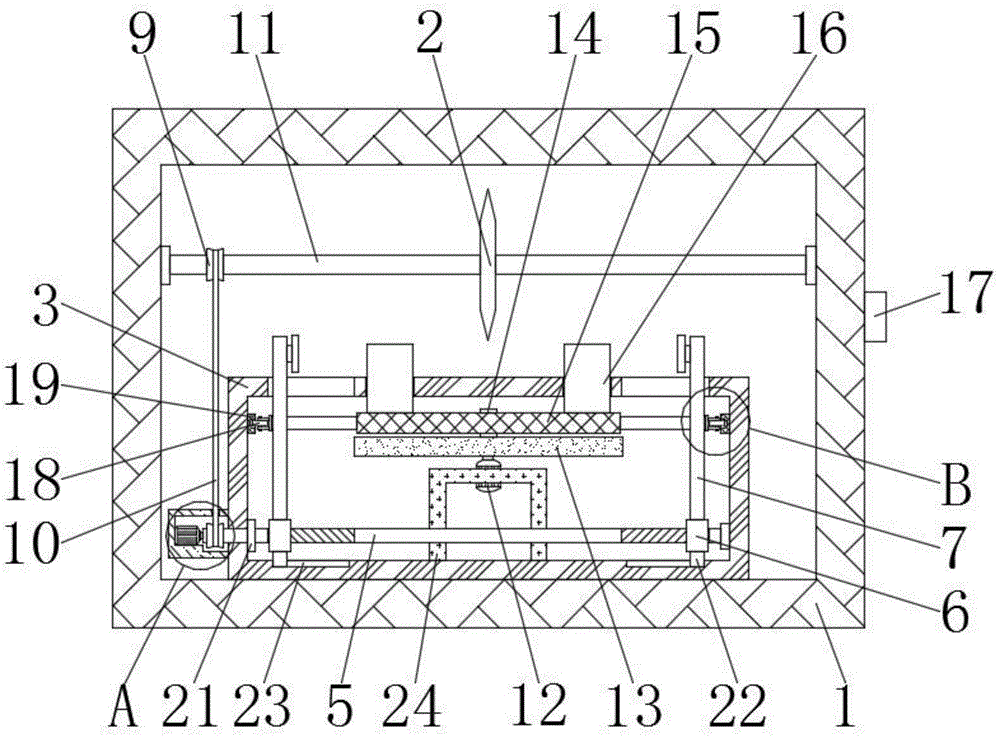

Fig. 1 is a schematic view of the overall structure provided by the present invention;
fig. 2 is an enlarged schematic structural view of a point a in fig. 1 according to the present invention;
fig. 3 is a top view of the disc provided by the present invention;
fig. 4 is an enlarged schematic structural view of a position B in fig. 1 according to the present invention;
in the figure: 1. a frame body; 2. a saw blade; 3. a clamping and pushing mechanism; 4. a first motor; 5. a positive and negative threaded rod; 6. a threaded sleeve; 7. a clamping plate; 8. a driving wheel; 9. a driven wheel; 10. a belt; 11. a rotating rod; 12. a second motor; 13. a disc; 14. a limiting block; 15. an empty slot frame; 16. pushing the plate; 17. a switch; 18. a slide bar; 19. a slide rail; 20. a protective frame; 21. a limiting plate; 22. a slider; 23. a chute; 24. and (5) positioning the frame.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
Embodiment 1, referring to fig. 1-4, the utility model provides a sliding table saw machine, including a frame body 1, a saw blade 2 and a clamping pushing mechanism 3, the inner cavity of the frame body 1 is provided with the saw blade 2, the bottom of the inner cavity of the frame body 1 is fixedly connected with the clamping pushing mechanism 3, the clamping pushing mechanism 3 includes a first motor 4 and a second motor 12, the outer side of the clamping pushing mechanism 3 is provided with the first motor 4, the output end of the first motor 4 is fixedly connected with a positive and negative threaded rod 5, one end of the positive and negative threaded rod 5 far away from the first motor 4 runs through the clamping pushing mechanism 3 and extends to the inner cavity of the clamping pushing mechanism 3, the outer side of the positive and negative threaded rod 5 is threadedly connected with a threaded sleeve 6, the top of the threaded sleeve 6 is fixedly connected with a clamping plate 7, the top of the clamping plate 7 runs through the clamping pushing mechanism 3 and extends to the outer side of the clamping pushing mechanism 3, the outer side of the positive and negative threaded rod 5 is fixedly connected with a driving wheel 8, the inner cavity of the frame body 1 is provided with a driven wheel 9, the driving wheel 8 is in transmission connection with the driven wheel 9 through a belt 10, the inner ring of the driven wheel 9 is fixedly connected with a rotating rod 11, the outer side of the rotating rod 11 is fixedly connected with a saw blade 2, the inner cavity of the clamping and pushing mechanism 3 is provided with a second motor 12, the output end of the second motor 12 is fixedly connected with a disc 13, the top of the disc 13 is fixedly connected with a limiting block 14, the top of the disc 13 is provided with a hollow groove frame 15, the top of the limiting block 14 penetrates through the hollow groove frame 15 and extends to the outer side of the hollow groove frame 15, the top of the hollow groove frame 15 is fixedly connected with a push plate 16, and the top of the push plate 16 penetrates through the clamping and pushing mechanism 3;
the utility model discloses a use as follows: when the utility model is used, a user places a plate on the clamping and pushing mechanism 3, the user turns on the first motor 4 through the switch 17, the first motor 4 starts to operate, the positive and negative threaded rod 5 is driven to rotate when the first motor 4 operates, the positive and negative threaded rod 5 starts to rotate, the positive and negative threaded rod 5 drives the threaded sleeve 6 to move when rotating, the threaded sleeve 6 starts to move, the clamping plate 7 is driven to move when the threaded sleeve 6 moves, the clamping plate 7 clamps the plate, the positive and negative threaded rod 5 drives the driving wheel 8 to rotate when rotating, the driving wheel 8 starts to rotate, the driving wheel 8 drives the driven wheel 9 to rotate through the belt 10 when rotating, the driven wheel 9 starts to rotate, the rotating rod 11 is driven to rotate when the driven wheel 9 rotates, the saw blade 2 is driven to cut the plate when the rotating rod 11 rotates, the user opens second motor 12 through switch 17, second motor 12 begins to operate, second motor 12 can drive disc 13 when moving and rotate, disc 13 can begin to rotate, disc 13 can drive stopper 14 when rotating and move, can drive empty groove frame 15 when stopper 14 moves, empty groove frame 15 can begin to move, can drive push pedal 16 when empty groove frame 15 moves, push pedal 16 promotes panel and cuts, to sum up, thereby reach sliding table saw trigger and increased clamping device, no longer need the manual work to press, and can promote panel by automation, user's labour has been reduced, production efficiency has been improved, then user's demand has been satisfied.
referring to the attached drawing 1 of the specification, the push bench saw blade machine of the embodiment comprises a frame body 1, a saw blade 2 and a clamping pushing mechanism 3, wherein the saw blade 2 is arranged in an inner cavity of the frame body 1, the clamping pushing mechanism 3 is fixedly connected to the bottom of the inner cavity of the frame body 1, the clamping pushing mechanism 3 comprises a first motor 4 and a second motor 12, a switch 17 is installed on the outer side of the frame body 1, an electrical output end of the switch 17 is electrically connected with an electrical input end of the first motor 4 and an electrical input end of the second motor 12 respectively, the first motor 4 is arranged on the outer side of the clamping pushing mechanism 3, a protection frame 20 is fixedly connected to the outer side of the clamping pushing mechanism 3, an inner cavity of the protection frame 20 is fixedly connected with the outer side of the first motor 4, an output end of the first motor 4 is fixedly connected with a positive and negative threaded rod 5, one end, far away from the first motor 4, of the positive and negative threaded rod 5 penetrates through the clamping pushing mechanism 3 and extends to the inner cavity of the clamping pushing mechanism 3, one side of the inner wall of the clamping and pushing mechanism 3 is fixedly connected with a limiting plate 21, one end, far away from the first motor 4, of the positive and negative threaded rod 5 penetrates through the clamping and pushing mechanism 3 and extends to the inner cavity of the clamping and pushing mechanism 3, the outer side of the positive and negative threaded rod 5 is connected with a threaded sleeve 6 through threads, the bottom of the threaded sleeve 6 is fixedly connected with a sliding block 22, the bottom of the inner cavity of the clamping and pushing mechanism 3 is provided with a sliding groove 23 matched with the sliding block 22, the sliding block 22 is in sliding connection with the sliding groove 23, the top of the threaded sleeve 6 is fixedly connected with a clamping plate 7, the top of the clamping plate 7 penetrates through the clamping and pushing mechanism 3 and extends to the outer side of the clamping and pushing mechanism 3, the outer side of the positive and negative threaded rod 5 is fixedly connected with a driving wheel 8, the inner cavity of the frame body 1 is provided with a driven wheel 9, and the driving wheel 8 is in transmission connection with the driven wheel 9 through a belt 10, the inner ring of the driven wheel 9 is fixedly connected with a rotating rod 11, the outer side of the rotating rod 11 is fixedly connected with a saw blade 2, the inner cavity of the clamping pushing mechanism 3 is provided with a second motor 12, the outer side of the second motor 12 is fixedly connected with a positioning frame 24, the bottom of the positioning frame 24 is fixedly connected with the bottom of the inner cavity of the clamping pushing mechanism 3, the output end of the second motor 12 is fixedly connected with a disc 13, the top of the disc 13 is fixedly connected with a limiting block 14, the top of the disc 13 is provided with an empty slot frame 15, the outer side of the empty slot frame 15 is fixedly connected with a slide rod 18, two sides of the inner wall of the clamping pushing mechanism 3 are fixedly connected with slide rails 19 matched with the slide rod 18, the slide rod 18 is slidably connected with the slide rails 19, the top of the limiting block 14 penetrates through the empty slot frame 15 and extends to the outer side of the empty slot frame 15, the top of the empty slot frame 15 is fixedly connected with a push plate 16, the top of the push plate 16 penetrates through the clamping and pushing mechanism 3.
The implementation scenario is specifically as follows: when the utility model is used, a user places a plate on the clamping and pushing mechanism 3, the user turns on the first motor 4 through the switch 17, the switch 17 is arranged, the user can turn on and turn off the first motor 4 and the second motor 12 conveniently, the labor force of the user is reduced, the first motor 4 starts to operate, the outer side of the first motor 4 is provided with the protective frame 20, the first motor 4 can be protected by arranging the protective frame 20, the first motor 4 is prevented from being damaged by external collision, the positive and negative threaded rod 5 can be driven to pass through the limiting plate 21 to rotate when the first motor 4 operates, the position of the positive and negative threaded rod 5 can be limited by arranging the limiting plate 21, the phenomenon that the positive and negative threaded rod 5 deviates can be prevented, the positive and negative threaded rod 5 can start to rotate, the threaded sleeve 6 can be driven to move when the positive and negative threaded rod 5 rotates, the bottom of the threaded sleeve 6 is provided with the sliding block 22, the sliding block 22 is arranged, the stability of the threaded sleeve 6 during movement is improved, the threaded sleeve 6 is prevented from shaking during movement, the threaded sleeve 6 can start to move, the clamping plate 7 can be driven to move when the threaded sleeve 6 moves, the clamping plate 7 clamps the plate, the positive and negative threaded rod 5 can drive the driving wheel 8 to rotate when rotating, the driving wheel 8 can start to rotate, the driving wheel 8 can drive the driven wheel 9 to rotate through the belt 10 when rotating, the driven wheel 9 can start to rotate, the rotating rod 11 can be driven to rotate when rotating the driven wheel 9, the rotating rod 11 can drive the saw blade 2 to cut the plate when rotating, a user can start the second motor 12 through the switch 17, the second motor 12 starts to operate, the positioning frame 24 is arranged outside the second motor 12, and the positioning frame 24 is arranged, the phenomenon that the second motor 12 falls off is prevented, the service life of the second motor 12 is effectively prolonged, the second motor 12 can drive the disc 13 to rotate when running, the disc 13 can start to rotate, the disc 13 can drive the limiting block 14 to move when rotating, the limiting block 14 can drive the empty slot frame 15 to move when moving, the empty slot frame 15 can start to move, the sliding rod 18 is arranged on the outer side of the empty slot frame 15, the sliding rod 18 is arranged, the stability of the empty slot frame 15 during moving is improved, the empty slot frame 15 is prevented from shaking when moving, the pushing plate 16 can be driven to move when moving the empty slot frame 15, and the pushing plate 16 pushes the plate to cut, therefore, the clamping device is added to the push bench saw machine, manual pressing is not needed any more, the plate can be pushed automatically, labor force of a user is reduced, and production efficiency is improved, thereby meeting the requirements of users and ensuring the benefits of the users.
The above description is only a preferred embodiment of the present invention, and any person skilled in the art may modify the present invention or modify it into an equivalent technical solution by using the technical solutions described above. Therefore, any simple modifications or equivalent replacements made according to the technical solution of the present invention belong to the scope of the claimed invention as far as possible.
